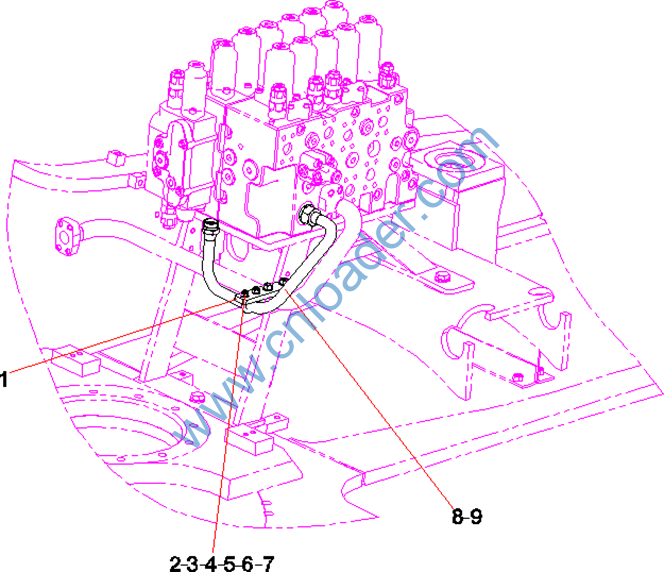

1 11539370 1 夹板 Clamp
2 11539392 1 U型螺栓 U type bolt
3 A210307000012 2 螺母 Nut
4 60060565 2 垫圈8GB96.1 达克锈 Washer
5 11160698 1 U型螺栓 U type bolt
6 A210307000036 2 螺母 Nut
7 60060546 2 垫圈10GB96.1 达克锈 Washer
8 11539375 1 钢管总成 Tube group
9 60000846 1 O形圈 O-ring

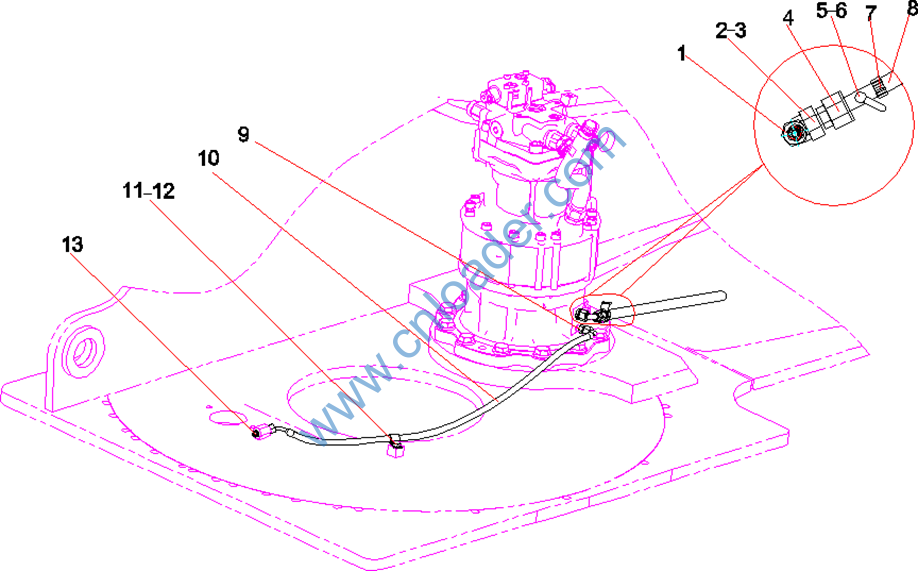

1 A820205002283 1 接头 Fitting
2 B210780000024 1 直角组合接头 Connector
3 B210780001426 1 管接头 Fitting
4 10137010 1 接头 Fitting
5 B220401000916 1 放油阀 Valve AS, drain
6 60006360 1 垫圈 Washer, copper
7 A229900001345 1 软管环箍 Clamp
8 10192981 1 放油软管 Hose, return
9 A820205002483 1 PT1/4-M14过渡接头 Fitting
10 A831233105800 1 胶管总成 Hose AS, grease
11 60083322 1 线夹 Clamp
12 A210111000199 1 螺栓M12×20GB5783 10.9级 Bolt
13 B229900000686 1 黄油嘴 Grease nipple

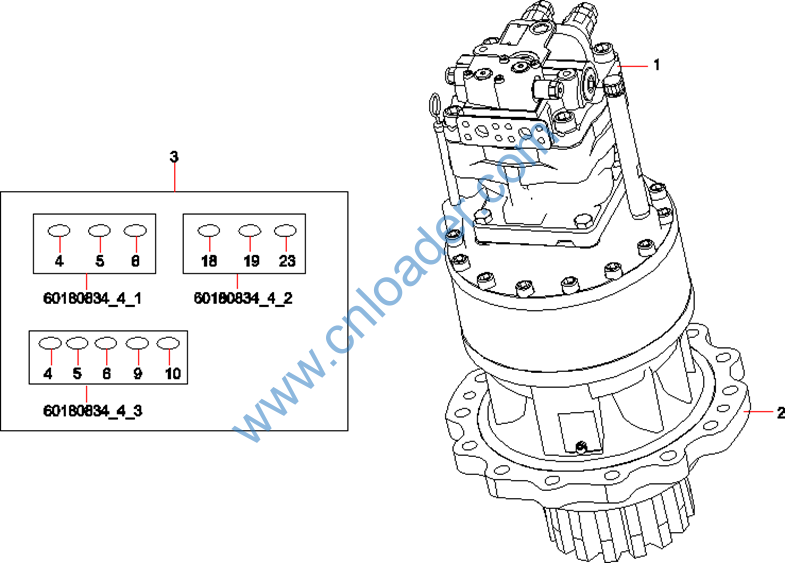

1 60180834 1 回转马达 Motor AS, swing
2 60180835 1 回转减速机 Drive AS, swing
3 B229900003185 1 20T回转机构维修包 Kit, seal, swing motor

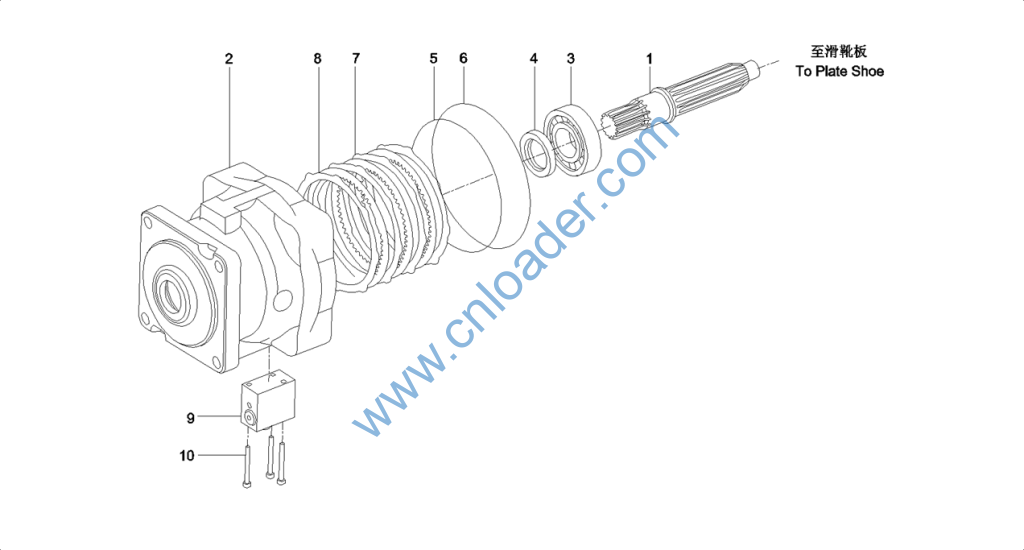

1 60008573 1 驱动轴 Shaft, motor output
2 60008571 1 DD3机体 Housing, swing motor
3 60008740 1 轴承 Bearing
4 60008744 1 密封座 Seal
5 60008881 1 O形圈 O-ring
6 60008883 1 O形圈 O-ring
7 B229900003186 3 20T回转制动从动片 Plate, seperator
8 B229900003187 4 20T回转制动主动片 Plate, friction
9 B220401000688 1 回转马达延时阀 Valve,brake,delay
10 60008845 3 螺栓 Bolt, socket head

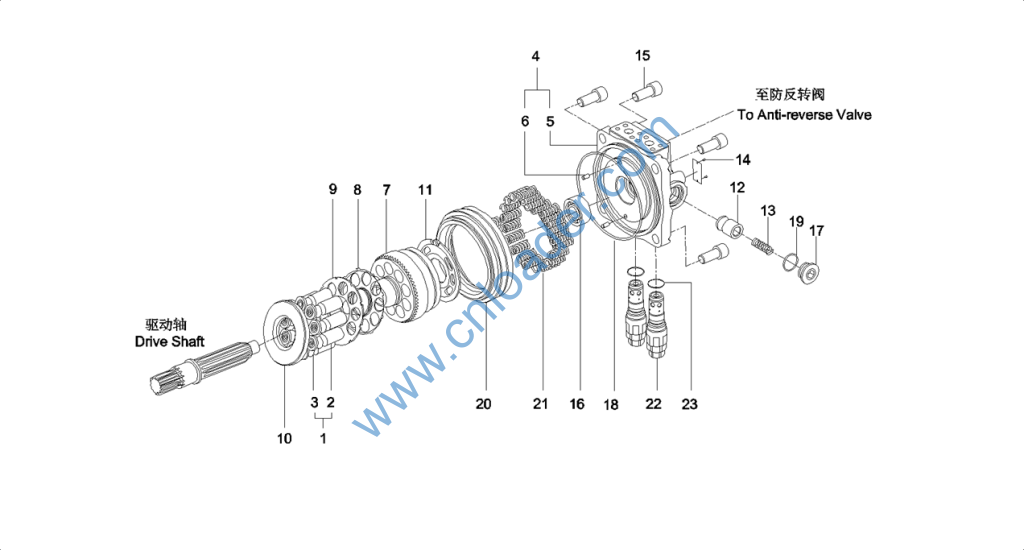

1 B229900002240 1 柱塞 Piston AS
2 60008580 9 活塞 Piston
3 60008574 9 滑靴 Slipper
4 60008570 1 阀体组件 Valve, body GP
5 60008569 1 H2阀体 Valve, body
6 60008878 2 销 Pin
7 60008575 1 油缸 Cylinder
8 60008567 1 架体 plate
9 60008572 1 架体 Plate
10 60008577 1 滑靴板 Swashplate
11 B229900002241 1 配油盘 Plate, port
12 60008579 2 单向阀阀体 Body, check valve
13 60008578 2 弹簧 Spring
14 60008722 2 铆钉 Rivet
15 60008840 4 螺栓 Bolt, socket head
16 60008739 1 轴承 Bolt
17 60008716 2 堵 Plug
18 60008882 1 O形圈 O-ring
19 60008862 2 O形圈 O-ring
20 60008576 1 活塞 Brake, piston
21 60008568 24 弹簧 Spring
22 B220401000693 2 20T回转溢流阀 Valve, relief
23 B230101000036 2 O形圈 O-ring

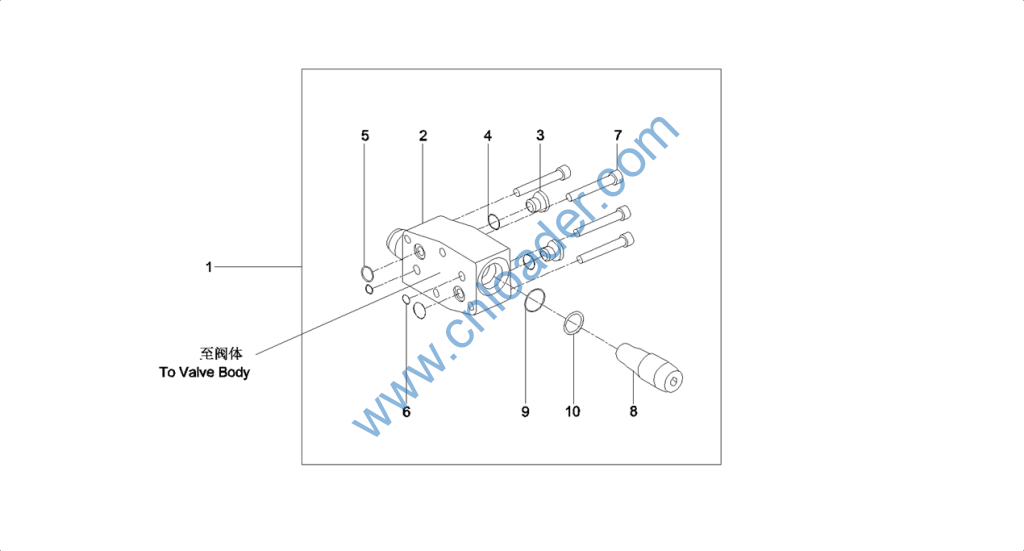

1 B220401000687 1 回转马达防摆阀 Anti-swing Valve of rotary motor
2 60008793 1 机体 Valve, body
3 60008711 2 堵 Plug
4 B230103003795 2 O形圈 O-Ring
5 60008699 2 O形圈 O-ring
6 60008707 2 O形圈 O-ring
7 60008848 4 螺钉 Bolt, socket head
8 60008753 2 防反转阀 Valve, anit-rebound
9 B230101000363 2 O形圈 O-ring
10 60008867 2 密封挡圈 Ring, retainer

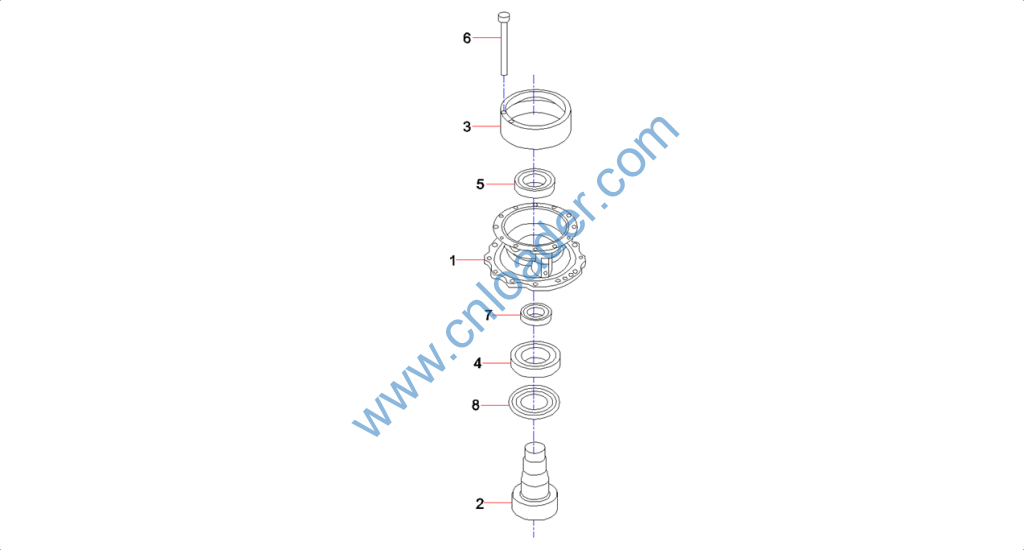

1 60065327 1 座 Housing, lower
2 60065314 1 驱动轴 Gear, pinion
3 60065240 1 齿圈 Gear, ring
4 B221500000627 1 自动调心轴承 Bearing, self-aligning
5 B221500000626 1 自动调心轴承 Bearing, self-aligning
6 A210204000297 14 螺钉 Screw
7 60065353 1 油封 Seal, oil
8 B230101001021 1 轴承密封件 Seal, grease

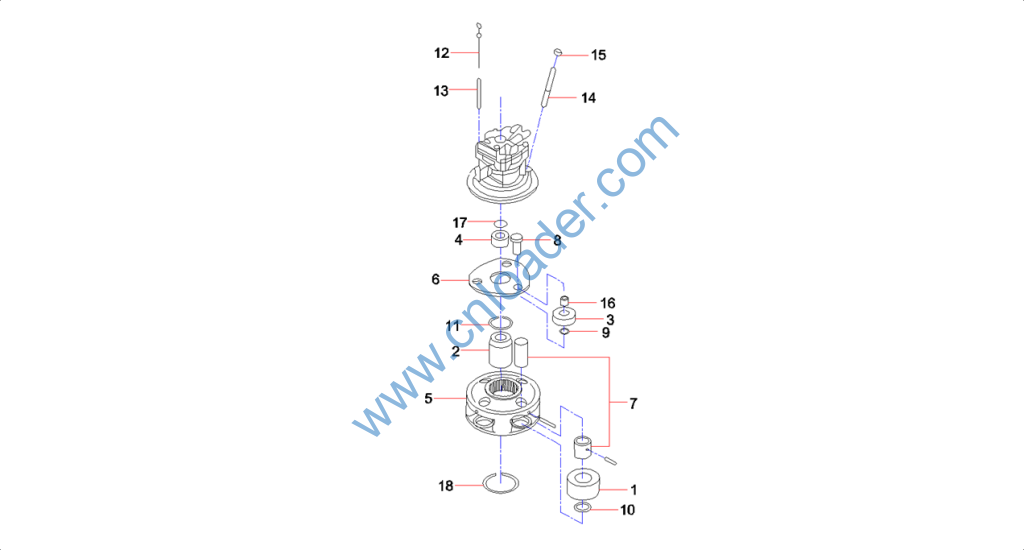

1 60065230 4 行星齿轮 Gear, planet
2 60065228 1 太阳齿轮 Gear, sun
3 60065229 3 行星齿轮 Gear, planet
4 60065227 1 太阳齿轮 Gear, sun
5 60065319 1 支架 Carrier, planet gear
6 60065318 1 支架 Plate, carrier
7 60065226 4 二级行星轮组件 Bearing, shaft AS
8 60008608 3 一级行星轮轴 Shaft
9 60008616 3 垫 Washer
10 B229900002800 4 2 行星齿轮垫片 Washer, thrust
11 60065255 1 垫片 Washer ,thrust
12 60008605 1 油尺 Dipstick, oil
13 60008614 1 油尺外管 Tube, dipstick
14 60008615 1 加油管 Tube, fill
15 B229900002437 1 呼吸管盖 Cap, breather
16 60008727 3 轴套 Bushing
17 60008875 1 弹性挡圈 Ring, snap
18 60008876 1 弹性挡圈 Ring, snap

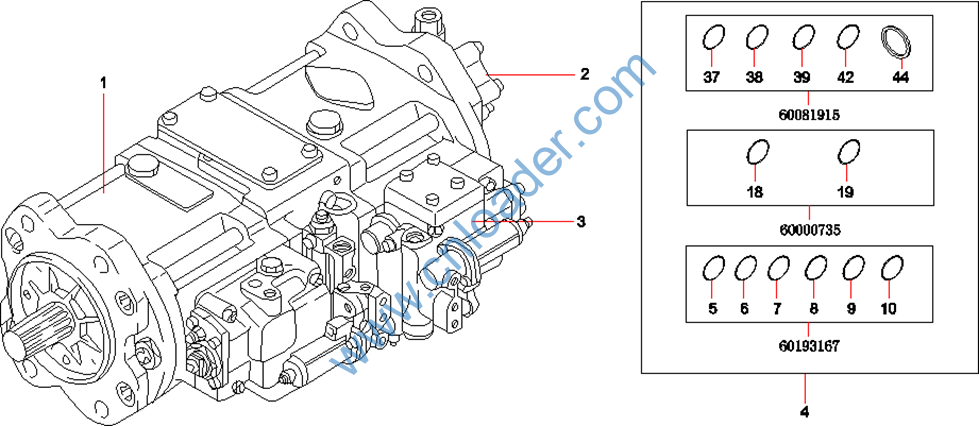

1 60081915 1 柱塞泵组件 Pump GP, piston
2 60000735 1 先导齿轮泵 Pump, gear, pilot
3 60193167 2 主泵调节器 Regulator, main pump
4 60204222 1 主泵维修包 Pump, main, seal kit

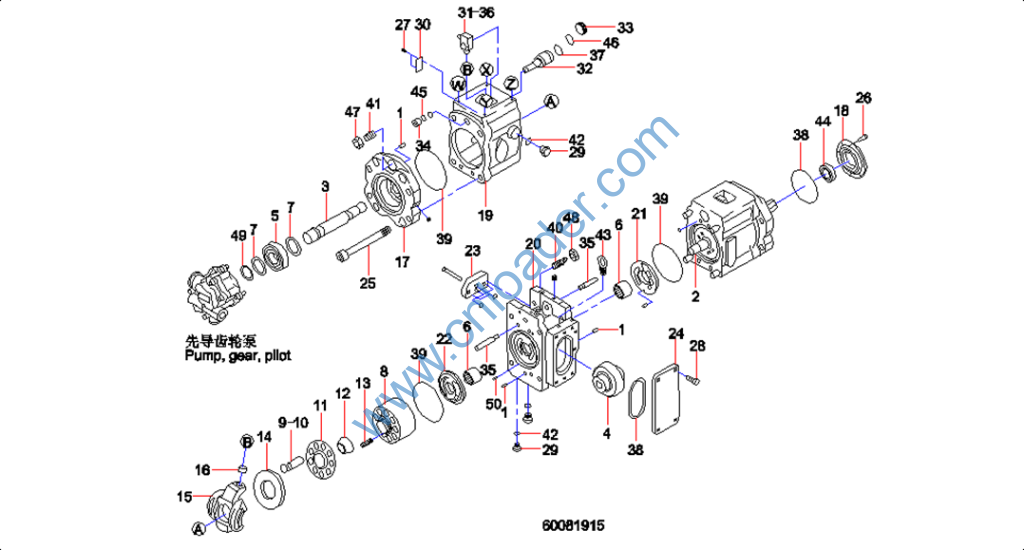

1 60008878 4 销 Pin
2 60008528 1 驱动轴 Shaft, drive
3 60008527 1 驱动轴 Shaft, driven
4 60008492 1 1号齿轮 Coupling
5 60006940 2 前轴承 Bearing, front
6 60008726 2 轴承 Bearing
7 60008582 4 垫片 Seal
8 B229900005459 2 主泵缸体 Barrel AS
9 60008519 18 柱塞 Piston
10 60008517 18 滑靴 Slipper
11 60008516 2 架体 Ring
12 B229900005452 2 球面衬套 Bushing, spherical
13 60008545 18 弹簧 Spring
14 B229900005449 2 滑靴盘 Support, swashplate
15 B229900005455 2 斜盘 Swashplate
16 60008732 2 衬套 Bushing
17 B229900005456 2 斜盘支撑台 Head
18 60008531 1 轴承盖板 Plate, bearing
19 60039298 2 泵体 Body
20 60039372 1 配油壳体 Housing, center
21 60093151 1 配油盘 Plate, port
22 60151387 1 配油盘 Plate, port
23 60008550 1 盖 Cover
24 60008511 1 盖 Cover
25 60008543 8 内六角螺栓 Bolt, socket head
26 60039371 4 内六角螺栓 Bolt, socket head
27 60008722 2 铆钉 Rivet
28 60008717 4 螺栓 Bolt, socket head
29 60008725 4 堵 Plug
30 60038547 1 铭牌 name plate
31 60008530 2 销 Pin
32 60008518 2 活塞 Piston
33 60008521 2 挡板 Plate, retaining
34 60008542 2 挡板 Plate, retaining
35 60008501 2 套 Sleeve
36 60008549 2 销 Pin
37 60008693 2 O形圈 O-ring
38 60008695 2 O形圈 O-ring
39 60008691 4 O形圈 O-ring
40 60008544 2 螺柱 Stud
41 60008742 2 螺柱 Stud
42 60008705 4 O形圈 O-ring
43 60038330 2 吊环螺栓 Eyebolt
44 60151388 1 油封 Seal
45 60039326 2 挡圈 ring
46 60039325 2 挡圈 ring
47 60038452 2 六角螺母 nut
48 60039359 2 六角螺母 nut
49 60008723 2 挡圈 Ring, retaining
50 60008737 2 销 Pin
