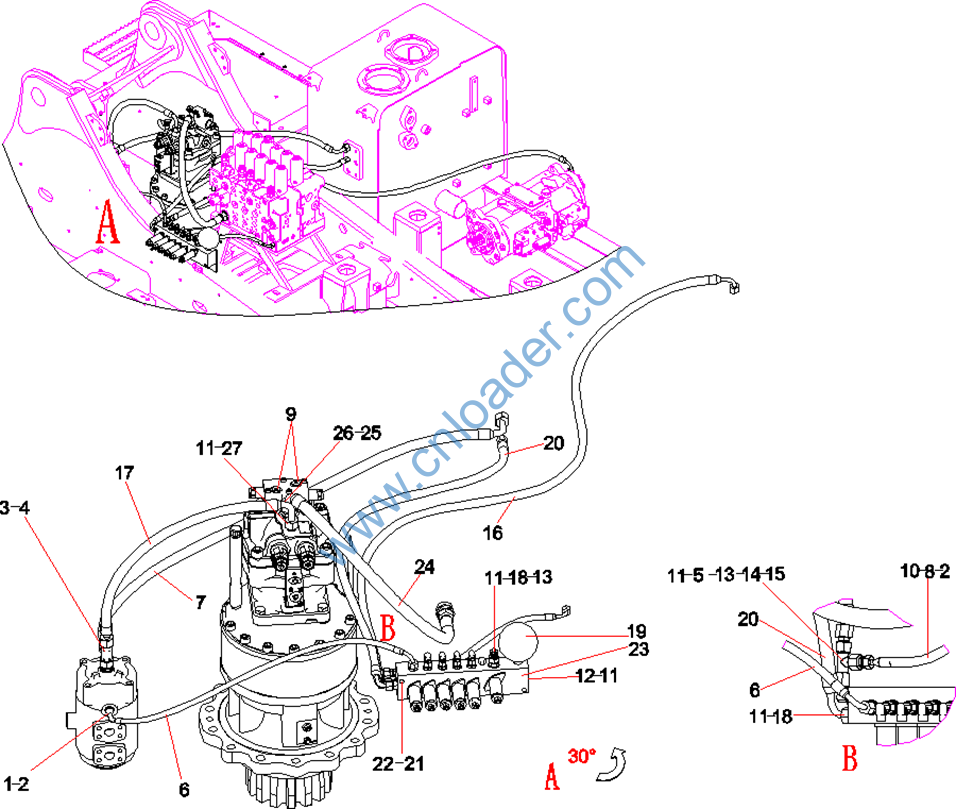

1 A820205000940 6 接头 Fitting
2 B230101000047 7 O形圈 O-Ring-10.8
3 A820205000962 1 接头 Connector
4 B230101000090 1 O形圈 B230101000090
5 B210780001007 1 三通组合L型接头 Fitting, Tee
6 60184562 1 胶管 Hose AS
7 23000824 1 胶管 Hose AS
8 B210780000418 3 直角组合接头 Fitting
9 13184210 2 可调向管接头 adapter
10 B230103000993 1 胶管 Hose Assembly
11 B230101000049 4 O形圈 O-ring
12 A820205000947 1 堵头 Plug
13 B210780000024 2 直角组合接头 Connector
14 B210780000016 1 三通组合L型接头 Fitting, Tee
15 B210780000827 1 管接头 Fitting
16 B230103000932 1 胶管 Hose AS
17 B230103001223 1 胶管 Hose AS
18 A820205000961 3 G3/8-M18接头 Connector
19 60265303 1 隔膜式蓄能器 Accumulator
20 B230103002533 1 胶管 Hose AS
21 24000512 2 垫圈10GB93 达克锈 Washer
22 A210204000358 2 螺钉M10×80GB70.1 10.9级 Bolt
23 60136331 1 六联电磁换向阀组 Solenoid valve group
24 B230103004204 1 胶管 Hose AS
25 B230101000356 1 O形圈 O-Ring-23.7
26 A820205000942 1 接头 Fitting
27 A820205000948 1 G3/8-M26接头 Connector

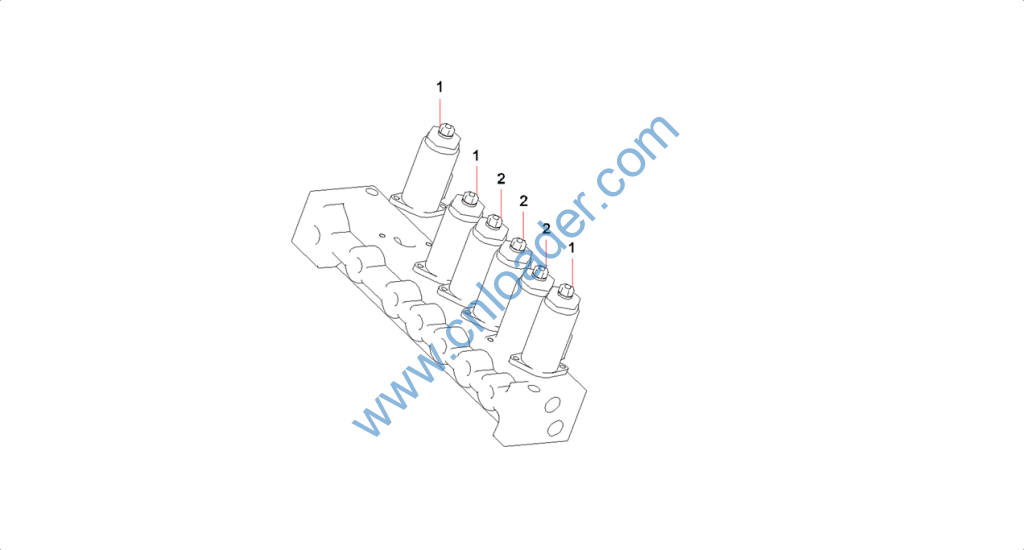

1 60065224 3 电磁切换阀 Solenoid, valve on/off
2 60065222 3 减压阀KDRDE5K-31/30C50-122( Solenoid, proportional

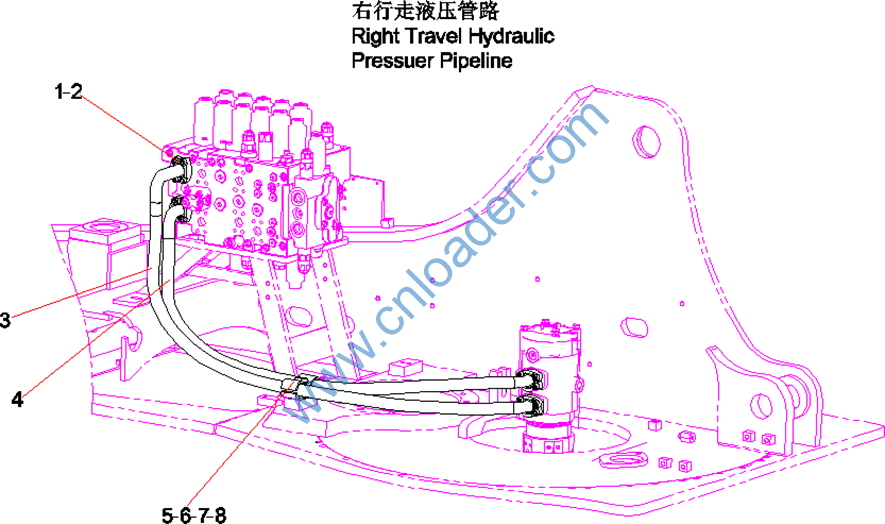

1 B210780000244 8 对开法兰 Flange, Split
2 A210204000354 16 螺钉 Screw
3 B230103002316 1 胶管 Hose AS
4 B230103002317 1 胶管 Hose AS
5 A810406012423 1 上板 Bracket, upper
6 A810406012424 1 下板 Bracket, lower
7 A210204000357 2 螺钉M10×60GB70.1 10.9级 Bolt
8 A820606010360 4 衬垫 Grommet

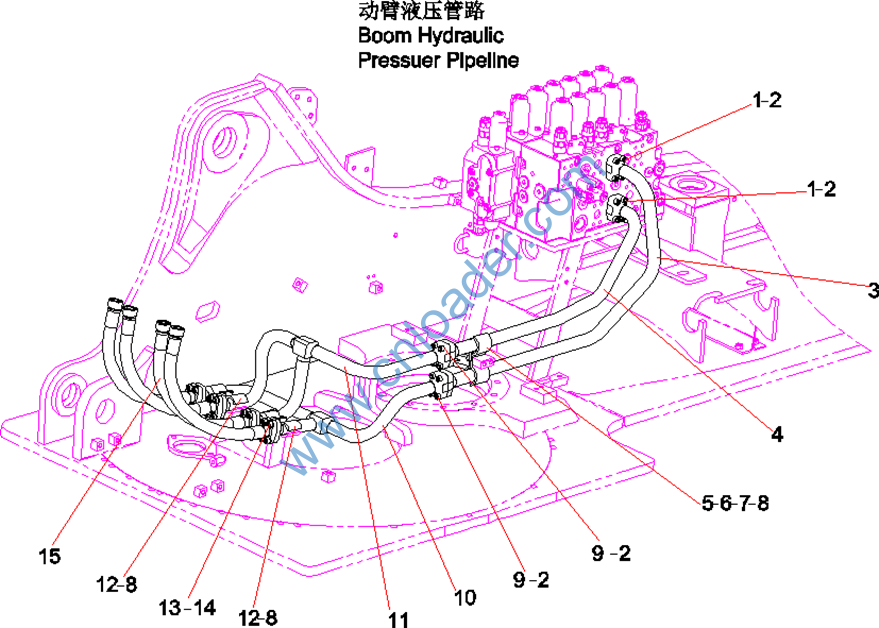

1 A210204000215 8 螺钉M10×35GB70.1 10.9级 Screw
2 B230101000456 4 O形圈 O-ring
3 11538576 1 钢管总成 Tube group
4 11538578 1 钢管总成 Tube group
5 11539353 1 压板 Clamp
6 A820606010360 4 衬垫 Grommet
7 24000639 2 垫圈12GB97.1 达克锈 Washer
8 A210204000337 6 螺钉M12×30GB70.1 10.9级 Screw
9 A210204000355 8 螺钉M10×40GB70.1 10.9级 Bolt, socket head
10 11539135 1 动臂大腔钢管 Tube, boom cylinder, head end
11 11539237 1 动臂小腔钢管 Tube, boom cylinder, rod end
12 11654944 2 压板 Clamp AS
13 B210780000696 8 对开法兰 Flange, split
14 A210204000354 16 螺钉 Screw
15 B230103002294 4 胶管 Hose AS

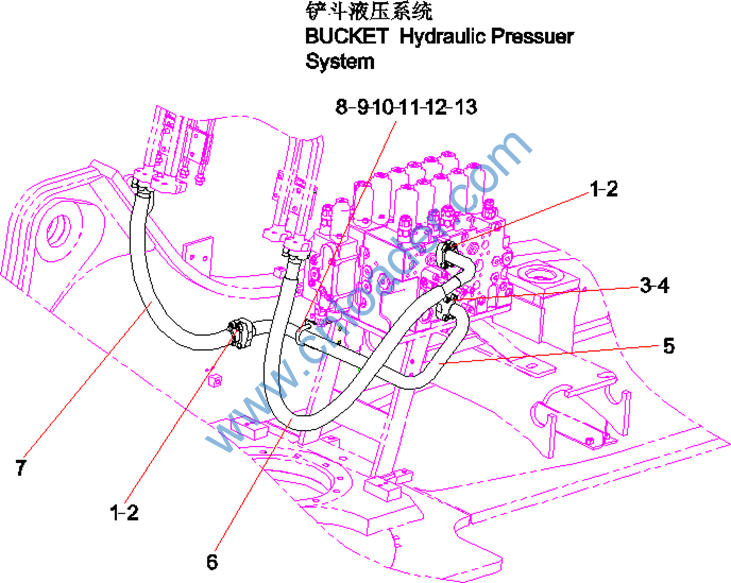

1 B210780000244 4 对开法兰 Flange, Split
2 A210204000354 8 螺钉 Screw
3 A210204000215 4 螺钉M10×35GB70.1 10.9级 Screw
4 B230101000456 1 O形圈 O-ring
5 11531616 1 钢管总成 Tube group
6 60041191 1 胶管 Hose AS
7 60065987 1 胶管 Hose AS
8 11144202 1 支架 Bracket
9 A210204000354 2 螺钉 Screw
10 24000637 2 垫圈 Washer
11 11160698 1 U型螺栓 U type bolt
12 A210307000036 2 螺母 Nut
13 60060546 2 垫圈10GB96.1 达克锈 Washer

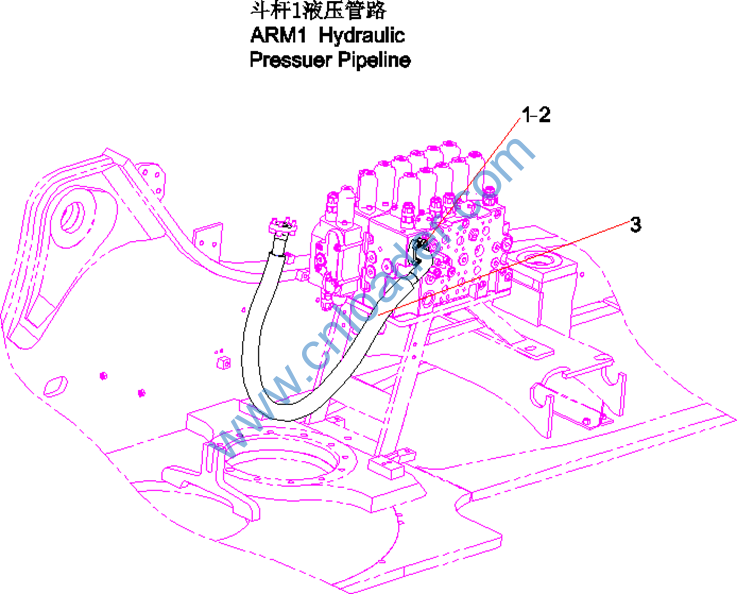

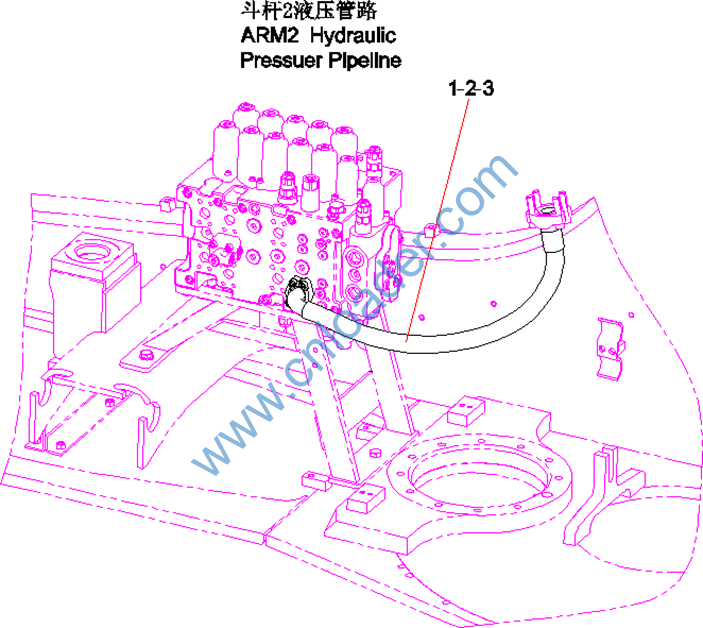

1 B210780000244 2 对开法兰 Flange, Split
2 A210204000354 4 螺钉 Screw
3 60032054 1 胶管 Rubber Hose

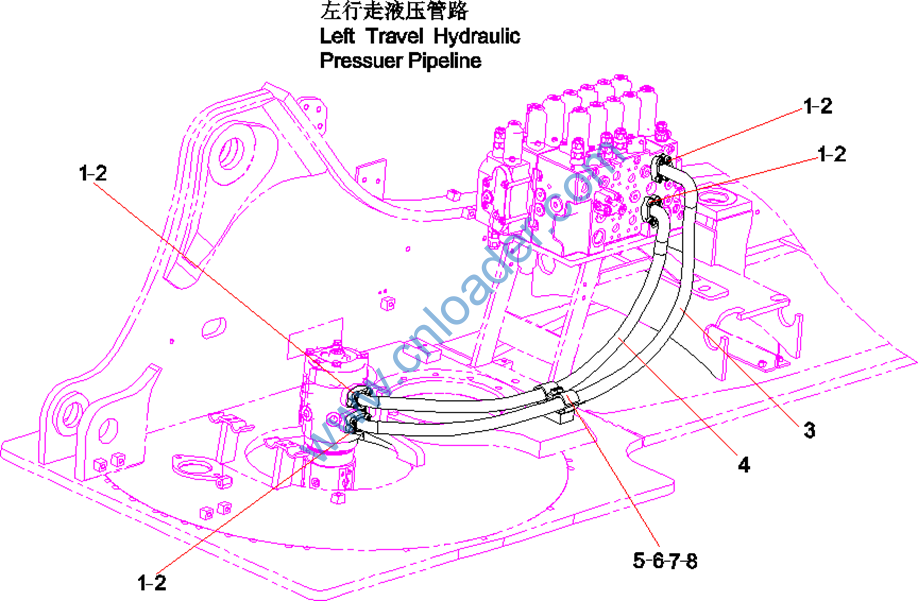

1 B210780000244 8 对开法兰 Flange, Split
2 A210204000354 14 螺钉 Screw
3 B230103002318 1 胶管 Hose AS
4 B230103002320 1 胶管 Hose AS
5 A820606010360 4 衬垫 Grommet
6 A810406012423 1 上板 Bracket, upper
7 A810406012424 1 下板 Bracket, lower
8 A210204000357 2 螺钉M10×60GB70.1 10.9级 Bolt

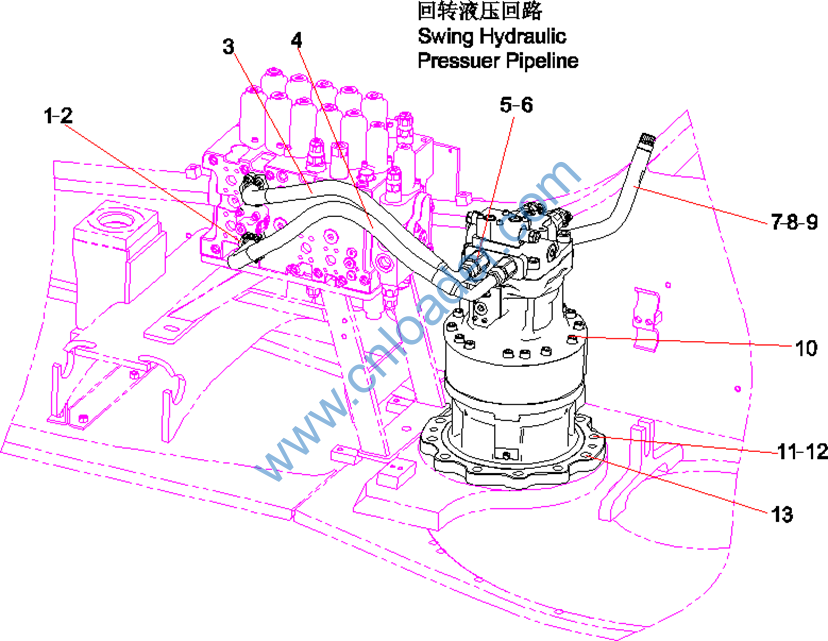

1 B210780000244 4 对开法兰 Flange, Split
2 A210204000354 4 螺钉 Screw
3 60167468 1 胶管 Hose AS
4 60167467 1 胶管 Hose AS
5 A820205002474 2 接头 Fitting
6 B230101000356 2 O形圈 O-Ring-23.7
7 13186696 1 21T回转马达用接头 Connector
8 13186692 1 19T加注齿轮油管总成 Tube, fill
9 60263201 1 通气帽 Cap, breather
10 B229900006314 1 减速机总成 Reducer AS
11 A210111000062 11 螺栓M20×60GB5783 10.9级 Bolt
12 A210491000132 11 垫圈 Washer
13 A820301012852 1 回转机构定位销 Pin, dowel
1 60078309 1 胶管 Hose AS
2 B210780000244 2 对开法兰 Flange, Split
3 A210204000354 4 螺钉 Screw

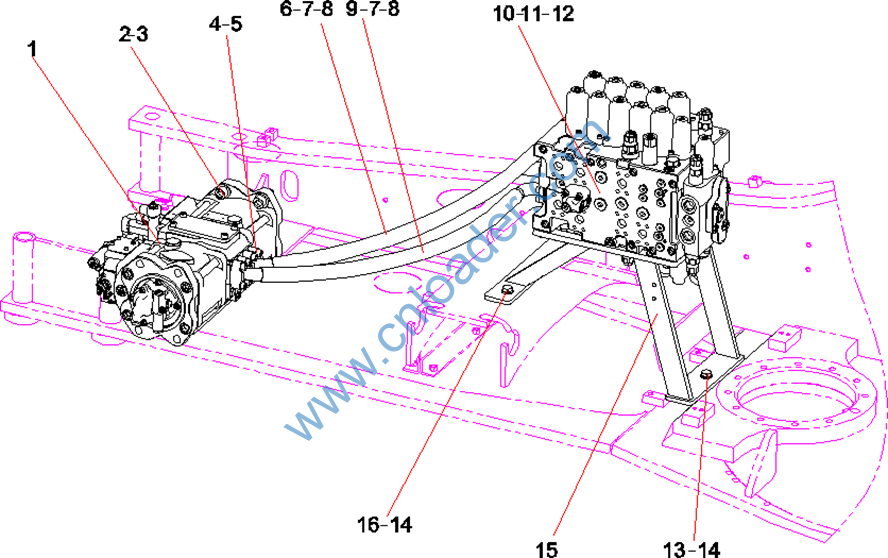

1 60123319 1 复合泵组 Plunger Pump
2 A210204000300 4 螺钉M20×55GB70.1 10.9级 Bolt, socket head
3 A210491000132 4 垫圈 Washer
4 B210780000004 4 对开法兰 Flange, Split
5 A210204000462 8 螺钉 Screw
6 60273783 1 胶管 Hose AS
7 B210780000244 4 对开法兰 Flange, Split
8 A210204000354 8 螺钉 Screw
9 60284989 1 胶管 Hose AS
10 60318588 1 多路阀 Valve, main control
11 A210111000203 1 螺栓M12×35GB5783 10.9级 Bolt
12 A210204000198 3 螺钉M16×35GB70.1 10.9级 Screw
13 A210111000212 1 螺栓 Bolt
14 60060553 3 垫圈16GB96.1 达克锈 Washer
15 13665281 1 主阀架 Bracket, mounting
16 A210110000324 2 螺栓M16×65GB5782 10.9级 Bolt, socket head

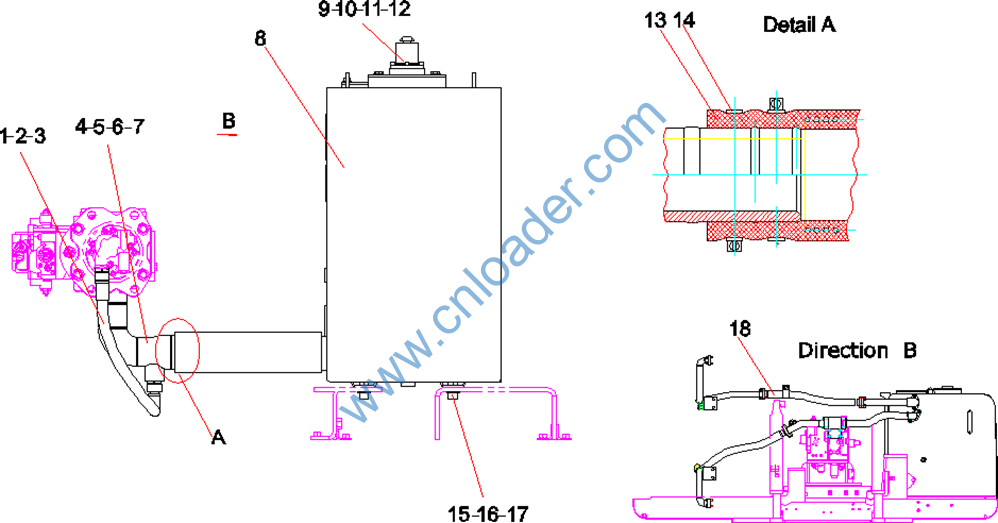

1 B230103001168 1 胶管总成 Hose AS
2 B230101000356 2 O形圈 O-Ring-23.7
3 A820205000187 2 管接头 Fitting
4 13623327 1 吸油钢管 Tube, suction
5 B230101000038 1 O形圈 O-Ring-69.4
6 A210204000337 4 螺钉M12×30GB70.1 10.9级 Screw
7 24000639 4 垫圈12GB97.1 达克锈 Washer
8 13623847 1 液压油箱总成 Tank, hydraulic
9 60129702 1 呼吸阀 Valve, breather AS
10 A210204000130 4 螺钉 Screw
11 24000632 4 垫圈 washer
12 B230101000366 1 O形圈 O-ring
13 13623276 1 吸油胶管 Hose
14 60250343 4 T型抱箍φ104.8-φ112.7 带弹簧 Clamp, hose
15 A210204000198 6 螺钉M16×35GB70.1 10.9级 Screw
16 A820101118172 12 垫片 Gasket
17 A210491000118 6 垫圈 High-strength steel washer
18 13657741 1 回油管路 Tube, return
