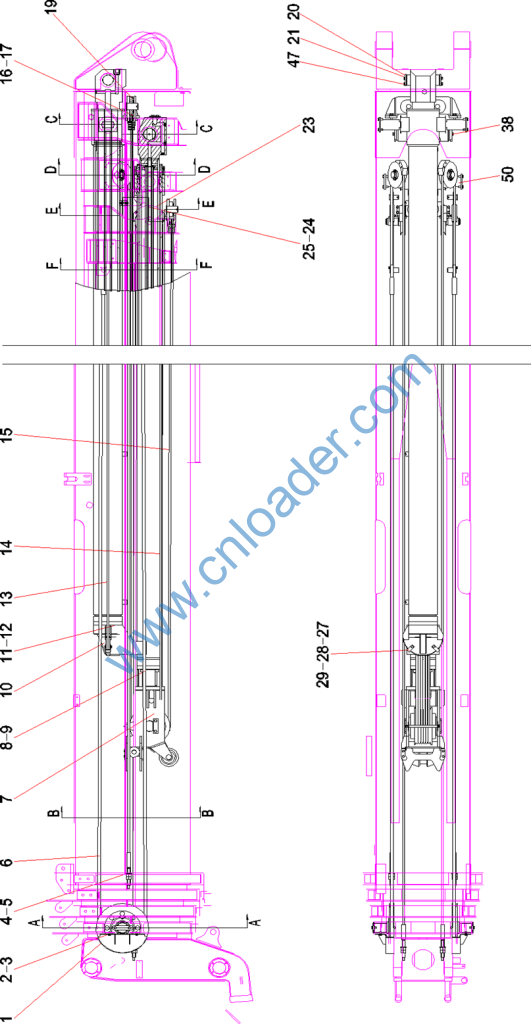

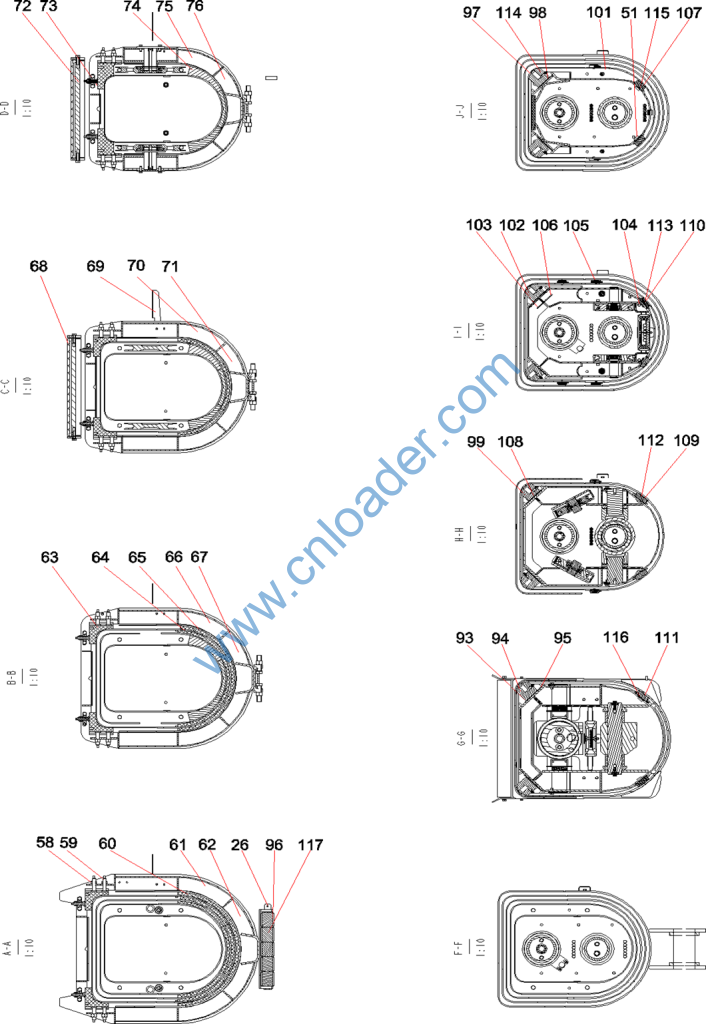

26 A210491000018 Pin, Cotter 1
58 A210307000040 Nut 24
60 12610301 Wear Pad 3
62 12610300 Plate, Keeper 1
64 12615725 Wear Pad 3
66 12610302 Plate, Keeper 2
68 10042078 Roller Assembly, Wire Rope 1
70 12610296 Plate, Keeper 2
72 10669838 Roller Assembly, Wire Rope 2
74 12616987 Wear Pad Group, 3th Boom Section, Lower 1
76 12610295 Plate, Keeper 1
94 12215683 Wear Pad, 1st Boom Section, Upper 2
96 10138993 Bushing 5
98 10041415 Shim 2
101 12610292 Wear Pad, Wire Rope 2
103 12610305 Spacer, Adjusting 2
104 A210211000015 Screw 35
105 12215719 Wear Pad, 1st Boom Section, Side 8
107 12710929 Wear Pad, 4th Boom Section, Lower 2
109 13388499 Wear Pad, 2nd Boom Section, Lower 2
111 13388484 Wear Pad, 1st Boom Section, Lower 2
113 13388592 Shim 2
115 12215703 Shim 2
117 13339627 Pin, A0 1
77 10138120 Sheave Assembly 2
79 10137548 Bushing, Spacer 1
81 10138100 Sheave Assembly 4
83 13327034 Pin, H1 1
85 12215697 Retainer 6
87 10138985 Cushion, Adjusting 27
89 A210307000005 Nut 9
91 10138982 Cushion, Adjusting 8
100 11562556 Bushing 2
1 10138120 Sheave Assembly 1
2 A210491000031 Pin, Cotter 2
3 12610316 Section, Auxiliary Boom Nose 1
4 A210401000016 Washer 6
5 A829900002661 Clip 2
6 A210111000079 Bolt 6
7 10138004 Retainer 2
8 11052110 Spacer Ring 2
9 10446800 Pin 2
10 13351843 Pin 2
11 13338386 Pin, H2 1

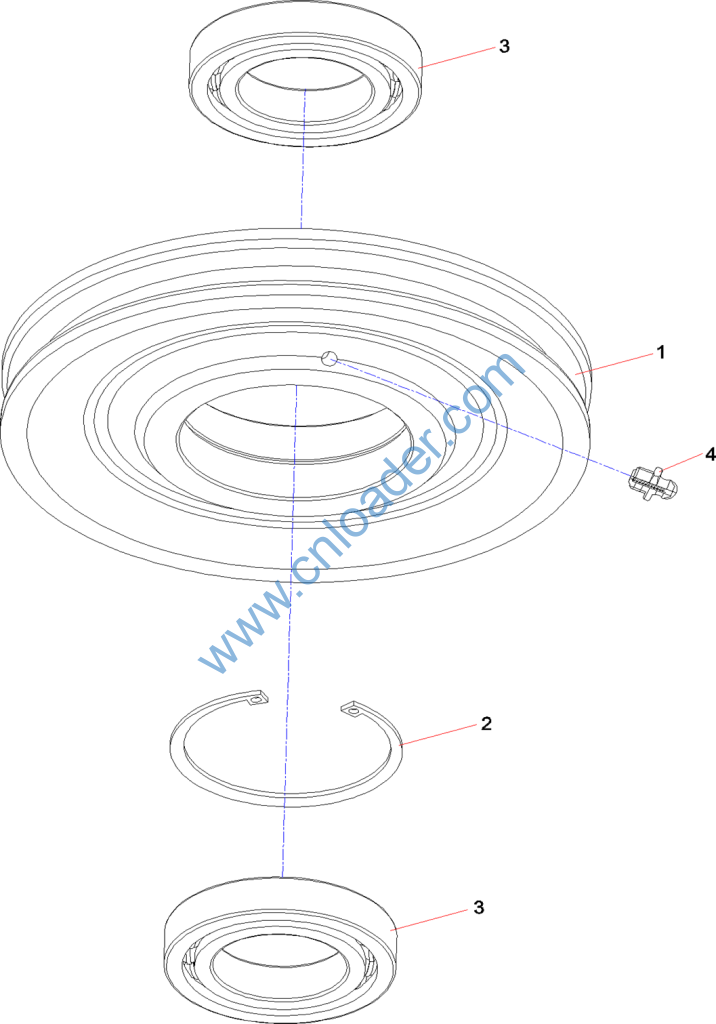

1 10138116 Sheave 1
2 A210416000006 Ring, Snap 1
3 A210601006272 Bearing, Roller 2
4 A210804000002 Fitting, Grease 1

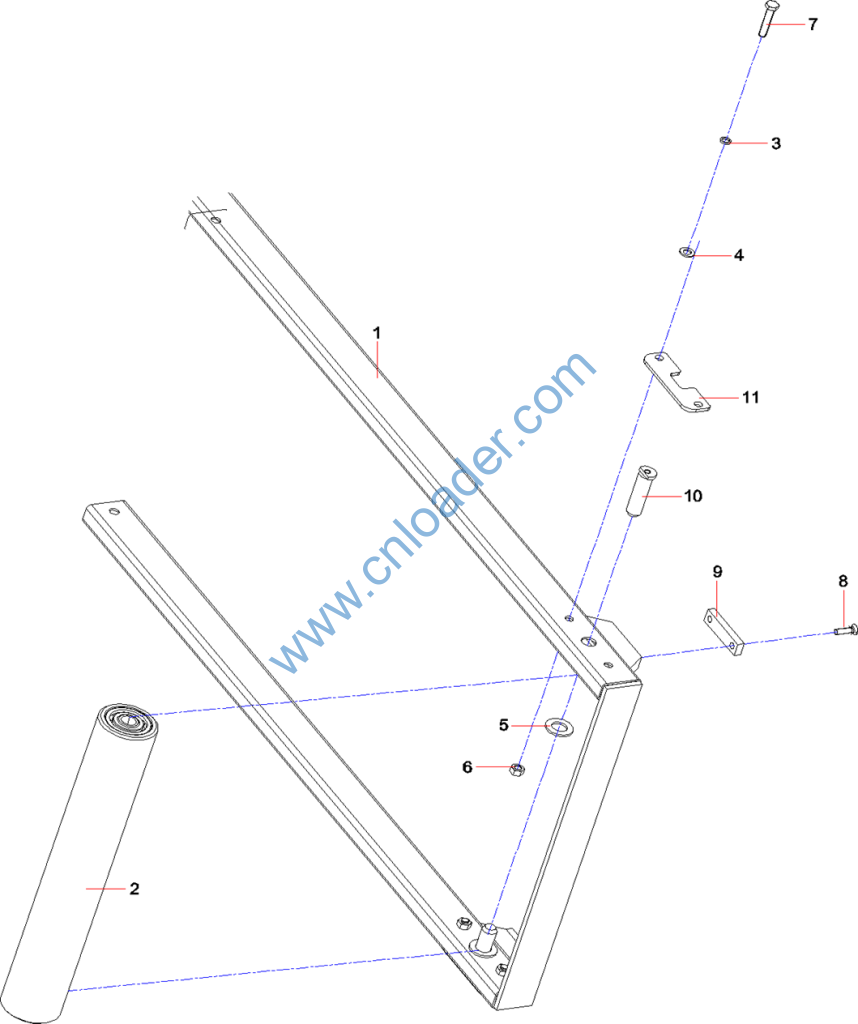

1 12259120 Support Assembly 1
2 12259123 Roller Assembly, Wire Rope 1
3 A210401000001 Washer 4
4 A210405000011 Washer 4
5 A210405000008 Washer 2
6 A210307000017 Nut 4
7 A210111000029 Bolt 4
8 A210211000015 Screw 4
9 10138473 Wear Pad 2
10 13340382 Pin 2
11 12259116 Lock Plate 2
1 A210601006241 Bearing 2
2 12259121 Roller 1
3 13332315 Pin, E7 1

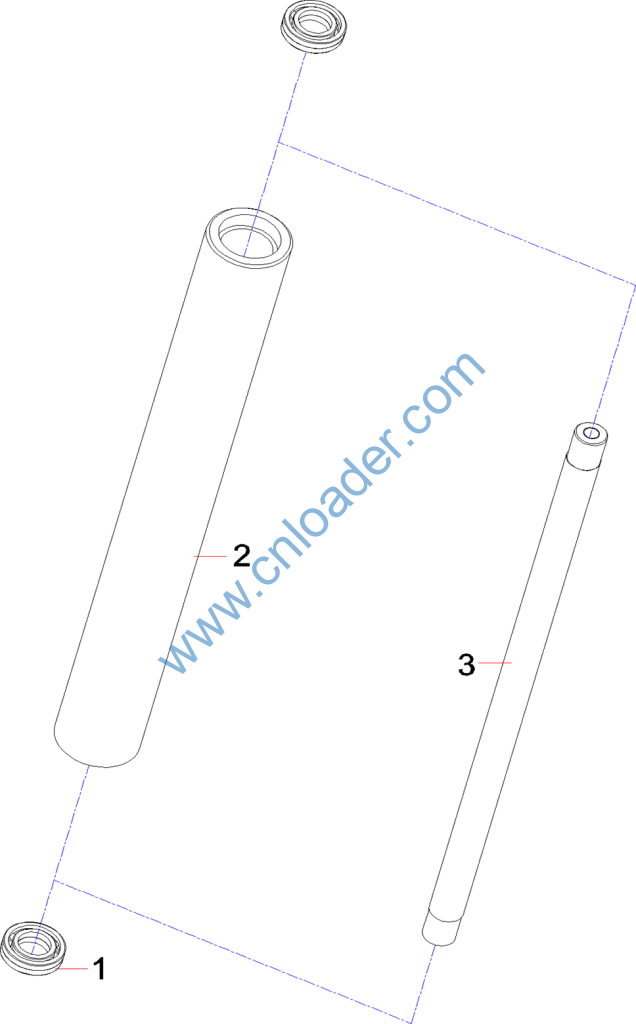

1 A210651000164 Bearing 2
2 12261742 Roller 1
3 13407223 Pin, E5 1
1 12607533 Cover, Guard 2
3 A210405000007 Washer 4
5 A210405000008 Washer 4
7 12628219 Sheave Mount Assembly 1
9 A210204000260 Screw 4
11 A210401000004 Washer 4
13 12827377 Wire Rope, Retract, 3rd Boom Section 1
15 12628225 Wire Rope, 3rd Boom Section 1
17 A210401000002 Washer 3
20 11068300 Retainer 2
23 12214165 Cover, Sheave 2
25 A210204000009 Screw 6
28 A210307000012 Nut 2
38 A210111000203 Bolt 4
50 13338735 Pin, C0 2
18 12607529 Bracket, Wire Rope, Extension, 3rd Boom 1
26 13339666 Pin, A0 2
31 10137478 Block, Thrust 2
33 13336657 Pin, H5 2
35 11072828 Retainer 2
37 13338730 Pin, C0 2
40 13405664 Pin, E1 1
42 12612916 Wear Pad 2
44 11072969 Retainer 2
46 11041032 Cylinder, Telescopic Boom 1
49 A210111000018 Bolt 12
52 13339629 Pin, A0 2
54 13340319 Pin, B2 2
56 13286636 Cylinder, Telescope 1
58 A210111000202 Bolt 8
59 12212992 Sheave 4

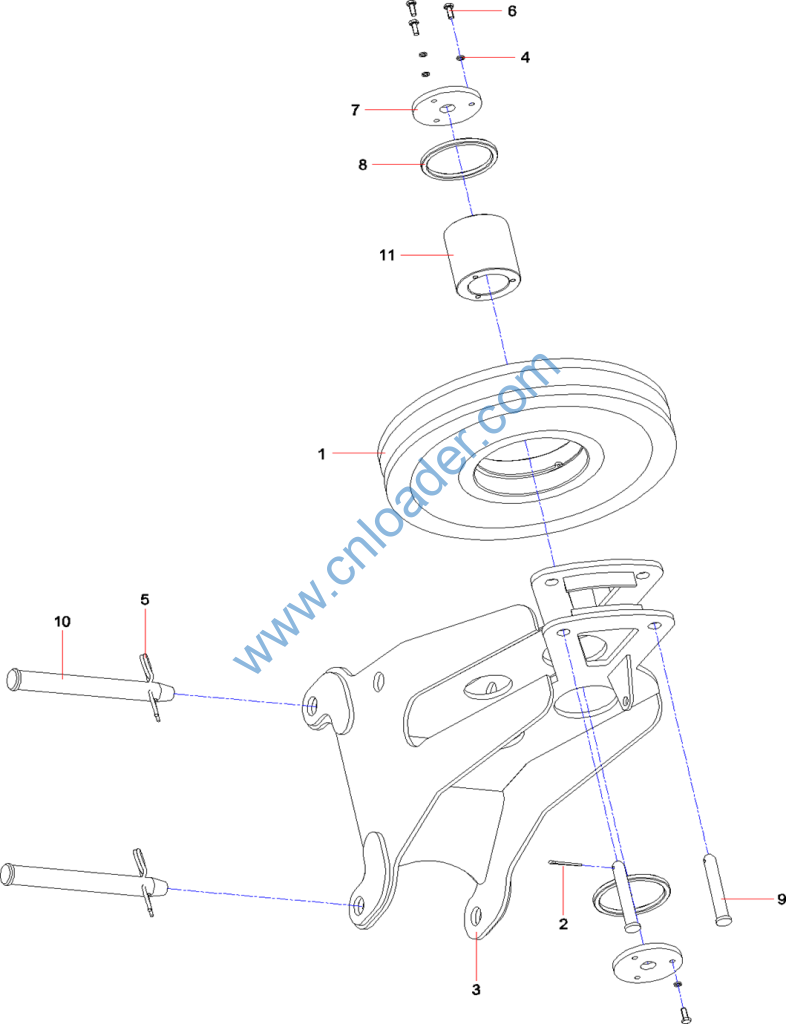

1 11302735 Sheave Assembly 1
3 A210501000039 Pin, Cotter 1
5 A210401000001 Washer 6
7 A210111000011 Bolt 6
9 12175056 Spacer Ring 2
11 13337042 Pin 2
13 10048501 Roller 2
15 13339185 Pin, E1 1
17 13339576 Pin, A0 1
19 12168119 Washer 2
1 A210602002217 Bearing, Roller 4
2 A210416000035 Ring, Retainer 2
3 A820202005221 Spacer Ring 3
4 11192729 Sheave 1
1 12812163 Bracket, Cylinder 1
2 A210401000001 Washer 4
3 A210204000163 Screw 4
4 11367495 Wear Pad 1
1 A210622000052 Bearing, Roller 1
2 A210211000002 Screw 4
3 A820101025808 Retainer 1
4 12607549 Sheave 1

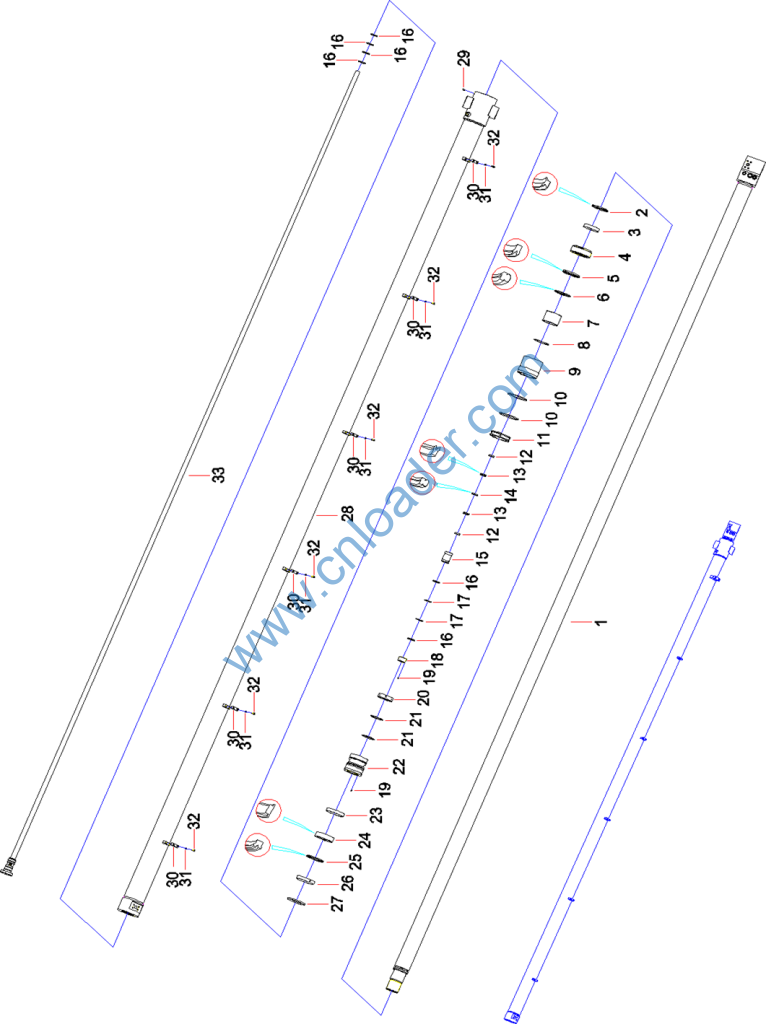

1 11233571 Rod Assembly, Piston 1
3 60049815 Ring, Wear 1
5 B230101000519 Ring, Seal 1
7 11244967 Bushing 1
9 11233555 Sleeve, Seal 1
11 11233553 Bushing 1
13 60023542 Seal, B3 2
15 10910589 Seal, Sleeve 1
17 10250773 Ring, Back-up 2
19 A210208000024 Screw 2
21 B230101000708 O-ring 2
23 60070618 Ring, Guide 1
25 B230101000437 Ring, Seal 1
27 60035160 Ring, Dust-proof 1
29 A210208000008 Screw 1
31 A210401000017 Washer 12
32 A210204000162 Screw 12
