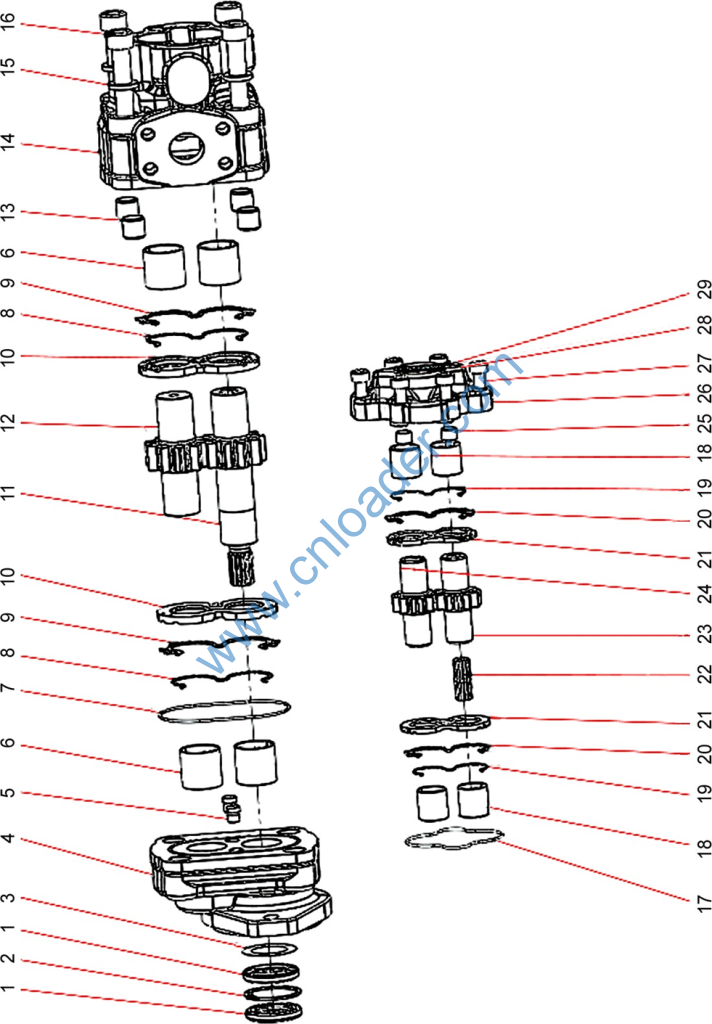

1 60338010 Seal 2
3 60338032 Washer 1
5 60325834 Valve Assembly, Check 2
7 60338016 O-ring 1
9 60338033 Seal 2
11 60338078 Shaft, Driving Gear 1
13 60338030 Pin, Dowel 4
15 60313457 Washer 4
17 60338015 O-ring 1
19 60338036 Ring, Back-up 2
21 60338026 Plate, Spacer 2
23 60338071 Shaft, Driving Gear 1
25 60338028 Pin, Dowel 4
27 60338011 Screw 6
29 60313456 Rivet 2
1 B210780000018 Fitting, Tee 1
3 B230103004686 Rubber Hose 1
5 12665784 Tube Assembly 1
7 21050783 Fitting, Elbow 2
9 B230101000244 O-ring 1
11 B210780000249 Flange, Split 2
13 B210780000049 Fitting, Adapter 1
15 B230103004044 Hose Assembly 1

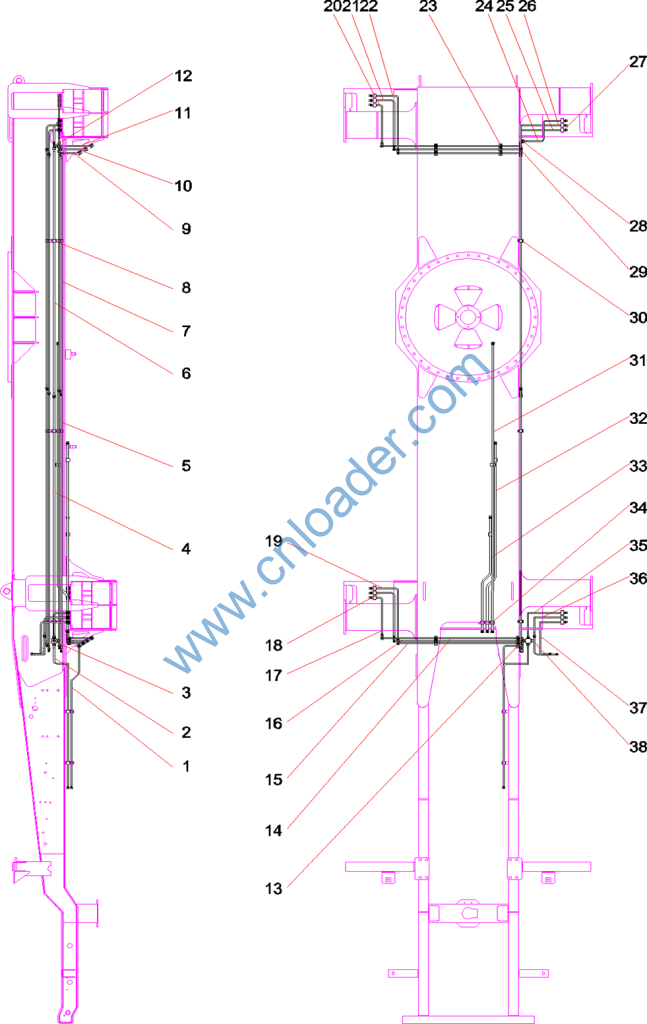

1 11493506 Tube, Center Front Stabilizer 1
3 10138606 Valve Assembly, 5-way 1
5 11493897 Tube Assembly, Frame, Left 4
7 11492527 Tube Assembly, Frame, Left 4
9 11491600 Tube Assembly 1
11 11491035 Tube Assembly 1
13 B210780000025 Fitting, Elbow 1
15 11493451 Tube Assembly 1
17 11493412 Tube Assembly, Outrigger, Front, Right 1
19 11492672 Tube Assembly, Outrigger, Front, Right 1
21 11491669 Tube Assembly, Outrigger, Rear, Right 1
23 B210851000001 Clamp, Tube, Single 29
25 11490469 Tube Assembly, Outrigger, Rear, Left 1
27 60202487 Nut 88
29 B210780000121 Fitting, Elbow 6
31 11494917 Tube Assembly 1
32 11495035 Tube Assembly, Return, Carrier 1
33 11495141 Tube Assembly, Suction, Carrier 1
34 60165334 Clamp, Tube, Single 6
35 11492560 Tube Assembly, Outrigger, Front, Left 1
36 11493515 Tube Assembly, Outrigger, Front, Left 1
37 11493527 Tube Assembly, Outrigger, Front, Left 1
38 11493642 Tube Assembly, Outrigger, Front, Left 1
B210780000040 Fitting, Adapter 1
B210780000131 Fitting, Adapter 1
B210780000228 Fitting, Adapter 3
10138605 Valve Assembly, 5-way 1

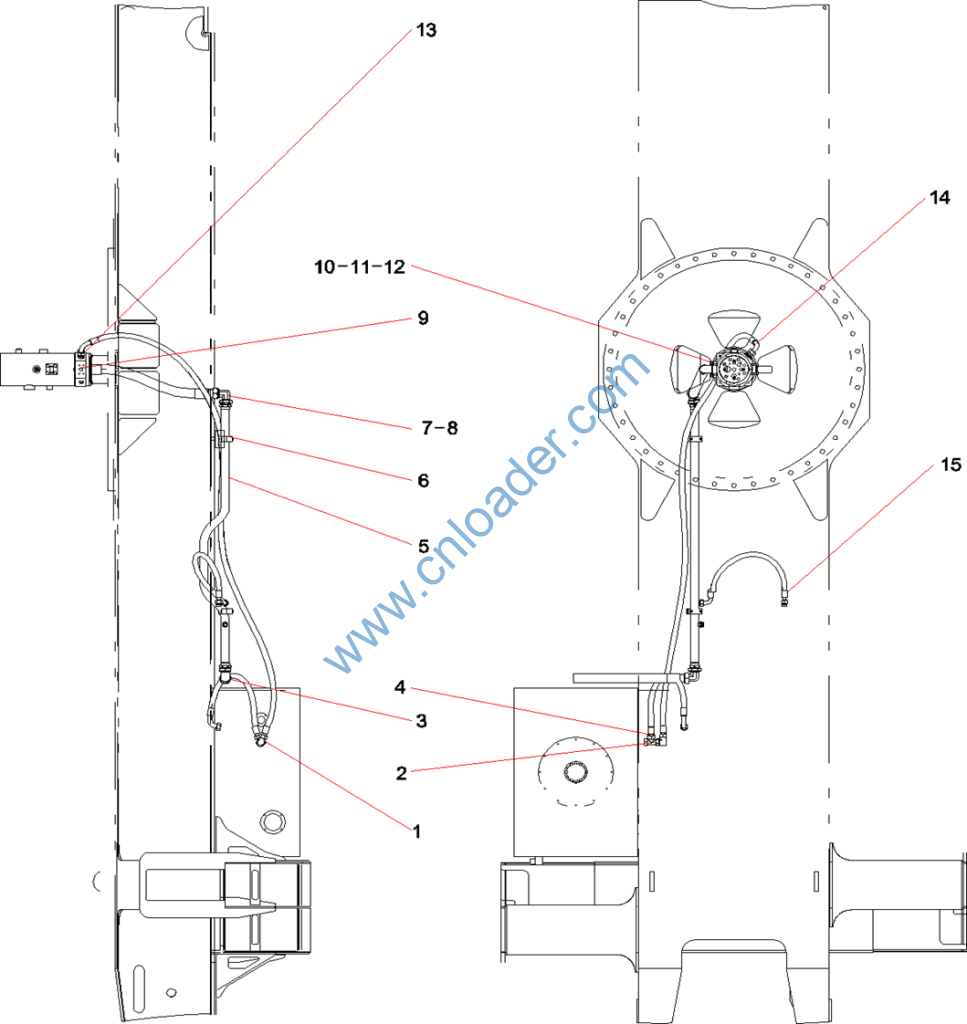

1 B210780000232 Fitting, Adapter 2
2 B222200000021 Valve Assembly, Holding 1
3 60109175 Hose Assembly 2
4 10138579 Valve Assembly, Main Control 1
5 B230103000330 Hose Assembly 3
6 B230103000091 Rubber hose 3
7 B230103000331 Hose assembly 1
8 B230103000328 Hose Assembly 1
9 B230103000397 Hose Assembly 1
10 B230103000376 Hose Assembly 3
11 B230103000376 Hose Assembly 3
12 B230103006774 Hose Assembly 12

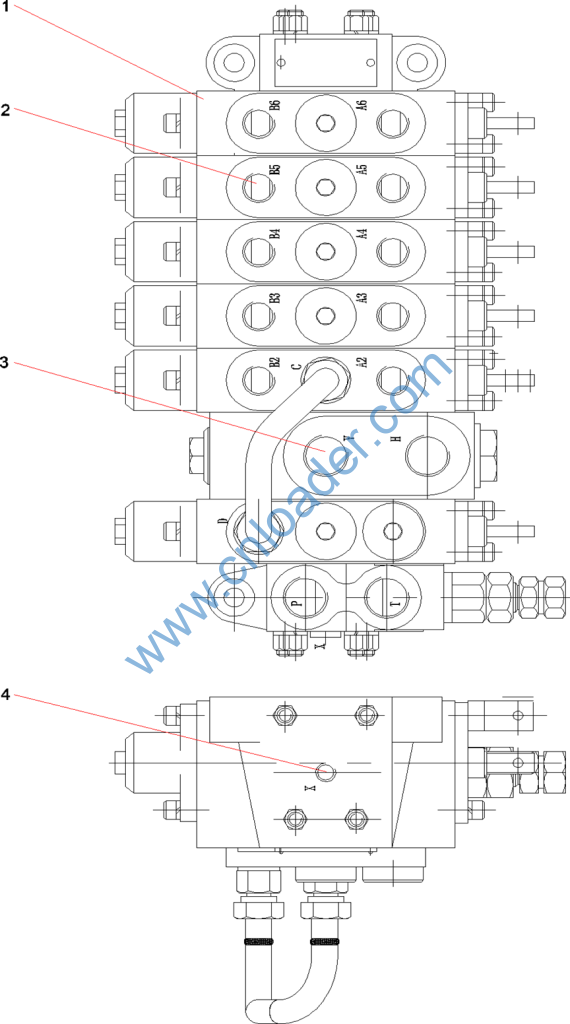

1 60184976 Valve, Main Control 1
2 B210780000037 Fitting, Adapter 9
3 B210780000131 Fitting, Adapter 4
4 B210770000087 Pressure Tap 1

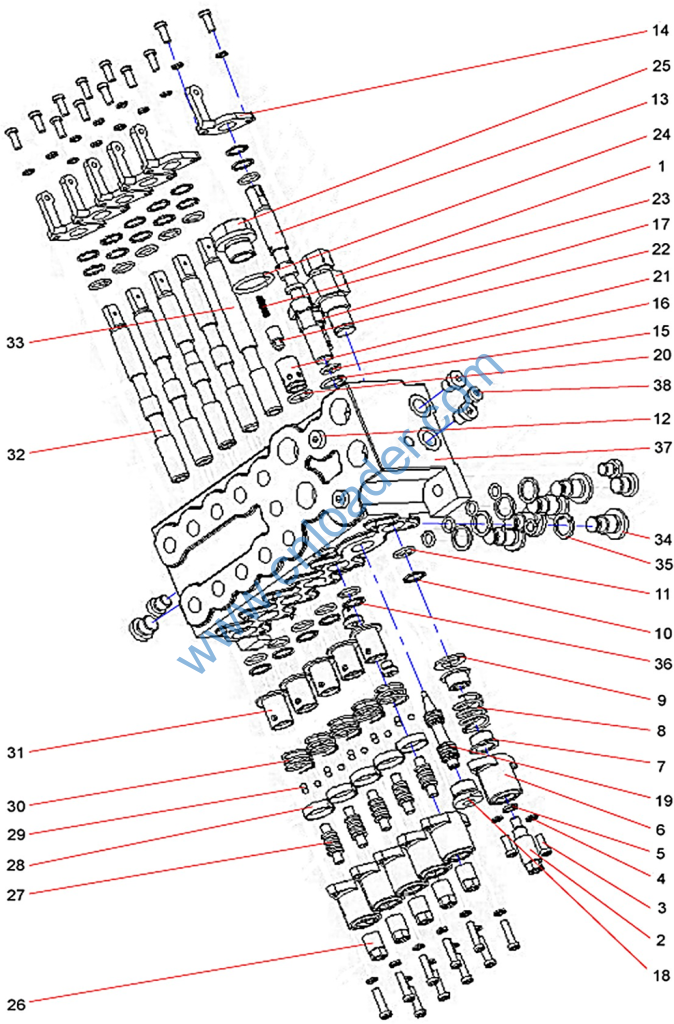

1 60251579 Relief Valve 1
3 A210204000130 Screw 24
5 A210401000017 Washer 1
7 60251569 Retainer, Spring 2
9 60251567 Gland 1
11 24002612 O-ring 12
13 60251553 Tappet, Valve 8
15 29011303 O-ring 1
17 60251554 Plug 1
19 60251555 Spool, Valve 1
21 60251571 Cartridge, Valve 1
23 60251573 Spring 1
25 60251574 Cover 1
27 60251576 Rod 5
29 60107563 Ball, Steel 15
31 60251575 Bushing 5
32 60251557 Tappet, Valve 4
32 60251558 Tappet, Valve 1
33 60251556 Plug 5
34 A210434000009 Washer 5
35 60251561 Plug, ED 3
36 60251552 Housing, Valve 1
37 60251560 Plug, ED 2

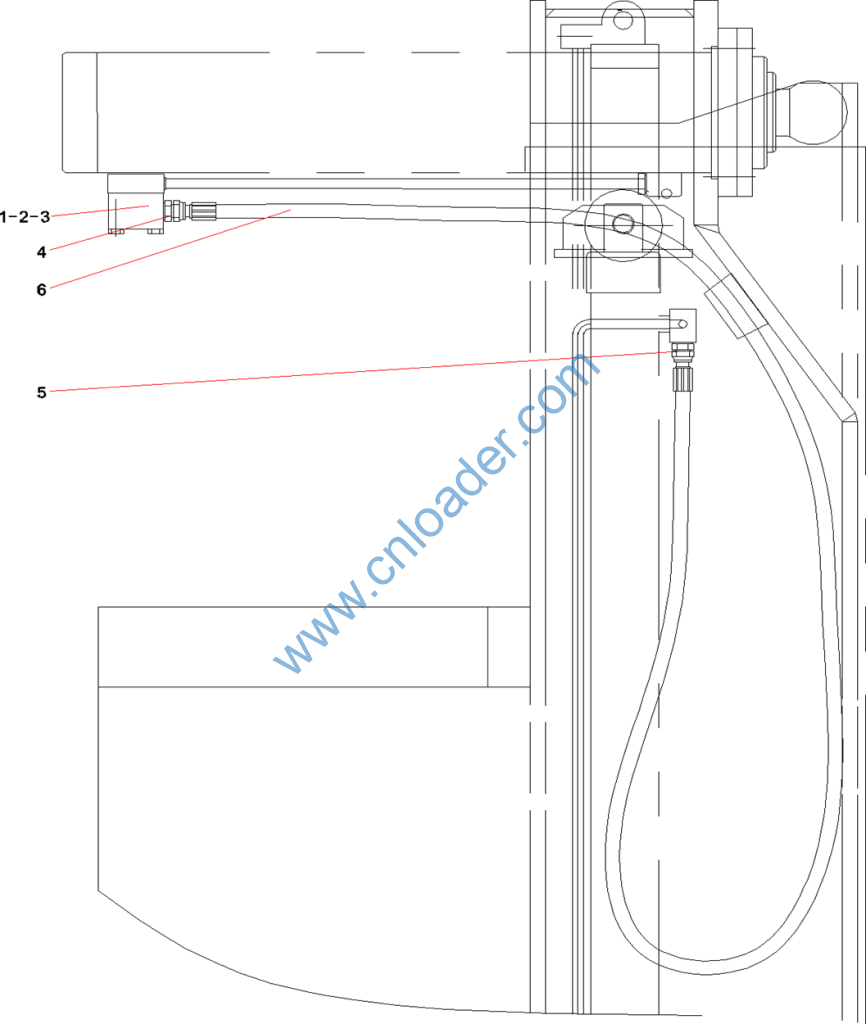

1 B222200000021 Valve Assembly, Holding 1
2 A210204000011 Screw 4
3 A210401000001 Washer 4
4 B210780000036 Fitting, Adapter 4
5 B210780000228 Fitting, Adapter 3
6 21030660 Hose Assembly 2
1 B222200000021 Valve Assembly, Holding 1
2 A210204000011 Screw 4
3 A210401000001 Washer 4
4 B210780000036 Fitting, Adapter 4
5 21030660 Hose Assembly 2
6 B210780000228 Fitting, Adapter 3

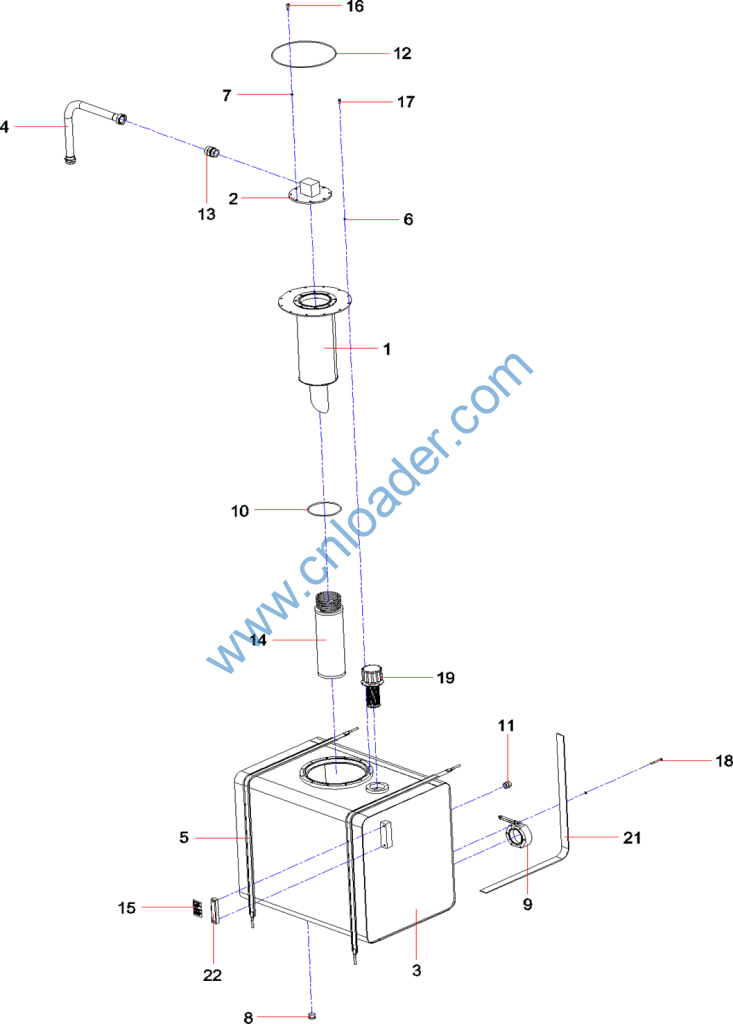

1 12642893 Filter Housing, Hydraulic Reservoir 1
3 13683516 Hydraulic Reservoir 1
5 14259561 Fastener Assembly, Hydraulic Reservoir 2
7 A210401000001 Washer 8
9 60188476 Valve, Ball 1
11 A229900002582 Fitting, Adapter 1
13 B210780000055 Fitting, Adapter 1
15 13673372 Decal, Caution, Oil Level 1
17 A210111000089 Bolt 12
19 24001922 Filter, Air 1
22 A250100000043 Gauge, Oil Level 1
1 A210111000127 Bolt 1
2 14259560 Belt, Rubber 1
3 14259563 Welding Assembly, Fastening Strap 1
4 A210405000001 Washer 2
5 A210319000006 Nut 3

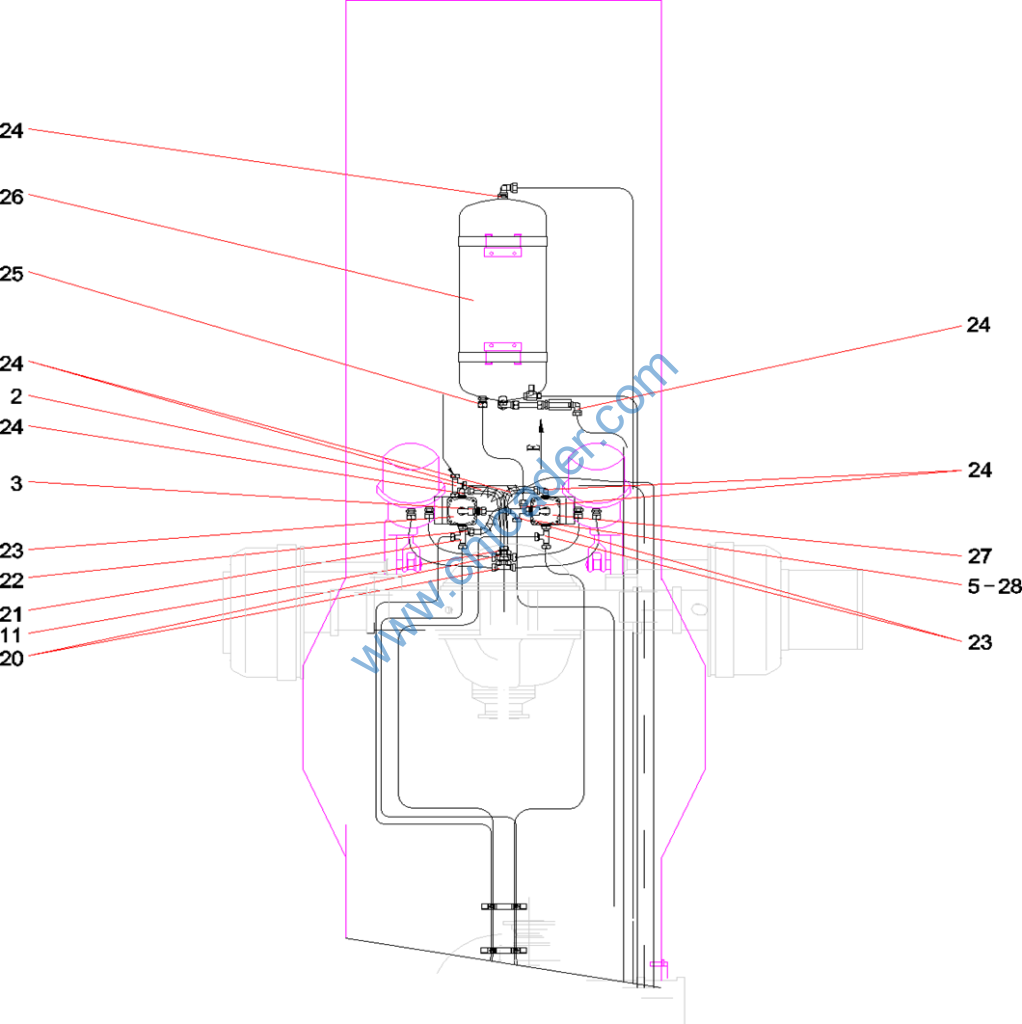

2 A210770000597 Fitting, Tee 2
5 A210307000012 Nut 18
20 A229900003251 Fitting, Tee 2
22 60285441 Fitting, Elbow 8
24 A229900005108 Hose, Brake 3
26 A229900003017 Air Reservior 1
28 A210401000017 Washer 16

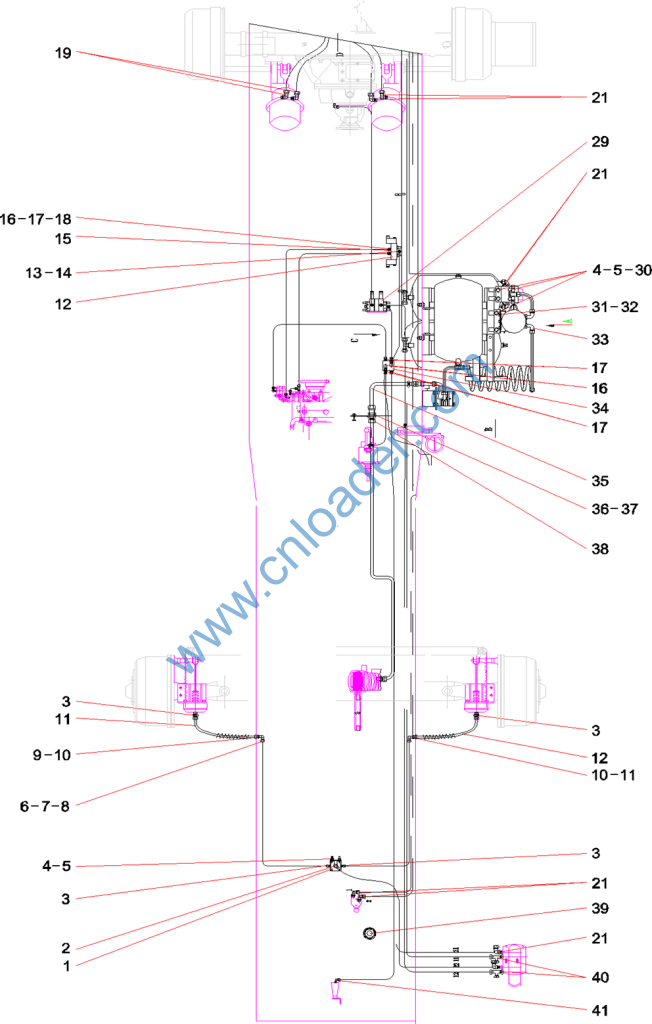

1 60147042 Valve, Quick Release 1
3 60285430 Fitting, Adapter 4
5 A210307000012 Nut 18
7 A210710000004 Sleeve 52
9 A229900003250 Fitting, Elbow 2
11 A229900003130 Hose, Brake 2
13 60148580 Filter, Solenoid Valve 2
15 10810396 Fitting, Adapter 6
17 A210710000003 Sleeve 14
19 60285440 Fitting, Elbow 20
22 60285441 Fitting, Elbow 8
30 A210405000007 Washer 6
32 A210401000002 Washer 3
34 A820199003120 Block, Manifold 1
36 14102824 Fitting, Tee 2
38 13327013 Condenser Assembly 1
39 13326789 Tube Assembly 1
40 A229900003261 Air Reservior 3
41 10135646 Clamp Assembly, Muffler 8
4 A210111000089 Bolt 16
21 60285448 Fitting, Tee 3
27 60330808 Valve, Relay 1
35 60062703 Muffler 1
44 A220401000617 Valve, 4-way, Protection 1
46 60188156 Fitting, Adapter 1
48 11310918 Fitting, Elbow 1
50 60285451 Fitting, Adapter 1
52 60147040 Valve Assembly, Drain 5
54 60285439 Fitting, Elbow 2
56 A210111000011 Bolt 4
58 60220124 Tube 1
60 A210306000014 Nut 2
62 11343921 Fitting, Tee, Pressure 1
65 60147041 Valve, Check 1
67 A229900004637 Bushing, Clamp 8
68 10894214 Plate, Clamp 2
69 10017227 Clamp 2
70 A229900003260 Air Reservior 1
71 60165334 Clamp, Tube, Single 2
72 60202487 Nut 4
73 A820205001993 Fitting, Tee, Pressure 10

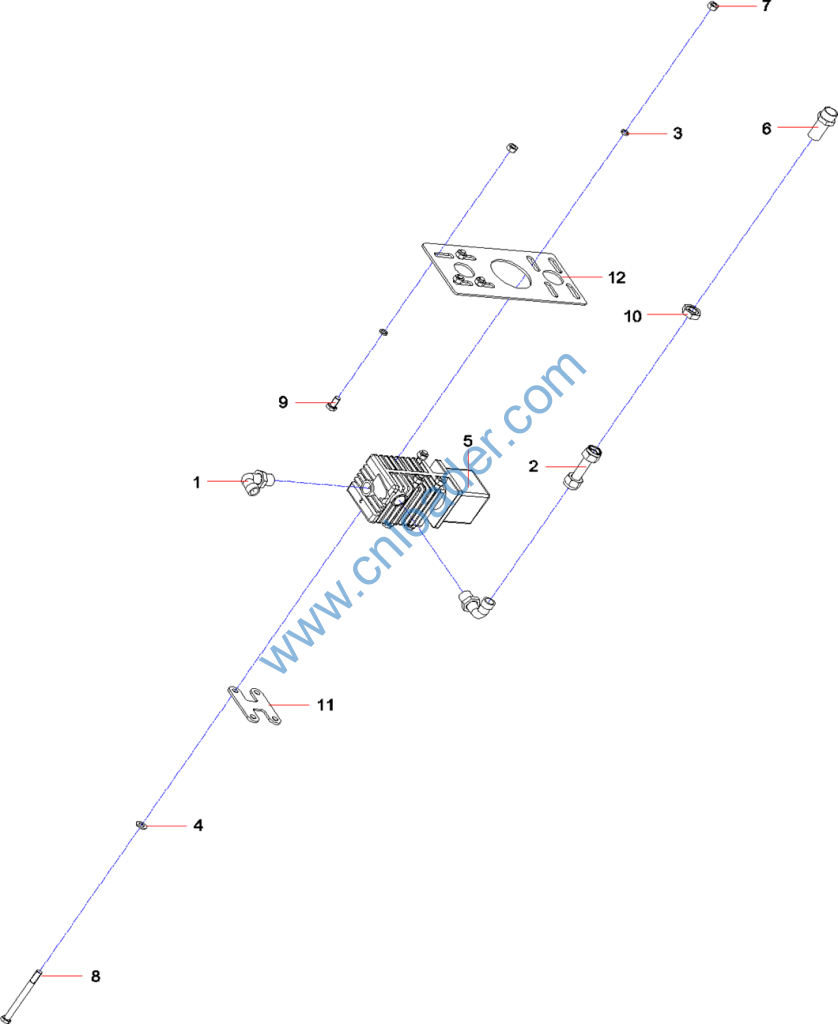

1 60285444 Fitting, Elbow 2
2 13336982 Tube Assembly, Condenser 1
3 A210401000001 Washer 8
4 A210405000011 Washer 4
5 60067874 Condenser 1
6 A229900003350 Fitting, Adapter 1
7 A210307000017 Nut 8
8 21054416 Bolt 4
9 A210111000011 Bolt 4
10 A210338000001 Nut 1
11 12555379 Cover Plate, Condenser 1
12 13328597 Plate, Mounting, Condenser 1
1 10134890 Clamp, T-bolt, Muffler 1
2 10134892 Insert, Non-threaded 1
3 10134893 Insert, Non-threaded 1
4 10136454 Bolt 1
1 A210710000006 Sleeve 2
2 A210306000014 Nut 2
3 10490132 Pipe, Air Intake 1
