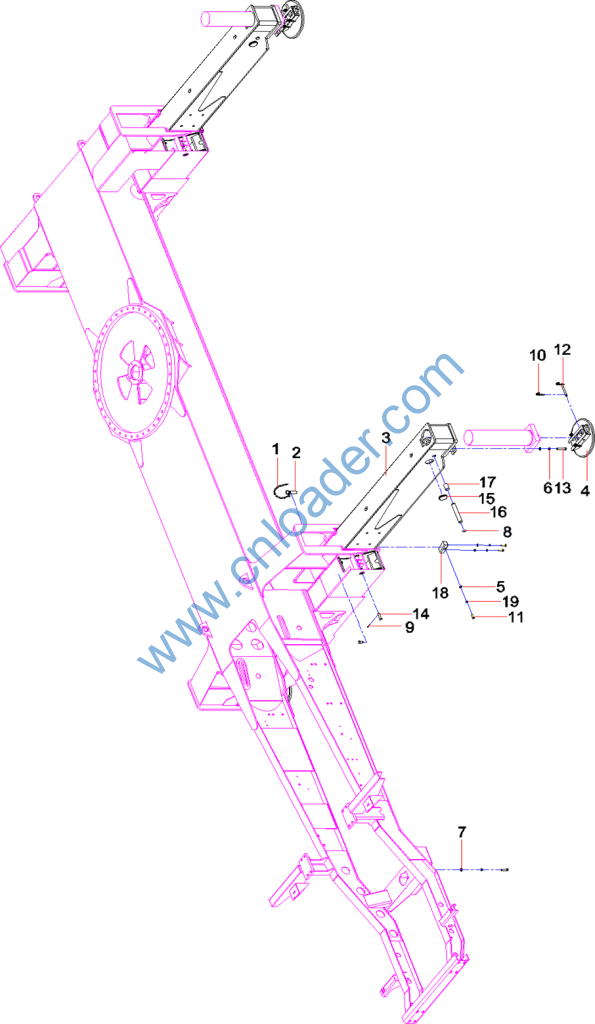

1 A210111000030 Bolt 1
2 11053592 Sling, Wire Rope 1
3 A829900002661 Clip 1
4 13339628 Pin, A0 1
1 60206030 Chain 4
3 12696529 Outrigger Beam 4
5 A210405000007 Washer 24
7 A210405000003 Washer 16
9 A210501000008 Pin, Cotter 4
11 A210111000090 Bolt 24
13 A210110000281 Bolt 16
15 10003350 Plug 8
17 11048554 Bushing, Spacer 8
19 A210401000017 Washer 24
1 10009417 Cap 2
3 14090849 Overlapping Block, Outrigger 1
5 11048560 Wear Pad, Wire Rope 1
7 13961906 Stiffener, Interior, Plate 2
9 12847336 Block, U-type 6
11 12040194 Coupling Plate, Cylinder 1
13 12040863 Stiffener, Cover Plate 2
15 12609963 Plate, Side 1
16 12609964 Plate, Side 1
1 60106247 Latch 4
3 A210401000015 Washer 20
5 A210401000017 Washer 10
7 A229900003056 Bag, Air 4
9 A230105000011 Seal 1
11 A210307000015 Nut 20
13 A210210000020 Screw 4
15 A210111000089 Bolt 10

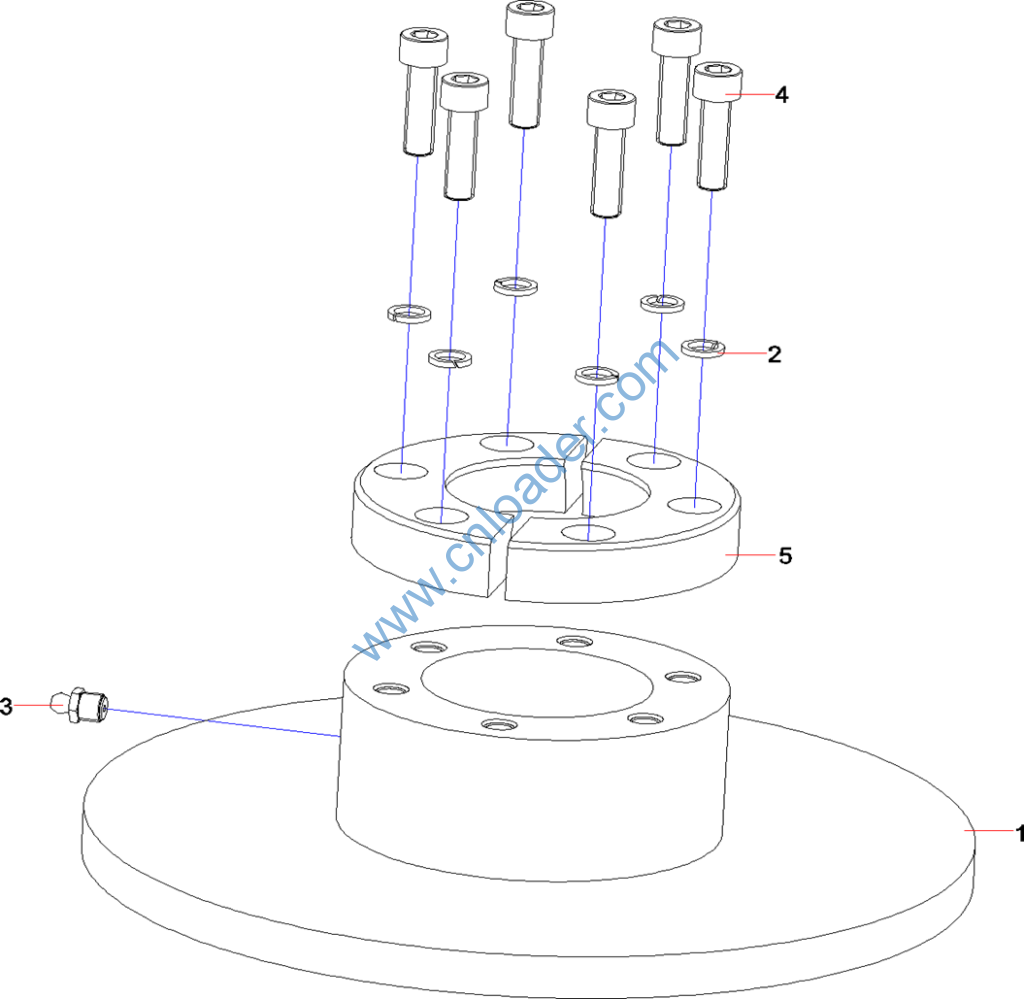

1 A810312000263 Body, Float, 5th Outrigger 1
2 A210401000001 Washer 6
3 A210804000002 Fitting, Grease 1
4 A210204000163 Screw 6
5 A820101322966 Plate, Keeper 1

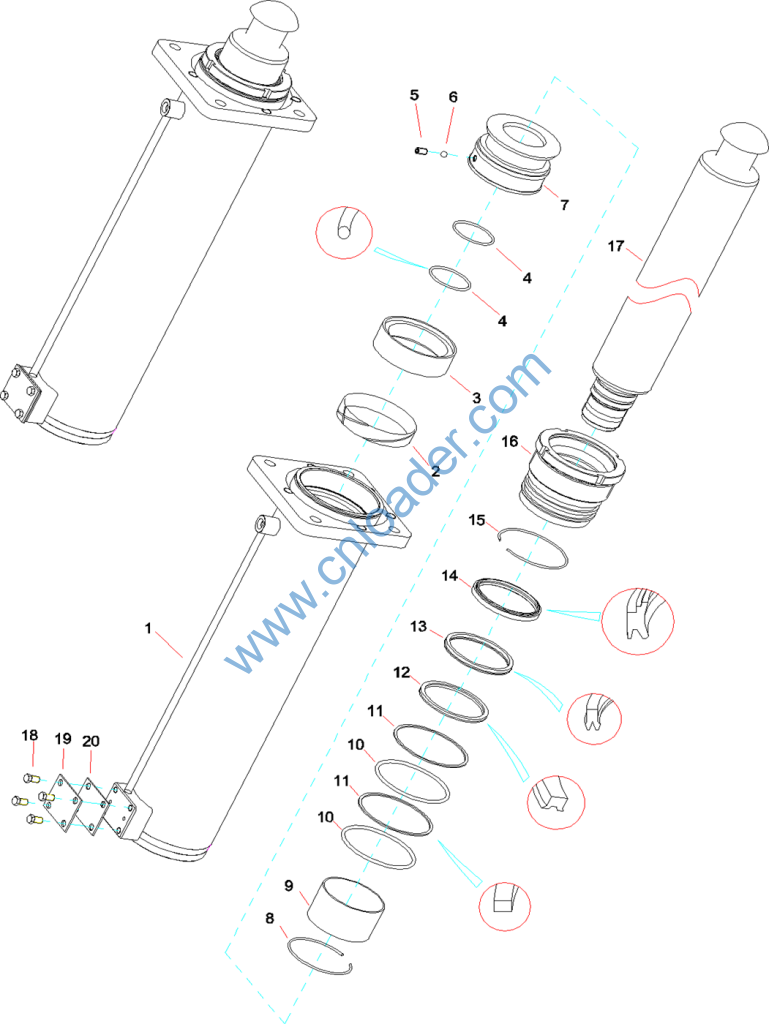

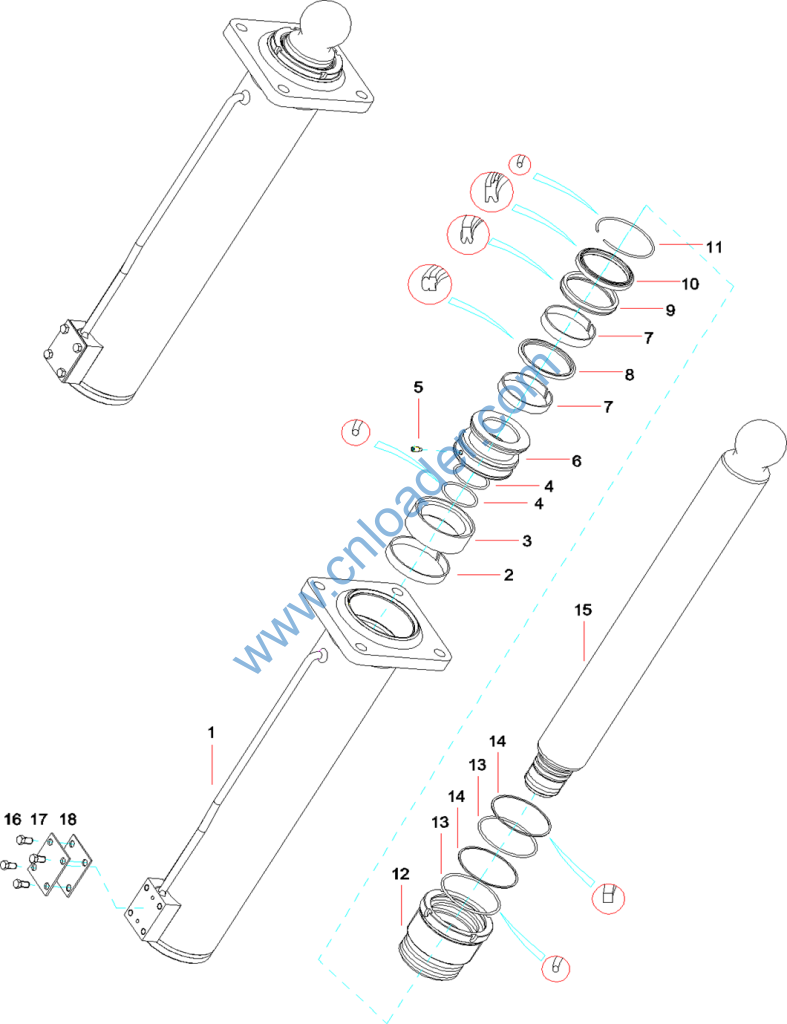

1 13310485 Barrel Assembly 1
3 B230101001155 Seal 1
5 A210208000001 Screw 1
7 B230101001158 Ring, Wear 2
9 B230101002126 Seal, MPS 1
11 A210417000095 Ring, Snap 1
13 A210609000087 O-ring 2
15 13310470 Rod Assembly 1
17 10179175 Plate, Guard 1
18 10179176 Cushion, Guard 1

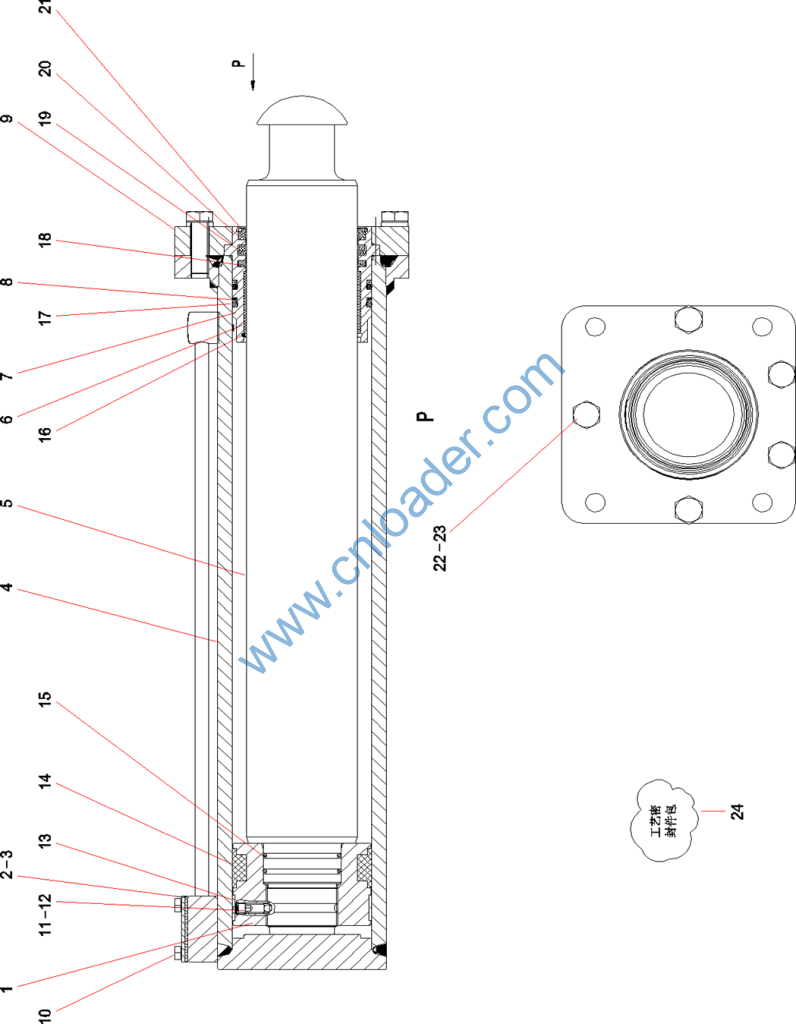

1 13266476 Piston 1
3 10179175 Plate, Guard 1
5 13266475 Rod, Cylinder 1
7 12946013 Guide sleeve ZXSYM5331J.3.6C-1 1
9 13100887 pressure coverZXSYM5331J.3.6-20 1
11 A880899030000 Ball, Steel 1
13 13274186 Ring, Wear 1
15 A210609000168 O-ring 2
17 A31C211500530 O-Ring 2
19 60011794 Seal, ZBR 1
21 A210417000004 Ring, Retainer 1
23 A210401000004 Washer 5
24 12135248 Q250C process Package for sealing parts 1
1 13274313 Barrel Assembly 1
3 B230101001458 Seal 1
5 A210206000013 Screw 1
7 13266476 Piston 1
9 60208488 Bearing 1
11 10250741 Ring, Retainer 2
13 60011794 Seal, ZBR 1
15 A210417000004 Ring, Retainer 1
17 13266478 Rod, Cylinder 1
19 10179175 Plate, Guard 1
20 10179176 Cushion, Guard 1

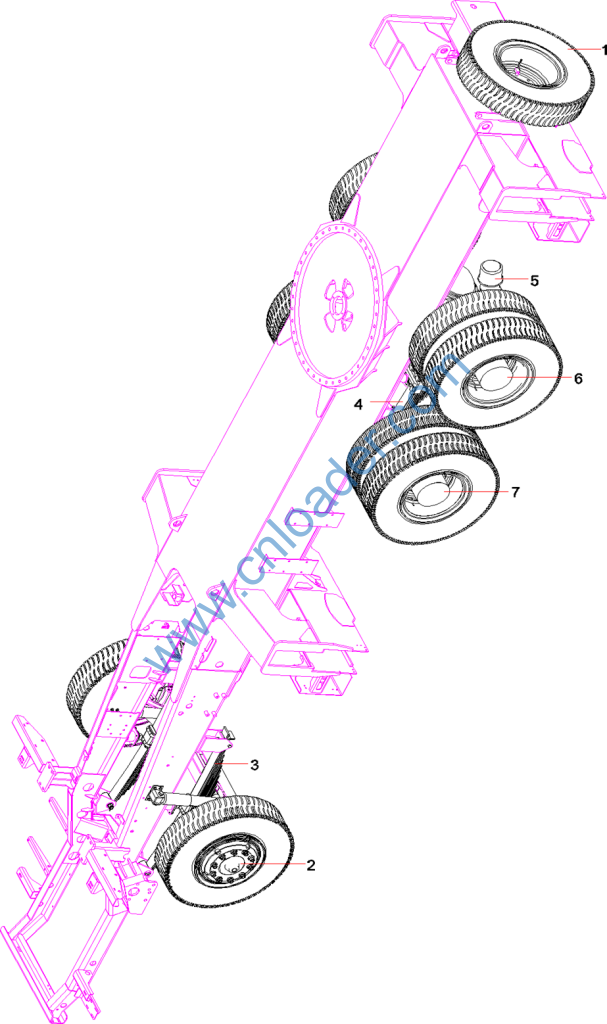

1 A810304040014 Tire & Wheel Assembly 11
2 10871192 Axle Assembly, Front, With Adapter 1
3 12049114 Suspension Assembly, Front 1
4 12050835 Suspension Assembly, Rear 1
5 12613083 Adaptor Group, Axle, Middle & Rear 1
6 61030336 Axle Assembly, Rear 1
7 61030335 Middle axle 1

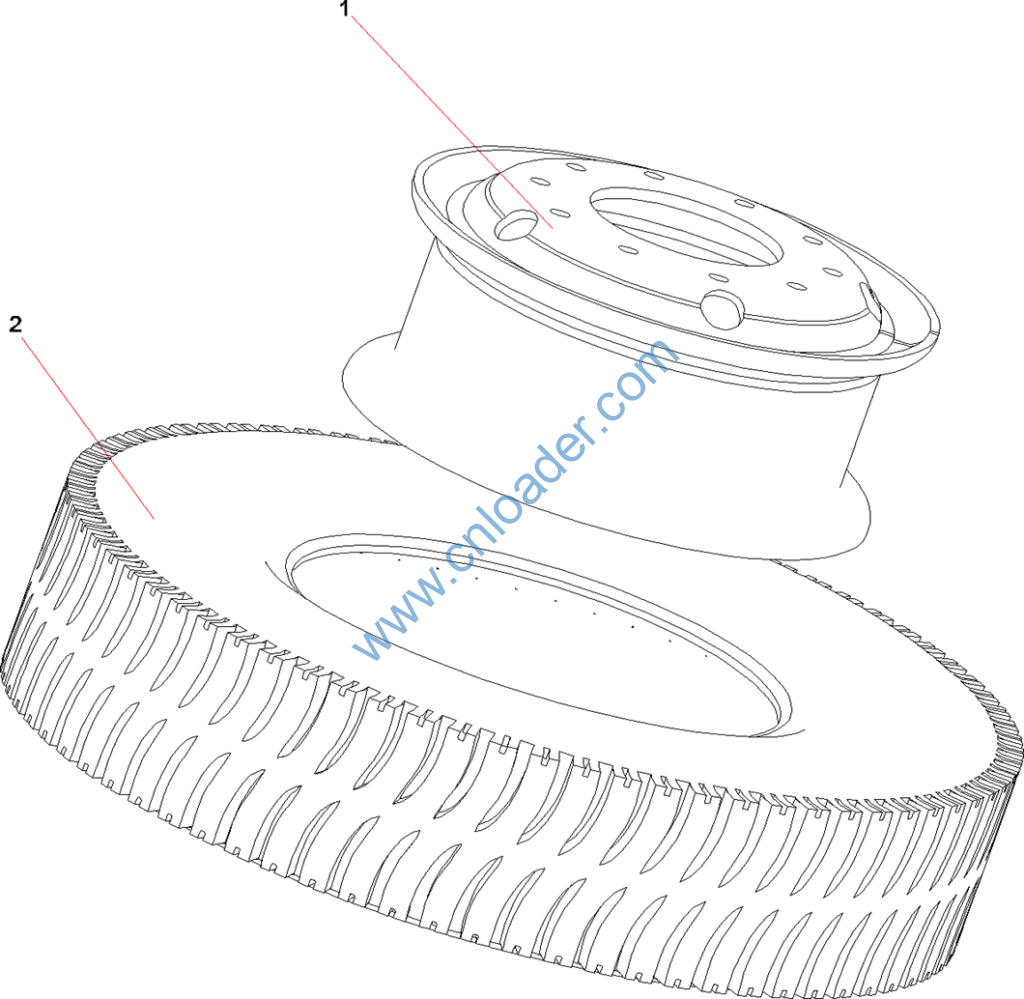

1 A210854000002 Rim, Wheel 1
2 A210881000047 Tire Assembly 1

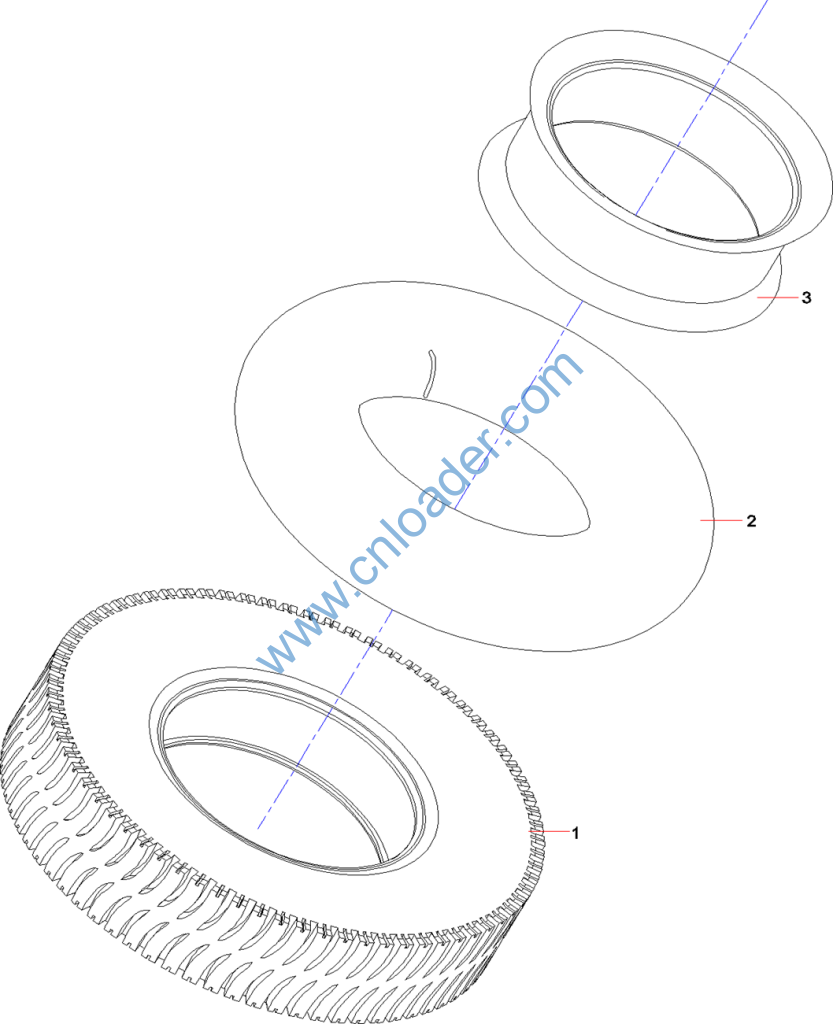

1 A210881000101 Tire, Outer 1
2 A210881000095 Tire, Inner 1
3 A229900005567 Cushion Belt, Inner Tire 1

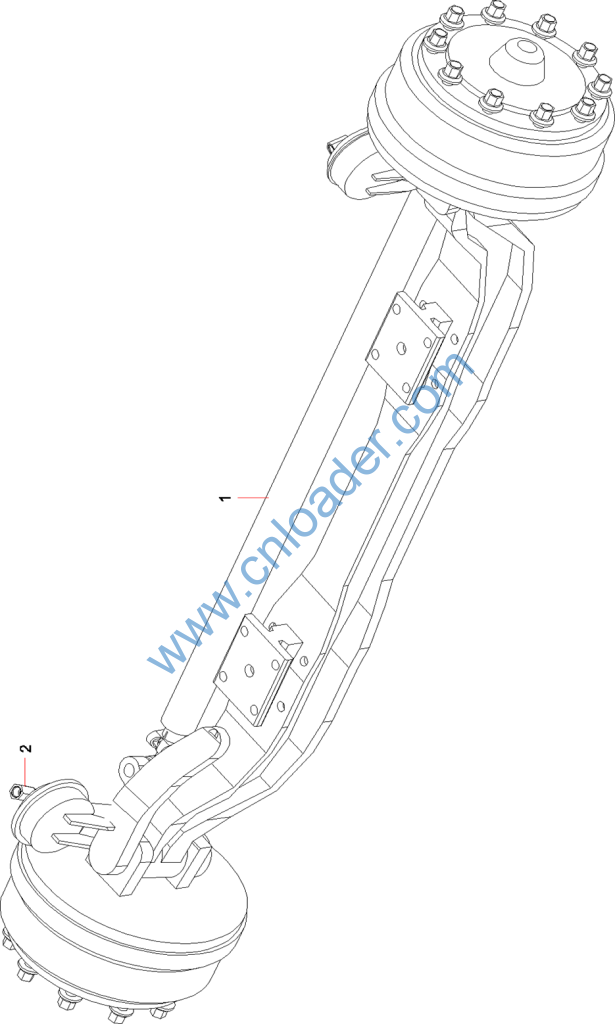

1 60021422 Axle Assembly, Front 1
2 A229900003042 Fitting, Adapter 2

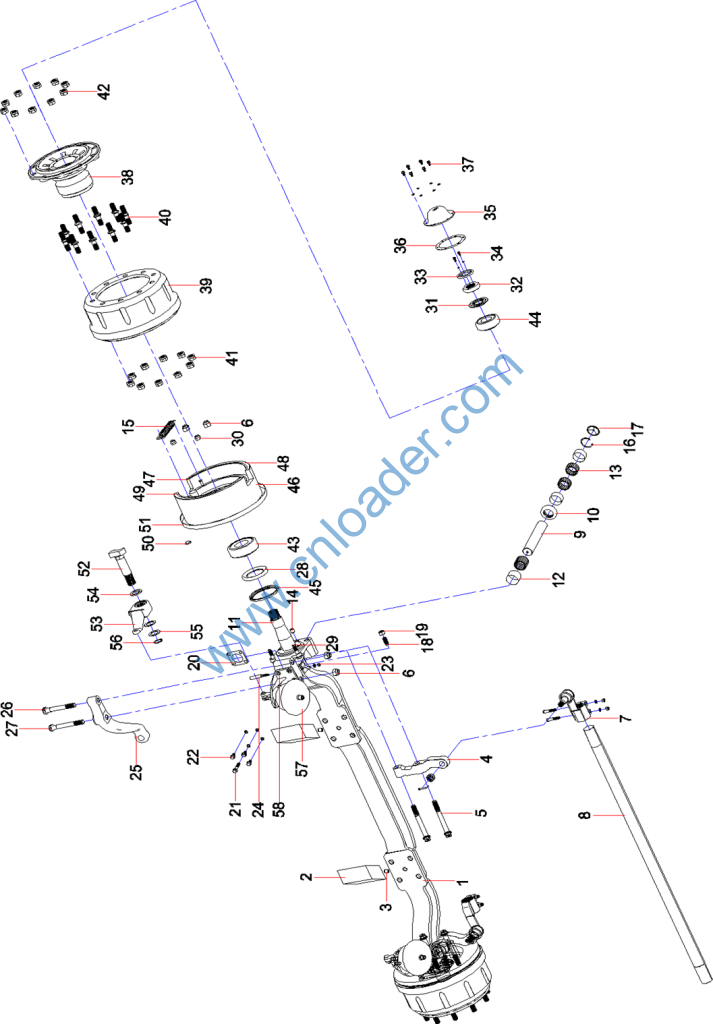

1 60126701 Axle 1
3 60129192 Pin, Dowel 2
5 60040784 Bolt 4
7 60018565 End Assembly, Tie Rod, Right 1
9 60017576 Pin, King 2
11 60017545 Knuckle Assembly, Steering, Right 1
13 60018563 Bearing 2
15 60129194 Spring 1
17 60040759 Cap 2
19 60040796 Nut, Lock 2
21 60040747 Bolt 2
23 60040782 Nut 2
25 60017573 Arm, Rod 1
27 60040748 Bolt 1
29 60040787 Bolt 4
31 60017542 Retainer 2
32 60017563 Nut, Lock 2
33 60017549 Lock Plate 2
35 60017562 Cap 2
37 60040785 Bolt 12
39 60017565 Brake Drum, Front 2
41 60017560 Nut 10
43 60017547 Bearing 2
45 60040812 Seal 2
47 60106489 Roller Assembly, Friction Disc, Brake 1
49 60106518 Shoe, Brake 2
51 60106452 Hood, Dust 1
53 60017567 Adjustment Arm, Front, Right 1
55 60017554 Shim 1
57 60017543 Air Chamber, Brake, Right 1
58 60017574 Support, Air Chamber, Right 1
