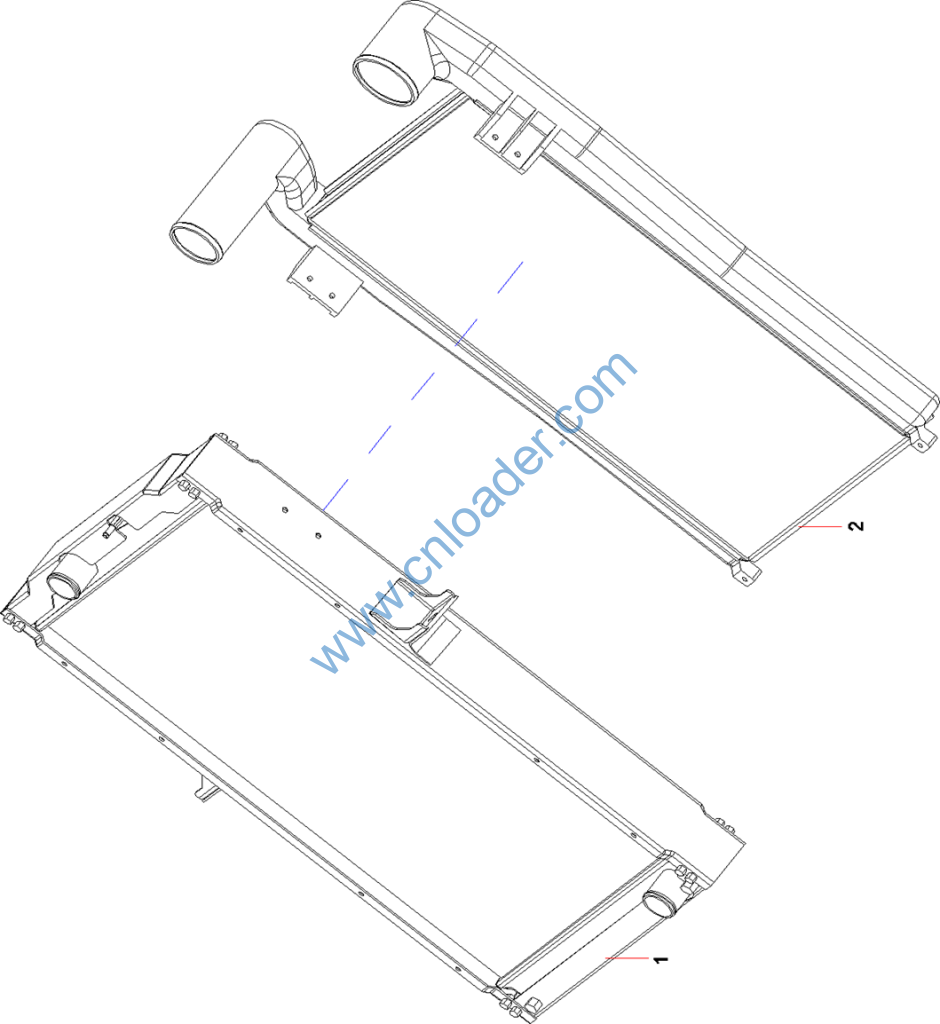

1 60126221 Radiator 1
2 60129207 Intercooler 1

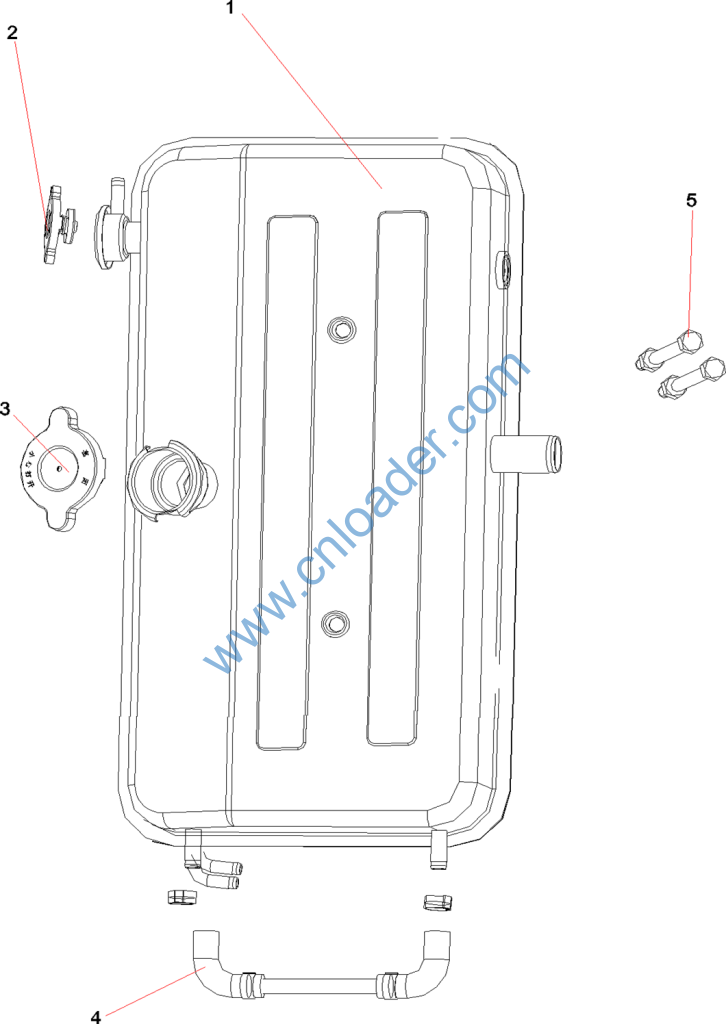

1 60318888 Surge Tank 1
2 60165891 Cap 1
3 60165889 Cap 1
4 60318889 Pipe, Sight 1
5 60318887 Bolt 2

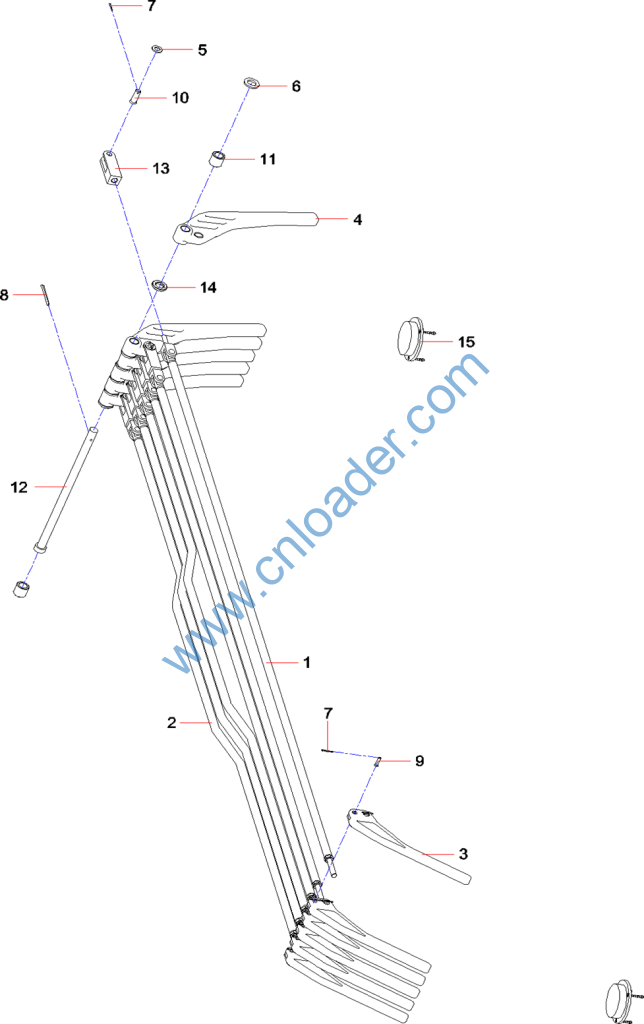

1 10243939 Rod Assembly, Link 3
3 12857089 Control Lever, Operation, Right 6
5 A210405000011 Washer 6
7 A210491000009 Pin, Cotter 18
9 A210508000026 Pin 12
11 10014988 Bushing 2
13 10138988 Link 6
15 60142616 Level 2
1 10025042 Link 1
2 10243938 Rod, Link 1
3 A210501000023 Pin 1
4 A210508000040 Pin 1
1 10025042 Link 1
2 11398021 Rod Assembly, Link 1
3 A210501000023 Pin 1
4 A210508000040 Pin 1
1 12857088 Lever 1
2 12691224 Bushing, Copper 2
3 12691225 Bushing, Copper 2
1 12691220 Bushing, Copper 1
2 12691221 Bushing, Copper 1
3 12857090 Lever 1

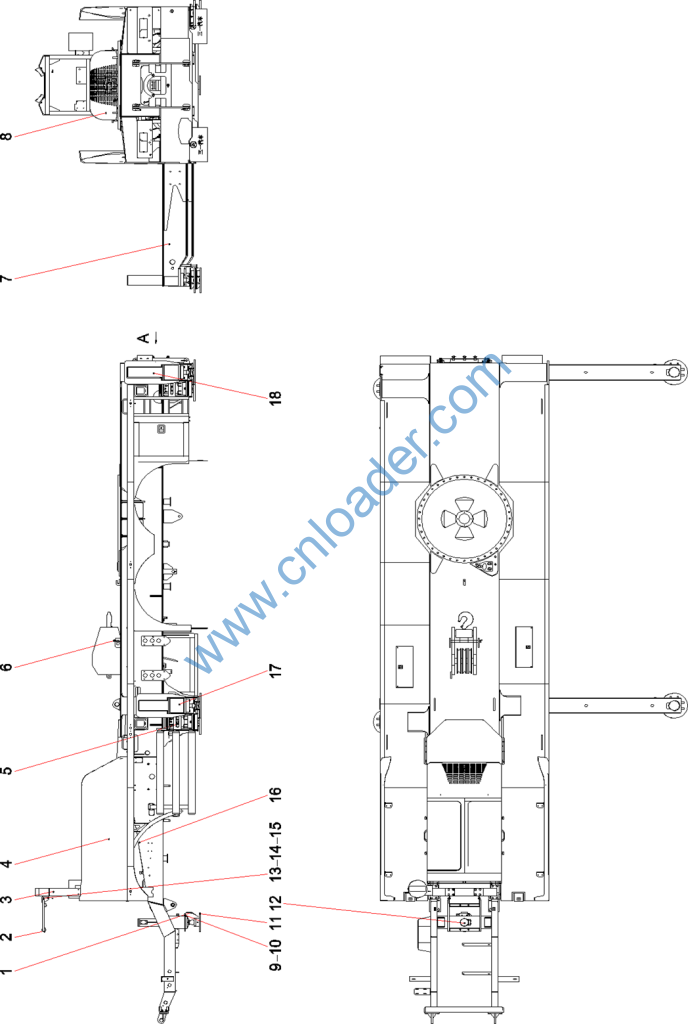

1 11328437 Plate, Stop, Outrigger Float 1
3 11192161 Support Assembly, Boom 1
5 13297490 Cylinder Assembly, Outrigger Extension 4
7 12696528 Outrigger Assembly 1
9 A210111000090 Bolt 2
11 A810312000264 Float, Center Front Stabilizer 1
13 A210405000007 Washer 4
15 A210111000091 Bolt 4
17 12105287 Front vertical oil cylinder 2
18 13274312 Cylinder Assembly, Outrigger Jack, Rear 2
1 12158836 Bracket 1
2 A210211000010 Screw 4
3 14065383 Wear Pad 2

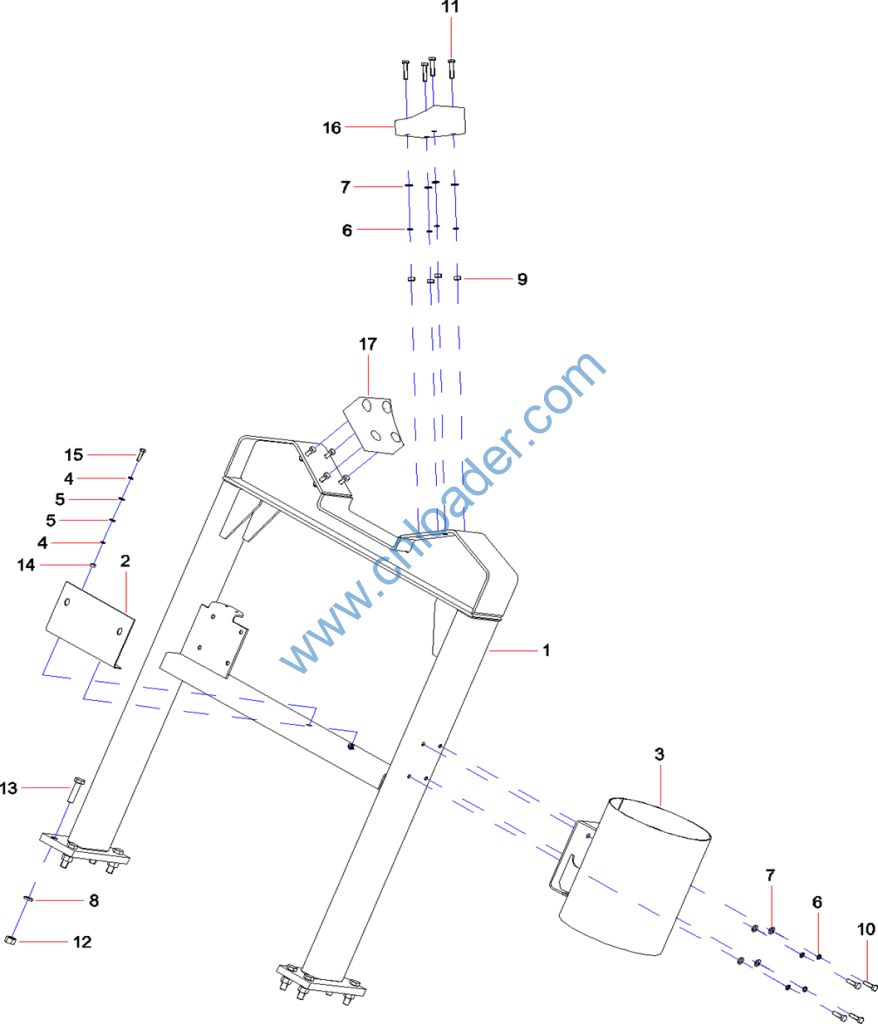

1 13170997 Support, Boom 1
3 10917043 Barrel, Stowage, Auxiliary Hook 1
5 A210405000007 Washer 4
7 A210405000011 Washer 12
9 A210307000017 Nut 8
11 A210111000028 Bolt 8
13 A210111000281 Bolt 8
15 A210111000091 Bolt 2
17 13003021 Pad, Rubber 1

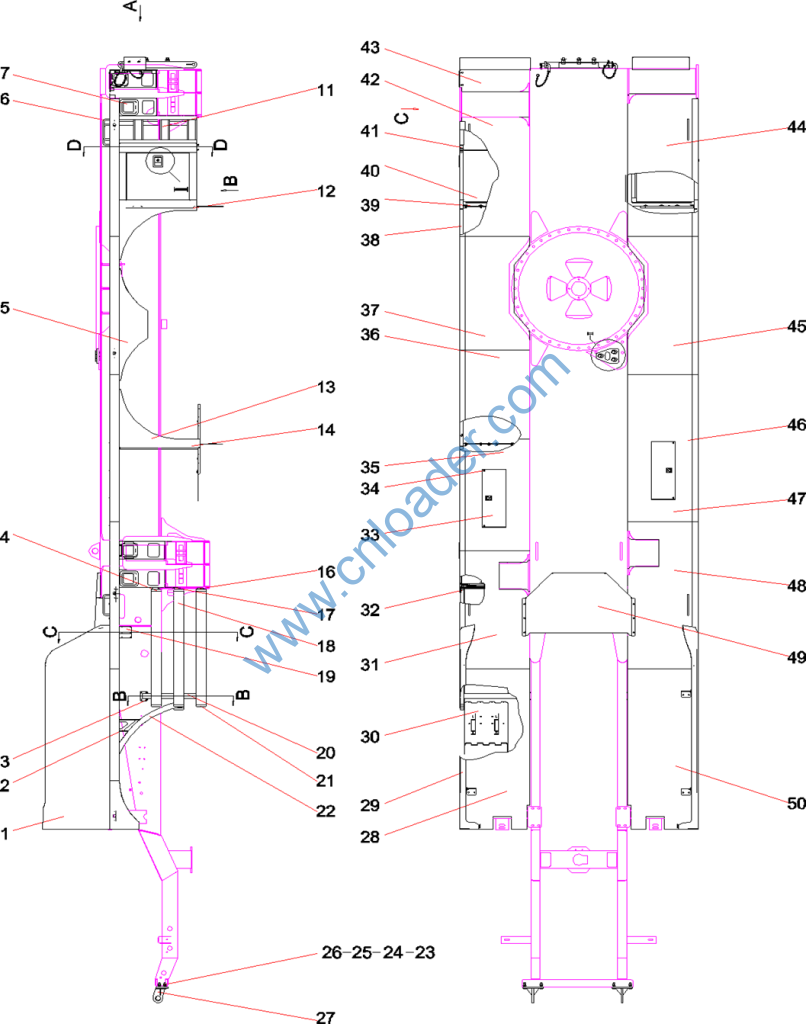

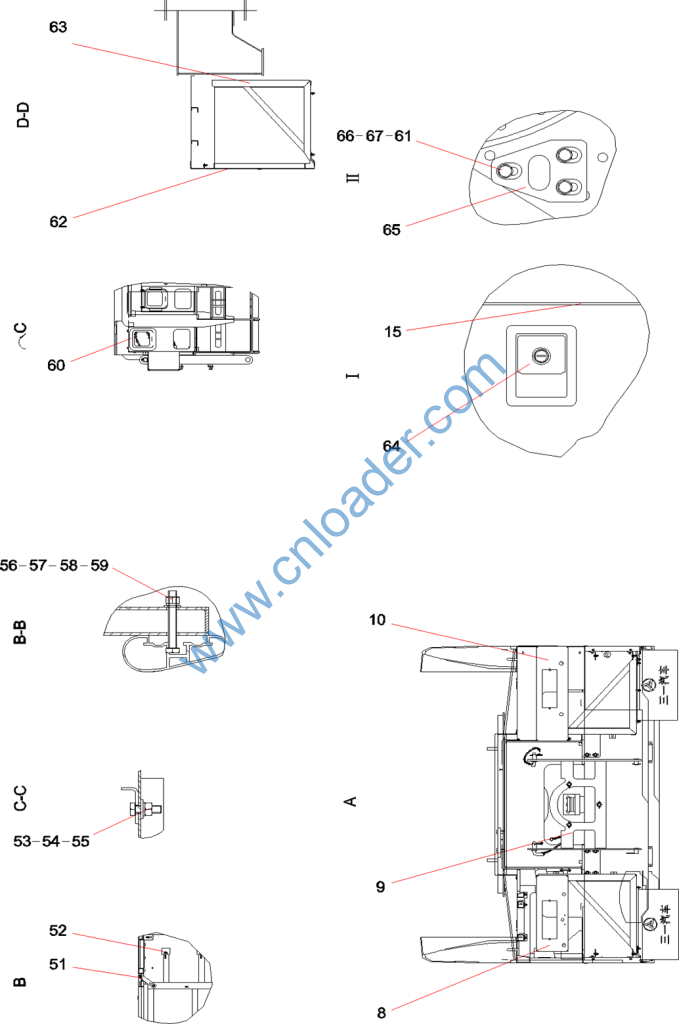

1 12606718 Handrail Assembly, Left 1
3 A210111000088 Bolt 8
5 11203487 Cover Plate Assembly 2
7 10665223 Mount, Work Lamp, Outrigger 1
12 11201445 Splashboard Assembly 1
14 12657425 Splashboard Installation, Middle, Right 1
17 11203564 Plate, Angle 1
19 10015945 Mount, Throttle Switch, Outrigger 2
21 12912298 Cap 6
23 A210401000004 Washer 8
25 A210111000055 Bolt 8
27 11692034 Towing Hook, Head 2
29 12606492 Guardrail, Right 1
31 12596381 Cover Plate, Outrigger, Front, Right 1
33 12608721 Cover Plate Installation 2
35 12608530 Cover Plate, Hydraulic Reservoir 1
36 12608590 Plate, Platform, Middle, Right 1
37 12596830 Plate, Platform, Middle, Right 1
39 11200388 Splashboard Assembly, Right, Rear 1
41 11285671 Ladder Assembly, Rear, Right 1
43 12597038 Cover Plate, Tail Lamp, Right 1
45 12595824 Plate, Platform, Middle, Left 1
47 12595704 Cover Plate, Fuel Tank 1
49 12658474 Cover Plate, Rear 1
50 12594915 Plate, Platform, Front, Left 1
8 11050327 Cover Plate, Tail Lamp, Left 1
10 11536325 Guard, Tail Lamp, Right 1
51 10253707 Plate, Connecting 2
53 A210405000011 Washer 12
55 A210111000090 Bolt 102
57 A210405000007 Washer 92
59 A210111000095 Bolt 6
61 A210111000108 Bolt 3
63 11466888 Bracket, Toolbox 2
65 13394176 Plate, Pin Lock, Turntable 1
67 A210401000006 Washer 3
1 11285642 Frame, Ladder 1
2 A210401000017 Washer 12
3 A210405000007 Washer 15
4 A210307000012 Nut 12
5 A210111000090 Bolt 12
6 11050138 Bracket 6
7 11202898 Channel, Bar, Aluminum 3
1 A210401000017 Washer 10
2 A210405000007 Washer 20
3 A820606030678 Mark Plate, Manufacturer 1
4 A820101329212 Plate 1
5 A210307000012 Nut 10
6 A210111000090 Bolt 10
7 11200387 Plate, Coupling 2
8 12628257 Splashboard 1
1 11200388 Splashboard Assembly, Right, Rear 1
2 11287645 Plate 1
3 A210401000017 Washer 3
4 A210405000007 Washer 6
5 A210307000012 Nut 3
6 A210111000090 Bolt 3
A210401000017 Washer 10
2 A210405000007 Washer 20
3 A820606030678 Mark Plate, Manufacturer 1
4 A820101329212 Plate 1
5 A210307000012 Nut 10
6 A210111000090 Bolt 10
7 11200387 Plate, Coupling 2
8 12628257 Splashboard 1
11200388 Splashboard Assembly, Right, Rear 1
12657426 Plate 1
12608723 Cover Plate Assembly 1
A210307000014 Nut 4
A210211000012 Screw 4
A229900003988 Buckle 1
1 11455123 Toolbox 1
2 A210401000017 Washer 8
3 A210405000007 Washer 4
4 A210307000012 Nut 4
5 A210111000089 Bolt 2
6 11455121 Plate, Spacer 1
1 11285657 Frame, Ladder 1
2 A210401000017 Washer 15
3 A210405000007 Washer 15
4 A210307000012 Nut 12
5 A210111000090 Bolt 15
6 11050138 Bracket 6
7 11202898 Channel, Bar, Aluminum 3
1 00000182 Pin Assembly, Upper 2
2 12199393 Bracket, Spare Tire 1
3 A210491000017 Pin, Cotter 3
4 A210491000018 Pin, Cotter 2
5 13339626 Pin, A0 2
6 A210355000007 Nut 3
00000181 Pin, Upper 1
A229900000176 Ring 2
11033634 Chain 1
A829900002661 Clip 1

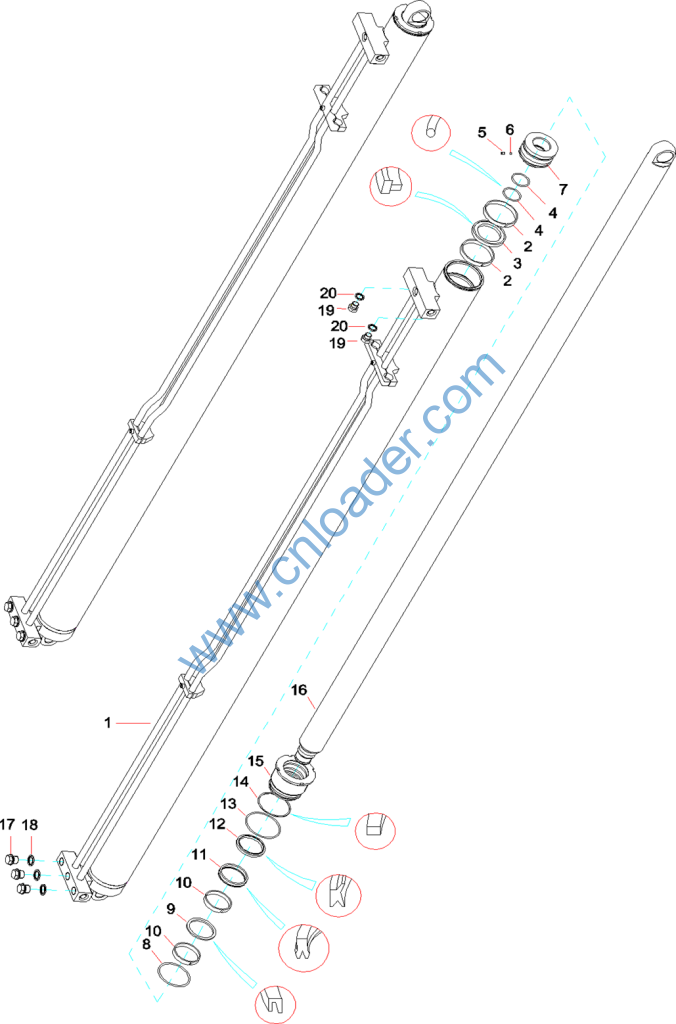

1 13297486 Barrel Assembly 1
3 13261627 Seal 1
5 60068694 Screw 1
7 10182700 Piston 1
9 13268936 Seal 1
11 13261406 Seal 1
13 A210609000141 O-ring 1
15 13267547 Sleeve, Guide 1
17 A210333000011 Plug, Screw 3
19 A210333000010 Plug, Screw 2
20 A210434000007 Washer 2
