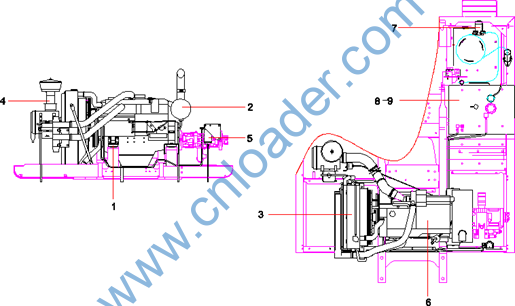

SY215C9 hydraulic excavator SANY SW






13527491

Mounting GP, engine

13527493

Exhaust system

13527494

Cooling system

13527496

Intake System

13971830

fuel system

变更或见其他配置

Engine

13683591

Fuel Injection Pump

变更或见其他配置

Fuel tank AS

12657427

Feul Tank Assy SY215C9M.1.3.5.2

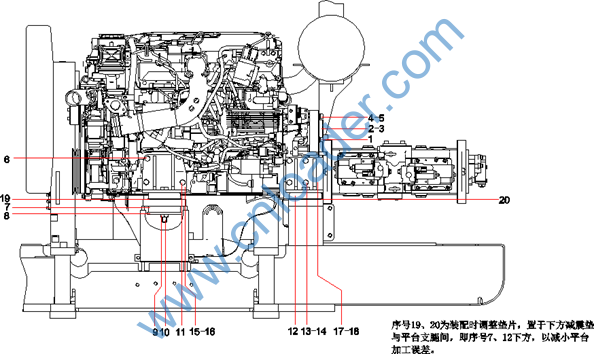

A210204000356

Bolt

A229900009391

Flanging coupling

变更或见其他配置

Cover, flywheel

A210491000120

Washer, Gear Thrust

A210204000335

Bolt

A210111000197

Bolt

61000394

damping pad

13465380

Washer

A210307000035

Nut

A820301021297

Bolt

A210111000111

Bolt

61000395

damping pad

A210111000101

Bolt

A210491000121

Washer

13466489

Mount, engine, front, left

13555263

Mount, engine, front, right

13466479

Mount, engine, rear, left

13466482

Mount, engine, rear, right

变更或见其他配置

Mount, rubber

变更或见其他配置

Mount, rubber

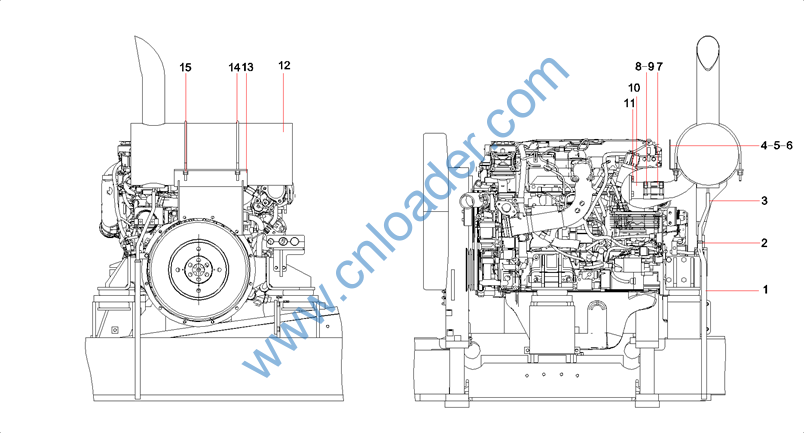

13465368

Tube, exhaust drain

A229900001347

Clamp, Hose

A820606031018

Hose

A210111000343

Bolt

24000633

Washer

13585868

Partition

13463568

Clamp, exhaust

A210307000036

Nut

A210111000120

Bolt

13882249

Pipe, exhaust

A210307000055

Nut

60270667

muffler

13463233

Bracket, muffler

12691275

U-bolt

A210307000055

Nut








A820606030367

hose

A229900001345

Clamp

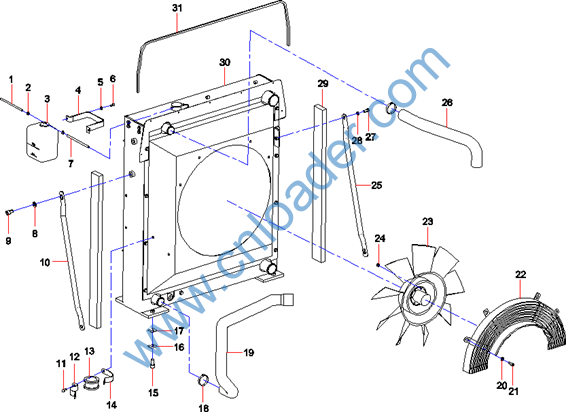

A229900001590

Tank, coolant

A810102099060

Bracket

24000633

Washer

A210204000340

Bolt, socket head

13217729

Hose, to radiator

A210491000118

High-strength steel washer

A313041602516

Screw

A820301017394

Brace, front

A210111000012

Bolt

13462203

Clamp

A820606030450

Grommet

13462205

Clamp

A210204000198

Bolt, socket head

A820101118172

Spacer

12897201

spacer

60219321

Clamp, hose

13466571

Hose, radiator, lower

A210491000120

Washer, Gear Thrust








23000066

Screw

13461828

Fan, guard AS

60337357

Fan

A210346000007

Nut

12171497

Hose, covering

13466572

Hose, radiator, upper

A210111000101

Bolt

60060548

Washer

14006570

inside sponge

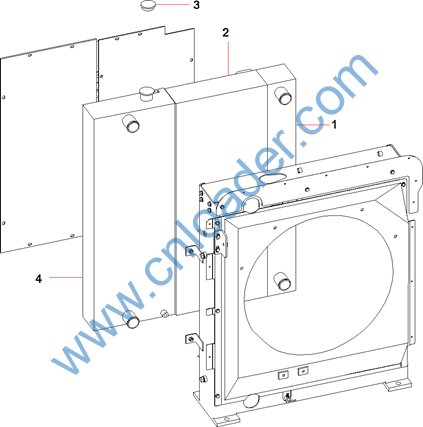

60271257

Radiator

13691310

Foam








60271260

Cooler, charge air

60271259

Cooler, hydraulic oil

60125365

Cap, coolant tank

60271258

Radiator, engine coolant








A210111000202

Bolt

A210491000121

Washer

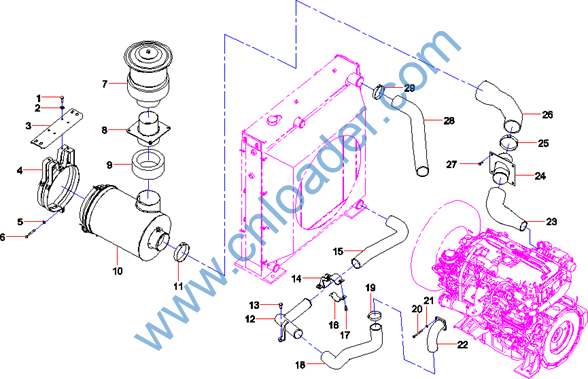

13662310

bracket

13662313

Clamp AS, air cleaner housing

A210491000120

Washer, Gear Thrust

A210111000295

Bolt

A222100000410

Precleaner

12787331

Tube, Air Inlet

12786391

Foam

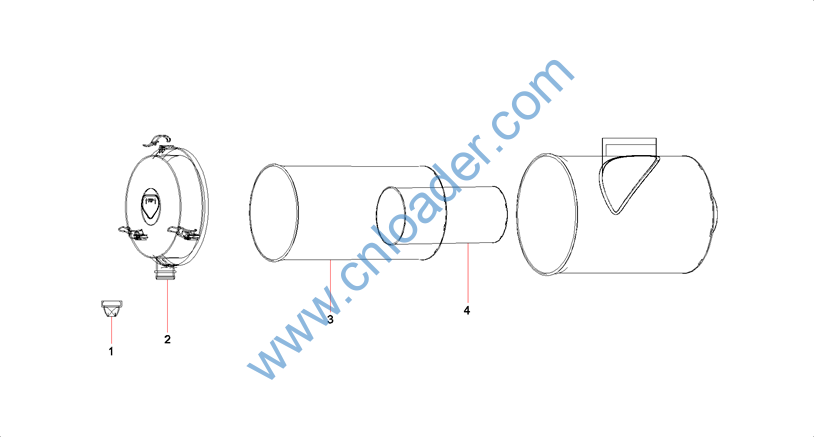

60210376

Air cleaner AS

A229900002220

Clamp

13555267

Pipe

A210111000101

Bolt

13555245

Bracket, pipe

13463255

Hose, charge air

13465381

Clamp

23000066

Screw

13555264

Hose

B229900001059

Clamp

A210111000097

Bolt








24000633

Washer

13555270

Tube, engine air inlet

13463257

Hose, air inlet, rear

13463105

Tube, air intake AS

A229900002683

Clamp, T-bolt

13463258

Hose, air inlet, front

A210111000012

Bolt

13463254

Hose, intake air

21004569

Clamp, T-bolt

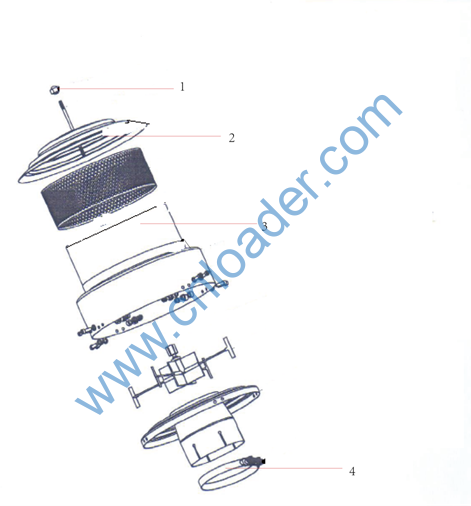

60304923

Nut

60304924

Cover, precleaner

60304925

Housing, precleaner

60305913

Clamp
