SY215C9 hydraulic excavator SANY SQE



60312633

柱塞马达    Motor, travel

13225418

减速机总成    gear reducer GT40D43B-F1H1U

60311526

成套密封(行走减速机维修包)    Kit, seal








60008464

Pin

60008465

弹簧

Spring

60311006

刹车活塞

Brake

60008475

密封环

Ring, sealing

60008476

密封环

Ring, sealing

60008642

球轴承

Bearing, ball

60311003

Pin

60311007

配油盘

Plate, port

60008473

压环

Ring

60008469

卡套

Washer

60008466

弹簧

Spring

60008468

弹簧座

Seat, spring

60311529

柱塞缸组件

Cylinder

60008463

Pin

60311524

20T行走制动从动片

Plate, friction

B229900003190

20T行走制动主动片

Plate, seperator

60008467

弹簧

Spring

60202326

O形圈

O-ring

60311527

法兰套装

Housing

60311525

O型圈

O-ring








60311005

Seal, oil

60008641

Bearing, ball

60311523

Shaft

60008474

Ball, steel

60008635

Swashplate








60311017

Orifice

60081488

O-ring

60008472

Plug

60311522

Valve, relief AS

60311528

Cap

60311521

Seat, spring

60008488

Orifice

60008460

O-ring

60081486

Plug

60311004

Bolt

60081484

O-ring

60081489

O-ring

60065008

Ring, retaining

60081487

O-ring

60065007

Ring, retaining








60081489

O-ring

60311521

Seat, spring

60311014

Spring

60081490

O-ring

60311015

Cap

60081458

Bolt

60311522

Valve, relief AS

60081484

O-ring

60310785

O-ring

60081489

O-ring

60065008

Ring, retaining

60081487

O-ring

60065007

Ring, retaining

60008484

Orifice

60008628

Spring

60008648

Guide, spring

60081488

O-ring

60008461

Plug

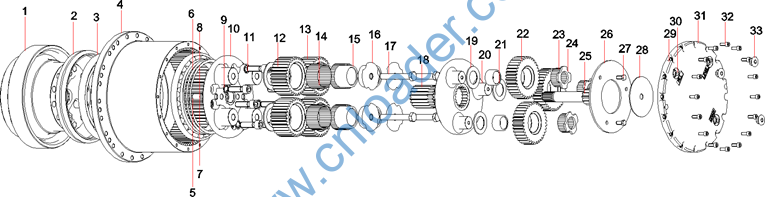

13223941

Housing, reducer

B230101001835

Seal, floating

60052144

Bearing

13209536

Gear,ring

A210504000020

Pin

11253794

Shim

11253889

Shim

11253894

Shim

A210431000003

Washer

11254557

Carrier, planetary

21026080

Bolt

11254804

Plate, wear

11254649

Gear, planetary

60008131

Roller, needle

11254018

Bushing

12761269

Shaft End BaffleⅡ

A210111000446

Bolt

60013867

Gear, sun

11254828

Plate, wear

60015947

Carrier, planetary








11254012

Bushing

11254653

Gear, planetary

60052008

Needle roller

11254846

Shaft End BaffleⅠ

60013866

Gear, sun

11254006

Plate, planet carrier

A210111000101

Bolt

11254009

Cover, rear wear

60057515

O-ring

B230101000356

O-Ring-23.7

11254799

Cover, outer

23000066

Screw

12457643

Plug

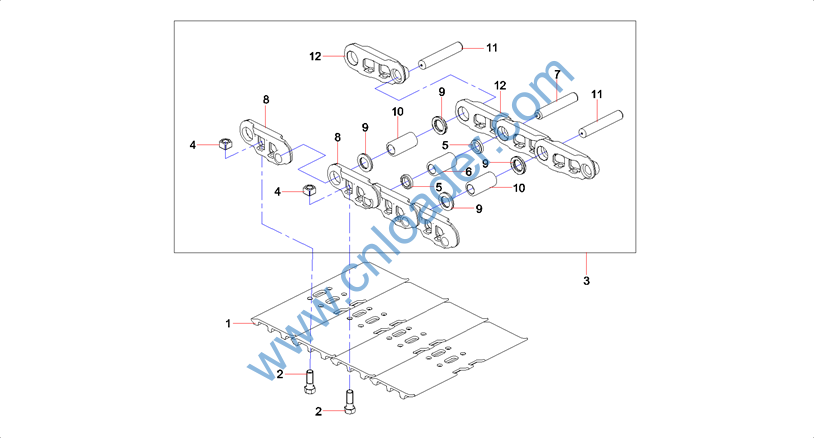

60001366

Shoe, track

60001368

Bolt, track

12233708

Link AS, track

60110067

Nut, track

12372220

Master Seal

12110565

master track bush

12110566

master track pin

12110570

track link/L

12110571

Seal Ring

12110569

track bush

12110568

track pin

12110573

track link/R








60027515

Plug

10999961

right_cover

60029251

Pin

A210608000081

O-ring

60027514

Seal

60027516

Bushing

10999959

spindle

13288924

Press Plate Wheel Body

10999960

left_cover








61003112

Revolving shaft

61003113

The nose cone

61003114

The nose cone

61003115

Ring, dust

61003116

A dust cover

61003117

O-ring

61003118

Revolving body

61003119

O-ring

61003120

Wear ring

61003121

Rotary sealing ring

61003122

Shim

61003123

Baffle

61003124

External circlips

61003125

O-ring

61003126

Shim

61003127

End cap

61003128

Standard spring washer

61003129

Hexagon headed bolt

60266514

Kit, seal
