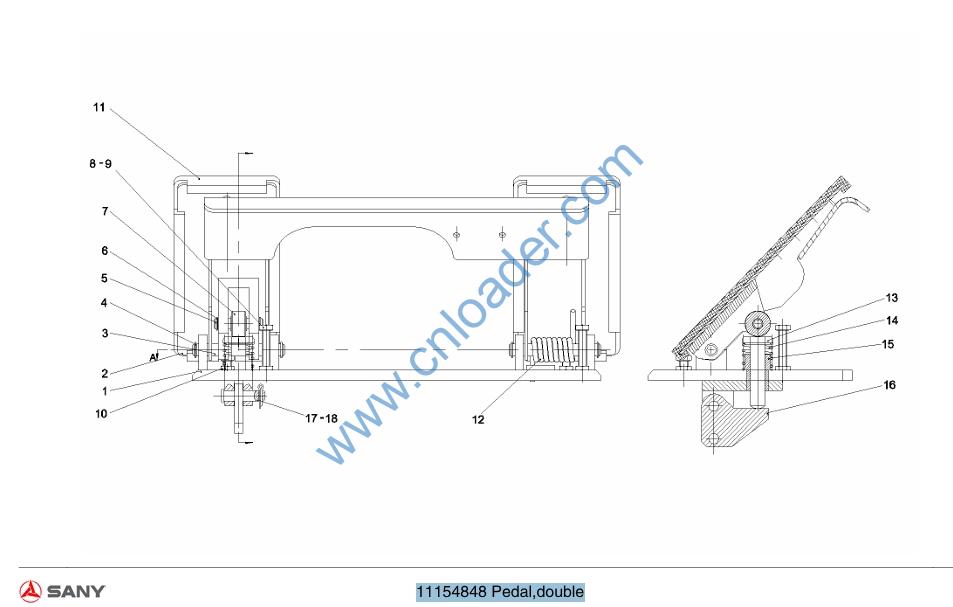

11154848 Pedal,double
1 11842847 Base 1
2 11469406 Pedal 1
3 A820301017224 Pin, connecting 1
4 A210414000018 Ring, retainer 2
5 10253405 Shaft, pin 1
6 A210414000011 Ring, retainer 2
7 10253342 Roller 1
8 A210111000342 Bolt 2
9 A210309000012 Nut 1
10 21005351 Bolt 2
11 11466848 Sleeve, rubber 2
12 11524359 Spring,torsion 1
13 10254328 Bar, crown 1
14 A820101315195 Spring 1
15 10144220 Bushing, copper 1
16 10254329 Plate, swivel 1
17 A210508000001 Shaft, pin 1
18 A210507000014 Pin 1

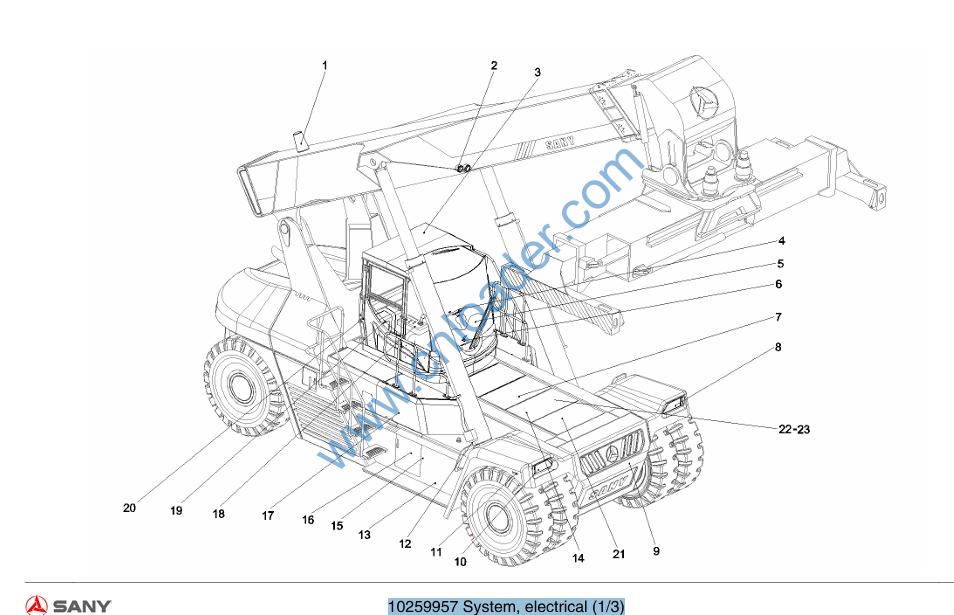

10259957 System, electrical (1/3)
1 60116987 Light, alarm, LED 1
2 B241100000421 Lamp, working 6
3 60006476 Horn 1
4 11723199 Assembly, operation display panel, steering column 1
5 A810201055623 Assembly, front operation panel 1
6 B241200001083 Switch, pedal 1
7 B240600000249 Sensor, pressure 1
8 60126169 Headlight, front, right 1
9 A229900001896 Horn 1
10 A241100000353 Headlight, left 1
11 A241100000555 Lamp, mark, side, LED 4
12 B240600000248 Sensor, pressure 4
13 60040547 Sensor, liquid level 1
14 B240600000172 Sensor, temperature 1
15 60143816 Switch, power supply 1
16 A242200000110 Battery 2
17 A810201052817 Assembly, terminal box 1
18 A810201055624 Assembly, operation panel, right 1
19 A810201052818 Assembly, control box 1
20 A810201058728 Harness, connecting, inner, cab 1
21 B241200000884 Switch, proximity 2
22 B229900002528 Plug 35
B229900001096
24 60023704 Antenna 1
25 B240600000272 Sensor, length and angle 1
26 A810201055737 Diagram, assembling, cable support, frame body 1
27 A820101010676 Clamp, single pipe 3
28 B241100000446 Lamp, tail, LED 2
29 B241100000447 Lamp, steering, LED 2
30 B240500000007 Alarm, backup 1
31 A810201058729 Harness, connecting, outer, cab 1
32 B240600000031 Sensor, temperature 2
33 11505874 Radar,reversing,visible,3m 1
