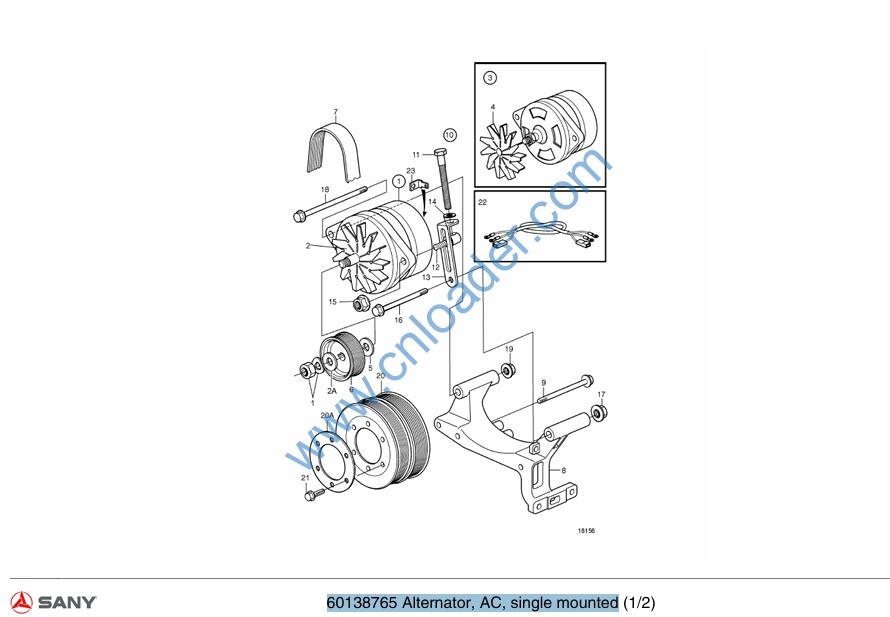

60138765 Alternator, AC, single mounted

60138765 Alternator, AC, single mounted

1 60130334 Alternator 1
2 60131162 Fan 1
3 B229900001027 Generator,VOLVO 1
5 60132226 Washer 1
6 60131302 Pulley 1
7 B230106000123 Belt, generator 1
8 60132179 Bracket 1
9 B229900002073 Screw 3
10 60132107 Tensioner 1
11 60131833 Screw 1
12 60132106 Tensioningscrew 1
13 60132123 Bracket 1
14 60130846 Washer 1
15 60131085 Flangelocknut 1
16 60092467 Bolt,flange 1
18 60131083 Flangescrew 1
19 60092698 Nut,self-locking 1
20 60131336 Pulley 1
21 60094285 Bolt, flange 6
22 60132784 Cablekit 1
23 60130561 Spadeterminal 1
24 60132968 Sleeve 1

60130874

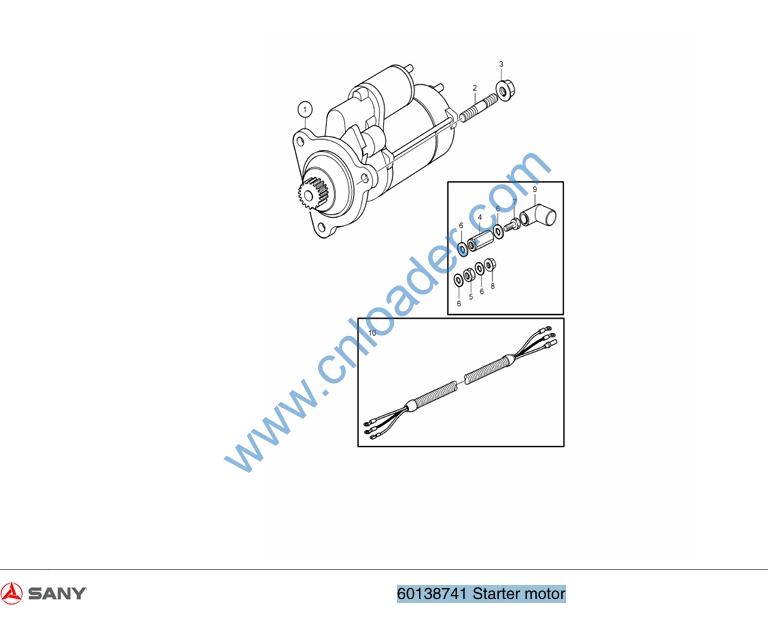

60138741 Starter motor

1 60130313 Startermotor 1
2 60092578 Bolt 3
3 60092456 Nut,flange 3
4 60131653 Nut 1
5 60092562 Nut 1
6 60130649 Springwasher 4
7 60094290 Bolt,flange 1
8 60131659 Nut 1
9 60132631 Protectingsleeve 1
10 60132785 Cablekit 1

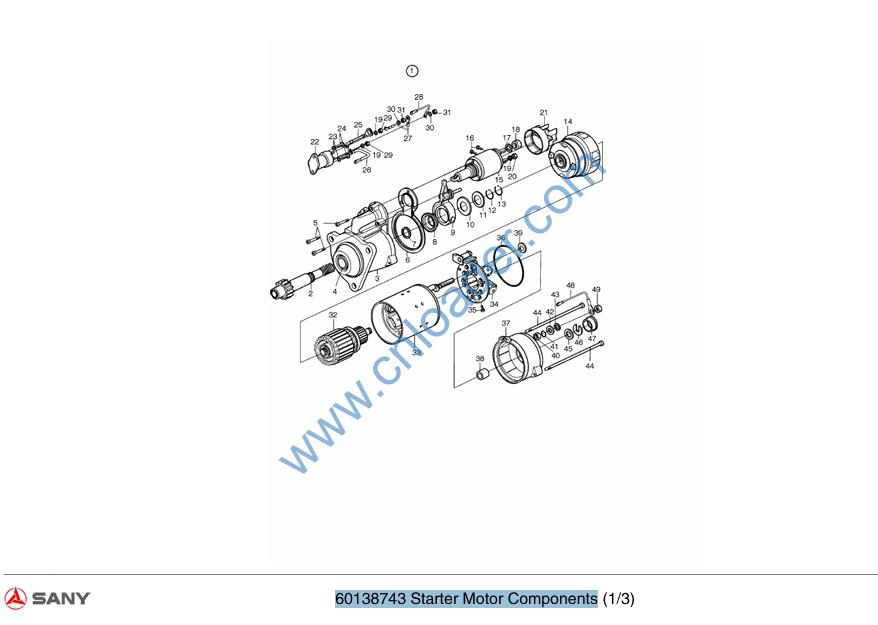

60138743 Starter Motor Components

1 60130313 Startermotor 1
2 60130452 Starterpinion 1
3 60132313 Bearinghousing 1
4 60132409 Sealingring 1
5 60131695 Screw 3
6 60130700 Gasket 1
7 60130832 Washer 1
8 60130833 Washer 1
9 60129836 Lever 1
10 60130834 Washer 1
11 60130835 Washer 1
12 60130516 Lockring 1
13 60130517 Lockring 1
14 60130434 Gear 1
15 60130016 Solenoid 1
16 60131696 Screw 2
17 60130639 Springwasher 2
18 60131625 Nut 2
19 60130640 Springwasher 3
20 60131626 Nut 1
21 60131285 Protectingcasing 1
22 60129914 Relay 1

23 60130641 Springwasher 2
24 60131697 Screw 2
25 60132732 Cable 1
26 60132733 Cable 1
27 60132734 Cable 1
28 60132735 Cable 1
29 60131627 Nut 2
30 60130642 Springwasher 2
31 60131628 Nut 2
32 60133007 Rotor 1
33 60132991 Stator 1
34 60130133 Brushretainer 1
35 60131698 Screw 1
36 60132353 O-ring 1
37 60130358 Commutatorbearing 1
38 60132289 Bearingbushing 1
39 60139077 Washer 1
40 60138536 Insulating sleeve 1
41 60139067 Gasket 1
42 60139426 Insulating washer 1
43 60139078 Washer 1
44 60139572 Screw 2

45 60139079 Washer 1
46 60139942 Lock washer 1
47 60138506 Protecting casing 1
48 60140380 Cable 1
49 60139525 Nut 1
