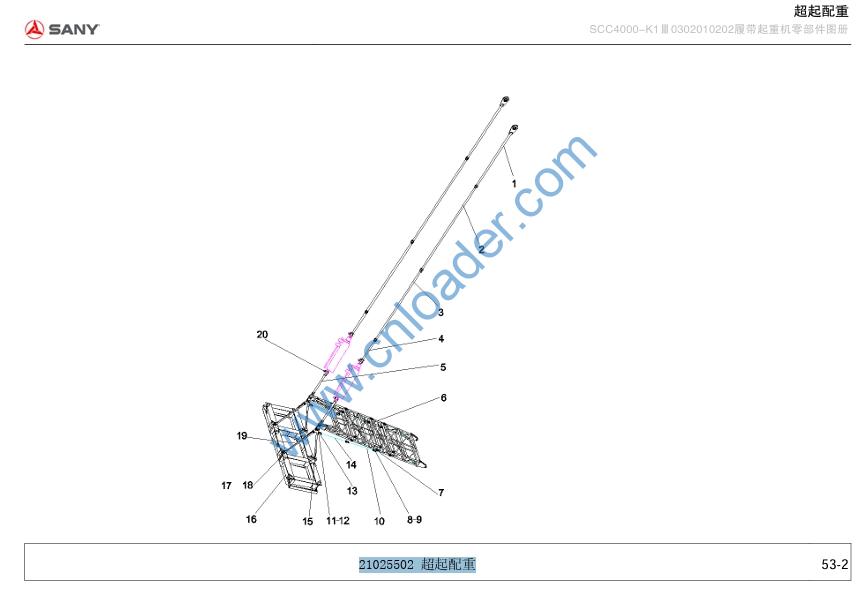

21025502 超起配重

21025502 超起配重

1 21014454 Outer tie rod Ⅰ 2
2 21014452 Outer tie rod II 2
3 21014450 Outer tie rod III 2
4 21014448 Outer tie rod IV 2
5 21014445 Outer tie rod V 2
6 21029047 Super lifting counterweight support rod 1
7 21025500 isolation frame pull rope 2
8 10143324 pin 14
9 21025499 Pull plate I 6
10 21024900 Isolation frame pull rope 2
11 10143326 pin 2
12 21011763 Pin Pin 14
13 21014471 Pull plate Ⅱ 2
14 21025498 Isolation frame pull rope 2
15 21025417 Triangular pull plate 2
16 21014414 Super lifting counterweight frame 1
17 21012138 pin pin 18
18 10136428 pin 4
19 21025416 drop down plate 2
20 10138496 pin 12

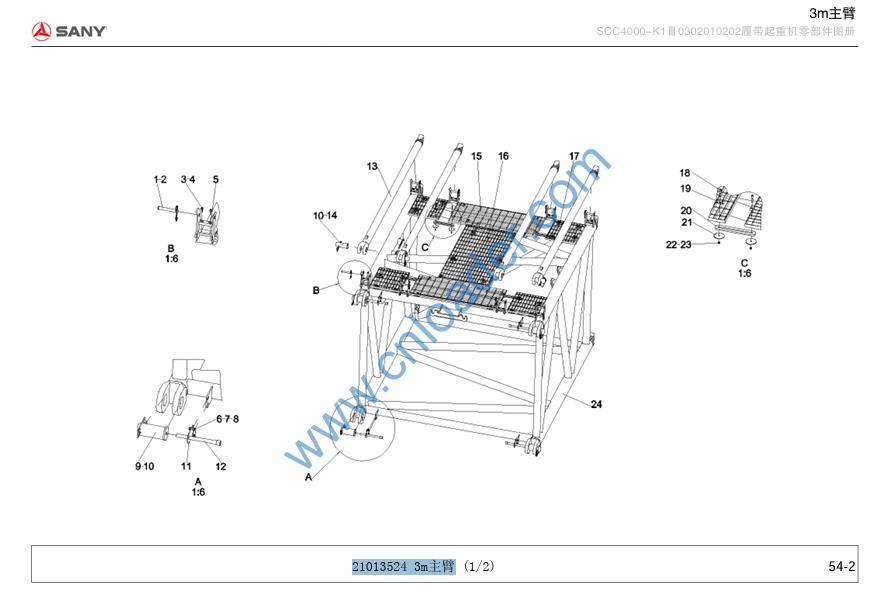

21013524 3m主臂

1 21011762 Pin Pin 8
2 10115369 pin 8
3 A210204000162 screw M8×25GB70.1 16
4 A210405000007 Washer 8GB97.1 16
5 10125082 Nylon pad 8
6 A210111000203 bolt M12×35GB5783 10.9 level 8
7 A210401000002 gasket 12GB93 8
8 A210307000031 Nut M12GB6170 Level 10 8
9 21011893Kingpin 4
10 21012138 Pin Pin 8
11 21011892 Connector 4
12 21013408 screw 4
13 21013542 Draw tube 4
14 10138496 pin 4
15 21013527 steel grating 2
16 21013525 steel grating 1
17 21013526 steel grating 4
18 A210204000170 screw M8×50GB70.1 38
19 21031264 upper clip 36
20 21034720 Steel grating connecting plate 6
21 21034518 Steel grating gasket 38
22 A210401000017 Washer 8GB93 38

23 A210314000008 螺母M8GB6184 38
24 21013528 臂架结构件1
