21011206 先导阀

21011206 先导阀

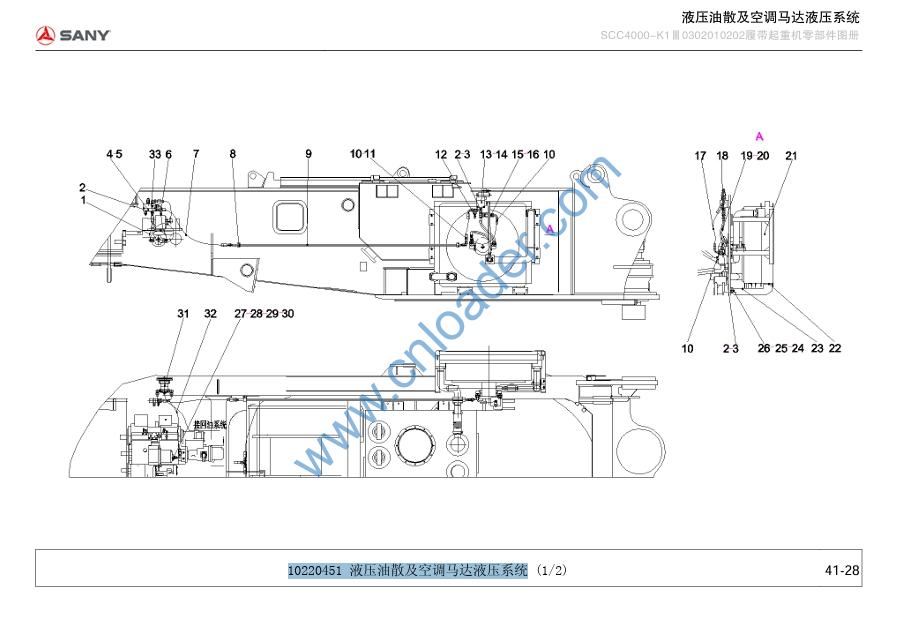

10220451 液压油散及空调马达液压系统

1 B230103001839 hose Q/SY1102 1
2 21002856 pipe joint 6
3 21003064 pipe joint 5
4 10501169 Air conditioning motor control valve group 1
5 A210204000170 screw M8×50GB70.1 2
6 B230103000399 hose 2SN16-DKOL-DKOL90-900 1
7 B230103004434 hose Q/SY1102 1
8 A229900002420 single pipe clamp 2
9 10220453 steel pipe assembly 1
10 B230103000393 hose 2SN16-DKOL-DKOL90-600Q/SY1102 3
11 A229900004342 pipe joint 1
12 21083672 Test connector 1
13 21016832 Relief valve 2 1
14 A210204000017 screw M10×90GB70.1 2
15 21018928 One-way valve 1
16 A229900003470 pipe joint 1
17 B230103000397 hose 2SN16-DKOL-DKOL90-800Q/SY1102 1
18 A229900002901 pipe joint 3
19 B230103000366 hose Q/SY1102 1
20 21022111 pipe joint 2
21 10220455 Oil powder assembly 1
22 10220452 Rubber pad 2

23 10220479 lower bracket 2
24 A210204000337 screw M12×30GB70.1 10.9 level 8
25 A210401000002 Washer 12GB93 8
26 A210405000001 Washer 12GB97.1 8
27 A229900002489 split flange 1
28 A210204000181 screw GB70.1 4
29 B230101000580 O-ring 1
30 21020687 Flange joint 1
31 21013722 Gear motor 1
32 A832613120000 hose Q/SY1102 1
33 21000744 test connector 1
