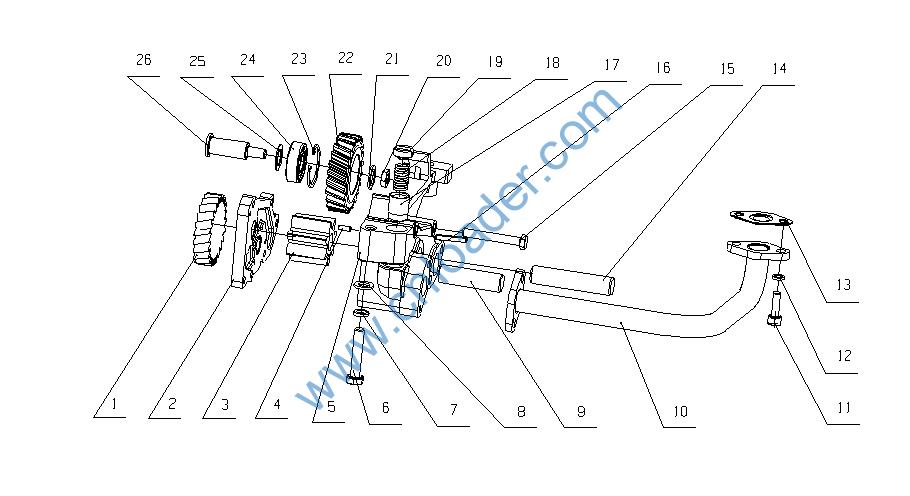

A30-1011020A 机油泵 Oil pump
A30-1011023 机油泵齿轮 Oil pump gear
A30-1011024A 机油泵盖 Oil pump cover
A30-1011022 机油泵驱动齿轮 Oil pump driving gear
Q5210412 圆柱销4×12 Column pin 4×12
A30-1011021A 机油泵体 Oil pump body
Q150B1050TF2 螺栓M10×50 Bolt M10×50
Q40310 垫圈10 Washer 10
Q40110 垫圈10 Washer 10
A30-1011026 机油泵从动齿轮轴 Oil pump driven gear shaft
J5600-1011240A 出油管组件 Oil outlet pipe assembly
Q218B0825TF2 螺钉M8×25 Screw M8×25
Q40308 垫圈8 Washer 8
6105QA-1010110 垫片结合件 Assembled washer
A30-1011025 机油泵驱动齿轮轴 Oil pump drive gear shaft
Q150B0860 螺栓M8×60 Bolt M8×60
Q5280532 销5×32 Pin 5×32
A30-1011028 机油泵限压阀塞 Oil pump relief valve plug
A30-1011029 机油泵限压阀弹簧 Oil pump relief valve spring
A30-1011031 挡圈 Retainer
Q351B10 螺母M10×1 Nut M10×1
430-1011012 间隔垫 Spacer
430-1011011 机油泵中间驱动齿轮 Oil pump middle driving gear
Q43040 挡圈40 Retaining ring 40
GB/T276-6203 滚动轴承6203 Rolling bearing 6203
430-1011014 垫圈-中间传动齿轮 Spacer- driven gear
A30-1011013 机油泵中间传动齿轮轴 Oil pump middle driving gear shaft

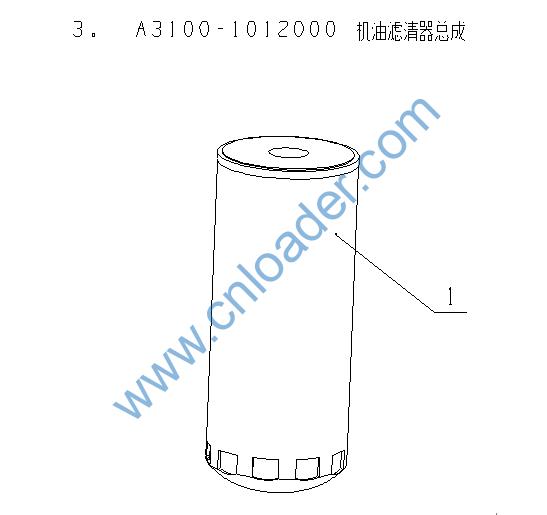

1 430-1012020A 机油滤清器 Oil filter 1

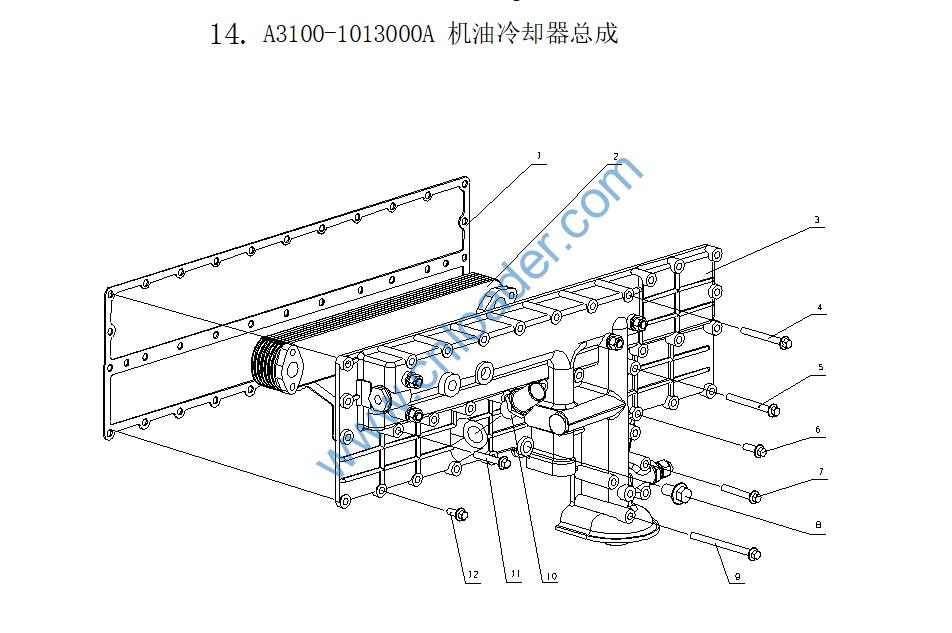

A3100-1013001A 机油冷却器垫片 Oil cooler spacer
A3100-1013010D 机油冷却器 Oil cooler
A3000-1013020 机油冷却器芯 Oil cooler core
A3100-1013011D 机油冷却器盖 Oil cooler cover
Q1840875TF2 螺栓M8×75 Bolt M8× 75
Q1840880TF2 螺栓M8×80 Bolt M8× 80
Q1840825TF2 螺栓M8×25 Bolt M8× 25
Q1840855 螺栓M8×55 BoltM8× 55
Q1841425 螺栓M14×25 Bolt M14× 25
Q18408110 螺栓M8×110 Bolt M8× 110
475D-1002071A 回油接头 Oil return union bolt
Q1840850 螺栓M8×50 Bolt M8× 50
Q1840820 螺栓M8×20 Bolt M8× 20

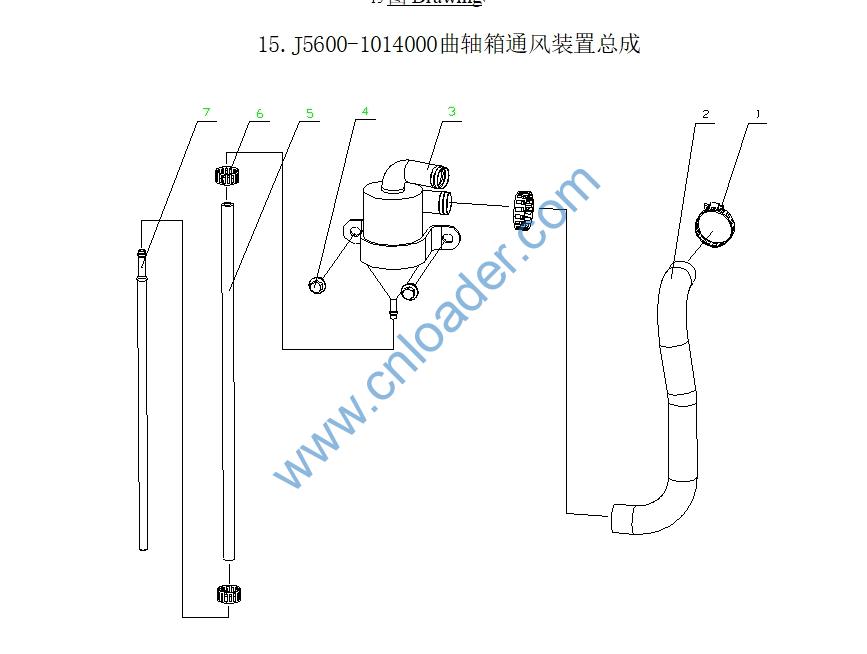

Q67645 环箍45 Ring hoop 45
J5600-1014049A 通气管Ⅰ Ventilation pipe Ⅰ
J5600-1014100A 离心式油气分离器 centrifugal type oil-air separator
Q1841016 螺栓M10×16 Bolt M10× 16
G2000-1014009 回油胶管 Oil return rubber pipe
Q67627 环箍27 Ring hoop 27
J6000-1014028A 回油管 Oil return pipe

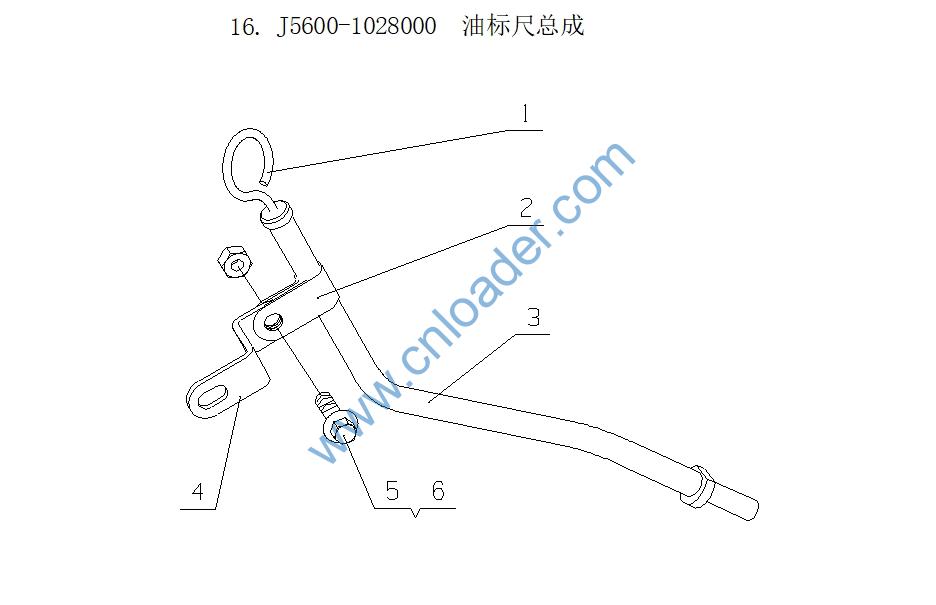

L3002-1009080B 油标尺焊接件 Oil dipstick weldment
151-1002082 油标尺管夹 Oil dipstick pipe clamp
173A-1009041 软管 Hose
J5600-1009009 油标尺支撑板 Oil dipstick support plate
Q1840825 螺栓M8×25 Bolt M8× 25
Q340B08 螺母M8 Nut M8

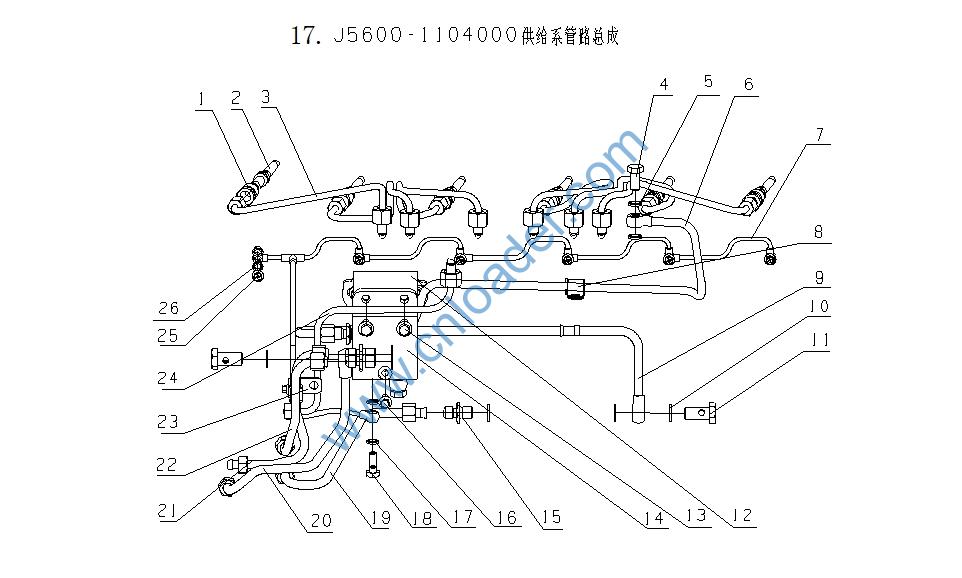

L3000-1104131 连接管螺栓 Connecting pipe bolt
G2100-1104050A 高压连接管组件 High pressure connecting pipe assembly
J5600-1104100A 高压油管部件 High pressure pipe parts
Q/YC901-1C12125 铰接螺栓M12×1.25 Articulated bolt M12×1.25
Q/YC149-12 复合式密封垫圈12 Seal ring washer 12
J5600-1104C00BSF1 共轨管回油管部件 CR(Common rail) oil return pipe parts
J5600-1104200E 回油管部件 Oil return pipe parts
J5600-1104260 回油管管夹支架组件 Oil return pipe clamp bracket assembly
J5600-1104900B 进油管部件 Oil inlet pipe parts
Q/YC149-16 复合式密封垫圈16 Seal ring washer 16
Q/YC901-1C1615 铰接螺栓M16×1.5 Hinged bolt M16×1.5
J5600-1104504B 燃油分配器支架 Fuel distributor bracket
Q1841025TF2 螺栓M10×25 Bolt M10×25
J5600-1104541A 燃油分配器 Fuel distributor
G5800-1104001 过渡接头 Transit joint
Q1840825TF2 螺栓M8×25 Bolt M8×25
Q/YC149-10 复合式密封垫圈10 Seal washer 10
M3000-1002701A 过油螺栓 Bolt with oil hole
J5600-1104F00ASF1 ECU至输油泵油管部件 Pipe parts, ECU to fuel pump pipe
J5600-1104A00SF1 燃油分配器至喷油泵油管部件 Pipe parts, fuel distributor to injection pump
J5600-1104400BSF2 柴滤器至喷油泵油管部件 Pipe parts, fuel filter to injection pump
J5600-1104300BSF2 输油泵至柴滤器油管部件 Pipe parts, fuel pump to filter
J5600-1104C10 管夹支架组件 Pipe clamp bracket assembly
J5600-1104080ASF1 油泵至油轨油管部件 Pipe parts, oil pump to oil rail pipe
J5600-1104205 接头 Joint
Q/YC149-8 复合式密封垫圈8 Combined seal washer 8

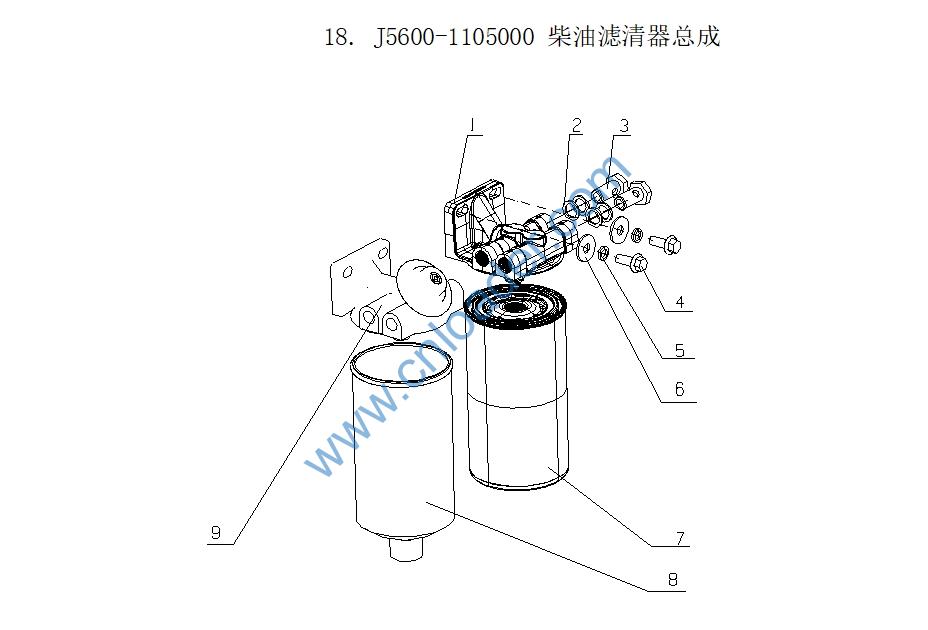

G5800-1105001A 柴油滤清器座 Fuel filter seat
Q/YC149-16 复合式密封垫圈16 Seal ring washer 16
Q/YC901-1C1615 铰接螺栓M16×1.5 Articulated bolt M16×1.5
Q1841025 螺栓M10×25 Bolt M10×25
Q40310 垫圈10 Washer 10
Q40110 垫圈10 Washer 10
G5800-1105140 滤芯组件 Filter core assembly
G5800-1105240 预滤组件 Pre-filter assembly
G5800-1105210 滤座组件 Filter seat assembly

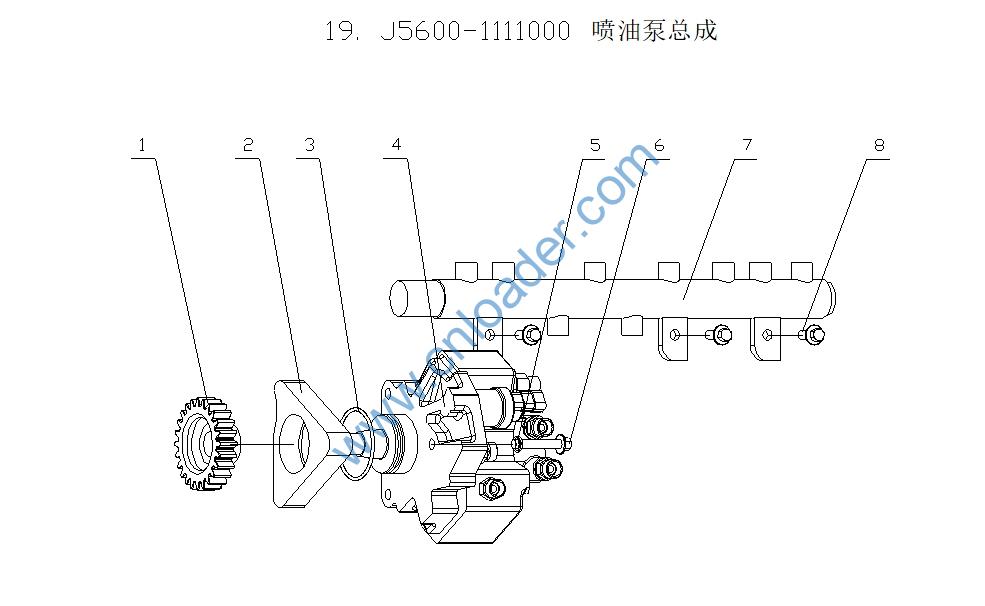

J5600-1111003 燃油喷射泵齿轮 Fuel injection pump gear
J5600-1111001 燃油喷射泵连接盘 Fuel injection pump connecting pan
YC208-B05600F O形圈2.65×56 O-ring 2.65× 56
G2100-1111100-A38 燃油喷射泵部件 Fuel injection pump parts
Q/YC149-8 复合式密封垫圈8 Seal washer8
Q1840845TF2 螺栓M8×45 Bolt M8× 45
J5600-1111A00 共轨管部件 Common rail pipe parts
Q1840820TF2 螺栓M8×20 Bolt M8× 20

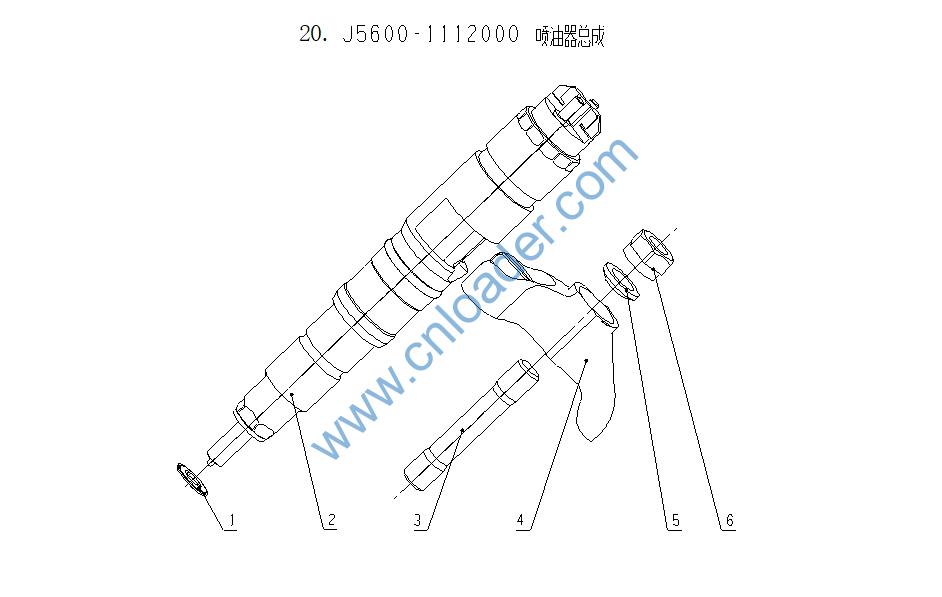

J5600-1112001ASF1 喷油器垫片 Injector gasket
J5600-1112100-A38 喷油器部件 Injector parts
J5600-1112003 螺柱 Stud
J5600-1112005D 固定板 Lock plate
J5600-1112002 垫圈 Washer
J5600-1112008 螺母 Nut
Q150B0825TF2 螺栓M8×25 Bolt M8×25

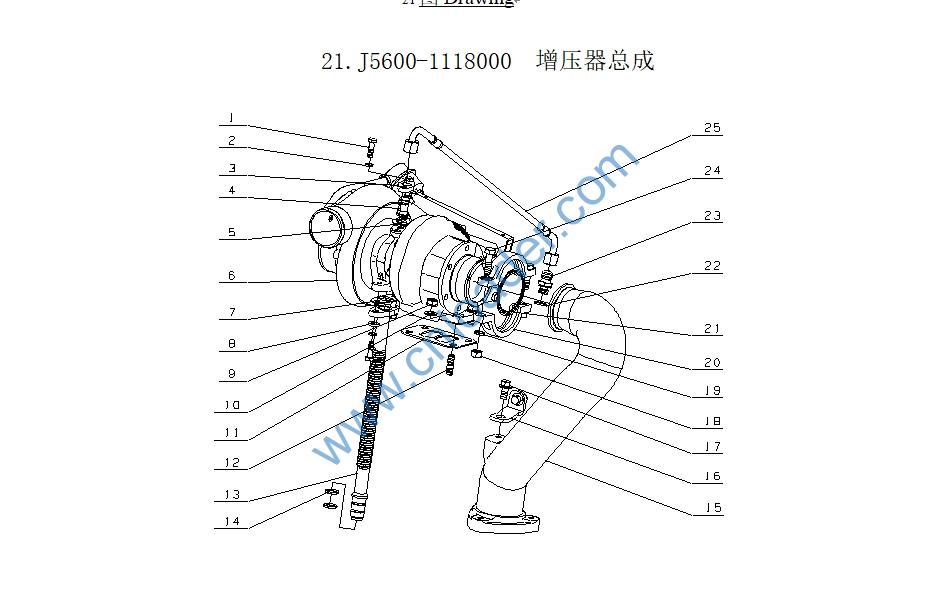

Q40308 垫圈8 Washer 8
475D-1118022 法兰压板 Flange
475D-1118021 增压器进油接头 Turbocharger oil inlet joint
150-1118031B 垫片 Washer
J5600-1118100-135 增压器 Turbocharger
B3000-1118041 垫片 Washer
6105Q-3509013 垫圈 Washer
M3000-1008206A 螺母 Nut
Q40110 垫圈10 Washer 10
L3000-1118002 增压器垫片 Turbocharger gasket
L3000-1118011 双头螺柱 Stud
L3002-1118340B 增压器回油管 Turbocharger oil return pipe
YC208-B01700F O形圈2.65×17 O-ring 2.65×17
J5600-1008203 涡轮后排气接管 Turbine rear Exhaust pipe
J5600-1008212 支架 Bracket
Q1841020 螺栓M10×20 Bracket
Q340B10 螺母M10 Nut M10
Q40310 垫圈10 Lock Washer 10
G0100-1118072C 涡轮后卡环 Turbine rear circlip
G0100-1118073A 垫片 Washer
Q/YC149-14 复合式密封垫圈14 Seal washer 14
A30-1118021 进油软管接头 Oil intake hose joint
Q150B1035 螺栓M10×35 Bolt M10×35
B4000-1118030 增压器进油软管 Turbocharger oil inlet hose

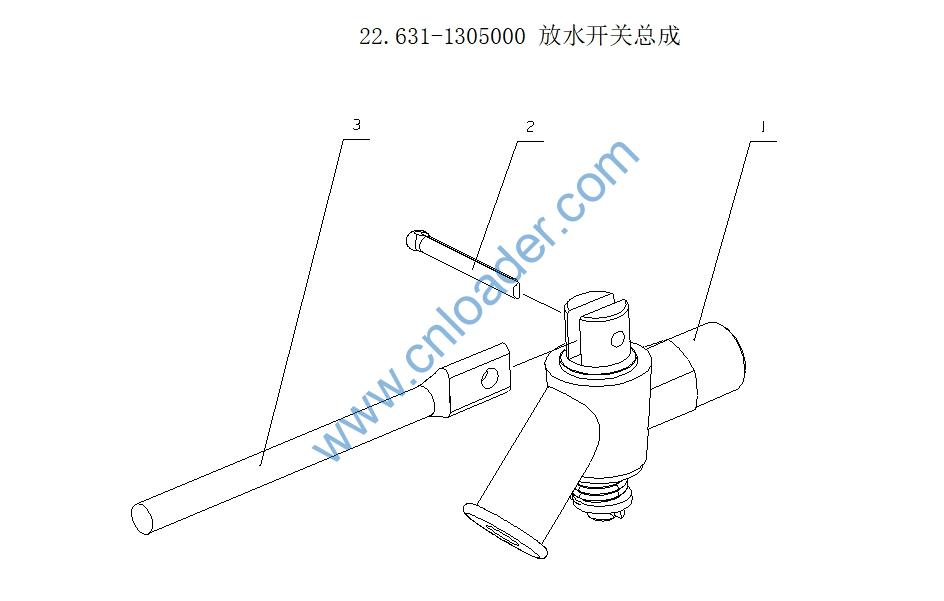

6105Q-1305010 放水阀部件 Water drain cock parts
Q5003225 销3.2×25 Pin 3.2× 25
150-1305015 操纵杆 Control handle
Q618B02 螺塞NPT1/4 Screw plug NPT1/4

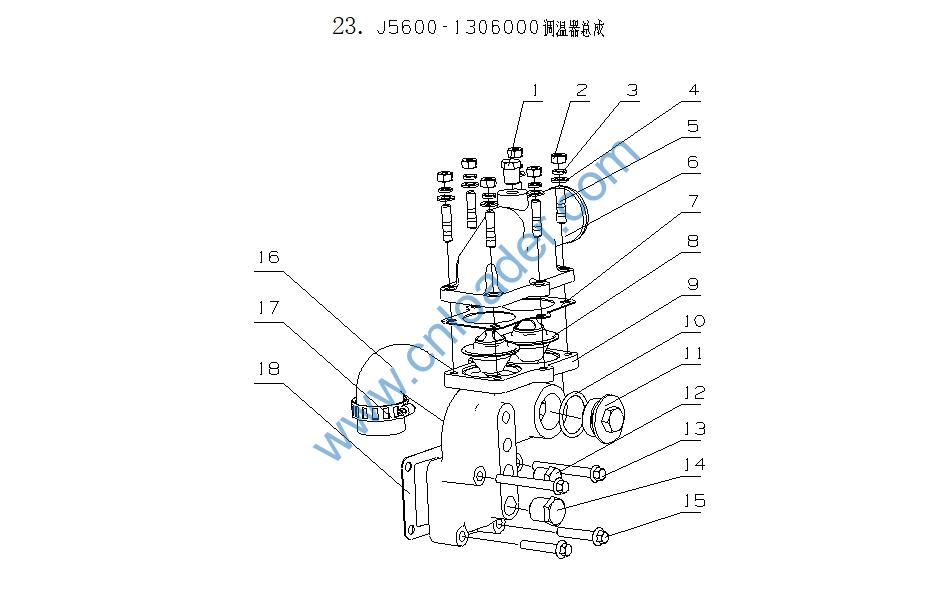

Q340B08 螺母M8 Nut M8
Q40308 垫圈8 Washer 8
Q40108 垫圈8 Washer 8
Q1200825 螺柱M8×25 Stud M8× 25
156-1306012 调温器盖 Thermostat cover
A3900-1303012 节温器盖垫片 Thermostat cover spacer
M7600-1306004 调温器 Thermostat
J5600-1306003E 调温器座 Thermostat seat
YC208-C03550 O形圈3.55×35.5 O-ring 3.55× 35.5
177-1306023C 螺塞 Bolt plug
Q618B03 螺塞NPT3/8 Screw plug NPT3/8
Q1840870TF2 螺栓M8×70 Bolt M8× 70
Q618B04 螺塞NPT1/2 Screw plug NPT1/2
Q1840845TF2 螺栓M8×45 Bolt M8× 45
J5600-1306005 回水胶管 Water return rubber pipe
Q67650 环箍50 Ring hoop 50
J5600-1306006A 节温器座垫片 Thermostat seat washer

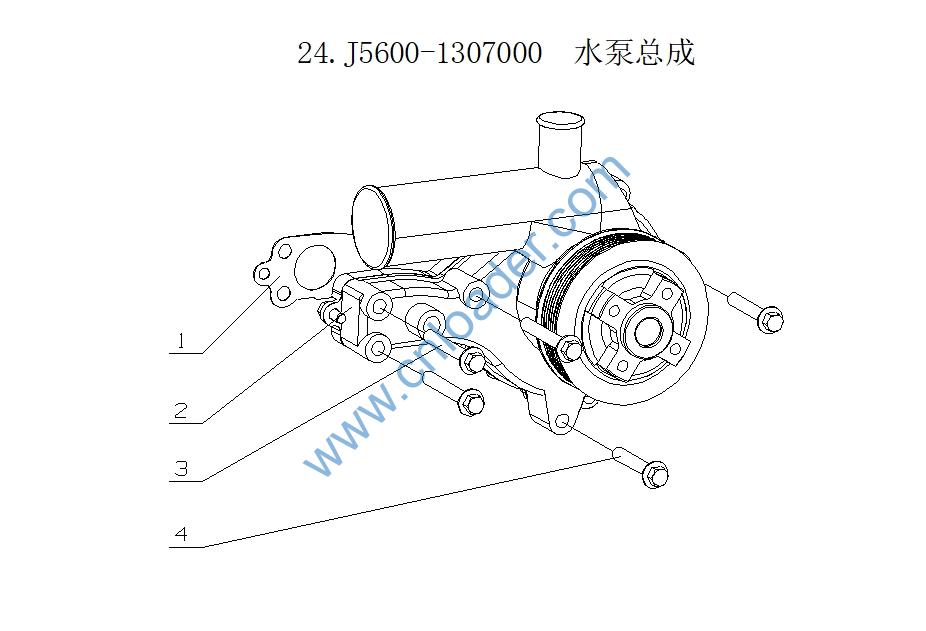

A3100-1307004B 水泵垫片(II) Water pump washer (II)
A3100-1307010B 水泵部件 Water pump part
Q1841075TF2 螺栓M10×75 Bolt M10× 75
Q1841065TF2 螺栓M10×65 Bolt M10× 65
G3202-1308010B 硅油离合器风扇组件 Silicon oil clutch fan assembly
Q1841230TF2 螺栓M12×30 Bolt M12× 30

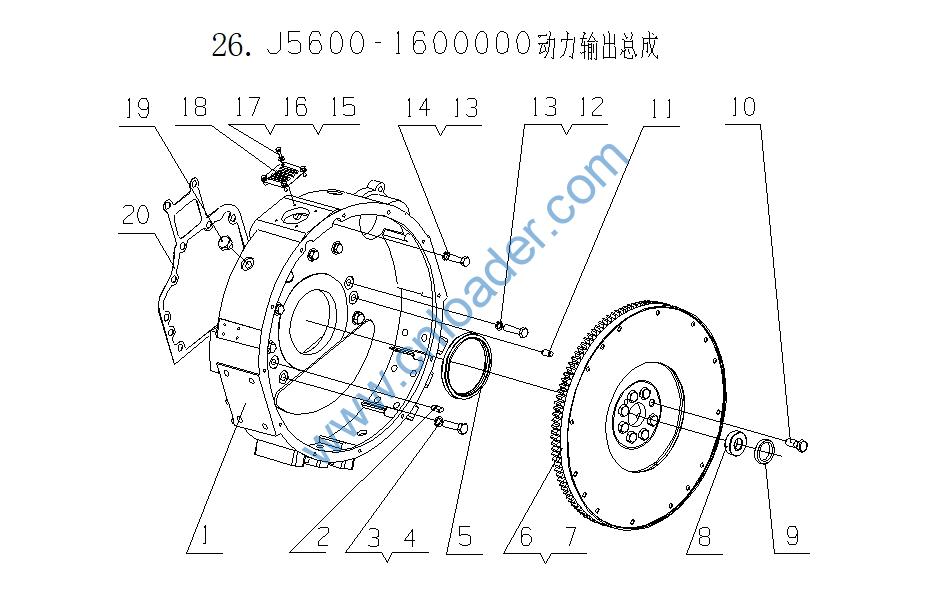

A3200-1600401A 飞轮壳 Flywheel housing
6105Q-1600011 扁销 Flat pin
Q40314 垫圈14 Washer 14
Q150B1450TF2 螺栓M14×50 Bolt M14×50
150-1002062 曲轴后油封 Crankshaft rear oil seal
A3206-1005360 飞轮及齿圈组件 Flywheel and geared ring
A3206-1005361 飞轮 Flywheel
A3206-1005362 齿圈 Gear circle
GB/T276-6205-2RS 深沟球轴承 Ball bearing
397A-1600050 轴承衬垫 Bearing bushing
6QA1-1005044A 飞轮螺栓 Flywheel bolt
Q5221224 销12×24 Pin 12×24
Q150B1250TF2 螺栓M12×50 Bolt M12×50
Q40312 垫圈12 Washer 12
Q150B1240TF2 螺栓M12×40 Bolt M12×40
Q40106 垫圈6 Washer 6
Q40306 垫圈6 Washer 6
Q150B0616 螺栓M6×16 Bolt M6×16
B3000-1600021 盖板 Cover plate
Q/YC198-18 螺塞M18×1.5 Screw plug M18×1.5
330-1600016 离合器壳垫片 Clutch housing gasket

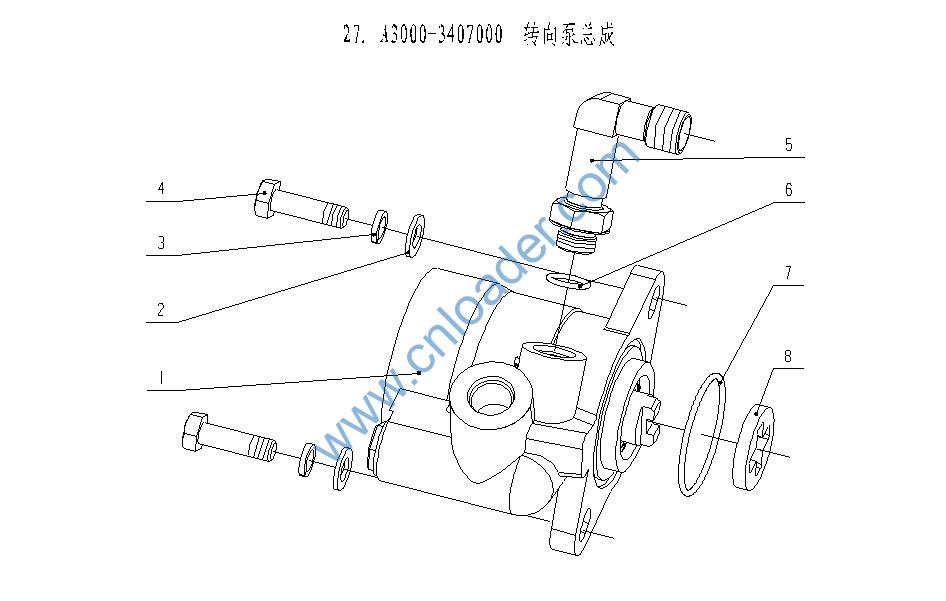

A3007-3407100 转向泵 Steering pump
Q40110 垫圈10 Washer 10
Q40310 垫圈10 Washer 10
Q150B1035 螺栓M10×35 Bolt M10×35
B3430-3407004 转向泵出油接头 Steering pump oil out let joint
YC208-M01600F O型圈2.4×16 O-ring 2.4×16
YC208-B05800F O型圈2.65×58 O-ring 2.65×58
231-3407013 传动套 Driving sleeve
