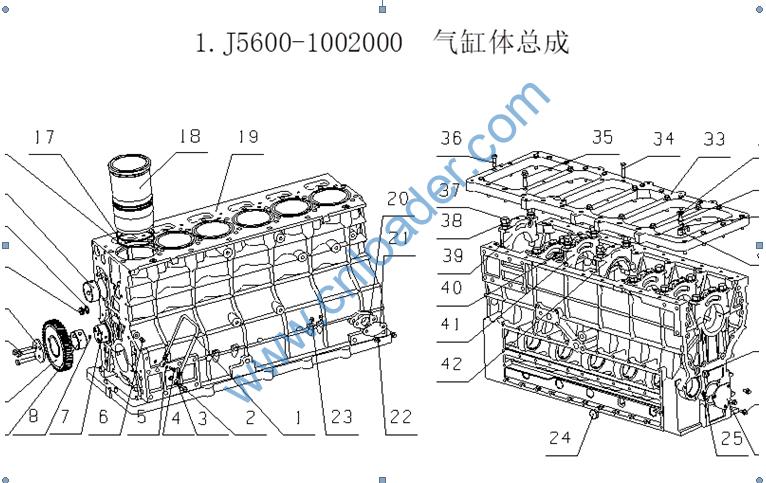

J5600-1002370D 惰齿轮润滑油管 Idler gear lubrication pipe
Q/YC901-1C0810 铰接螺栓M8×1 Articulated bolt M8× 1
Q/YC149-8 复合式密封垫圈8 Seal washer8
150-1112012 螺栓 Bolt
150-1112011 垫圈 Washer
Q618B01 螺塞NPT1/8 Screw plug NPT 1/8
J5600-1002052 惰齿轮轴 Idler gear shaft
Q61508 螺塞M8×1 Screw plugM8× 1
6105QA-1002011 凸轮轴衬套 Camshaft bushing
A3000-1002051 正时惰齿轮 Timing idle gear
Q150B1055TF2 螺栓M10×55 Bolt M10× 55
A3100-1002054A 正时惰齿轮挡板 Timing idle gear plate
6105Q-1002067 主油道密封塞 Main oil gallery seal plug
YC208-B01800F O形圈2.65×18 O-ring 2.65× 18
L3000-1002011 凸轮轴衬套 Camshaft bushing
A3000-1002063B 气缸套封水圈 Cylinder liner O ring
A3000-1002063 气缸套封水圈 Cylinder liner O ring
J5600-1002106 气缸套 Cylinder liner
J5600-1002114A 气缸体 Cylinder block
6105Q-1014001 呼吸器垫片 Breather spacer
A7100-1319K-0 盖板 Cover plate
Q1840816 螺栓M8×16 Bolt M8× 16
6105Q-1002022 铝堵φ10×10 Aluminum plug Φ10×10
Q72230 塞片30 Spacer 30
A3100-1002103 凸轮轴端盖垫片 Camshaft end cover gasket
A3100-1002102 凸轮轴端盖 Camshaft end cover
Q1840816 螺栓M8×16 Bolt M8× 16
6105Q-1002069 后主油道堵塞 Rear main oil galley plug
J5600-1002740 喷嘴焊接件 Nozzle weldment
Q5220510 销5×10 Pin 5×10
430-1002163 垫圈 Washer
A3100-1002180 过油螺栓组件 Bolt with oil hole (assembly)
J5600-1002161 机体加强板 Block reinforced plate
Q150B0840TF2 螺栓M8×40 Bolt M8× 40
Q1841040TF2 螺栓M10×40 Bolt M10×40
Q218B0830TF2 螺钉M8×30 Screw M8× 30
A30-1002021 主轴承螺栓 Main bearing bolt
A30-1002019 主轴承螺栓垫圈 Main bearing bolt washer
A30-1002012 前主轴承盖 Front main bearing cap
YC208-C02580F O形圈3.55×25.8 O-ring 3.55× 25.8
A30-1002014 主轴承盖 Main bearing cap
A30-1002013 中间主轴承盖 Medium main bearing cap
Q1841070TF2 螺栓M10×70 Bolt M10× 70
G0100-1002401 张紧皮带轮 Tension pulley
A3200-1002045A 张紧轮总成 Tensioner assembly
Q1840815 螺栓M8×15 Bolt M8× 15
Q/YC149-8 复合式密封垫圈8 Seal washer8
Q1840816 螺栓M8×16 Bolt M8× 16
Q1840880TF2 螺栓M8×80 Bolt M8× 80
Q40108 垫圈8 Nut 8
Q40308 垫圈8 Nut 8
Q340B08 螺母M8 Nut M8
J56QA-1002250 喷油泵齿轮盖板 Fuel injection pump gear cover
J5600-1002255 喷油泵齿轮盖板垫片 Fuel injection pump gear cover gasket
YC209-070090FR 油封70×90 Oil seal 70× 90
YC209-B070090PR 油封70×90 Oil seal 70× 90
Q1841450 螺栓M14×50 Bolt M14× 50
Q1840850TF2 螺栓M8×50 Bolt M8× 50
J5600-1002201A 正时齿轮室 Timing gear chamber
J5600-1002202 齿轮室垫片 Gear cover washer
Q/YC207-0816 螺栓 Bolt
J5600-1002311 惰齿轮防磨板 Idler gear wear plate
J5600-1002306 惰齿轮轴 Idler gear shaft
Q5211230 销12×30 Pin 12× 30
Q150B0825TF2 螺栓M8×25 Bolt M8× 25
J5600-1002203A 齿轮室盖板 Gear housing cover plate
L3001-1002032 正时齿轮室垫片 Timing gear spacer
J5600-1002350 惰齿轮组件 Idler gear assembly
Q1840825TF2 螺栓M8×25 Bolt M8× 25
J5600-1111304 接头 Joint
YC208-B04250F O形圈2.65×42.5 O-ring 2.65× 42.5
Q1200885 螺柱M8×85 Stud M8× 85
Q1200875 螺柱M8×75 Stud M8× 75
Q1840880TF2 螺栓M8×80 Bolt M8× 80
L3000-1002084 空压泵惰齿轮座 Air compressor idler gear seat
231-1002083 惰齿轮衬套 Idler gear bushing
A3000-1002042 空压机惰齿轮 Air compressor idler gear
231-1002087 惰齿轮减磨板 Idler gear friction plate
Q1840820TF2 螺栓M8×20 Bolt M8× 20
YC208-B02000F O形圈2.65×20 O-ring 2.65× 20
A3000-1002085B 惰齿轮座螺栓 Idler gear seat bolt

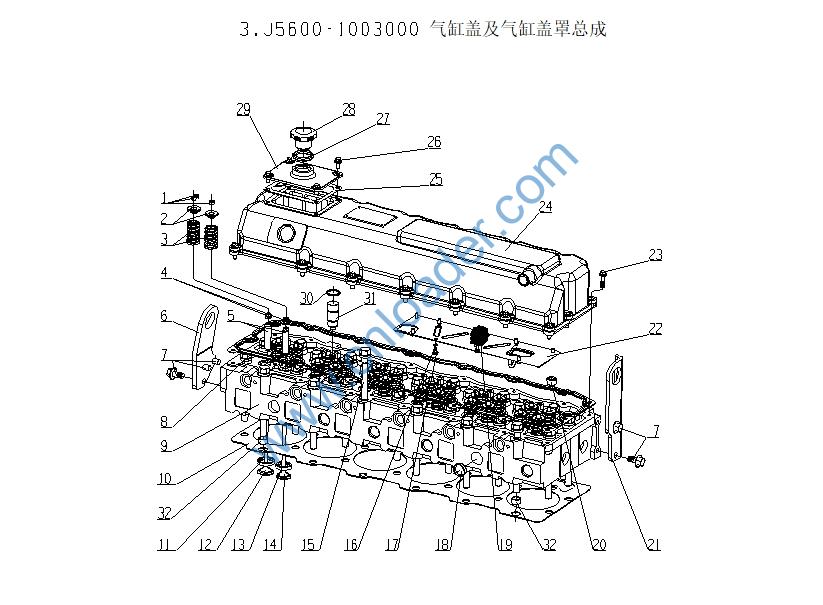

L3000-1007013 气门锁夹 Valve lock clamp
J5600-1003116 气门弹簧上座 Valve spring upper seat
J5600-1003106 气门弹簧 Valve spring
L3000-1003105SF1 气门杆油封 Valve stem seal
J5600-1003104 气门导管 Valve guide pipe
L3000-1003036A 前吊耳 Front lifter
Q1841225TF2 螺栓M12×25 Bolt M12×25
J5600-1003201 气缸盖罩垫片 Cylinder head cover washer
J5600-1003171A 气缸盖 Cylinder head
J5600-1003001 气缸盖垫片 Cylinder head gasket
J5600-1003173A 进气门座圈 Air intake valve seat ring
J5600-1003111 进气门 Intake valve
J5600-1003174A 排气门座圈 Air Exhaust valve seat ring
J5600-1003103 排气门 Exhaust valve
A30-1003035A 缸盖短螺栓 Cylinder head bolt (short)
Q40306 垫圈 Washer
Q150B0612 螺栓M6×12 Bolt M6× 12
Q72230 塞片30 Spacer 30
L3000-1003206 瓦塄钢丝团 Steel wire roll
Q61904 螺塞NPT1/2 Screw plug NPT 1/2
L3000-1003151 后吊耳 Rear lifter
J5600-1003270 盖板组件 Cover part assembly
Q1840830 螺栓M8×30 Bolt M8× 30
J5600-1003205A 气缸盖罩 Cylinder head cover
J5600-1003248 加机油口垫片 Oil filler washer
Q1840816 螺栓M8×16 Bolt M8× 16
150-1003043C 密封圈 Seal ring
150-1003041F 加机油口盖 Oil filler cover
J5600-1003243 加机油口 Oil filler port
YC208-B02580F O形圈2.65×25.8 O-ring 2.65× 25.8
J5600-1003176 喷油器铜套 Injector copper bushing
L3000-1003088 气缸盖定位销套 Cylinder head dowel pin sleeve

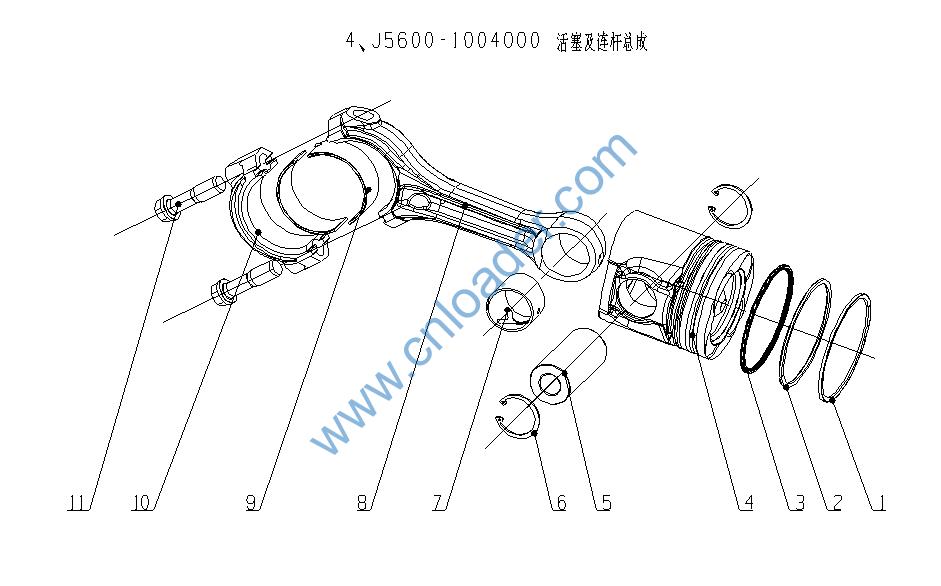

J5600-1004002* 活塞环总成 Piston ring assy
J5600-1004002 气环 Compression ring
J5600-1004003 刮油环 Oil control ring
J5600-1004100 油环部件 Oil control ring parts
J5600-1004001SF3 活塞 Piston
A30-1004019 活塞销 Piston pin
Q43040 挡圈40 Retaining ring 40
A3000-1004202 连杆衬套 Connecting rod bushing
A3000-1004200 连杆部件 Connecting rod components
A3000-1004201 连杆体 Connecting rod shank
A3000-1004203 连杆盖 Connecting rod cap
6105Q-1004054 连杆螺栓 Connecting rod bolt
A30-1004005 连杆轴瓦 Connecting rod bearing shell
Q150B1065TF2 螺栓M10×65 Bolt M10× 65
Q40110 垫圈10 Washer 10
Q40310 垫圈10 Washer 10

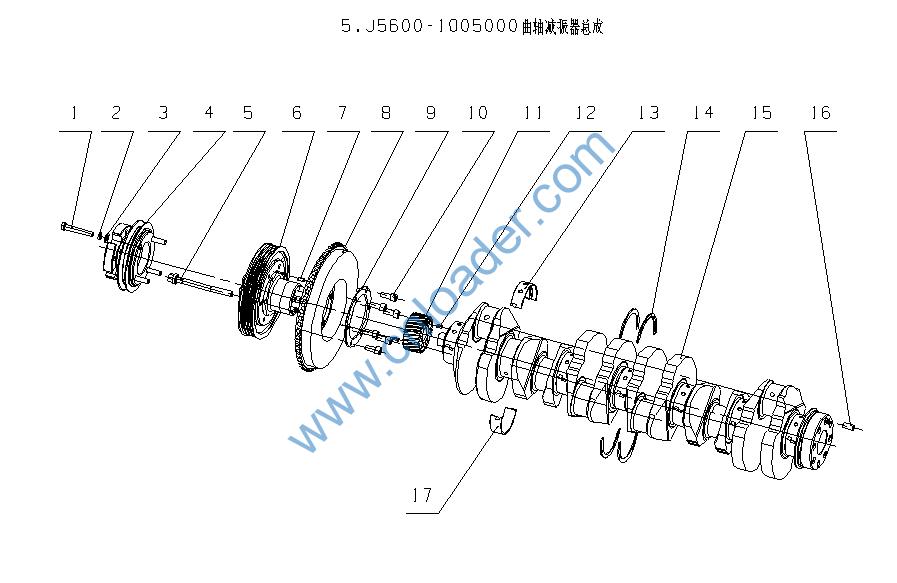

A4137-1005034A 皮带轮压圈 Belt pulley clamping ring
A3100-1005034A 皮带轮螺栓 Pulley bolt
A3100-1005032E 皮带轮 Pulley bolt
Q5210814 销8×14 Pin 8× 14
J5600-1005040A 硅油减振器 Silicone vibration damper
A3100-1005033 环垫 Ring washer
Q218B1025TF2 螺钉M10×25 Screw M10× 25
A3100-1005021B 曲轴正时齿轮 Crankshaft timing gear
A3100-1005018 扁销 Flat pin
475D-1005054A*-L 主轴瓦 Main bearing shell
475D-1005054A 主轴瓦（上） Main bearing shell (upper)
475D-1005055A 主轴瓦（下） Main bearing shell (lower)
6105Q-1005058A 曲轴止推片 Crankshaft thrust plate
J3600-1005015A 曲轴 Crankshaft
6105Q-1005042 定位销 Locating pin

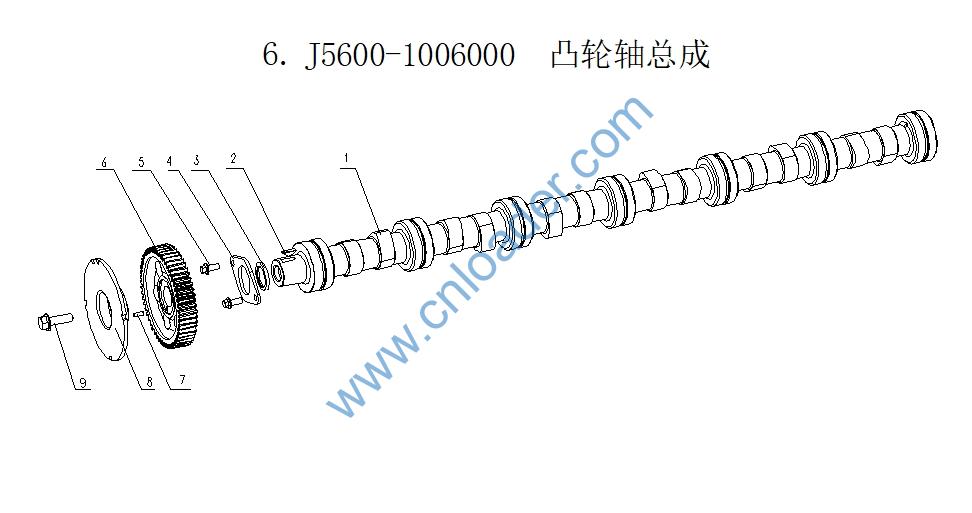

J5600-1006001B 凸轮轴 Camshaft
Q5500519 键5×19 Pin 5×19
L3000-1006005A 隔圈 Spacer
L3000-1006003A 凸轮轴止推垫片 Camshaft thrust gasket
Q/YC207-0820 螺栓M8×20 Bolt M8×20
J5600-1006002 凸轮轴正时齿轮 Camshaft timing gear
Q5210516 销5×16 Pin 5× 16
J5600-1006008D 凸轮轴信号轮 Camshaft signal panel
L3000-1006007 凸轮轴螺栓 Camshaft bolt

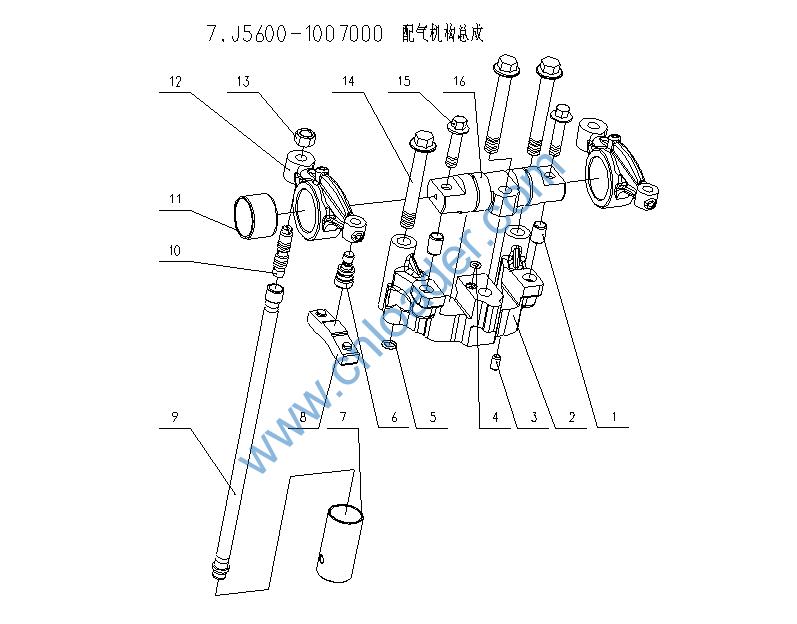

L3000-1007027 定位套 Locating liner
L3000-1007025C 摇臂座 Rocker arm seat
Q5280612 销6×12 Pin 6×12
YC208-A00500F O形圈1.8×5 O-ring 1.8×5
YC208-A00800F O形圈1.8×8 O-ring 1.8×8
L3000-1007070C 球头结合件 Ball-end united part
A3000-1007001 挺柱 Tappet
L3000-1007028A 气门桥 Valve bridge
J5600-1007080 气门推杆组件 Valve push rod parts
L3000-1007053 调整螺钉 Adjusting bolt
L3000-1007062C 气门摇臂衬套 Valve rocker arm bushing
L3000-1007061A 气门摇臂 Valve rocker arm
6105Q-1007054 锁紧螺母 Lock nut
Q/YC207-1075 螺栓 Bolt
Q1840835TF2 螺栓M8×35 Bolt M8×35
L3000-1007026C 摇臂轴 Rocker arm

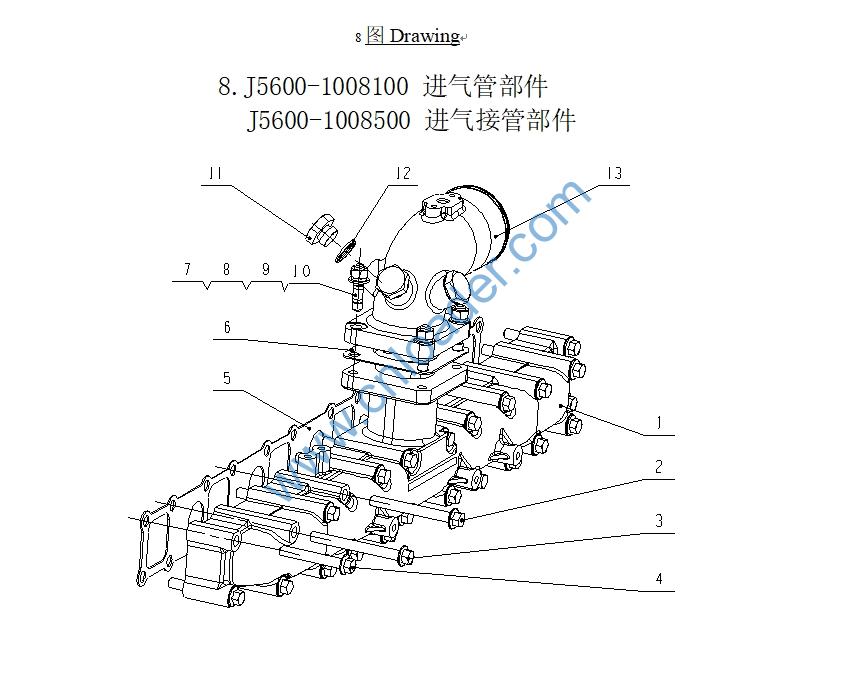

J5600-1008101C 进气管 Intake manifold
Q1841090 螺栓M10×90 Bolt M10×90
Q18410100 螺栓M10×100 Bolt M10×100
Q1841065 螺栓M10×65 Bolt M10×65
J5600-1008104 进气管垫片 Intake manifold spacer
J5600-1008105A 进气接管垫片 Intake manifold spacer
Q1201035 螺柱M10×35 Stud M10×35
Q40110 垫圈10 Washer 10
Q40310 垫圈10 Washer 10
Q340B10 螺母M10 Nut M10
Q/YC198-20 螺塞M20×1.5 Screw plug M20×1.5
Q/YC149-20 复合式密封垫圈20 Combined seal washer 20
J5600-1008102A 进气接管 Air intake pipe

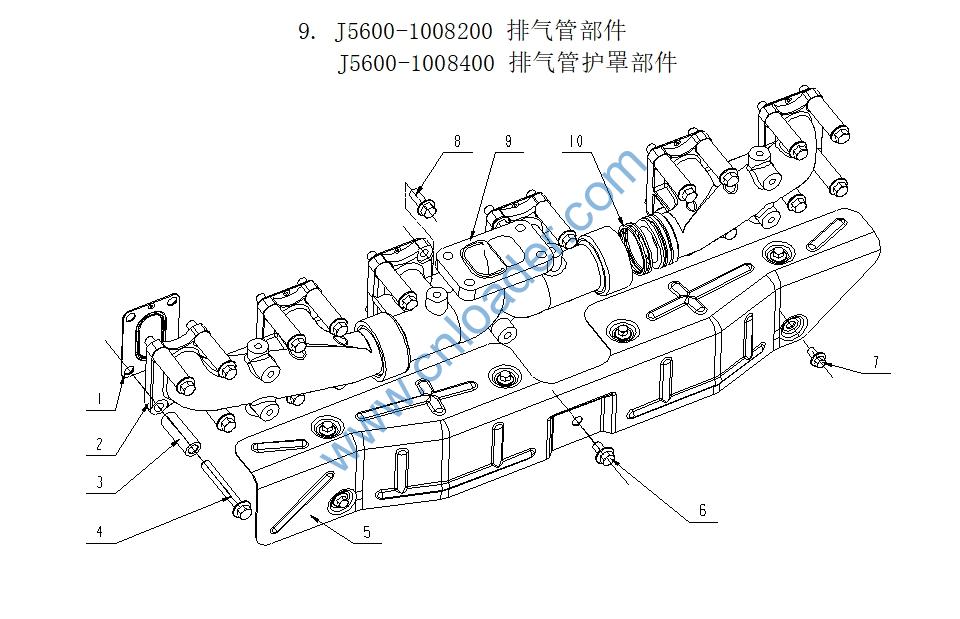

J5600-1008250 排气管垫片组件 Exhaust manifold gasket parts
J5600-1008217A 排气支管 Exhaust manifold
J5600-1008026 螺栓套 Bolt sleeve
Q150B1075TF2 螺栓M10×75 Bolt 10×75
J5600-1008211 排气管罩 Exhaust manifold cover
Q1841016 螺栓M10×16 Bolt M10×16
Q1840815 螺栓M8×15 Bolt M8×25
Q1841025TF2 螺栓M10×25 Bolt M10×25
J62AA-1008218AL 排气中间管 Exhaust middle pipe
L3000-1008025 密封环 Seal ring

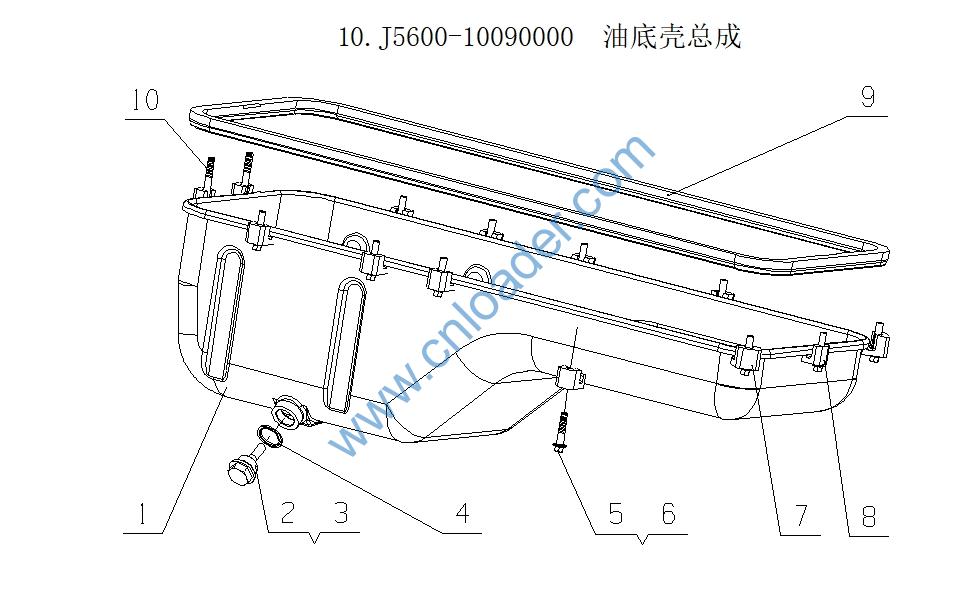

J56QA-1009040 油底壳组件 Oil sump parts
6105Q-1009032A 放油塞磁铁 Oil drain plug magnet
6105Q-1009031C 放油塞 Oil drain plug
Q/YC149-27 复合式密封垫圈27 Seal washer 27
M3000-1009002 油底壳压块 Oil sump press block
Q1840840 螺栓M8×40 Bolt M8× 40
L3000-1009002 油底壳压块 Oil sump press block
J5600-1009002 油底壳压块 Oil sump press block
L3000-1009001 油底壳垫 Oil sump washer
Q1840865TF2 螺栓M8×65 Bolt M8×65

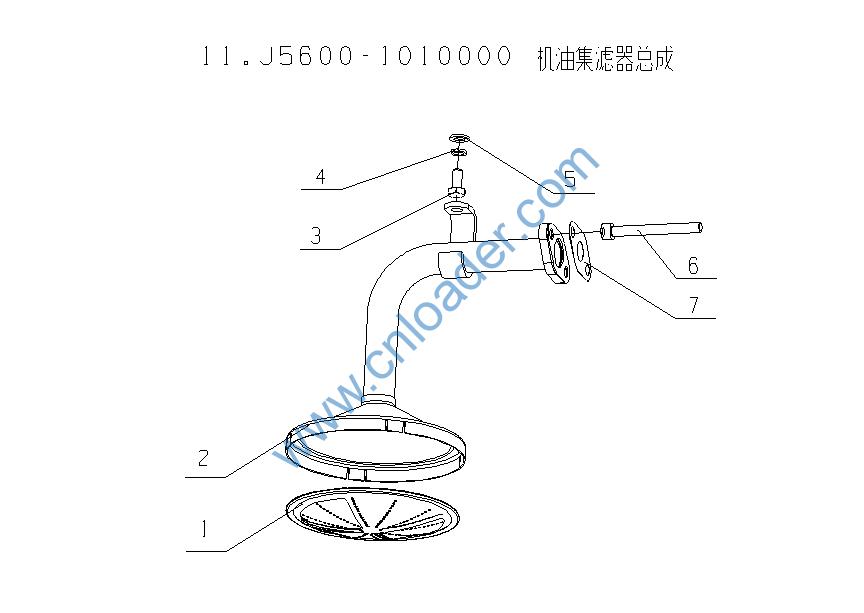

6105QA-1010130B 滤网总成 Filter screen assembly
J56QA-1010100 吸油管部件 Oil suction parts
Q150B0816TF2 螺栓M8×16 Bolt M8×16
Q40308 垫圈8 Washer 8
Q40108 垫圈8 Washer 8
Q218B0875TF2 螺钉M8×75 Screw M8×75
6105QA-1010110 垫片结合件 Washer united part
