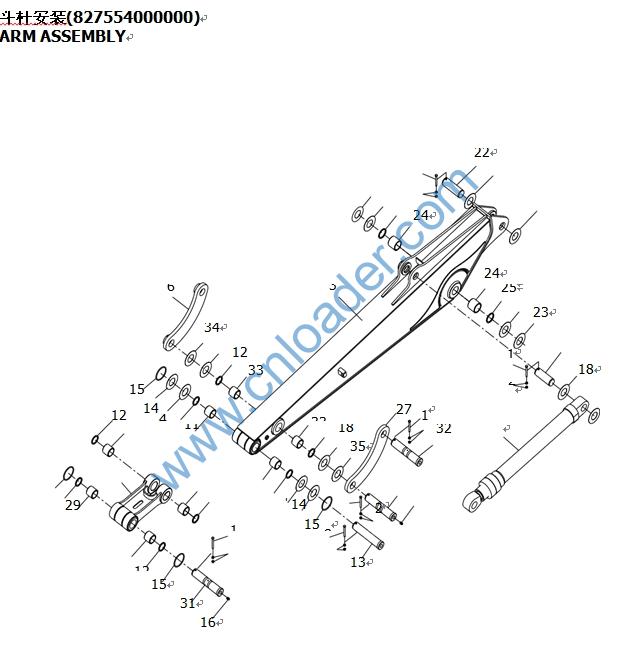

701103012031 1 BOLT 螺栓M12X130-8.8 GB5782
701406012003 1 NUT 螺母M12-DKL GB/T 6170
827554100000 8 ARM WELDING ASSEMBLY 斗杆焊接
760007000018 1 WASHER 垫片110X66 t1
730001001035 1 BUCKET CYLINDER 铲斗油缸
827554300000 2 LEFT ROKER ARM UNIT 左摇臂组件
827554300000 1 LEFT ROKER ARM UNIT 左摇臂组件
827554200000 3 PITMAN ASSEMBLE 连杆总成
701103016076 1 BOLT 螺栓M16X150-10.9-DKL GB/T 5782
701406016005 1 NUT 螺母M16-DKL GB/T 6170
760007000089 1 WASHER 垫片140X76 t1
305040001053 2 AXILE BUSH 轴套6
730652000039 1 DUST-PROOF RING 防尘圈DLW06501 80X65X5
304020001763 1 SHAFT 轴11
760007000017 1 WASHER 垫片110X66 t1.5
703201115001 1 O RING O形密封圈115X7 GB3452.1
703101010001 1 GREASE CUP 油杯M10X1(钢制) JB/T 7940.1进口
304020001762 1 SHAFT 轴10
760007000020 1 WASHER 垫片140X66 t1
304020001759 1 SHAFT 轴7
760007000022 1 WASHER 垫片140X71 t1
304020001758 1 SHAFT 轴6
760007000090 1 WASHER 垫片140X76 t1.5
750502000427 1 AXILE BUSH 轴套75X90X80
730652000005 1 DUST-PROOF RING 防尘圈DLW07501 90X75X5
302490005237 2 SWING LINK 摇臂
302490005237 1 SWING LINK 摇臂
305040001050 2 AXILE BUSH 轴套3
305040001051 2 AXILE BUSH 轴套4
304020001761 1 SHAFT 轴9
304020001760 1 SHAFT 轴8
305040001052 2 AXILE BUSH 轴套5
760007000019 1 WASHER 垫片140X66 t1.5
305060000851 4 ADJUSTING SHAFT BUSH 2 调整轴套二
305060000851 3 ADJUSTING SHAFT BUSH 2 调整轴套二
305060000852 3 ADJUSTING SHAFT BUSH 1 调整轴套一
302490010858 2 WASHER 调整垫片
701103012035 1 BOLT 螺栓M12X70-10.9-DKL GB5782
701508012002 1 WASHER 垫圈12-DKL GB/T 1230
302490005554 1 COVER 盖板

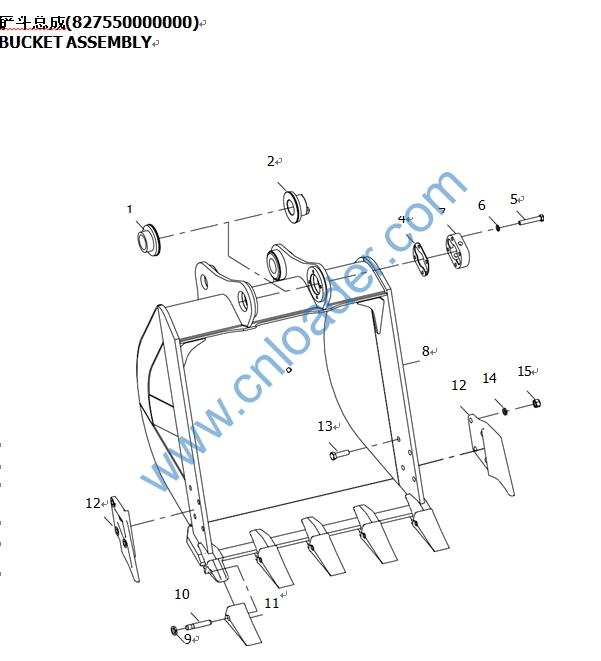

827555100000 2 BUCKET(900MM 0.56M3) 斗(900mm 0.56m3)
750601000081 1 CIRCLIP 卡簧(大宇130)
750601000080 1 PIN 销(大宇130)
750601000078 1 POINT TOOTH 斗齿2713Y1221
750601000016 1 SIDE TOOTH 侧齿PC100
701103020042 1 BOLT 螺栓M20X60-10.9-DKL GB5782
701508020002 1 WASHER 垫圈20-DKL GB/T 1230
701406020001 1 NUT 螺母M20-10-DKL GB/T 6170

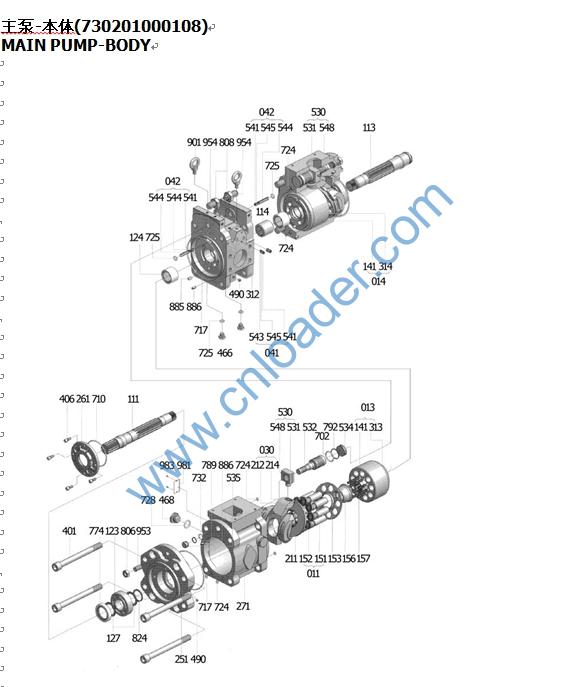

730201000108 1 MAIN PUMP ◎主泵
730201000205 1 BODY 本体
730201900412 1 DRIVE SHAFT(F) .驱动轴(F)
730201900413 1 DRIVE SHAFT(R) .驱动轴(R)
730201900414 1 SPLINE COUPLING .花键接头
730201900415 1 ROLLER BEARING .圆柱滚柱轴承
730201900416 1 NEEDLE BEARING .滚针轴承
730201900417 1 BEARING SPACER .轴承垫圈
730201900189 1 CYLINDER ASSY.(R) .缸体组件(R)
730201900418 1 CYLINDER ..缸体
730201900419 1 VALVE PLATE(R) ..配油盘
730201900190 1 CYLINDER ASSY.(L) .缸体组件(L)
730201900418 1 CYLINDER ..缸体
730201900420 1 VALVE PLATE(L) ..配油盘(L)
730201900188 1 PISTON ASSY. .柱塞组件
730201900421 1 PISTON ..柱塞
730201900422 1 SHOE ..滑靴
730201900423 1 SET PLATE .压板
730201900424 1 SPHERIC BUSH .球面衬套
730201900425 1 BACKWARD SPRING .回程弹簧
730201900426 1 SHOE PLATE .滑靴盘
730201900191 1 SWASH PLATE ASSY. .斜盘组件
730201900427 1 SWASH PLATE ..斜盘
730201900428 1 TILTING BUSH ..倾斜衬套
730201900429 1 SWASH PLATE SUPPORT .斜盘支撑台
730201900430 1 OIL SEAL COVER(F) .油封盖(F)
730201900431 1 PUMP .泵体
730201900432 1 VALVE BLOCK .配油壳体
730201900433 1 INNER HEX BOLTS .内六角螺栓
730201900434 1 INNER HEX BOLTS .内六角螺栓
730201900435 1 PLUG .油塞
730201900436 1 PLUG .油塞
730201900437 1 PLUG .沉栓
730201900438 1 SERVO PISTON .伺服柱塞
730201900439 1 STOPPER(L) .挡柱(L)
730201900440 1 STOPPER(S) .挡柱(S)
730201900441 1 TILTING PIN ..倾斜销
730201900227 1 FEEDBACK PIN ..反馈销
730201900442 1 O-RING .O形密封圈
730201900443 1 O-RING .O形密封圈
730201900444 1 O-RING .O形密封圈
730603000212 1 O-RING .O形密封圈
730603000211 1 O-RING .O形密封圈
730603000227 1 O-RING .O形密封圈
730201900445 1 O-RING .O形密封圈
730201900446 1 OIL SEAL .油封
730201900447 1 BACK-UP RING .挡圈
730201900448 1 BACK-UP RING .挡圈
751103000087 1 HEX. UT .六角螺母
730201900449 1 RETAINING RING .弹性挡环
730201900450 1 VALVE PLATE PIN .配油盘销
730201900229 1 SPRING PIN .弹簧销
751106000055 1 EYE BOLT .吊环螺栓
751104000049 1 SET SCREW .内六角定位螺钉
730201900451 1 SET SCREW .定位螺钉
730201900230 1 NAME PLATE .铭牌
751105000014 1 RIVET .铆钉

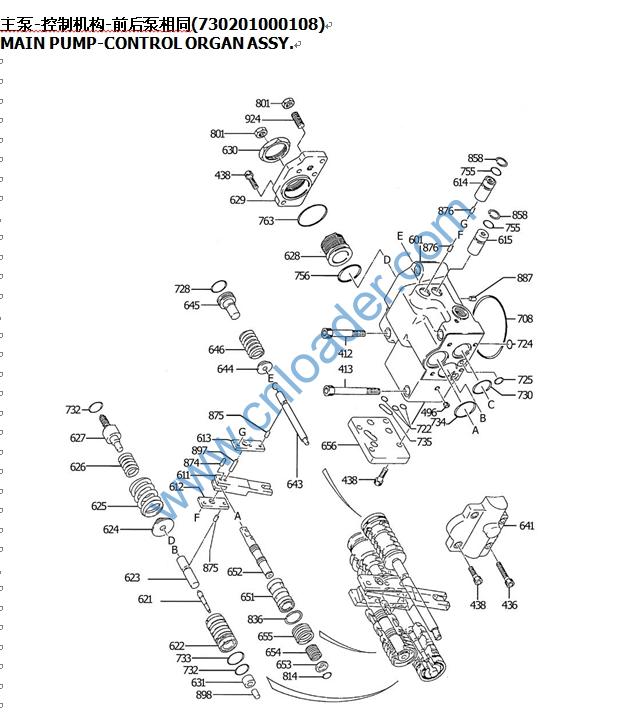

730201000108 1 MAIN PUMP ◎主泵
730201000206 1 CONTROL ORGAN ASSY. 控制机构总成
751104000053 1 INNER HEX. SCREW .内六角有孔螺钉
751104000052 1 INNER HEX. SCREW .内六角有孔螺钉
751104000051 1 INNER HEX. SCREW .内六角有孔螺钉
751104000050 1 INNER HEX. SCREW .内六角有孔螺钉
730201900217 1 SINK SLUG .沉栓
730201900310 1 CAPSID .壳体
730201900402 1 BACKFEED ROD .反馈杆块
730201900308 1 LEVER(1) .杠杆(1)
730201900307 1 LEVER(2) .杠杆(2)
730201900306 1 PIVOT POINT PIN .支点销
730201900305 1 COMPENSATION PISTON .补偿活塞
730201900304 1 INTRACAVITY COCK .腔内活栓
730201900303 1 PISTON SHELL .活塞壳
730201900403 1 BACKFEEDING .补偿件
730201900404 1 SPRING SEAT .弹簧座(C)
730201900300 1 OUTER SPRING .外弹簧
730201900405 1 INNER SPRING .内弹簧
730201900406 1 ADJUSTING RING .调整环(C)
751106000056 1 ADJUSTING BOLT .调整螺栓(C)
730201900297 1 COVER .盖子(C)
730201900296 1 LATCH NUT .锁紧螺母
730201900295 1 GLIDING BLOCK .Pf滑块
730201900294 1 GUIDE COVER .导向盖
730201900407 1 GUIDE PISTON .导向活塞
730201900408 1 SPRING SEAT .弹簧座(Q)
730201900409 1 ADJUSTING RING .调整环(Q)
730201900410 1 GUIDE SPRING .导向弹簧
730201900411 1 GLIDING BLOCK .滑块
730201900288 1 BUSH .衬套
730201900287 1 SPRING SEAT 弹簧座
730201900286 1 RETURN SPRING .回程弹簧
730201900285 1 SPRING .弹簧
730201900284 1 BLANKOFF BOARD .肓板
730603000230 1 O-RING .O形密封圈
730603000229 1 O-RING .O形密封圈
730603000212 1 O-RING .O形密封圈
730603000710 1 O-RING .O形密封圈
730603000709 1 O-RING .O形密封圈
730603000226 1 O-RING .O形密封圈
730603000708 1 O-RING .O形密封圈
730603000224 1 O-RING .O形密封圈
730603000223 1 O-RING .O形密封圈
730603000707 1 O-RING .O形密封圈
730603000221 1 O-RING .O形密封圈
730603000211 1 O-RING .O形密封圈
730603000220 1 O-RING .O形密封圈
730603000219 1 O-RING .O形密封圈
751103000090 1 HEX. BOLT .六角螺母
751103000089 1 HEX. BOLT .六角螺母
730654000263 1 BACK-UP RING .挡圈
730654000262 1 BACK-UP RING .挡圈
730201900283 1 LOCKING RING .锁紧圈
730201900282 1 PIN .销
730201900281 1 PIN .销
730201900280 1 PIN .销
730201900279 1 PIN .销
730201900278 1 PIN .销
730201900277 1 PIN .销
751105000015 1 HEX.SET SCREW .内六角定位螺钉

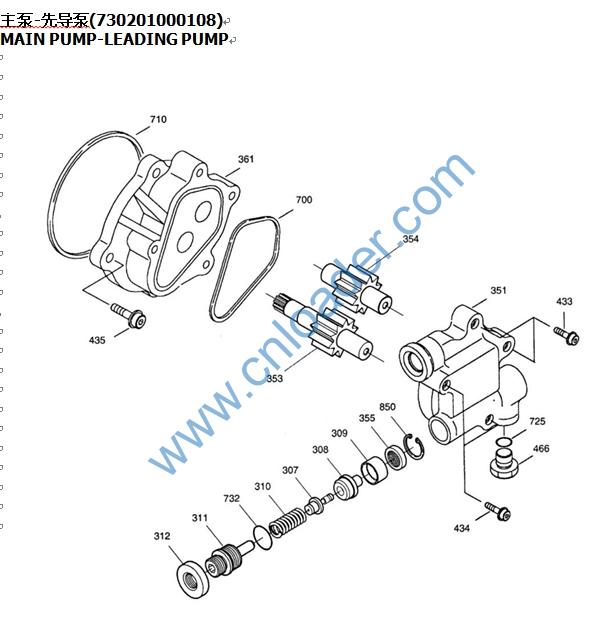

730201000108 1 MAIN PUMP ◎主泵
730202000146 1 LEADING PUMP 先导泵
730201000207 1 WHEEL GEAR CAPSID UNIT .齿轮壳体组件
730202900023 1 VALVE ROD ..阀杆
730202900022 1 SEAT ..座
730202900019 1 WHEEL GEAR BOX ..齿轮箱
730202900018 1 DRIVER WHEEL GEAR ..驱动齿轮
730202900017 1 DRIVER WHEEL GEAR ..驱动齿轮
730202900008 1 PIN ..销
730202900021 1 SPRING SEAT .弹簧座
730202900020 1 SPRING .弹簧
751104000054 1 ADJUSTING SCREW .调整螺钉
751103000091 1 LOCKING NUT .锁紧螺母
730202900016 1 FILTERING ELEMENT .滤芯
730202900015 1 FRONT CAPSID .前壳体
730202900014 1 FLANGE .法兰
730202900013 1 FLANGE .法兰
730202900012 1 FLANGE .法兰
730202900011 1 PLUG .塞
730202900010 1 RING .环
730603000238 1 O-RING .O型圈
730603000711 1 O-RING .O型圈
730603000708 1 O-RING .O型圈
730202900009 1 CLASP .卡环
730201900278 1 PIN .销

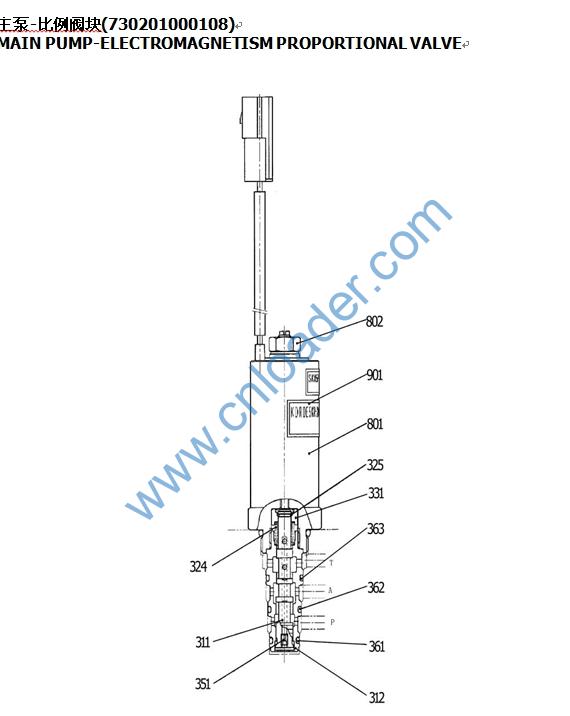

730201000108 1 MAIN PUMP ◎主泵
730399900028 1
ELECTROMAGNETISM PROPORTIONAL VALVE .电磁比例阀
730399900025 1 SPOOL ..阀芯
730399900024 1 VALVE POCKET ..阀套
730399900023 1 SPRING ..弹簧
730399900022 1 C-RING ..C型圈
730399900021 1 SPRING SEAT ..弹簧座
730399900020 1 AMORTIZATION PORE ..阻尼孔
730603000283 1 O-SEAL RING ..O型密封圈
730603000282 1 O-SEAL RING ..O型密封圈
730603000281 1 O-SEAL RING ..O型密封圈
730399900019 1 ELECTROMAGNETISM COIL ..电磁线圈
730399900018 1 NAME PLATE ..铭牌

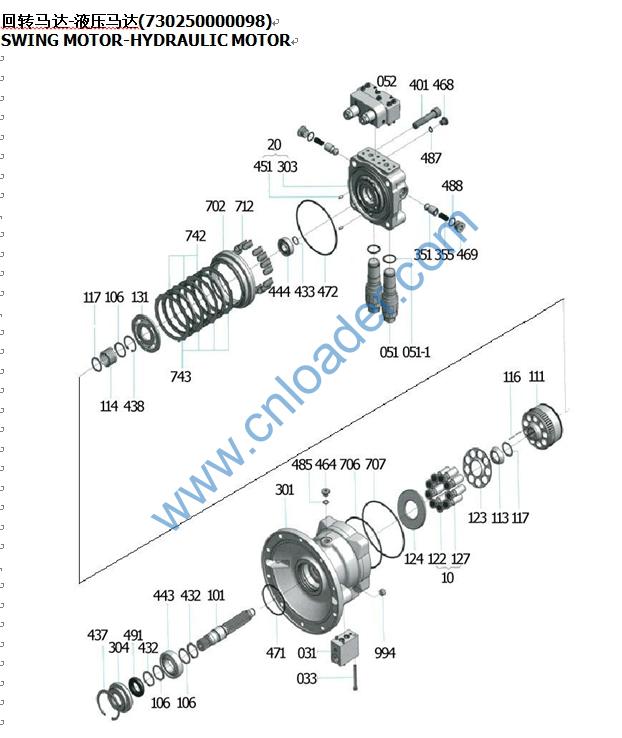

730250000098 1 SWING MOTOR ◎回转马达
730250900899 1 HYDRAULIC MOTOR 液压马达
730250900900 1 TIME DELAY VALVE .延迟阀
751106000058 1 INNER HEX BOLTS .内六角螺栓
730250900901 1 RELIEF VALVE .溢流阀
730603000261 1 O-SEAL RING ..O形密封圈
730250900464 1 ASSEMBLY，ANTI-REACTIONVALVE .防逆转阀组件
730250900465 1 CASING ..壳体
730250900474 1 PLUG ..油塞
730603000233 1 O-RING ..O形密封圈
730603000260 1 O-RING ..O形密封圈
730603000229 1 O-RING ..O形密封圈
730250900480 1 ANTI．REACTIONVALVE ..防逆转阀
730654000107 1 BACK-UP RING …挡圈
730603000259 1 O-RING …O形密封圈
730250900902 1 DRIVE SHAFT .驱动轴
730250900903 1 CYLINDER .缸体
730250900904 1 RETURN SPRING .回程弹簧
730250900905 1 PISTON ASSY. .柱塞组件
730250900906 1 PISTON ..柱塞
730250900907 1 SHOE ..滑靴
730250900908 1 SET PLATE .回程盘
730250900909 1 SHOE PLATE .滑靴盘
730250900910 1 VALVE PLATE .配油盘
730250900911 1 CASING .壳体
730250900912 1 VALVE CASING ASSY. .阀体组件
730250900913 1 VALVE CASING ..阀体
730250900914 1 PIN ..销
730250900915 1 VALVE POCKET .阀套
730250900916 1 SPRING .弹簧
730201900230 1 NAME PLATE .铭牌
751106000060 1 RIVET .铆钉
751106000066 1 INNER HEX BOLTS .内六角螺栓
730250900948 1 ROLLER BEARING .圆柱滚柱轴承
730250900949 1 ROLLER BEARING .圆柱滚柱轴承
730250900950 1 PLUG .油塞
730250900951 1 O-RING .O形密封圈
730603000817 1 O-RING .O形密封圈
730250900952 1 OIL SEAL .油封
730250900953 1 BRAKE PISTON .制动活塞
730250900954 1 O-RING .O形密封圈
730250900955 1 O-RING .O形密封圈
730250900956 1 BRAKE SPRING .制动弹簧
730250900957 1 FRICTION PLATE .摩擦片
730250900958 1 SEPARATOR PLATE .分离片
730250900959 1 PIN .销
730250900960 1 RETAINER .球面衬套
730250900961 1 SPACER .衬垫
730250900962 1 SPACER .衬垫
730250900963 1 PUSH ROD .推杆
730250900964 1 FRONT ROD .前杆
730250900965 1 LOCKING RING .锁紧圈
730250900966 1 LOCKING RING .锁紧圈
730654000262 1 RING .挡圈
730250900967 1 STOPPING RING .止动环
730250900968 1 PLUG .堵头
730250900968 1 PLUG .堵头
730250900969 1 O-RING .O形密封圈
730250900970 1 O-RING .O形密封圈
730250900970 1 O-RING .O形密封圈
