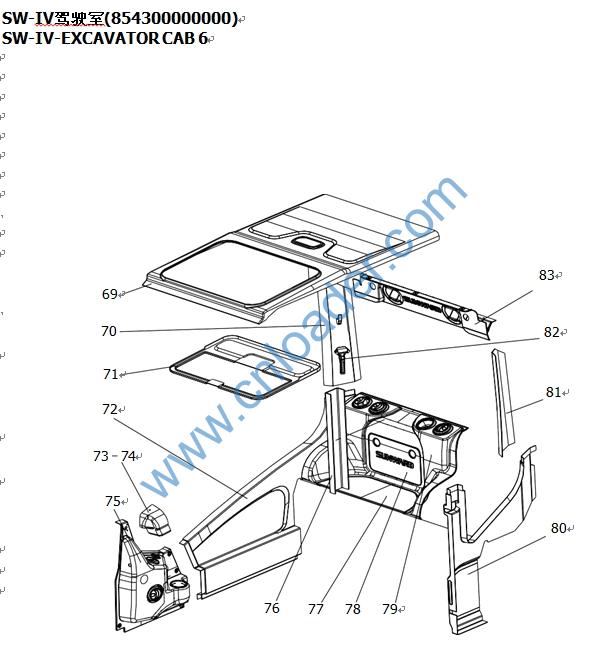

854301000000 1 CABIT STRUCTURE 驾驶室焊合
750719000171 1 ROOF ORNEMENT 顶棚SW-Ⅳ
750719000177 1 RIGHT BACK ORNEMENT 右后立柱SW-Ⅳ
750719000172 1 ROOF WINDOW ORNEMENT 顶窗内饰SW-Ⅳ
750719000174 1 RIGHT ORNEMENT 右侧围SW-Ⅳ
750719000200 1 METER COVER 监视器支架护罩1
750909000005 1 ORNEMENT PINTAL 内饰扣钉
750719000173 1 RIGHT FRONT COVER 前控箱SW-Ⅳ
750719000180 1 LEFT ORNEMENT 左中立柱SW-Ⅳ
750006010004 1 COVER 封板
750719010031 1 INSPECTION COVER 检修盖
750719000175 1 AIR CONDITIONER COVER 空调罩SW-Ⅳ
750719000178 1 LEFT ORNEMENT 左侧围SW-Ⅳ
750719000176 1 LEFT BACK ORNEMENT 左后立柱SW-Ⅳ
750719000183 1 ORNEMENT FITTINGS 内饰附件SW-Ⅳ
750719000179 1 BACK ROOF ORNEMENT 后顶盖SW-Ⅳ
827521010000 6 TOOL BOX UNIT 工具箱组合件
701104008028 1 BOLT 螺栓M8X12-8.8 DKL GB5782
701104008028 1 BOLT 螺栓M8X35-8.8-DKL GB5783
701501008004 1 WASHER 垫圈8 GB95
750699000215 6 TOOL BOX ANTISKID CUSHION 工具箱防滑贴
818821160000 2 230 ARM REST ROD 230扶手组件
701104012027 1 BOLT 螺栓M12X25-8.8-DKL GB5783
701508012002 1 WASHER 垫圈12-DKL GB1230
750708000012 1 DCPD FRONT UPPER COVER SWE150 DCPD前上盖组件SWE150
701104010031 1 BOLT 螺栓M10X20-8.8-DKL GB5783
701508010001 1 WASHER 垫圈10-DKL GB1230
863521020000 1 RIGHT DOOR WELD 右门焊接
863521050000 1 RIGHT COVER 右盖板组件
750906000175 1 NEW SHILD LOCK 新机罩锁
827521110000 5 ENGINE SHIELD PULL ROD ASSEMBLY 发动机罩拉杆总成
701703003203 1 PIN 3.2X22 GB/T91 开口销3.2X22 GB91
701502016002 1 WASHER 垫圈16-DKL GB96
863621010000 1 FRAME ASSEMBLY 骨架总成
304080000370 1 DOOR PULL ROD 门拉杆
863521070000 1 ENGINE SHIELD ASSEMBLY 机罩组件
863521040000 1 LERT COVER WELD 左盖板焊接
863521010000 1 LEFT DOOR WELD 左门焊接
302510001556 4 COVER 1 盖板1
302490006043 1 ANTISKID CUSHION 防滑垫
863521060000 1 COVER 2 WELD 盖板2焊接
750603010001 1 REARVIEW MIRROR FIX BRACKET 后视镜安装支架
750603000006 1 REARVIEW MIRROR-H0001 平台后视镜-H0001
863421050000 1 EXHAUST PIPE 排气管焊接
750906000176 2 COVER PARTS LOCK 覆盖件门锁
701406006003 1 NUT 螺母M6 GB6170
827521100500 3 FRAME UPRIGHT STANCHION 骨架立柱2焊接
863621010300 1 LEFT FRONT FRAME 1 左前骨架焊接
863521030500 1 FRAM ASSEMBLE 骨架立梁组件
750906000163 1 BOLT M10X60 门碰限位螺栓M10X60
302540003557 1 LOCK PLATE 1 锁扣板1
863521030200 1 LEFT FRAME ASSEMBLE 左后骨架组件
302540012554 1 CLAPBOARD 3 中隔板3
863521030400 1 RIGHT FRAME ASSEMBLE 右后骨架组件
302540012459 1 RIGHT UP CLAPBOARD 右上隔板
302540012476 1 RIGHT DOWN CLAPBOARD 右下隔板
302540003554 2 LOCK PLATE 2 锁扣板2
701104010032 1 BOLT 螺栓M10X25-8.8-DKL GB5783
701501010002 1 WASHER 垫圈10-DKL GB95
701401010002 1 NUT 螺母M10-DKL GB41
701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB5783
701508012002 1 WASHER 垫圈12-DKL GB1230
863521030900 1 CLAPBOARD 1 ASSEMBLE 中隔板1组件
863521030300 1 RIGHTFRONT FRAME ASSEMBLE 右前骨架组件
302540012493 1 RELAY BOX 继电器盒
701108008001 1 BOLT 螺栓M8X20-8.8-DKL GB5787
302540012581 1 ECM BOX ECM盒

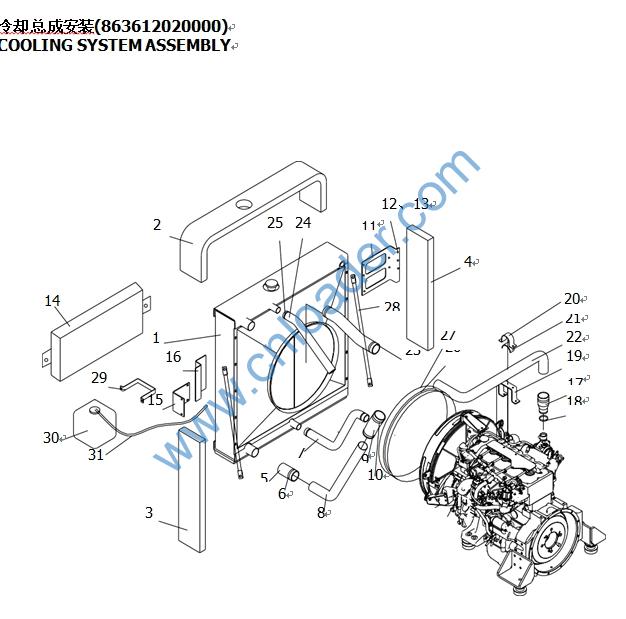

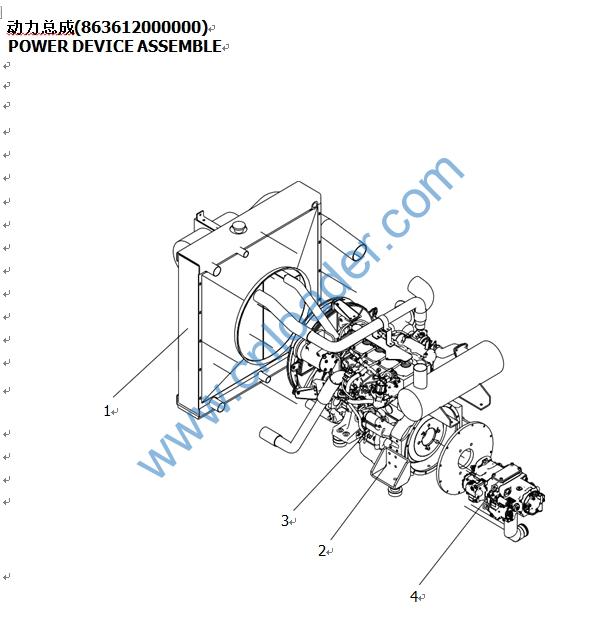

863612020000 S2 COOLING SYSTEM ASSEMBLE 冷却总成

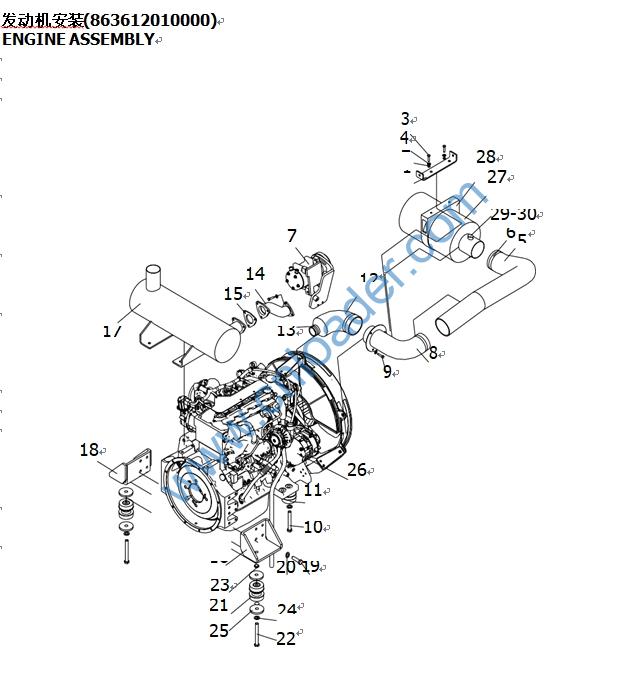

863612010000 S2 ENGINE ASSEMBLY 发动机安装

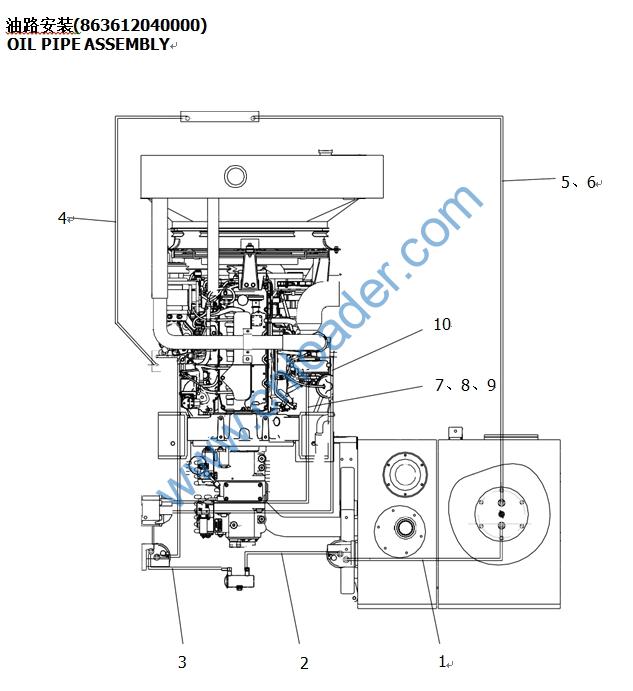

863612040000 S2 OIL PIPE ASSEMBLY 柴油管路安装

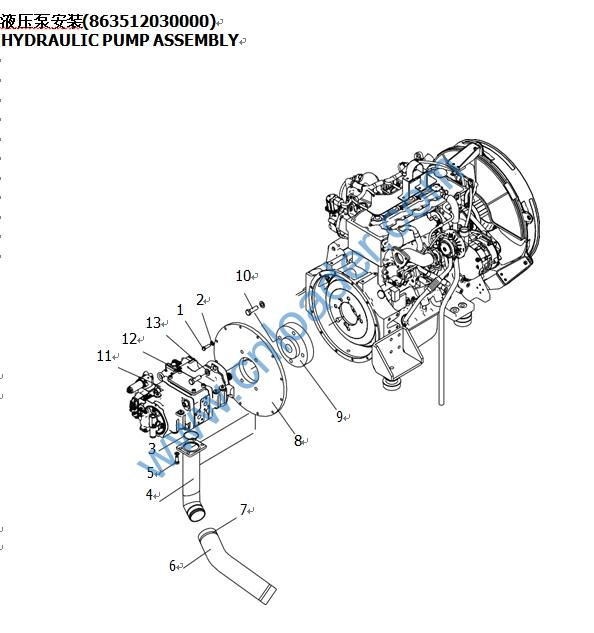

863512030000 S1 HYDRAULIC PUMP ASSEMBLY 主泵安装
863612020200 S1 RADIATOR ASSEMBLY 散热器总成
302490026423 S1 SCREEN SPONG 上海绵
302490026425 S1 SCREEN SPONG 右侧海绵
302490026424 S1 SCREEN SPONG 左侧海绵
320040000282 S1 AIR INTAKE HOSE 1 进气管1
751008000218 1 T-HOOP 重型软管卡箍68-73 W2
320990000832 S1 WATER IN HOSE 进水管
863512020600 S1 BRACKET FOR AIR PIPE 进气钢管组件
320040000289 S1 AIR INTAKE HOSE 2 进气管2
751011000011 1 T-HOOP T型抱箍D81 200844
302990002942 S2 LEFT BRACKET FOR CONDENSATOR 冷凝器左支架
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
701104008050 1 BOLT 螺栓M8X25-DKL GB/T 5783
750201011082 1 FUEL COOLER 燃油冷却器4842.033.0000V1
302040001509 1 BRACKET FOR DRY BOTTLE 干燥瓶支架
302990002943 S2 RIGHT BRACKET OF CONDENSATOR 冷凝器右支架
320040000288 S1 AIR-OUT HOSE FOR SUPERCHARGER 增压器出气胶管
751011000191 1 T-HOOP T型抱箍KGA47-56
302490026318 S1 BRACKET FOR AIR PIPE 进气管支架
302990002940 S1 PIPE CLIP 管夹
302490026349 S1 WASHER 垫片
320990001007 S1 AIR INTAKE PIPE 中冷进气管
320040000367 S1 AIR HOSE 中冷进气胶管
320990000833 S1 WATER OUT PIPE 出水管
751008000213 1 CLAMP 重型软管卡箍47-51 W2
751011000049 1 CLAMP 卡箍D580-630
730699000070 1 JOINT 软连接4425740
320980002922 S2 PULL POLE FOR WATER TANK 水箱拉杆
302540002312 A3 AUXILIARY TANK BRACKET 副水箱支架
750203000086 1 AUXILIARY TANK 副水箱 20Y-06-15240
712592990018 1 AUXILIARY TANK 透明水管D8
302990002972 S1 BRACKET FOR AIR FILTER 空滤支架
701406008005 1 NUT 螺母M8-10-DKL GB/T 6170
701104008035 1 BOLT 螺栓M8X35-10.9-DKL GB5783
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
320040000286 S2 AIR INTAKE HOSE 3 进气管3
751011000038 1 T-HOOP T型抱箍D109 11ZH4-9901

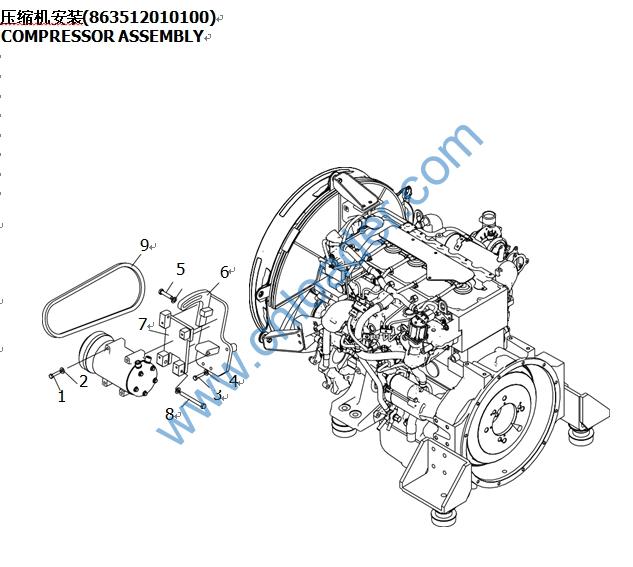

863512010100 S2 COMPRESSOR ASSEMBLE 压缩机安装
863512010500 S2 PIPE JOIN 钢管接头
701103008029 1 BOLT 螺栓M8X20-8.8-DKL GB5782
701103016065 1 BOLT 螺栓M16X120-10.9-DKL GB/T 5782
750602000226 1 BACK ENGINE SHOCK ABSORBER 发动机后减震器13Y-03-50000A-00
320040000287 S2 AIR-IN HOSE FOR SUPERCHARGER 增压器进气胶管
751011000192 1 T-HOOP T型抱箍KGA50-59
863612010400 S1 METAL HOSE 金属软管
302490026338 S1 ASBESTINE BOARD 1 石棉垫1
863512010200 S1 ENGINE BRACKET 1 发动机支架1
750205000143 1 MUFFLE 消声器15T A
863512010300 S1 ENGINE BRACKET 2 发动机支架2
701104012023 1 BOLT 螺栓M12X35-10.9-DKL GB/T 5783
701504012005 1 WASHER 垫圈12-DKL GB97.1
750602000225 1 FRONT ENGINE SHOCK ABSORBER 发动机前减震器07Y-03-100000A-00
701103016085 1 BOLT 螺栓M16X135-10.9-DKL GB5782
701406016001 1 NUT 螺母M16-8H-10-DKL GB6170
701508016002 1 WASHER 垫圈16-DKL GB/T 1230
302010004702 A1 BIG WASHER 大圆垫
750201000251 1 DIESEL ENGINE 柴油机4JJ1XKSC-02 84kw/2200rpm
750201011548 1 AIR FILTER 空滤G090225
750201011549 1 HOOP 安装抱箍P780532
720399000009 1 SENSOR 电子压力传感器 X770062
729804000048 1 WATERPROOF PROTECTIVE CAP 空滤报警器防水保护帽
701103008030 1 BOLT 螺栓M8X75-8.8-DKL GB5782
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701508010001 1 WASHER 垫圈10-DKL GB1230
701103010033 1 BOLT 螺栓M10X60-10.9-DKL GB5782
701103010049 1 BOLT 螺栓M10X40-10.9-DKL GB/T 5782
863512010101 S1 COMPRESSOR BRACKET 1 压缩机支架组件1
827512140122 A4 COMPRESSOR BRACKET 2 压缩机支架组件2
701103010014 1 BOLT 螺栓M10X100-8.8-DKL GB5782
750004000100 1 STRAP 皮带V13X1255
701104010037 1 BOLT 螺栓M10X35-10.9-DKL GB/T 5783
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
703201075001 1 O RING O形圈75X3.55 GB/T 3452.1
863512030100 S2 OIL SUCKING STEEL PIPE 吸油钢管总成
701302012046 1 SCREW 螺钉M12X30-10.9-DKL GB/T 70.1
320040000279 S2 OIL SUCKING HOSE 液压吸油胶管
751011000031 1 T-HOOP T型抱箍D86 11ZH4-9911
302490026391 S1 CONNECTION PLATE 连接盘
750310000220 1 COUPLING 联轴器M599983
701302016076 1 SCREW 螺钉M16X60-10.9-DKL GB/T 70.1
730201000292 1 MAIN PUMP 主泵K7V63DTP1X9R-9N3E-7V
701302016059 1 SCREW 螺钉M16X50-10.9-DKL GB/T 70.1
701508016002 1 WASHER 垫圈16-DKL GB/T 1230
827512160100.1 A1 DIESEL OIL PIPE 柴油管D10X1600扣一头
730599000342 1 STEEL WIRE DIESEL OIL PIPE 钢丝柴油管D10*1250
730501001140 1 STEEL WIRE DIESEL OIL PIPE 钢丝柴油管D10X1000
730599000145 1 DIESEL OIL PIPE 柴油管D10—1600—PG—1600
751011000006 1 HOOP 卡箍D11-19 179904/SX9 8-16 W2
750206000039 1 DIESEL OIL PIPE 柴油管D10X3400(扣一头)
730101000101 1 CONNECTOR 端直通GEO22LROMDA3C
730102000022 1 JOINT 接头EW22LOMDA3C
750201012114 1 ENGINE OIL PIPE 机油管F221CACF222212-1300-PG1300
730501004684 1 ENGINE OIL PIPE 机油管F221CACF222212-1500-PG1500

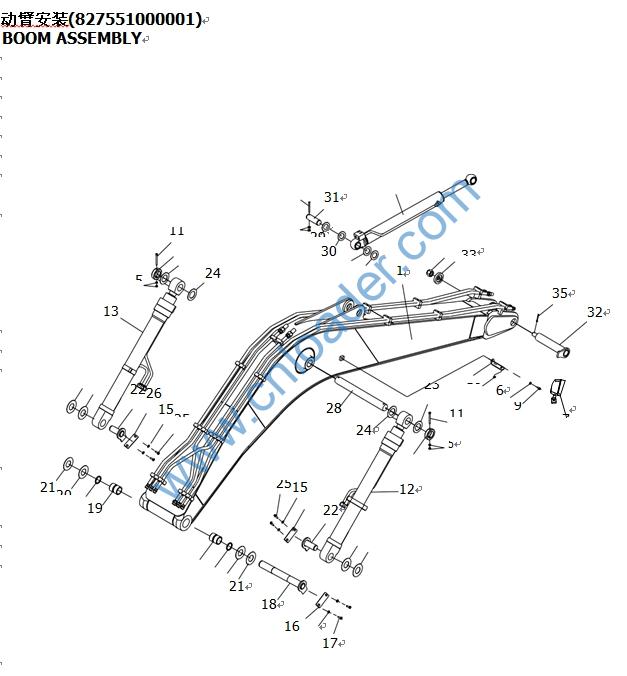

827551100001 S5 BOOM 动臂焊接
860796820000 S1 ARM CYLINDER 斗杆油缸SH15-DG(I)
701103012048 1 BOLT 螺栓M12X120-10.9-DKL GB5782
701406012002 1 NUT 螺母M12 GB6170
701508012002 1 WASHER 垫圈12-DKL GB/T 1230
720213000063 1 WORK LAMP 工作灯WD120X120
302520000864 2 LIGHT FIXING PLATE 照明灯安装板
701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB5783
701504012005 1 WASHER 垫圈12-DKL GB97.1
701103012039 1 BOLT 螺栓M12X135-10.9-DKL GB/T 5782
860796810200 S2 RIGHT BOOM OIL CYLINDER 右动臂油缸SH15-DB(R)-00
860796810100 S2 LEFT BOOM OIL CYLINDER 左动臂油缸SH15-DB(L)-00
730652000005 1 DUST-PROOF RING 防尘圈DLW07501 90X75X5
701508014002 1 WASHER 垫圈14-DKL GB1230
302490006698 1 PLATE 1 压板1
701104014018 1 BOLT 螺栓M14X30-10.9-DKL GB5783
827551200001 1 SHAFT 轴组件1
305040001048 3 AXILE BUSH 轴套1
760007000011 1 WASHER 垫片150X76 t1
760007000010 1 WASHER 垫片150X76 t1.5
827551130001 2 SHAFT 轴组件2
760007000014 1 WASHER 垫片120X71 t1
760007000015 1 WASHER 垫片120X71 t1.5
701104014028 1 BOLT 螺栓M14X25-8.8-DKL GB5783
302490006699 1 PLATE 2 压板2
305070001041 2 STOP BUSH 止动套
304020001755 2 SHAFT 轴3
760007000013 1 WASHER 垫片130X71 t1
760007000012 1 WASHER 垫片130X71 t1.5
304020001756 1 SHAFT 轴4
827551010000 1 SHAFT UNIT 轴组件3
302010001312 2 PAD PLATE 垫板
701425036001 1 SLOTTED NUT 开槽螺母M36X3 GB/T 9458-88
701703006301 1 COTTER PIN 开口销6.3X65 GB91
