701104012022 1 BOLT
701504012005 1 WASHER
862156000100 S2 SHAFT ASSEMBLY
829956020000 A1 GASKET UNIT
862196850000 S4 OIL CYLINDER
305040002006 S1 SHAFT SLEEVE
730652000206 1 DUSTBAND
703101010001 1 OIL CUP
862156000201 S1 SHAFT ASSEMBLY
862156010000 S1 GASKET UNIT
330040000158 S4 CASTING DEFLECTION HEAD
862156000400 S1 SHAFT ASSEMBLY
304050000657 S1 TUBING COMPRESSIVE BAR
701406012011 1 SCREW
302490038350 S1 PRESSING PLATE
862156000500 S1 SHAFT ASSEMBLY
701104010039 1 BOLT
701504010004 1 WASHER
701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB/T 5783
701504012005 1 WASHER 垫圈12-DKL GB/T 97.1
862156000100 S2 SHAFT ASSEMBLY 轴组件
829956020000 A1 GASKET UNIT 垫片组2
862196850000 S4 OIL CYLINDER 偏转油缸
305040002006 S1 SHAFT SLEEVE 轴套
730652000206 1 DUSTBAND 防尘圈DLW 60X70X5
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
862156000201 S1 SHAFT ASSEMBLY 偏转轴组件
862156010000 S1 GASKET UNIT 垫片组（105X61）
330040000158 S4 CASTING DEFLECTION HEAD 25U铸造偏转头
862156000400 S1 SHAFT ASSEMBLY 轴组件2
304050000657 S1 TUBING COMPRESSIVE BAR 油管压杆
701406012011 1 SCREW 螺母M12-8-ZnD GB/T 6170
302490038350 S1 PRESSING PLATE 压板
862156000500 S1 SHAFT ASSEMBLY 轴组件1
701104010039 1 BOLT 螺栓M10X30-8.8-DKL GB/T 5783
701504010004 1 WASHER 垫圈10-DKL GB/T 97.1\
305040000063 A5 BUSH 衬套Ⅰ
862196850100 S4 PISTON ROD ASSEMBLY 活塞杆组件
730652000231 1 DUST SEAL 防尘圈DKBI FD2041E1
730603000066 1 O-RING O形圈G65 (A70) 9-5509 N674-70
730654000094 1 STOP COLLAR 挡圈35X45X3
730602000218 1 PISTON ROD SEAL PART U形圈USH 35X45X6
730601000363 1 CUSHION SEAL PART 活塞杆密封OMS-MR-0350
750502000028 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB3520
301020000026 A2 CHECK RING 弹簧挡圈Φ39X2
730654000038 1 STOP COLLAR 挡圈60X65X1.25
730603000074 1 O-RING O形圈G60 (A90) 9-5508 N552-90
305090002353 S1 CYLINDER HEAD 缸头
862196850200 S4 CYLINDER BARREL UNIT 缸筒组件
739806000070 1 Block up the head 堵头VKAM10L
305090002239 S3 CUSHION COLLAR 缓冲套
305090002354 S1 PISTON 活塞
730603000003 1 O-RING O形圈G30 (A90) 9-5502 N552-90
730602000330 1 PISTON SEAL 活塞密封OMK-MR 65X54X4.2
730651000026 1 SUPPORTING RING 导向环KFR 6005 Q5029
301020000031 S10 LOCK RING 锁圈
862155000004 S2 STANDARD BUCKET ASSEMBLY 25U普通铲斗总成（300/0.04）
862155000002 S1 STANDARD BUCKET ASSEMBLY 25U普通铲斗总成（485/0.065）
862155000001 S1 STANDARD BUCKET ASSEMBLY 25U标准铲斗总成(580/0.08)
862155000003 S1 STANDARD BUCKET ASSEMBLY 25U普通铲斗总成（1000/0.13）
862152000000 S2 QUICK EXCHANGE INSTALLATION（ITALY） 25U意大利快换
862155100003 S2 THE CURVED BUCKET 25U弧形铲斗（300mm）
750601000032 1 PIN 销子18pin
750601000033 1 BUCKET TOOTH RUBBER 斗齿橡胶18LK
750601000027 1 BUCKET TEETH 斗齿PC35
862155100002 S1 THE CURVED BUCKET 25U弧形铲斗(485mm)
750601000032 1 PIN 销子18pin
750601000033 1 BUCKET TOOTH RUBBER 斗齿橡胶18LK
750601000027 1 BUCKET TEETH 斗齿PC35
| 862155100001 | S1 | THE CURVED BUCKET | 25U弧形铲斗(580mm) |
| 750601000032 | 1 | PIN | 销子18pin |
| 750601000033 | 1 | BUCKET TOOTH RUBBER | 斗齿橡胶18LK |
| 750601000027 | 1 | BUCKET TEETH | 斗齿PC35 |
862155100000 S1 BUCKET SOCKET 铲斗连接座总成
302490029955 S1 TOP OF THE BUCKET 铲斗上侧板
302490029961 S1 DOWN OF THE BUCKET 铲斗下侧板右
302490033745 S1 CHILADIUM 唇板
302990004064 S1 ARC PLARE 铲斗弧板
302990004065 S1 REINFORCING PLATE 1 铲斗加强板1
302990004066 S1 REINFORCING PLATE 2 铲斗加强板2
302490029959 S1 DOWN LEFT OF THE BUCKET 铲斗下侧板左
302490033746 S1 REINFORCING PLATE 加强筋板
862152010000 S2 QUICK EXCHANGE SEAT 快换头
862152020000 S1 HOOK BOARD OF GROUPWAREE 钩板组件
305060000366 A1 COVER 套
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
302490001861 A2 SEAT 座
730652000075 1 DUSTBAND 防尘圈KWK020032060 32X20X6
305070000210 A1 SNAP RING 卡环
701307008001 1 SCREW 螺钉M8X10 GB77
701510020002 1 WASHER 垫圈20-DKL GB/T 93
701504020002 1 WASHER 垫圈20-DKL GB/T 97.1
304050000680 S1 BOLT 螺栓
701103010036 1 BOLT 螺栓M10X45-8.8-DKL GB/T 5782
304090000153 S1 AXLE 轴
304020000497 A1 AXLE 快换安装轴（HPM）
862110110002 S5 PLATFORM STRUCTURE 平台结构件焊接
862110120002 S5 CONTROL BOARD ASSEMBLY 操纵台安装
862112000002 S1 POWER PLANT ASSEMBLY 动力装置总成
862110140000 S3 BALANCE WEIGHT 配重安装
730399000121 1 COMPOSITE RETURN BLOCK 复合回油块2.1
701103006026 1 BOLT 螺栓M6X75-8.8-DKL GB/T 5782
701501006002 1 WASHER 垫圈6-DKL GB/T 95
701510006003 1 WASHER 垫圈6-DKL GB/T 93
862110120000 S2 ROTARY MOTOR 回转马达部装
302030030036 S4 SNAP-GAUGE 中间回转支承固定板
701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
302540017746 S1 SUPPORTING PLATE 电瓶开关支架
862110150002 S2 OIL TANK ASSEMBLY 油箱总成
862110160002 S2 STORAGE BATTERT ASSEMBLY 电瓶安装
862110000800 S3 OIL FILLER PIPE 黄油注油管
862110001000 S2 OIL FILLER PIPE 黄油室注油管总成
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
862110230002 S1 ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 回转支承注油管总成
307090000900 S2 PILOT BLOCK 集流块
701103006024 1 BOLT 螺栓M6X65-8.8-DKL GB/T 5782
862110110000 S4 MULTITANDEM VALVE INSTALLATION 多路阀部装
862110180002 S1 INSTALLTION OF INTERMEDIATE BULKHEAD 中间隔板安装
862110000020 S1 COVER SUPPORT 平台覆盖件支架安装
730399000653 1 PILOT BLOCK 先导油源块811300149
701103008036 1 BOLT 螺栓M8X100-8.8-DKL GB5782
862110000061 S1 PILOT FILTER INSTALLATION 先导过滤器安装
302490030294 S1 FOOTBOARD 踏板
701104010010 1 BOLT 螺栓M10X45-8.8-DKL GB/T 5783
701504010004 1 WASHER 垫圈10-DKL GB/T 97.1
730306000098 1 SELECTOR VALVE 选择阀KL7102106AR13EG
701302005025 1 SCREW 螺钉M5X55-8.8-DKL GB/T 70.1
862110200002 S1 BOTTOM PANEL MOUNTING 底封板安装
862110800000 S1 OIL BOX 油盒
862110170002 S1 SPONGE 平台海绵
750602000249 1 SHOCK ABSORBER 25U司机室减震器
302010005411 S1 MOUNTING PAD 司机室安装垫
302010006121 S2 MOUNTING PAD 司机室后安装垫
701103016015 1 BOLT 螺栓M16X100-8.8 GB5782
701406016001 1 NUT 螺母M16-8H-10-DKL GB/T 6170
862110220002 S4 FRONT AIR HOSE 前风管
862110120402 S3 FRONT PLATE WELDING 前板焊接
302490040110 S1 HEAT INSULATION SPONGE 前板隔热海绵
302010006136 S2 REPAIR DOOR GASKET 检修门密封垫
750902000089 1 REPAIR DOOR HINGE 检修门铰链
701310006009 1 SCREW 螺钉M6X12-ZnD GB/T 819.1
302010003699 A1 AIR OUTLET SPONGE 出风口海绵
750030000032 1 TUYERE PLASTIC PARTS 风口塑料件
302030037852 S1 EXHAUST OPENING SPONGE 吸风口海绵
701323061602 1 SCREW 螺钉M6X16-8.8-DKL GB/T 70.2
862110120302 S2 OUTSIDE THE TUYERE WELDING 外风口组件焊接
302030037853 S1 OUTSIDE TUYERE SPONGE 外风口海绵1
302030037854 S1 OUTSIDE TUYERE SPONGE 外风口海绵2
750702010028 1 SEAT 座椅SC29-9
750001000016 1 FIXED STRIP 固定胶条（新F704型）
701104010037 1 BOLT 螺栓M10X35-10.9-DKL GB/T 5783
701506010003 1 WASHER 垫圈10-DKL GB/T 96.1

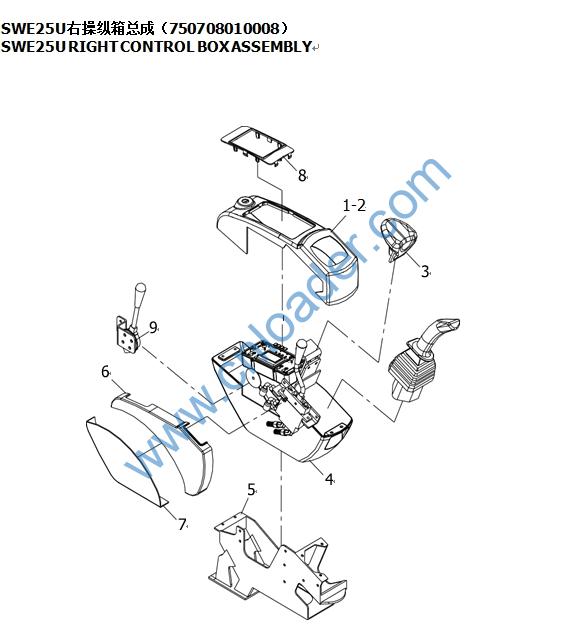

750708010008 1 RIGHT CONTROL BOX SWE25U右操纵箱总成
730309000313 1 RIGHT PILOT HANDLE
右先导手柄R908354046(4TH5I121-11/SL18PRBH235M01)
701302006033 1 SCREW 螺钉M6X25-8.8-DKL GB/T 70.1
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
730309000352 1 PILOT CONTROL VALVE 推土先导操纵阀811200055
701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
302030030023 S1 SHOCK PAD 右操纵箱减震垫
862110120102 S2 MOUNTING PLATE WELDING 操作台安装板焊接
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
862110120602 S2 INSTALLATION OF HEATER 暖风机安装
862110120202 S2 MOUNTING PLATE WELDING 暖风机安装板焊接
701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783
862110120502 S3 DODGE GATE 活动门焊接
750906000259 1 PRESS DOOR LOCK 按压式门锁
302040002253 S1 LOCK THE GUSSET PLATE 锁扣板

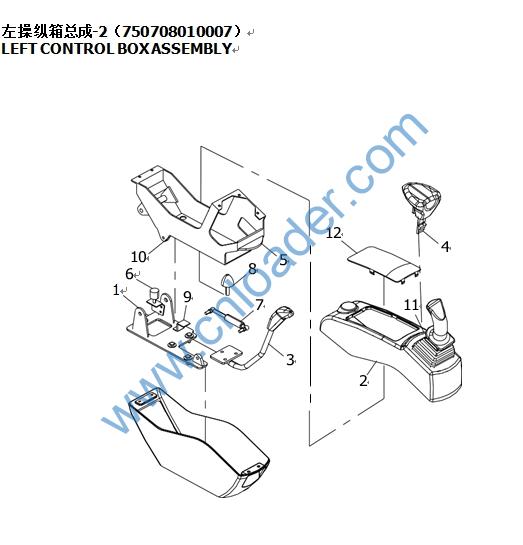

750708010007 1 LEFT CONTROL BOX 左操纵箱总成-2
302030030022 S2 SHOCK PAD 左操纵箱减震垫
720235000024 1 MICROSWITCH 微动开关17.0277.0000.18
730309000315 1 LEFT PILOT HANDLE
左先导手柄R908354045(4TH5I121-11/SL18435M01)
302490030073 S4 LEFT FOOT PEDAL 左脚踏板
302490037019 S1 HEAT INSULATION SPONGE 左脚踏隔热海绵
730309000290 1 SINGLE-FOOT PEDAL VALVE 单联脚踏阀811000025
750608010006 1 PEDAL ASSEMBLY 左踏板总成700900500
750608010008 1 LEFT PEDAL ASSEMBLY 踏板总成700900560
862110190002 S2 DRIVING CONTROL ASSEMBLY 行走操纵总成
701104010032 1 BOLT 螺栓M10X25-8.8-DKL GB/T 5783
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
302490030072 S4 RIGHT FOOT PEDAL 右脚踏板
302490037020 S1 HEAT INSULATION SPONGE 右脚踏隔热海绵
334020001629 S4 RUBBER BLANKET 橡胶垫SWE25U
302560002031 S1 FOOT PAD 侧脚踏垫
730309000323 1 RIGHT PILOT VALVE 右先导阀HC-RCY 60110330DD
730309000322 1 LEFT PILOT VALVE 左先导阀HC-RCY 60130874LR
302560002098 S1 RUBBER BLANKET 左侧橡胶垫
302560002099 S1 RUBBER BLANKET 左侧橡胶垫2
302560002102 S1 BLOCK RUBBER 橡胶块
334020002350 S1 RUBBER BLANKET 敞篷橡胶垫SWE25U
862110120403 S1 FRONT PLATE WELDING 敞篷前板焊接
302010006418 S1 BASE PLATE 1 垫板1
302030040002 S1 BASE PLATE 2 垫板2
750606010057 1 THE GUIDE PLATE 小挖先导盖板SD0013
750606010060 1 THE UPPER COVER 小挖右上盖SD008
750708010027 1 LEFT HANDRAIL 左扶手SD-SW40ZFS
750708010029 1 RIGHT PEDESTAL 小挖右底座SD007
750708010036 1 RIGHT FRAMEWORK 右骨架
750606010061 1 ON THE SIDE SHELL 侧上壳SD-SW40YS
750606010062 1 UNDER THE SHELL SIDE 侧下壳SD-SW40YX
750606010063 1 AT THE UPPER COVER PLATE 小挖右上盖板SD010R-005
750606010067 1 STOP BLOCK 油门拉杆限位块
750708010024 1 PEDESTAL 小挖底座SD007
750606010056 1 THE UPPER COVER 小挖上盖SD008
750708010034 1 RIGHT HAND SHANK 左安全操作手柄
750708010027 1 LEFT HANDRAIL 左扶手SD-SW40ZFS
750708010033 1 LEFT FRAMEWORK 操纵箱左骨架
750606010065 1 LIMIT SUPPORTING SEAT 限位支座
750701000145 1 GAS SPRING 气弹簧YQ10/20-40-180/500N
750708010028 1 BUFFER BLOCK 缓冲挡块YZC7.17.4(M10-50)
750606010059 1 CONTACT PLATE 微动开关接触板
750606010066 1 SHOCK ABSORBER 缓冲装置
750606010057 1 THE GUIDE PLATE 小挖先导盖板SD0013
750606010058 1 AT THE UPPER COVER PLATE 小挖左上盖板SD010R-005-SW40Z
