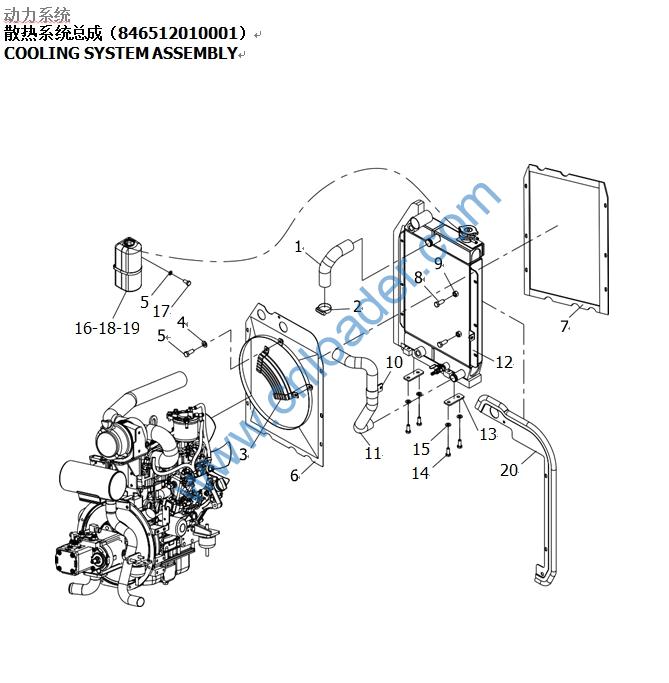

320040000475 S2 WATER OUTLET 出水管1
751008000260 1 THE HOSE CLAMP 软管卡箍40-60 W2
846512010500 S1 PROTECTION COVER 防护罩
701104008046 1 BOLT 螺栓M8X15-8.8-DKL GB/T 5783
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
846512010610 S2 AIR GUIDE COVER WELDING 导风罩焊接
846512011000 S2 SEALED GASKET ASSEMBLY 20B水箱密封垫组件
701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783
701406008004 1 NUT 螺母M8-8-DKL GB/T 6170
320040000474 S3 WATER INLET 进水管1
302540017774 S2 FIXING RING 固定环
750203000227 1 COMPOUND COOLER 复合冷却器4842.077.0000V1
302030038192 S1 RUBBER GASKET 水箱橡胶垫
701104010034 1 BOLT 螺栓M10X30-10.9-DKL GB/T 5783
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
302540019503 S1 MOUNTING PLATE 副水箱安装板
701104008004 1 BOLT 螺栓M8X20-8.8 GB/T 5783
701310006016 1 SCREW 螺钉M6X10-ZND GB/T 819
750203010022 1 EXPANSION TANK 副水箱F-XD007
846512010620 S2 BACKBOARD WELDING 隔板焊接

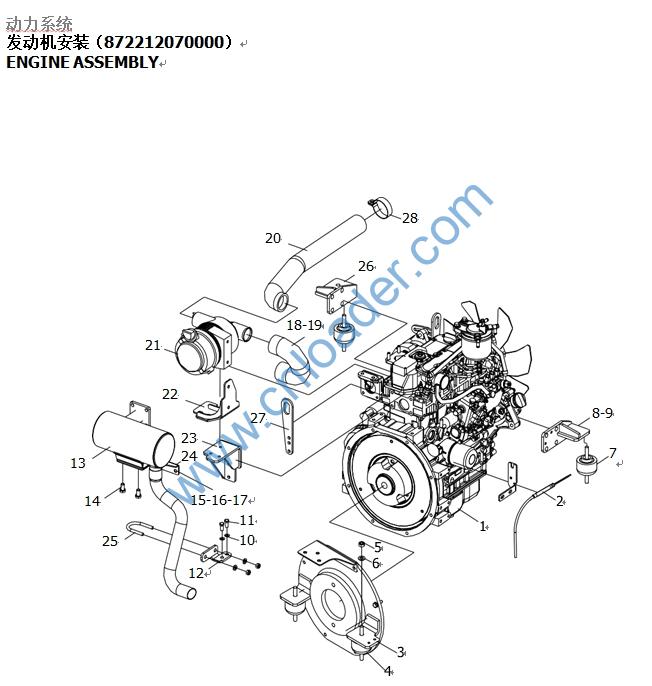

750201000248 1 ENGINE 发动机3TNV80F-SSSU

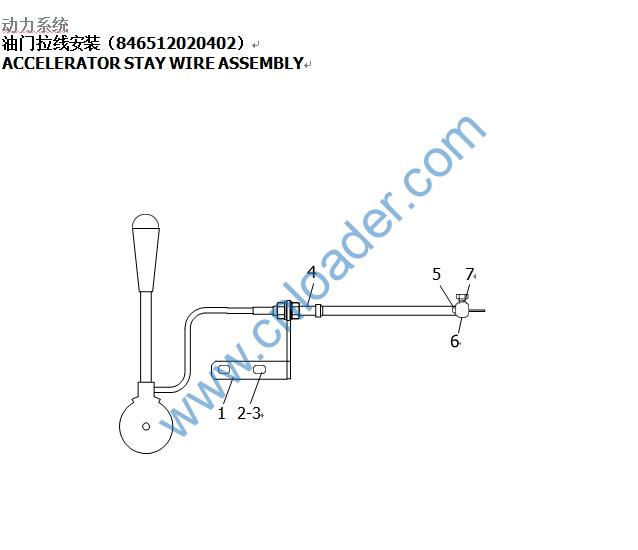

846512020402 S1
ACCELERATOR STAY WIRE ASSEMBLY 油门拉线安装
846512022000 S1 MOUNTING FOOT WELDING 连接盘安装脚焊接
751501000258 1 SHOCK ABSORBER 减震器U-500-00
701406010008 1 NUT 螺母M10-10-DKL GB/T 6170
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
751501000262 1 SHOCK ABSORBER 减震器U-500-180
846512021300 S1 THE ENGINE RIGHT BACK LEG 右后支脚
701104010033 1 BOLT 螺栓M10X25-10.9-DKL GB/T 5783
701104008036 1 BOLT 螺栓M8X18-8.8-DKL GB/T 5783
302990004755 S1 FIXED SEAT 排气管固定座
846512021200 S1 SILENCER SWE20B消音器总成
701104010036 1 BOLT 螺栓M10X20-10.9-DKL GB/T 5783
701104008040 1 BOLT 螺栓M8X30-10.9-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701406008004 1 NUT 螺母M8-8-DKL GB/T 6170
751008000215 1 THE HOSE CLAMP 重型软管卡箍55-59 W2
320020001100 S1 ENGINE INTAKE-TUBE 空滤器出气管
320020001101 S1 ENGINE INTAKE-TUBE 空滤器进气管
730402000231 1 AIR FILTER 空滤器119540-12520
872212070200 S1 AIR FILTER BRACKET 空滤器支架
872212070100 S2 MOUNTING RACK 安装支架
302990004756 S1 MOUNTING BRACKET OF SILENCER 消音器安装支架
304060000166 S3 U-HOOP U型抱箍
846512021400 S1 THE ENGINE RIGHT FRONT LEG 右前支脚
302490040114 S1 LIFTING PLATE 吊装板
302540017808 S2 FIXING RING 进气管固定环
302990004750 S2
BRACKET OF ACCELERATOR STAY WIRE 油门拉线支架
701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
750202000085 1 ACCELERATOR STAY WIRE SWE17B-3油门拉线WJ108A
701703005001 1 PIN 销5X36-ZnD GB/T 91
333020000002 A1 FIXED PART 固定件
701104005011 1 BOLT 螺栓M5X10-8.8-DKL GB/T 5783
729808000057 1 NYLON CABLE TIES 尼龙扎带200
729901000019 1 CABLE TIES 插孔式扎带9818128

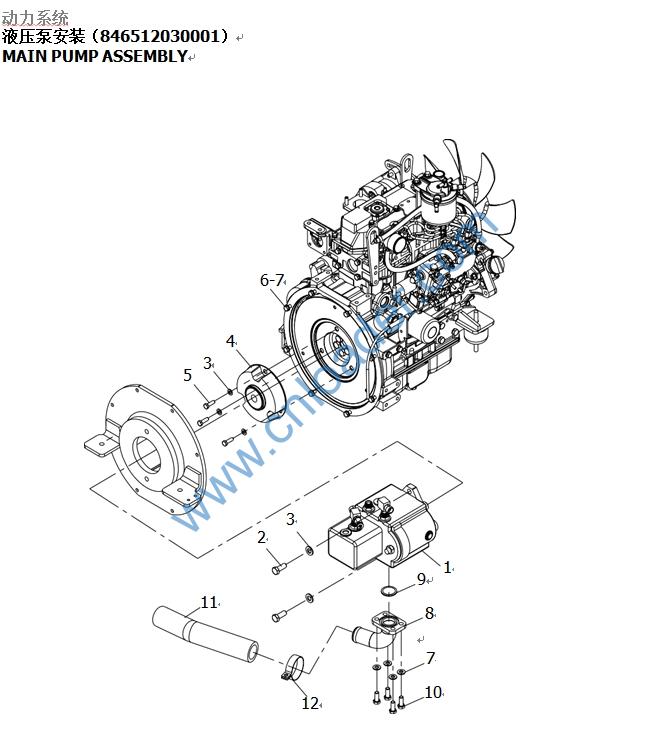

730201000335 1 HYDRAULIC PUMP 液压泵PVD-0B-19P-6AG3-5807A
701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783
701508012002 1 WASHER 垫圈12-DKL GB/T 1230
750310000130 1 COUPLING
联轴器MONOLASTIC 32 Flanschkupplung
701302012002 1 SCREW 螺钉M12X20-12.9 GB/T 70.1
701103010052 1 BOLT 螺栓M10X25-10.9-DKL GB/T 5782
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
846512030200 S1 LARGE PUMP SUCTION PIPE 大泵吸油管
703201037502 1 O-RING O形圈37.5X3.55-G-N-GB/T 3452.1
701302010045 1 SCREW 螺钉M10X25-10.9-DKL GB/T 70.1
320040000562 S1 OIL SUCTION HOSE 吸油胶管
751008000214 1 THE HOSE CLAMP 重型软管卡箍51-55 W2

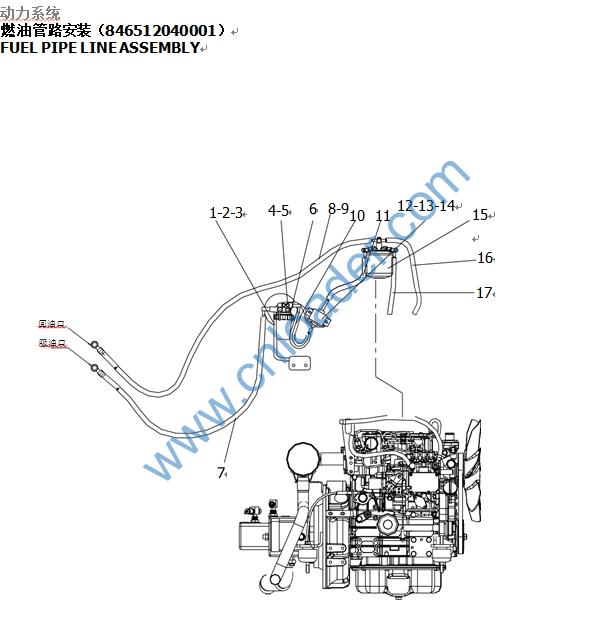

846512040400 S3 OIL-WATER SEPARETOR SUPPORT 油水分离器支架
701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701401008002 1 NUT 螺母M8-DKL GB/T 41
730401000046 1 OIL-WATER SEPARETOR 油水分离器119802-55700
846512040100 A1 OIL INLET PIPE 20吸油管
751008000257 1 THE HOSE CLAMP 软管卡箍8-16 W2
846512040200 A1 OIL RETURN PIPE 20回油管
730599000042 1 MIDDLE PIPE 中间管D8X800
750206000017 1 DIESEL OIL PIPE 柴油管D8X380
730201000028 1 OIL SUCTION PUMP 燃油吸油泵119225-52102
701302006052 1 SCREW 螺钉M6X20-10.9 GB/T 70.1
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
846512040300 S2 FILTER HOLDER 精滤支架总成
750206000046 1 DIESEL OIL PIPE 精滤柴油管D8X330
750206000047 1 DIESEL OIL PIPE 精滤柴油管D8X220

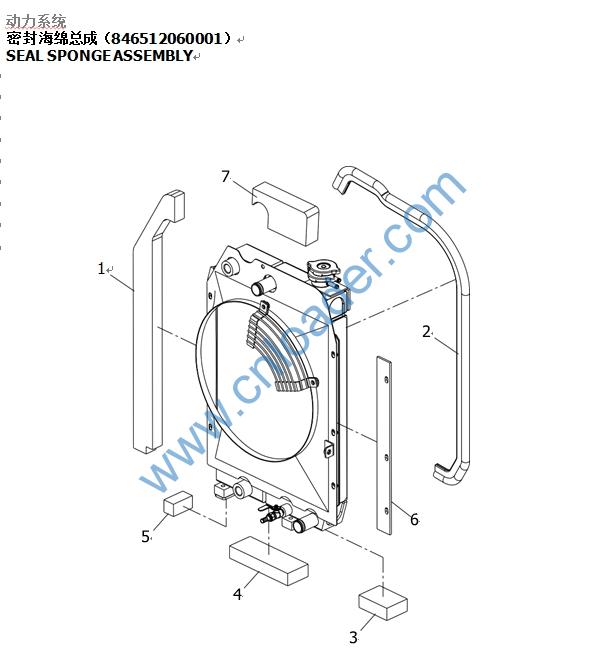

302490040137 S2 SPONGE 3 水箱海绵3
334020002492 S2 SEAL SPONGE 密封海绵
302030038108 S1 BOTTOM SPONGEⅠ 水箱下海绵Ⅰ
302030038109 S1 BOTTOM SPONGE Ⅱ 水箱下海绵Ⅱ
302030038110 S1 BOTTOM SPONGE Ⅲ 水箱下海绵Ⅲ
750001000053 1 COMPOSITE STRIP
组合胶条5208（顶端发泡，L=1100mm）
334020002617 S1 UPPER SPONGE 水箱上海绵

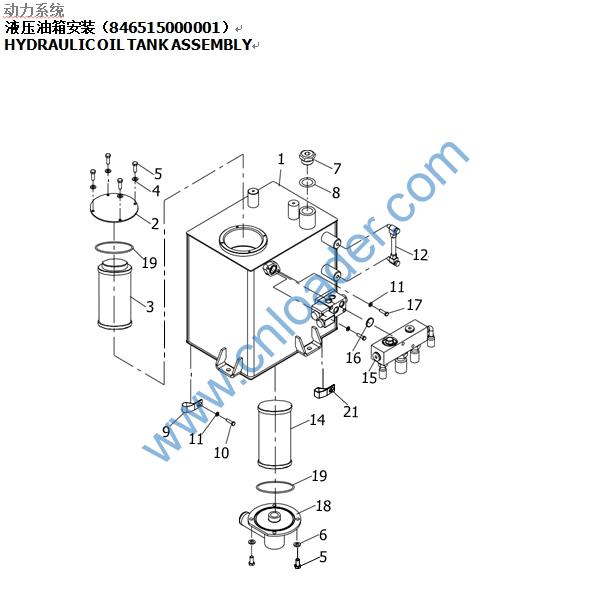

846515010001 S3 HYDRAULIC OIL TANK 液压油箱焊接
810215200001 A2 THE OIL RETURN PLATE 回油压盖
730403000079 1 BACK TO THE OIL FILTER 回油滤芯EF-133
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
701104006017 1 BOLT 螺栓M6X16-8.8-DKL GB/T 5783
701510006003 1 WASHER 垫圈6-DKL GB/T 93
307040401002 A3 PLUG SCREW 螺塞
703202033001 1 BONDED WASHER 组合垫圈33 JB982
729808000021 1 PLY-YARN DRILL 线卡12010 卡孔ф20安装孔ф10
701104008043 1 BOLT 螺栓M8X12-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
739801000020 1 LIQUID LEVEL METER 液位计YWJ-M10-110
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
730401000051 1 OIL SUCTION FILTER 吸油滤芯SPF-247
730399000655 1 COMPOUND OIL RETURN BLOCK 复合回油块811300156
703201025001 1 O-RING O形圈25X2.65-G-N-GB/T 3452.1
701302008015 1 SCREW 螺钉M8X60-8.8 GB/T 70.1
810215300000 A4 THE OIL OUT FLANGE 吸油法兰
703201106001 1 O-RING O形圈106X3.55-G-N-GB/T 3452.1
302010001014 A1 RUBBER BLANKET 橡胶垫
729808000159 1 PLY-YARN DRILL 线卡 15010 卡孔ф50 安装孔ф10

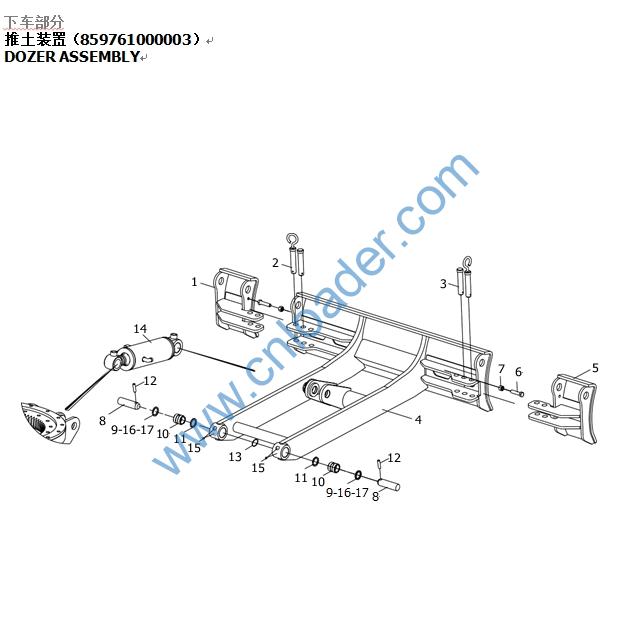

859761000003 A2 DOZER ASSEMBLY 推土装置
859761000003 A3 DOZER ASSEMBLY 推土装置
750101000061 1 BELT TRACK 履带总成230/48/70/T/C
750102000013 1 THRUST WHEEL 支重轮SH1.5-Z-00
701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB/T 5783
750105000025 1 IDLE WHEEL 引导轮SH1.5-Y-00G1
846540100305 A2 THE LEFT SIDE FRAME 左履带架
302030020813 A1 COVER PLATE 盖板
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783

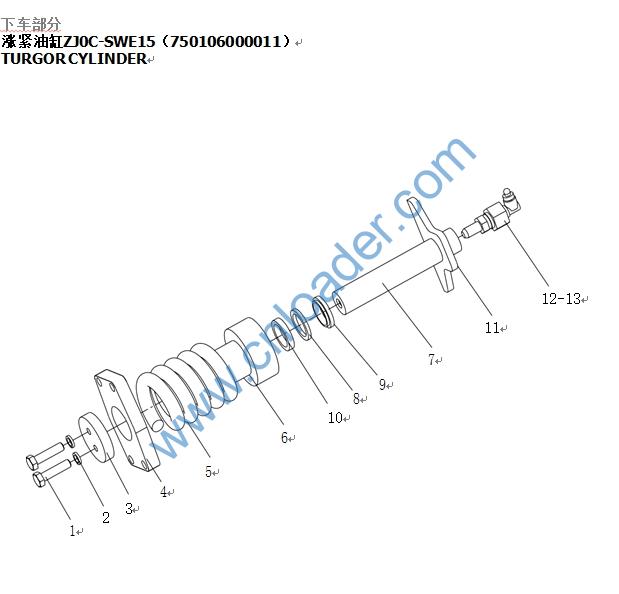

750106000011 1 TURGOR CYLINDER 涨紧油缸ZJ0C-SWE15
701104010034 1 BOLT 螺栓M10X30-10.9-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
304020402015 A3 SHAFT 1 轴1
701104014021 1 BOLT 螺栓M14X45-10.9-DKL GB/T 5783
701508014002 1 WASHER 垫圈14-DKL GB/T 1230
701406016001 1 NUT 螺母M16-10-DKL GB/T 6170
846540100400 A2 PROTECT COVER 油缸防护罩
304050304004 A3 LONGER BOLT 长螺栓
846540100205 A3 MIDDLE FRAME 中间架
306060000030 A1 DRIVING WHEEL 18驱动轮
701302010045 1 SCREW 螺钉M10X25-10.9-DKL GB/T 70.1
730250000579 1 TREAD MOTOR 行走马达PHV-2B-20A-PT-9775A
810240100600 A1 LEFT THE MOTOR COVER BOARD 左马达盖板总成
701104010031 1 BOLT 螺栓M10X20-8.8-DKL GB/T 5783
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
739802000134 1 CENTER SWIVEL JOINT 中央回转接头（PCJ-EX10-NS）
701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783
846540100105 A3 RIGHT FRAME 右履带架

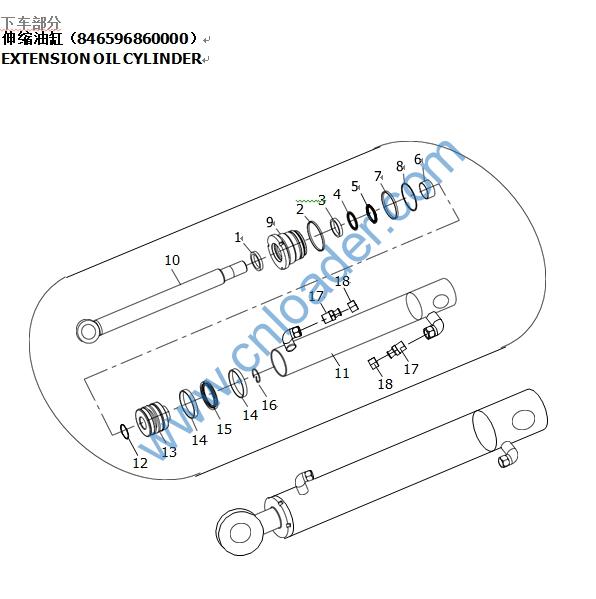

846596860000 S103 TELESCOPIC CYLINDER 伸缩油缸
304020402016 A3 SHAFT 2 轴2
750550000091 1 SLEWING BEARING 回转支承QNA456.20
302030004615 A2 COVER PLATE 盖板
701103012035 1 BOLT 螺栓M12X70-10.9-DKL GB/T 5782
750101000063 1 BELT TRACK 履带总成230/48/70/T/C（杭州运河）
810240100500 A1 RIGHT THE MOTOR COVER BOARD 右马达盖板总成
846540100700 A1 GASKET UNIT 垫片组1（14*26）
701412016001 1 NUT 螺母M16-10H GB/T 1229
750105000094 1 SWE18a IDLE WHEEL SWE18a引导轮（配钢履带）
750102000086 1 THRUST WHEEL SWE18a支重轮（配钢履带）
750101000160 1 BELT TRACK 履带总成LW90GA-36-230
302530000509 A2 LEFT GUIDE PLATE 左导向板
701510012004 1 WASHER 垫圈12-DKL GB/T 93
701104012023 1 BOLT 螺栓M12X35-10.9-DKL GB/T 5783
859761120003 A2 LEFT DOZER 左推土铲
859761400000 A2 PIN SHAFT ASSEMBLY 销轴总成
304080002030 A2 SHAFT 销轴
859761100003 A2 DOZER 推土铲
859761110003 A2 RIGHT DOZER 右推土铲
701104012060 1 BOLT 螺栓M12X45-8.8-ZnD GB/T 5783
701422012003 1 NUT 螺母M12-8-ZnD GB/T 889.1
304020402017 A6 SHAFT 轴
810251020000 A2 GASKET UNIT 垫片组 II（55X32）
810251020000 A2 GASKET UNIT 垫片组 II（55X32）
305040400005 1 AXLE SLEEVE 轴套
730652000004 1 DUSTBAND 防尘圈DLW03001 40X30X4
701702010002 1 ROUND PIN 圆柱销10X40 GB119
305070500060 A1 SPRING COLLAR 钢丝挡圈

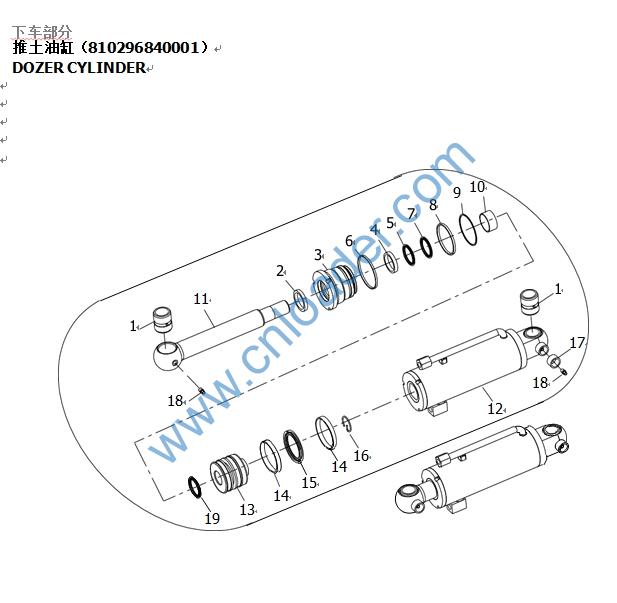

810296840001 A4 CYLINDER DOZER 推土油缸
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
750911000019 1 RESIN ADJUSTING PAD 树脂调整垫Ф55XФ32X1
750911000020 1 RESIN ADJUSTING PAD 树脂调整垫Ф55XФ32X1.5
305040401002 A5 BUSH 衬套
730652000230 1 DUST SEAL 防尘圈DKBI FD2342F0
305090601006 A4 CYLINDER HEAD 缸头
730604000038 1 U-RING U形圈USH 40X50X6
730654000074 1 STOP COLLAR 挡圈40X50X3
730603000011 1 O-RING O形圈74.4X3.1-NBR-A70-JISB 2401(P)
730601000361 1 PISTON ROD SEAL 活塞杆密封OMS-MR 40X50.7X4
730603000026 1 O-RING O形圈69.4X3.1-NBR-A70-JISB 2401(P)
730654000006 1 STOP COLLAR 挡圈70X75X1.25
750502000029 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB4020
810296840101 A2 PISTON ROD ASSEMBLY 活塞杆组件
810296840201 A5 CYLINDER BARREL UNIT 缸筒组件
305090002329 A1 PISTON 活塞
730651000021 1 BEARING RING 填充POM支承环-填充POM 75X70X9.7
730602000319 1 PISTON SEAL 活塞密封OMK-MR 59.5X75X6.3
301020000402 S1 LOCK RING 锁圈
305060400003 A1 PROTECTING BUSH 护套
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
730603000617 1 O-RING
O形圈39.4X3.1-NBR-A90-JISB 2401(N)
701510100202W 1 WASHER 弹簧垫圈10 GB/T93
701102102501W 1 BOLT
外六角螺栓M10X25GB/T5781(12.9级）
390002010002 S1 MOUNTING PLATE FSTC1.6涨紧固定板
390002490003 S1 FRONT PRESSING PLATE FSTC1.6涨紧后压板
390001030009 S1 SPRING FSTC1.6涨紧压紧弹簧
392305090002 S1 CYLINDERS FSTC1.6涨紧缸体
392404080001 S1 PISTON ROD FSTC1.6涨紧活塞杆
730654000003W 1 CHECK RING 挡圈30X40X3（开口）
730601000009W 1 PISTON ROD SEAL 活塞杆密封件ISI 30X40X6
730652000014W 1 DUSTBAND 防尘圈DH30X38X5/7
390002490004 S1 BEHIND PRESSING PLATE FSTC1.6涨紧前压板
703202016001W 1 COMPOUND GASKET 组合垫片Φ16 JB/T 982
8D6701000000 A1 OIL INLET CHECK VALVE FSTC5.0进油单向阀
730652000326 1 DUST SEAL 防尘圈DKBI FD1664EO
730603000024 1 O-RING O形圈54.4X3.1-NBR-A70-JISB 2401(P)
730654000075 1 STOP COLLAR 挡圈30X40X3
730601000395 1 PISTON ROD SEAL 活塞杆密封USH 30X40X6
730601000394 1 PISTON ROD SEAL 活塞杆密封OMS-MR 30X40.7X4.2
750502000027 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB3020
730654000022 1 STOP COLLAR 挡圈50X55X1.25
730603000045 1 O-RING O形圈44.4X3.1-NBR-A90-JISB 2401(P)
305090001691 S102 CYLINDER HEAD 缸头
846596860100 S1 PISTON ROD ASSEMBLY 活塞杆组件
846596860200 S2 CYLINDER BARREL UNIT 缸筒组件
730603000958 1 O-RING O形圈29.82X2.62-NBR-A90-AS 568(N)
305090001694 S1 PISTON 活塞
730651000285 1 BEARING RING 导向环FR 5015 Q5029
730602000285 1 PISTON SEAL 活塞密封OMK-MR 55X44X4.2
301020002003 A1 LOCK RING 锁圈
739806000029 1 PLUG 堵头VKA08A3C
751103000015 1 Function Stud bolt 功能螺母FM08LA3C

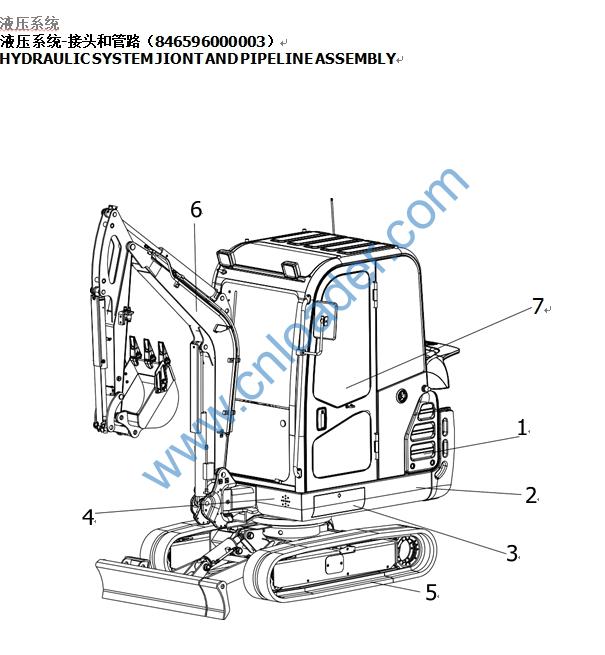

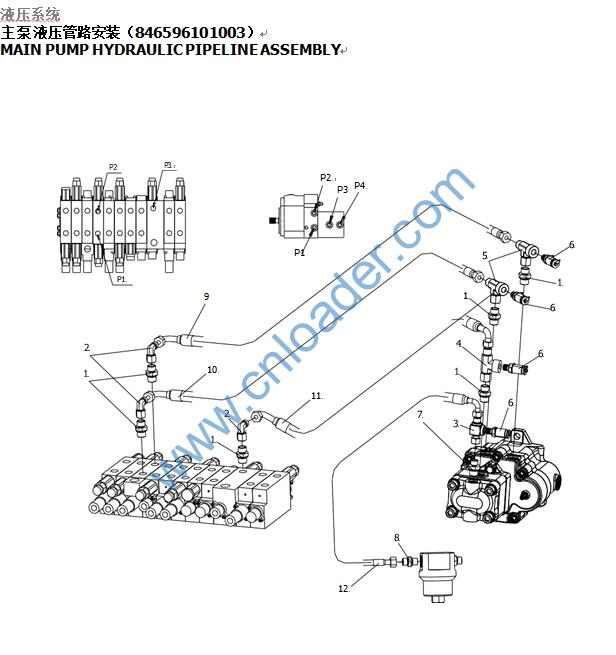

846596101003 S2
MAIN PUMP HYDRAULIC PIPELINE ASSEMBLY 主泵液压管路安装

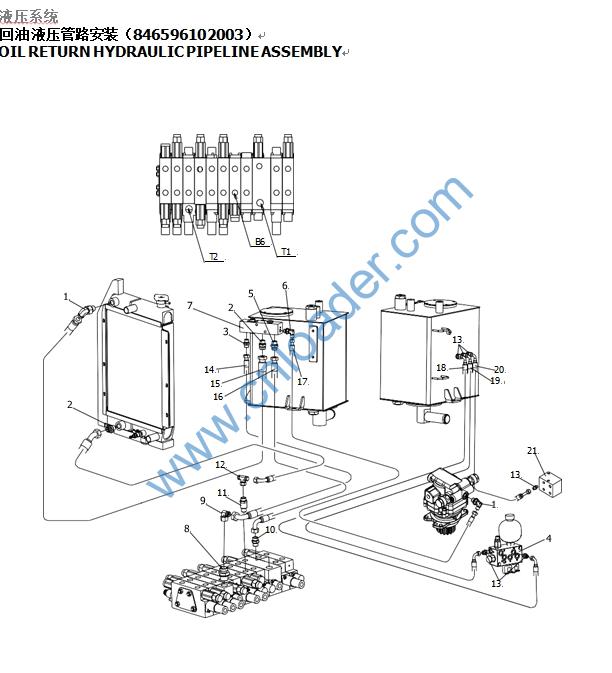

846596102003 S2
OIL RETURN HYDRAULIC PIPELINE ASSEMBLY 回油液压管路安装

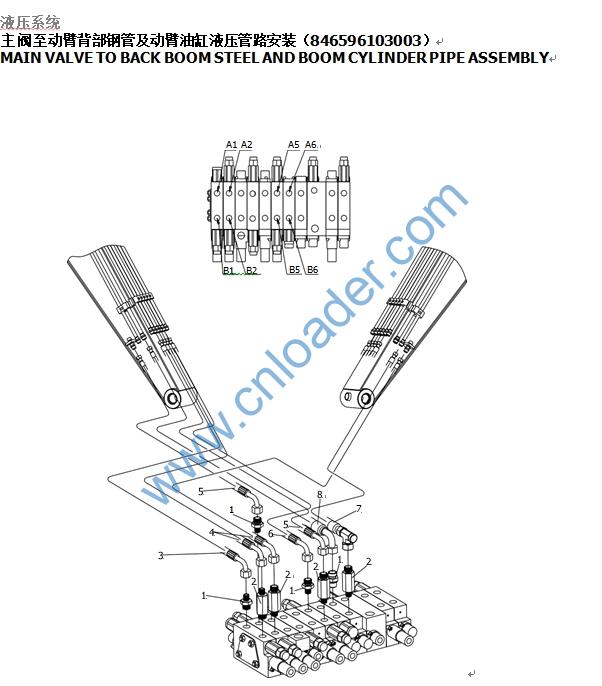

846596103003 S3 MAIN VALVE PIPELINE ASSEMBLY 主阀主管路安装
846596104003 S3
UPPER CARRIAGE HYDRAULIC PIPELINE ASSEMBLY 上车其它主管路安装
846596200003 S2
UNDER CARRIAGE HYDRAULIC PIPELINE ASSEMBLY 下车液压管路安装
846596300003 S4
WORKING DEVICE PIPELINE ASSEMBLY 工作装置液压管路安装
846596401003 S3 PILOT CONTROL PIPELINE ASSEMBLY 先导控制液压胶管安装(标配）
730101000066 1 JIONT 端直通GEO10LR3/8OMDA3C
730101000010 1 JIONT 接头EW08LOMDA3C
730104000039 1 JIONT 测压接头JT-ELCY 08L
730104000046 1 JIONT 测压接头JT-ELCY 10L
730104000260 1 JIONT 测压三通JT-ETCY10L
730101000169 1 JIONT 测压接头EMA3/M12X1.5
730101000082 1 JIONT 端直通GEO08LR3/8OMDA3C
730101000130 1 JIONT 端直通GE08LM14X1.5EDOMDA3C
73050200A521 1 HOSE ASSEMBLY
胶管总成F431CACF101005-1230-PG-1230
73050200A146 1 HOSE ASSEMBLY
胶管总成F431CACF101005-1180-PG-1180
730504004361 1 HOSE ASSEMBLY
胶管总成F431CFCF101005-1120-270°-PG-1120
730502000092 1 HOSE ASSEMBLY 胶管总成F481CACF080804-350
730102000031 1 CONNECTOR 可调向直角接头WEE18LROMDA3C
730101000013 1 CONNECTOR 端直通GE18LREDOMDA3C
730101000087 1 CONNECTOR 端直通GE12LREDOMDA3C
730399000654 1 THE PILOT SOUCE VALVE 先导油源块811300150
730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C
730101000012 1 CONNECTOR 端直通GE08LR3/8EDOMDA3C
730399000655 1 THE DRAIN VALVE 复合回油块811300156
730101000095 1 CONNECTOR 端直通GEO18LROMDA3C
730102000020 1 CONNECTOR 接头EW18LOMDA3C
730101000084 1 CONNECTOR 端直通GEO15LROMDA3C
730101000349 1 CONNECTOR 端直通GEO12LROMDA3C/35
730104000019 1 CONNECTOR 三通接头ET12LOMDA3C
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C
730502001169 1 HOSE ASSEMBLY 胶管总成F481CACF121206-750
730501005619 1 HOSE ASSEMBLY 胶管总成F481CACA181810-1680
730502007616 1 HOSE ASSEMBLY 胶管总成F481CACF151508-460
730501002634 1 HOSE ASSEMBLY 胶管总成F481CACA101005-700
730503000146 1 HOSE ASSEMBLY 胶管总成F481CFCF080804-850-180°
730501001452 1 HOSE ASSEMBLY 胶管总成F481CFCF080804-730-180°
730503000245 1 HOSE ASSEMBLY 胶管总成F481CFCF080804-1400-180°
307090502004 1 COLLECTOR BLOCK 集流块
730101000066 1 CONNECTOR 端直通GEO10LR3/8OMDA3C
730101000193 1 CONNECTOR 端直通GEO10LR3/8OMDA3C/35
73050200A148 1 HOSE ASSEMBLY
胶管总成F431CACF101005-1700-PG-1200CA
73050200A149 1 HOSE ASSEMBLY
胶管总成F431CACF101005-1800-PG-1200CA
73050200A171 1 HOSE ASSEMBLY
胶管总成F431CACF101005-1750-PG-1200CA
73050200A155 1 HOSE ASSEMBLY
胶管总成F431CACF101005-1650-PG-1200CA
730501005471 1 HOSE ASSEMBLY
胶管总成F431CACA121206-1750-PG-1200CA
730502009099 1 HOSE ASSEMBLY
胶管总成F431CACF121206-1700-PG-1200CA
