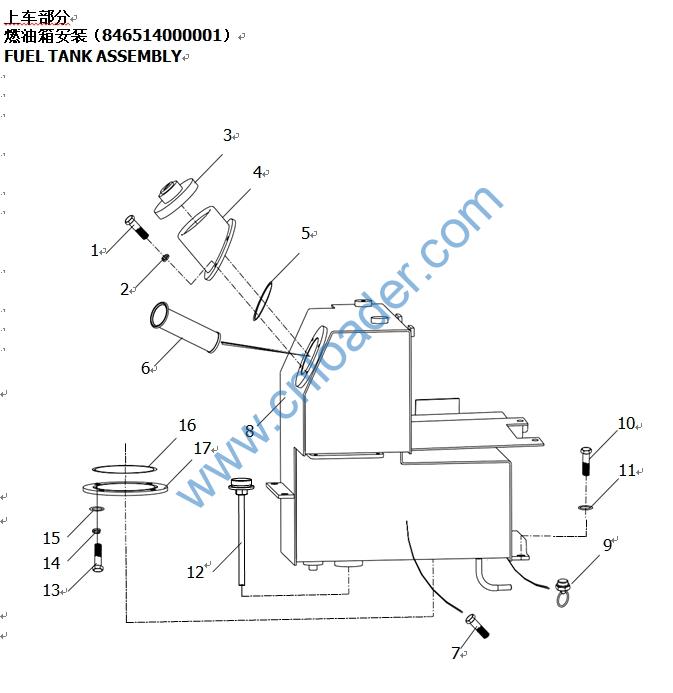

701302006003 1 SCREW 螺钉M6X12-8.8 GB/T 70.1
701510006002 1 WASHER 垫圈6-ZnD GB/T 93
750911000003 1 TANK COVER 燃油箱锁盖M44
810214102000 A4 OIL FILLER 燃油加油口
703201080002 1 O-RING O形圈80X3.55-G-N-GB/T 3452.1
750906000064 1 TANK FILTER SCREEN 油箱滤网JW1038-3
701302005025 1 SELECTOR VALVE 螺钉M5X55-8.8-DKL GB/T 70.1
846514010001 S3 FUEL TANK 燃油箱箱体
729808000021 1 PLY-YARN DRILL 线卡12010 卡孔ф20安装孔ф10
701104008043 1 BOLT 螺栓M8X12-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
720301000340 1 SENSOR 液位传感器SHZN-340
701104008002 1 BOLT 螺栓M8X16-8.8-ZnD GB/T 5783
701510080001 1 WASHER 垫圈8 GB/T 93
701501008002 1 WASHER 垫圈8 GB/T 95
703201109001 1 O-RING O形圈109X3.55-G-N-GB/T 3452.1
305030000020 A3 CLEAN THE FLAP 清洗口盖
701418008005 1 BUTTERFLY NUT 蝶形螺母 M8-ZnD GB/T62.1
701506008002 1 WASHER 垫圈8-DKL GB/T 96.1

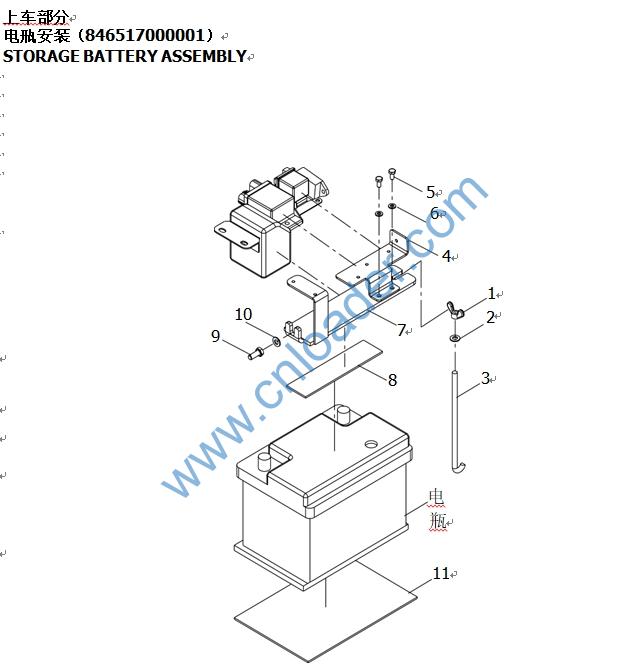

304060000123 A1 PULL ROD SWE20B电瓶拉杆
302540017802 S1 MOUNTING RACK 继电器安装支架
701104006018 1 BOLT 螺栓M6X10-8.8-DKL GB/T 5783
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
846517010000 S1 THE BATTERY HOLDER 电瓶压板焊接
302030022083 A1 RUBBER PLATE 2 橡胶垫板2
701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783
701501008004 1 WASHER 垫圈8-DKL GB/T 95
302030022082 A1 RUBBER PLATE Ⅰ 橡胶垫板1

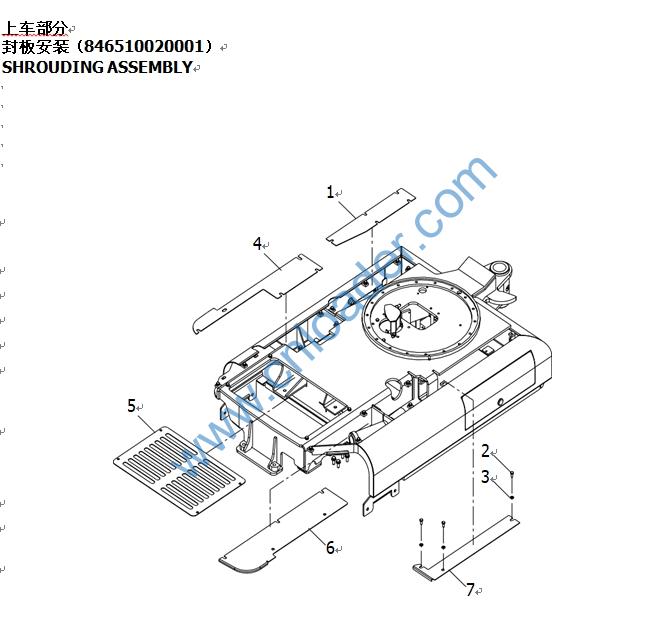

302030017773 A3 SHROUDING 1 封板1
701104008025 1 BOLT 螺栓M8X10-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
302540008425 A1 BOTTOM SHROUDING 底封板1
302510002850 A1 SHROUDING 2 封板2
302520004146 S1 BACK SHROUDING 左后底封板
302490040161 S2 FRONT SHROUDING 左前底封板

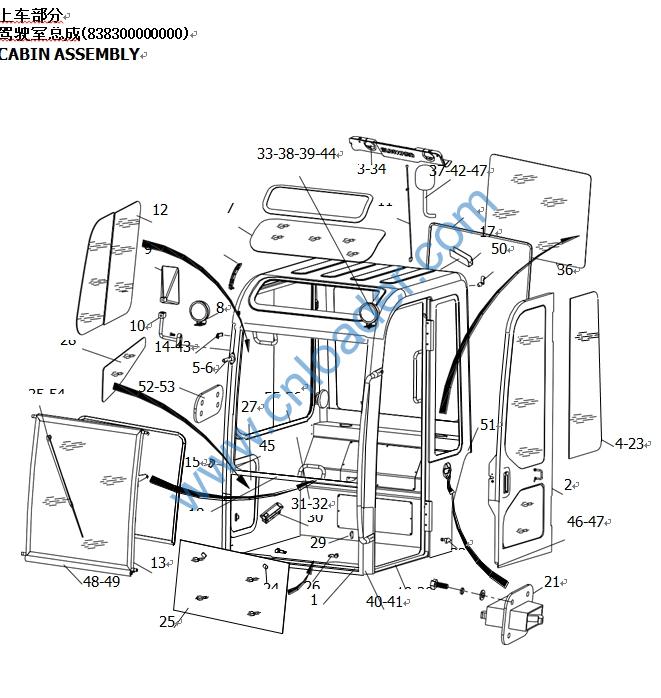

838301000000 A21 CAB WELDING BODY 驾驶室焊合主体
838302000000 A3 DOOR ASSEMBLY 门总成
701502008002 1 WASHER 垫圈8-DKL GB/T 96.2
302490011451 A1 LEFT REAR GLASS 左后玻璃SWE17
720405000034 1 WIPER NOZZLE 雨刮喷头PD600/530DB/4000
750005000032 1 WATER PIPE 水管SG4-A 4.5m
302990000889 A2 TOP GLASS 前顶玻璃SWE17
720412000223 1 WORK LIGHT LED工作灯CK-WE0903S（27W泛光）
750603000018 1 MIRROR ASSEMBLY 反光镜总成（小型无尾挖掘机）
750603000019 1 MIRROR HOLDER ASSEMBLY 反光镜支架总成（小型无尾挖掘机）
720226000017 1 ANTENNA 天线FM07-01
750711000115 1 ACTIVITIES RIGHT WINDOW SWE17 ROPSFOPS驾驶室右活动窗
838304020000 A7 FLIP WINDOW ASSEMBLY 翻转窗总成SW-Ⅰ
307990000449 A1 RIGHT TOP RUBBER BUMPER 右上橡胶缓冲块-SW-1
750099000282 1 BUFFER RUBBER 新翻转窗下缓冲橡胶块SWE230LC
838304010000 A2 RIGHT CORNER ASSEMBLY 右拐角总成SW-1
750398000057 1 BALANCER 平衡器SW-Ⅰ
750001000082 1 TOP BUBBLE FLIP WINDOW STRIP 顶泡翻转窗胶条SW-III
301020209001 A1 DECORATIVE STRIP 装饰胶条
701302004013 1 SCREW 螺钉M4X16 GB/T 70.1
750906000178 1 LATCH ASSEMBLY 碰锁组件SWE17-33
750906000082 1 DOOR FLIP LIMIT BOLT 门翻转限位螺栓M10×40
760505000003 1 GLASS BINDER 玻璃粘接剂Sikaflex-255
750099000343 1 GLASS HANDLE 玻璃提手SWE17-00
302490011456 A8 FRONT UNDER GLASS 前下玻璃SWE17
750099000344 1 FIXED CARD OF FRONT UNDER GLASS 前下玻璃胶条固定卡SWE17-11
750007000066 1 RUBBER SLEEVE 燃油口橡胶套
302490011455 A2 RIGHT LOWER GLASS 右下玻璃SWE17
750099000345 1 POSITIONING CARD OF FRONT UNDER GLASS 前下玻璃定位卡SWE17-22
750719000166 1 NEW RADIO BOX 新收音机盒
750629000008 1 FIRE EXTINGUISHER BRACKET OF CAB 司机室灭火器支架
838306000000 A1 INTERIOR TRIM ASSEMBLY 内饰件总成SWE17
720412000223 1 WORK LIGHT LED工作灯CK-WE0903S（27W泛光）
720407000041 1 THE HORN 喇叭MW78
720103000051 1 SPRING LINE 弹簧线RVUT4X0.5
302490011453 A3 BACK GLASS 后玻璃SWE17
720412000231 1 WARNING LIGHT LED警示灯JS90 12V/24V
750006010018 1
LAMP POWER CORD THROUGH HOLE JACKET 灯电源线过孔护套φ11
729807000023 1 THREAD HOLE COVER 过线孔堵盖φ12
302490011535 A1 CAB GENERAL CE NAMEPLATE 驾驶室通用CE铭牌
701605003001 1 RIVET 铆钉3 GB/T 827
305070001022 A1 SEAL PLATE 密封板1
750030000036 1 BUFFER RUBBER OF FLIP WINDOW 新翻转窗上缓冲橡胶块
305070001033 A1 HEADLAMP GASKET 前大灯密封垫
750001000032 1 FRONT UNDER GLASS STRIP 前下玻璃胶条 1530
750030000039 1 DOOR SEALING TAPE SWE17机门密封胶条
750030000058 1 DOOR BOTTOM DAMPING STRIP 门下减震胶条1
750001000033 1 THE STRIP UNDER FLIP WINDOW 翻转窗下胶条 770
750030000041 1 THE STRIP FIXED PLATE UNDER FLIP WINDOW 翻转窗下胶条固定板 770
750906000082 1 DOOR FLIP LIMIT BOLT 门翻转限位螺栓M10×40
750030000071 1 BACK GLASS STRIP 17机司机室后密封胶条（变径）
302030019670 A2 KETTLE MOUNTING PLATE 水壶安装板
701101006002 1 BOLT 螺栓M6X15-4.8 GB/T 5780
720405000016 1 SCRUBBER ASSEMBLY 洗涤器总成XD106(12V)
750030000142 1 DECORATIVE STRIP 装饰胶条3190
729999000001 1 CIGARETTE LIGHTER 点烟器DY737 12V

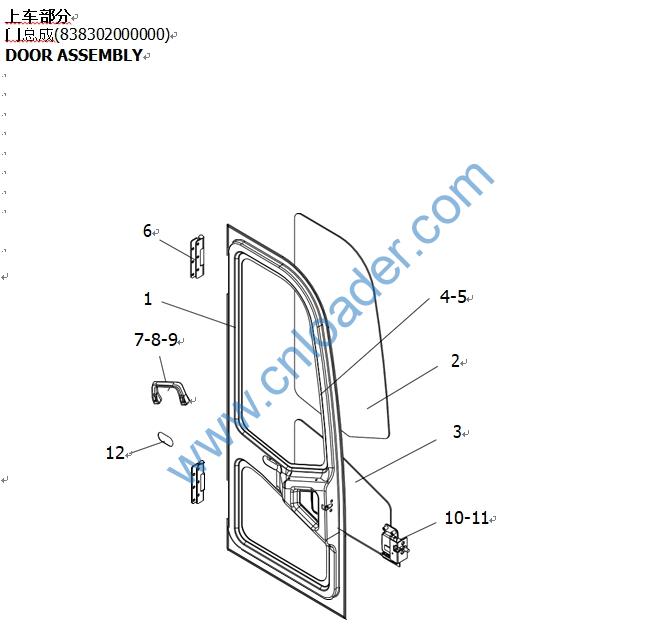

838302010000 A4 THE DOOR STRUCTURE 门结构件
302490011490 A2 THE GLASS ON THE DOR 门上玻璃
302490011491 A3 THE GLASS UNDER THE DOR 门下玻璃
301020209001 A1 DECORATIVE STRIP 装饰胶条
760505000003 1 GLASS BINDER 玻璃粘接剂Sikaflex-255
838303000000 A2 DOOR HINGE 门铰链
750907000001 1 THE HANDLE 把手(丰田拉手)
701309006004 1 SCREW 螺钉M6X20-ZND GB/T 818
701510006001 1 WASHER 垫圈6 GB/T 93
750906000319 1 DRIVER’S DOOR LOCK SW-Ⅱ司机室门锁
701315008004 1 SCREW 螺钉M8X40-8.8 GB/T 68
750030000028 1 LATCH STOP COVER 碰锁扣堵盖

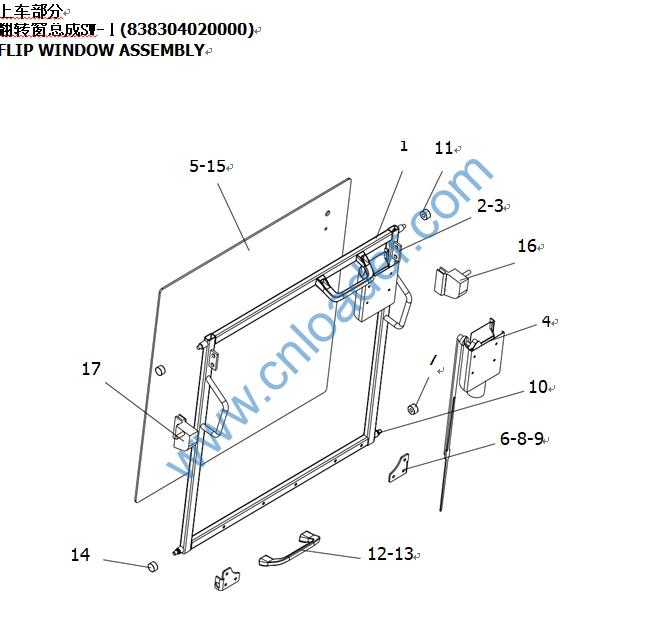

838304020100 A8 WINDOW FRAME WELDED 窗框焊合
701104010030 1 BOLT 螺栓M10X16-8.8-DKL GB/T 5783
701501010002 1 WASHER 垫圈10-DKL GB/T 95
813697200200 A1 WIPER ASSEMBLY 雨刮器总成
302490015910 A1 FRONT FLIP WINDOW GLASS 前翻转窗玻璃-SW-2
838304020200 A4 WELDING PARTS OF WHEEL SHAFT 轮轴焊接件
750549000023 1 WINDOW FRAME RIGHT ROLLER 窗框右滚轮SWE220LC-R
701501006001 1 WASHER 垫圈6 GB/T 95
701101006001 1 BOLT 螺栓M6X25-4.8 GB/T 5780
304080001289 A2 FLIP WINDOW RIGHT WHEEL AXLE 翻转窗右轮轴
304020001751 A1 WINDOW FRAME SHAFT 窗框轮轴SW-1
750907000001 1 THE HANDLE 把手(丰田拉手)
701309006006 1 SCREW 螺钉M6X30 GB/T 818
750549000022 1 WINDOW FRAME LEFT ROLLER 窗框左滚轮SWE220LC-L
760505000007 1 GLASS GLUE 玻璃胶995＃
750906000219 1 FLIP WINDOW RIGHT LOCK 新翻转窗右锁SWE17/25-R
750906000217 1 FLIP WINDOW LEFT LOCK 新翻转窗左锁SWE17/25-L

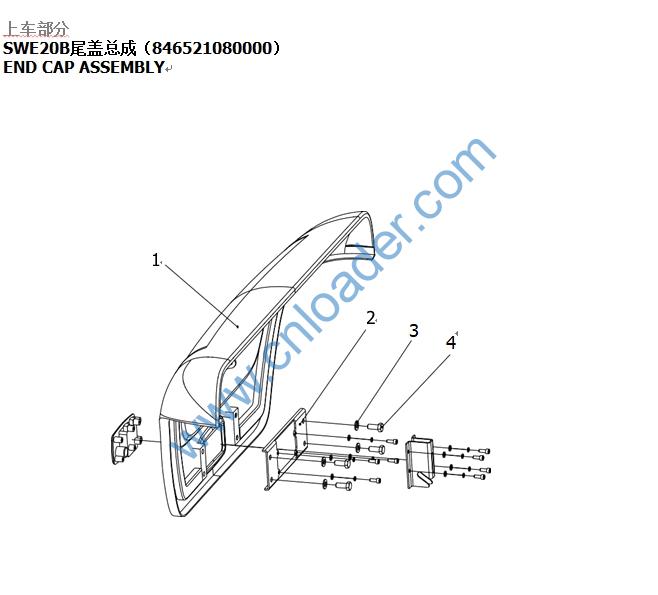

846521080000 S2 END CAP ASSEMBLY OF SWE20B SWE20B尾盖总成
846521020000 S1 COVER PIECE END COVER HINGE SWE20B覆盖件尾罩铰链
701104010036 1 BOLT 螺栓M10X20-10.9-DKL GB/T 5783
701504010004 1 WASHER 垫圈10-DKL GB/T 97.1
750701000174 1 GAS SPRING 气弹簧Qy258-89-430
333010000142 S2 WEIGHT OF SWE20B SWE20B配重

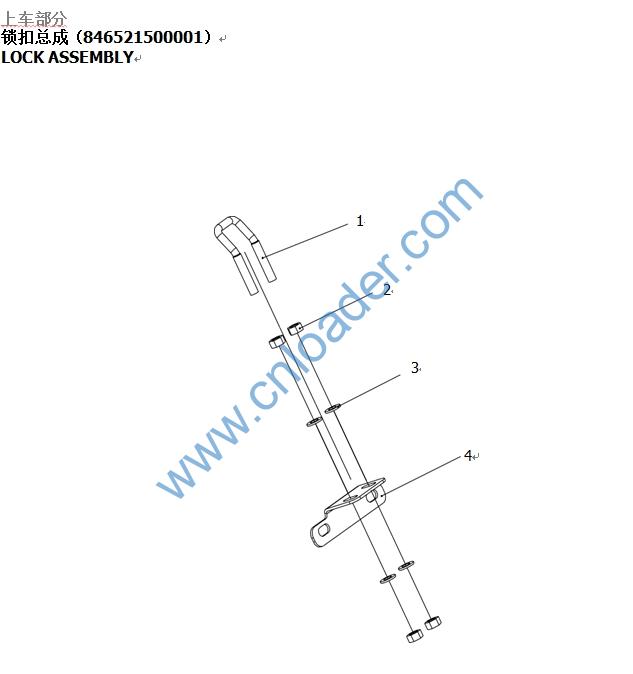

846521500001 A3 LOCK ASSEMBLY 锁扣总成
701104008053 1 BOLT 螺栓M8X10-10.9-DKL GB/T 5783
701302010045 1 SCREW 螺钉M10X25-10.9-DKL GB/T 70.1

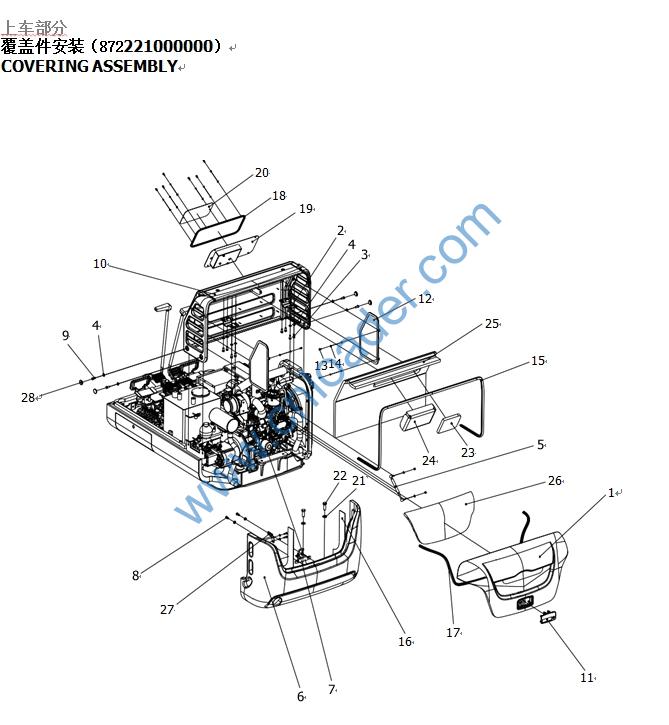

846521040000 S2 COVER ASSEMBLY OF SWE20B SWE20B中罩总成
750906000167 1 NEW COVER LOCK 新机罩锁
846521202001 A1 PROTECTIVE SCREENING SWE20B防护网
701302006001 1 BOLT 螺钉M6X10-8.8 GB/T 70.1
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
750030000087 1 MIDDLE COVER SEALING STRIP SWE20B中罩密封胶条
321010000117 A1 PROTECTIVE SCREENING OF WEIGHT 配重防护网
750030000106 1 STERN COVER GASKET STRIP SWE20B尾盖密封胶条
750030000099 1 COVER SEAL STRIP SWE20B盖板密封胶条
872221010000 S2 ELECTRIC CONTROL BOX WELDING 20F电控盒焊接
302030042046 S2
COVER PLATE OF ELECTRIC CONTROL BOX 电控盒盖板
302010200006 A1 WASHER 垫片
701106016002 1 BOLT 螺栓M16X1.5X40-8.8-DKL GB/T 5786
334020002527 S2 MANHOLE INSULATION SPONGE 检修孔隔热海绵
334020002528 S2
SPONGE OF ELECTRONIC CONTROL BOX 电控盒海绵
302490039942 S4 INTERMEDIATE INSULATION SPONGE 中间隔热海绵
302490019357 A3
TAIL COVER HEAT INSULATION SPONGE 尾盖隔热海绵I
302040002324 S2 PILOT FILTER MOUNTING PLATE 先导过滤安装板
750006010019 1 RUBBER PLUG 橡胶堵头
750708010039 1 END CAP 尾盖SWE20B
302510005238 S2 TAIL COVER LOCK MOUNTING PLATE SWE20B尾盖锁安装板
701506010003 1 WASHER 垫圈10-DKL GB/T 96.1
701103010020 1 BOLT 螺栓M10X20-8.8-DKL GB/T 5782
302560002007 S1 COVER PIECE END COVER HINGE 1 SWE20B覆盖件尾罩铰链合页1
304020201007 A2 PIN 销
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
701703002001 1 PIN 销2X12-ZnD GB/T 91
302560002008 S1 COVER PIECE END COVER HINGE 2 SWE20B覆盖件尾罩铰链合页2
304110203004 A4 LOCKING PIN 锁销
701406010008 1 NUT 螺母M10-10-DKL GB/T 6170
701504010004 1 WASHER 垫圈10-DKL GB/T 97.1
846521500101 A1 LOCK MOUNTING PLATE WELDING 锁扣安装板焊接

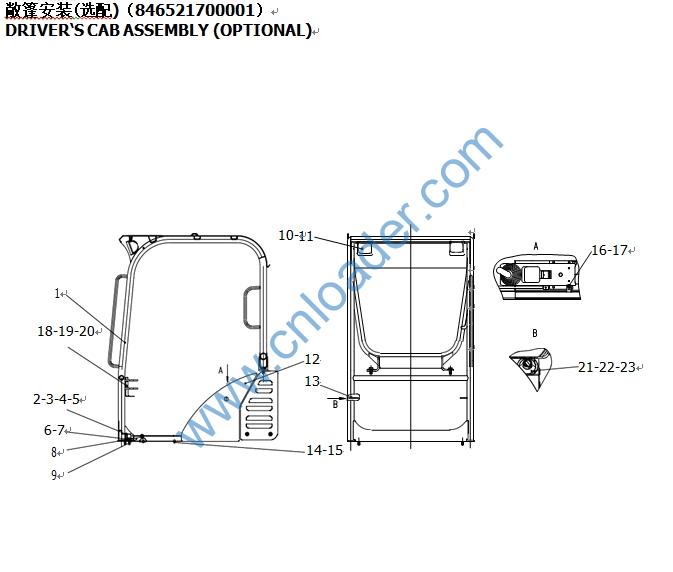

846521703001 A3 CEILING WELDED ASSEMBLY 顶棚焊接总成
302990001810 A3 RUBBER PAD 橡胶垫托板
701103008039 1 BOLT 螺栓M8X50-8.8-DKL GB/T 5782
701501008004 1 WASHER 垫圈8-DKL GB/T 95
320980002040 A1 PILLAR 支柱
701104016023 1 BOLT 螺栓M16X35-10.9-DKL GB/T 5783
701508016002 1 WASHER 垫圈16-DKL GB/T 1230
701312004802 1 SCREW 304沉头自攻螺钉ST4.8X16 GB/T 846
302520002977 A1 ANTISKID PLATE 防滑板
720412000061 1 BOOM WORK LIGHT 动臂灯1GA 996.506-007
301010000384 A1 WIRE HARNESS SWE20B敞篷顶灯线束
846521706001 A1 LEFT SIDE PLATE WELDED ASSEMBLY 左侧板焊接总成
846521707001 A2 RIGHT SIDE PLATE WELDED ASSEMBLY 右侧板焊接总成
701103008029 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5782
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701103010026 1 BOLT 螺栓M10X25-8.8-DKL GB/T 5782
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
701309006041 1 SCREW 螺钉M6X12-ZnD GB/T 818
701524006002 1 WASHER 垫圈6-ZnD GB/T 96.2
846521708001 A1 GLASS BRACKET 水杯托架
750007000128 1 RUBBER SLEEVE FOR OIL FILLER 加油口橡胶套（配敞篷）
701302006003 1 SCREW 螺钉M6X12-8.8 GB/T 70.1
701510006002 1 WASHER 垫圈6-ZnD GB/T 93

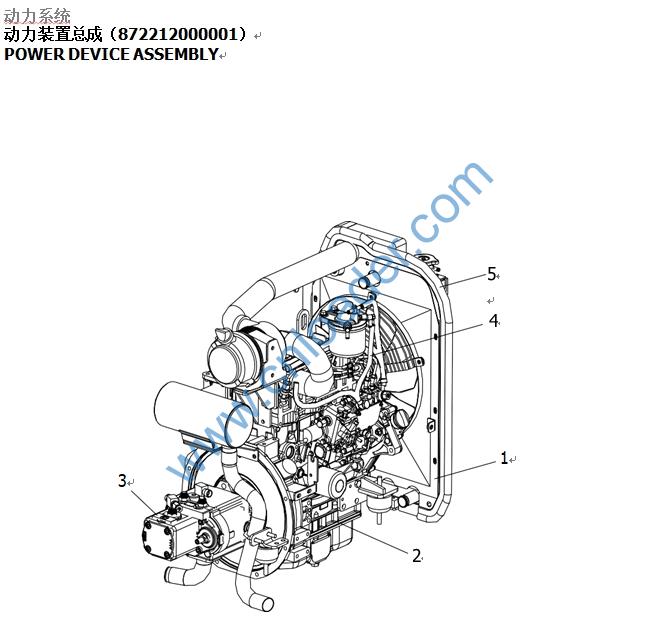

846512010001 S4 COOLING SYSTEM ASSEMBLY 散热系统总成
872212070000 S1 ENGINE ASSEMBLY 发动机安装
846512030001 S2 MAIN PUMP ASSEMBLY 液压泵安装
846512040001 S2 FUEL PIPE LINE ASSEMBLY 燃油管路安装
846512060001 S4 SEAL SPONGE ASSEMBLY 密封海绵总成
