SWE08B 履带式液压挖掘机（865300000000）–S7
SWE08B HYDRAULIC CRAWLER EXCAVATOR……………………… 1
斗杆总成（865354000000）ARM ASSEMBLY…………………………….. 2
铲斗油缸（865396830008）BUCKET CYLINDER………………………… 3
动臂安装（865351000000）BOOM ASSEMBLY………………………….. 4
动臂安装（865351000000）BOOM ASSEMBLY………………………….. 5
动臂油缸（865396810000）BOOM CYLINDER…………………………… 6
斗杆油缸（865396820000）DIPPER CYLINDER…………………………. 7
动臂油缸（带防爆阀）（865396810001）BOOM CYLINDER………… 8
斗杆油缸（带防爆阀）（865396820001）DIPPER CYLINDER………. 9
08 铸造偏转头安装（815257000000）
DEFLECTION HEAD ASSEMBLY…………………………………………….. 10
08 铸造偏转头安装（815257000000）
DEFLECTION HEAD ASSEMBLY…………………………………………….. 11
偏转油缸（865396850001）OIL CYLINDER……………………………….. 12
上车总成（865310000001）UP OF EXCAVATOR ASSEMBLY……….. 13
操纵台安装（865210100001）CONSOLE ASSEMBLY………………….. 14
上轴安装（865210102000）UPPER SHAFT ASSEMBLY………………. 15
下轴安装（865210103001）UNDER SHAFT ASSEMBLY……………… 16
燃油箱总成（865314000001）FUEL TANK ASSEMBLY……………….. 17
动力装置总成（865312000000）POWER PLANT ASSEMBLY……….. 18
发动机安装（865312010000）ENGINE ASSEMBLY…………………….. 19
油门拉线安装（865312100000）
CABLE ACCELERATOR INSTALLATION………………………………….. 20
主泵安装（865212020000）MAIN PUMP ASSEMBLY………………….. 21
燃油管路安装（865312030000）FUEL PIPE LINE ASSEMBLY……… 22
冷却总成（865312040000）COOLING SYSTEM ASSEMBLY………… 23
散热器海绵总成（865312040100）RADIATOR SPONGE ASSEMBLY. 24
08B-3 回转支承注油管总成（865317000001）
ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY…………………… 25
10U 回转马达注油胶管总成（865217000002）
ROTARY MOTOR OIL FOLLING PIPE ASSEMBLY……………………… 26
脚踏底板组件（865321070000）FOOT BOARD ASSEMBLY…………. 27
电瓶安装（865318000001）STORAGE BATTERT ASSEMBLY……….. 28
液压油箱总成（865315000001）HYDRAULIC OIL TANK…………….. 29
防护架安装（865309000000）
INSTALLATION OF PROTECTIVE FRAME………………………………… 30
司机工作台总成（865216000000）DRIVER‘S CAB ASSEMBLY….. 31
SWE08B-Ⅲ履带式液压挖掘机覆盖件装配（865322000000）
HOOD ASSEMBLY………………………………………………………………… 32
SWE08B-Ⅲ覆盖件前盖板总成（865321060000）
FRONT COVER PLATE ASSEMBLY…………………………………………. 33
SWE08B-Ⅲ覆盖件骨架总成（865321030001）
FRAMEWORK ASSEMBLY…………………………………………………….. 34
SWE08B-3 覆盖件尾罩锁柱组件（865321080000）LOCK PILLAR…. 35
SWE08B-Ⅲ覆盖件尾罩铰链（865321040000）
THE TAIL COVER HINGE………………………………………………………. 36
下车总成（865240000000）CHASSIS ASSEMBLY………………………. 37
下车总成（865240000000）CHASSIS ASSEMBLY………………………. 38
推土装置（865261000000）DOZER ASSEMBLY…………………………. 39
推土油缸（865296840001）DOZER CYLINDER………………………….. 40
推土油缸（带双向液压锁）（865296840002）DOZER CYLINDER…. 41
伸缩油缸（865296860000）TELESCOPIC CYLINDER…………………. 42
SWE08-152 铲斗总成选配表（815250000000）
BUCKET ASSEMBLY MACHING TABLE…………………………………… 43
08 标准铲斗总成(320/0.022)（815255000000）
STANDARD BUCKET ASSEMBLY…………………………………………… 44
08 意大利快换（815252000000）
QUICK EXCHANGE INSTALLATION（ITALY）………………………… 45
08 普通铲斗总成(250/0.018)（815250200000）
STANDARD BUCKET ASSEMBLY…………………………………………… 46
SWE08B-3 液压系统总图（865396000000）HYDRAULIC SYSTEM.. 47
SWE08B-3 上车液压管路安装（865396100002）
UP OF EXCAVATOR HYDRAULIC LINE INSTALLATION……………. 48
主泵液压管路安装（865396100012）
MAIN PUMP HYDRAULIC LINE INSTALLATION……………………….. 49
回转马达液压管路安装（865396100022）
SLEW MOTOR HYDRAULIC LINE INSTALLATION………………….. 50
可调向直角接头（730101000345）CONNECTOR…………………………. 51
主阀至中央回转接头管路安装（865396100032）
MAIN VALVE TO CENTER JIONTER HYDRAULIC LINE INSTALLATION………. 52
主阀至偏转油缸液压管路安装（865396100042）
MAIN VALVE TO DEFLECTION CYLINDER HYDRAULIC LINE INSTALLATION….. 53
主阀至破碎/辅助液压管路安装（865396100052）
MAIN VALVE TO BROKEN/AUXILIARY HYDRAULIC LINE INSTALLATION. 54
主阀至工作装置液压管路安装（865396100062）
MAIN VALVE TO WORKING DEVICE HYDRAULIC LINE INSTALLATION……. 55
回油液压管路安装（865396100072）
OIL RETURN HYDRAULIC LINE INSTALLATION………………………. 56
SWE08B-3 下车液压管路安装（865396200002）
CHASSIS HYDRAULIC LINE INSTALLATION……………………………. 57
右行走马达液压管路安装（865396200012）
RIGHT MOTOR HYDRAULIC LINE INSTALLATION……………………. 58
左行走马达液压管路安装（865396200022）
LEFT MOTOR HYDRAULIC LINE INSTALLATION……………………… 59
推土油缸液压管路安装（865396200032）
DOZER CYLINDER HYDRAULIC LINE INSTALLATION……………… 60
伸缩油缸液压管路安装（865396200042）
TELESCOPIC CYLINDER HYDRAULIC LINE INSTALLATION………. 61
SWE08B-3 液压控制管路安装（865396400002）
HYDRAULIC CONTROL LINE INSTALLATION…………………………… 62
左右先导手柄液压管路安装（865396400032）
LEFT AND RIGHT PILOT HANDLE HYDRAULIC LINE INSTALLATION 63
行走高低速控制液压管路安装（865396400022）
WALKING CONTROL HYDRAULIC LINE INSTALLATION………….. 64
主阀先导卸荷控制液压管路安装（865396400012）
MAIN VALVE HYDRAULIC LINE INSTALLATION…………………….. 65
SWE08B 电气系统（865397000000）ELECTRICAL SYSTEM……….. 66
SWE08B 平台电气系统（865397100000）
PLATFORM ELECTRICAL SYSTEM…………………………………………. 67
SWE08B 平台电气系统（865397100000）
PLATFORM ELECTRICAL SYSTEM…………………………………………. 68
蓄电池（720406000017）ACCUMULATOR………………………………… 69
SWE10UB 履带式液压挖掘机翘板开关（865297100200）
ROCKER SWITCH…………………………………………………………………. 70
SWE08B 平台主体线束（865397100100）
PLATFORM MAIN WIER HARNESS…………………………………………. 71
随机附件清单（878598000001）ACCESSORIES LIST………………….. 72
SWE08 工具清单（815299000001）TOOL LIST………………………….. 73
SWE08 挖掘机工具包（815299010001）TOOL BOX……………………. 74

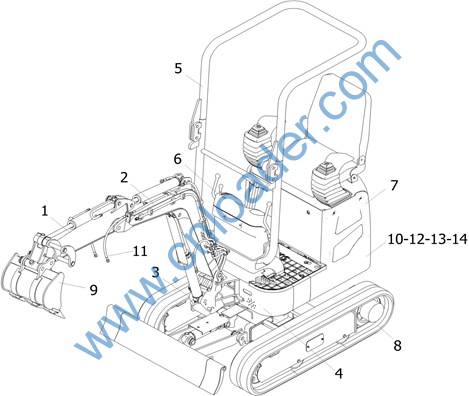

SWE08B履带式液压挖掘机（865300000000
865354000000 S3 ARM ASSEMBLY 斗杆总成 1 0-0
865351000000 S5 BOOM ASSEMBLY 动臂安装 1 0-0
815257000000 S8 DEFLECTION HEAD ASSEMBLY 08铸造偏转头安装 1 0-0
865310000001 S6 UP OF EXCAVATOR ASSEMBLY 上车总成 1 0-0
865309000000 S1 INSTALLATION OF PROTECTIVE FRAME 防护架安装 1 3416-99999
865216000000 S5 DRIVER‘S CAB ASSEMBLY 司机工作台总成 1 0-0
865322000000 S8 HOOD ASSEMBLY SWE08B-Ⅲ履带式液压挖掘机覆盖件装配 1 0-0
865240000000 S14 CHASSIS ASSEMBLY 下车总成 1 3416-3527 Y
815250000000 A2 BUCKET ASSEMBLY MACHING TABLE SWE08-152铲斗总成选配表 1 0-0
865395000000 S1 LABEL ASSEMBLY 标识总成SWE08B-3 1 0-0
865396000000 S3 HYDRAULIC SYSTEM SWE08B-3液压系统总图 1 0-0
865397000000 S1 ELECTRICAL SYSTEM SWE08B电气系统 1 0-0
878598000001 S6 ACCESSORIES LIST 随机附件清单 1 0-0
815299000001 A1 TOOL LIST SWE08工具清单 1 0-0

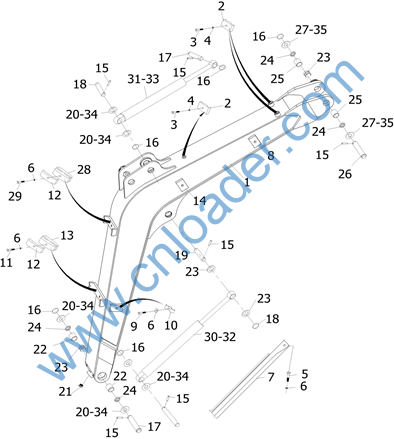

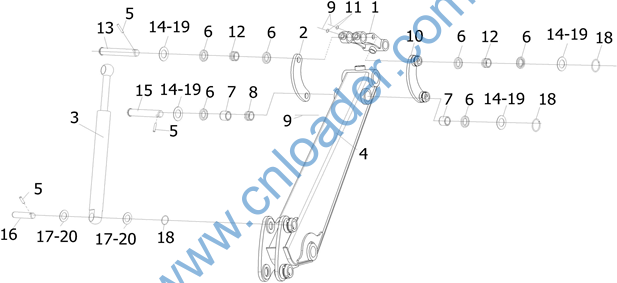

斗杆总成（865354000000）
815254400000 A3 CONNECTING ROD 连杆 1 2279-3006
815254400000 A4 CONNECTING ROD 连杆 1 3007-99999
302490001294 A2 LEFT ROCKER ARM 左摇臂 1 2279-3006
302490001294 A3 LEFT ROCKER ARM 左摇臂 1 3007-99999
865396830008 S2 BUCKET CYLINDER 铲斗油缸 1 2279-99999
815254100000 A2 BUCKET ROD 斗杆 1 2279-2410
815254100000 A3 BUCKET ROD 斗杆 1 2411-2542 Y
815254100000 A4 BUCKET ROD 斗杆 1 2543-3086 Y
815254100000 A5 BUCKET ROD 斗杆 1 3087-3254 Y
815254100000 A6 BUCKET ROD 斗杆 1 3255-3751 Y
815254100000 A7 BUCKET ROD 斗杆 1 3752-3791 Y
815254100000 A8 BUCKET ROD 斗杆 1 3792-99999 Y
701702010002 S1 ROUND PIN 圆柱销 5 2279-99999
730652000063 S1 DUSTBAND 防尘圈 10 2279-99999
305040001343 A1 SHAFT SLEEVE 轴套1 6 2279-99999
305060000235 A1 COVER 套 3 2279-99999
703101008001 S1 OIL CUP 油杯 8 2279-99999
815254200000 A2 RIGHT ROCKER ARM 右摇臂 1 2279-3006
815254200000 A3 RIGHT ROCKER ARM 右摇臂 1 3007-99999
703202010002 S1 WASHER SET 组合垫圈 3 2279-99999
305040001344 A1 SHAFT SLEEVE 轴套3 2 2279-2902
305040001344 A2 SHAFT SLEEVE 轴套3 2 2903-99999 Y
304020002270 A1 SHAFT 6 销轴6 2 2279-99999
750911000139 S1 RESIN ADJUSTING PAD 树脂垫片 10 2279-99999
304020002271 A1 SHAFT 7 销轴7 2 2279-3006
304020002271 A2 SHAFT 7 销轴7 2 3007-99999
304020002265 A1 SHAFT 1 销轴1 1 2279-3006
304020002265 A2 SHAFT 1 销轴1 1 3007-99999
750911000141 S1 RESIN ADJUSTING PAD 树脂垫片 2 2279-99999
301020000048 A1 STEEL CABLE BAFFLE RING 钢丝挡圈 5 2279-99999
750911000138 S1 RESIN ADJUSTING PAD 树脂垫片 10 2279-99999
750911000140 S1 RESIN ADJUSTING PAD 树脂垫片 2 2279-99999

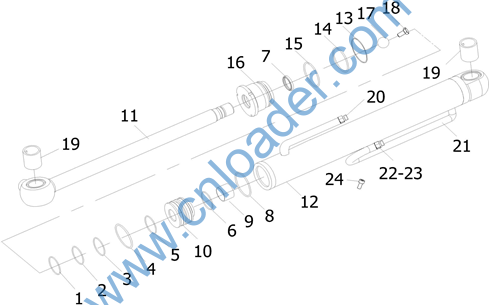

铲斗油缸（865396830008
302010007285 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
730652000326 S1 DUSTBAND 防尘圈
730603000741 S1 O-RING O形圈
730654000075 S1 CHECK RING 挡圈
730601000395 S1 PISTON SEAL 活塞杆密封
730601000394 S1 PISTON SEAL 活塞杆密封
730603000645 S1 O-RING O形圈
730654000567 S1 CHECK RING 挡圈
750502000287 S1 SHAFT SLEEVE 轴套
305090003229 S2 CYLINDER END 缸头
865396830108 S2 PISTON ROD UNIT 活塞杆组件
865396830208 S1 CYLINDER BARREL UNIT 缸筒组件
730651000353 S1 GUIDE RING 导向环
730602000231 S1 PISTON SEAL 活塞密封
730603000558 S1 O-RING O形圈
305090003230 S1 PISTON 活塞
750551000024 S1 STEEL BALL 钢球
701307006002 S1 SCREW 螺钉
305040000184 A2 BUSH 衬套
865396830308 S2 OIL PIPE ASSEMBLYⅠ 油管组件Ⅰ
865396830400 S3 OIL PIPE ASSEMBLYⅡ 油管组件Ⅱ
307080000742 S3 SINGLE PIPE CLAMP 单孔管夹
701104008027 S1 BOLT 螺栓
739806000175 S1 PLUG 带压紧螺母的24°锥孔堵头
865351100000 S2 SWING ARM WELDING
865351100000 S3 SWING ARM WELDING
865351100000 S4 SWING ARM WELDING
865351100000 S5 SWING ARM WELDING
865351100000 S6 SWING ARM WELDING
865351100000 S7 SWING ARM WELDING
865351100000 S8 SWING ARM WELDING
729808000166 S1 PLY-YARN DRILL
701104008043 S1 BOLT
701104008026 S1 BOLT
302510000373 A1 BACKPLATE
302510000373 A2 BACKPLATE
330030000134 S1 SIDE PIPE CLAMP
330030000134 S2 SIDE PIPE CLAMP
701104008032 S1 BOLT
302540017502 S1 RUBBER HOSE CONNECTER
701104008035 S1 BOLT
302510000374 A2 COVER PLATE
307090000888 S1 TRANSITION BLOCK
302040001289 A1 LAMPHOLDER
302040001289 A2 LAMPHOLDER
701702010002 S1 ROUND PIN
301020000048 A1 STEEL CABLE BAFFLE RING
304020002265 A1 SHAFT 1
304020002266 A1 SHAFT 2
304020002266 A2 SHAFT 2
304020002267 A1 SHAFT 3
304020002267 A2 SHAFT 3
750911000141 S1 RESIN ADJUSTING PAD
703101008001 S1 OIL CUP
305040001342 A1 SHAFT SLEEVE
305060000235 A1 COVER
730652000063 S1 DUSTBAND
305040001343 A1 SHAFT SLEEVE
304020002269 A1 SHAFT SLEEVE 5
304020002269 A2 SHAFT SLEEVE 5
750911000139 S1 RESIN ADJUSTING PAD
307080000040 A2 RUBBER
701104008042 S1 BOLT

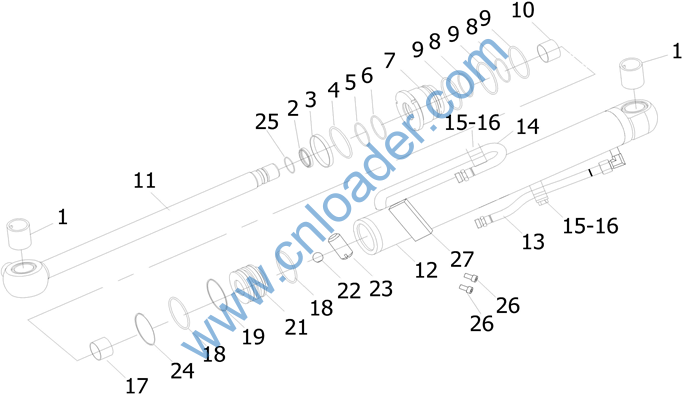

865396810000 S4 BOOM CYLINDER
865396810000 S5 BOOM CYLINDER
865396810000 S6 BOOM CYLINDER
865396810000 S7 BOOM CYLINDER
865396810000 S8 BOOM CYLINDER
865396820000 S3 DIPPER CYLINDER
865396820000 S4 DIPPER CYLINDER
865396820000 S5 DIPPER CYLINDER
865396810001 S3 BOOM CYLINDER
865396810001 S4 BOOM CYLINDER
865396820001 S2 DIPPER CYLINDER
865396820001 S3 DIPPER CYLINDER
750911000140 S1 RESIN ADJUSTING PAD
750911000138 S1 RESIN ADJUSTING PAD
750502000642 S1 BUSH
730652000250 S1 DUSTBAND
730603000741 S1 O-RING
730654000207 S1 CHECK RING
730604000040 S1 U-RING
730601000436 S1 PISTON ROD SEAL
305090003031 S2 CYLINDER HEAD
730603000645 S1 O-RING
730654000520 S1 RETAINING RING
750502000088 S1 SELF-LUBRICATING BEARING
865396810100 S3 PISTON ROD UNIT
865396810200 S5 CYLINDER BARREL UNIT
865396810300 S3 OIL PIPE ASSEMBLY
865396810400 S3 OIL PIPE ASSEMBLY
307080000742 S3 SINGLE PIPE CLAMP
701104008040 S1 BOLT
305090000267 A2 CUSHION COLLAR
730651000203 S1 GUIDE RING
730602000294 S1 PISTON SEAL
305090003018 S1 PISTON
750551000024 S1 STEEL BALL
701307006002 S1 SCREW
730603001391 S1 O-RING
701517003801 S1 RETAINING RING
701302005029 S1 SCREW
302030051349 S1 SKATEBOARD
