SANY SW955K-S Loader Parts Catalog AQ

160801010333A 散热器…………………………………………………………………………………………………….9-10
SSW008766712 悬置系统…………………………………………………………………………………………………..9-12
60289942 空气滤清器………………………………………………………………………………………………………9-14
第10章传动系统………………………………………………………………………………………………………. 10-1
SSW008768859 传动系统…………………………………………………………………………………………………..10-2
SSW008768110 前桥安装…………………………………………………………………………………………………..10-4
131401021144A 前桥………………………………………………………………………………………………………..10-6
131401021144A001 主传动总成………………………………………………………………………………………..10-8
131401020633C075 差速器总成………………………………………………………………………………………10-10
131401020633C084 主减速器壳体组合……………………………………………………………………………10-12
131401020633C019 制动器总成………………………………………………………………………………………10-14
131401020633C020 轮边总成………………………………………………………………………………………….10-16
131401020633C042 行星轮架总成…………………………………………………………………………………..10-18
SSW008768854 变速箱安装……………………………………………………………………………………………..10-20
130201000279B 变速器…………………………………………………………………………………………………..10-22
130201000279B001 液力变矩器………………………………………………………………………………………10-24
130201000160B001 一轴总成………………………………………………………………………………………….10-26
130201000160B002 取力部件………………………………………………………………………………………….10-28
130201000240B001 取力与油泵部件……………………………………………………………………………….10-30
130201000160B054 三轴总成………………………………………………………………………………………….10-32
130201000160B055 四轴总成………………………………………………………………………………………….10-34
130201000160B056 箱体部件………………………………………………………………………………………….10-36
130201000179A002 隔离架组件………………………………………………………………………………………10-38
130201000240B004 油底壳总成………………………………………………………………………………………10-40
130201000160B057 二轴总成………………………………………………………………………………………….10-42
130201000160B093 大超越离合器总成……………………………………………………………………………10-44
130201000160B007 倒挡行星架总成……………………………………………………………………………….10-46
130201000160B015 一档行星架总成……………………………………………………………………………….10-48
130299000006A 滤清器…………………………………………………………………………………………………..10-50
SSW008768260 后桥安装…………………………………………………………………………………………………10-52
131401021145A 后桥………………………………………………………………………………………………………10-54
131401020634C001 轮边总成………………………………………………………………………………………….10-56
131401020633C042 行星轮架总成…………………………………………………………………………………..10-58
131401020633C019 制动器总成………………………………………………………………………………………10-60
131401021145A002 后摆架总成………………………………………………………………………………………10-62
131401021145A003 主传动总成………………………………………………………………………………………10-64
131401021145A020 主减壳体组合…………………………………………………………………………………..10-66
131401020634C021 差速器总成………………………………………………………………………………………10-68
131401021145A004 前摆架总成………………………………………………………………………………………10-70
第11章液压系统………………………………………………………………………………………………………. 11-1
SSW008725574 液压系统…………………………………………………………………………………………………..11-2
SSW008725697 主阀管路…………………………………………………………………………………………………..11-4
SSW008752543 多路阀组件……………………………………………………………………………………………….11-6
150603010001A 手动多路阀……………………………………………………………………………………………..11-8

SSW006702069 主阀至左动臂组件…………………………………………………………………………………..11-10

SSW006702104 主阀至右动臂组件…………………………………………………………………………………..11-12

SSW006702124 左动臂组件……………………………………………………………………………………………..11-14

150901020080A 动臂油缸……………………………………………………………………………………………….11-16

SSW006702128 右动臂组件……………………………………………………………………………………………..11-18

150901020080A 动臂油缸……………………………………………………………………………………………….11-20

SSW009776227 铲斗油缸组件………………………………………………………………………………………….11-22

150901040641A 转斗油缸……………………………………………………………………………………………….11-24

SSW009213763 主阀至铲斗油缸组件……………………………………………………………………………….11-26

SSW006702208 动臂胶管组件………………………………………………………………………………………….11-28

SSW005531823 管夹总成…………………………………………………………………………………………………11-30

13620853 铲斗放平装置…………………………………………………………………………………………………11-32

130907000394A 主阀操纵杆总成…………………………………………………………………………………….11-34

SSW008725712 转向管路…………………………………………………………………………………………………11-36

SSW006853291 转向器组件……………………………………………………………………………………………..11-38

SSW006853294 集流块组件……………………………………………………………………………………………..11-40

150901040642A 转向油缸……………………………………………………………………………………………….11-42

SSW008725761 液压散热管路_ ………………………………………………………………………………………..11-44

SSW008661983 液压油箱总成………………………………………………………………………………………….11-46

151503000095A 回油过滤器……………………………………………………………………………………………11-48

SSW008725754 主泵管路_ ……………………………………………………………………………………………….11-50

152300000039A 阀组………………………………………………………………………………………………………11-52

SSW008725758 制动管路_ ……………………………………………………………………………………………….11-54

SSW008726373 脚阀组件…………………………………………………………………………………………………11-58

SSW008751779 过滤器组件……………………………………………………………………………………………..11-60

151501000104B 高压过滤器……………………………………………………………………………………………11-62

SSW008730396 蓄能器组件……………………………………………………………………………………………..11-64

SSW008726381 充液阀组件……………………………………………………………………………………………..11-66

第12章电气系统………………………………………………………………………………………………………. 12-1

SSW008798706 电气系统…………………………………………………………………………………………………..12-2

SSW008774146 前车架电气总成………………………………………………………………………………………..12-4

141601010087A 前灯………………………………………………………………………………………………………..12-6

141601010088A 前灯………………………………………………………………………………………………………..12-8

SSW008791322 驾驶室电气总成………………………………………………………………………………………12-10

SSW008749526 后机罩电气总成………………………………………………………………………………………12-12

SSW008775837 后车架电气总成………………………………………………………………………………………12-14

第13章空调系统………………………………………………………………………………………………………. 13-1

SSW009030971 空调系统…………………………………………………………………………………………………..13-2

60270026 蒸发器……………………………………………………………………………………………………………..13-4

SSW008640733 压缩机装配总成………………………………………………………………………………………..13-6

141502001334A 冷凝器总成……………………………………………………………………………………………..13-8

第14章 SW955K-S(长轴距) 随机附件…………………………………………………………………….. 14-1

SSW009063767 SW955K-S(长轴距) 随机附件……………………………………………………………………..14-2

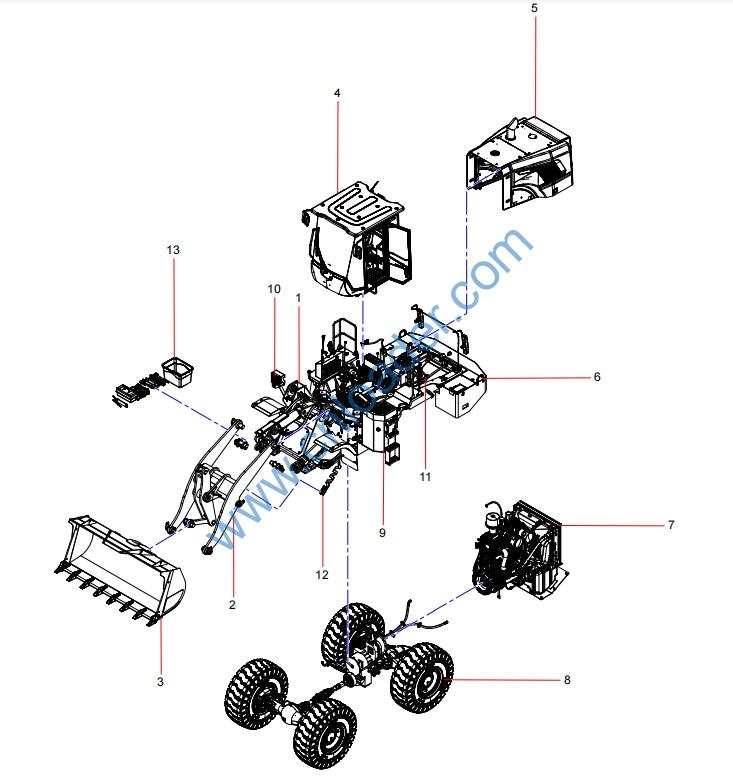

1 SSW008769370 车架系统 1 2-2
2 SSW007712963 工作装置(油装3.4米臂) 1 3-2
3 SSW007226960 铲斗 1 4-2
4 SSW008766586 驾驶室装配 1 5-2
5 SSW008787815 机罩总成 1 6-2
6 SSW007776477 配重 1 7-4
7 SSW008766390 走台与挡泥板总成 1 8-2
8 SSW008766071 动力系统 1 9-2
9 SSW008768859 传动系统 1 10-2
10 SSW008725574 液压系统 1 11-2
11 SSW008798706 电气系统 1 12-2
12 SSW009030971 空调系统 1 13-2
13 SSW009063767 SW955K-S(长轴距) 随机附件 1 14-2

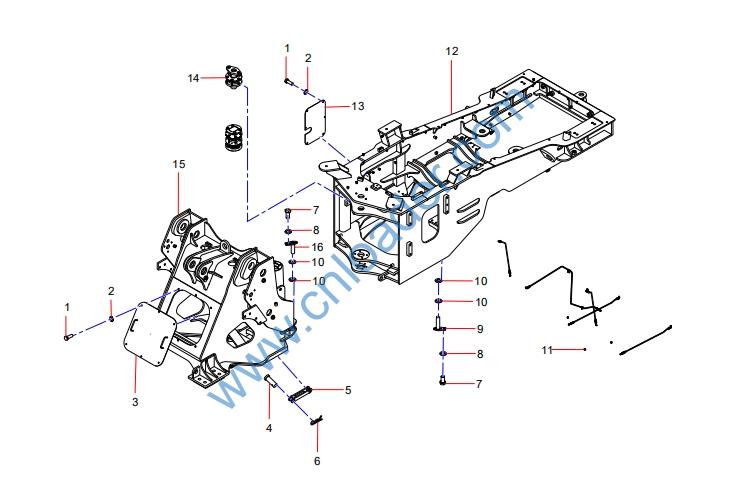

A210111000203 螺栓 12
2 24000639 垫圈 12
3 13042665 盖板 1
4 13042602 销轴 2
5 13042668 保险杠 1
6 13042603 插销 2
7 A210111000263 螺栓 4
8 24000642 垫圈 4
9 SSW005991649 销轴 2
10 14154781 调整垫片 8
11 SSW008769255 润滑系统 1 2-4
12 SSW008766440 后车架 1
13 SSW006459037 维修窗封板 1
14 SSW004657368 铰接系统 1 2-6
15 SSW008763966 前车架 1
16 SSW008710094 销轴 2

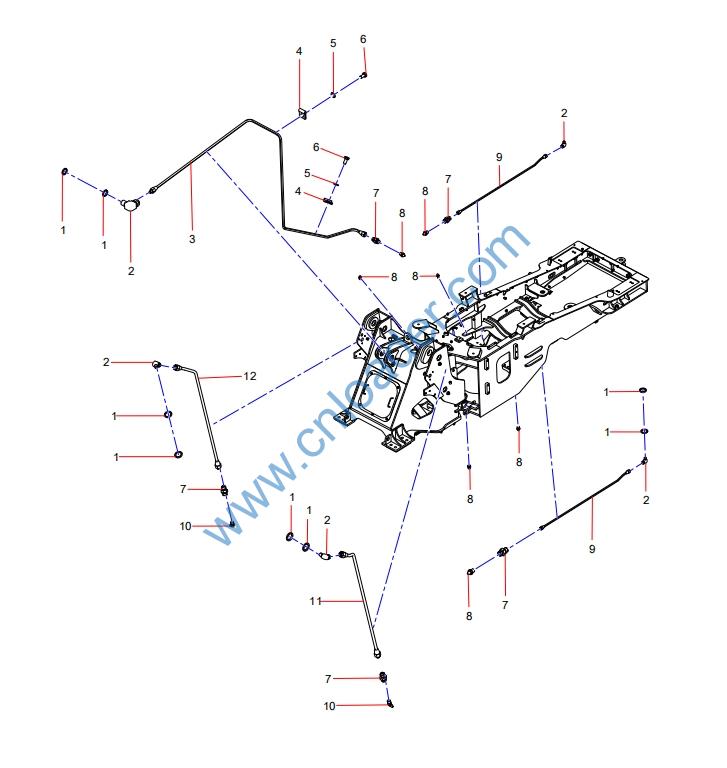

10668937 垫圈 10
2 12325478 接头 5
3 SSW008246402 转斗润滑钢管 1
4 A820101211947 管夹 2
5 24000637 垫圈 2
6 A210111000012 螺栓 2
7 11102368 接头 5
8 B229900000686 油杯 7
9 SSW005930507 转向润滑钢管 2
10 60017380 油杯 2
11 13043588 左侧动臂润滑管路 1
12 13043586 右侧动臂润滑管路 1

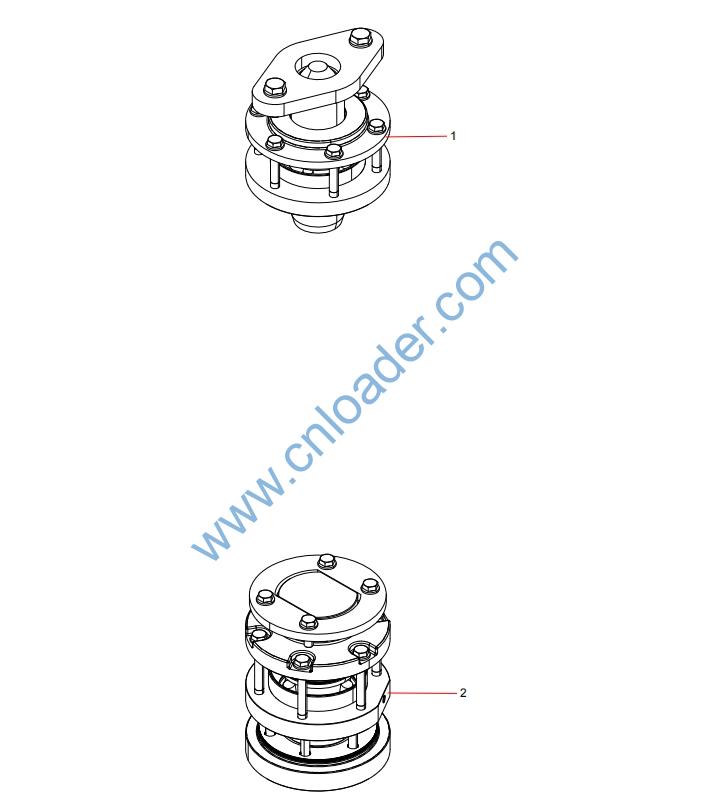

SSW004654745 上铰接 1 2-8
2 SSW004836924 下铰接 1 2-10

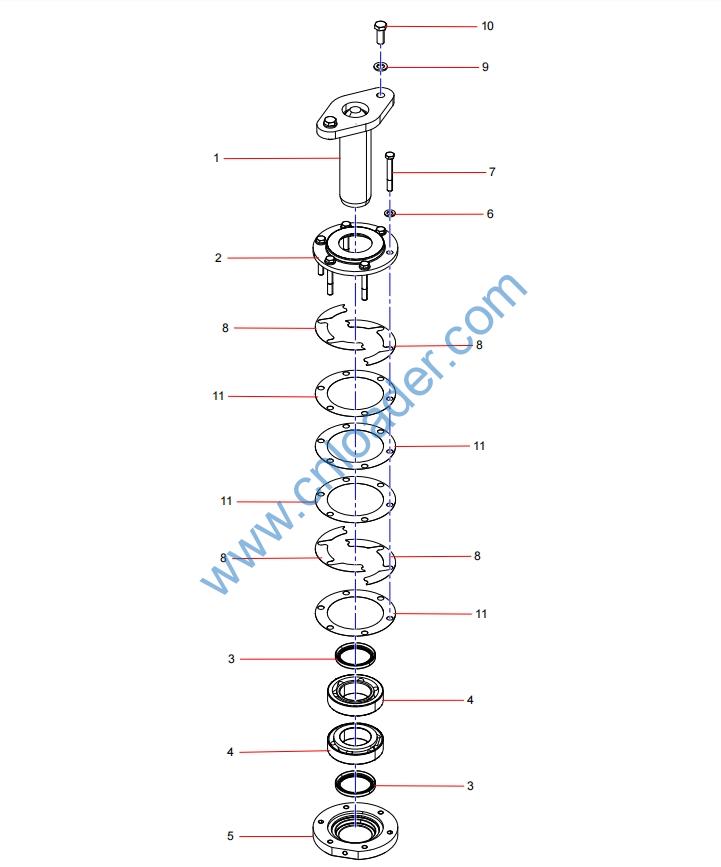

SSW004654746 铰接上销轴 1
2 13046187 上轴承座 1
3 24002096 旋转轴唇形密封圈 2
4 A210604000009 滚动轴承 2
5 13046188 下轴承座 1
6 24000639 垫圈 6
7 A210110000323 螺栓 6
8 13046190 调整垫片 4
9 24000642 垫圈 2
10 A210111000053 螺栓 2
11 13046189 调整垫片 4

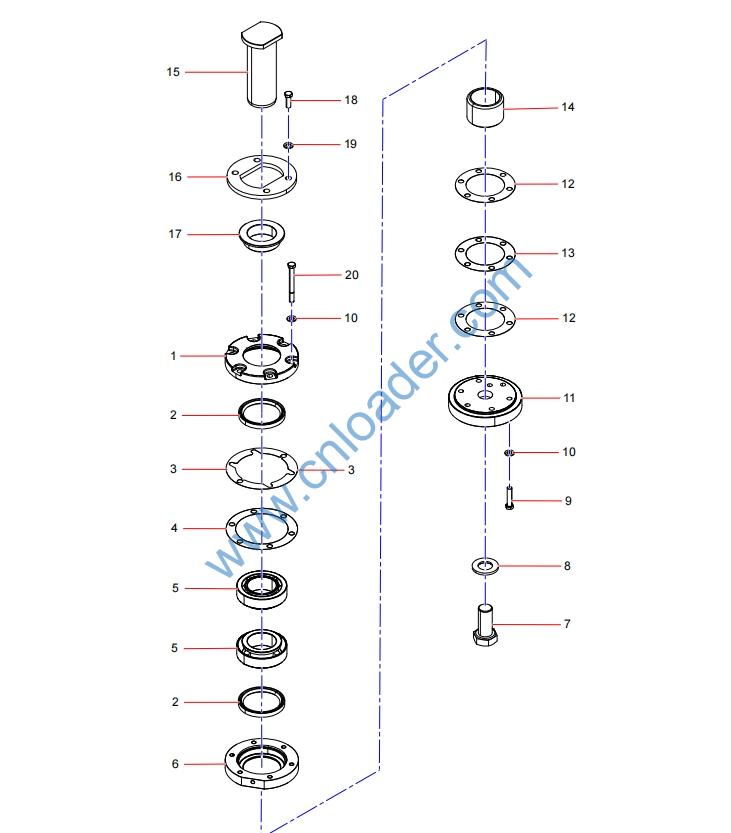

1 13340254 上轴承座 1
2 24002816 旋转轴唇形密封圈 2
3 13340253 调整垫片 4
4 13340252 调整垫片 4
5 29006091 滚动轴承 2
6 13340255 下轴承座 1
7 A229900009210 螺栓 1
8 A229900003095 垫圈 1
9 A210111000118 螺栓 6
10 24000639 垫圈 12
11 SSW004836923 法兰盘 1
12 13340260 调整垫片 7
13 13340261 调整垫片 5
14 13340257 压紧套 1
15 SSW004836925 下铰接销轴 1
16 SSW004836926 止动盘 1
17 13340256 锥套 1
18 A210111000203 螺栓 4
19 A210405000001 垫圈 4
20 A210110000384 螺栓 6

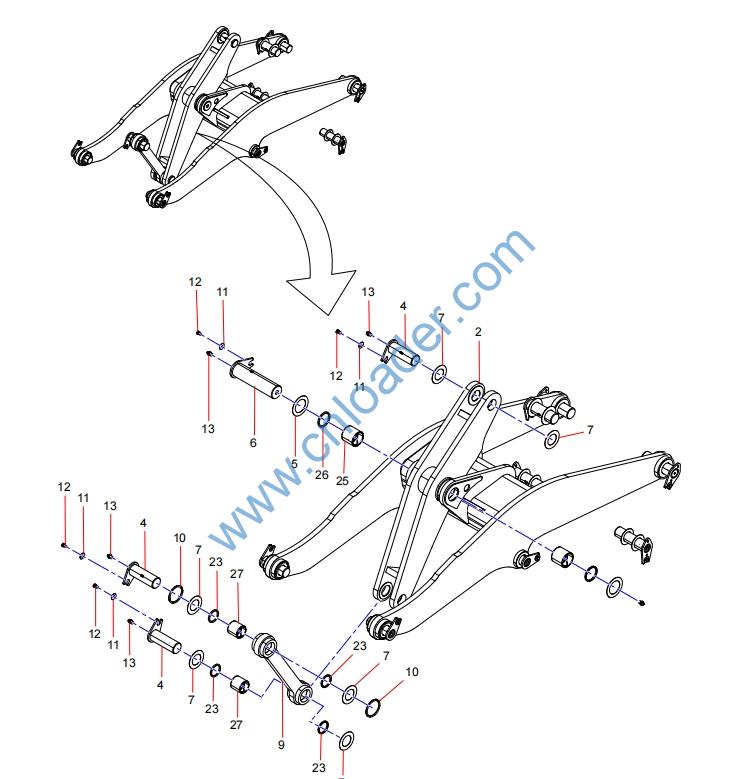

2 14522076 摇臂 1
4 13046908 销轴 3
5 A820102010744 垫片 2
6 13046903 销轴 1
7 A820102010387 垫片 12
9 SSW006065238 连杆 1
10 A210609000324 O形圈 6
11 60060553 垫圈 13
12 A210111000366 螺栓 11
13 B229900000686 油杯 11
23 60055872 DLI防尘圈 8
25 13046858 轴套 2
26 B230101000534 ME-2防尘圈 2
27 13046859 轴套 2

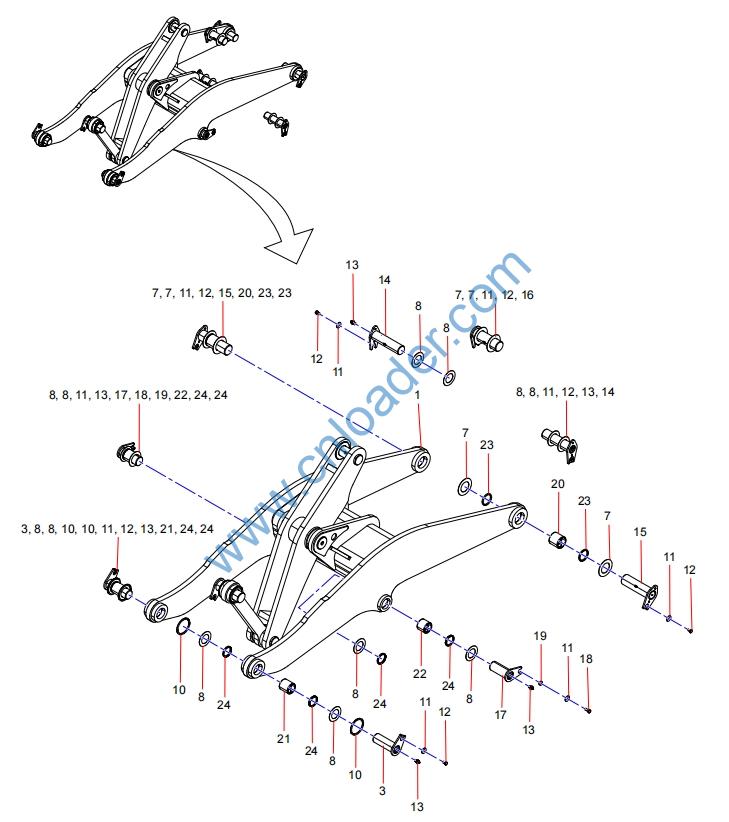

14535498 动臂 1
3 13046886 销轴 2
7 A820102010387 垫片 12
8 A820102010381 垫片 12
10 A210609000324 O形圈 6
11 60060553 垫圈 13
12 A210111000366 螺栓 11
13 B229900000686 油杯 11
14 13046874 销轴 2
15 13046877 销轴 2
16 13046906 销轴 1
17 13046883 销轴 2
18 A210111000053 螺栓 2
19 13203266 隔套 2
20 13046641 轴套 2
21 13046642 轴套 2
22 13046643 轴套 2
23 60055872 DLI防尘圈 8
24 B230101000623 DSI防尘圈 8
