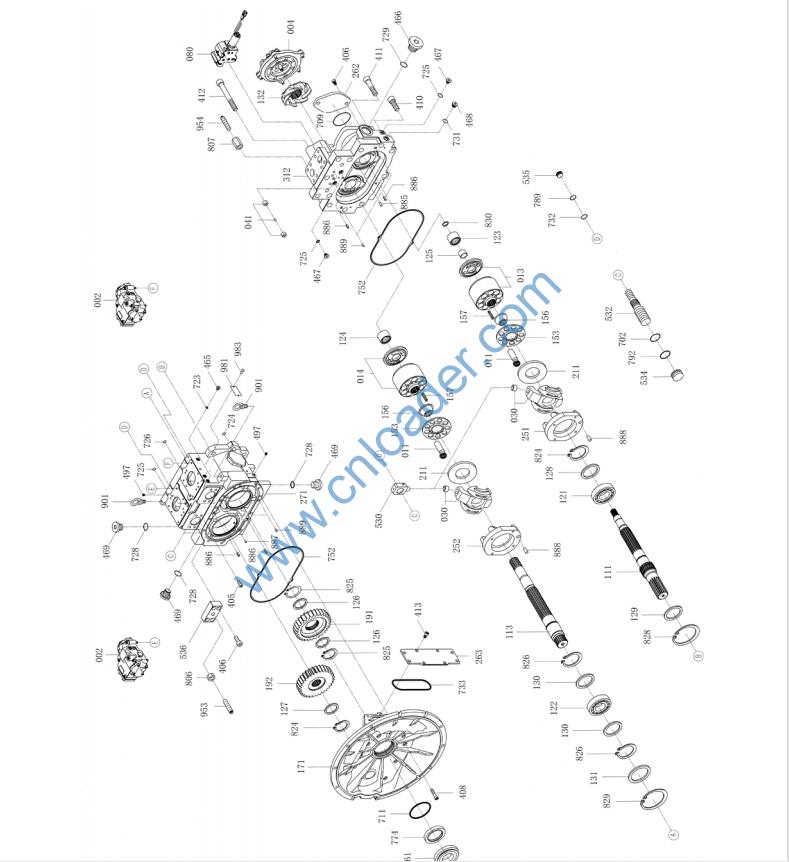

002 860150475 调节器组件 REGULATOR 2ST
004 860150476 齿轮泵 GEAR PUMP 1ST
011 860150477 柱塞组件 ASS’Y, piston 2ST
013 860150478 缸体配油盘组件（R） 1ST
ASS’Y, cylinder(R)
014 860150479 缸体配油盘组件（L） 1ST
ASS’Y, cylinder(L)
030 860150480 斜盘组件 2ST
ASS’Y, swash plate
041 860126704 单向阀 1 组件 4ST
ASS’Y, check valve 1
080 860150481 反比例减压阀 Negative 1ST
Proportional reducing valve
111 860150483 驱动轴 SHAFT, drive 1
113 860150484 从动轴 SHAFT, driven 1
121 860146891 滚动轴承 1
BEARING, roller
122 860150485 滚动轴承 1
BEARING, roller 1
123 860150486 滚针轴承 1
BEARING, needle
124 860150487 滚针轴承 1
BEARING, needle 1
125 860150488 轴承内套 RING, inner 1
126 860150489 垫片 SPACER 2
127 860150490 垫片 SPACER 1
128 860150491 轴承垫片 SPACER ,bearing 1
129 860150492 轴承垫片 SPACER ,bearing 1
130 860150493 轴承垫片 SPACER ,bearing 2
860150494 轴承垫片 SPACER ,bearing 1
132 860150495 增压器 BOOSTER 1
153 860150496 回程盘 PLATE, set 2
156 860150497 球面衬套 BUSH, spherical 2
157 860150498 柱塞弹簧 SPRING, cylinder 18
171 860150499 前壳体 CASING H, front 1
191 860150500 驱动齿 GEAR, drive 1
192 860150501 从动齿 GEAR, driven 1
211 860150502 滑靴盘 PLATE, shoe 2
251 860150503 斜盘支撑台 SUPPORT, S.P. 1
252 860150504 斜盘支撑台 SUPPORT, S.P. 1
261 860150505 前端盖 COVER, front 1
262 860150506 端盖 COVER 1
263 860150507 端盖 COVER, PTO 1
271 860150508 泵壳体 CASING B3, pump 1
312 860150509 阀盖 COVER D2, valve 1
405 860150510 内六角螺钉 8
SCREW, hex.S.H.C
406 860150511 内六角螺钉 10
SCREW, hex.S.H.C
408 860150512 内六角螺钉 11
SCREW, hex.S.H.C
410 860150513 内六角螺钉 9
SCREW, hex.S.H.C
411 860150514 内六角螺钉 2
SCREW, hex.S.H.C
412 860150515 内六角螺钉 1
SCREW, hex.S.H.C
413 860150516 内六角螺钉 8
SCREW, hex.S.H.C
465 803009022 堵头 PLUG 8
466 860150517 堵头 PLUG 2
467 860126746 堵头 PLUG 4
468 860139425 堵头 PLUG 2
469 860139426 堵头 PLUG 3
497 860139427 堵头 PLUG 7
530 860150482 倾斜销组件 2ST
ASS’Y, tilting pin
532 860125685 伺服柱塞 PISTON, servo 2
534 860125686 挡柱（L）STOPPER(L) 2
535 860150518 挡柱（S）STOPPER(S) 2
536 860150519 端盖 COVER, servo 2
702 860126784 O 形圈 O-RING 2
709 860125691 O 形圈 O-RING 2
711 860120027 O 形圈 O-RING 1
723 860201354 O 形圈 O-RING 8
724 860202052 方形密封圈 4
SQUARE-RING
725 860201355 O 形圈 O-RING 8
726 860150520 O 形圈 O-RING 1
728 860201356 O 形圈 O-RING 3
729 860150521 O 形圈 O-RING 2
731 860139434 O 形圈 O-RING 2
732 860126728 O 形圈 O-RING 2
733 860150522 O 形圈 O-RING 1
752 860150523 密封垫 PACKING, seat 1
774 860125698 油封 SEAL, oil 1
789 860125699 挡圈 RING, back-up 2
792 860120388 挡圈 RING, back-up 2
806 860126786 螺母 NUT 2
807 860150524 螺母 NUT 2
824 860146869 卡环 RING, snap 2
825 803009311 弹性挡环 RING, snap 2
826 860150525 卡簧 RING, snap 2
827 860150526 卡簧 RING, snap 1
828 860150527 卡簧 RING, snap 1
829 860150528 卡簧 RING, snap 1
830 860150529 卡簧 RING, snap 1
885 860125703 配油盘销 2
RING, valve plate
886 860126787 弹簧销 PIN, spring 4
887 803009015 销 PIN 1
888 860150530 销 PIN 2
889 860150531 销 PIN 4
901 860126788 吊耳螺栓 BOLT, eye 2
953 860150532 调节螺钉 SCREW, set 2
954 860201365 内六定位螺钉 SCREW, set 2
981 860125709 铭牌 PLATE, name 1
983 860126754 铆钉 PIN 2

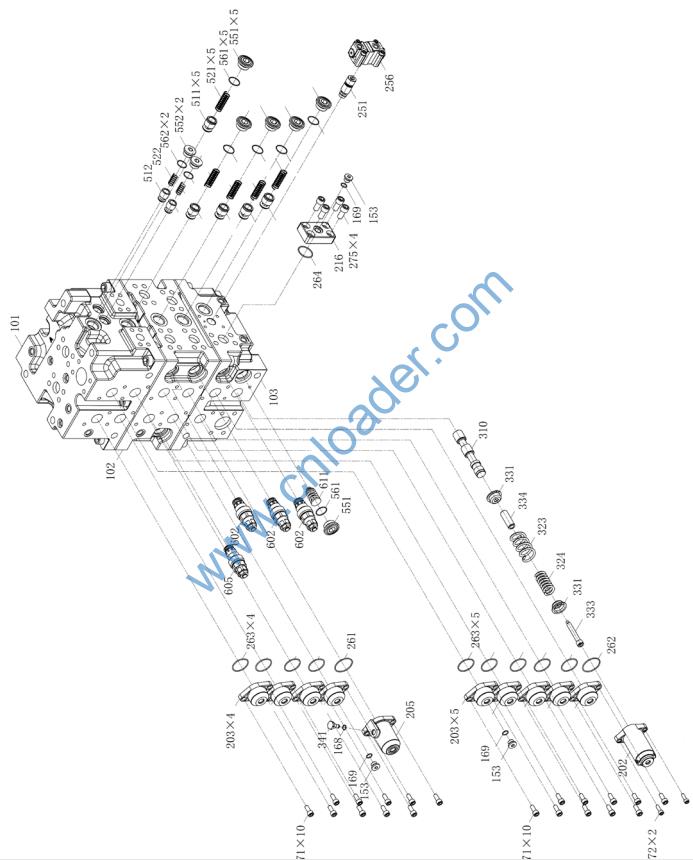

803088428 主阀 Multiway valve
101 860139705 阀体 A CASING A
1
102 860139706 阀体 B CASING B
1
103 860139707 阀体 C CASING C 1
153 860139425 堵头 PLUG 3
168 860125861 O 形圈 O-RING 1
169 860125566 O 形圈 O-RING 3
202 860126645 端盖 COVER, spring 1
203 860125568 滑阀盖 COVER, spool 9
216 860139711 法兰板 FLANGE, blank 1
251 803089238 逻辑阀组件 1
ASS’Y, logic poppet
256 803089236 逻辑控制阀 1
ASS’Y, logic control valve
261 860125578 O 形圈 O-RING 1
262 860126652 O 形圈 O-RING 1
263 860125577 O 形圈 O-RING 9
264 860130700 密封圈 SQUARE-RING 1
271 860125582 内六角螺钉 20
SCREW, hex S.H.C.
272 803008933 内六角螺钉 2
SCREW, hex S.H.C.
275 860125642 内六角螺钉 4
SCREW, hex S.H.C.
310 860139729 切断阀芯 1
SPOOL, bypass-cut
323 860139730 弹簧 SPRING 1
324 860139731 弹簧 SPRING 1
331 860126674 弹簧座 SEAT, spring 2
333 860120428 阀杆螺栓 BOLT 1
334 860126842 套筒 STOPPER 1
341 860125574 堵头 PLUG
1
511 860125612 提动阀 POPPET
5
512 860139739 锥阀 POPPET 2
521 860125617 弹簧 SPRING 5
522 803008940 弹簧 SPRING 2
551 860125625 堵头 PLUG 6
552 803008943 堵头 PLUG 2
561 860125629 O 形圈 O-RING 6
562 819909371 O 形圈 O-RING 2
602 860126694 端口溢流阀 3
ASS’Y, port relief valve
605 860139742 端口溢流阀 1
ASS’Y, port relief valve
611 860125633 负流量溢流阀 1
ASS’Y, negative c. relief

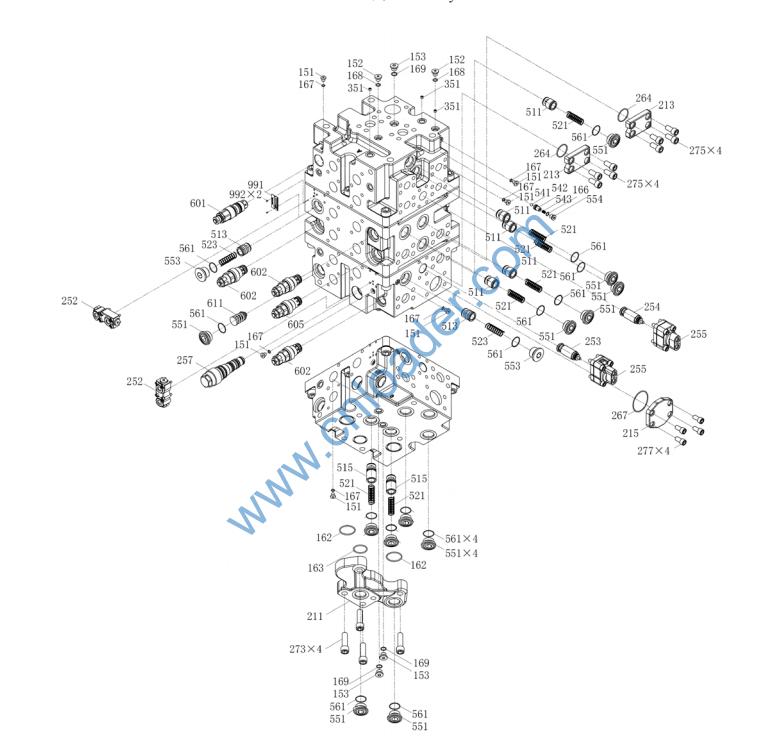

151 803009022 堵头 PLUG 6
152 860126746 堵头 PLUG 2
153 860139425 堵头 PLUG 3
162 860139708 O 形圈 O-RING 6
163 860127254 O 形圈 O-RING 9
166 860125630 O 形圈 O-RING 1
167 860201354 O 形圈 O-RING 6
168 860125861 O 形圈 O-RING 2
169 860125566 O 形圈 O-RING 3
211 860139710 板 PLATE 1
213 860125638 法兰板 FLANGE 2
215 860125639 法兰板 FLANGE 1
252 860139713 选择锁止阀 SUB- 2
ASS’Y, lock valve selector
253 860150533 逻辑阀组件 1
ASS’Y, logic poppet
254 803089237 回转逻辑阀 1
ASS’Y, logic poppet
255 860139716 逻辑控制阀 2
ASS’Y, logic control valve
257 860139718 斗杆再生切换阀 SUB- 1
ASS’Y, arm regeneration cut
264 860130700 密封圈 SQUARE-RING 2
267 860125643 O 形圈 O-RING 1
273 860139719 内六角螺钉 4
SCREW, hex S.H.C.
275 860125642 内六角螺钉 8
SCREW, hex S.H.C.
277 860127259 内六角螺钉 4
SCREW, hex S.H.C
351 860139736 节流孔 ORIFICE 3
511 860125612 提动阀 POPPET 10
513 860125614 提动阀 POPPET 2
515 860139740 锥阀 POPPET 2
521 860125617 弹簧 SPRING 7
523 860125619 弹簧 SPRING 2
541 860125621 钢球 BALL, steet 1
542 860125622 弹簧垫圈 SEAT, spring 1
543 860125623 弹簧 SPRING 1
551 860125625 堵头 PLUG 12
553 860125626 堵头 PLUG 2
554 860120408 堵头 PLUG 1
561 860125629 O 形圈 O-RING 14
601 860139956 主溢流阀 1
ASS’Y, main relief valve
602 860126694 端口溢流阀 3
ASS’Y, port relief valve
605 860139742 端口溢流阀 1
ASS’Y, port relief valve
611 860125633 负流量溢流阀 1
ASS’Y, negative c. relief
991 860125709 铭牌 NAME PLATE 1
992 860126754 铆钉 PIN 2

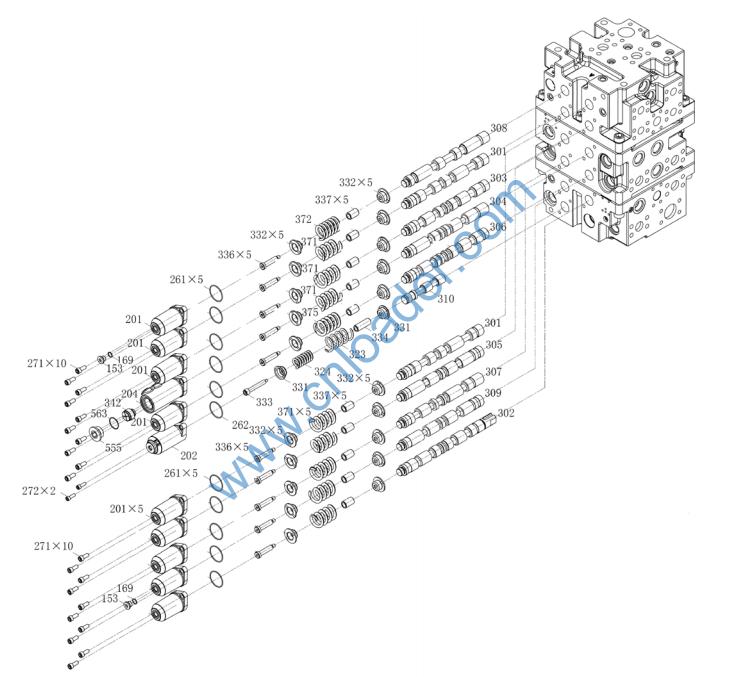

153 860139425 堵头 PLUG 2
169 860125566 O 形圈 O-RING 2
201 860125567 弹簧盖 COVER, spring 9
202 860126645 端盖 COVER, spring 1
204 860139709 弹簧盖 COVER, spring 1
261 860125578 O 形圈 O-Ring 10
262 860126652 O 形圈 O-Ring 1
271 860125582 内六角螺钉 20
860125621 SCREW, hex S.H.C.
272 803008933 内六角螺钉 2
SCREW, hex S.H.C.
301 860139720 行走阀芯 SPOOL, travel 1
302 860150534 斗杆 1 阀芯组件 1
SUB-ASS’Y, arm1 spool
303 860150535 动臂 1 阀芯组件 1
SUB-ASS’Y, boom1 spool
304 860150536 铲斗阀芯 SPOOL, bucket 1
305 860139724 回转阀芯 SPOOL, swing 1
306 860150537 斗杆 2 阀芯 SPOOL, arm2 1
307 860150538 动臂2阀芯 SPOOL, boom2 1
308 860150539 直线行走阀芯组件 SUB- 1
ASS’Y, straight travel spool
309 860139728 备用阀芯 SPOOL, option 1
323 860139730 弹簧 SPRING 1
324 860139731 弹簧 SPRING 1
331 860126674 弹簧（座）SEAT, spring 1
332 860139732 弹簧座 SEAT, spring 10
333 860120428 阀杆螺栓 BOLT, spacer 1
334 860126842 套筒 STOPPER 1
336 860139733 阀杆螺栓 BOLT, spacer 10
337 860139734 套（筒）STOPPER 10
342 860139735 柱塞 PISTON 1
371 860139737 弹簧 SPRING 8
372 860125604 弹簧 SPRING 1
375 860139738 弹簧 SPRING 1
555 860126760 堵头 PLUG 1
563 860126762 O 形圈 O-RING 1

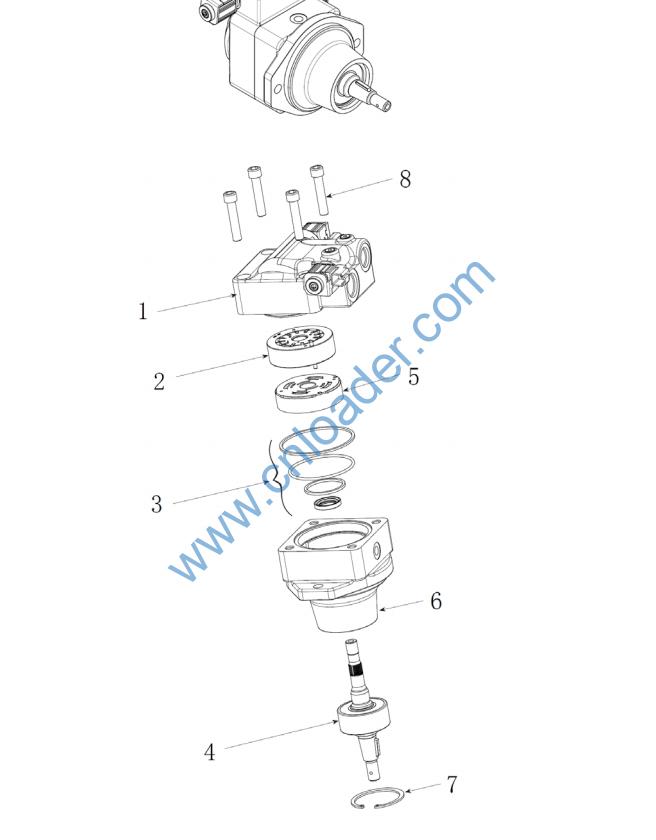

803009799 叶片马达 Vane Motor
860150632 端盖组件 End Cap kit 1ST
2 860150633 阀体组件 Cartridge kit 1ST
3 860150634 密封组件 Seal kit 1ST
4 860150635 驱动轴组件 Shaft kit 1ST
5 860150636 配油盘组件 Port plate kit 1ST
6 860150637 壳体 Y Housing Y 1
7 860150638 定位环 Retaining ring 1
8 860203643 螺钉 Screw 4

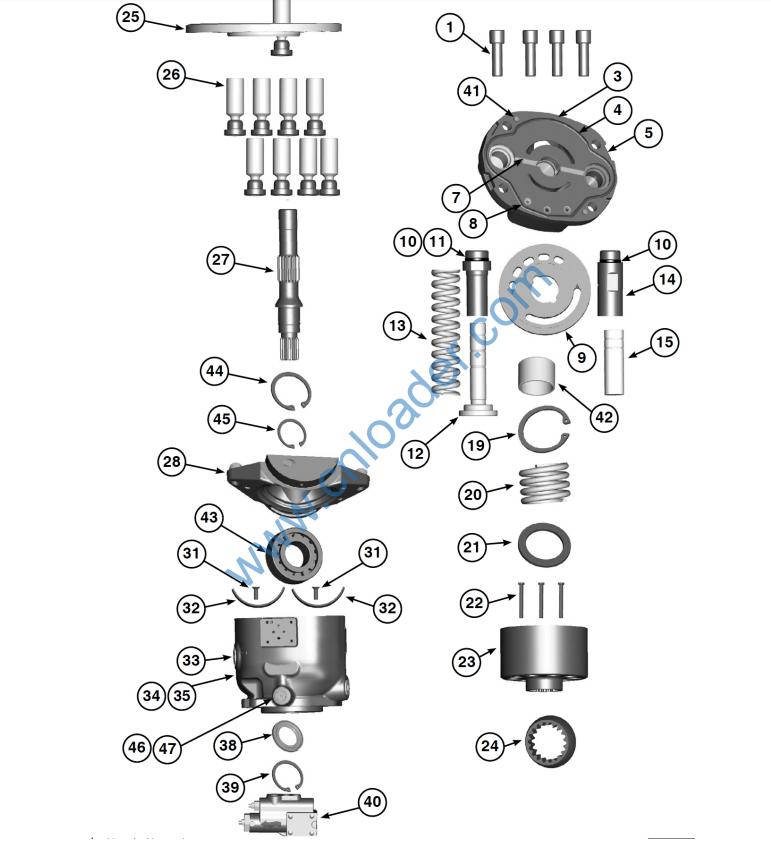

803082268 风扇泵 Vane pump
1 860150597 螺钉 Screw 4 361-12229-0
3 油口块 Port plate 1
4 860150598 O 形圈 O-Ring 1 675-00162-0
5 860150599 密封堵塞 Plug 2 108X2V
7 803422272 配油盘销钉 Pin 1 324-30014-0
8 860150600 O 形圈 O-Ring 3 605-10077-0
9 860150601 配油盘 Port plate 1 03E-95374-0
10 860150602 O 形圈 O-Ring 2 695-00912-0
11 860150603 偏置活塞导向套 1 03E-94355-0
Offset piston guide sleeve
12 860150604 偏置活塞 Offset piston 1 03E-94354-0
13 860150605 偏置弹簧 Bias spring 1 03E-94356-0
14 860150606 控制活塞导向套 1 03E-94353-0
Control piston guide sleeve
15 860150607 控制活塞 Control piston 1 03E-94352-0
19 860150608 卡环 Snap ring 1 356-65144-0
20 860150609 缸体固定弹簧 Spring 1 03E-94350-0
21 860150610 缸体固定垫片 Washer 2 03E-94351-0
22 860150611 缸体固定销 Pin 3 03E-95903-0
23 860150612 缸体 Cylinder 1 03E-94338-0
24 860150613 球形垫片 Spherical washer 1 03E-94348-0
25 860150614 挡板 Set plate 1 03E-94347-0
26 860150615 柱塞滑靴总成 9 S2E-18413-0
Piston assembly
27 860150616 驱动轴 Drive shaft 1 03E-94335-0
28 860150617 斜盘 Swash plate 1 S2E-18412-0
31 860150618 轴承保持架孔板 2 03E-94359-0
Bearing retaining pin
32 860150619 斜盘轴承 Bearing 2 03E-94358-0
33 壳体（不单独出售） 1
34 860150620 堵塞 Plug 2 488-35055-0
35 860150621 O 形圈 O-Ring 2 695-00910-0
38 860150622 轴封 Shaft seal 1 620-82125-5
39 860150623 密封圈 Sealing ring 1 356-65158-0
40 860150624 补偿器 Cmpensator 1 S2E-17823-5T
41 860150625 端盖定位销 Pin 2 324-30014-0
42 860150626 油口块衬套 Bush 1 230-82227-0
43 860150627 圆柱滚子轴承 1 230-82516-0
Roller bearing
44 860150628 卡环（轴） Snap ring 1 356-65159-0
45 860150629 卡环（壳体） Snap ring 1 356-65144-0
46 860150630 堵塞 Plug 1 108X4
47 860150631 O 形圈 O-Ring 1 695-00904-0
