1080000219 油杯 R1/8-1（直通） Grease Cup
1081001726 O形圈 Φ11.3×2.4 O-Ring
1140103713 接头 M14-M14 Fitting
1081001716 O形圈 Φ6.5×1.5 O-Ring
1140211287 胶管总成 Hose
1990200697 连胶条 Clip
1040301017 垫圈 8-300HV Washer
1040001408 螺栓 M8×16-10.9 Bolt
003001024A0801020 垫圈 Washer
1040001024 螺栓 M20×65-10.9 Bolt
1140103724 接头 M14-R1/4 Fitting
1010100265

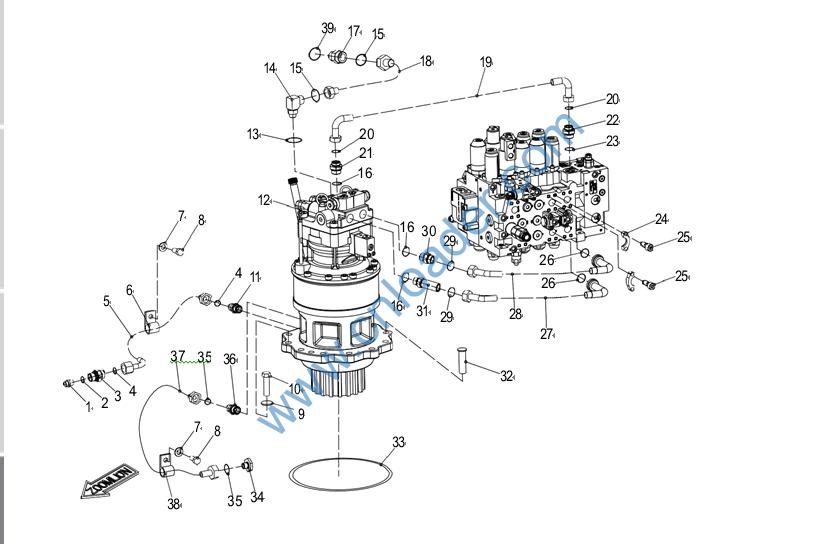

回转马达及减速机 Swing Motor and
Reducer
1081001508 O形圈 Φ13.8×2.4 O-Ring
1140105794 接头 M22-G3/8 Fitting
1081001728 O形圈 Φ15×2 O-Ring
1081006270 O形圈 Φ23.7×3.5 O-Ring
1140104634 接头 M26-G3/4 Fitting
1140217128 胶管总成 Hose
1140217125 胶管总成 Hose
1081001898 O形圈 Φ20×2 O-Ring
1140114775 接头 M30-G3/4 Fitting
1140103727 接头 M30-G1 Fitting
1081001998 O形圈 Φ28.7×3.5 O-Ring
1140103711 对开法兰夹 Flange Clamp
1040100850 螺钉 M10×30-10.9 Screw
1081001589 O形圈
Φ32.92×3.53
O-Ring
1140211278 胶管总成 Hose
1140211277 胶管总成 Hose
1081001722 O形圈 Φ16.3×2.4 O-Ring
1140114780 接头 M30-G3/4 Fitting
1140114779 接头 M30-G3/4 Fitting
003011024A0001020 销 Pin
1081001518 O形圈 Φ284×6 O-Ring
1019900328 螺堵 M16 Plug
1081001720 O形圈 Φ8×1.5 O-Ring
1140103725 接头 M16-R1/2 Fitting
1140217126 胶管总成 Hose
1990200696 连胶条 Clip
1081002481 O形圈 Φ22.1×3.5 O-Ring
1040100850 螺钉 M10×30-10.9 Screw
1140103709 对开法兰夹 Flange Clamp
1040000721 螺栓 M12×25-10.9 Bolt
1040301022 垫圈 12-300HV Washer
1011200095 回转接头 Swing Joint
1011200024 回转接头 Swing Joint
1081001588 O形圈
Φ24.99×3.53
O-Ring
1140215456 胶管总成 Hose
1081001514 O形圈 Φ21.7×3.5 O-Ring
003001024A0601010 接头 M24-M26 Fitting
1081001728 O形圈 Φ15×2 O-Ring
1140215320 胶管总成 Hose
1081001897 O形圈 Φ23.7×3.5 O-Ring
1140104634 接头 M26-G3/4 Fitting
1140103711 对开法兰夹 Flange Clamp
1081001589 O形圈
Φ32.92×3.53
O-Ring
1140215460 胶管总成 Hose
1140215458 胶管总成 Hose
1040500068 销 Φ4×26 Pin
003001024A0401010 连杆 Lever
1040300601 垫圈 16-35～45HRC Washer
1040500536 销轴 Φ16×65 Pin
1140215457 胶管总成 Hose
1040100850 螺钉 M10×30-10.9 Screw
1140103711 对开法兰夹 Flange Clamp
1140211289 胶管总成 Hose
1081001589 O形圈
Φ32.92×3.53
O-Ring
1140211294 胶管总成 Hose
1081001588 O形圈Φ24.99×3.53 O-Ring
1140211305 胶管总成 Hose
1140211293 胶管总成 Hose
1081001722 O形圈 Φ16.3×2.4 O-Ring
1140103736 接头 M30-G3/4 Fitting
1081001897 O形圈 Φ23.7×3.5 O-Ring
1140211290 胶管总成 Hose

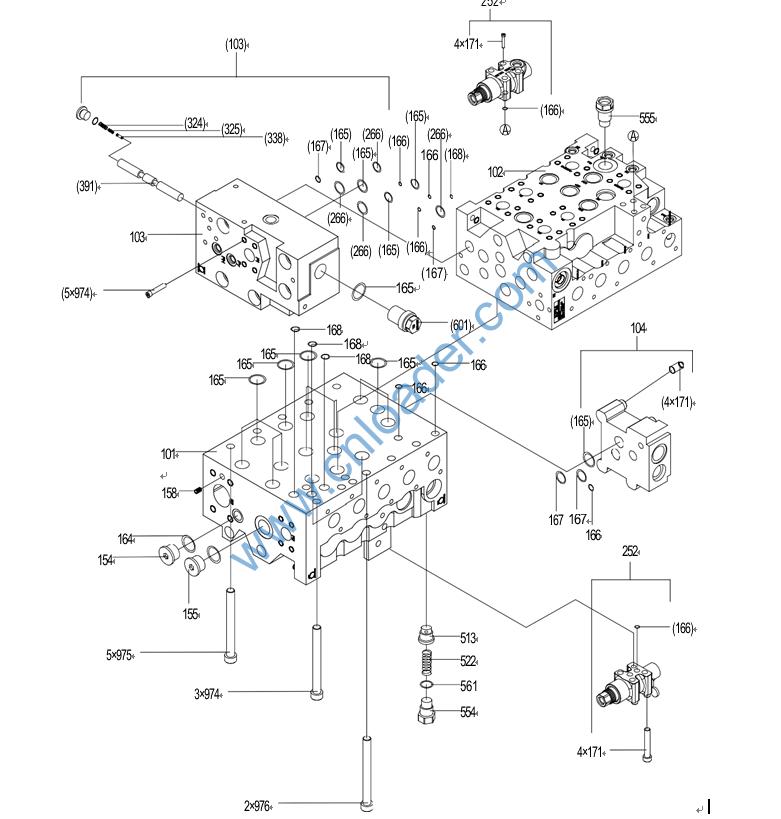

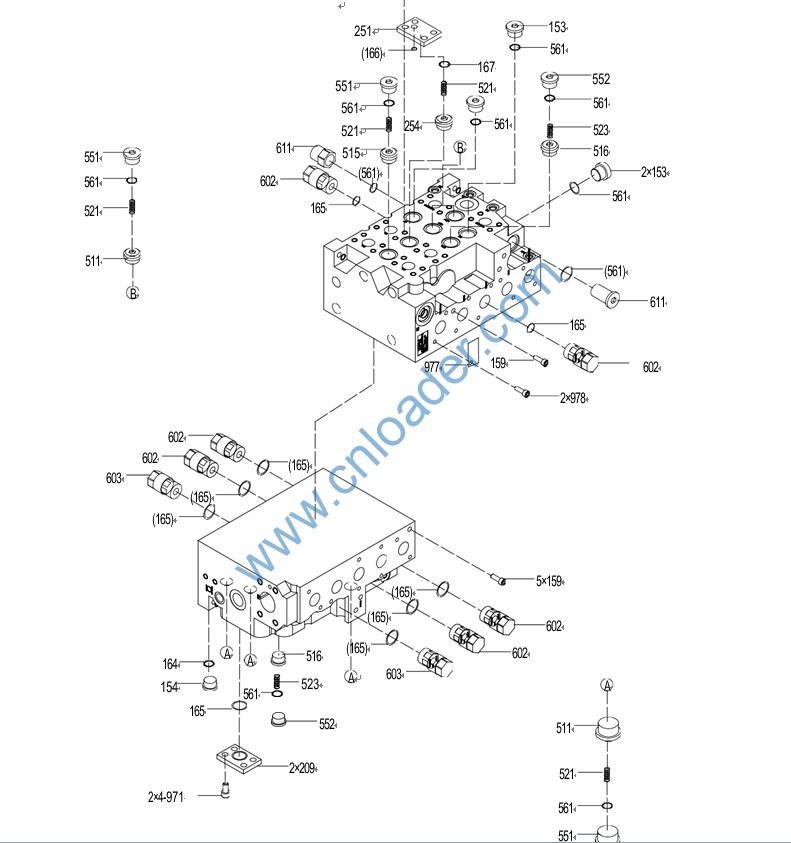

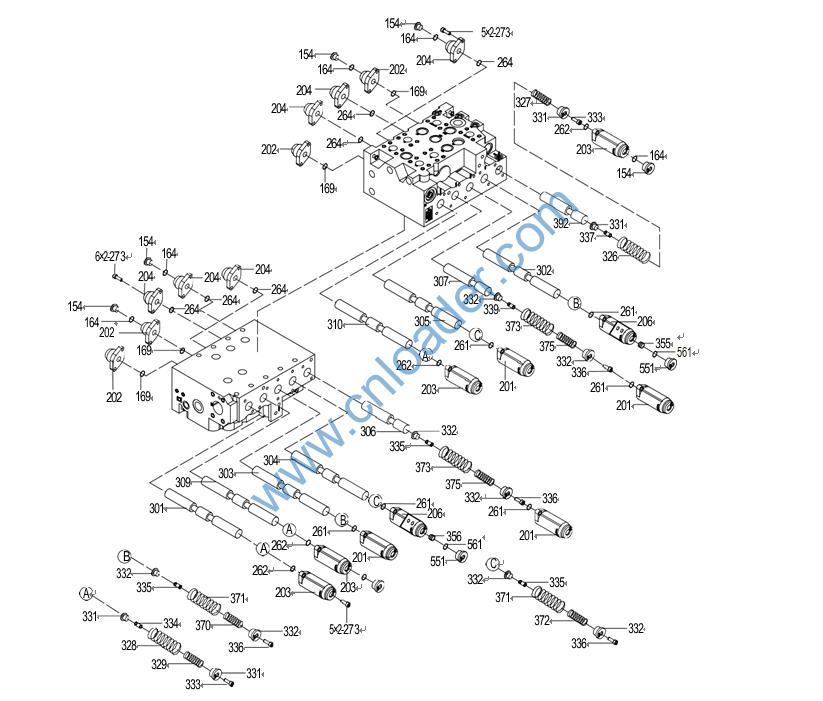

主阀（1010301940）（1/3）
Main Control Valve
1019801431 阀体 A Casing A
1019801430 阀体 B Casing B
1019801104 直线行走阀总成 Straight Travel valve Ass’y
1019801106 直线行走阀 Straight Travel valve
1019801107 优先阀 Priority Valve
1019801306 螺堵 Plug
1019801307 螺堵 Plug
1019801305 螺堵 Plug
1019801339 螺堵 Plug
1019801451 螺堵 Plug
1019801288 O形圈 O-Ring
1019801277 O形圈 O-Ring
1019801283 O形圈 O-Ring
1019801291 O形圈 O-Ring
1019801294 O形圈 O-Ring
1019801278 O形圈 O-Ring
1019801445 弹簧盖 Cover
1019801458 弹簧盖 Cover
1019801447 弹簧盖 Cover
1019801426 弹簧盖 Cover
1019801446 斗杆弹簧盖 Cover
1019801419 法兰 Flange
1019801380 回转逻辑阀总成 Logic Valve Ass’y
1019801385 锁定阀总成 Lock Valve Ass’y
1019801389 回转逻辑阀 Swing Logic Valve
1019801455 O形圈 O-Ring
1019801454 O形圈 O-Ring
1019801280 O形圈 O-Ring
1019801318 内六角螺钉 Screw
1019801400 行走阀芯 Travel Spool
1019801109 斗杆阀芯 Arm Spool
1019801101 铲斗阀芯 Bucket Spool
1019801396 回转阀芯 Swing Spool
1019801110 斗杆合流阀芯 Arm Confluence Spool
1019801395 动臂合流阀芯 Boom Confluence Spool
1019801399 备用阀芯 Option Spool
1019801401 行走阀芯 Travel Spool
1019801402 弹簧 Spring
1019801411 弹簧 Spring
1019801410 弹簧 Spring
1019801464 弹簧 Spring
1019801465 弹簧 Spring
1019801459 弹簧 Spring
1019801457 弹簧座 Spring Seat
1019801462 弹簧座 Spring Seat
1019801463 螺栓 Bolt
1019801449 止动块 Stopper
1019801450 止动块 Stopper
1019801461 螺栓 Bolt
1019801443 止动块 Stopper
1019801434 止动块 Stopper
1019801435 止动块 Stopper
1019801437 活塞 Piston
1019801453 活塞 Piston
1019801452 弹簧 Spring
1019801460 弹簧 Spring
1019801412 弹簧 Spring
1019801413 弹簧 Spring
1019801425 弹簧 Spring
1019801398 直线行走阀芯总成 Straight Travel Spool Ass’y
1019801421 旁通截断阀芯 Bypass-Cut Spool
1019801423 负荷止回阀 Poppet
1019801420 负荷止回阀 Poppet
1019801422 负荷止回阀 Poppet
1019801448 负荷止回阀 Poppet
1019801403 弹簧 Spring
1019801404 弹簧 Spring
1019801308 弹簧 Spring
1019801395 螺堵 Plug
1019801417 螺堵 Plug
1019801416 螺堵 Plug
1019801387 单向阀总成 Check Valve Ass’y
1019801296 O形圈 O-Ring
1019801105 主安全阀总成 Main Relief Valve Ass’y
1019800143 油口溢流阀总成 Port Relief Valve Ass’y
1019801379 油口溢流阀总成 Port Relief Valve Ass’y
1019801388 负流量控制阀总成 Negative Control Valve Ass’y
1019801311 内六角螺钉 Screw
1019801312 内六角螺钉 Screw
1019801103 内六角螺钉 Screw
1019801313 内六角螺钉 Screw
1019801357 铭牌 Name Plate
1019801321 销 Pin

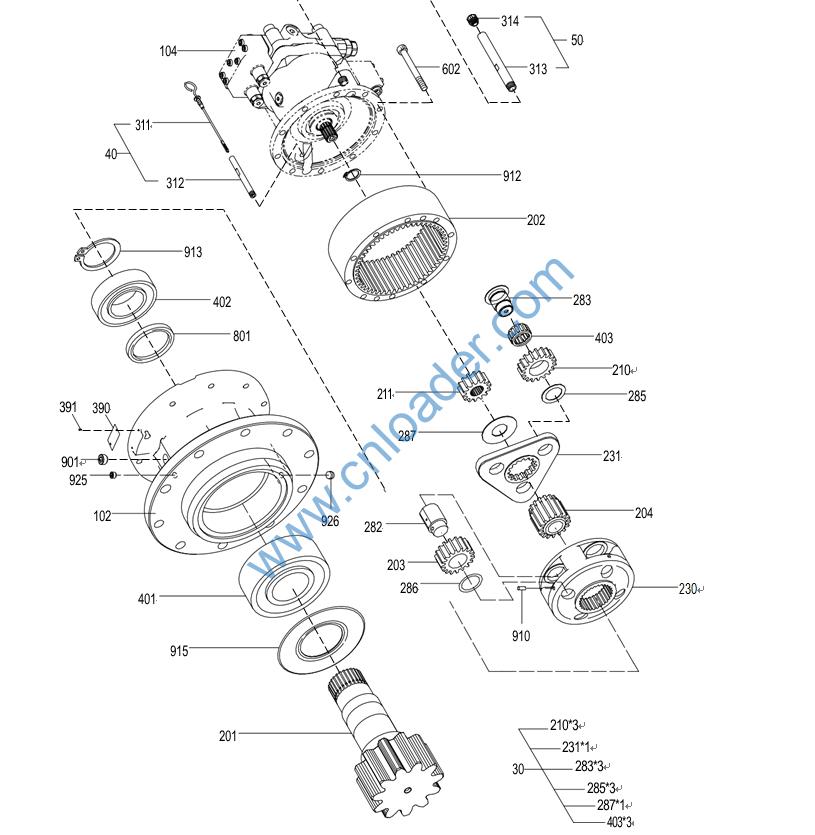

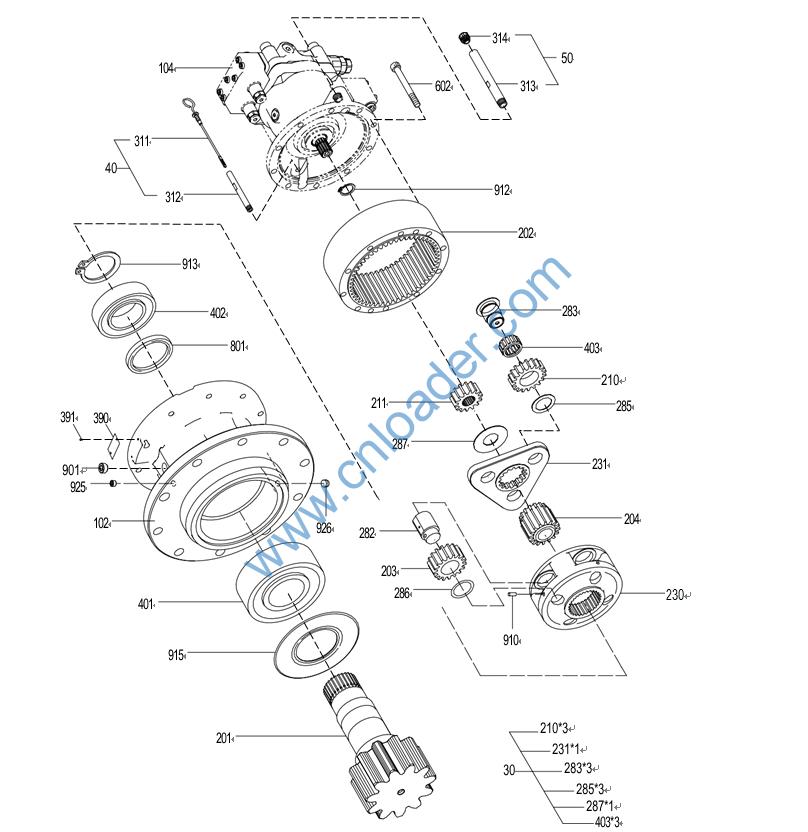

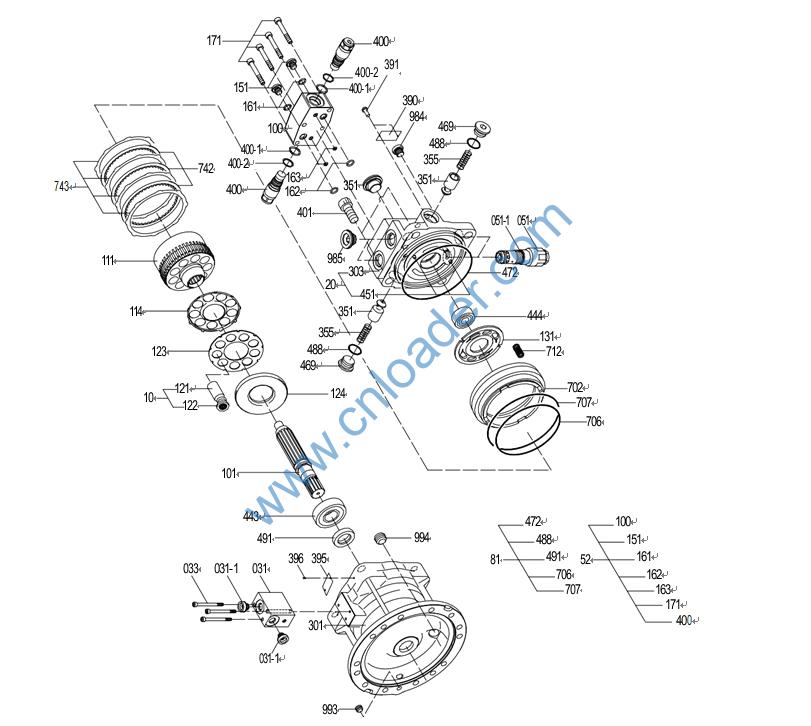

回转马达及减速机（1010100265）（1/4）
Swing Motor and Reducer
1019801060 柱塞组件 Piston Ass’y
1019801066 阀套组件 Valve Casing Ass’y
1019801071 驱动轴 Drive Shaft
1019801075 油缸体 Cylinder
1019801054 弹簧盘 Spring Plate
1019800967 活塞 Piston
1019801074 滑靴 Shoe
1019801069 调整盘 Plate
1019801079 回程盘 Plate
1019801083 配流盘 Valve Plate
1019801068 壳体 Casing
1019801065 阀门壳体 Valve Casing
1019800966 活塞 Piston
1019800965 弹簧 Spring
1019801357 铭牌 Name Plate
1019800997 销 Pin
1019801059 铭牌 Name Plate
1019800997 销 Pin
1019800994 内六角螺栓 Screw
1019801354 圆筒滚子轴承 Roller Bearing
1019801352 圆筒滚子轴承 Roller Bearing
1019800999 螺栓 Bolt
1019800992 螺堵 Plug
1019800981 O形圈 O-Ring
1019800975 O形圈 O-Ring
1019801366 油封 Sealing Strip
1019801077 制动器活塞 Brake Piston
1019800980 O形圈 O-Ring
1019800982 O形圈 O-Ring
1019801057 制动器弹簧 Brake Spring
1019801085 磨擦片 Friction Plate
1019801081 隔离片 Separator Plate
1019801374 螺堵 Plug
1019801373 螺堵 Plug
1019801088 延时阀 Time Delay Valve
1019801371 螺堵 Plug
1019800995 内六角螺钉 Screw
1019801381 溢流阀 Relief Valve
1019800971 O形圈 O-Ring
1019801053 密封组件总成 Seal Ass’y
1019801384 防逆反转阀总成 Non-Return Valve Ass’y
1019801428 阀体 Casing
1019800991 螺堵 Plug
1019800972 O形圈 O-Ring
1019800973 O形圈 O-Ring
1019800978 O形圈 O-Ring
1019800996 内六角螺钉 Screw
1019801383 防反转阀 Valve
1019800974 O形圈 O-Ring
1019801005 支承环 Ring
1019800987 埋栓 Bolt
1019800989 埋栓 Bolt
1019801798 托架 No.1carrier Ass’y
1019801121 油标尺组件 Scale Ass’y
1019801152 油管组件 Pipe Ass’y
1019801142 轴座 Casing B
1019801147 驱动轴 Drive Shaft
1019801131 齿圈A Gear A Ring
1019801130 No.2行星齿轮 No.2 Planet Gear
1019801128 No.2太阳轮 No.2 Sun Gear
1019801129 No.1行星齿轮 No.1 Planet Gear
1019801127 No.1太阳轮 No.1 SunGear
1019801146 托架 No.2 Carrier
1019801145 托架 No.1 Carrier
1019801135 销 No.2 Pin A
1019801134 销 No.1 Pin A
1019801158 板 Plate
1019801154 垫圈 Washer
1019801156 板 Plate
1019801120 油标尺 Oil Scale
1019801150 硬管 Pipe
1019801151 注油管 Pipe
1019801153 封盖 Cover
1019801357 铭牌 Name Plate
1019800997 销 Pin
1019801335 自动调心滚珠轴承 Spherical Roller Bearing
1019801333 自动调心滚珠轴承 Spherical Roller Bearing
1019801338 滚针轴承 Needle Bearing
1019800993 内六角螺钉 Screw
1019801365 油封 Sealing Strip
1019800986 螺堵 Plug
1019800998 弹簧销 Spring Pin
1019801002 止退圈 Snap Ring
1019801004 止退圈 Snap Ring
1019801148 挡圈 Snap Ring
1019801136 排气阀 Vent Valve
1019801137 黄油嘴 Grease Cup
