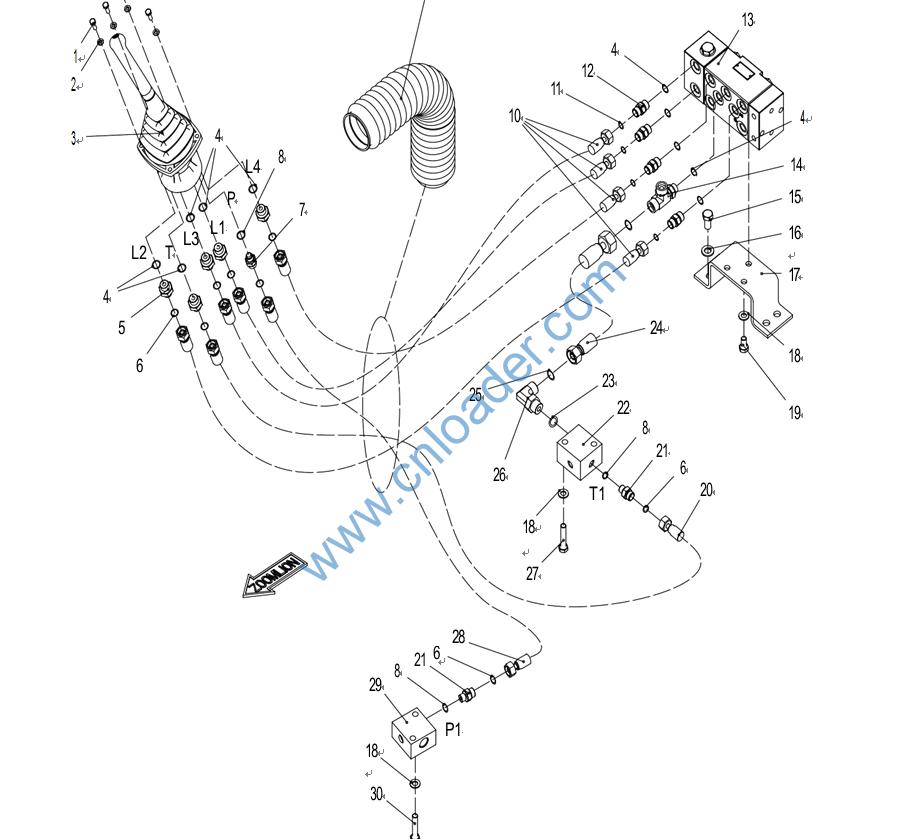

Pilot Lines 003011526A0000000
1040000076 螺栓M6×25-8.8 Bolt
1040300051 垫圈6-200HV Washer
1010306177 先导手柄阀(左) Pilot Valve（L）
1081001743 O型圈Φ13.8×2.4 O-Ring
1140103755 接头 Fitting
1081001720 O型圈Φ8×1.5 O-Ring
1140103760 过滤接头 Fitting
1081001512 O型圈Φ10.8×2.4 O-Ring
003004026A0001020 护套 Jacket
1140217204 胶管总成 Hose
1081001716 O型圈Φ6.5×1.5 O-Ring
1140103757 接头 Fitting
1010303778 缓冲组合阀 Buffer Valve
1140103731 接头 Fitting
1040000721 螺栓M12×25-10.9 Bolt
1040301022 垫圈12-300HV Washer
003011026A0001020 支架Ⅱ Bracket
1040301020 垫圈10-300HV Washer
1040001764 螺栓M10×20-10.9 Bolt
1140215422 胶管总成 Hose
1140103758 接头 Fitting
003010026A0001020 配油板 Oil Block
1081001743 O型圈Φ17.8×2.4 O-Ring
1140217197 胶管总成 Hose
1081003973 O型圈Φ12.5×2 O-Ring
1140103764 接头 Fitting
1040002561 螺栓M10×60-10.9 Bolt
1140215423 胶管总成 Hose
003010026A0001030 配油板 Oil Block
1040001278 螺栓M10×50-10.9 Bolt

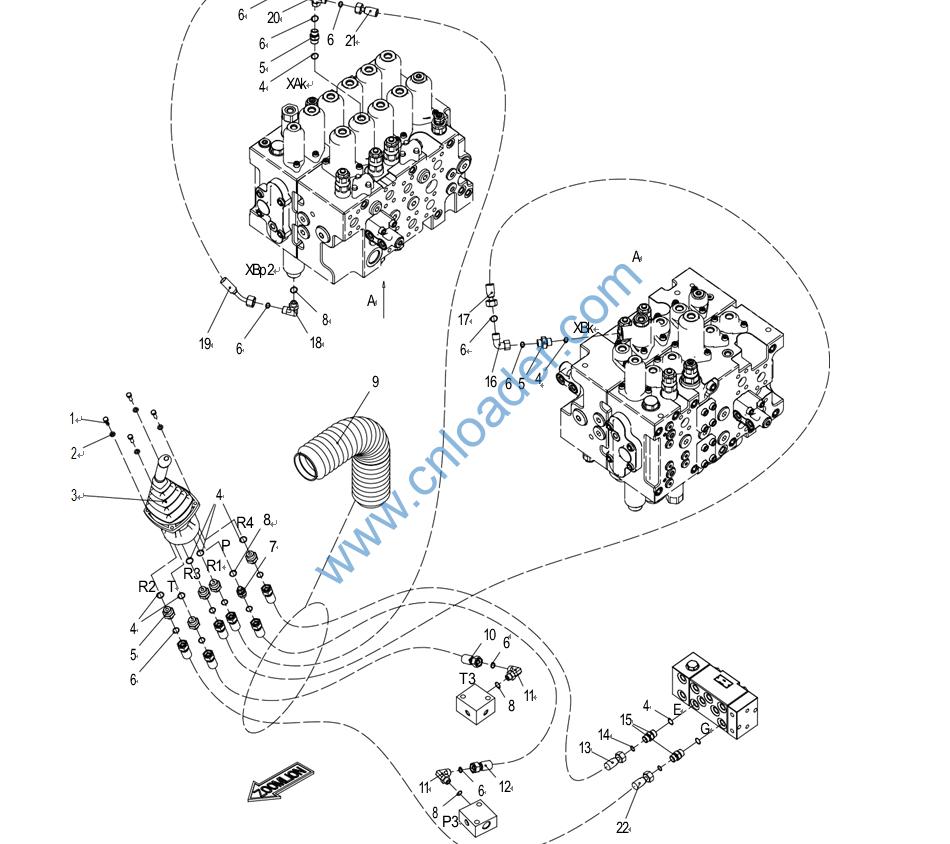

1040000076 螺栓M6×25-8.8 Bolt
1040300051 垫圈6-200HV Washer
1010306176 先导手柄阀(右) Pilot Valve（R）
1081001743 O型圈Φ13.8×2.4 O-Ring
1140103755 接头 Fitting
1081001720 O型圈Φ8×1.5 O-Ring
1140103760 过滤接头 Fitting
1081001512 O型圈Φ10.8×2.4 O-Ring
003004026A0001020 护套 Jacket

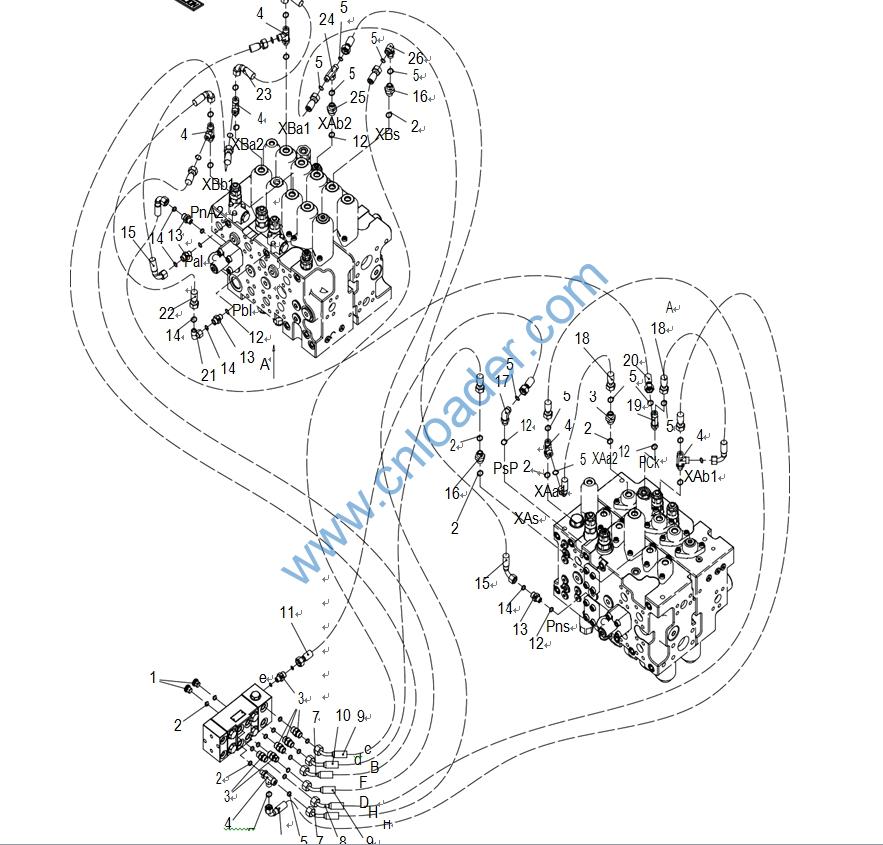

1140217210 胶管总成 Hose
1140103994 接头 Fitting
1140215429 胶管总成 Hose
1140250433 胶管总成 Hose
1081001716 O型圈Φ6.5×1.5 O-Ring
1140103757 接头 Fitting
1140105034 接头 Fitting
1140240759 胶管总成 Hose
1140103994 接头 Fitting
1140251360 胶管总成 Hose
1140104176 接头 Fitting
1140250254 胶管总成 Hose
1140217204 胶管总成 Hose
003011526A1600000 右操纵手柄 Joy Stick (R)
003011526A1400000 左操纵手柄 Joy Stick (L)
1040301020 垫圈10-300HV Washer
1040001764 螺栓M10×20-10.9 Bolt

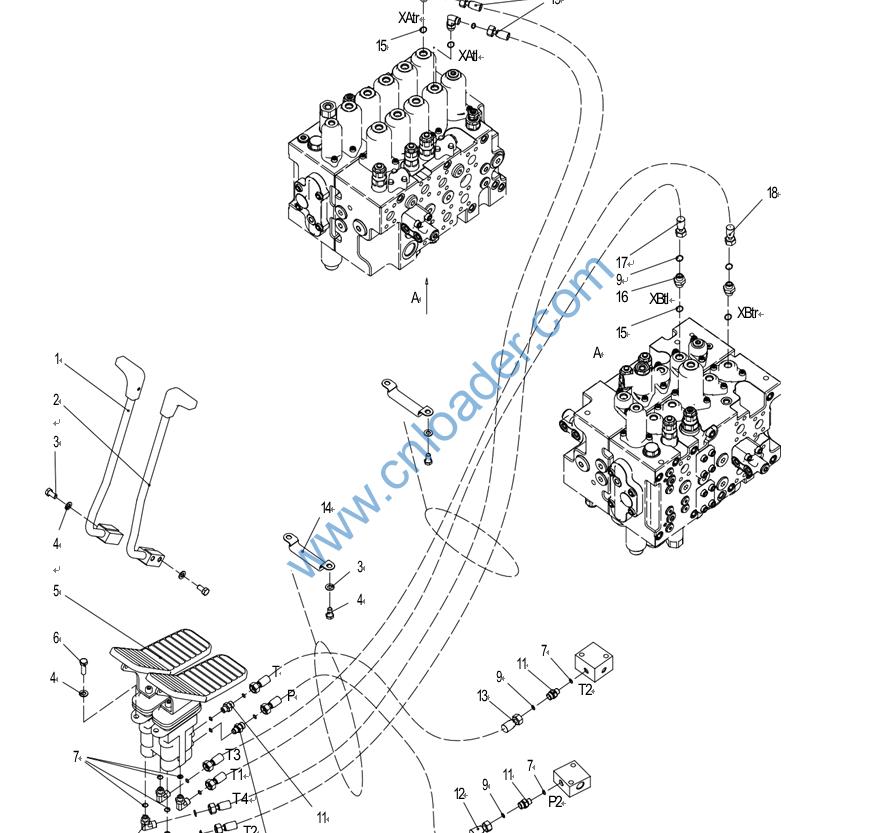

1010306117 行走先导阀 Pilot Valve
1040000366 螺栓M10×35-10.9 Bolt
1081001512 O型圈Φ10.8×2.4 O-Ring
1140103994 接头 Fitting
1081001720 O型圈Φ8×1.5 O-Ring
1140103760 接头 Fitting
1140103758 接头 Fitting
1140217171 胶管总成 Hose
1140217208 胶管总成 Hose
003004026A1200000 管夹 Clamp
1081001743 O型圈Φ13.8×2.4 O-Ring
1140103755 接头 Fitting
1140250255 胶管总成 Hose
1140250253 胶管总成 Hose
1140250254 胶管总成 Hose
1140104011 接头 Fitting
1140105443 堵头
1081001743 O型圈Φ13.8×2.4 O-Ring
1140103755 接头 Fitting
1140103993 接头 Fitting
1081001720 O型圈Φ8×1.5 O-Ring
1140250607 胶管总成 Hose
1140250611 胶管总成 Hose
1140250609 胶管总成 Hose
1140250610 胶管总成 Hose
1140250608 胶管总成 Hose
1140251857 胶管总成 Hose
1081001512 O型圈Φ10.8×2.4 O-Ring
1140103739 接头 Fitting
1081001716 O型圈Φ6.5×1.5 O-Ring
1140250256 胶管总成 Hose
1010306437 缓冲节流阀 Orifice
1140103994 接头 Fitting
1140250260 胶管总成 Hose
1140104012 接头 Fitting
1140250259 胶管总成 Hose
1140105767 接头 Fitting
1140250612 胶管总成 Hose
1140250257 胶管总成 Hose
1140104176 接头 Fitting
1140103758 接头 Fitting
1140105034 接头 Fitting

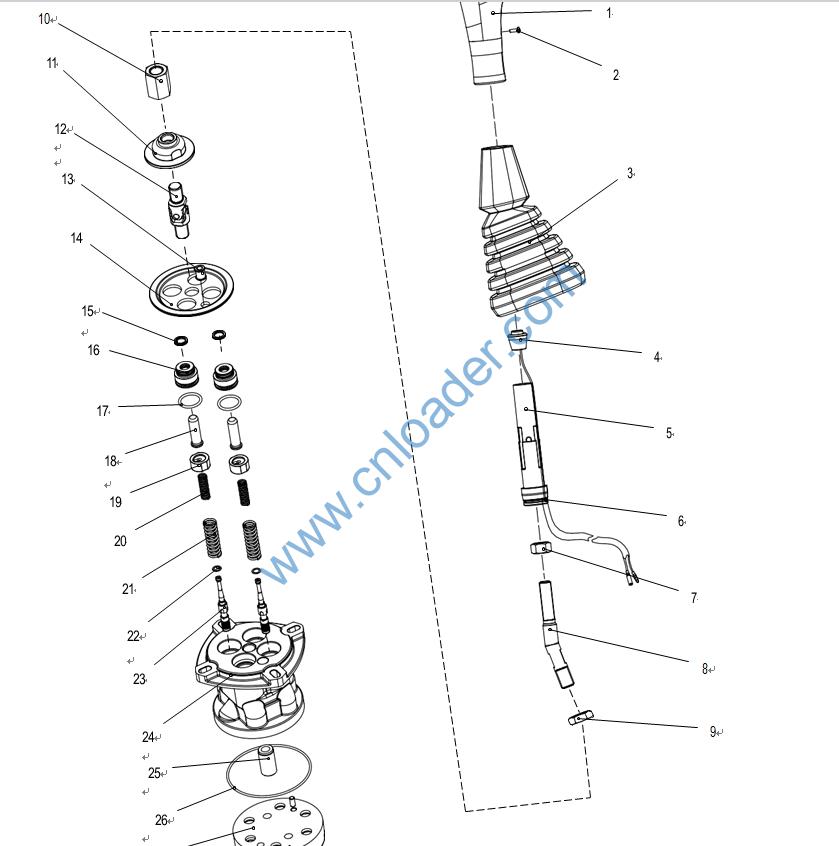

1019807966 喇叭手柄 Handle
1040102797 十字盘头自攻螺钉
ST2.9×8 Screw
1149901803 波纹管 Bellows
1020521040 按钮开关组件 Button Switch Ass’y
1019807968 手柄芯 Handle Core
1990200679 扎带 Tie
1040201512 螺母 Nut
1019807970 手柄螺杆 Handle Bolt
1040200760 螺母 Nut
1019807971 连接头 Fitting
1019807972 顶盖 Cover
1019807973 万向节 Universal Joint
1029906626 电线护套 Sheath
1019807960 压板 Plate
1019807961 Y形圈 Y-Ring
1019807962 顶杆座 Eiector Pin Seat
1081006475 O形圈φ19.8×2.4 O-Ring
1019807963 顶杆 Eiector Pin
1119800207 弹簧座 Spring Seat
1119900080 弹簧 Spring
1119900081 弹簧 Spring
1019807964 垫片 Washer
1019807965 阀杆 Spool
1010306292 阀体 Casing
1019807974 轴套 Bushing
1081006477 O形圈φ84×2 O-Ring
1039800634 弹性圆柱销 Pin
1019807976 阀盖 Cover
1040302543 组合垫圈 Washer
1040102796 内六角圆柱头螺钉
M8×35 Screw

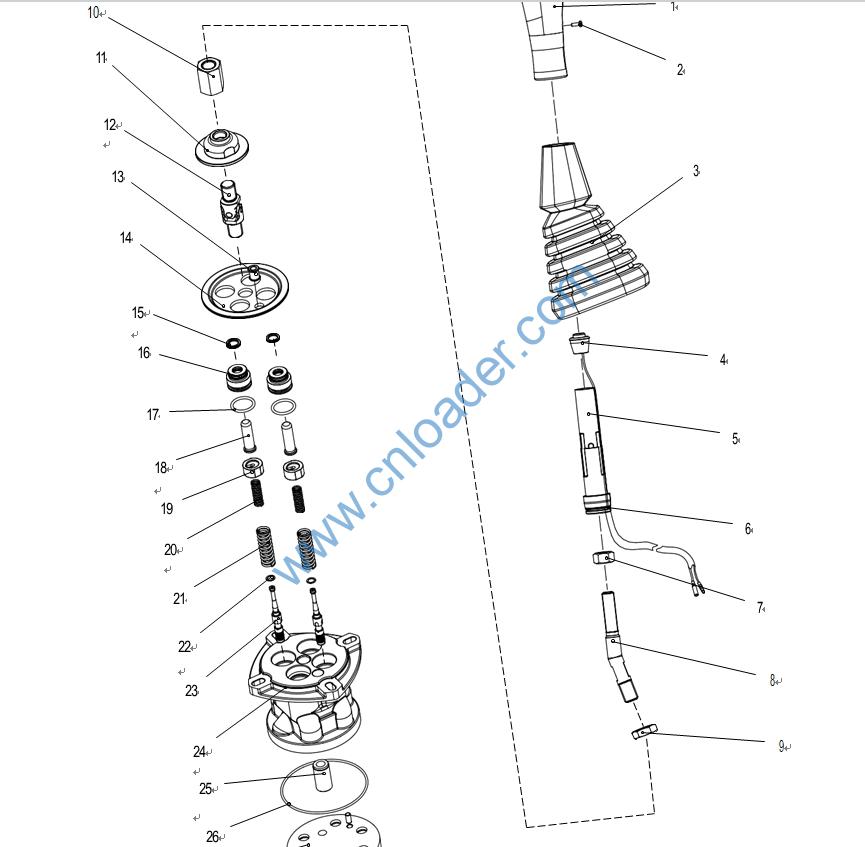

1019807975 空白手柄 Handle
1040102797 十字盘头自攻螺钉
ST2.9×8 Screw
1149901803 波纹管 Bellows
1020521040 按钮开关组件 Button Switch Ass’y
1019807968 手柄芯 Handle Core
1990200679 扎带 Tie
1040201512 螺母 Nut
1019807970 手柄螺杆 Handle Bolt
1040200760 螺母 Nut
1019807971 连接头 Fitting
1019807972 顶盖 Cover
1019807973 万向节 Universal Joint
1029906626 电线护套 Sheath
1019807960 压板 Plate
1019807961 Y形圈 Y-Ring
1019807962 顶杆座 Eiector Pin Seat
1081006475 O形圈φ19.8×2.4 O-Ring
1019807963 顶杆 Eiector Pin
1119800207 弹簧座 Spring Seat
1119900080 弹簧 Spring
1119900081 弹簧 Spring
1019807964 垫片 Washer
1019807965 阀杆 Spool
1010306292 阀体 Casing
1019807974 轴套 Bushing
1081006477 O形圈φ84×2 O-Ring
1039800634 弹性圆柱销 Pin
1019807976 阀盖 Cover
1040302543 组合垫圈 Washer
1040102796 内六角圆柱头螺钉
M8×35 Screw

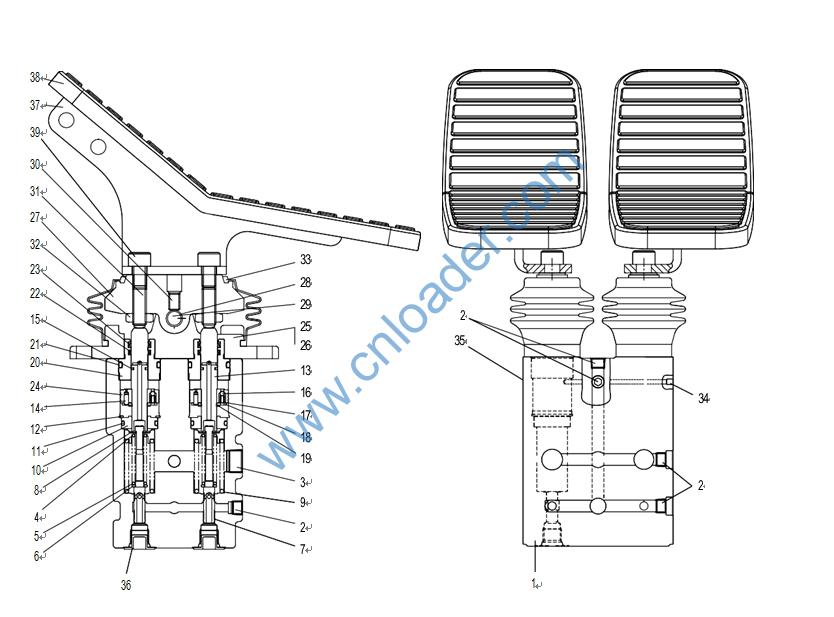

1010306284 阀体 Body
1049900455 螺堵 Plug
1049900456 螺堵 Plug
1019807952 弹簧座 Spring Seat
1119900077 弹簧 Spring
1019807953 弹簧座 Spring Seat
1010306285 滑阀 Spool
1040302536 限位垫圈 Stopper
1119900078 弹簧 Spring
1019807954 导杆 Rod Guide
1081006473 O型圈 O-Ring
1019807955 卡环 Snap Ring
1019807956 推杆 Push Rod
1049900458 弹簧销 Spring Pin
1081006474 密封圈 Seal
1019807957 钢球 Steel Ball
1119900079 弹簧 Spring
1019807958 板 Plate
1019807943 卡环 Snap Ring
1040004701 螺堵 Plug
1081006471 O型圈 O-Ring
1081006472 活塞杆密封圈 Rod Seal
1081201234 防尘圈 Dust Seal
1019807944 活塞 Piston
1019807945 罩盖 Cover
1019807946 轴套 Bushing
1040004702 螺栓 Wrench Bolt
1019807947 凸轮 Cam
1019807948 凸轮轴 Cam Shaft
1040102794 定位螺钉 Set Screw
1040102795 定位螺钉 Set Screw
1040201906 六角螺母 Hex Nut
1149901802 波纹管 Bellows
1049900454 工艺堵 Expand
1019807949 铭牌 Name Plate
1089900695 密封盖 Cap
1019807950 踏板 Pedal
1019807951 罩盖 Cover
1040004703 螺栓 Wrench Bolt

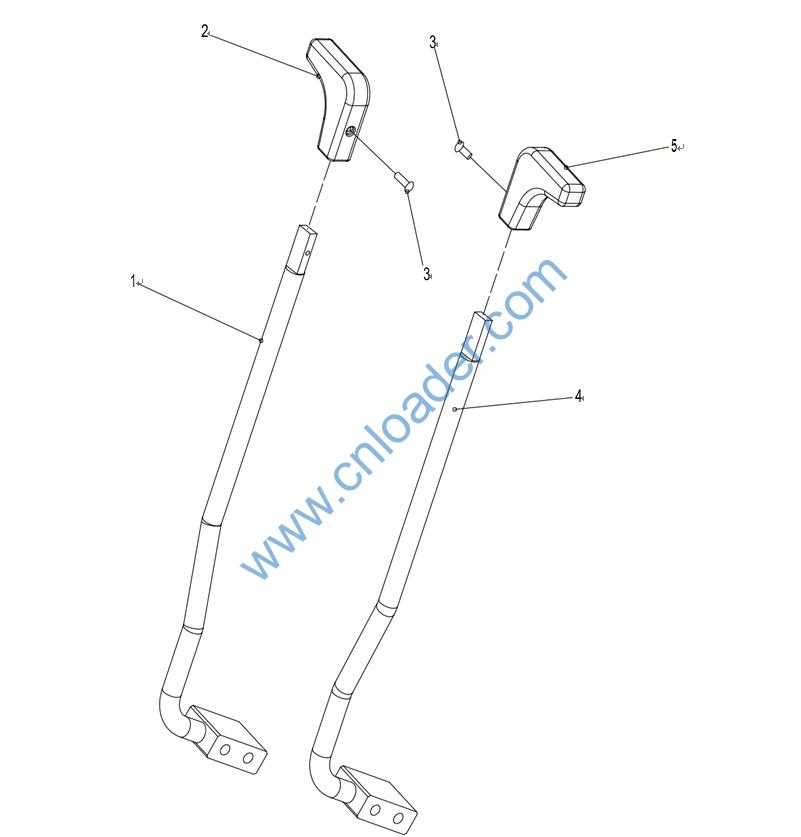

003011526A1610000 右杆 Rod（R）
1031700125 手柄（右） Handle（R）
1040100863 螺钉 M4×12-5.8 Screw
003011526A1410000 左杆 Rod（L）
1031700124 手柄（左） Handle （L）
