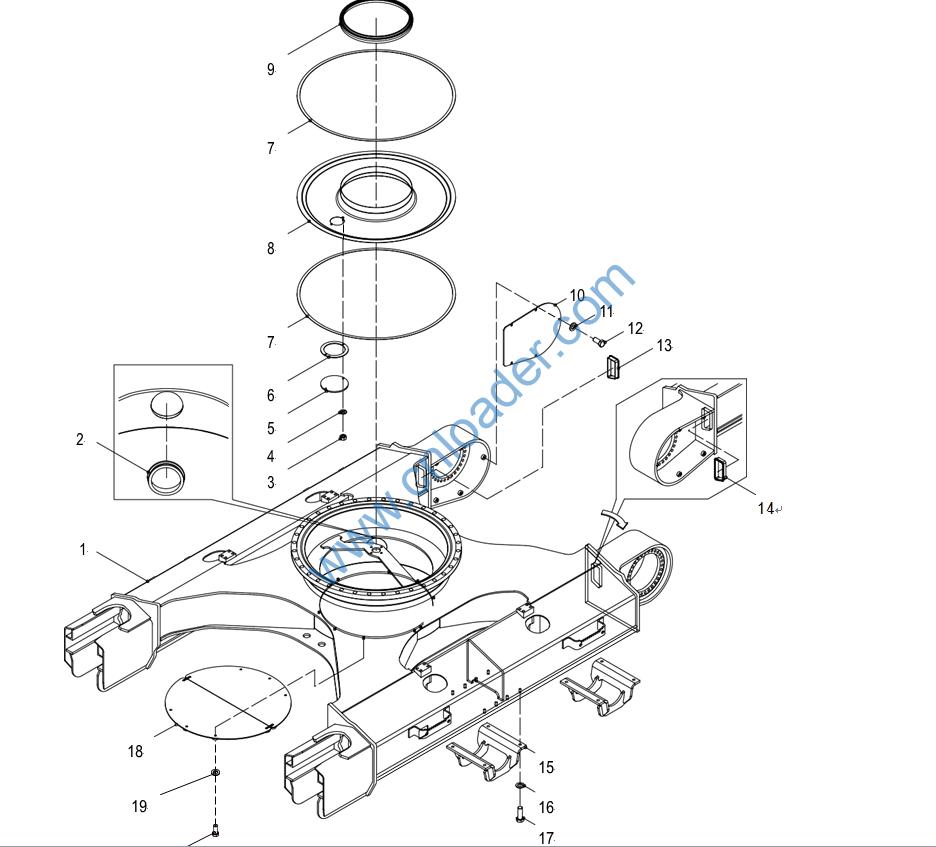

Track Frame Ass’y 003011017A0000000
003011017A0200000 履带架 Track Frame
003001017A0001070 护环 Grommet
1040200192 螺母 M8-8 Nut
1040300066 垫圈 8-200HV Washer
003011017A0001030 盖板 Cover
003011017A0001020 橡胶垫 Gasket
003011017A0001040 胶条 Strip
003011017A0600000 板 Plate
003001017A0001050 密封条 Sealing Strip
003011017A0001010 板 Plate
1040301022 垫圈 12-300HV Washer
1040000721 螺栓 M12×25-10.9 Bolt
003011017A0001050 护环 Grommet
003011017A0001060 护环 Grommet
003011017A0800000 夹轨器 Guard
1040300600 垫圈 16-35～45HRC Washer
1040001029 螺栓 M16×50-10.9 Bolt
003011017A0400000 封板 Plate

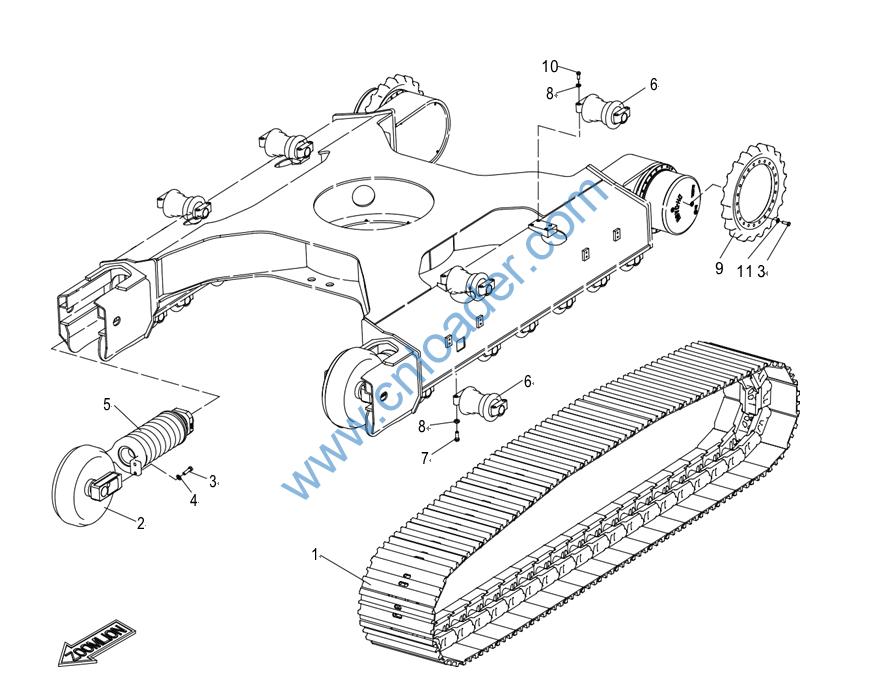

Crawler Unit 003011018B0000000
1031400606 履带总成（600） Track Shoe Ass’y
1031400607 履带总成（700） Track Shoe Ass’y
1031400608 履带总成（800） Track Shoe Ass’y
1032300193 引导轮 Idler
1031400300 引导轮 Idler
1040001727 螺栓 M16×60-10.9 Bolt
1040300600 垫圈 16-35～45HRC Washer
1039900274 涨紧装置 Idler Cushion
1039903813 涨紧装置 Idler Cushion
1031400179 支重轮 Track Roller
1031400298 支重轮 Track Roller
1040300611 垫圈 18-35～45HRC Washer
1040001366 螺栓 M18×85-10.9 Bolt
1031400423 驱动轮 Sprocket
1040001793 螺栓 M18×80-10.9 Bolt
003001029A0001010 垫圈 16 Washer

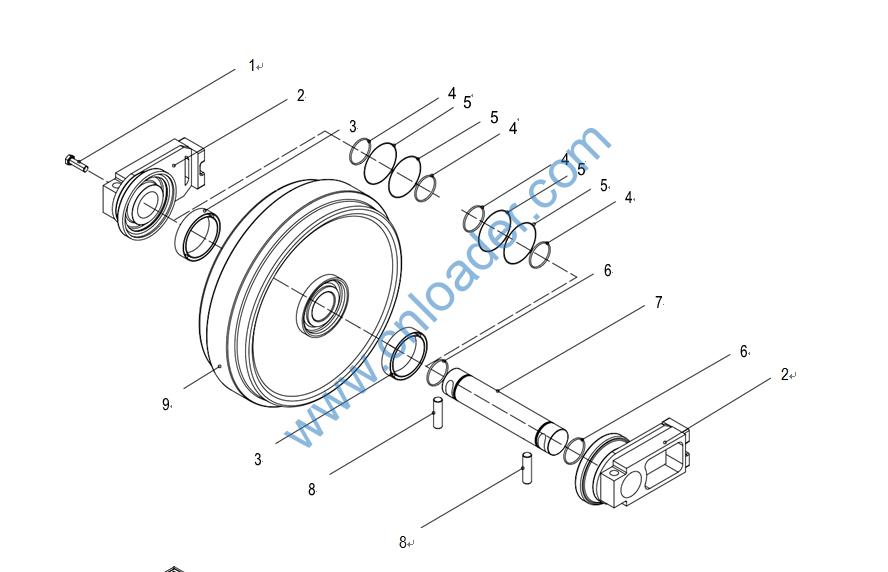

1039800328 螺堵 Plug
1039800325 支架 Bracket
1039800321 轴套 Bushing
1039800324 浮封胶圈 Floating Seal Strip
1039800323 浮封环 Floating Seal Ring
1081000077 O形圈 O-Ring
1039800322 轴 Shaft
1039800326 销 Pin
1039800320 引导轮体 Idler Body

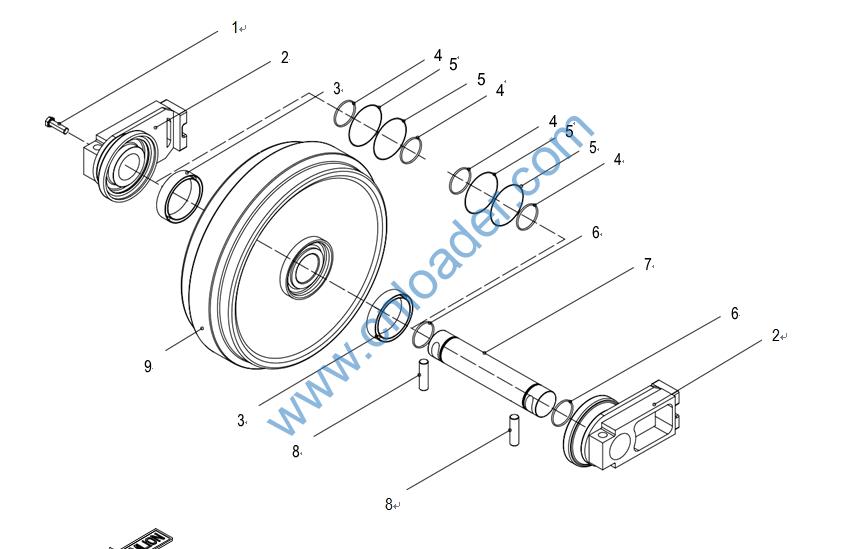

1039800328 螺堵 Plug
1039805778 支架 Bracket
1039805779 轴套 Bushing
1081003879 浮封胶圈 Floating Seal Strip
1089900469 浮封环 Floating Seal Ring
1081001431 O形圈 O-Ring
1039805777 轴 Shaft
1039805781 销 Pin
1039805780 引导轮体 Idler Body

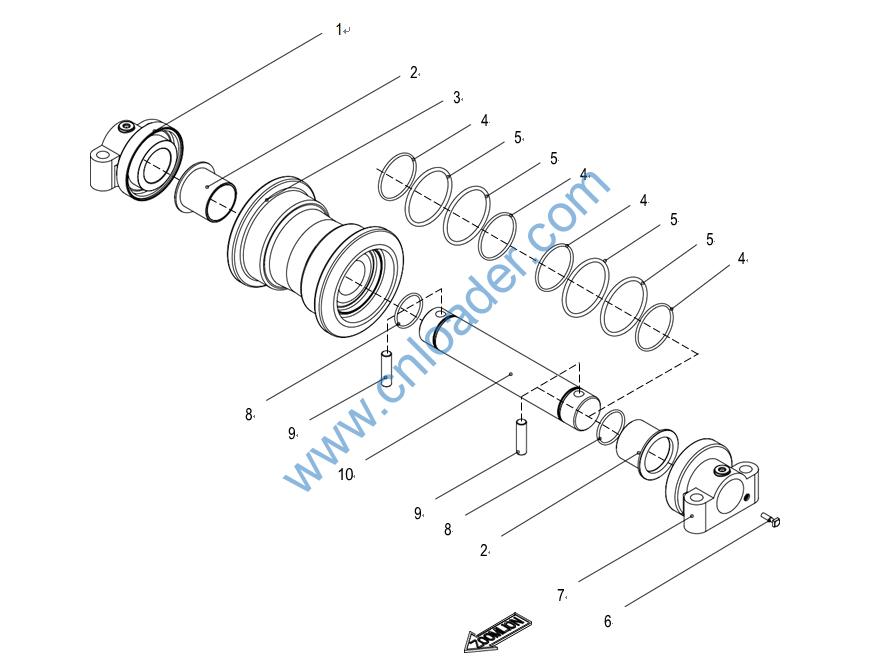

1039800343 内轴座 Inside Pedestal
1039800345 轴套 Bushing
1031400419 支重轮体 Track Roller Body
1039800348 浮封胶圈 Floating Seal Strip
1039800347 浮封环 Floating Seal Ring
1039800101 堵头 Plug
1039800344 外轴座 Out Pedestal
1039800349 O形圈 O-Ring
1039800346 圆柱销 Pin
1039800342 支重轮轴 Shaft
1039805789 内轴座 Inside Pedestal
1039805786 轴套 Bushing
1039805787 支重轮体 Track Roller Body
1039805784 浮封胶圈 Floating Seal Strip
1039805785 浮封环 Floating Seal Ring
1039804448 堵头 Plug
1039805782 外轴座 Out Pedestal
1039805783 O形圈 O-Ring
1039805790 圆柱销 Pin
1039805788 支重轮轴 Shaft

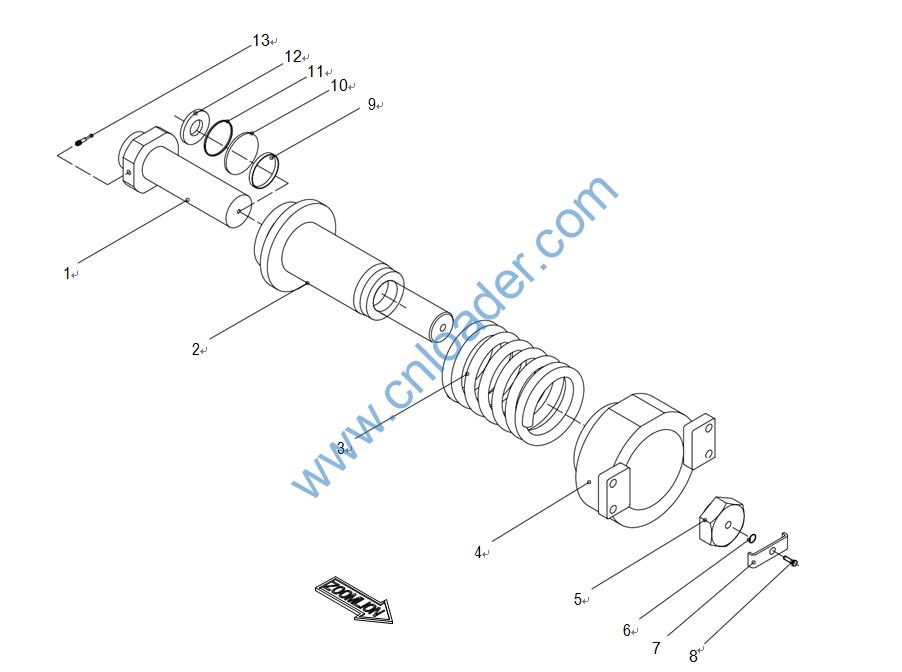

1039800359 顶杆 Rod
1039800364 缸体 Cylinder
1039800365 弹簧 Spring
1039800371 支座 Bracket
1039800367 拉杆 Bar
1039800368 螺母 Nut
1039800369 锁板 Locking Plate
1039800366 垫圈 Washer
1039800370 螺栓 Bolt
1040501334 销 Pin
1039800361 支撑环 Ring
1039800362 密封圈 Sealing Strip
1039800360 防尘圈 Dusting Ring
1039800237 注油阀 Valve

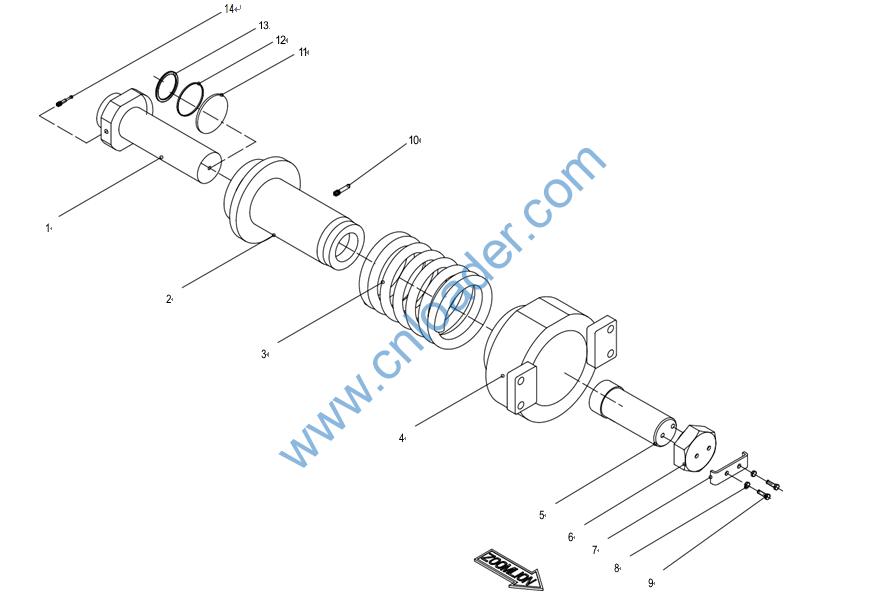

1019805247 柱塞轴 Piston Shaft
1019805244 油缸体 Cylinder
1019805245 弹簧 Spring
1019805243 叉环 Ring
1019805249 螺母 Nut
1040301479 垫圈 Washer
1019805248 锁板 Locking plate
1040003715 螺栓 Bolt
1040301269 挡圈 Collar
1081004343 密封圈 Sealing Strip
1081004344 修整圈 Trim Ring
1019805246 防尘圈 Dusting Ring
1010304688 注油阀 Valve

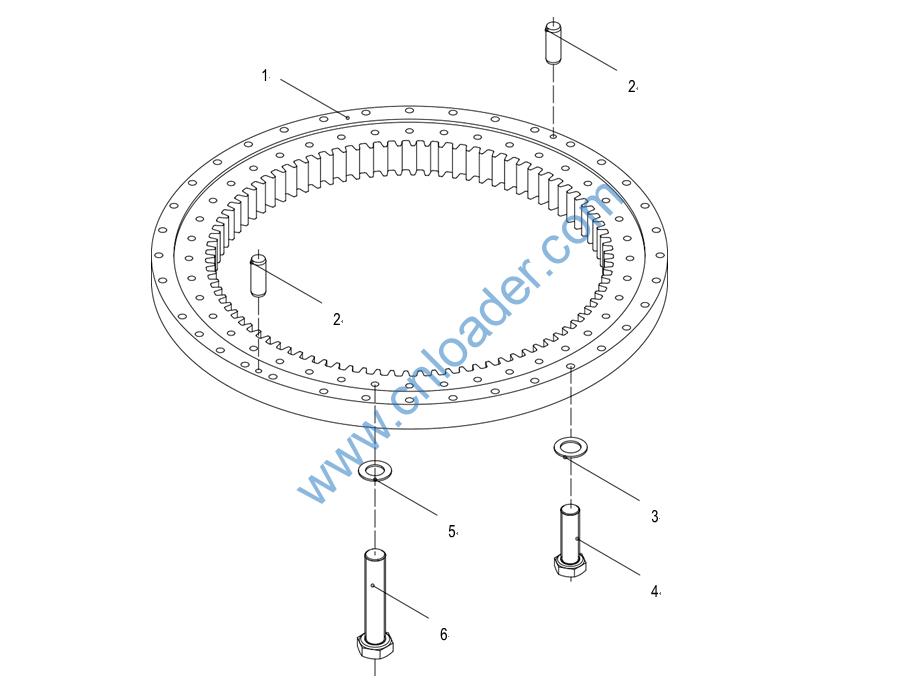

Swing Bearing Ass’y 003011019A0000000
1031500160 回转支承 Swing Bearing
003001019A0001010 销 Pin
003011019A0001010 垫圈 Washer
104001369 螺栓 M22×110-10.9 Bolt
003001024A0801020 垫圈 Washer
1040000756 螺栓 M20×70-10.9 Bolt

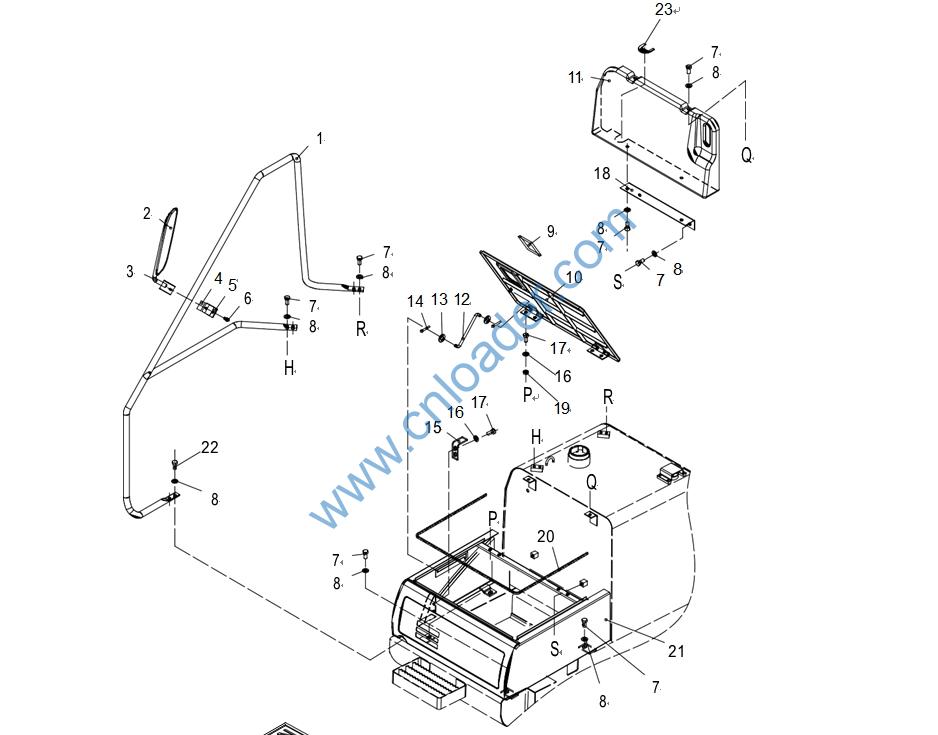

Battery Case Ass’y 003011020A0000000
003001020A0400000 扶手 Handrail
1139900681 后视镜 14″×7″ Mirror
003011020A0600000 支杆 Rod
003011020A0001020 防震垫 Cushion
003011020A0001010 管夹 Clip
1040100850 螺钉 M10×30-10.9 Screw
1040000490 螺栓 M12×30-10.9 Bolt
1040301022 垫圈 12-300HV Washer
1010304413 锁 Lock
003001020A0220000 盖 Cover
003011020A0400000 侧箱 Cover
003001020A0201070 撑杆 Rod
1040301031 垫圈 12-300HV Washer
1040500240 销 3.2×25 Pin
003001020A0201090 锁板 Plate
1040300066 垫圈 8-300HV Washer
1040000267 螺栓 M8×20-8.8 Bolt
003001020A0001010 弯板 Plate
1040200192 螺母 M8-10 Nut
003001020A0240000 压条 L=1765 Sealing Strip
003011020A0200001 电瓶箱体 Battery Box
1040000573 螺栓 M12×40-10.9 Bolt
003011020A0001030 压条 Sealing Strip
Fuel Tank Ass’y 003004221A0000000
003011021A0200001 燃油箱 Fuel tank
1000400137 盖 Cover
1000400138 滤网 Filter
1040000098 螺栓 M8×16-8.8 Bolt
1040300066 垫圈 8-200HV Washer
003001021A0001020 盖 Cover
1019900436 液位液温计 Level Indicator
003001021A0001010 垫片 Spacer
1040300600 垫圈 16-35～45HRC Washer
1040000444 螺栓 M16×35-10.9 Bolt
003004221A0200000 接头 Fitting
1081000054 组合密封垫圈 14 Sealing Rings
1010301933 阀 Valve
1081001522 O形圈 O-ring
003001021A0600000 吸油座 Seat
1040301020 垫圈 10-300HV Washer
1040000549 螺栓 M10×25-10.9 Bolt

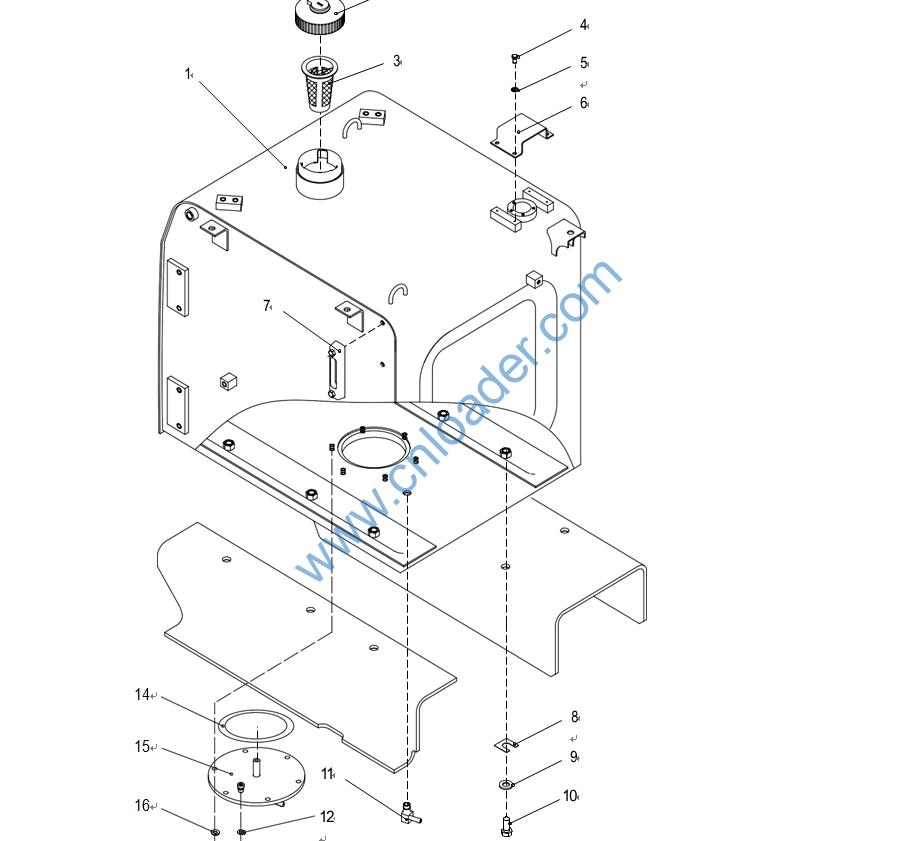

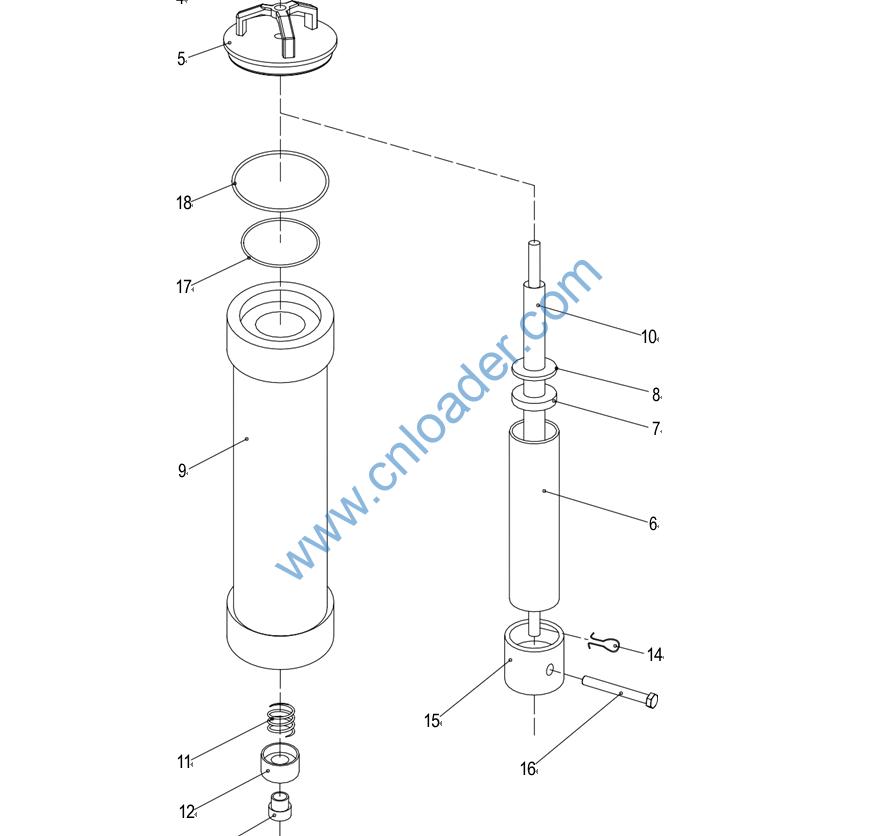

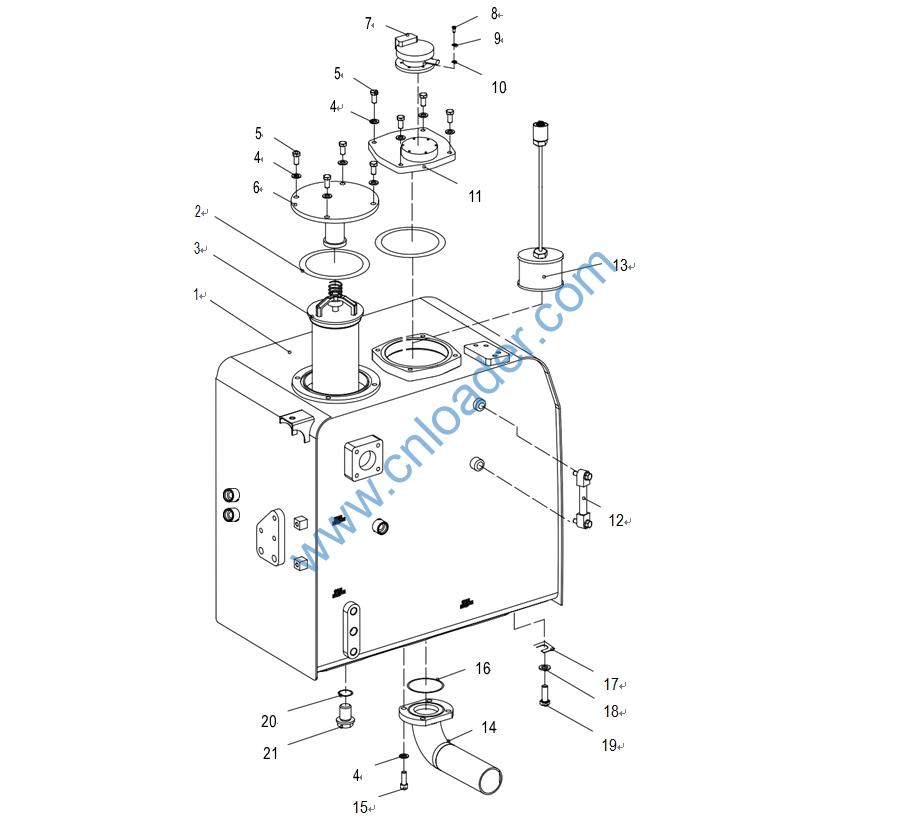

Hydraulic Tank Ass’y 003001322A0000000
003011622A0200000 液压油箱 Hydraulic Tank
1081001522 O形圈 Φ179.3×5.7 O-Ring
1000400184 回油过滤器 Return Filter
1040301022 垫圈 12-300HV Washer
1040000490 螺栓 M12×30-10.9 Bolt
003011022A0400000 盖板 Cover
1009900967 空气过滤器 Air Filter
1040100057 螺钉 M5×12-4.8 Bolt
1040300048 垫圈 5-200HV Bolt
1040300060 垫圈 5 Cover
003011022A0600000 加油口盖 Cover

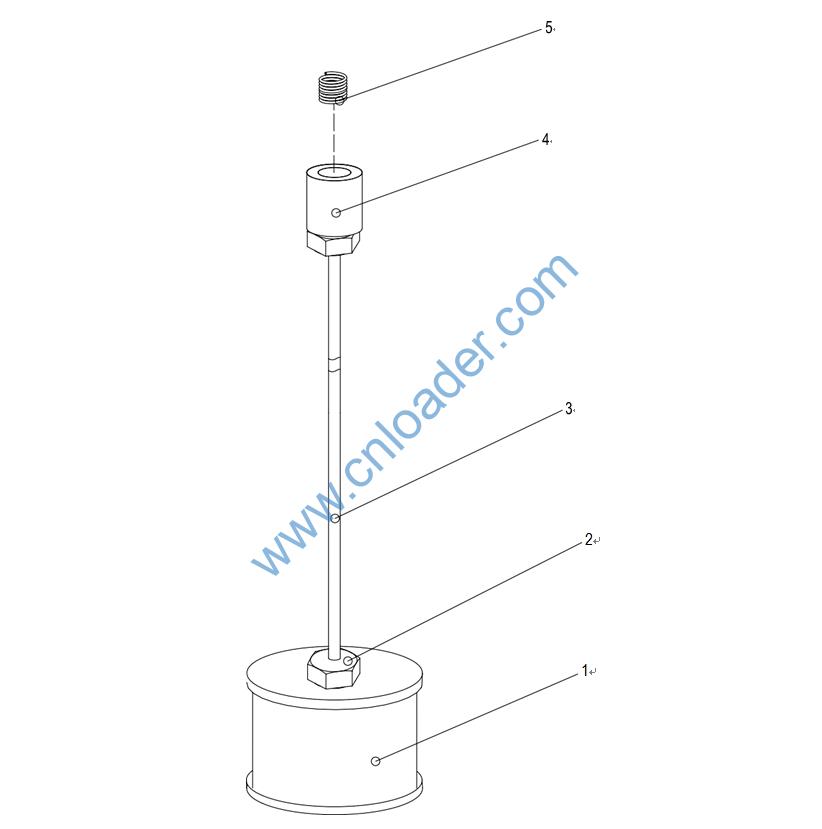

1019901471 液位计 Liquidometer
1010600409 吸油过滤器 Suction Filter
003001322A0200000 吸油管 Suction Pipe
1040000575 螺栓 M12×35-10.9 Bolt
1081001389 O形圈 Φ94.4×3.1 O-Ring
003001021A0001010 垫片 Spacer
1040300600 垫圈 16-35～45HRC Washer
1040000444 螺栓 M16×35-10.9 Bolt
1081001506 O形圈 Φ21.2×3.55 O-Ring
1049900093 螺堵 Plug
1010600438 吸油滤芯 Filter Element
1019803306 螺母 Nut
1019803311 连杆 Rod
1019803304 螺母 Nut
0501021020 弹簧 Spring
1019801884 压紧弹簧 Spring
1040201149 螺母 M10 Nut
1040200178 螺母 M10-10 Nut
1040301657 垫圈 10 Washer
1019801885 滤芯压座 Holder
1019801886 磁环套 Sleeve
1019801887 磁环 Magnetic Ring
1019801888 磁环垫 Magnetic Ring Pad
1010600437 回油滤芯 Return Filter Element
1019801889 连杆 Rod
1019801890 旁通阀弹簧 Byway Valve Spring
1019801891 旁通阀弹簧座 Seat for Valve
1019801892 连接螺钉 Screw
1040501007 开口销 Pin
1019801893 磁环保护套 Sleeve
1040100355 螺钉 M6×55-8.8 Screw
1040301658 O形圈 O-Ring
1081000460 O形圈 O-Ring
Main Pump Lines 003001323A0000000
