1040000575 螺栓M12×35-10.9 Bolt
1040302140 垫圈
12-36HRC～41HRC Washer
004908001B0600000 支架 Bracket
200470000 低碳钢丝φ1.6 Wire
004904001A0001070 螺栓 Bolt
004904001A0001080 座 Seat
004904001A0001090 橡胶衬套 Bushing
004904001A0001100 垫片 Washer
004904001A4200000 前垫片组 Front Shim Ass’y

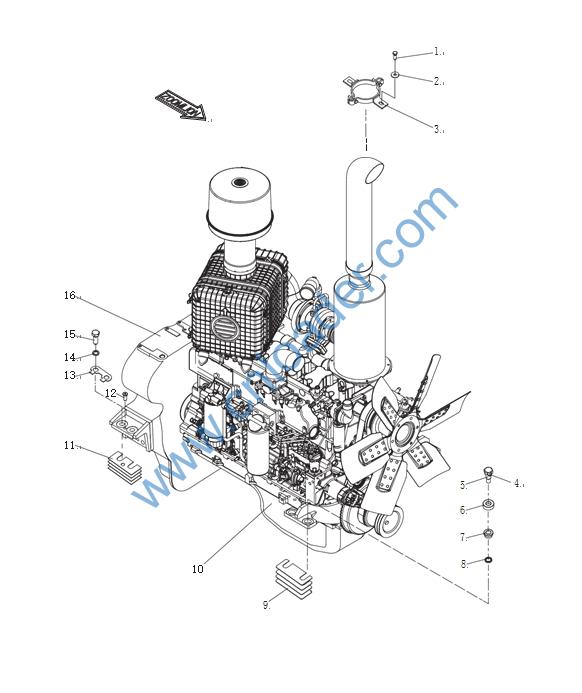

1000000597 发动机 WP10G178E355
004903001A0200000 垫片组 Shim Ass’y
004903001A0001040 定位销 Dowel Pin
004903001A0001020 锁片 Lock Plate
004904001A0001170 垫圈 Washer
1040000439 螺栓M20×55-10.9 Bolt
004904001A1400000 动力输出装置 Power Take-Off
1040200325 螺母M12-10 Nut
004908001B0001050 板 Plate
004908001B0001060 橡胶套 Rubber Bush
1040000490 螺栓M12×30-10.9 Bolt
1040302140 垫圈
12-36HRC～41HRC Washer
004908001B0400000 支架 Bracket
1040000574 螺栓M10×30-10.9 Bolt
1040302144 垫圈
10-36HRC～41HRC Washer
004908001B0800000 支座 Bracket

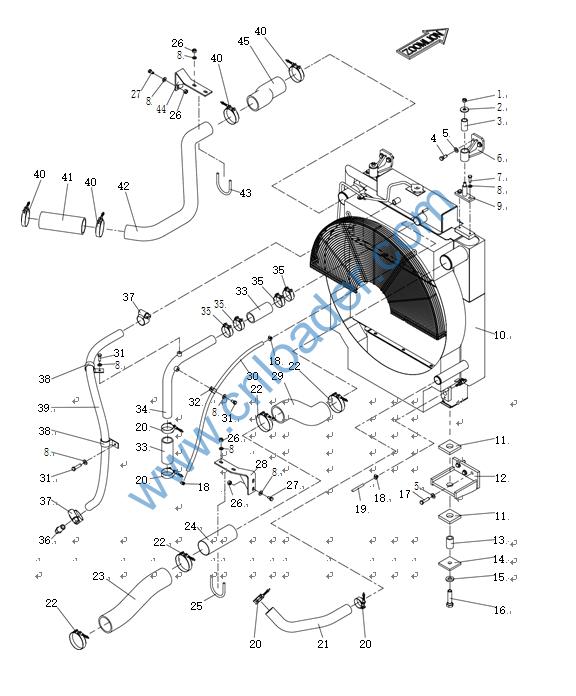

1000300622 复合冷却器 ComplexRadiator Ass’y
004910003A0001060 橡胶板 Rubber Plate
004908001B0200000 支座 Bracket
004910003A0001040 套 Sleeve
004908001B0001070 垫板 Plate
1040302150 垫圈
20-36HRC～41HRC Washer
1040000956 螺栓M20×80-10.9 Bolt
1040000575 螺栓M12×35-10.9 Bolt
1990200689 卡箍φ11～φ20 Clamp
004908001B0001040 软管φ9×1.5×500 Hose
1990201316 T型卡箍 Type T Clamp
004908001B0001030 胶管 Hose
1990202168 T型卡箍φ89-φ97 Type T Clamp
004908001B0001190 胶管 Hose
004908001B0001200 管 Tube
004908001B0001020 U型螺栓M10 Type U Bolt
1040001764 螺栓M10×20-10.9 Bolt
1040201646 螺母M10 Nut
004908001B0001010 板 Plate
1149901105 冷却液连接胶管 Hose
004908001B0001150 管 Tube
1009801528 卡箍 Clamp
004908001B0001170 胶管 Hose
1990201657 连胶条 Clip
004908001B0001160 软管 Hose
004904001A0001150 补水管二通接头 Joint
1990201952 环箍Q67645 Clamp
004908001B0001140 补水管 Hose
1990201263 连胶条25-φ35-M10 Clip
1990202167 T型卡箍 Clamp
004908001B0001090 胶管 Hose
004908001B0001100 进气管 Tube
004908001B0001120 U型螺栓M10 Bolt
004908001B0001110 板 Plate
004908001B0001130 胶管 Hose

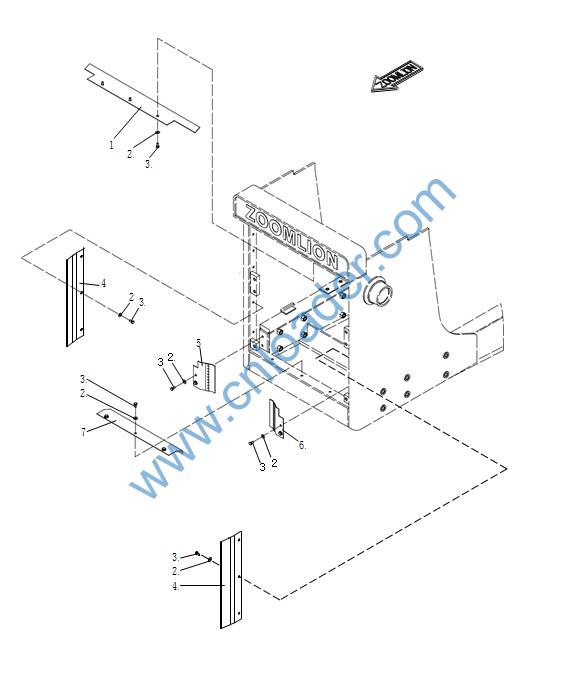

004908001B1600000 上挡风板 Wind Guard
1040302144 垫圈
10-36HRC～41HRC Washer
1040001764 螺栓M10×20-10.9 Bolt
004908001B1800000 右挡风板 Wind Guard
004908001B2000000 右下挡风板 Wind Guard
004908001B1000000 左下挡风板 Wind Guard
004908001B0001080 下挡风板 Wind Guard
004908001B1400000 左上挡风板 Wind Guard
004908001B1200000 左挡风板 Wind Guard
1040200325 螺母M12-10 Nut
004908001B0001050 板 Plate
004908001B0001060 橡胶套 Rubber Bush
1040000490 螺栓M12×30-10.9 Bolt
1040302140 垫圈
12-36HRC～41HRC Washer
004908001B0400000 支架 Bracket
1040000574 螺栓M10×30-10.9 Bolt
1040302144 垫圈
10-36HRC～41HRC Washer
004908001B0800000 支座 Bracket

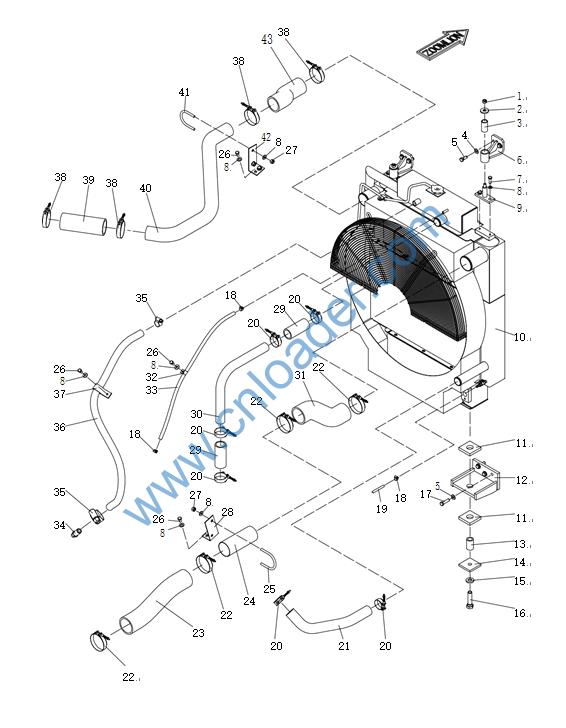

1000300622 复合冷却器 ComplexRadiator Ass’y
004910003A0001060 橡胶板 Rubber Plate
004908001B0200000 支座 Bracket
004910003A0001040 套 Sleeve
004908001B0001070 垫板 Plate
1040302150 垫圈
20-36HRC～41HRC Washer
1040000956 螺栓M20×80-10.9 Bolt
1040000575 螺栓M12×35-10.9 Bolt
1990200689 卡箍φ11～φ20 Clamp
004908001B0001040 软管φ9×1.5×500 Hose
1990201316 T型卡箍 Type T Clamp
004908001B0001030 胶管 Hose
1990202168 T型卡箍φ89-φ97 Type T Clamp
004908001B0001190 胶管 Hose
004908001B0001180 管 Tube
004908001B0001020 U型螺栓M10 Type U Bolt
1040201646 螺母M10 Nut
1040000366 螺栓M10×35-10.9 Bolt
004908201A0200000 支架 Bracket
004908001B0001170 胶管 Hose
004908201A0001030 软管 Hose
1040001764 螺栓M10×20-10.9 Bolt
1990201657 连胶条 Clip
1149901105 冷却液连接胶管 Hose
004908201A0800000 管 Hose
1009801528 卡箍 Clamp
004904001A0001150 补水管二通接头 Joint
1990201952 环箍 Clamp
1990201263 连胶条 Clip
004908201A0001020 补水管 Hose
1990202167 T型卡箍 Clamp
004908001B0001090 胶管 Hose
004908001B0001100 进气管 Tube
004908001B0001120 U型螺栓M10 Bolt
004908201A0600000 支架 Bracket
004908001B0001130 胶管 Hose

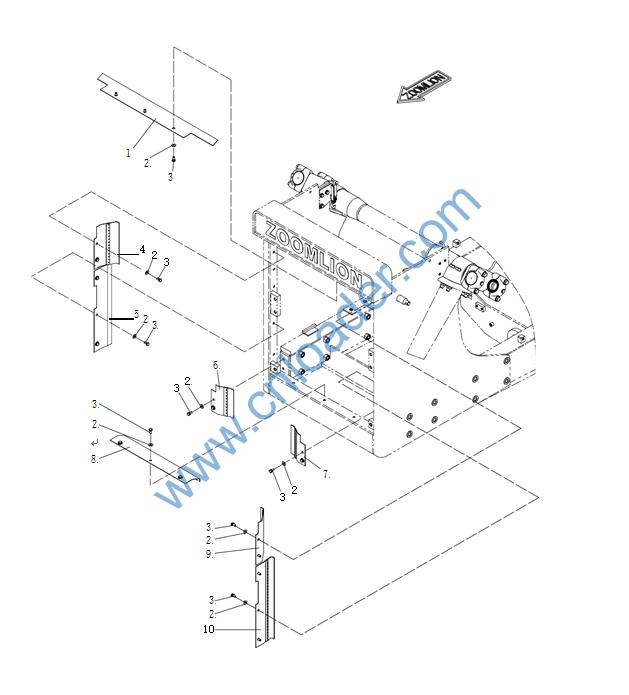

004908001B1600000 上挡风板 Wind Guard
1040302144 垫圈
10-36HRC～41HRC Washer
1040001764 螺栓M10×20-10.9 Bolt
004908201B0400000 侧挡风板 Wind Guard
004908001B2200000 右下挡风板 Wind Guard
004908001B1000000 左下挡风板 Wind Guard
004908201A0001080 下挡风板 Wind Guard

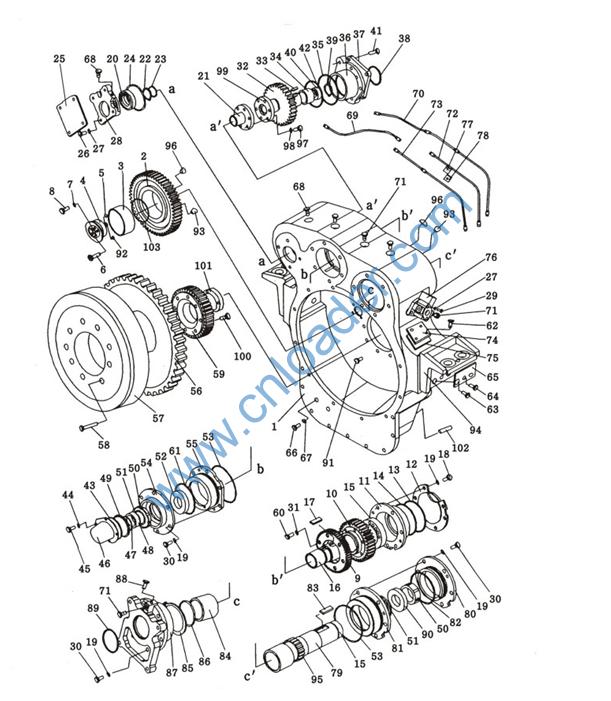

004904001A1401010 飞轮壳 Flywheel Housing
004904001A1401020 惰性齿轮 Idler
004904001A1410000 滚针轴承 Needle Bearing
004904001A1401030 轴 Shaft
1081001447 O形圈15×2.65 O-Ring
1040100855 螺钉M12×90-10.9 Bolt
004904001A1401460 弹簧垫圈 Spring Washer
1040000804 螺栓M16×60-8.8 Bolt
004904001A1401020 惰性齿轮 Idler
004904001A1401050 齿轮 Gear
004904001A1401060 轴承壳 Bearing Cage
004904001A1401070 轴承盖 Bearing Cover
1081001487 O形圈128×3.55 O-Ring
1081001488 O形圈109.6×5.7 O-Ring
1050200366 轴承2213 Bearing
004904001A1401080 轴 Shaft
1040600074 键18×63 Key
1040000094 螺栓M12×35-8.8 Bolt
1040300054 垫圈12 Spring Washer
1054500030 轴承208 Bearing
004904001A1401090 轴 Shaft
1040300096 挡圈40 Snap Ring
1081001403 O形圈74.4×3.1 O-Ring
1081001489 O形圈87.5×3.55 O-Ring
004904001A1401100 盖 Cover
1040000100 螺栓M10×40-8.8 Bolt
1040300067 垫圈10 Spring Washer
004904001A1401110 轴 承 壳 Bearing Cage
1040000090 螺栓M10×30-8.8 Bolt
1040000067 螺栓M12×45-8.8 Bolt
004904001A1401120 锁垫 Lock Washer
004904001A1401130 齿轮 Gear
1040600075 键12×36 Key
004904001A1401140 套 Bushing
1081001490 O形圈92.5×3.55 O-Ring
004904001A1401150 轴承壳 Bearing Cage
004904001A1401160 盖 Cover
1081001403 O形圈74.4×3.1 O-Ring
1040300017 挡圈45 Snap Ring
1054500031 轴承209 Bearing
1040000114 螺栓M10×25-8.8 Bolt
1040300576 挡圈85 Snap Ring
004904001A1401170 密封垫 Gasket
1040300062 垫圈6 Spring Washer
1040000096 螺栓M6×12-8.8 Bolt
004904001A1420000 盖 Cover
1081000649 O形圈40×3.55 O-Ring
004904001A1401180 套 Bushing
1081001491 油封PG60×80×12 Oil Seal
1040200654 圆螺母 Nut
1040300577 锁垫 Lock Washer
1054500032 轴承213 Bearing
1081001492 O形圈132×3.55 O-Ring
004904001A1401190 轴承盖 Bearing Cover
004904001A1401200 轴承壳 Bearing Cage
004904001A1401210 齿圈 Ring Gear
004904001A1401220 飞轮 Flywheel
004904001A1401230 飞轮螺栓 Flywheel Bolt
004904001A1401240 齿轮 Gear
1040001322 螺栓M10×1.25×40 Bolt
004904001A1401250 密封垫 Gasket
1040000098 螺栓M8×16-8.8 Bolt
1040000175 螺栓M20×50-8.8 Bolt
1040500525 销B14×34 Pin
004904001A1401260 锁垫 Lock Washer
1049900076 油塞M36×1.5 Oil Plug
1081001388 O-Ring
004904001A1401270 Bolt
004904001A1430000 Oil Pipe
004904001A1440000 Oil Pipe
004904001A1401280 Bolt
004904001A1450000 Oil Pipe
004904001A1460000 Oil Pipe
004904001A1401290 Cover
004904001A1401300 Gasket
004904001A1401310 Flange
004904001A1401320 Clip
004904001A1401330 Rubber Pad
004904001A1401340 Shaft
004904001A1401350 Bearing Cage
004904001A1401360 Bearing Cage
1081001488 O-Ring
1040600063 Key
004904001A1401370 Bushing
1040300181 Snap Ring
1081001486 O-Ring
004904001A1401380 Bearing Cage
1040300527 Washer
1081001459 O-Ring
1054500006 Bearing
1040000195 Bolt
1081001866 O-Ring
1049900080 Plug
004904001A1470000 Rear Bracket
004904001A1401390 Gear
1999900489 Plate
1040000267 Bolt
004904001A1401400 Lock Washer
004904001A1401410 Shaft
1040000575 Bolt
004904001A1401420 Bushing
004904001A1401430 Pin
004904001A1401450 Washer

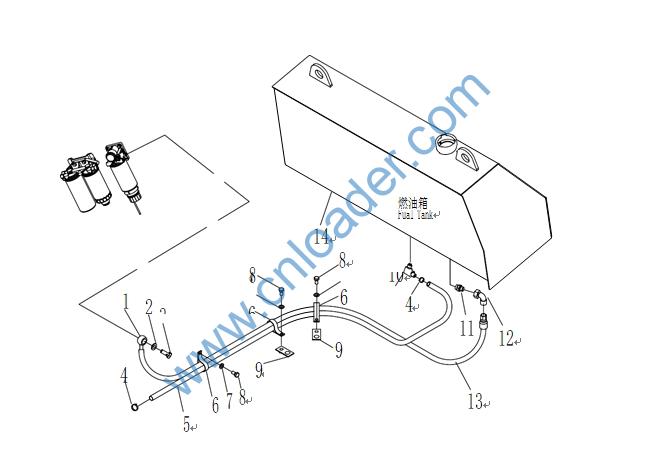

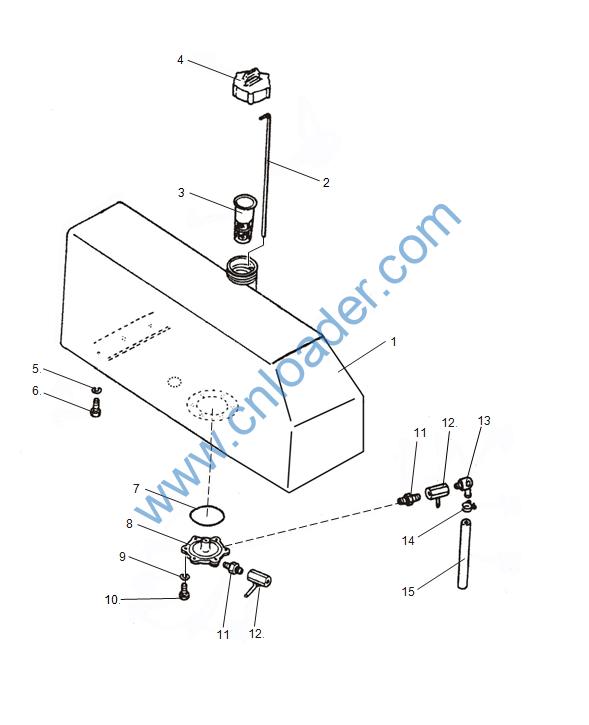

00490404A0600000 Fuel Tank
004904004A0001030 Oil Dipstick
1010500094 Filter Core
1999901357 Cover
1040301021 Washer
1040000699 Bolt
1081001472 O-ring
004904004A0001070 Flange
1040301020 Washer
1040000549 Bolt
004904004A0001060 Nipple
005001004A1000000 Valve
004904004A0001040 Elbow
1990200575 Clamp
1140210742 Rubber Pipe
004908004B0400000 Pipe
1999901320 Gasket
004908004B0001010 Link Bolt
1990201260 Clamp
004908004B0001030 Pipe
1990201840 Fixing Clamp
1040301020 Washer
1040001764 Bolt
004904004A0800001 Plate
004908004B0001020 Nipple
1140108523 Nipple
1140105785 Nipple
1140240217 Hose Ass’y
00490404A0600000 Fuel Tank
