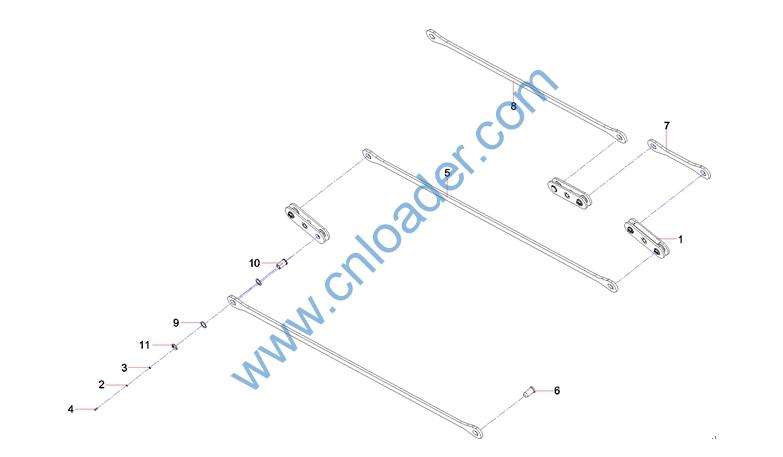

11893188 Pull plate joint
A210401000002 Washer 12GB93
A210405000001 Washer 12GB97.1
A210111000038 Bolt M12×30GB5783
11893176 Pull plate
11893177 Shaft
11893178 Pull plate
11893179 Pull plate
11893180 Thin washer
11893181 Pull plate pin
11893182 Baffle

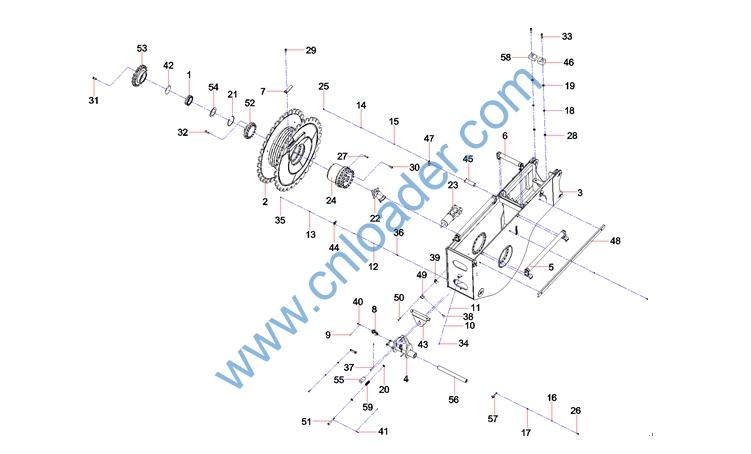

60016698 Rolling bearing 23024CC/W33GB288
11876547 Drum welding body L
11876590 Super hoisting frame L
11876596 Ratchet seat
11876599 Rope stop device
11876600 Front roller assembly
11876607 Pressure plate
11369368 Ratchet cylinder
A210501000023 Pin 3.2×25GB91
A210401000013 Washer 4GB93
A210405000004 Washer 4GB97.1
A210401000017 Washer 8GB93
A210405000007 Washer 8GB97.1
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210401000002 Washer 12GB93
A210405000001 Washer 12GB97.1
A210401000006 Washer 20GB93
A210405000008 Washer 20GB97.1
A210405000010 Washer 22GB97.1
A210416000013 Retaining ring 180GB893.1
B220501000480 Piston motor B
60097770 Wire rope 38×150m-1456-SZ-rotation Quick cable joint
60125550 Reducer JQ36-101-02
A210111000018 Bolt M10×25GB5783
A210111000039 Bolt M12×35GB5783
A210204000160 Screw M16×50GB70.1
A210307000005 Nut M20GB6170
A210204000270 Screw M20×35GB70.1 10.9 grade
A210204000233 Screw GB70.1 10.9 grade
A210111000221 Bolt
A210204000216 Screw M20×50GB70.1 10.9 grade
A210204000062 screw M20×70GB70.1
A210111000121 bolt M4×20GB5783
A210307000012 nut M8GB6170
A210111000090 bolt M8×25GB5783
10501855 shaft
10501879 handle ball
10025217 parallel double torsion spring
11793487 pin
11793491 pin
11715508 plastic baffle
11876511 pawl
11876512 sensor mounting plate
11876513 cylinder mounting shaft
11876514 nylon pad
11876515 Pressure plate
12096983 Wire duct
12133642 Baffle
12133542 Shaft
11876516 Round steel
11860517 Support shaft
11860518 Connecting flange
11876517 End cover
11876518 Connecting shaft
11876519 Long shaft
11876520 Card plate
11860519 Nylon pad
A210616000033 Spring × 16.5-GB2089

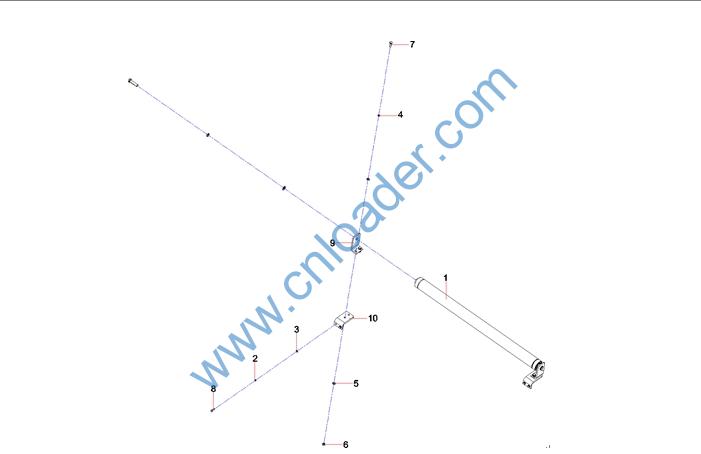

11587069 Rope support
A210401000017 Washer 8GB93
A210405000007 Washer 8GB97.1
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210307000017 Nut M10GB6170
A210111000025 Bolt M10×35GB5783
A210111000090 Bolt M8×25GB5783

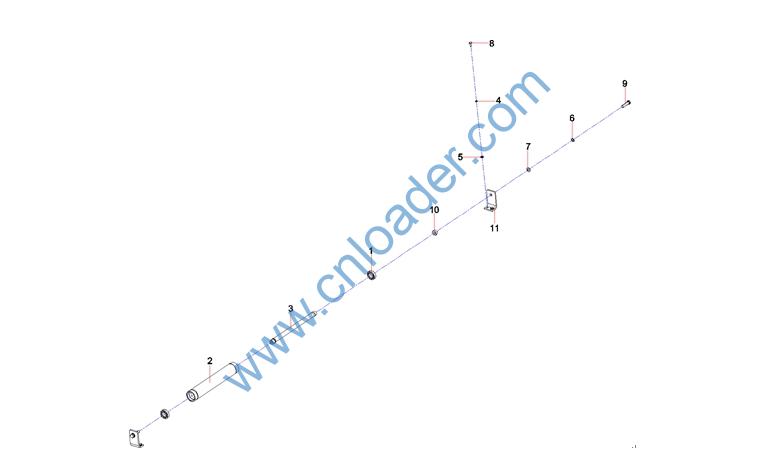

11876597 Bend plate 1
11876598 Bend plate 2
A210601000007 Rolling bearing
11587035 Roller
11587036 Mandrel
A210401000004 Washer 16GB93
A210402000042 Washer 16GB97.1 Stainless steel
A210111000056 Bolt M16×65GB5783 10.9 grade
10389516 Washer
A210601000007 Rolling bearing
11876602 Roller
11876604 Mandrel
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210401000004 Washer 16GB93
A210405000003 Washer 16GB97.1
A210111000011 Bolt M10×20GB5783
A210111000290 Bolt M16×65GB5783
10389516 Washer
11876597 Bend plate 1
10258527 Bushing
11876601 Connecting pipe
10389476 Mandrel
11876603 Connecting pipe
Code Name

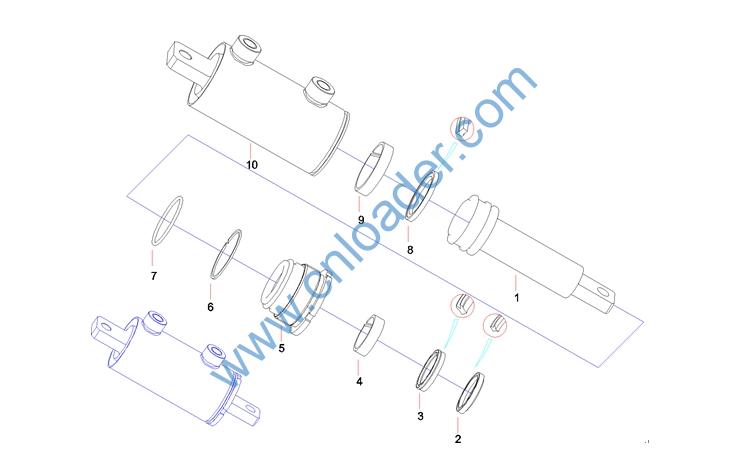

11369366 Piston rod
B230101000063 AY dust ring 32×40×5×5.8
B230101000078 Sealing ring B33242P5008
B230101000221 FR guide ring 32×37×9.7 Q5029
11369367 Guide sleeve
10250769 Retaining ring
A210609000262 O-ring 45×2.65GB3452.1
B230101000192 OK type sealing ring 39×50×4.2
B230101001024 Guide ring FR4505Q5029
11369370 Cylinder assembly

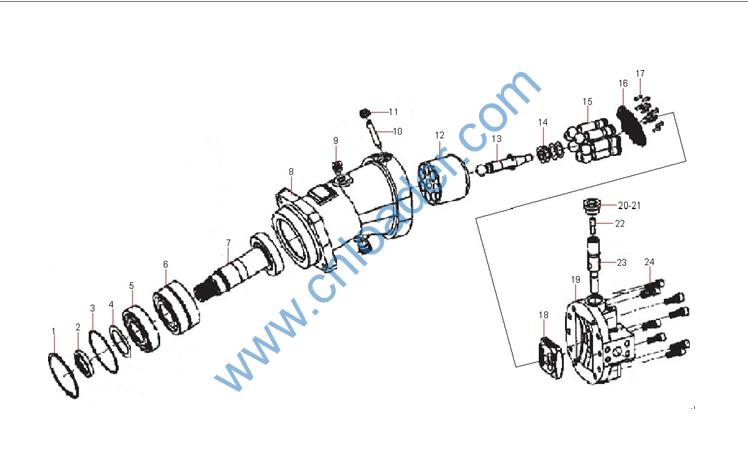

60127375 Locating ring R909083416
B230101001238 Motor shaft seal
60127374 Locating ring R909083369
60127354 Gasket R909651524
B221500000571 Spindle small bearing Rexroth
B221500000570 Spindle large bearing Rexroth
60127370 Drive shaft R909921597
60127376 Flange mounting bracket R909921274
60127359 Locking bolt R909156989
60089926 Pin R909446862
60089960 Locking seal R909152459
B229900005583 Cylinder Rexroth
60127388 Center pin R909921576
60127387 Pressure spring R909921583
B229900005614 Plunger with ring Rexroth
B229900005590 Return plate Rexroth
60127358 Flat head screw R902602395
B229900002929 Oil distribution plate
60127379 Cover plate R909603769
60127351 Countersunk screw R909831057
60127372 Piston with ring R902102905
60127384 Threaded pin R909445016
60127378 Directional piston R909921436
60127350 Countersunk screw R909083131

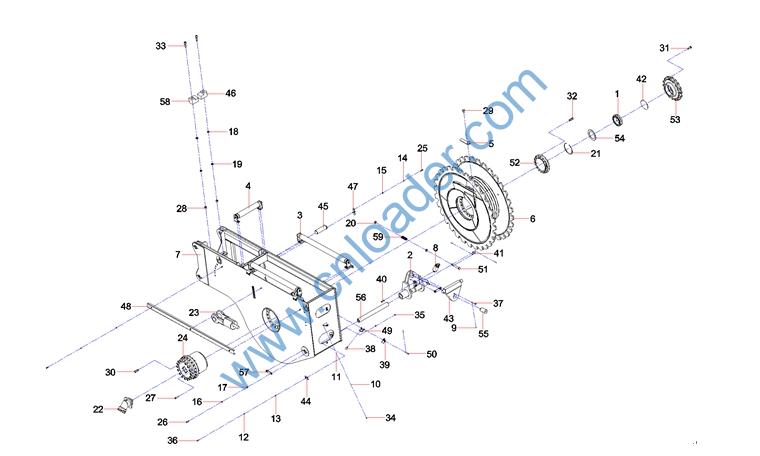

60016698 Rolling bearing 23024CC/W33GB288
11876596 Ratchet seat
11876599 Rope stop device
11876600 Front roller assembly
11876607 Pressure plate
11877036 Drum welding body R
11877043 Super hoisting winch R
11369368 Ratchet cylinder
A210501000023 Pin 3.2×25GB91
A210401000013 Washer 4GB93
A210405000004 Washer 4GB97.1
A210401000017 Washer 8GB93
A210405000007 Washer 8GB97.1
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210401000002 Washer 12GB93
A210405000001 Washer 12GB97.1
A210401000006 Washer 20GB93
A210405000008 Washer 20GB97.1
A210405000010 Washer 22GB97.1
A210416000013 Retaining ring 180GB893.1
B220501000480 Piston motor B
60097771 Wire rope 38×150m-1456-ZS-rotation Quick cable joint
60125550 Reducer JQ36-101-02
A210111000025 Bolt M10×35GB5783
A210111000039 Bolt M12×35GB5783
A210204000160 Screw M16×50GB70.1
A210307000005 Nut M20GB6170
24000328 Bolt M20×30 (GB5783) 10.9 grade
A210204000233 Screw GB70.1 10.9 grade
A210111000221 Bolt
A210204000216 Screw M20×50GB70.1 10.9 grade
A210204000062 screw M20×70GB70.1
A210111000121 bolt M4×20GB5783
A210307000012 nut M8GB6170
A210111000090 bolt M8×25GB5783
10501855 shaft
10501879 handle ball
10025217 parallel double torsion spring
11793487 pin
11793491 pin
11715508 plastic baffle
11876511 pawl
11876512 sensor mounting plate
11876513 cylinder mounting shaft
11876514 nylon pad
11876515 Pressure plate
12096983 Wire duct
12133642 Baffle
12133542 Shaft
11876516 Round steel
11860517 Support shaft
11860518 Connecting flange
11876517 End cover
11876518 Connecting shaft
11876519 Long shaft
11876520 Card plate
11860519 Nylon pad
A210616000033 Spring × 16.5-GB2089
