A220401000326 Check valve
B210780000329 Pipe joint GZ15LCF
21015581 Pipe joint
A220401000373 Check valve
11237057 Cooling valve assembly
11213886 Filter assembly
B220304000082 Piston pump
A229900005120 Split flange
B220301000443 Emergency pump
A820606020302 Rubber pad
12028736 Steel pipe assembly
11784231 Oil return flange assembly
A220401000298 Check valve
21020366 Pipe joint
A229900002583 Pipe joint
A210770000631 Pipe joint
A229900002581 Pipe joint

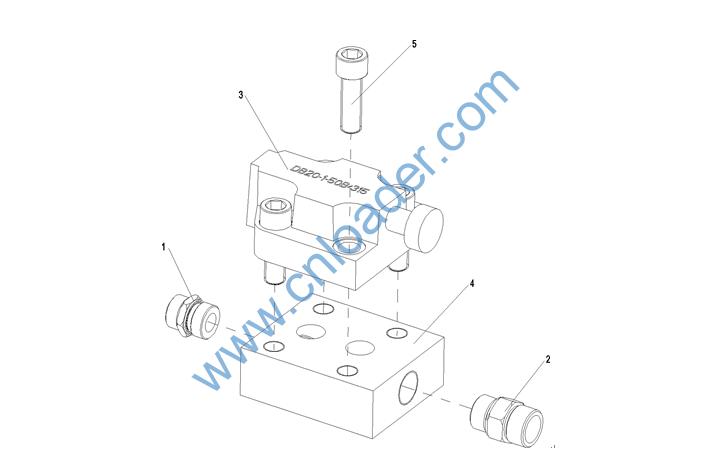

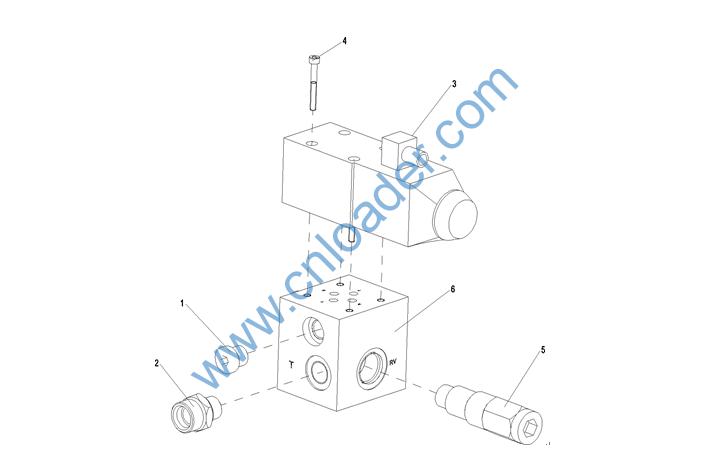

A220401000673 Pilot overflow valve
A820101328659 Solenoid overflow valve seat
A210204000160 Screw M16×50GB70.1
B210780000201 VSTI14×1.5EDA3C screw plug
B210780000344 pipe joint

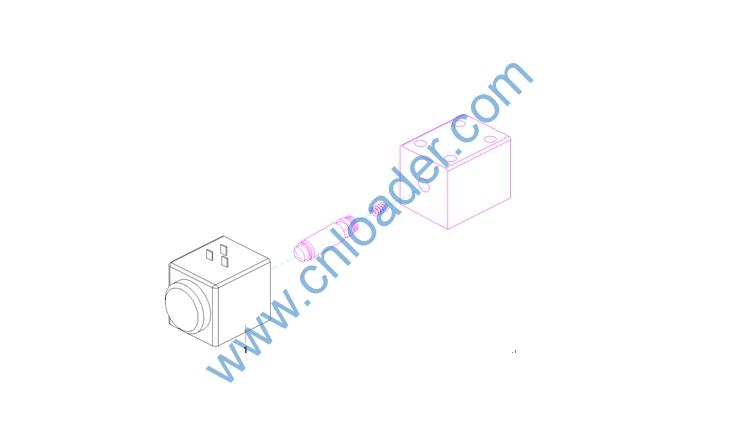

B220400000079 solenoid reversing valve
A210204000276 screw M4×35GB70.1
B220402000035 one-way overflow valve
10249090 cooling motor control valve cool block
B249900000689 Coil
10007967 Pipe joint
A210609000064 O-ring 50.47×2.62AS568-136

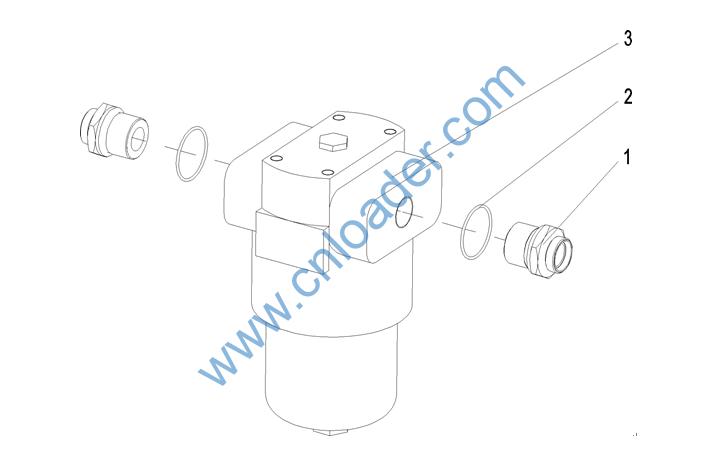

B229900000018 High pressure filter

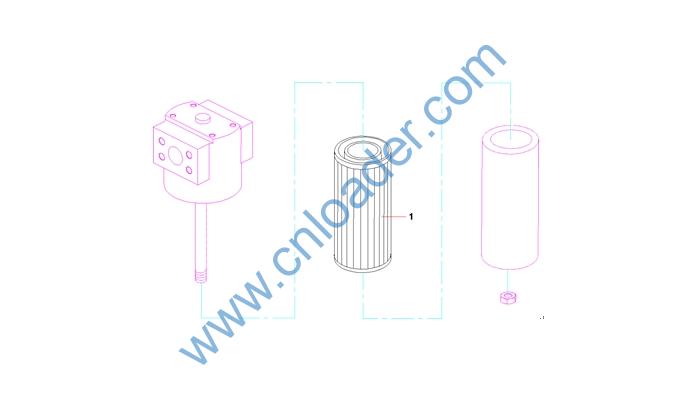

B222100000116 Filter element 0330010BN4HC

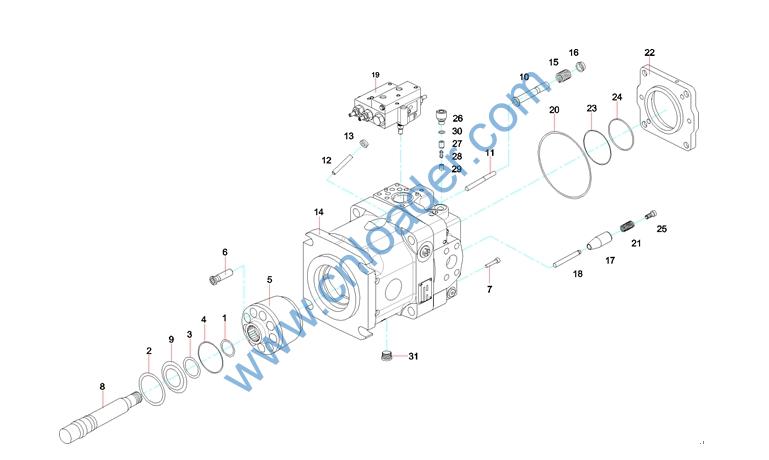

60129123 Positioning ring R909084416
60129124 Positioning ring R909154528
60129090 Axial sealing ring R909154345
60129048 O-ring R909086949
60129116 Cylinder with control plate R902041935
60129140 Piston sleeve R909078189
A210204000132 Screw M6×25GB70.1
60129114 Transmission shaft R909921396
60129130 End cover R902034801
60129127 Positioning piston R909651036
60129062 Rod R909651028
60129072 Threaded pin R909449078
60129077 Sealing lock nut R909152426
60129099 Pump body R902117356
60129159 Pressure spring R909444263
60129111 Bushing R902025363
60129135 Return piston R909921505
60129058 Return rod R909445769
60129088 Corrector R902096466
60129044 O-ring R909083835
60129158 Pressure spring R909443435
60129134 Flange R909449195
60129041 O-ring R902600381
60129045 O-ring R909085365
A210204000021 Screw M12×30GB70.1
60129137 Pipe joint R902011234
60129112 Bushing R909425800
60129104 Lift valve R909445635
60129131 Valve body bushing R902024478
60129167 Sealing ring R909157087
60129084 Locking screw R909153891

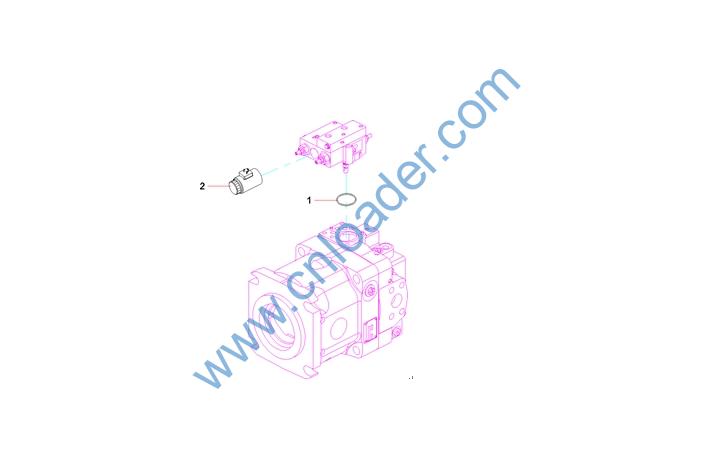

A210609000064 O-ring 50.47×2.62AS568-136
B220400000280 Solenoid valve assembly

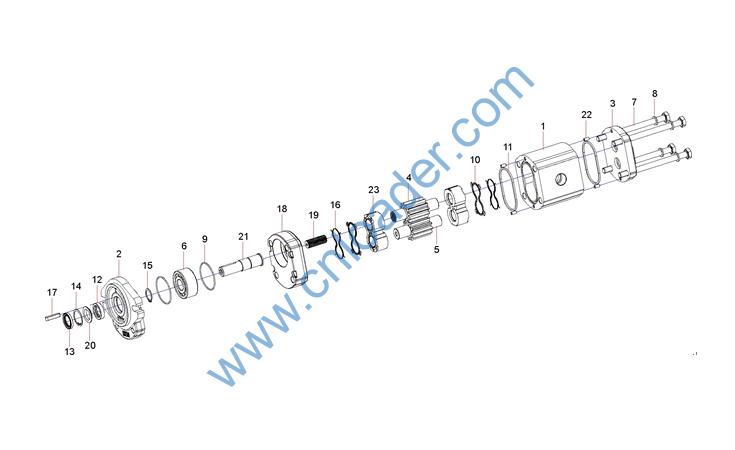

60123668 Pump body 17672930
60168828 Front cover 21911292
60168883 Rear cover 21918666
60123690 Drive gear 27720834
60123689 Driven gear 27750070
60123686 Ball bearing 34380100
60123706 Fixing bolt 36595355
60123697 Washer 37583716
60124960 O-ring 38621600
60123746 Oil seal 39656112
60123716 Sealing pad 39666195
60123749 Shaft seal 39916500
60123750 Shaft seal 40150100
60123713 Snap ring 1 40660000
60123712 Snap ring 2 40990000
60168866 Circlip 41387112
60123725 Flat key 42700100
60123702 Flange 43388029
60123688 Spline sleeve 44297900
60123695 Circlip 45620250
60168909 Support shaft 46509254
60123735 Pin 49270000
60168814 Thrust plate PRC02498

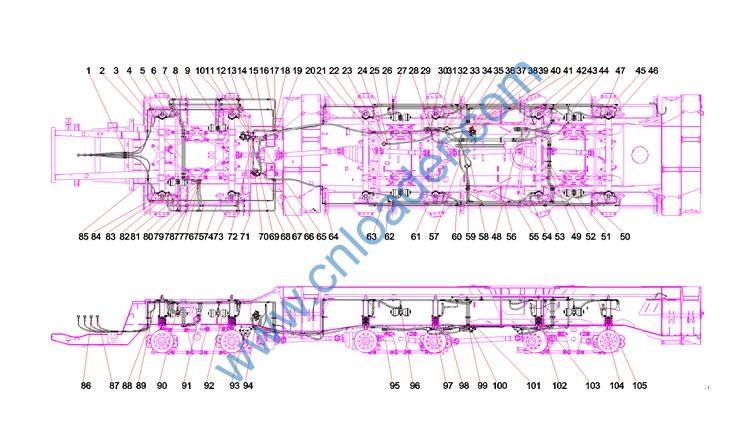

B210780000647 pipe joint
11784404 steel pipe assembly
12044324 steel pipe assembly
B210780000683 pipe joint
B230103000393 hose 2SN16-DKOL-DKOL90-600Q/SY1102
A832613120000 hose 2SN16-DKOL-DKOL90-1200Q/SY1102
12042373 steel pipe assembly
12042427 steel pipe assembly
12042390 steel pipe assembly
12042413 steel pipe assembly
A210401000002 washer 12GB93
A210111000037 Bolt M12×25GB5783
B210780001364 Pipe joint
12042420 Steel pipe assembly
A229900002560 Pipe joint
12044273 Steel pipe assembly
12044252 Steel pipe assembly
A229900002780 Pipe joint
B230103006925 Hose Q/SY1102
12036025 Steel pipe assembly
B210780000996 Pipe joint SV20SOMD
A210401000016 Washer 6GB93
B230103000366 Hose 2SN16-DKOL-700Q/SY1102
A210111000079 Bolt M6×16GB5783
B230103001398 Hose Q/SY1102
12041948 Steel pipe assembly
21026701 Single pipe clamp
B230103000399 Hose 2SN16-DKOL-DKOL90-900Q/SY1102
B230103000398 Hose 2SN16-DKOL-DKOL90-850Q/SY1102
B230103002807 Hose Q/SY1102
B210780000184 Pipe joint GE18LR3/4EDOMDCF
60113012 Hose 2
A229900003479 Pipe joint
A210111000125 Bolt M10×16GB5783
B230103000397 Hose 2SN16-DKOL-DKOL90-800Q/SY1102
A210111000011 Bolt M10×20GB5783
A210401000001 Washer 10GB93
B230103005573 Hose Q/SY1102
B230103000353 Hose Q/SY1102
B210780000141 Pipe joint
A229900004342 Pipe joint
11763430 Steel pipe assembly
21003064 Pipe joint
12041917 Steel pipe assembly
B230103001230 Hose 2SN10-DKOL-DKOL90-550Q/SY1102
B210780001307 Pipe joint GE12LR3/4EDOMDA3C
B230103000367 Hose
B230103000375 Hose 2SN16-DKOL-DKOL90-1000Q/SY1102
B230103000388 Hose 2SN16-DKOL-DKOL90-400Q/SY1102
A229900002420 Single pipe clamp
12041534 Steel pipe assembly
11782135 Steel pipe assembly
12041449 Steel pipe assembly
12038250 Steel pipe assembly
12041741 Steel pipe assembly
12038243 Steel pipe assembly
B210780000043 Pipe joint
B230103004045 Hose Q/SY1102
11179933 Four-way joint assembly
12036084 Steel pipe assembly
12036163 Steel pipe assembly
12041885 Steel pipe assembly
11762740 Steel pipe assembly
12042012 Steel pipe assembly
B230103005584 Hose Q/SY1102
12044298 Steel pipe assembly
B230103003447 Hose 2Q/SY1102
12044287 Steel pipe assembly
B230103000350 Hose Q/SY1102
12042488 Steel pipe assembly
12042463 Steel pipe assembly
B210780000070 Pipe joint
12042485 Steel pipe assembly
12042478 Steel pipe assembly
12044439 Steel pipe assembly
A210111000096 Bolt M8×70GB5783
A210401000017 Washer 8GB93
12042456 Steel pipe assembly
12042469 Steel pipe assembly
B230103000396 Hose 2SN16-DKOL-DKOL90-750Q/SY1102
B230103000390 Hose 2SN16-DKOL-DKOL90-500Q/SY1102
B230103000391 Hose 2SN16-DKOL-DKOL90-550Q/SY1102
B230103000389 Hose 2SN16-DKOL-DKOL90-450Q/SY1102
12044302 Steel pipe assembly
A229900010735 Pipe joint
B230103000467 Hose Q/SY1102
B250100000074 Pressure gauge
B230103000482 Hose 2SN8-DKOL-DKOL90-950Q/SY1102
B230103003027 Hose
12042304 Steel pipe assembly
60036726 Solenoid valve
60018885 Front accumulator valve block with 2 accumulators
11402761 Undercarriage master control valve group
60018886 Front main valve block 3471080
11180022 Eight-way connector body
60018883 Rear accumulator valve block with 2 accumulators
B210780001397 Plug
11179941 Six-way connector body
12036142 Steel pipe assembly
60018884 Rear main valve block 3471081
12036807 Steel pipe assembly
60080636 Suspension cylinder DW85/70-300W With position sensor
B230103000395 Hose 2SN16-DKOL-DKOL90-700Q/SY1102
12041656 Steel pipe assembly
60080635 Suspension cylinder DW85/70-300 without position sensor
