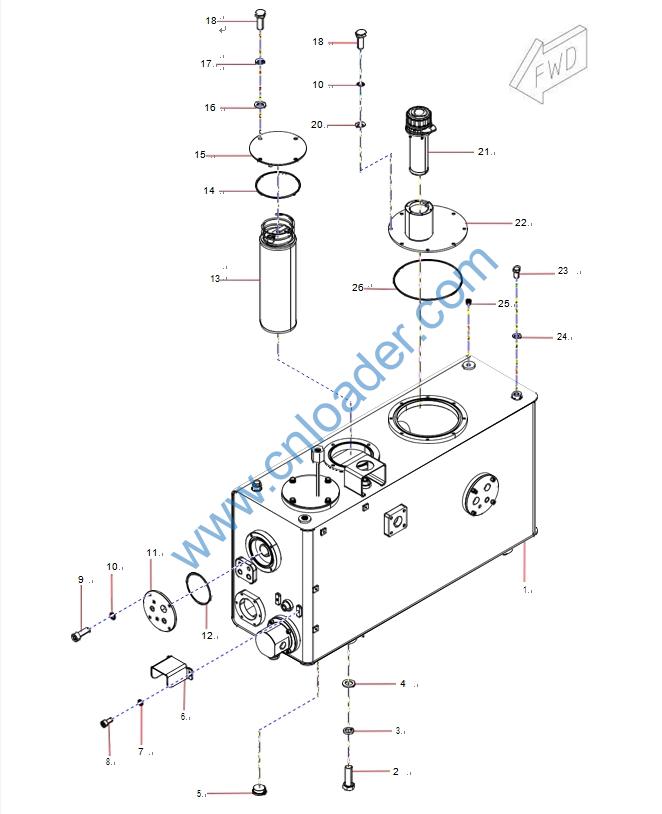

2 21005036 Screw 6
3 A210401000004 Washer 6
4 A210405000003 Washer 6
5 B210361000000 Screw Plug 1
6 12666824 protective cover Black 1
12666824HA protective cover Iron grey
12666824YA protective cover Sany yellow
12666824GC protective cover Yellow green
12666824WD protective cover Pure white
7 A210401000017 Washer 2
8 A210204000340 Screw 2
9 A210204000354 Screw 4
10 20A22120-4001-00109001
9 Washer 20
11 12562209 Flange Cover 1
12 A210609000314 O-ring 2
13 60193267 Return Oil Filter 1
14 21010435 O-ring 2
15 12563841 Oil Return Cover 1
16 A210405000001 Washer 8
17 A210401000002 Washer 8
18 A210204000337 Screw 8
20 A210405000011 Washer 8
21 60193268 Air Filter 1 6-96
22 BCB005807521 Air Cleaner Seat AS 1
23 A210204000055 Screw 2
24 A210405000008 Washer 2
25 B210399000002 Screw Plug 20222 09- 9
26 A210609000294 O- ring 1

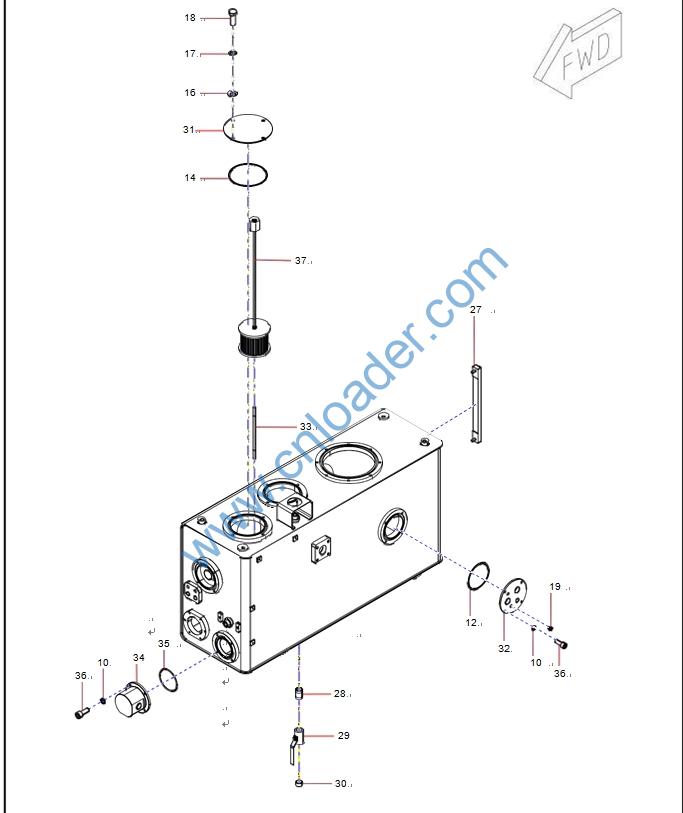

10 A210401000001 Washer 20
12 A210609000314 O-ring 2
14 21010435 O-ring 2
16 A210405000001 Washer 8
17 A210401000002 Washer 8
18 A210204000337 Screw 8
19 B210780000201 Screw Plug 1
27 A250100000041 Liquid Level Meter 1
28 A820205001205 Connector 1
29 A220400000004 Ball Valve 1
30 24001173 Screw Plug 1
31 12563781 Cover, Oil Suction 1
32 14413116 Flange Cover 1
33 1290-3293- Connection Rod 1
34 14139687 Oil suction seat 1
35 A210608000151 O-ring 1
36 23000066 Screw 16
37 151502000067A Oil Suction Filter 1

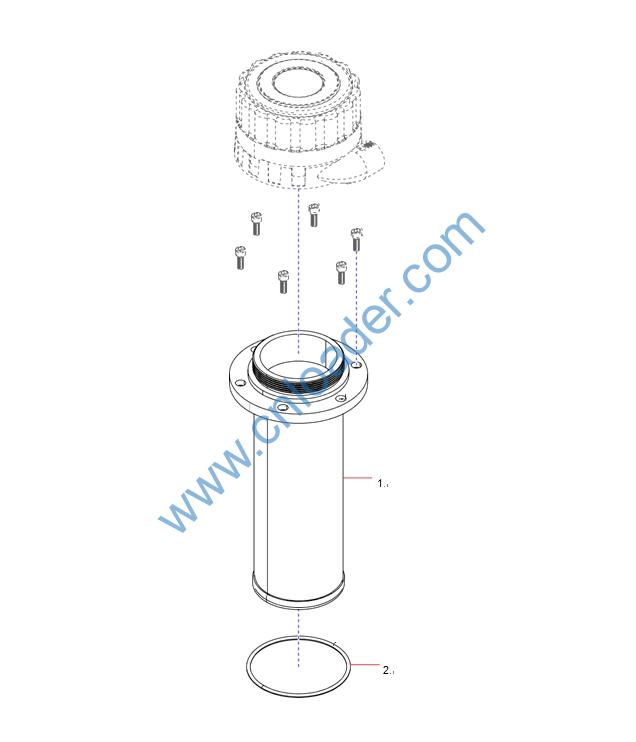

151800000054A001 Filter Core 1
2 151800000054A002 O-ring 1
| 1 BCB005620624 Hydraulic System, Rotary2U0n2it and Air Cooler 6-100 |
| 2 BCB005047286 Hydraulic System, Boom Pump 1 6-116 |

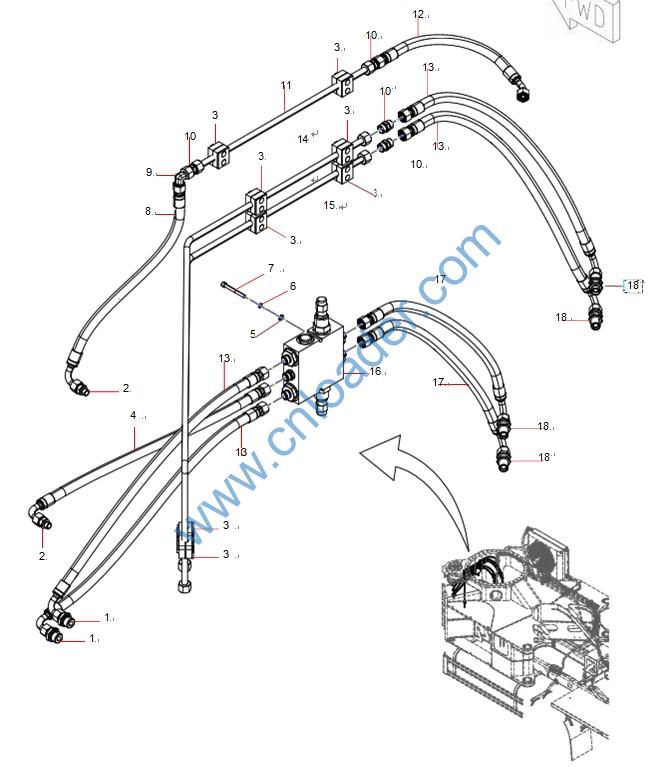

2 B210780000847 Adapter Fitting 2
3 B210851000001 Clamp 11
4 60101297 Hose 1
5 A210405000006 Washer 2
6 A210401000016 Washer 2
7 A210204000218 Screw 2
8 B230103004190 Hose 1
9 B210780000024 Elbow Fitting 1
10 B210780001183 Fitting 4
11 BCB005620425 Oil Tube 1
12 61012749 Hose 1
13 60101299 Hose 4
14 BCB0005623946
9 Oil Tube 1
15 BCB005620391 Oil Tube 1
16 12343138 Rotation Balancing Valve AS 1 6-110
17 60156800 Hose 2
18 B210780000115 Bulkhead Fitting 5
19 B210780001394 Adapter Fitting 1
20 B210780000157 Bulkhead Fitting 1
21 11747045 Hose 1
22 12936787 Hose 1
23 13464292 Adapter 1
24 60195078 FSR Seal Ring 14
25 21008728 Adapter 13
26 A229900006820 Clamp 2
27 BCB005620492 Oil Tube 1
28 BCB005620515 Oil Tube 1
29 12922430 Hose 1
30 B230103003869 Hose 1
31 B21078000310 Elbow Fitting 2 09 19 3 2 09 19
65 B210780000016 Tee Joint 1
24 60195078 FSR Seal Ring 14
25 21008728 Adapter 13
40 B210780000131 Adapter Fitting 3
43 13160233 Hose AS 1
44 B230103003856 Hose AS 1
45 B210780000036 Adapter Fitting 1

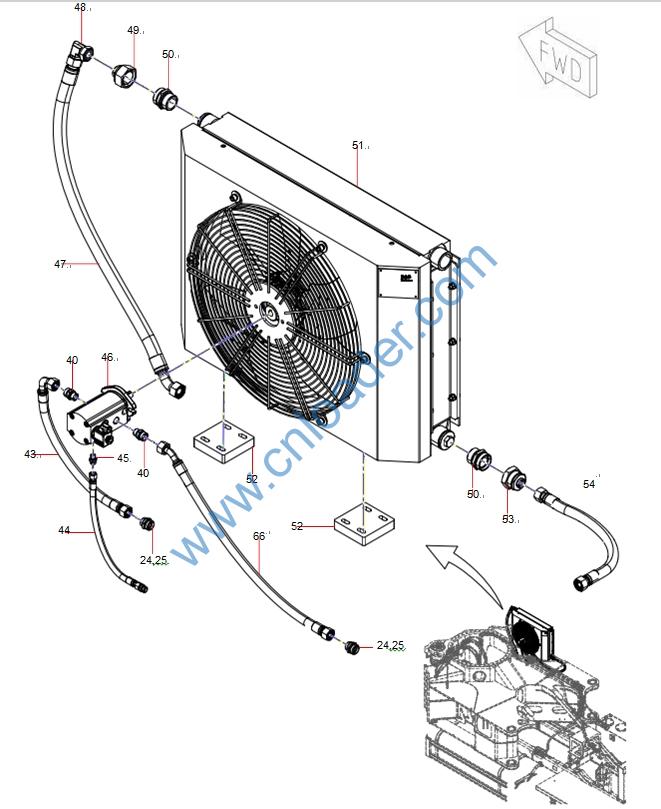

46 60214753 Gear Motor 1
47 60205649 Hose 1
48 B210780000838 Elbow Fitting 1
49 21015735 Reducer Union 1
50 B210780000200 Adapter Fitting 2
51 60306671 Radiator Black 1
60306671WD Radiator Pure white
6030-6671GC Radiator Yellow green
52 12302980 Plate 2
53 B210780000998 Reducer Union 1
54 60104247 Hose 1
66 12926118 Hose 1
24 60195078 FSR Seal Ring 14
25 21008728 Adapter 13
31 B210780001310 Elbow Fitting 3

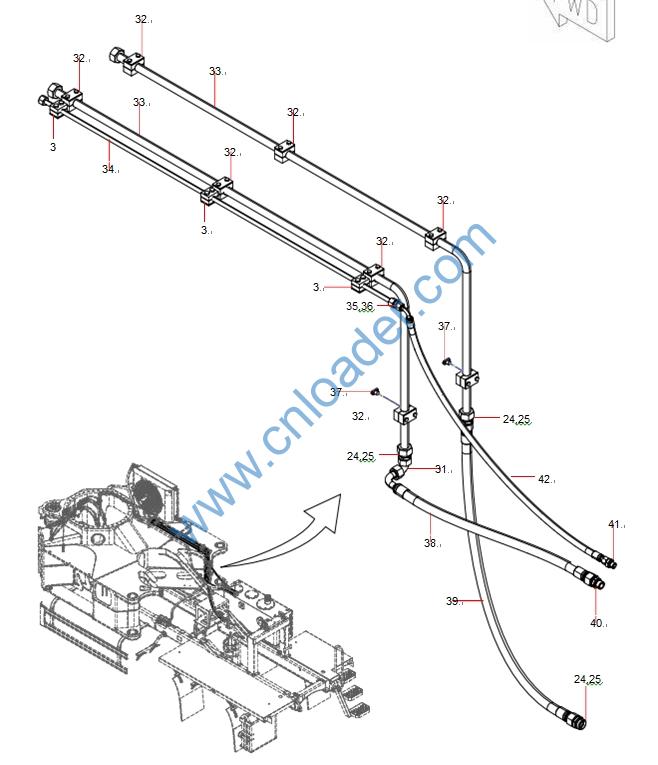

32 A229900002420 Clamp 15
33 BCB005620131 Oil Tube 2
34 BCB005620291 Oil Tube 1
35 21008727 Fitting 2
36 60195076 FSR Seal Ring 8
37 60202487 Nut 8
38 151006160011 Hose AS 1
39 151006160172A Hose AS 1
40 B210780000131 Adapter Fitting 3
42 B230103003874 Hose 1

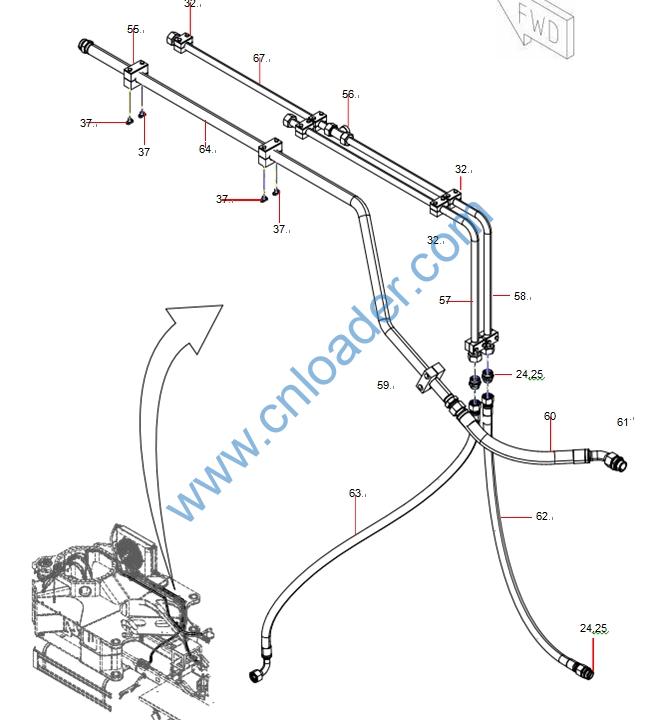

25 21008728 Adapter 13
32 A229900002420 Clamp 15
37 60202487 Nut 8
55 A229900002422 Clamp 2
56 B229900003532 Tee Joint 1
57 BCB005620193 Oil Tube 1
58 BCB005998052 Oil Tube 1
59 B210851000013 Clamp 1
60 60098348 Hose AS 1
61 B210780000052 Adapter Fitting 1
62 151006160169A Hose AS 1
63 B230103003982 Hose 1
67 BCB005998063 Oil Tube 1

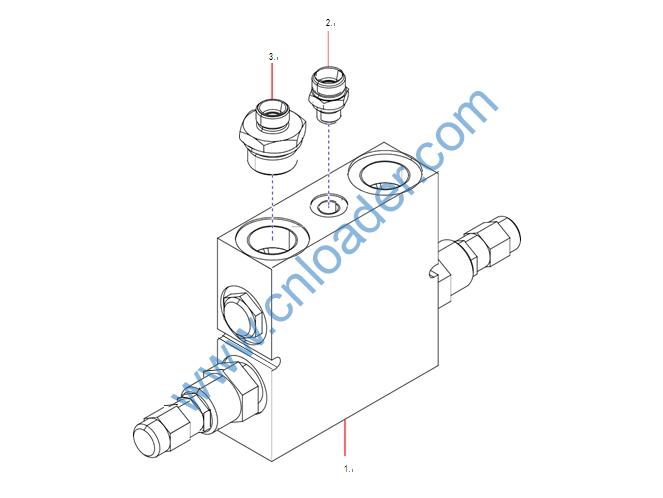

B220400000073 Balancing Valve angl 2102 6-112
angl 202
2 A820205000230 Balancing Valve Fitting 1
3 A820205000229 Balancing Valve Fitting 4

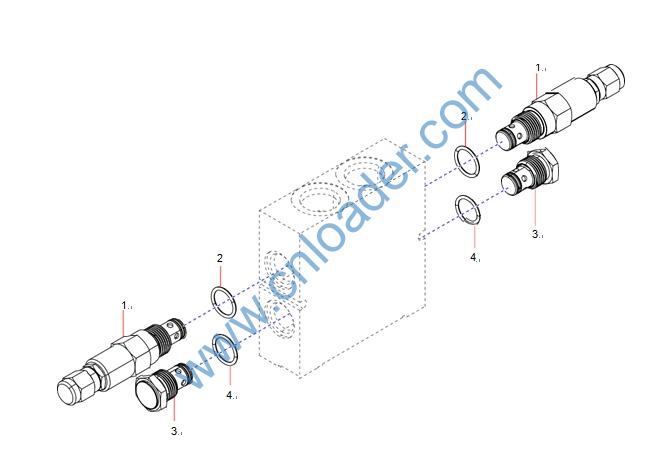

1 150504010163A001 Overflow Valve 2
2 150504010163A002 O-ring 2
3 150504010163A003 Check Valve 2
4 150504010163A004 O-ring 2

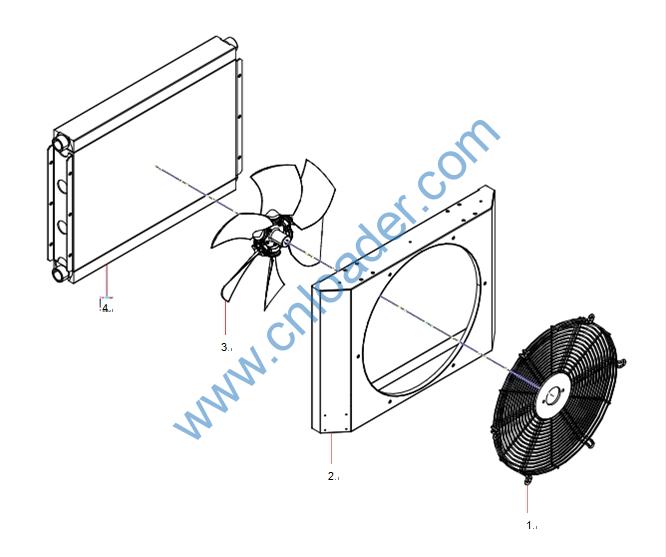

2 151601010022B001 Housing 1
3 151601010022B002 Blade AS 1
4 151601010022B004 Radiator Fin 1

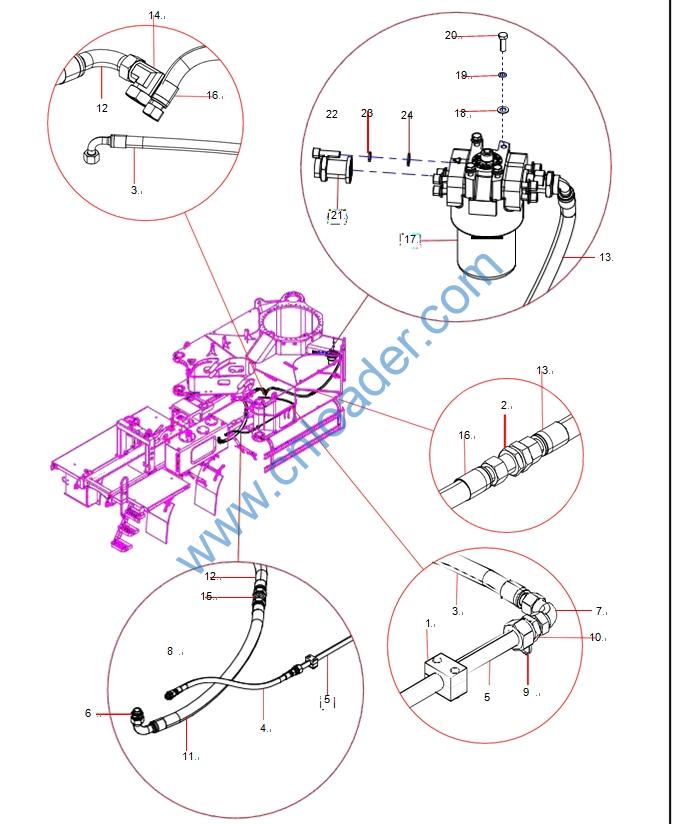

1 A229900002420 Clamp 2
2 B210780000996 Bulkhead Fitting 2
3 B230103003981 Hose 1
4 151005160078A Hose AS 1
5 BCB005611023 Oil Tube 1
6 60098746 Adapter Fitting 1
7 B210780000025 Elbow Fitting 1
8 B210780000266 Adapter Fitting 1
9 60195078 FSR Seal Ring 2
10 24001386 Adapter 2
11 151010110002A Hose 1
12 151009110170A Hose 1
13 151007260293A Hose 1
14 B210-780-000030 Elbow Fitting 1
15 B210780001380 Bulkhead Fitting 1
16 151007210385A Hose 1
17 151501000052A High- pressure Filter 1
18 A210405000001 Washer 4
19 A210401000002 Washer 4
20 A210111000203 Bolt 4
21 B210780000061 Flange Connection 2
22 A210204000454 Screw 8
23 A210401000003 Washer 8
24 A210405000002 Washer 8

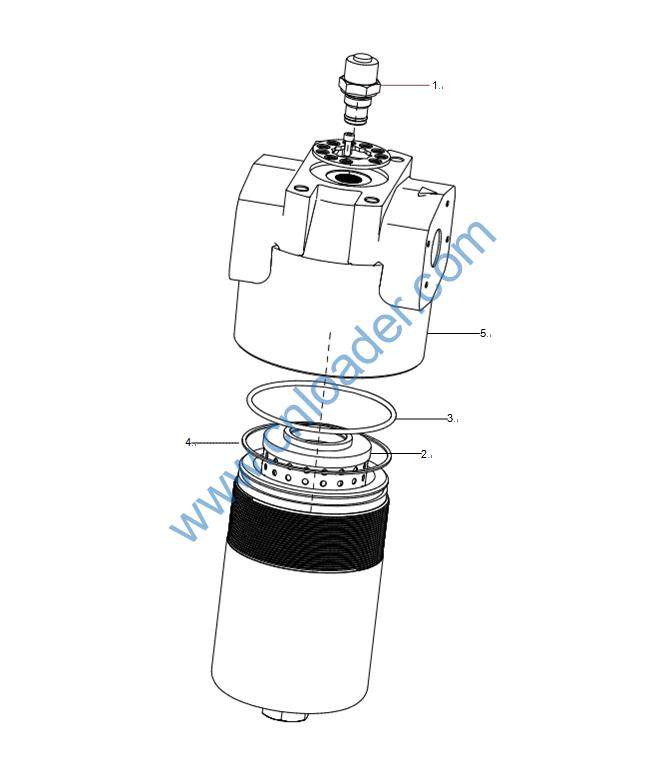

1 151501000052A001 Signaler 1
2 60283940 Hydraulic Filter Core 1
3 151501000052A003 O-ring 1
4 151501000052A004 Retainer Ring 1
5 151501000052A005 Filter Head 1

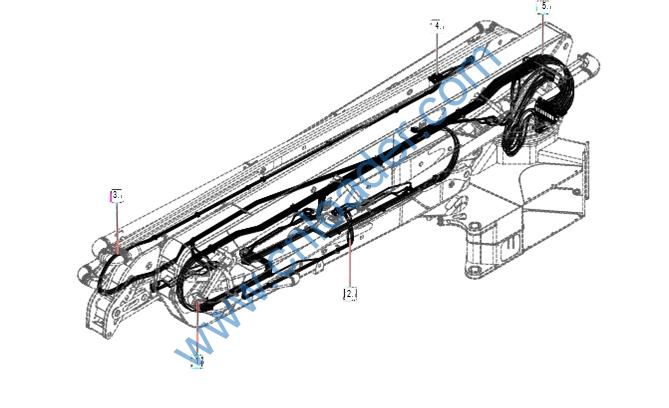

1 BCB005201243 Hydraulic System, Arm 1 1 6-122
2 BCB005204621 Hydraulic System, Arm 2 1 6-138
3 BCB005202888 Hydraulic System, Arm 3 1 6-152
4 BCB005205266 Hydraulic System, Arm 4 1 6-162
5 BCB005207446 Hydraulic System, Boom Multiple Unit Valve 1 6-172
