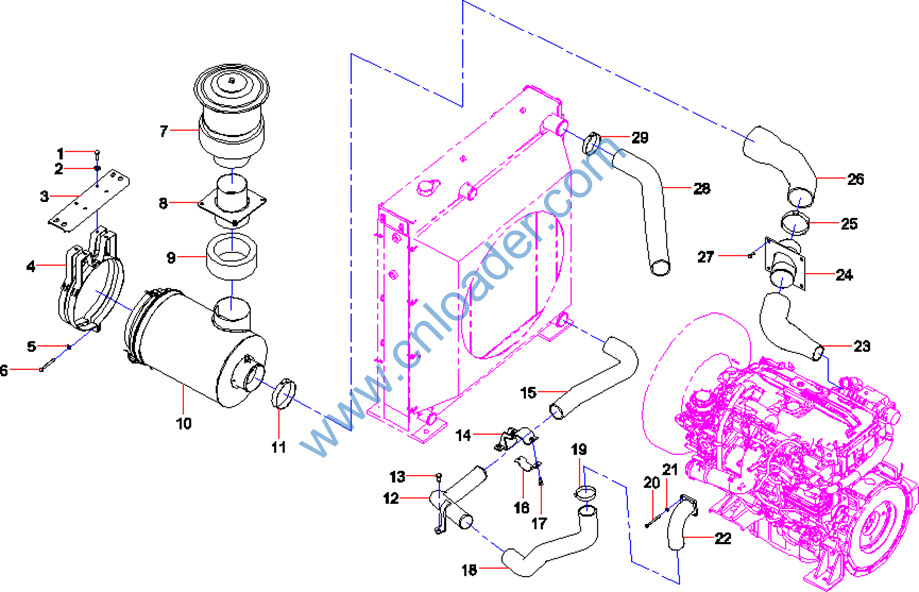

A210111000202 8 螺栓M12×30GB5783 10.9级 Bolt
A210491000121 8 垫圈 Washer
13662310 1 托架 bracket
13662313 2 抱箍总成 Clamp AS, air cleaner housing
A210491000120 10 垫圈 Washer
A210111000295 2 螺栓M10×80GB5783 10.9级 Bolt
A222100000410 1 空气预滤器 Precleaner
12787331 1 进气接管 Tube, Air Inlet
12786391 1 密封海绵 Foam
60210376 1 空气滤清器FRG130333 纳米 Air cleaner AS
A229900002220 1 T型抱箍 Clamp
13555267 1 中冷出气钢管 Pipe
A210111000101 1 螺栓M12×25GB5783 10.9级 Bolt
13555245 1 管支架 Bracket, pipe
13463255 1 中冷出气胶管 Hose, charge air
13465381 1 压板 Clamp
23000066 4 螺钉 Screw
13555264 1 中冷出气胶管 Hose
B229900001059 4 T型抱箍 Clamp
A210111000097 2 螺栓 Bolt
24000633 2 垫圈8GB97.1 达克锈 Washer
13555270 1 发动机进气钢管 Tube, engine air inlet
13463257 1 后进气胶管 Hose, air inlet, rear
13463105 1 进气钢管 Tube, air intake AS
A229900002683 2 T型抱箍 T-type anchor ear
13463258 1 前进气胶管 Hose, air inlet, front
A210111000012 4 螺栓M10×20GB5783 10.9级 Bolt
13463254 1 中冷进气胶管 Hose, intake air
21004569 2 T型抱箍 Clamp

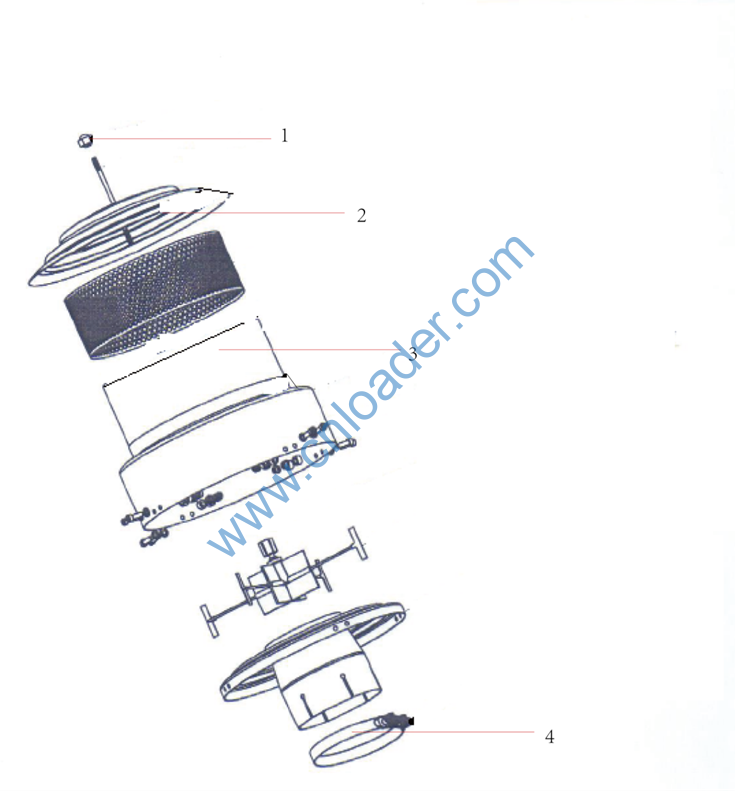

60304923 1 盖型螺帽 Nut
60304924 1 雨帽 Cover, precleaner
60304925 1 主体 Housing, precleaner
60305913 1 重型卡 Clamp

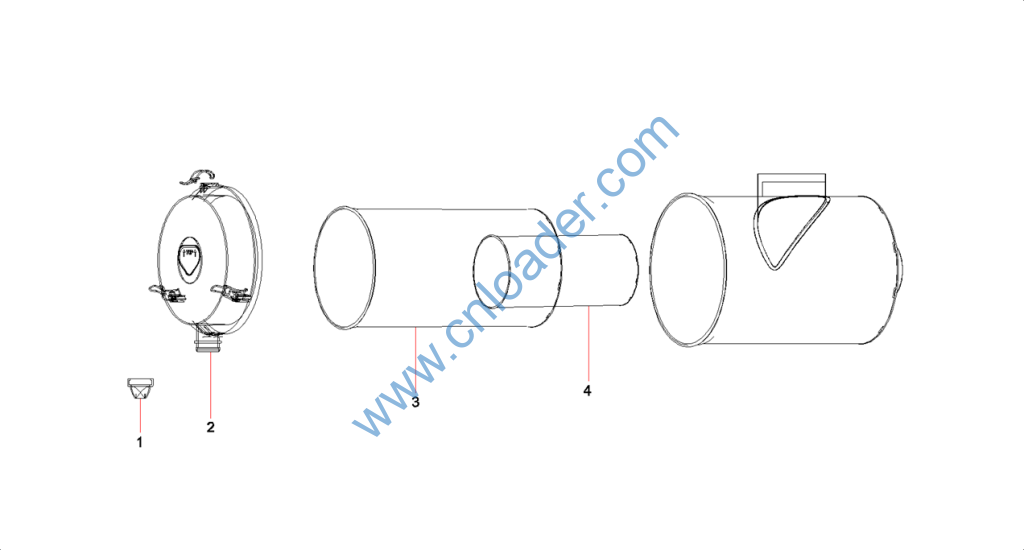

60213978 1 集尘嘴 Collector, dust
60213977 1 空滤盖 Cover, air filter
60207265 1 空气滤清器主滤芯R002504 纳米 Element, air cleaner, primary
60207264 1 空气滤清器安全滤芯 Safety cartridge of air cleaner
B229900004644 1 垫圈 Washer

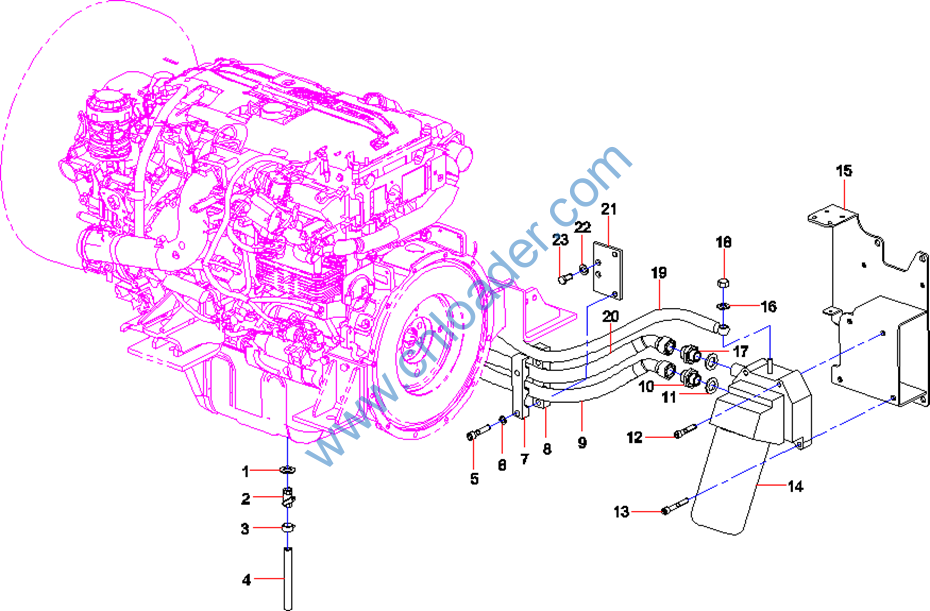

B220401000916 1 放油阀 Valve AS, drain
A229900001347 1 软管环箍 Clamp
12213205 1 放油管 Oil drain
21027533 2 螺钉M12×55GB70.1 10.9级 Screw
24000513 2 垫圈12GB93 达克锈 Washer
13360389 1 上管夹 Clamp
13360390 1 管夹 Clamp
60285833 1 机油胶管1SN20-DKOL-DKOL45- Hose AS
11282651 2 接头 Fitting
12356467 4 铜垫 Bushing, copper
A210204000345 2 螺钉M10×70GB70.1 10.9级 Bolt
A210204000335 2 螺钉M10×55GB70.1 10.9级 Screw
13434714 1 机油滤清器部件 Filter, fuel-water seperator
13009882 1 板总成 Mount
12697333 2 铜垫圈 Bushing, copper
A820205000942 2 接头 Fitting
12697332 1 螺母 nut
13555261 1 胶管 Hose AS
60285834 1 机油胶管1SN20-DKOL45-730- Hose AS
13466575 1 支架 bracket
A210491000121 20 垫圈 Washer
A210111000101 7 螺栓M12×25GB5783 10.9级 Bolt
13766307 1 燃油滤支架 Support, fuel filter
60310822 1 燃油精滤总成 Fuel filter AS
13766319 1 燃油管 Line, fuel
A210111000197 2 螺栓M10×25GB5783 10.9级 Bolt
A210434000008 12 垫圈 Washer
A210199000016 6 铰接螺栓 Bolt
60086356 10 线束固定夹 Clamp
13766321 1 燃油管 Line, fuel
14086841 2 接头 Joint
11371487 2 U型螺栓 U-bolt
13258713 1 燃油截止阀支架 bracket
60046622 1 燃油开关 Switch, fuel
A820606030737 1 粗滤水管 Hose AS, drain line, fuel-water
A210204000354 4 螺钉 Screw
A210491000120 10 垫圈 Washer
13766323 1 燃油管 Drain
13766320 1 燃油管 Line, fuel
60282025 1 粗滤总成 Element, filter
11273607 1 软管 Hose
60149606 3 线束固定夹 Clamp
13623908 1 燃油管 Line, fuel
A820101118172 6 垫片 Gasket
A210491000118 6 垫圈 High-strength steel washer
A210204000198 6 螺钉M16×35GB70.1 10.9级 Screw
A210855000003 7 喉箍 Clamp
11789551 1 软管 hose
11348391 2 护孔环 Grommet
A210307000028 1 螺母 Nut
24000514 1 垫圈16GB93 达克锈 Washer
11251714 1 接头 Adapter
60046622 1 燃油开关 Switch, fuel
11331654 1 接头 Adapter
A229900001345 3 软管环箍 Clamp

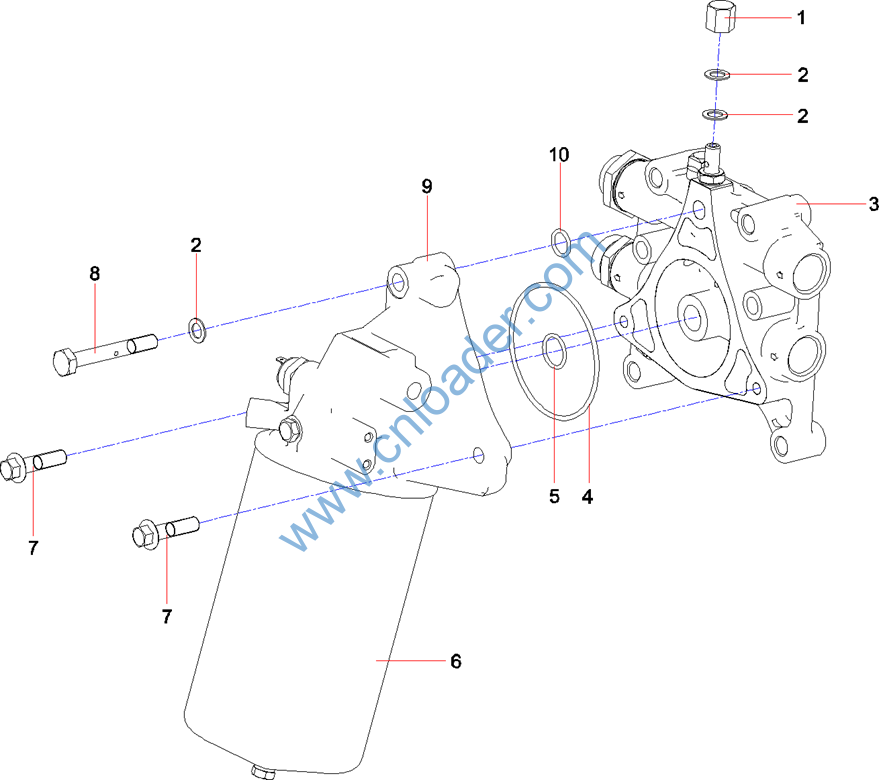

13492397 1 盖螺母 FP nut cap
60186502 3 垫圈 Washer
60265834 1 连接座总成 Oil filter Connector
A210608000173 1 O形圈 O-ring
A210608000159 1 O形圈 氟橡胶 O-ring
60307176 1 油滤清器滤芯 Oil fil ter tank
60265733 2 螺栓 Bolt
13473306 1 过油螺栓 oil through bolt
13784561 1 机油滤清器座 HEAD ASSY,OIL
A210609000306 1 O形圈 O ring

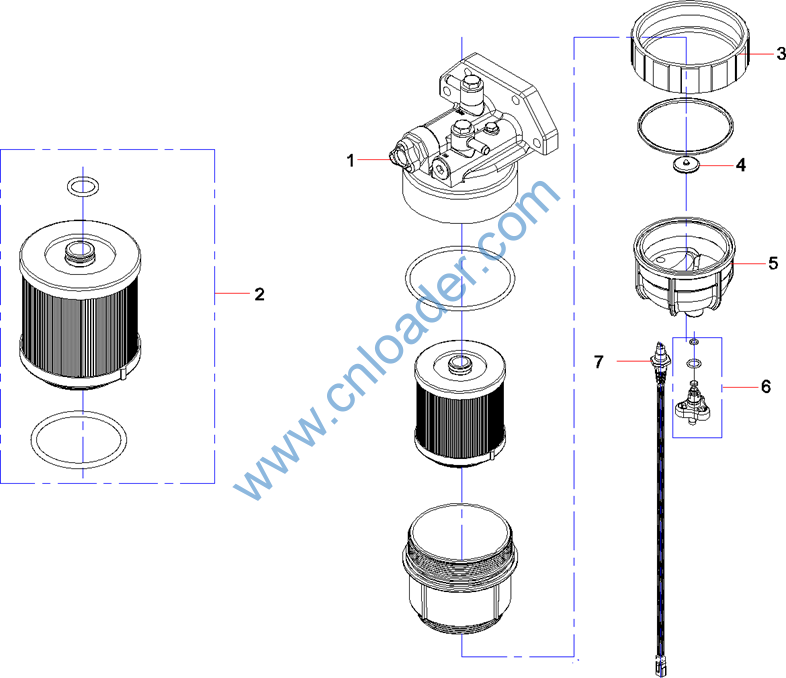

60310823 1 燃油滤清器滤芯 Fuel Filter
60308232 1 端盖 Filter, fuel-water seperator, head
60282026 1 油水分离器滤芯 Element, water seperator
60308233 1 箱体 Case
60308234 1 浮子 Float
60308235 1 底盖 Case
60308236 1 密封塞组件 Plug AS
60308237 1 传感器 Sensor
A210210000030 2 螺钉 Bolt, socket head
60060562 2 垫圈4GB97.1 达克锈 Washer

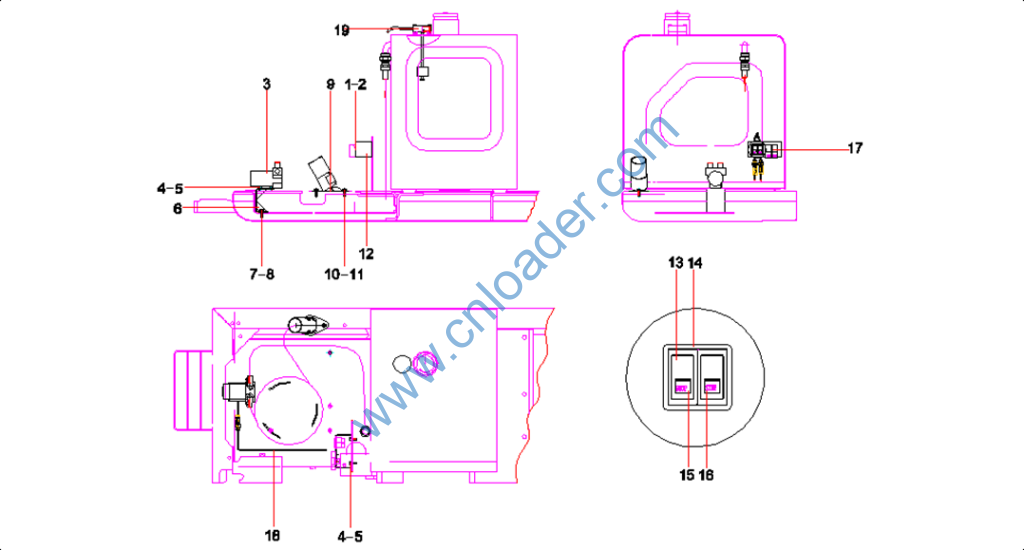

60320835 1 燃油加注泵总成 Oil pump Assembly
A210111000078 6 螺栓 Bolt
24000632 6 垫圈 washer
10061750 1 加油泵座 Seat, oil feed pump
A210111000202 2 螺栓M12×30GB5783 10.9级 Bolt
A210491000121 2 垫圈 Washer
10088657 1 滤芯座 Seat, filter element
A210111000197 4 螺栓M10×25GB5783 10.9级 Bolt
A210491000120 4 垫圈 Washer
10108211 1 加油泵继电器安装板 Plate, mounting, oil feed pump
60063150 2 翘板开关 Rocker Switch
B249900000091 2 边框 Side frame
B241800000001 1 符号卡 sign
B241800000047 1 符号卡 Mark Card
60245361 2 中间继电器 Relay
11640992 1 燃油加注线束 Fuel Adding Harness
B240700000329 1 液位控制继电器 Liquid level control relay

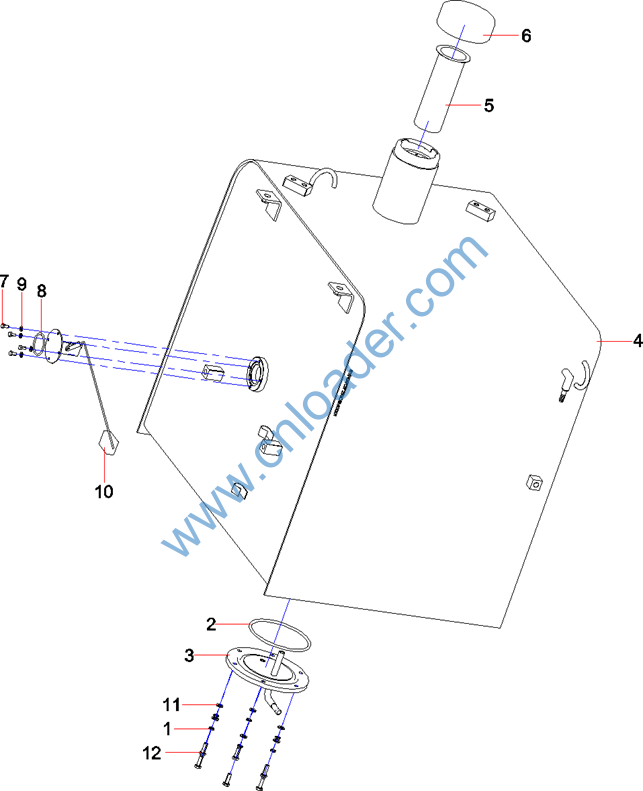

24000511 6 垫圈8GB93 达克锈 Washer
B230101000934 1 O形圈 O-ring
13733747 1 底盖总成 Pickup AS, fuel
13371270 1 燃油箱 Tank, fuel
60117826 1 燃油箱滤网 Strainer AS, fuel
A290000002193 1 燃油箱锁盖 Cover, Lock, Fuel Tank
A210111000078 4 螺栓 Bolt
B230101000457 1 O形圈 O-ring
24000632 4 垫圈 washer
60029642 1 液位传感器 Sensor GP, fuel level
A210405000007 10 垫圈 Washer
A210111000090 6 螺栓 Bolt
