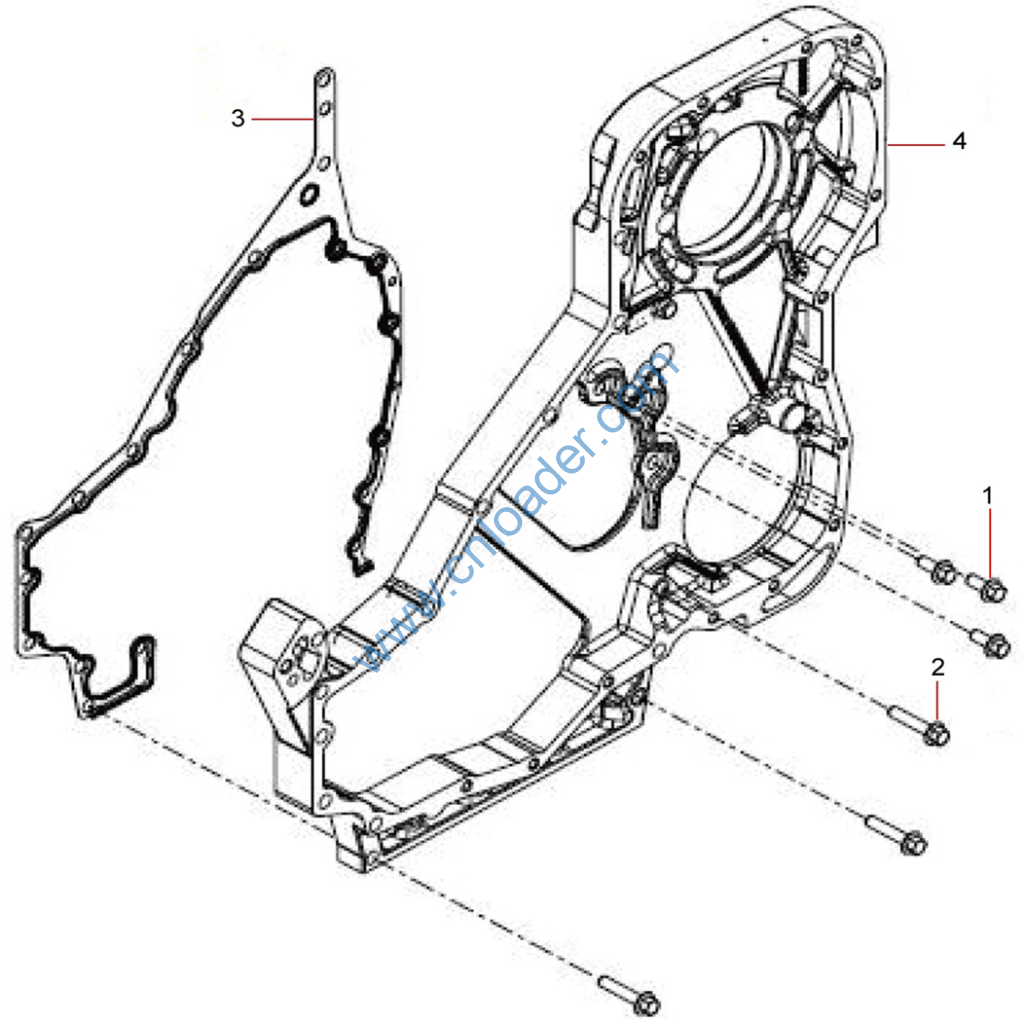

1 60248231 Screw, Hexagon Flange 3
2 60248232 Screw, Hexagon Flange 3
3 60248117 Gasket, Gear Housing 1
4 60287621 Housing, Gear 1
1 60248157 Clip 1
2 60287824 Clamp 1
3 60102436 Nut, Hexagon Flange 1
4 60102452 Bolt, Hexagon Flange 2
5 60102462 Bolt, Hexagon Flange 1
6 60102462 Bolt, Hexagon Flange 1
7 60248167 Housing, Breather 1
8 60248166 Tube, Oil Return, Breather 1
9 60287838 Bracket, Tube 1
10 60248158 Clip 1

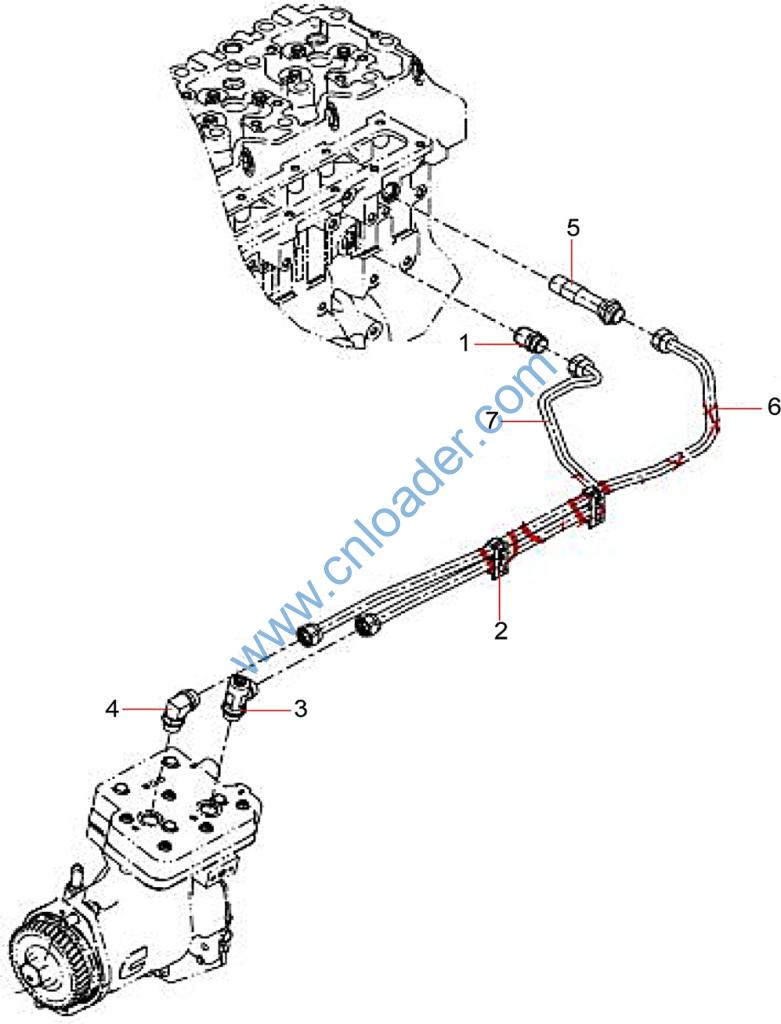

1 60248190 Connector, Male 1
2 60248338 Clamp, Pipe 2
3 60248105 Fitting, Tee 1
4 60248387 Fitting, Elbow 1
5 60286277 Connector, Male 1
6 60286228 Tube, Compressor Water Outlet 1
7 60286230 Tube, Compressor Water Inlet 1
1 60248193 Union, Male 1

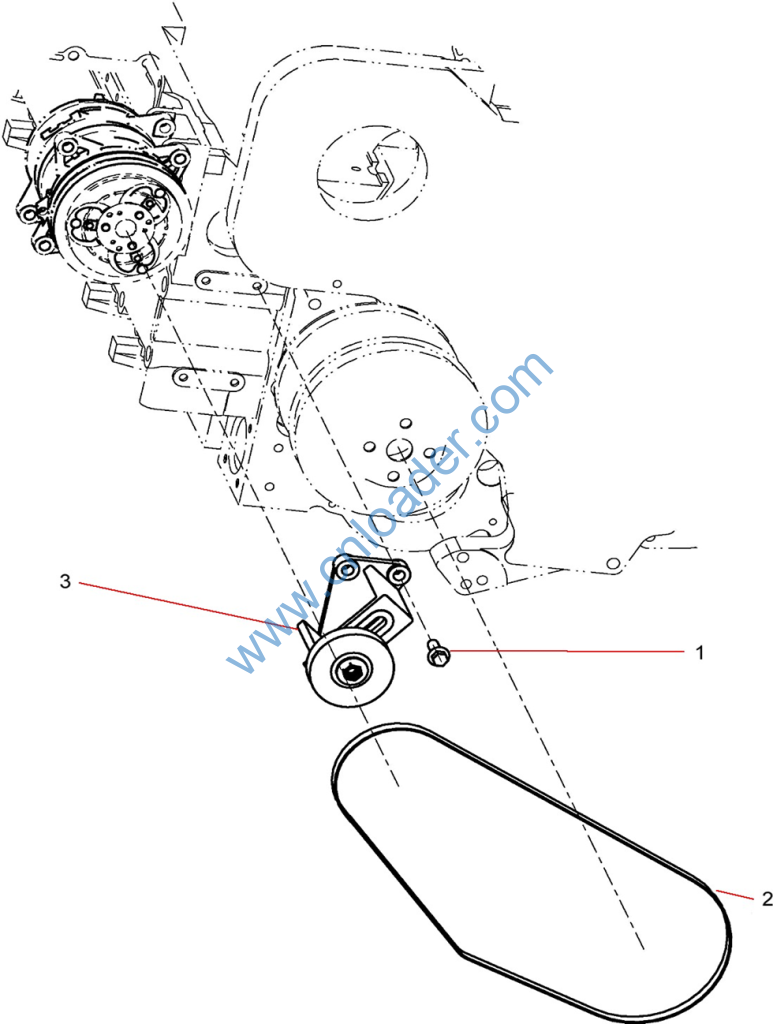

1 60103933 Bolt, Hexagon Flange 3
2 60014157 Belt, Air Conditioner 1
3 60174903 Tension Pulley Assembly 1

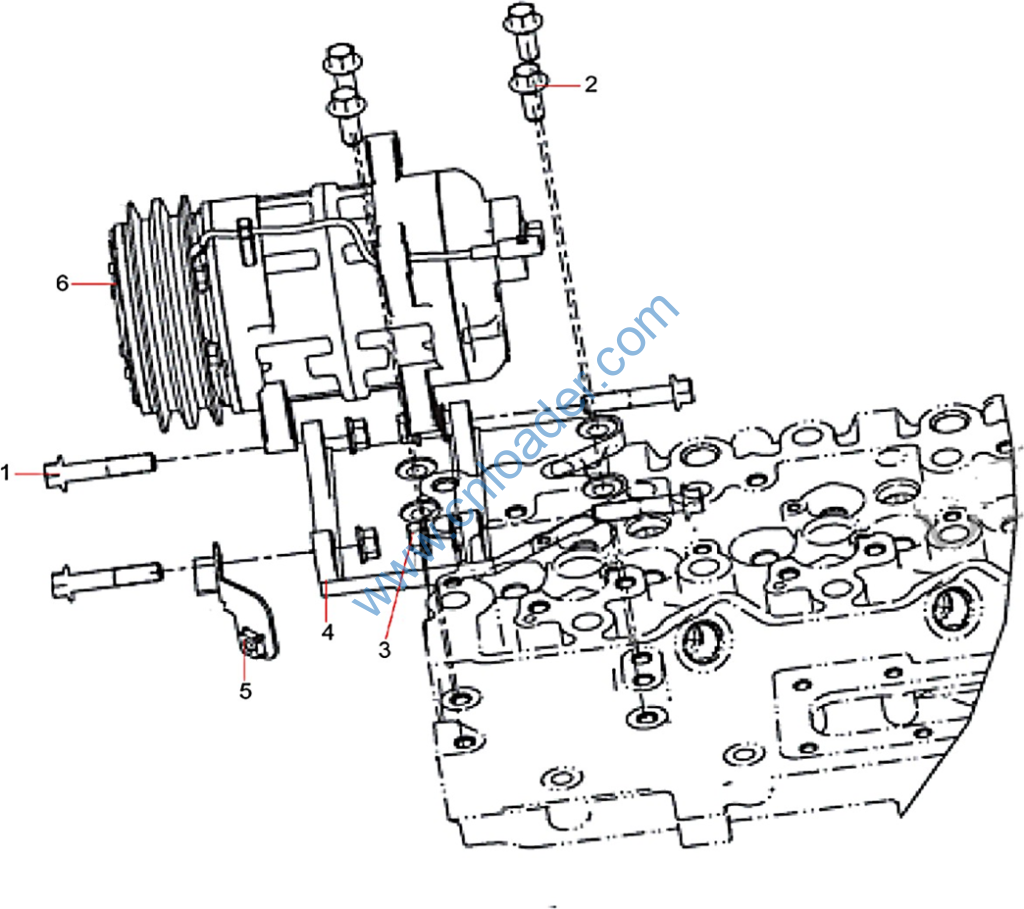

1 60248234 Screw, Hexagon Flange 4
2 60103932 Bolt, Hexagon Flange 4
3 60102437 Nut, Hexagon Flange 4
4 60286227 Bracket, Compressor, Air Conditioner 1
5 60248210 Bracket, Compressor, Air Conditioner 1
6 60286226 Compressor, Air Conditioner 1
60104005 Plug, Threaded, Socket Head Cap
60104005 Plug, Threaded, Socket Head Cap
61005182 Bearing, Roller

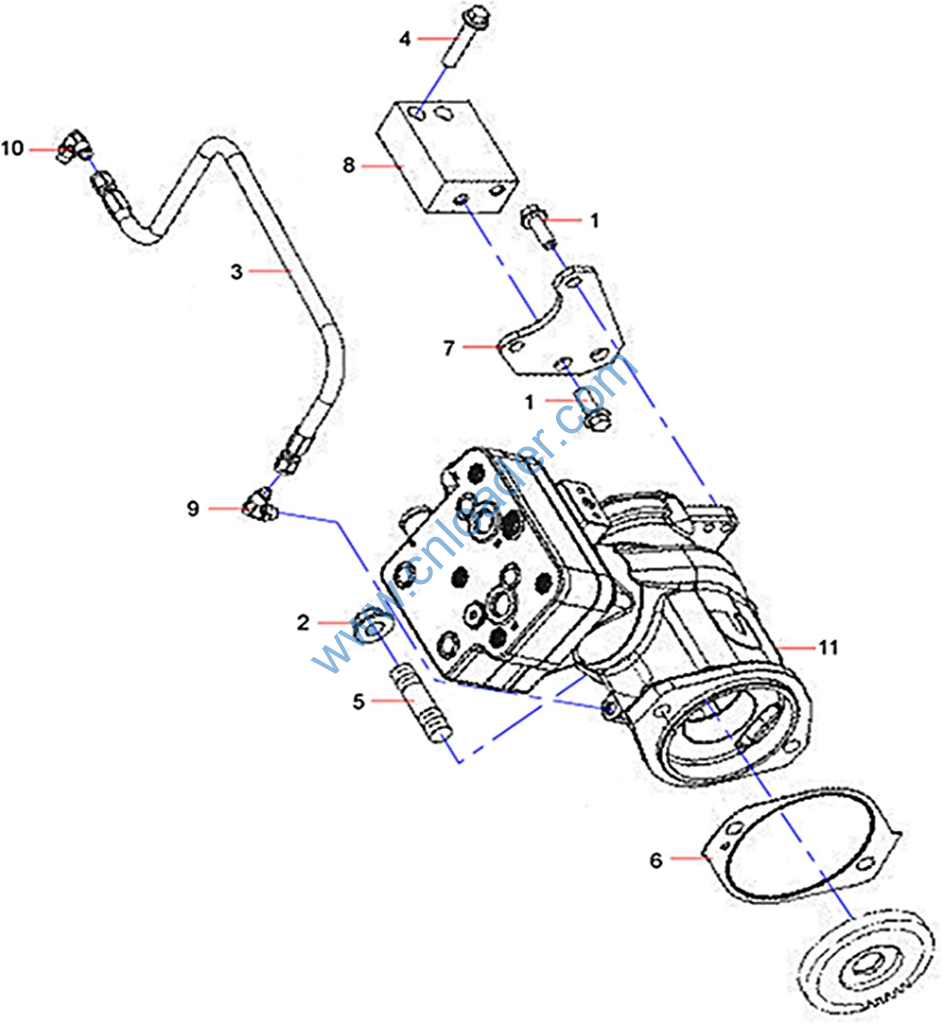

1 60248234 Screw, Hexagon Flange 2
2 60248223 Nut, Hexagon Flange 2
3 60248394 Hose, Flexible 1
4 60248235 Screw, Hexagon Flange 4
5 60102567 Stud 2
6 60248212 Gasket, Hydraulic Pump 1
7 60248382 Bracket 1
8 60248106 Spacer, Mounting 1
9 60248388 Fitting, Elbow 1
10 60248388 Fitting, Elbow 1
11 60106818 Compressor 1
1 60248236 Screw, Hexagon Flange 5
2 60174900 Pulley Crankshaft 1
3 60286237 Damper, Viscous Vibration 1
1 60248390 Connector, Male 1
1 60102472 Bolt, Hexagon Flange 1
2 60102203 Wire, Bonding 1
3 60102332 Gasket 1
1 60286223 Thermostat 1
1 60034222 Alternator 1
1 60286204 Braket, Alternator 1
2 60103930 Bolt, Hexagon Flange 1
3 60103932 Bolt, Hexagon Flange 1
4 60103933 Bolt, Hexagon Flange 3
5 60248223 Nut, Hexagon Flange 1
6 60286232 Screw, Hex Flange Head Cap 1
7 60282417 Bracket, Alternator 1

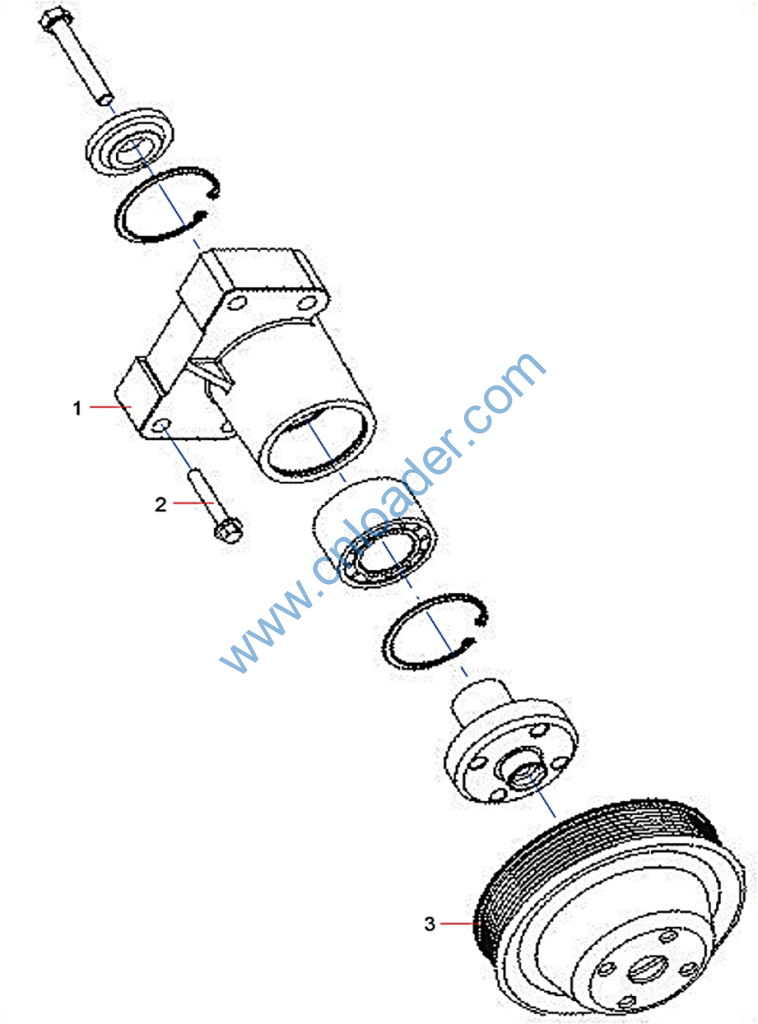

1 60106730 Bracket, Fan 1
2 60248234 Screw, Hexagon Flange 4
3 60106729 Wheel, Belt, Fan 1
1 60298132 Screw, Hexagon Flange 4

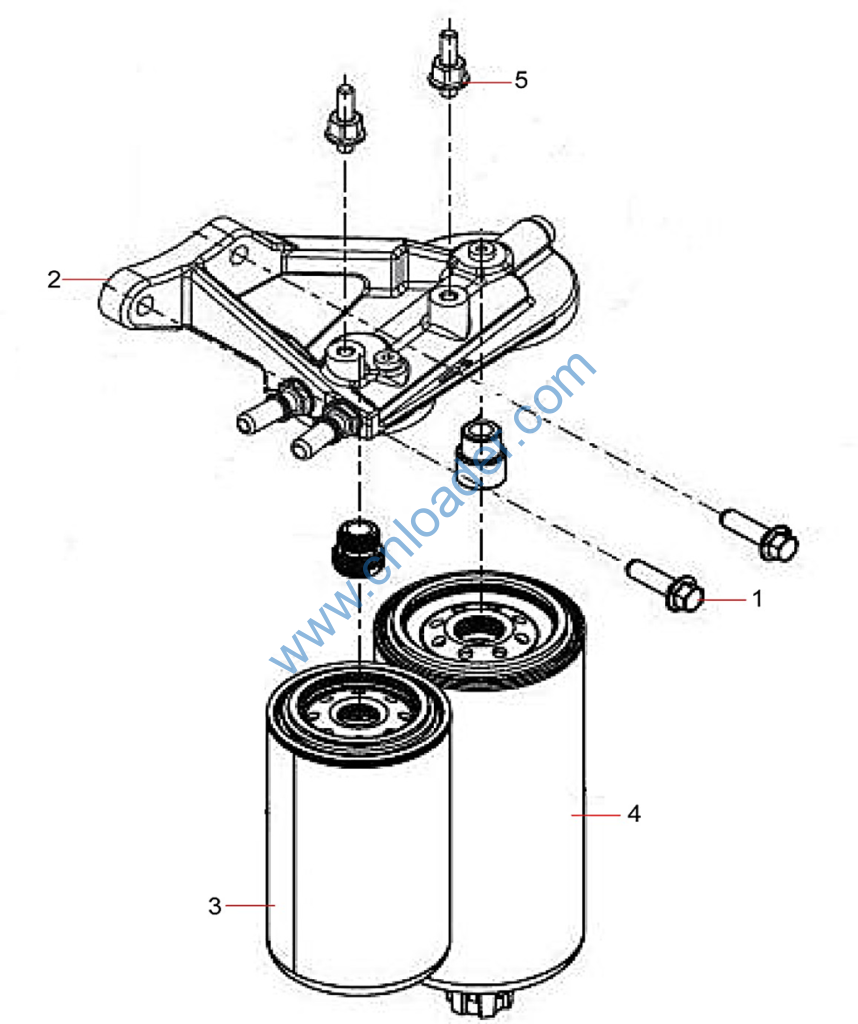

1 60248244 Screw, Hexagon Flange 2
2 60286260 Head, Fuel Filter 1
3 60208878 Filter, Fuel 1
4 60208879 Filter, Fuel 1
5 60286233 Screw, Hexagon Flange 2

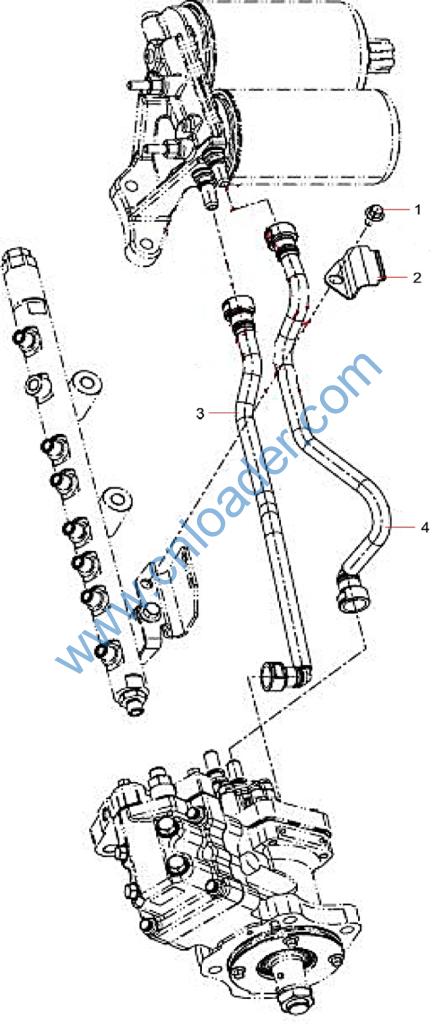

1 60102462 Bolt, Hexagon Flange 1
2 60286214 Bracket, Tube 1
3 60286262 Tube, Fuel Supply 1
4 60286263 Tube, Fuel Supply 1

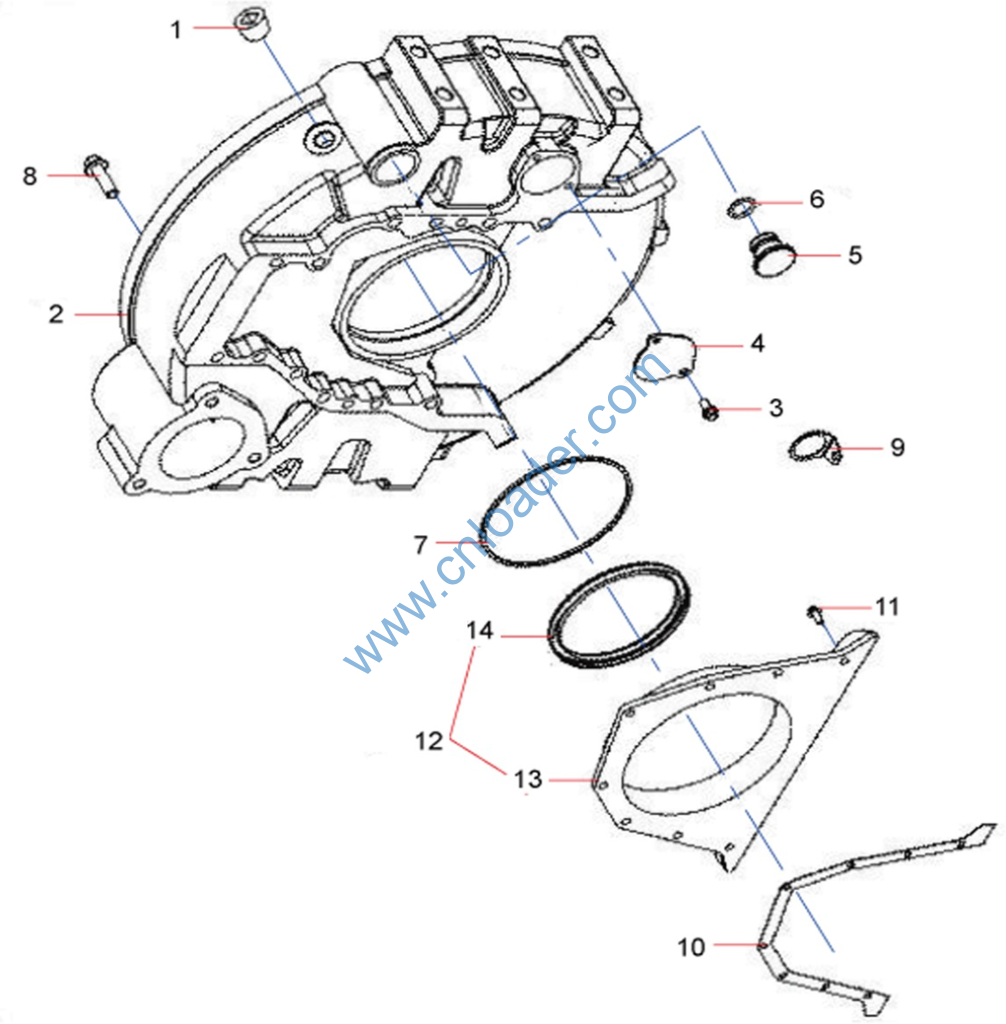

1 60104005 Plug, Threaded, Socket Head Cap 2
3 60103926 Bolt, Hexagon Flange 2
5 60102572 Plug, Plastic 1
7 60078154 Ring, Seal Rectangle 1
9 60248187 Clip 1
11 60248230 Screw, Hexagon Flange 8
13 60248164 Seal, Carrier 1
14 60102645 Ring, Seal, Crankshaft 1
1 60248337 Plug, Orifice 1
1 60248389 Connector, Male 1

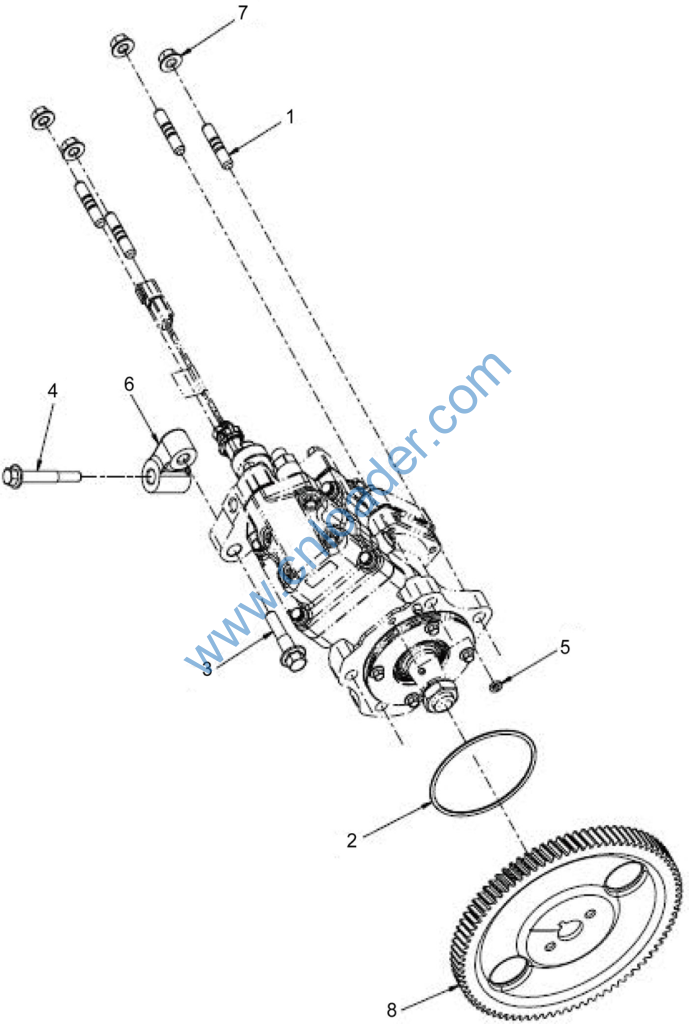

1 60248331 Stud 4
2 60248104 O-ring 1
3 60248242 Screw, Hexagon Flange 1
4 60248243 Screw, Hexagon Flange 1
5 60287943 Seal 1
6 60248309 Support, Fuel Pump 1
7 60248224 Nut, Hexagon Flange 4
8 60288107 Gear, Fuel Pump 1
1 60248310 Assembly, Fuel Pump 1
60069668 Pump Group, Fuel
60248330 Pump, Fuel Transfer
