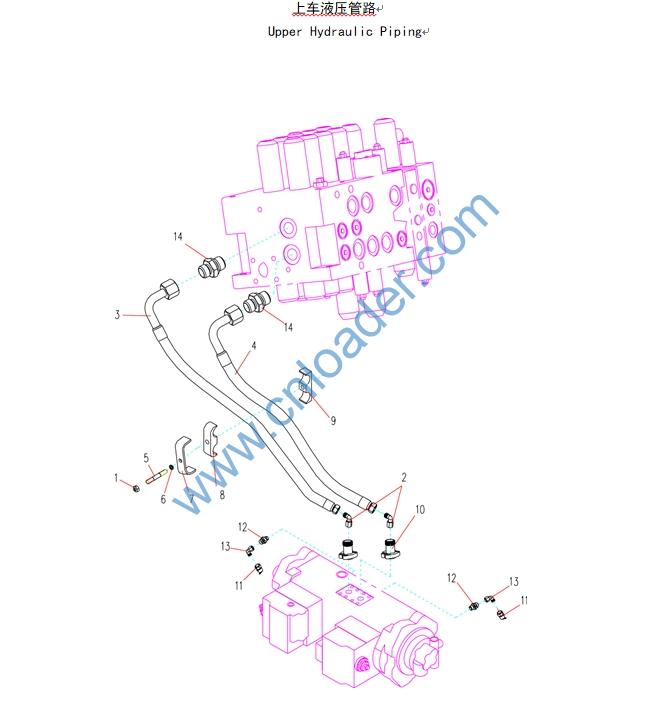

1 805200049 螺母 Nut
2 803166489 接头 Adapter
3 803172006 软管总成 Hose Assy
4 803172022 软管总成 Hose Assy
5 310500043 螺栓 Bolt
6 805300018 垫圈 Washer
7 310600522 压板 Plate
8 310600523 管夹 Pipe Clip
9 310600524 管夹 Pipe Clip
10 803166507 接头 Adapter
11 803163606 测试接头 Test Joint
12 803172161 接头 Adapter
13 803166487 接头 Adapter
14 803172299 接头 Adapter

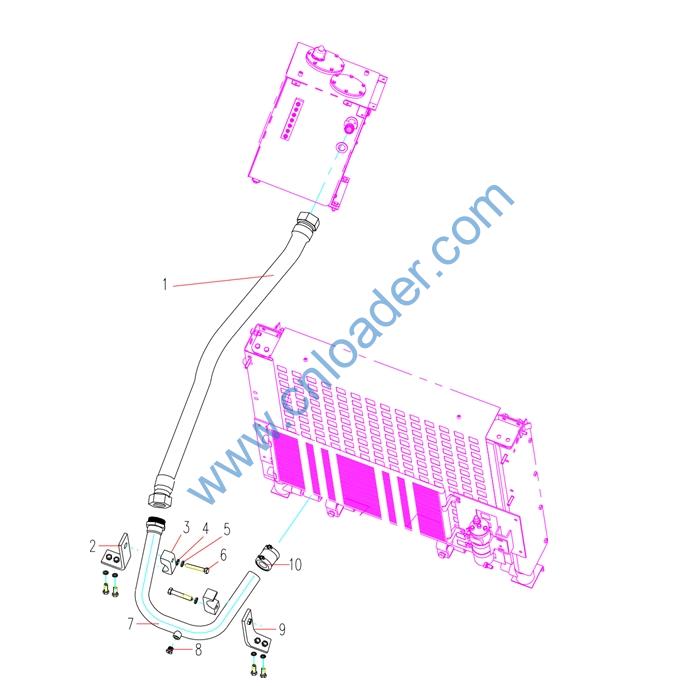

1 803172015 软管总成 Hose Assy
2 310500349 支架 Bracket
3 310500346 管夹 Pipe Clip
4 805300020 垫圈 Washer
5 805300018 垫圈 Washer
6 805000081 螺栓 Bolt
7 310500977 钢管 Pipe
8 803172170 堵头 Plug
9 310500351 支架 Bracket
10 803172507 接头 Adapter

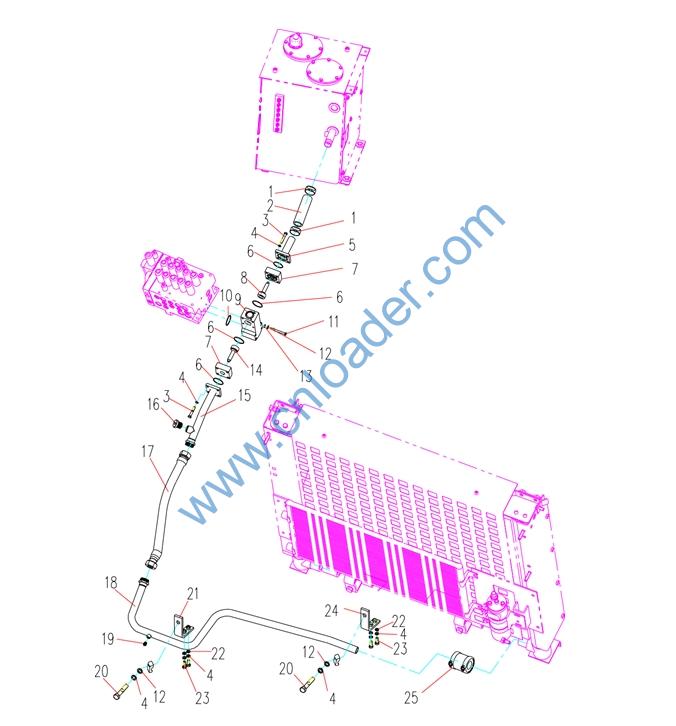

1 801905604 T 型卡箍 T-Clamp
2 803171980 胶管 Hose
3 805004678 螺栓 Bolt
4 805300018 垫圈 Washer
5 310500341 回油钢管 Pipe
6 801373831 O 型圈 O-Ring
7 310500343 法兰 Flange
8 803172062 单向阀 Valve
9 310500848 回油块 Block
10 801100138 O 型圈 O-Ring
11 805004670 螺栓 Bolt
12 805300014 垫圈 Washer
13 805302497 垫圈 Washer
14 803172061 单向阀 Valve
15 310500340 回油钢管 Pipe
16 803173992 堵头 Plug
17 803172016 软管总成 Hose Assy
18 310500583 回油钢管 Plug
19 803172170 堵头 Plug
20 805004678 螺栓 Bolt
21 310500354 支架 Bracket
22 805300020 垫圈 Washer
23 805001970 螺栓 Bolt
24 310500005 支架 Bracket
25 803172506 接头 Adapter
1 803172173 接头 Adapter
2 803109651 接头 Adapter
3 803172444 软管总成 Hose Assy
4 803173448 接头 Adapter
5 803172023 软管总成 Hose Assy
6 803164584 接头 Adapter
7 803172474 软管总成 Hose Assy
8 803166490 接头 Adapter
9 803172165 接头 Adapter
10 803166562 接头 Adapter
11 819908926 接头 Adapter
12 803172483 软管总成 Hose Assy
13 803164850 接头 Adapter

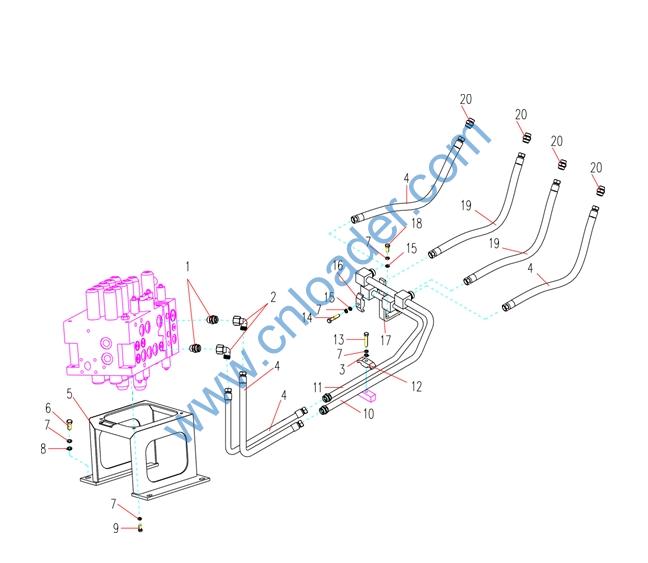

1 803172299 接头 Adapter
2 803166489 接头 Adapter
3 805300020 垫圈 Washer
4 803172013 软管总成 Hose Assy
5 310500336 主阀支架 Valve Bracket
6 805004627 螺栓 Bolt
7 805300018 垫圈 Washer
8 805302490 垫圈 Washer
9 805004652 螺栓 Bolt
10 310500850 动臂钢管 III Boom Pipe III
11 310500849 动臂钢管 IV Boom Pipe IV
12 310500348 管夹 Pipe Clip
13 860111090 螺栓 Bolt
14 805001941 螺栓 Bolt
15 805300113 垫圈 Washer
16 310500334 管夹 Pipe Clip
17 310500333 弯板 Bent Plate
18 805004627 螺栓 Bolt
19 803172479 软管总成 Hose Assy
20 803172510 接头 Adapter
1 A210710000003 Sleeve 2
2 A210306000008 Nut 2
3 10490166 Tube, Coupling 1

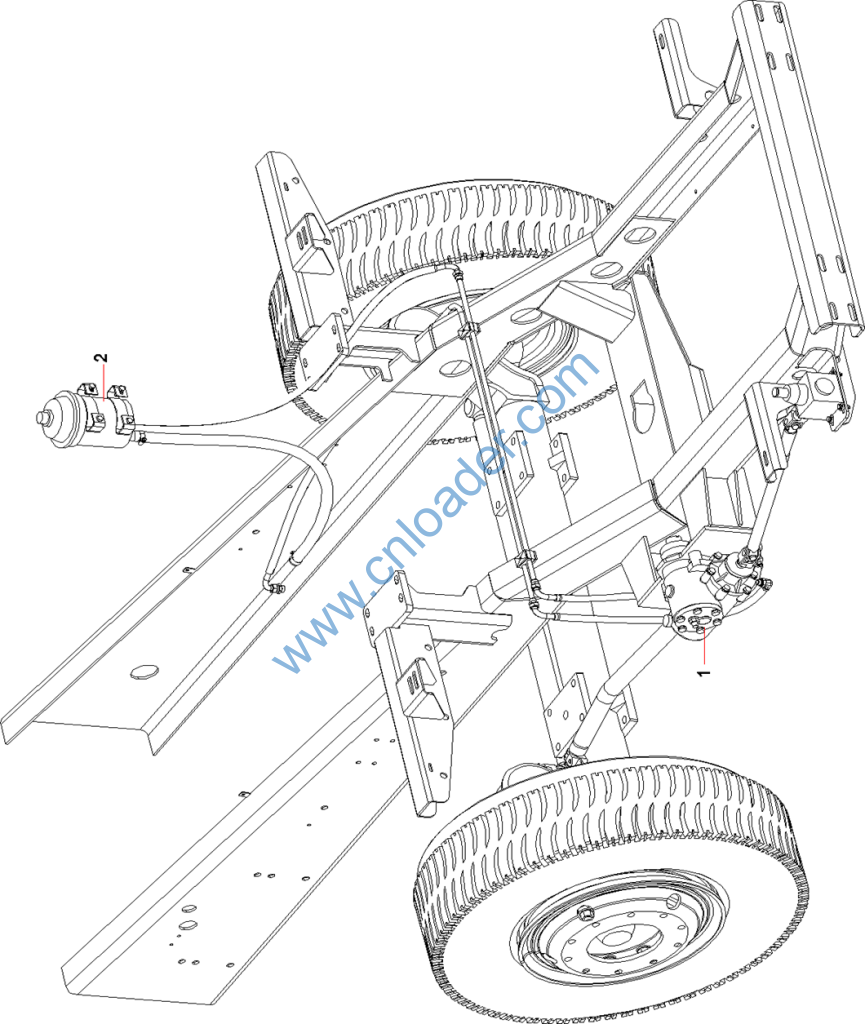

1 12573932 Steering System 1
2 10178445 Lines Group, Steering 1

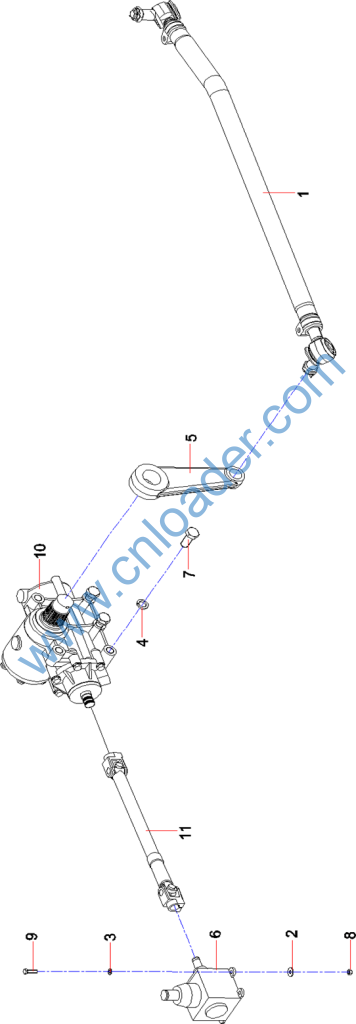

1 A810305030015 Rod Assembly, Steering 1
2 A210404000005 Washer 4
3 A210405000007 Washer 4
4 A210401000006 Washer 5
5 A229900005682 Arm, Steering 1
6 A229900003007 Steering Gear 1
7 21029600 Bolt 5
8 A210319000004 Nut 4
9 A210111000091 Bolt 4
10 60134262 Orbital Assembly, Steering 1
11 60025178 Shaft, Inter-transmission 1
1 60265639 Nut, Hexagon 1
3 60336452 Ring, Dust 1
5 60265678 O-ring 1
7 60106924 Washer, Spring 12
9 60336467 Shaft Assembly, Steering Arm 1
11 60265673 Bolt, Hexagon 2
13 60336471 Housing Assembly 1

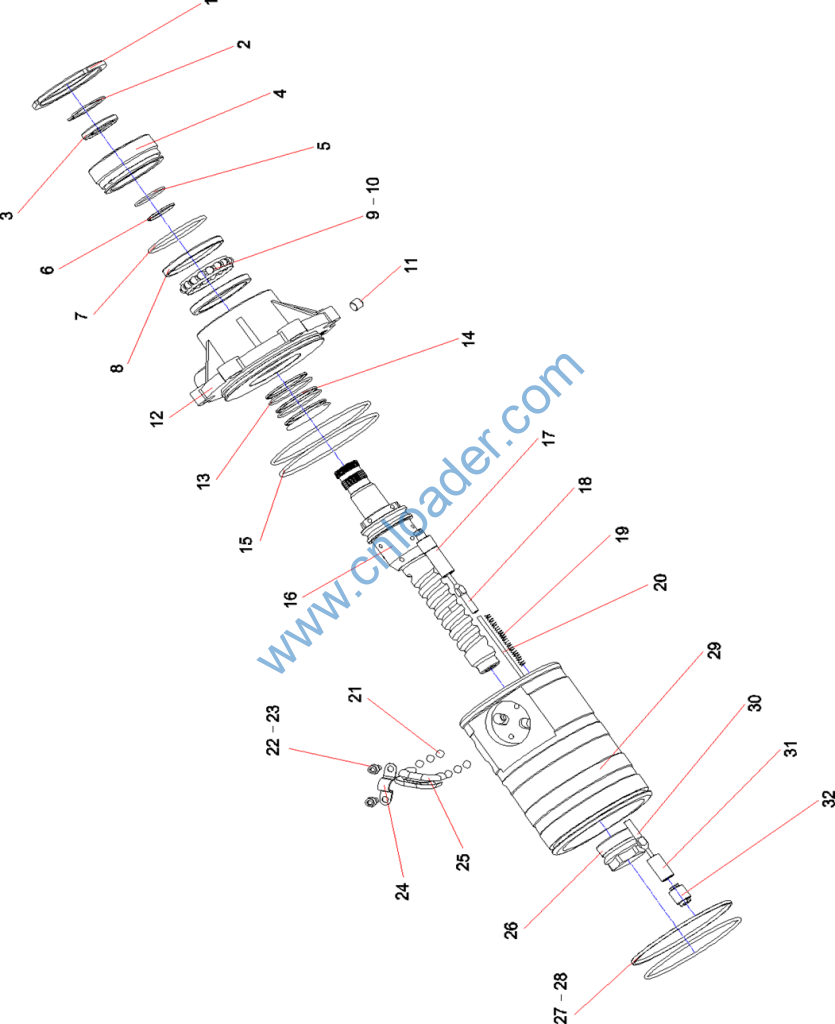

1 60336454 Nut 1
3 60265632 Seal 1
5 60265630 O-ring 1
7 60336456 O-ring 1
9 60265668 Holder, Steel Ball 1
11 60265677 Plug, Threaded, Socket Head Cap 1
13 60265634 O-ring 3
15 60265633 Ring, Seal 2
17 60265658 Rod Assembly 1
19 60336459 Spring 1
21 21010039 Ball, Steel 29
23 60287282 Washer, Spring 2
25 60336462 Catheter, Steel Ball 2
27 60336463 Ring, Seal 1
29 60336465 Nut 1
31 60265663 Sleeve, Valve 1
32 60265661 Plug, Screw 1

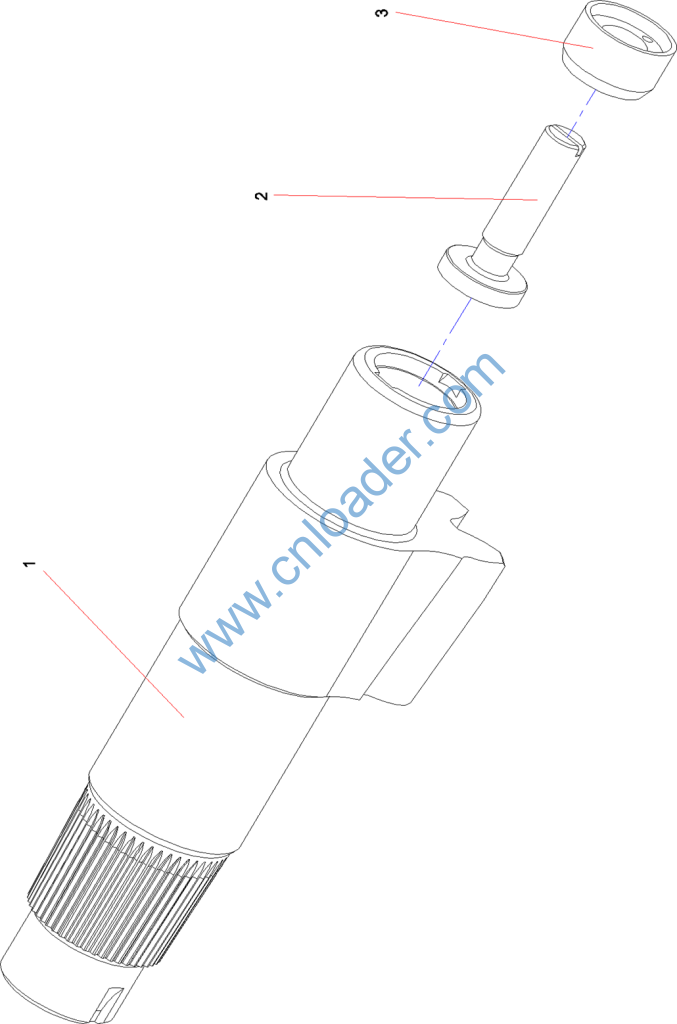

1 60336468 Shaft, Steering Arm 1
2 60265636 Screw, Adjustment 1
3 60265635 Nut, Lock 1

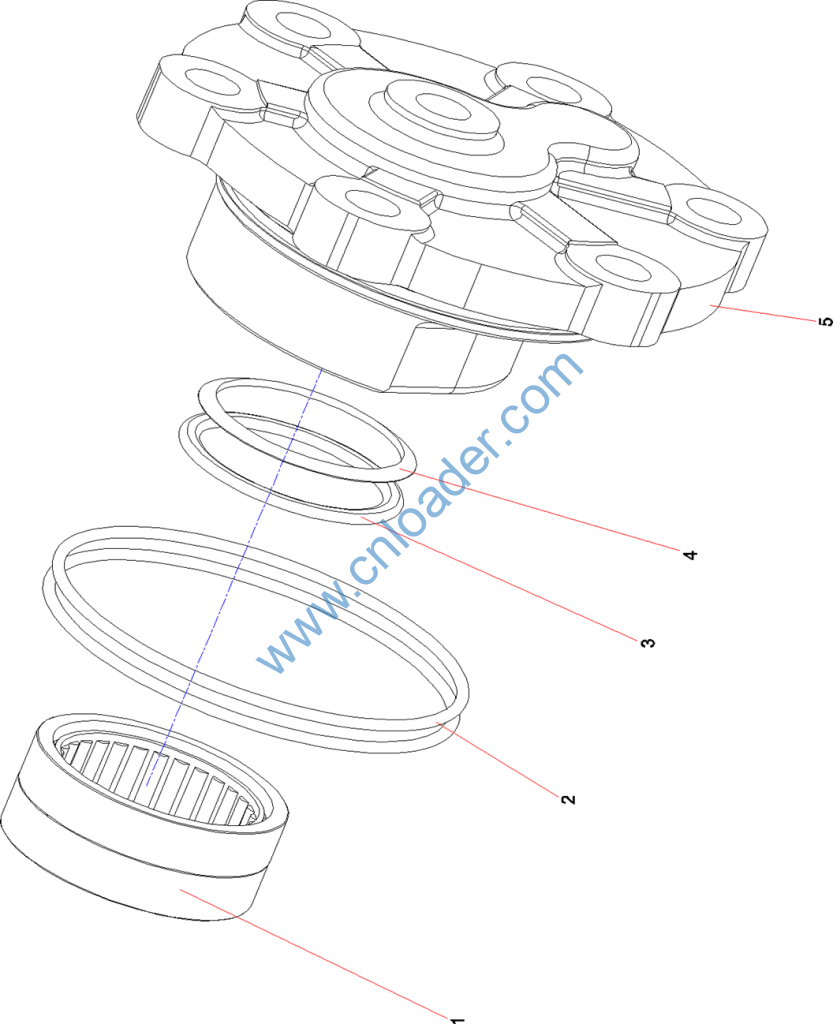

1 60265645 Bearing 1
2 60265670 O-ring 2
3 60265637 Seal, High Pressure 1
4 60265638 Ring, Retainer 1
5 60336470 Cover, Side 1

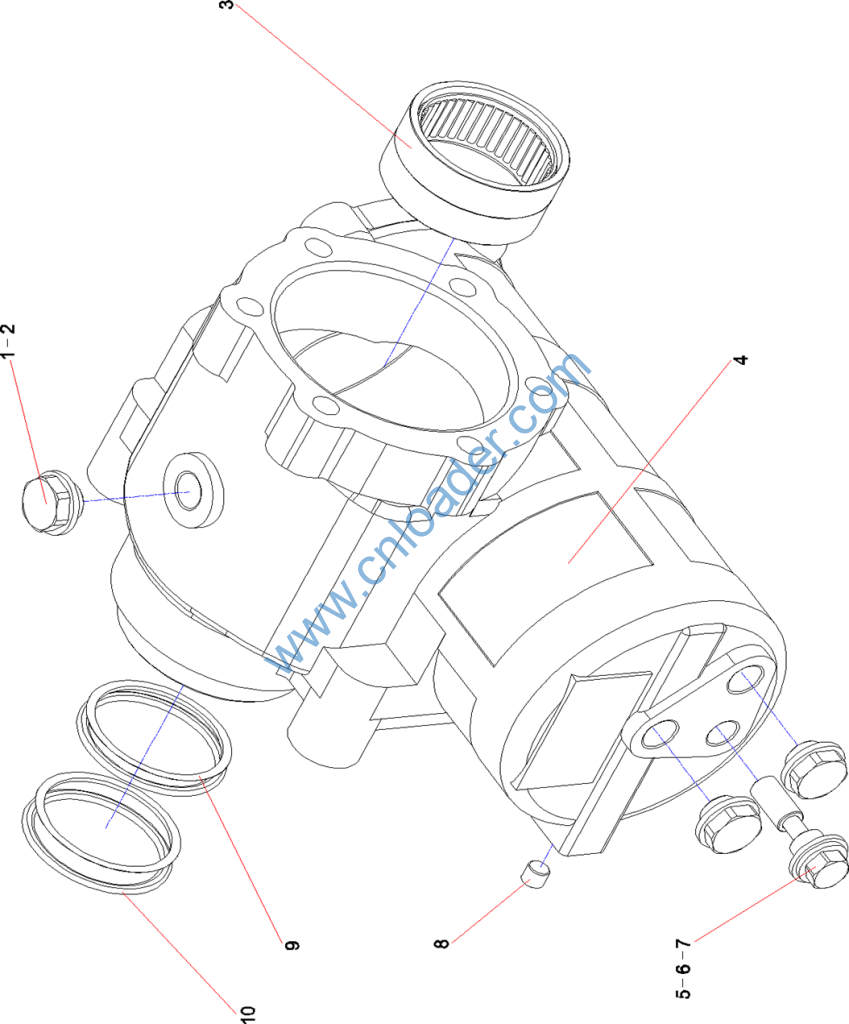

1 60265642 Plug, Screw 3
2 A210434000009 Washer 3
3 60265641 Bearing 1
4 60336472 Housing 1
5 60336473 Screw 1
6 60336474 Sleeve 1
7 A210434000008 Washer 1
8 60265677 Plug, Threaded, Socket Head Cap 1
9 60265665 Ring, Retainer 2
10 60265664 Seal, High Pressure 2

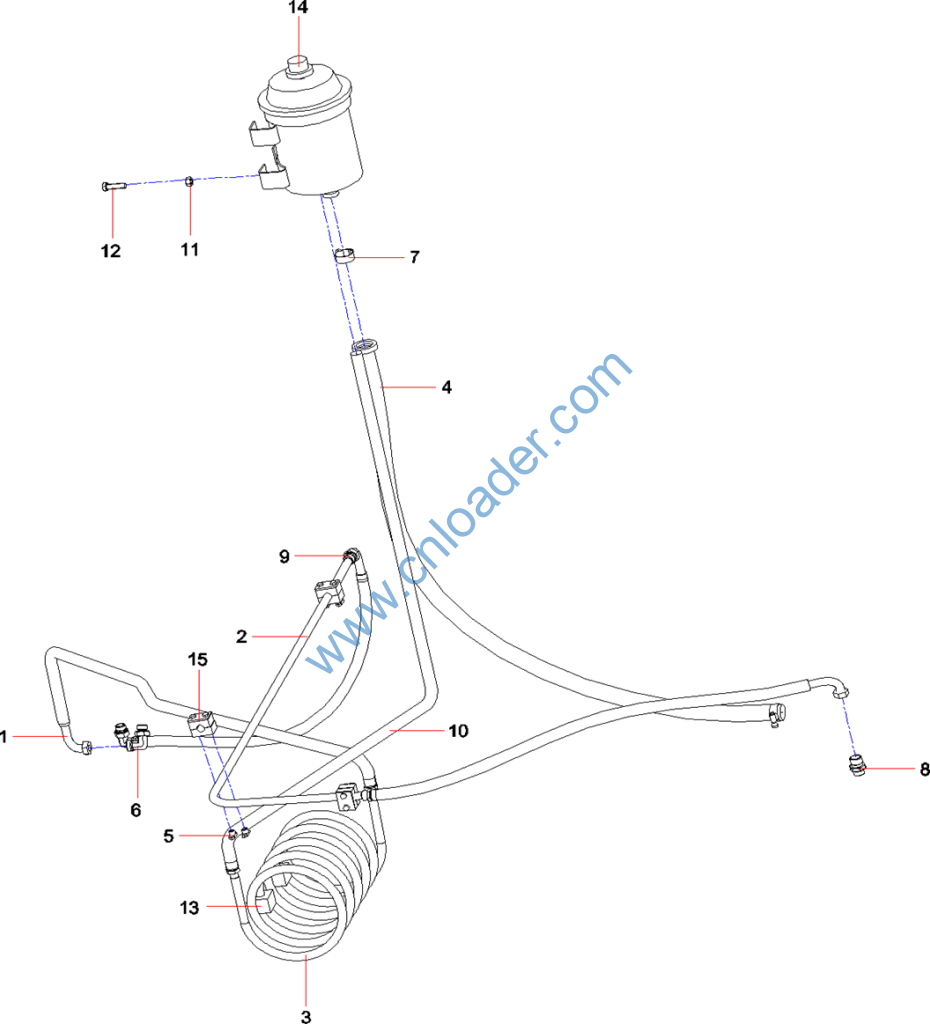

1 B230103000051 Hose 1
3 11281113 Tube, Cooling, Spiral 1
5 60202487 Nut 10
7 A229900002965 Clamp, Hose 2
9 B230103003344 Hose Assembly 2
11 A210319000001 Nut 4
13 B210851000002 Clamp, Tube, Single 2
15 A229900002417 Clamp, Tube, Single 3
1 60049385 Element, Filter 1

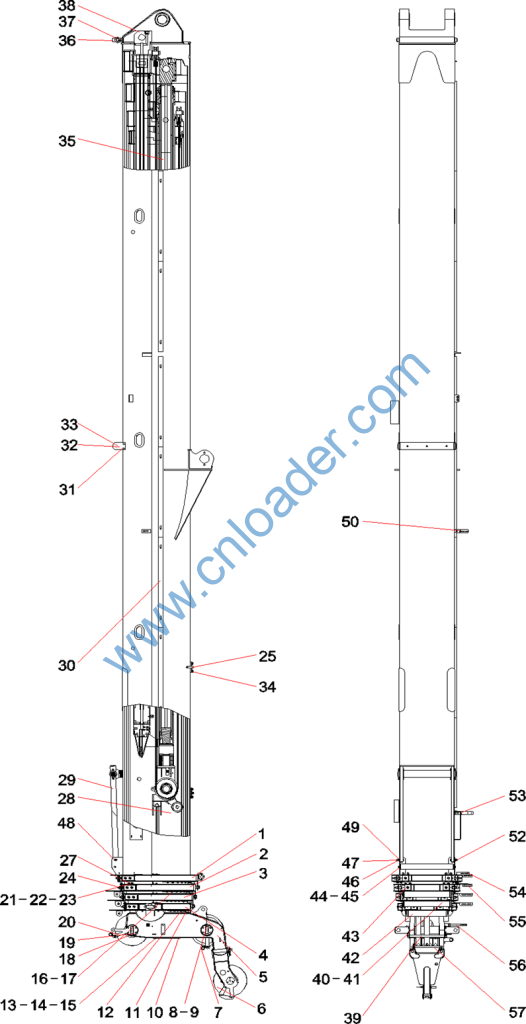

1 12628186 One-section boom assembly 1
3 12628205 2nd Boom Section 1
5 12628213 Five-section boom assembly 1
7 A829900002661 Clip 4
9 A210804000002 Fitting, Grease 10
11 A210204000170 Screw 8
13 A210401000016 Washer 2
15 A210111000079 Bolt 2
17 A210405000007 Washer 74
19 12301201 Baffle, Right, Boom Head 1
21 A210111000018 Bolt 2
23 A210401000001 Washer 22
25 14068507 Bracket, Boom Extension 2
28 A210307000012 Nut 2
30 11645141 Channel 8
32 12166298 Wear Pad 2
33 11268335 Bracket 2
34 A210111000037 Bolt 4
36 12295421 Holder, Roller 1
38 12628218 Boom Telescope Mechanism 1
40 A210111000198 Bolt 16
42 10669845 Roller Assembly, Wire Rope 1
44 A210111000040 Bolt 10
46 10138481 Bushing, Spacer 2
48 A210110000180 Bolt 2
50 10694801 Bracket 1
53 A820101341354 Bracket, Work Light 1
55 10268365 Bracket 2
57 10137516 Bar, Tie 1
