803403467 CENTRAL TURNING HYDRAULIC JOINT
310703519 HYDRAULIC SYSTEM – UNDERCARRIAGE
No. PART NUMBER QTY NAME NOTE PAGE
1 860148276 1 REPAIR KIT

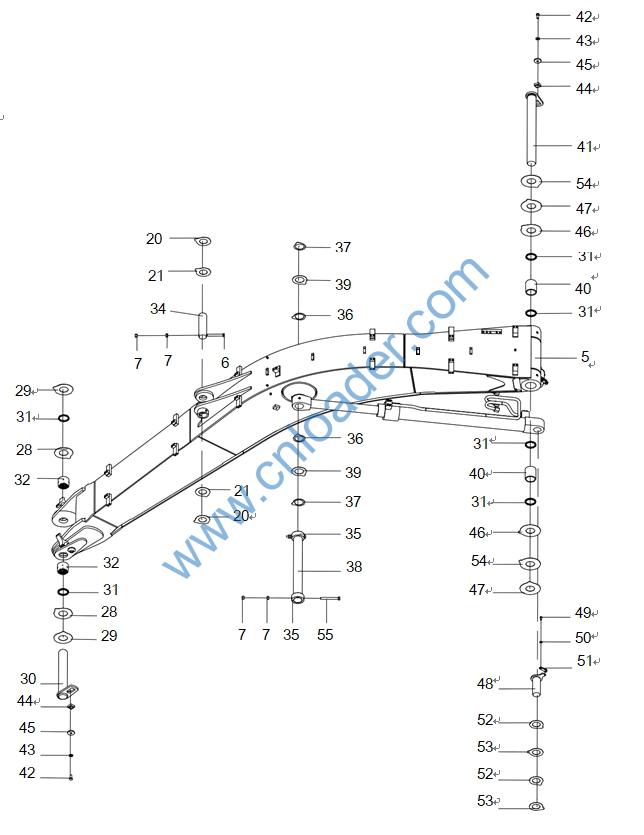

310703465 EQUIPMENT
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
5 310703495 1 BOOM 314
6 805046677 3 BOLT M20×160 GB/T5782-2000
7 805046475 10 NUT M20 GB/T6170-2000
20 329900659 6 CUSHION
21 329900709 6 CUSHION
28 329900716 2 CUSHION
29 329900666 2 CUSHION
30 310603145 1 SHAFT
31 803172437 6 DUSTPROOF WASHER
32 310702419 2 BEARING
34 310602111 2 SHAFT
35 310705671 2 LOCATING RING
36 329900661 2 CUSHION
37 329900711 2 CUSHION
38 310600289 1 SHAFT
39 329900662 2 CUSHION
40 800514228 2 BEARING
41 310700015 1 SHAFT
42 805046468 2 BOLT M18×40 GB/T5783-2000
43 805338377 2 WASHER 18 GB/T1230-2006
44 310600280 2 SLIDING SLEEVE
45 310600281 2 WASHER
46 329900667 2 CUSHION
47 329900717 2 CUSHION
48 310700016 2 SHAFT
49 805046469 4 BOLT M12×25 GB/T5783-2000
50 805338313 4 WASHER 12 GB/T1230-2006
51 310700019 2 CLAMP
52 329900658 4 CUSHION
53 329900708 4 CUSHION
54 329900739 2 CUSHION
55 805046679 2 BOLT M20×180 GB/T5782-2000

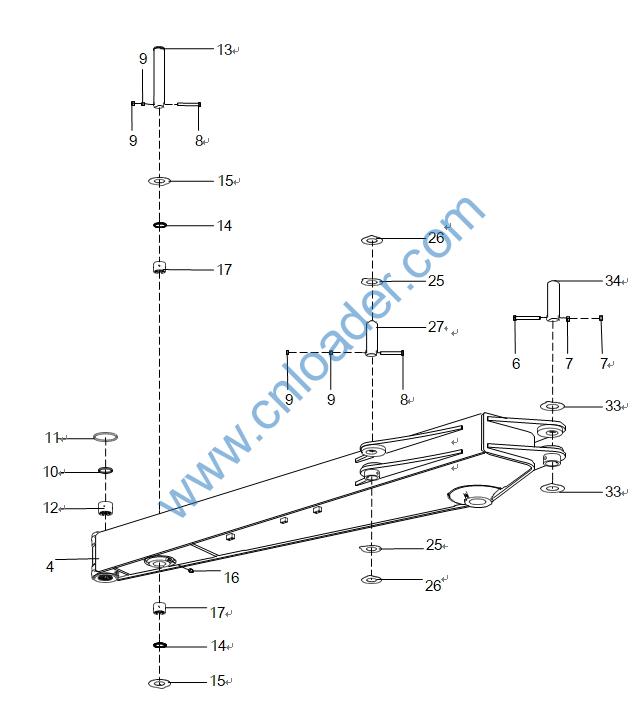

310703465 EQUIPMENT
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
4 310703492 1 ARM 312
6 805046677 3 BOLT M20×160 GB/T5782-2000
7 805046475 10 NUT M20 GB/T6170-2000
8 805046465 2 BOLT M16×140 GB/T5782-2000
9 805046476 4 NUT M16 GB/T6170-2000
10 803176145 4 DUSTPROOF WASHER
11 310600273 4 O-RING
12 310702416 4 BEARING
13 310600284 1 SHAFT
14 803172435 2 DUSTPROOF WASHER
15 329900655 2 CUSHION
16 801100336 10 OIL CUP M10×1 JB/T7940.1-1995
17 310702417 2 BEARING
25 329900654 2 CUSHION
26 329900704 2 CUSHION
27 310602110 1 SHAFT
33 329900660 2 CUSHION
34 310602111 2 SHAFT

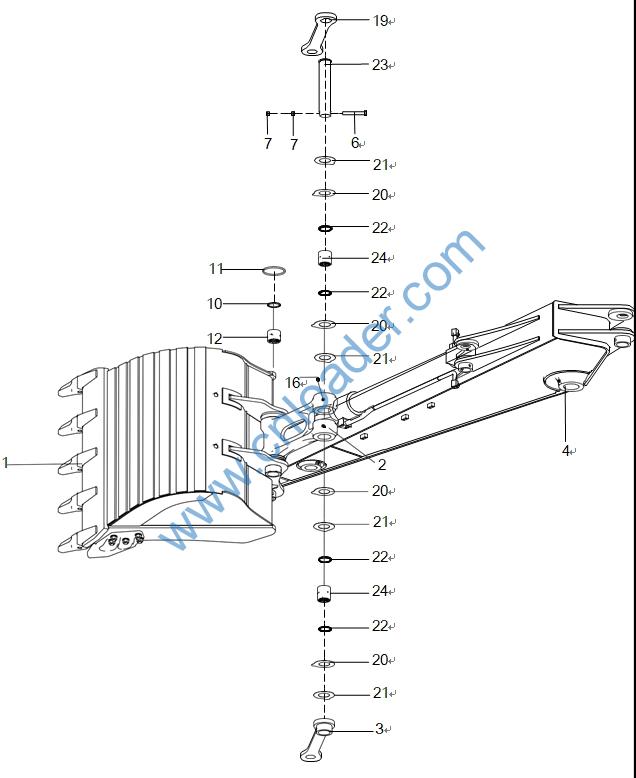

310703465 EQUIPMENT
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
1 310703910 1 BUCKET 306
2 310709689 1 LINKAGE
3 310600265 1 LINK
4 310703492 1 ARM 312
6 805046677 3 BOLT M20×160 GB/T5782-2000
7 805046475 10 NUT M20 GB/T6170-2000
10 803176145 4 DUSTPROOF WASHER
11 310600273 4 O-RING
12 310702416 4 BEARING
16 801100336 10 OIL CUP M10×1 JB/T7940.1-1995
19 310600266 1 LINK
20 329900659 6 CUSHION
21 329900709 6 CUSHION
22 803172436 4 DUSTPROOF WASHER
23 310600286 1 SHAFT
24 310702418 2 BEARING

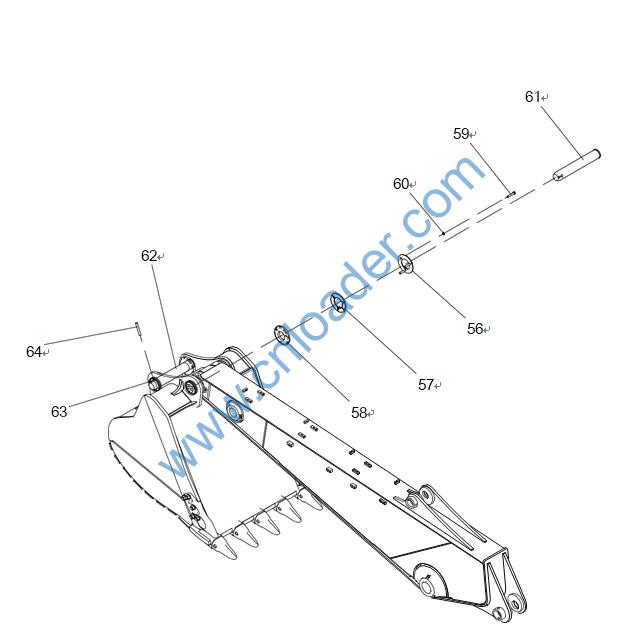

310703465 EQUIPMENT
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
56 310700017 1 PLYWOOD
57 310600271 12 BASEPLATE
58 310700018 1 PLATE
59 805046657 3 BOLT M14×75 GB/T5782-2000
60 805338262 3 WASHER 14 GB/T93-1987
61 310600283 1 SHAFT
62 310600285 1 SHAFT
63 310600278 2 ELASTIC RING
64 310600279 2 SHAFT

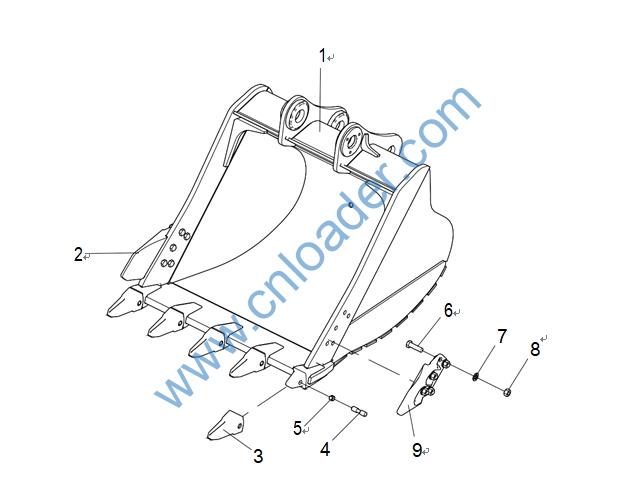

310703910 BUCKET
310703465 EQUIPMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 310703911 1 BUCKET BODY 310
2 819908880 1 RIGHT SIDE TOOTH
3 819910664 5 SLEEVE GEAR
4 819908741 5 PIN SHAFT
5 819908742 5 CIRCLIP
6 805046683 10 BOLT M24×80 GB/T5782-2000
7 805338299 10 WASHER 24 GB/T1230-2006
8 805203192 10 NUT M24 GB/T6170-2000
9 819908881 1 LEFT SIDE TOOTH
310703910 BUCKET
310703465 EQUIPMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 310703911 1 BUCKET BODY 310
2 819908880 1 RIGHT SIDE TOOTH
3 819910664 5 SLEEVE GEAR
4 819908741 5 PIN SHAFT
5 819908742 5 CIRCLIP
6 805046683 10 BOLT M24×80 GB/T5782-2000
7 805338299 10 WASHER 24 GB/T1230-2006
8 805203192 10 NUT M24 GB/T6170-2000
9 819908881 1 LEFT SIDE TOOTH
310703911 BUCKET BODY
310703910 BUCKET
No. PART NUMBER QTY NAME NOTE PAGE
1 310710760 1 MAIN EDGE PLATE
2 819962904 6 TOOTH ADAPTER

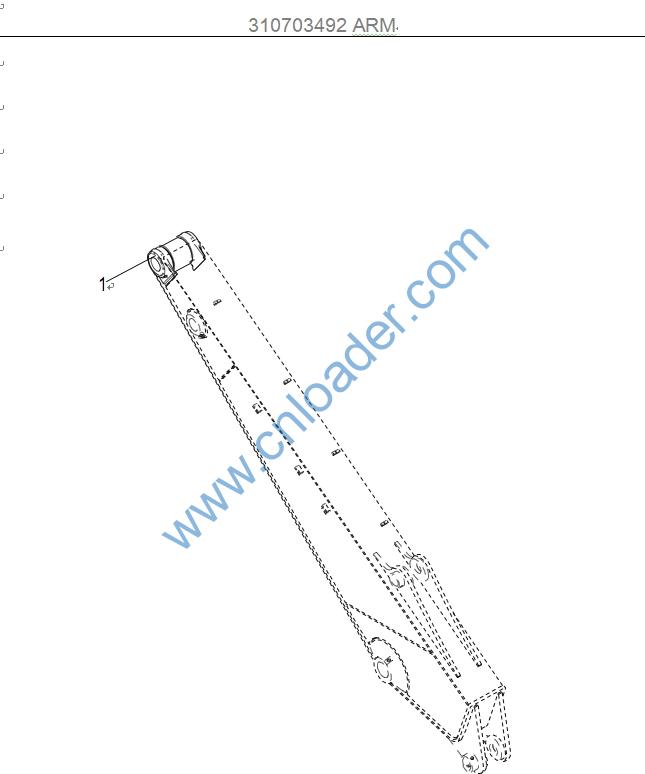

310703492 ARM
310703465 EQUIPMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 860301164 1 CONNECTING ROD

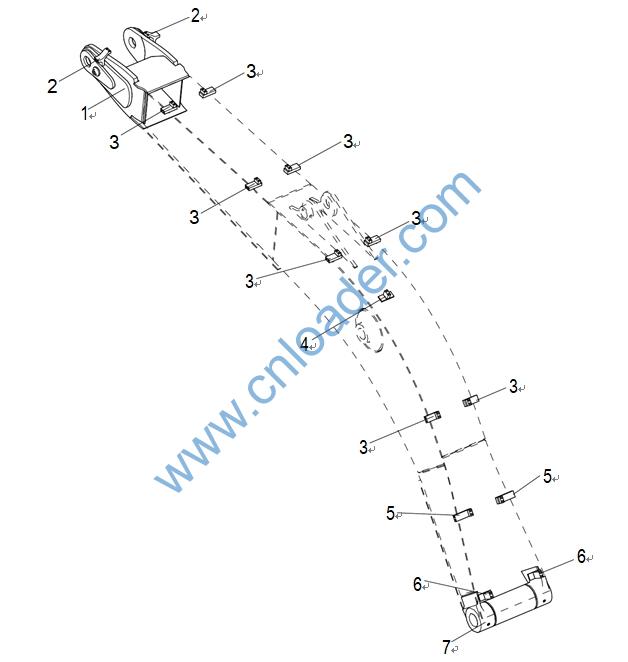

310703495 BOOM
310703465 EQUIPMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 860301161 1 FRONT CASTING (BOOM)
2 310704684 2 MOUNT
3 310703514 8 MOUNT
4 310703507 1 MOUNT
5 310703504 2 MOUNT
6 310703497 2 MOUNT
7 860301162 1 SUPPORT
310705713 CENTRALIZED LUBRICATION
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
1 310705714 1 CENTRALIZED LUBRICATION 318

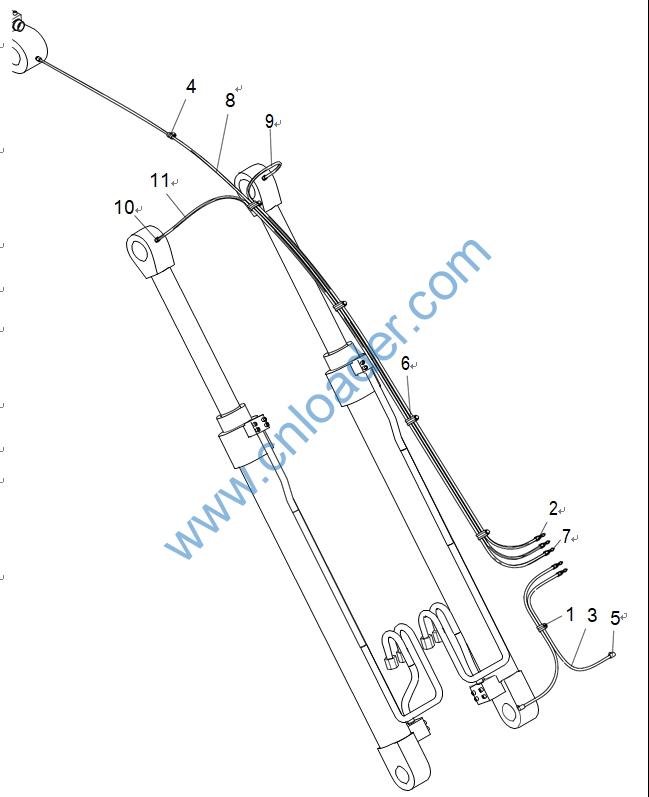

310705714 CENTRALIZED LUBRICATION
310705713 CENTRALIZED LUBRICATION
No. PART NUMBER QTY NAME NOTE PAGE
1 801906049 1 SLEEVE CLAMP FOR RUBBER HOSE
2 801102857 5 CONNECTION
3 800902667 2 HIGH PRESSURE RESIN HOSE ASSEMBLY
4 800104454 1 SLEEVE CLAMP FOR RUBBER HOSE
5 803437619 2 STRAIGHT COUPLING
6 801906428 4 SLEEVE CLAMP FOR RUBBER HOSE
7 801140026 5 OIL CUP GB/T25618.1-2010
8 822138954 1 HIGH PRESSURE RESIN HOSE ASSEMBLY
9 801133851 1 HIGH PRESSURE RESIN HOSE ASSEMBLY
10 803306276 3 JAT CONNECTOR
11 801133850 1 HIGH PRESSURE RESIN HOSE ASSEMBLY
310710888 SIGN
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
13 310710771 2 MODEL SIGN
19 329900200 2 COUNTERWEIGHT EXTRUSION SAFETY SIGN
20 329900282 1 REFLECTING SIGN
21 329901302 1 COMPANY LOGO
22 329900214 1 REFLECTING SIGN
310710888 SIGN
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
17 329900210 2 EMERGENCY EXIT SAFETY SIGN
23 329901191 1 COMPANY LOGO
24 329900195 1 NO STORAGE SAFETY SIGN
25 310702071 1 LUBRICATING AND MAINTENANCE SIGN
26 329900211 1 LEAVE OPERATION SAFETY SIGN
27 329900233 1 OPERATION SIGN
28 329900207 1 READ THE OPERATOR’S MANUAL SAFETY SIGN
29 329900208 1 PREVENT ELECTRIC SHOCK SAFETY SIGN
30 329900203 1 SAFETY BELT SAFETY SIGN
31 329900198 1 ENGINE STARTING SAFETY SIGN
32 329900232 1 PRODUCT LABEL
33 805502139 4 RIVET 3.2×9 GB/T12618.1-2006
34 329900222 2 MACHINE TRAVELING SIGN
36 310710772 1 COMPANY LOGO
42 329901476 1 QUICK SWITCH EXTRUSION SAFETY SIGN
310710888 SIGN
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
15 329900289 1 GUARD SAFETY SIGN
16 329900291 1 BELT CONVEYING SAFETY SIGN
17 329900210 2 EMERGENCY EXIT SAFETY SIGN
18 329900202 1 LOCK THE FRONT WINDOW SAFETY SIGN
35 329900290 1 HIGH PRESSURE BURNING SAFETY SIGN
37 329900223 1 ACCUMULATOR SAFETY SIGN
38 329900220 1 PROHIBITING SIGN
39 329900213 1 LOCKING LEVER SAFETY SIGN
40 329900186 1 BATTERY SAFETY SIGN
41 329900836 1 POWER SWITCH SIGN
