XCMG XE215C Excavator spare parts AR
310711336 COVER PLATE
310703590 HOOD AND GUARD ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 310711337 1 SHROUNDING
3 310703600 1 TRIM SEAL

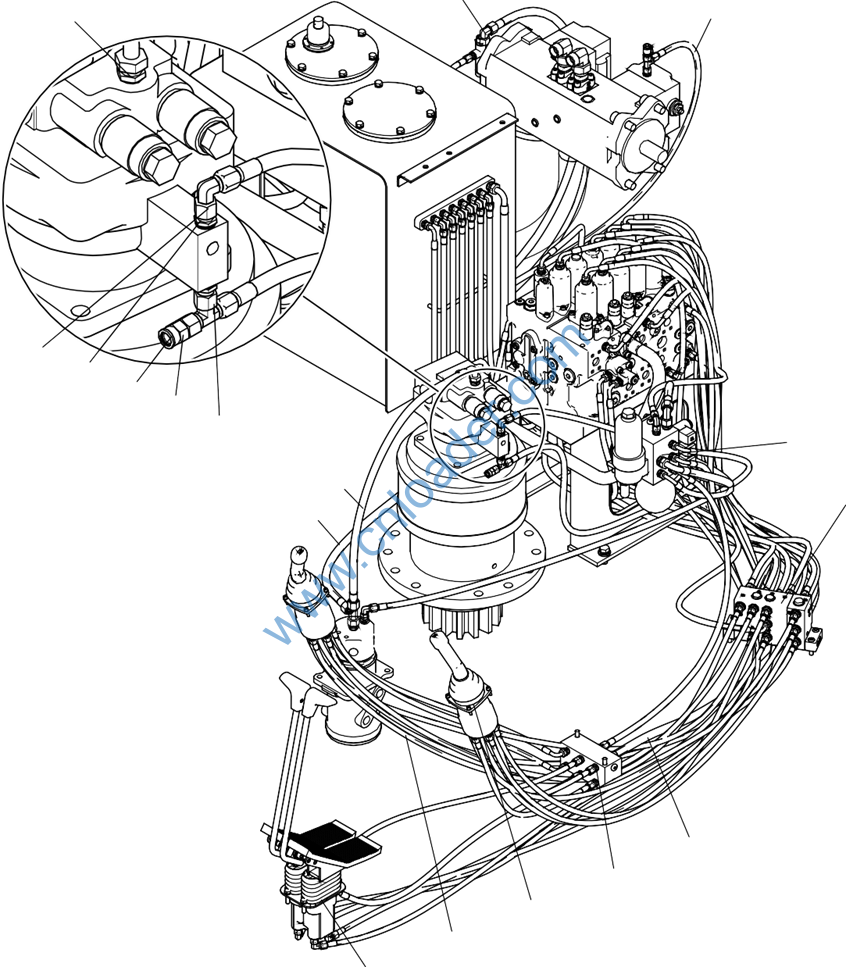

310703580 HYDRAULIC PILOT CONTROL SYSTEM
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
1 819908926 1 CONNECTOR
2 803379830 1 HOSE ASS’Y
3 803172161 2 CONNECTOR NONSTANDARD
4 803166484 1 CONNECTOR
5 803172162 1 CONNECTOR
6 805300024 1 WASHER 14 JB/T982-1977
7 803163572 2 CONNECTOR
8 310703583 1 PIPE 90
9 310703587 1 PIPE 94
10 803306858 1 HOSE ASS’Y
11 310710905 1 PILOT CIRCUIT ARRANGEMENT 104
12 803374974 1 HOSE ASS’Y
13 310703584 1 GREASE BANK 110
14 310703585 1 PIPE 112
15 310703586 1 PIPE 116
16 803103775 1 CONNECTOR
17 310703582 1 PIPE 120
310703583 PIPE
310703580 HYDRAULIC PILOT CONTROL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 310703589 1 BUFFERING VALVE 92
2 803177206 2 HOSE ASS’Y
3 803172381 1 HOSE ASS’Y
4 803172804 3 HOSE ASS’Y
5 803172194 1 HOSE ASS’Y
6 803306856 2 HOSE ASS’Y
7 803172172 1 HOSE ASS’Y
8 803172242 1 HOSE ASS’Y
9 803172776 1 HOSE ASS’Y
10 803173588 1 HOSE ASS’Y
11 803177256 1 HOSE ASS’Y
12 803172915 2 HOSE ASS’Y
13 803182809 1 HOSE ASS’Y
310703589 BUFFERING VALVE
310703583 PIPE
No. PART NUMBER QTY NAME NOTE PAGE
1 803078696 1 CUSHION VALVE
2 803172160 25 CONNECTOR
3 805139929 4 SCREW M10×40 GB/T70.1-2008
4 805338260 4 WASHER 10 GB/T93-1987
310703587 PIPE
310703580 HYDRAULIC PILOT CONTROL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 804001913 1 FOOT PILOT VALVE 96
2 310508888 1 FOOT PEDAL ASSY 98
9 803198465 1 HOSE ASS’Y
10 803182803 1 HOSE ASS’Y
11 803103351 4 CONNECTOR
12 803172161 6 CONNECTOR NONSTANDARD
13 803387441 2 HOSE ASS’Y
14 803386199 1 CONNECTION
15 803182804 1 HOSE ASS’Y
16 803176919 1 HOSE ASS’Y
804001913 FOOT PILOT VALVE
310703587 PIPE
No. PART NUMBER QTY NAME NOTE PAGE
1 860542027 2 SPRING
2 860542028 1 FOOT SEAL PLATE
310508888 FOOT PEDAL ASSY
310703587 PIPE
No. PART NUMBER QTY NAME NOTE PAGE
1 803282536 1 RIGHT FOOT PEDAL ASSY
2 803282535 1 LEFT FOOT PEDAL ASSY
3 310504068 1 CONTROL LEVER 100
4 310504070 1 CONTROL LEVER 102
5 805338279 8 WASHER 10 GB/T97.1-2002
6 805139925 8 SCREW M10×20 GB/T70.1-2008
310504068 CONTROL LEVER
310508888 FOOT PEDAL ASSY
No. PART NUMBER QTY NAME NOTE PAGE
1 805140014 1 SCREW M5×12 GB/T818-2000
2 819908626 1 RIGHT JOYSTICK
3 310504069 1 CONTROL LEVER
310504070 CONTROL LEVER
310508888 FOOT PEDAL ASSY
No. PART NUMBER QTY NAME NOTE PAGE
1 805140014 1 SCREW M5×12 GB/T818-2000
2 819908627 1 LEFT JOYSTICK
3 310504071 1 CONTROL LEVER
310710905 PILOT CIRCUIT ARRANGEMENT
310703580 HYDRAULIC PILOT CONTROL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 310710904 1 PILOT POWER CONTROL BLOCK 106
2 803391987 1 HOSE ASS’Y
3 803172428 1 HOSE ASS’Y
4 803172424 1 HOSE ASS’Y
5 803172847 1 HOSE ASS’Y
6 803173595 1 HOSE ASS’Y
7 803374466 1 HOSE ASS’Y
8 803191266 1 HOSE ASS’Y
310710904 PILOT POWER CONTROL BLOCK
310710905 PILOT CIRCUIT ARRANGEMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 803074844 1 PILOT OIL SOURCE VALVE GROUP 108
2 803163582 5 CONNECTOR
3 805338279 6 WASHER 10 GB/T97.1-2002
4 805046416 2 BOLT M10×30 GB/T5783-2000
5 310710903 1 BRACKET
6 803164850 2 CONNECTOR
7 803163573 1 CONNECTOR
8 803163572 1 CONNECTOR
9 803173593 1 PLUG
10 805011330 4 BOLT M10×25 GB/T5783-2000
803074844 PILOT OIL SOURCE VALVE GROUP
310710904 PILOT POWER CONTROL BLOCK
No. PART NUMBER QTY NAME NOTE PAGE
1 803182167 1 FILTER ELEMENT(PILOT)
2 860129459 1 TRANSMITTER
3 860160940 1 CHECK VALVE
4 860154904 1 ACCUMULATOR
5 860514190 3 SOLENOID VALVE BODY
6 860139075 1 PRESSURE GAUGE ADAPTOR
7 860513461 3 COIL
310703584 GREASE BANK
310703580 HYDRAULIC PILOT CONTROL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803163584 1 JOINT
2 803166495 7 JOINT
3 805139865 2 SCREW M10×60 GB/T70.1-2008
4 310600432 1 JOINT BLOCK
5 803172170 2 PLUG
6 805338260 2 WASHER 10 GB/T93-1987
310703585 PIPE
310703580 HYDRAULIC PILOT CONTROL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 803172160 5 CONNECTOR
2 803172785 4 HOSE ASS’Y
3 803386199 1 CONNECTION
4 803172804 2 HOSE ASS’Y
5 803097419 1 RIGHT PILOT LEVER 114
6 805338258 4 WASHER 6 GB/T93-1987
7 805139840 4 SCREW M6×25 GB/T70.1-2008
8 801503877 1 HOSE COVER
803097419 RIGHT PILOT LEVER
310703585 PIPE
No. PART NUMBER QTY NAME NOTE PAGE
1 860156871 1 LEVER
2 860156867 1 DUST SEAL
3 860156801 4 Y-SEAL RING
4 860156799 4 ROOF BAR BASE
5 860160843 4 O-RING
6 860156802 4 MANDRIL
7 860156794 1 O-RING
