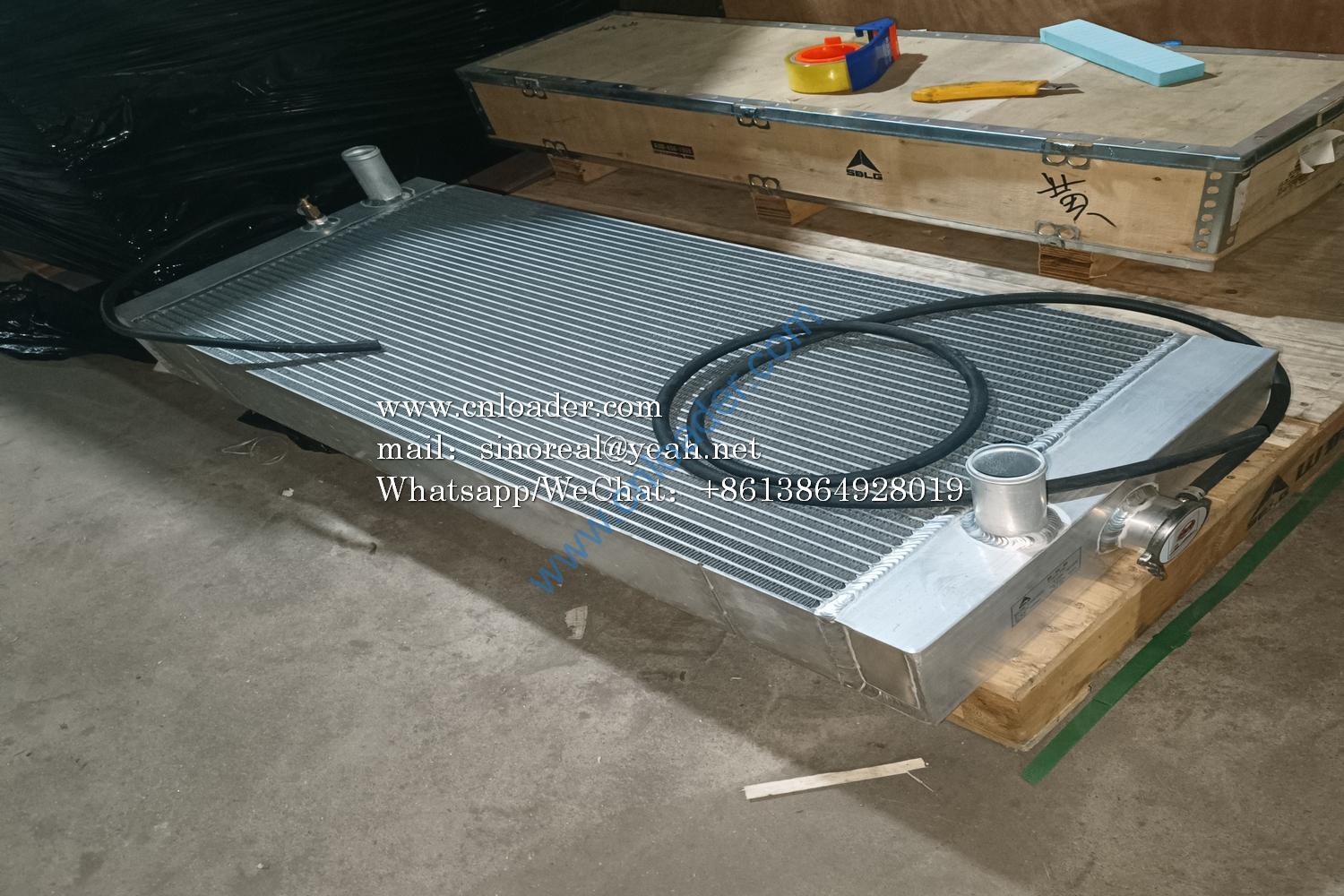

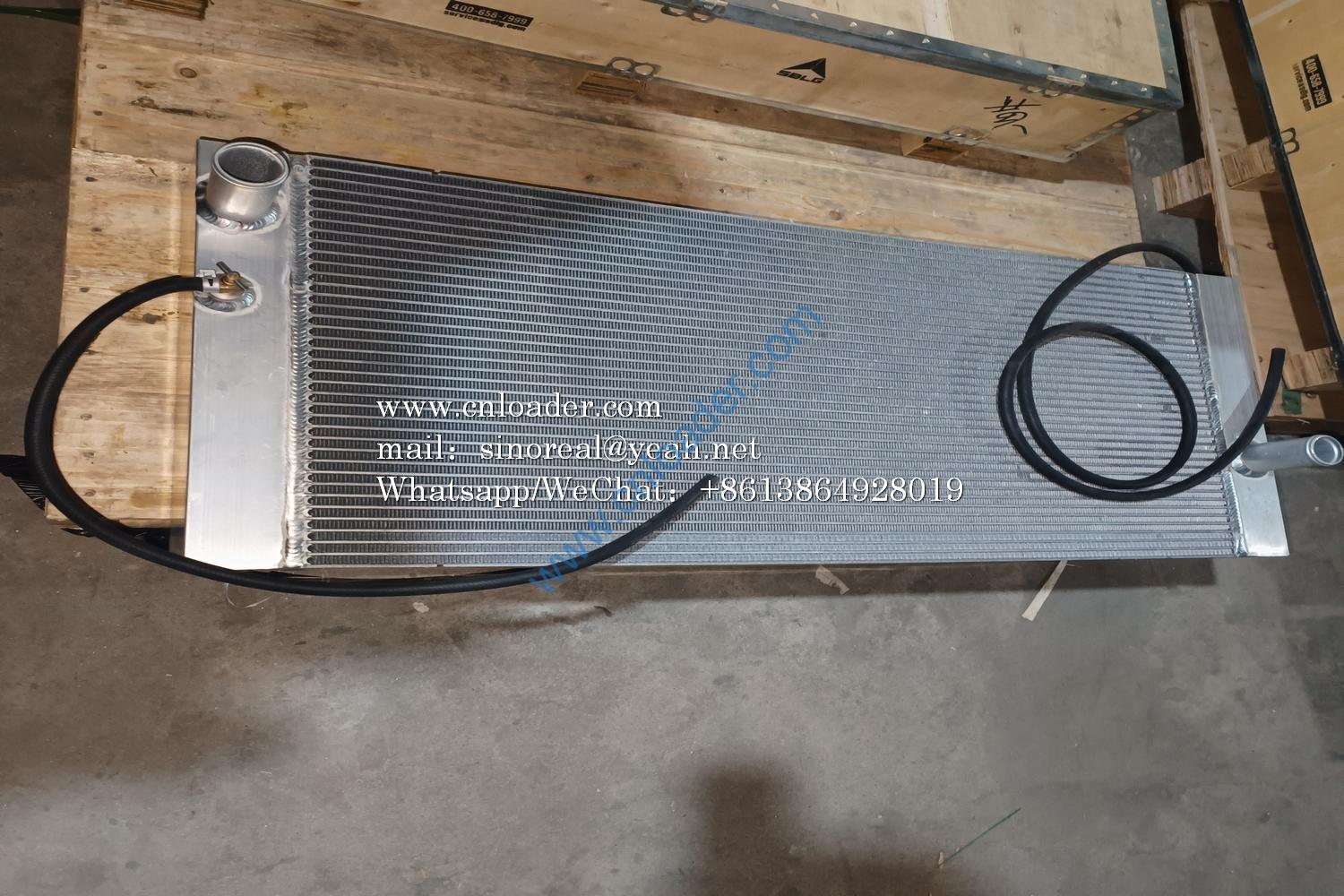

SDLG Water radiator S9113457B 4110003565002

Description

SDLG Water radiator S9113457B 4110003565002

750708010024 1 PEDESTAL 小挖底座SD007
750606010056 1 THE UPPER COVER 小挖上盖SD008
750708010034 1 RIGHT HAND SHANK 左安全操作手柄
750708010027 1 LEFT HANDRAIL 左扶手SD-SW40ZFS
750708010033 1 LEFT FRAMEWORK 操纵箱左骨架
750606010065 1 LIMIT SUPPORTING SEAT 限位支座
750701000145 1 GAS SPRING 气弹簧YQ10/20-40-180/500N
750708010028 1 BUFFER BLOCK 缓冲挡块YZC7.17.4(M10-50)
750606010059 1 CONTACT PLATE 微动开关接触板
750606010066 1 SHOCK ABSORBER 缓冲装置
750606010057 1 THE GUIDE PLATE 小挖先导盖板SD0013
750606010058 1 AT THE UPPER COVER PLATE 小挖左上盖板SD010R-005-SW40Z

750099000008 1 HAND SHANK 手柄 2132-1134B(L)
701309004004 1 SCREW 螺钉M4X20-ZnD GB/T 818
750099000007 1 HAND SHANK 手柄 2132-1133(R)
878510204010 S1 LEFT TRAVEL LEVER 左行走杆焊接
878510204020 S1 RIGHT TRAVEL LEVER 右行走杆焊接
701504010004 1 WASHER 垫圈10-DKL GB/T 97.1
701510010004 1 WASHER 垫圈10-DKL GB/T 93
862110210002 S4 DOUBLE FOOT VALVE 双联脚踏阀总成(811000050)
701302010047 1 NUT 螺钉M10X30-10.9-DKL GB/T 70.1

750625010063 1 LEFT FOOT PEDAL 左脚踏板（300700179）
750625010064 1 RIGHT FOOT PEDAL 右脚踏板（300700178）
730309000390 1 DOUBLE FOOT VALVE 行走脚踏阀811000069
750314000096 1 SHAFT 轴（300300053）
750550000161 1 OILLESS BEARING 无油轴承（600700028）
701302010054 1 NUT 螺钉M10X16-8.8-DKL GB/T 70.1
701504010004 1 WASHER 垫圈10-DKL GB/T 97.1
750625010065 1 FRONT FOOT PEDAL 前脚踏板（300700180）
750625010068 1 FOOT SUPPORT PLATE 脚踏辅助板300700219

302510001623 A5 BOTTOM SEALING PLATE 1 封板1
302510001624 A3 BOTTOM SEALING PLATE 2 封板2
302490006306 A5 BOTTOM SEALING PLATE 3 封板3
302030045369 S1
BOTTOM SEALING PLATE OF MULTI-WAY VALVE 多路阀底封板
302510001625 A3 BOTTOM SEALING PLATE 5 封板5
302030045654 S1 BOTTOM SEALING PLATE 6 封板6
701104008043 1 BOLT 螺栓M8X12-8.8-DKL GB/T 5783
701510008003 1 WASHER 垫圈8-DKL GB/T 93
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1

864310102051 S2 SUPPORT WELDING 油门拉线支架焊接
701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
750202000085 1 CABLE ACCELERATOR SWE17B-3油门拉线WJ108A
701703005001 1 PIN 销5X36-ZnD GB/T 91
333020000002 A1 MOUNTING 固定件
701104005008 1 BOLT 螺栓M5X10-8.8-ZnD GB/T 5783

333010000026 A8 BALANCE WEIGHT 配重(SWE25)
701103020040 1 BOLT 螺栓M20X100-10.9-DKL GB/T 5782
302010000115 A1 WASHER 垫圈20

872515100000 S2 HYDRAULIC OIL TANK 液压油箱焊接
872515200000 S1 THE OIL RETURN FLANGE 回油口法兰
701104008027 1 BOLT 螺栓M8X20-10.9-DKL GB/T 5783
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
703201050002 1 O-RING O形圈50X3.55-G-N-GB/T 3452.1
703201109001 1 O-RING O形圈109X3.55-G-N-GB/T 3452.1
730403000401 1 BACK TO THE OIL FILTER 回油滤芯KSP-0200010L
730402000229 1 AIR FILTER 空气滤清器AB0210BA010A
701302006038 1 SCREW 螺钉M6X16-8.8-DKL GB/T 70.1
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
701510006003 1 WASHER 垫圈6-DKL GB/T 93
739801000013 1 LIQUID LEVEL METER 液位计YW20-3
730403000061 1 OIL SUCTION FILTER 吸油滤芯SPF-312
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701104010039 1 BOLT 螺栓M10X30-8.8-DKL GB/T 5783
739806000004 1 PLUG 内六角油口堵头VSTI18X1.5EDA3C

872514100000 S2 FUEL TANK 燃油箱焊接件
701504008001 1 WASHER 垫圈8-ZnD GB/T 97.1
701510008001 1 WASHER 垫圈8-ZnD GB/T 93
701104008002 1 BOLT 螺栓M8X16-8.8-ZnD GB/T 5783
305030000020 A4 CLEANING FLAP 清洗口盖
703201109001 1 O-RING O形圈109X3.55-G-N-GB/T 3452.1
730402000019 1 AIR FILTER 预压式空滤器TM278G100P3
701310004004 1 SCREW 螺钉M4X16 GB/T 819
701510004002 1 WASHER 垫圈4-ZND GB/T 93
720212000212 1 LEVEL SENSOR 液位传感器KLRG500SH
701104005001 1 BOLT 螺栓M5X16-8.8-ZnD GB/T 5783
701510005001 1 WASHER 垫圈5-ZnD GB/T 93
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701104010039 1 BOLT 螺栓M10X30-8.8-DKL GB/T 5783
730309000068 1 DRAINAGE SWITCH 排水开关2186-9001
739806000036 1 HEXAGON SOCKET OIL PLUG 内六角油口堵头VSTI1EDA3C
703202033001 1 BONDED WASHER 组合垫圈33 JB982

308010102004 A1 FITTINGS BODY 接头体
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701410010002 1 NUT 螺母M10X1-04-DKL GB6173
730502002299 1 HOSE 胶管C/C3-4I-850
308010102003 A1 FITTINGS BODY 接头体

308010102004 A1 FITTINGS BODY 接头体
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701410010002 1 NUT 螺母M10X1-04-DKL GB6173
730502005932 1 OIL FILLER PIPE
25机黄油室注油管C/C2-4I-650 135°弯角接头
308010102003 A1 FITTINGS BODY 接头体

302540007897 A6 BATTERY PRESSURE PLATE 电瓶压板
701418010001 1 NUT 螺母M10-Ⅰ级-ZnD(白) GB/T 62.1
301020000148 A1 BATTERY PULL ROD 电瓶拉杆
829916030000 A4 BATTERY HOLDER 电瓶架
701302010046 1 SCREW 螺钉M10X20-8.8-DKL GB/T 70.1
302030038450 S1 BATTERY PRESSURE PLATE 电瓶压板橡胶垫
302030019455 1 BATTERY RUBBER PAD 电瓶橡胶垫

302490015818 A3 SOUND INSULATION SPONGE 1 25隔音海绵1
302490015819 A3 SOUND INSULATION SPONGE 2 25隔音海绵2
302490015820 A2 SOUND INSULATION SPONGE 3 25隔音海绵3
302490015821 A3 SOUND INSULATION SPONGE 4 25隔音海绵4

308010102004 A1 FITTINGS BODY 接头体
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701410010002 1 NUT 螺母M10X1-04-DKL GB6173
730502005926 1 OIL FILLER PIPE
25机回转支承注油管C/C2-4I-550 135°弯角接头
308010000774 A1 JOINT 接头
701410016002 1 NUT 螺母M16X1.5-05-DKL GB/T 6173

829921080000 A4 CEILING ASSEMBLY 顶棚组件
302030019859 A1
MOUNTING PLATE OF CEILING ASSEMBLY 顶棚组件安装垫板
701103010073 1 BOLT 螺栓M10X70-10.9-DKL GB/T 5782
701502010003 1 WASHER 垫圈10-DKL GB/T 96.2
701406010008 1 NUT 螺母M10-10-DKL GB/T 6170
701103012040 1 BOLT 螺栓M12X40-10.9-DKL GB/T 5782
701502012002 1 WASHER 垫圈12-DKL GB96.2
829921090000 A1 FRONT GUARDRAIL 前护栏
701104010034 1 BOLT 螺栓M10X30-10.9-DKL GB/T 5783
829921030001 A1 THE LEFT COVER ASSEMBLY SWE25左盖组件
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701302008025 1 SCREW 螺钉M8X20-8.8-DKL GB/T 70.1
750099000263 1 RUBBER PLUG 橡胶堵SWE-25
701302008027 1 SCREW 螺钉M8X16-8.8-DKL GB/T 70.1
829921010002 A2 REAR COVER ASSEMBLY SWE25后盖总成
872521040000 S2 RIGHT COVER ASSEMBLY SWE25F覆盖件右盖总成
701108008001 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5787
872521030000 S2 RIGHT FRONT COVER ASSEMBLY SWE25F覆盖件右前盖总成
701503010002 1 WASHER 垫圈10-DKL GB/T 5287
701302010054 1 SCREW 螺钉M10X16-8.8-DKL GB/T 70.1
320030000110 A1 SEAT RAIL 座椅台扶手
701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783
302560001047 A2 INTERMEDIATE PLATE 中间板(配“顶棚组件”)
302030013586 A2
INSULATION SPONGE OF INTERMEDIATE PLATE 中间板隔热海棉
