Body,container reach stacker,RSC45C2 SANY SVE








Part No.

Description

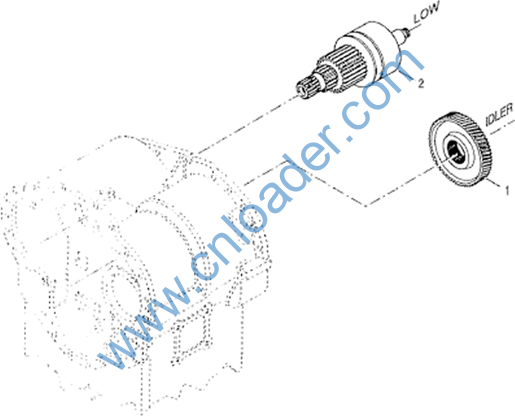

60099556

Gear, idler

60099720

Shaft GP,first gear clutch








Part No.

Description

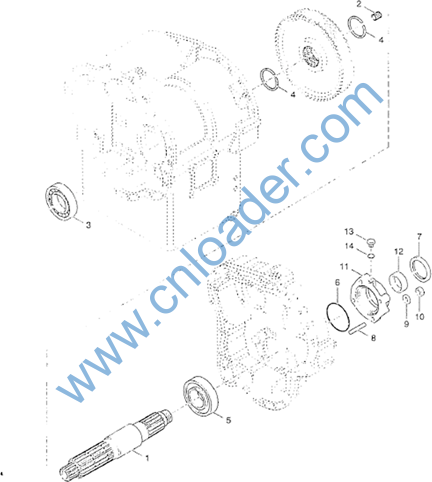

60099688

Shaft, output

60099541

Bearing, Guide, Output Shaft

60099543

Bearing, front, output shaft

60099687

Ring, locating, output gear

60099542

Bearing, rear, output shaft

60099765

O-ring, end cover, rear bearing

60020025

Seal, oil, output flange

60099736

Stud, end cap, bearing

60099739

Lock washer, stud, bearing end cap

60099738

Nut, stud, bearing end cap

60099641

Cover, end, rear bearing

60099689

Ring, spacer, flange, output shaft

60099666

Plug, Screw

60099743

O-ring










Part No.

Description

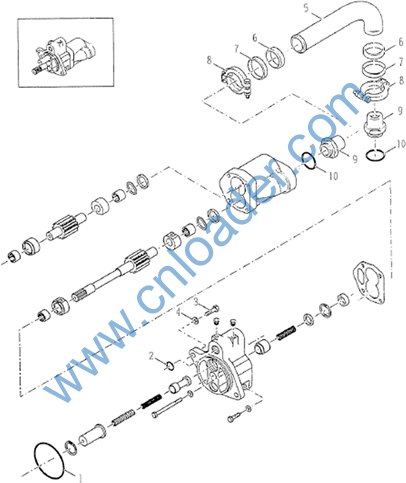

60099776

O-ring, bearing end cap

60099744

O-ring

60099613

Screw, pressure regulating valve to torque converter shell body

60099701

Washer, Lock

60121043

Tube, intake

60099591

Bushing

60099493

Ring, fixed

60099572

Ear, anchor

60099658

Parts, connecting

60099770

O-ring, connecting parts










Part No.

Description

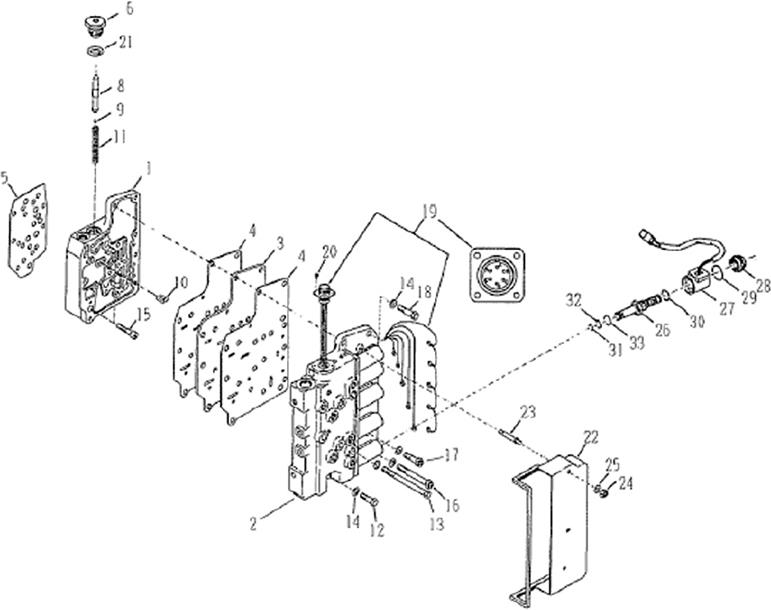

60099647

Assembly, shell, control valve

60099524

Assembly, cover, control valve

60099504

Plate, sealing

60099667

Pad, liner, sealing plate

60099648

Pad, sealing, control valve

60099496

Plug, pipe

60099528

Assembly, valve core, throw-out of gear valve

60099507

Plug

60099527

Plate, stop, valve core, throw-out of gear valve

60099703

Spring, valve core, throw-out of gear valve

60099663

Screw

60099665

Screw, Cap

60099699

Washer, Lock

60099649

Screw, shell, control valve to torque converter

60099644

Screw, shell, control valve cover to torque converter

60099723

Screw, Cap

60099664

Screw

60099628

Plate, cover

60099629

Screw, cover plate

60099764

O-ring

60099624

Cover, dustproof

60121042

Stud










Part No.

Description

60099627

Nut, stud, dustproof cover

60099625

Washer, dustproof cover

60099531

Core, iron, electromagnetic valve

60099778

Coil, electromagnetic valve

60099605

Nut, electromagnetic valve

60099774

O-ring, from coil to nut

60099774

O-ring, from coil to nut

60099747

O-ring

60099748

O-ring

60099749

O-ring






Part No.

Description

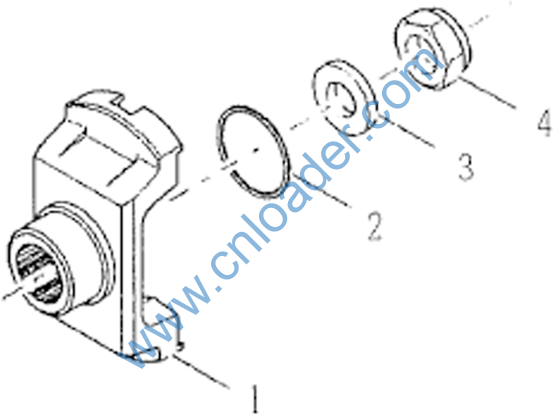

60099690

Flange, output shaft

60099741

O-ring

60099606

Washer

60099618

Nut










Part No.

Description

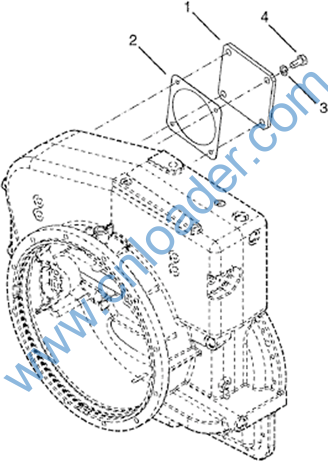

60099514

Cover, Permanent Pump Adapter

60099592

Gasket

60099701

Washer, Lock

60099593

Screw
