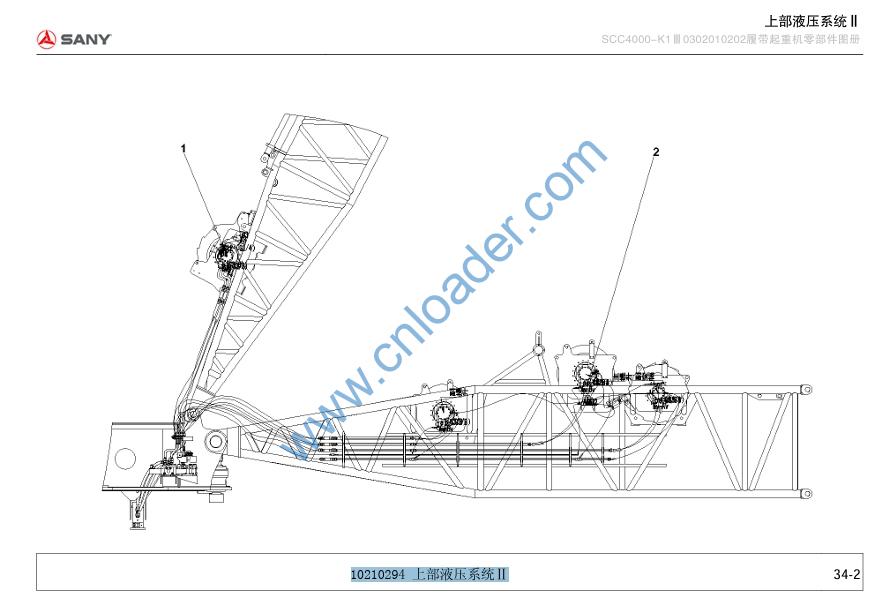

10210294 上部液压系统Ⅱ

10210294 上部液压系统Ⅱ

1 10210143 Super lifting hydraulic system 1
2 10209710 Main arm hydraulic system 1

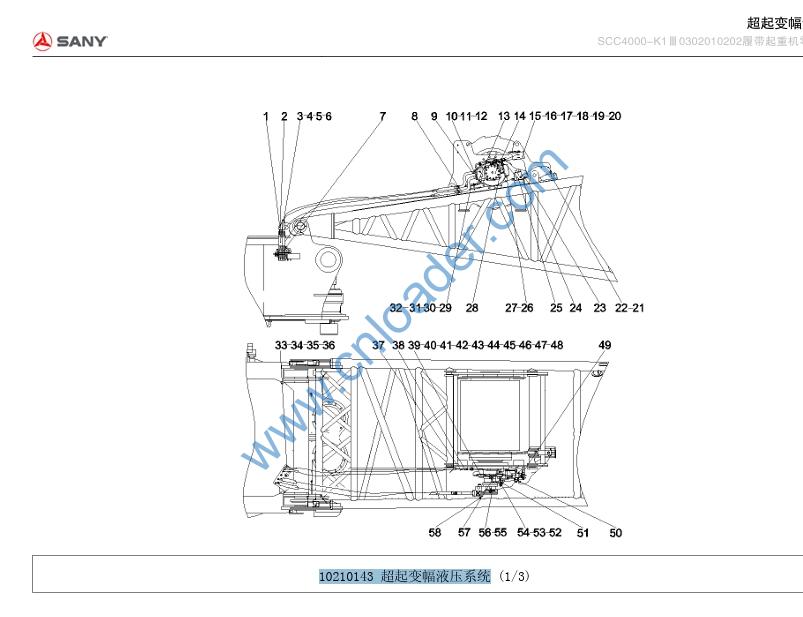

10210143 Super lifting hydraulic system

1 B230103008112 hose Q/SY1102 0
2 21002928 pipe joint 0
3 A229900006321 quick connector 2
4 A229900006322 Quick connector 2
5 A290000002763 Dust cap 2
6 A290000002764 dust cap 2
7 21002966 pipe joint 2
8 10210144 steel pipe assembly 2
9 10210146 steel pipe assembly 1
10 21033894 Flange clamp 2
11 A210204000338 screw M12×40GB70.1 10.9 level 16
12 B230101000647 O-ring 37.69×3.53 4
13 B230103002139 hose Q/SY1102 0
14 B220501000432 Motor assembly B+KDC30MR-1
15 60002300 rubber tubeφ7×φ11 PPR 1
16 60001550 Oil storage pot 1101013100011-10 1
17 60002299 Rubber tube PPR 0
18 10424602 Oil bottle bracket 1
19 21005325 bolt 0
20 21053360 hose hoop φ12-φ22QC619 1
21 10308705 Pawl lock cylinder 0
22 A210770000616 pipe joint 2

23 B230103003145 hose Q/SY1102 0
24 B230103004654 hose Q/SY1102 0
25 B220401001221 control valve group III 1
26 A229900002600 pipe joint 6
27 A229900002533 pipe joint 0
28 A210204000232 screw M16×45GB70.1 10.9 level 4
29 A229900006317 Quick connector 0
30 A229900006318 Quick connector 0
31 B290000001242 dust cap male connector 1
32 B290000001239 dust cap female connector 1
33 A229900006319 Quick connector 1
34 A229900006320 Quick connector 1
35 60007741 Dust cap Cap-FIRG-F-1/4 1
36 60007744 Dust cap Cap-FIRG-M-1/4 1
37 B230103002946 hose Q/SY1102 0
38 21018387 Hose 2 0
39 21002823 pipe joint 2
40 21022085 One-way valve 1
41 21051066 pipe joint 2
42 21003051 pipe joint 1
43 21002822 Pipe joint 1
44 A229900003479 pipe joint 1

45 21002955 pipe joint 1
46 60009308 One-way valve S15A8.0 1
47 60001551 hose joint 12611A-12-08 1
48 21002825 pipe joint 1
49 A210204000345 screw M10×70GB70.1 10.9 level 2
50 21000745 test connector 1
51 A831311025000 hose Q/SY1102 0
52 10210147 Steel pipe assembly 1
53 21003049 pipe joint 2
54 A229900002559 pipe joint 0
55 A229900002938 pipe joint 1
56 21083669 Test connector 1
57 B230103000589 hose Q/SY1102 0
58 21011323 Pressure measuring joint 3
