897355100011 S2 THE BUCKET 铲斗(370mm 0.035m3)
750601000265 S1 PIN 销子
750601000263 S1 BUCKET TOOTH 斗齿
750601000266 S1 CIRCLIP 卡簧
304050000955 S1 COMPRESSIVE BAR 胶管压杆
701508012002 A1 WASHER 垫圈
701406012002 A1 NUT 螺母
750911000047 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000048 A1 RESIN ADJUSTING PAD 树脂调整垫
730652000031 A1 DUSTBAND 防尘圈
897356130000 S1 DEFLECT UPPER MOUNTING SHAFT 偏转上安装轴
701104010034 A1 BOLT 螺栓
302030059687 S1 PRESSING PLATE 压板
897356110000 S1 DEFLECTION CYLINDER PIN SHAFT 2 偏转油缸销轴2
750911000019 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 A1 RESIN ADJUSTING PAD 树脂调整垫
897356120000 S1 DEFLECTION CYLINDER PIN SHAFT 1 偏转油缸销轴1
897356150000 S1 SHAFT ASSEMBLY 1 轴组件1
701508024003 A1 WASHER 垫圈
701425024001 A1 NUT 螺母
701703005001 S1 PIN 销
897356160000 S1 SHAFT ASSEMBLY 2 轴组件2
897396850000 S1 OIL CYLINDER 偏转油缸
333020000374 S1 CASTING DEFLECTION HEAD SWE16F铸造偏转头
897356140000 S1 DEFLECT LOWER MOUNTING SHAFT 偏转下安装轴
305040002855 S1 SHAFT SLEEVE 轴套1
701508010001 A1 WASHER 垫圈
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
730652000231 A1 DUSTBAND 防尘圈
305090003553 S2 CYLINDER HEAD 缸头
730603000023 A1 O-RING O形圈
730654000094 A1 STOP COLLAR 挡圈
730602000218 A1 U-RING U形圈
730601000363 A1 PISTON ROD SEAL 活塞杆密封
750502000028 A1 SELF LUBRICATING SHAFT BEARING 自润轴承
739806000175 A1 PLUG 带压紧螺母的24°锥孔堵头
730603000632 A1 O-RING O形圈
730654000642 A1 STOP COLLAR 支撑环
897396850100 S1 PISTON ROD ASSEMBLY 活塞杆组件
897396850200 S1 CYLINDER BARREL UNIT 缸筒组件
305090003558 S1 CUSHION COLLAR 缓冲套
305090003559 S1 PISTON 活塞
730602000429 A1 PISTON SEAL 活塞密封
730651000028 A1 GUIDE RING 导向环
730603001475 A1 O-RING O形圈
750551000024 A1 STEEL BALL 钢球
701307006006 A1 NUT 螺钉
305090003557 S1 GUIDE SLEEVE 导向套
750502000694 A1 BUSH 含油衬套
897310050000 S2 MULTITANDEM VALVE INSTALLATION 多路阀安装（恒立）
806D16000000 S3 CONTROL BOARD ASSEMBLY 司机工作台安装
806D10200000 S3 BATTERY INSTALLATION 蓄电池安装
806D10900000 S2 SEALING PLATE INSTALLATION 密封板安装
302560003820 S2 MIDDLE SEAL 中密封件
806D19010000 S2 MOTOR AND PUMP INSTALLATION 电机主泵安装
302560003821 S2 RIGHT SEAL 右密封件
806D15000000 S2 HYDRAULIC OIL TANK ASSEMBLY 液压油箱安装
302560003822 S1 LEFT SEAL 左密封件
730399001335 S1 PILOT BLOCK 先导油源块811300249
897310010600 S2 EDGE MOUNTING BRACKRT ASSEMBLY 1 围边安装支架组件1
701104008031 S1 BOLT 螺栓
806D10010000 S1 BUTTER BOX 黄油盒
701104008026 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
806D10500000 S1 PLATFORM SPONGE ASSEMBLY 平台海绵总成
307080001096 S1 PROTECTING BUSH 护套（L=285 -8/10）
819117000001 A3 ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 回转支承注油管总成
846510010500 A2 BUTTER CHAMBER SUPPORT OIL FOLLING PIPE ASSEMBLY 黄油室注油管总成
872210050600 S2
DEFLECTION OIL CYLINDER SUPPORT OIL FOLLING PIPE ASSEMBLY 偏转油缸注油管总成
304060000256 S2 FITTINGS BODY 接头座
806D17000000 S1 BOTTOM SHROUDING ASSEMBLY 封板安装
806D10600000 S3 RADIATOR 散热器安装
806D10700000 S1 PILOT ACCUMULATOR ASSEMBLY 蓄能器安装
806D10800000 S2 MOUNTING BRACKRT ASSEMBLY 安装支架组件
730401000358 S1 GUIDE FILTER 先导过滤器
730250000283 S1 ROTARY MOTOR 回转马达
701104012022 S1 BOLT 螺栓
701508012002 S1 WASHER 垫圈
302490002247 A2 COVER PLATE 盖板
302490002248 A1 GASKET 密封垫
806D10100000 S3 PLATFORM OF WELDING 回转平台
750602000249 S1 SHOCK ABSORBER 25U司机室减震器
302010005411 S1 MOUNTING PAD 司机室安装垫
701103016067 S1 BOLT 螺栓
701406016001 S1 NUT 螺母
701502016002 S1 WASHER 垫圈
701104016042 S1 BOLT 螺栓
302030201084 A3 CHECK PLATE 止动板
701104010033 S1 BOLT 螺栓
701508010001 S1 WASHER 垫圈
701302008028 S1 SCREW 螺钉
701302006035 S1 SCREW 螺钉
701504006004 S1 WASHER 垫圈
701302008029 S1 SCREW 螺钉
701302006040 S1 SCREW 螺钉
307090001228 S1 PILOT SHUNT BLOCK 先导分流块
730399001314 S1 PILOT BLOCK 先导油源块980400824
730302000533 A1 MULTI-WAY VALVE 多路阀
701104008027 A1 BOLT 螺栓
701504008005 A1 WASHER 垫圈
332040000367 S1 FOOT PAD 16F脚踏垫
302030054891 S1 SEAL PLATE 2 上封板2
806D16020000 S2 MOUNTING PLATE WELDED 行走安装板焊接
302030068978 S1 SEAL PLATE 1 上封板
701104008031 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
730309000352 S1 PILOT CONTROL VALVE 推土先导操纵阀
806D16010000 S1 DRIVING CONTROL ASSEMBLY 行走操纵总成
302030052262 S1 SHOCK PAD O FRIGHT CONTROL BOX 右操纵箱减震垫
302030030022 S2 SHOCK GASKET OF LEFT CONTROL BOX 左操纵箱减震垫
720235000024 S1 MICROSWITCH 微动开关
730309000414 S1 RIGHT PILOT HANDLE 右先导手柄
806D16050000 S1 RIGHT CONTROL BOX SWE20FED右操纵箱
730309000412 S1 LEFT PILOT HANDLE 左先导手柄
806D16040000 S1 LEFT CONTROL BOX SWE20FED左操纵箱
701104008026 S1 BOLT 螺栓
701504008005 S1 WASHER 垫圈
751106000172 S1 BUTTERFLY BOLT 蝶形螺栓
806D16030000 S2 SEAT ASSEMBLY 座椅安装
806D16110000 S3 CONTROL BOARD ASSEMBLY 操纵台结构件总成
701302006038 S1 SCREW 螺钉
701504006002 S1 WASHER 垫圈
750608010006 S1 LEFT PEDAL ASSEMBLY 左踏板总成
730309000445 S1 SINGLE-FOOT PEDAL VALVE 单联脚踏阀
750608010008 S1 PEDDAL ASSEMBLY 踏板总成
302560002099 S1 LEFT RUBBER MAT 左侧橡胶垫2
730309000416 S1 RIGHT PILOT HANDLE 右先导手柄810900240
730309000415 S1 LEFT PILOT HANDLE 左先导手柄810900239
729904000178 S1 LITHIUM BATTERY 锂电池QH83.2V280AH0530
701104014018 S1 BOLT 螺栓
701504014002 S1 WASHER 垫圈
302540034173 S1 BENDING 安装弯板
701104012025 S1 BOLT 螺栓
701502012002 S1 WASHER 垫圈
701504012005 S1 WASHER 垫圈
729904000205 S1 LITHIUM BATTERY 锂电池YJT76.8V280AH
302490068497 S1 SPONGE 侧海绵
302490068498 S1 SPONGE 上海绵
302540034174 S3 SEALING PLATE 密封板
302490068500 S1 SPONGE 下海绵
701104008031 S1 BOLT 螺栓
701506008002 S1 WASHER 垫圈
806D19010100 S1 OIL ABSORPTION STEEL PIPE 吸油钢管
730201000631 S1 MAIN PUMP 主泵HP5V28/AV1ORB2S1MA-L1/1-T922
302030064863 S2 MOTOR MOUNTING PLATE 电机安装板
302010010425 S2 RUBBER PAD 橡胶垫
720001000459 S1 THREE PHASE ASYNCHRONOUS MOTOR 三相异步电机B8532110GK
701104014025 S1 BOLT 螺栓
701504014002 S1 WASHER 垫圈
701502014001 S1 WASHER 垫圈
701104012025 S1 BOLT 螺栓
701504012005 S1 WASHER 垫圈
320010009042 S1 RUBBER HOSE 吸油胶管
703201040001 S1 O-RING O形圈
701302010045 S1 SCREW 螺钉
701508010001 S1 WASHER 垫圈
751008000214 S1 LATHDOG 重型软管卡箍
739801000020 S1 LIQUID LEVEL METER 液位计

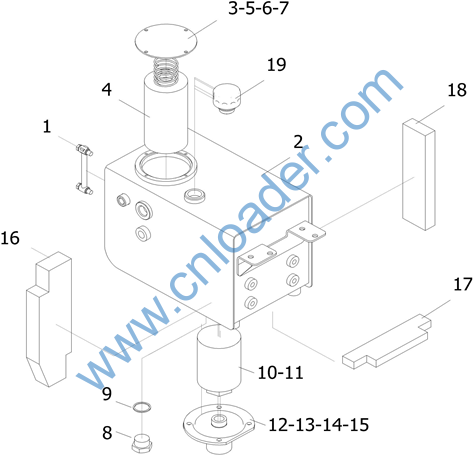

806D15010000 S3 HYDRAULIC OIL TANK 液压油箱焊接件
810215200001 A6 BACK TO THE OIL PRESSURE COVER 回油压盖
730403000079 S1 BACK TO THE OIL FILTER 回油滤芯
701504006002 S1 WASHER 垫圈
701104006017 S1 BOLT 螺栓
701510006003 S1 WASHER 垫圈
307040401002 A3 PLUG SCREW 螺塞
703202033001 S1 WASHER SET 组合垫圈
730401000051 S1 OIL SUCTION FILTER 吸油滤芯
302010001014 A1 RUBBER BLANKET 橡胶垫
701508008001 S1 WASHER 垫圈
701104008026 S1 BOLT 螺栓
806D15020000 S1 FLANGE 吸油法兰焊接件
703201106001 S1 O-RING O形圈
302490068464 S1 SPONGE 油箱海绵3
302490068465 S1 SPONGE 油箱海绵2
302490068466 S1 SPONGE 油箱海绵1
730402000352 S1 RESPIRATOR 空气呼吸器KKL-M33X2

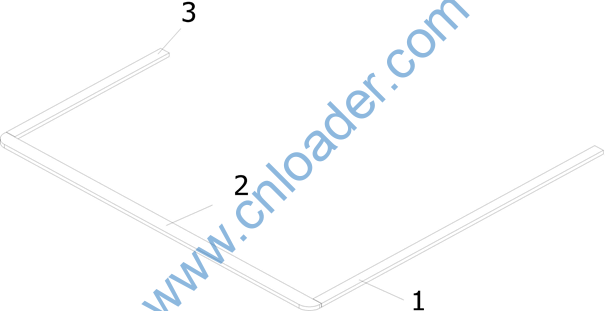

302030054805
302030054815
302030054819 S1 S1 S1 SPONGE SPONGE SPONGE 平台前左海绵平台前海绵 平台前右海绵
308010102004
701504010001
701416010001
730501002548
308010000774
302010003332
701410016002
751102000402 A1 S1 S1 S1 A1 A2 S1 S1 CONNECTOR BODY WASHER
NUT
GREASE HOSE JIONT RUBBER MAT NUT
LOCK WASHER
