A210601000007 Rolling bearing
11587035 Roller
11722162 Mandrel
10390564 Rope support
11763252 Tower arm winch box
11763277 Tower arm mounting bracket
11763439 Tower arm pulley assembly
11763489 Pin assembly 4
11715991 Tower arm winch
11763497 Pin assembly 5
11763510 Right guardrail assembly
11763520 Left guardrail assembly
A210401000001 Washer 10GB93
A210405000011 Washer 10GB97.1
A210401000004 Washer 16GB93
A210405000003 Washer 16GB97.1
A210401000008 Washer 24GB93
60097769 Wire rope 24×700m-573-ZZ-anti-rotation quick rope joint
A210307000017 Nut M10GB6170
A210804000002 Oil cup M10×1JB7940.1
A210111000025 Bolt M10×35GB5783
A210111000106 Bolt M16×45GB5783 10.9 grade
A210111000230 Bolt M16×50GB5783
A210110000239 Bolt
10978640 Lock pin
11712619 Bushing
11763531 Shaft
11763532 Shaft end clamp
11763533 Connecting plate
11763534 Pin
11763535 Pin
A210601000007 Rolling bearing
10389400 Roller
10389477 Mandrel
A210401000004 Washer 16GB93
A210402000042 Washer 16GB97.1 Stainless steel
A210111000056 Bolt M16×65GB5783 10.9 grade
10389516 Washer
11763447 Tower arm fixed pulley assembly installation assembly
11763475 Tower arm movable pulley assembly installation assembly
10283745 Pulley assembly
11763450 Fixed pulley bracket
11763462 Right bracket
11763466 Left bracket
11763470 Rope stop bracket
A210405000003 Washer 16GB97.1
A210401000008 Washer 24GB93
A210204000022 Screw M12×35GB70.1
A210204000304 Screw M16×45GB70.1
A210309000007 Nut M24GB6172.1
A210204000178 Screw M8×15GB70.1
10978640 Lock pin
11763440 Pulley shaft
11763441 Spacer
11763442 Rope retaining round steel
11763443 Nylon spacer
11763444 Threaded round steel M24
11763445 End cap
11763446 Pin
10283745 Pulley assembly
11763481 Moving pulley bracket
11763484 Rope stop frame
A210401000008 Washer 24GB93
A210204000022 Screw M12×35GB70.1
A210309000007 Nut M24GB6172.1
10978640 Lock pin
11763441 Spacer
11763445 End cover
11763471 Pulley shaft
11763472 Rope stop round steel
11763473 Threaded round steel M24
11763474 Nylon roller
11717621 Handle assembly
11763492 Pin mounting bracket
A210204000131 Screw M6×20GB70.1
10034875 Clip pin
11717616 Baffle
11763488 Pin
21003129 Rolling bearing
60099445 Reducer assembly GFT80W3B77
A210416000013 Retaining ring 180GB893.1
60107937 Auxiliary reel φ24-φ600 L=970.2 8 layers
A210804000002 Oil cup M10×1JB7940.1
A210111000062 Bolt
A210204000094 Screw GB70.1 10.9 grade
21005327 Bolt
11715509 Rope wedge GB5973-24
11715505 Connecting flange
11715506 Support shaft
11715507 End cover
11715508 Plastic baffle
11763499 Handle assembly
A210204000131 Screw M6×20GB70.1
10034875 Pin
11763496 Pin
11763514 Right guardrail bracket assembly
11763517 Right guardrail steel pipe assembly
10384485 Pin
A820301020888 Pin
11763514 Right guardrail bracket assembly
11763517 Right guardrail steel pipe assembly
10384485 Pin
A820301020888 Pin
60016956 Gas support BYQ10/22-295-685-500N (T01-T01)
10037154 Hinge assembly
11126076 Inner cover assembly
11641741 Right front door assembly
11777674 Left rear panel
11770859 Canopy bracket
11783335 Upper cover
11777821 Right rear panel assembly
11783347 Lock fixing bracket
11783350 Rear panel
11777787 Left door assembly
11777674 Left rear panel
11783351 Left guardrail assembly
11777799 Hydraulic oil tank cover
11777679 Right rear door assembly
11783364 Bottom plate assembly
11777728 Rear cover
11783366 Right guardrail
A222200000042 Door lock
11783335 Upper cover
11783337 Aluminum alloy cover 1
11783338 Left rear upper cover
11783339 Right bottom plate
11783340 Left front plate
10037149 Large page assembly
10037151 Small page assembly
10037152 Pin

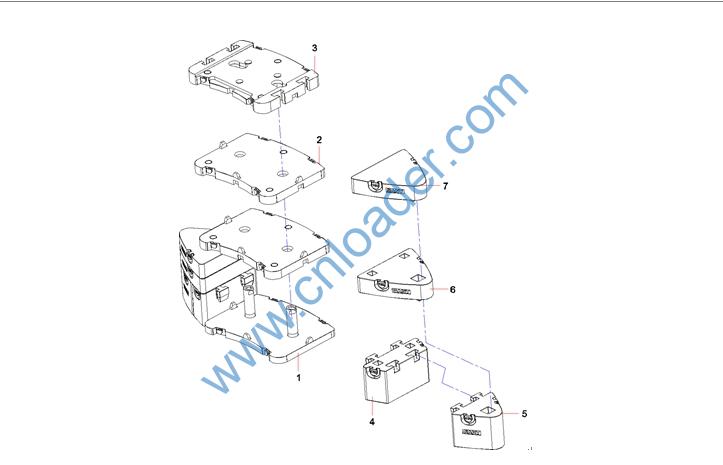

11690289 Balance block assembly 1
11690292 Balance block assembly 2
11728787 Balance block assembly 3
11690281 Balance block 4
11690282 Balance block 5
11690283 Balance block 6
11690284 Balance block 7
24004294 Screw M8×12GB79

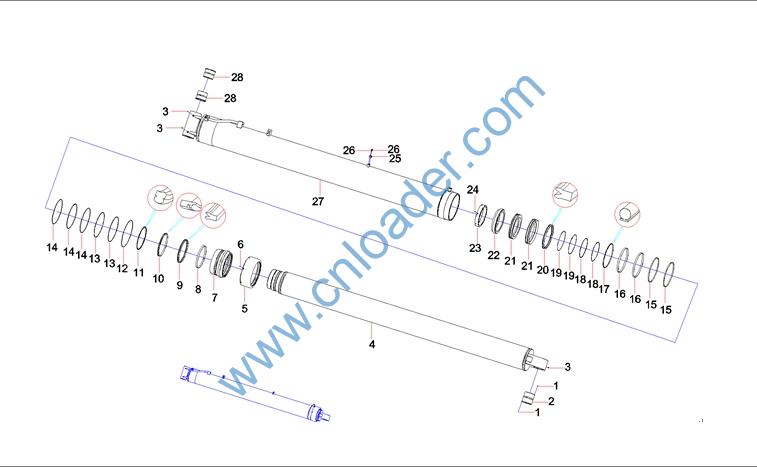

11670395 Bushing
A210804000002 Oil cup M10×1JB7940.1
11670413 Piston rod
11670391 Gland
A210208000008 Screw M10×16GB79
11670397 Guide sleeve
60101251 RGR guide ring 400×408×25
60106061 S01-P seal ring 400×430×25
60101401 A12-A dust ring 400×428×12×3.5
60101402 GS seal ring 400×424×8.1
60024143 O-ring 487×5.3 (GB3452.1)
11670390 retaining ring
60011164 O-ring
60101249 PGR guide ring 450×442×15 PTFE
60101250 PGR guide ring 450×442×25
60122566 OE seal ring 450×425.5×8.1
A210609000326 O-ring 345×5.3GB3452.1
11670389 retaining ring
60101403 K01-P seal ring 450×410×30
11670394 piston
11670393 piston
11670392 nut
A210208000007 Screw M10×20GB79
11503795 Pipe clamp
A210204000162 Screw M8×25GB70.1
11670400 Cylinder assembly
11670396 Bushing
