13949355 工作装置(Work device SY335C9I2KH0.1) …………………………………………………………………… 2-2
12174692 工作装置管路(Work device tube SY335C9I2K.3D.1) ………………………………………………………………… 2-12
60011434

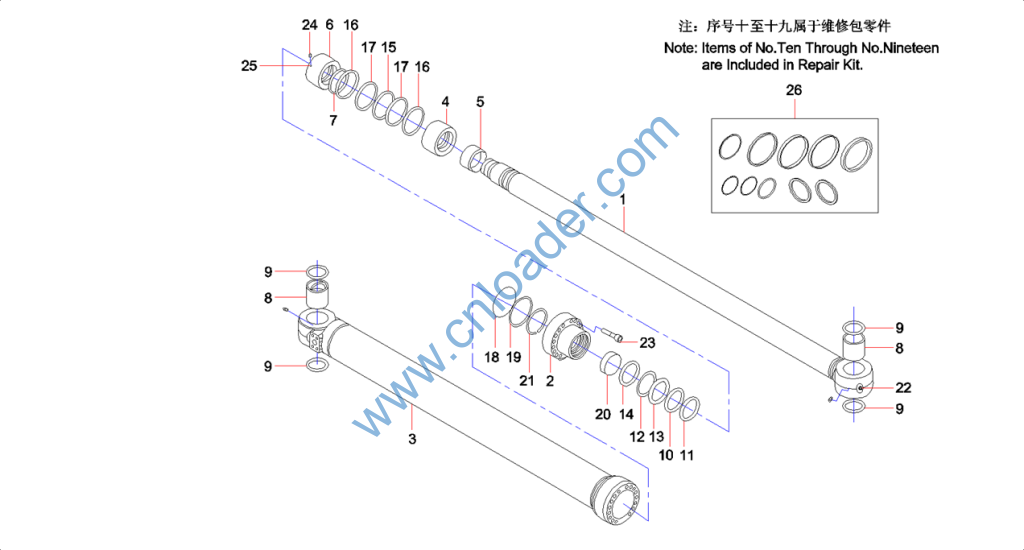

铲斗油缸(Cylinder, bucket) …………………………………………………………………………………
2-16
12182683
铲斗油缸管路(Bucket cylinder pipeline SY335C9I2K.3.1.) ……………………………………………
2-20
12261944
斗杆油缸管路(Bucket rod cylinder pipeline SY335C9I2K.) ……………………………………………
2-22
60011436
斗杆油缸(Cylinder, arm) ……………………………………………………………………………………
2-24
60011435
动臂油缸(Cylinder, boom) ……………………………………………………………………………………
2-28
11219750
右动臂油缸管路(Right derrick oil cylinder pipeline SY33) …………………………………………
2-32
A810312990198 管卡组合(pipe clip combination SY300C.3.1.4.2) ……………………………………………… 2-34
11219749 左动臂油缸管路(Left derrick oil cylinder pipeline SY335) ………………………………………… 2-36
A810201000218 管卡组合(pipe clip combination SY300C.3.1.3.3) ……………………………………………… 2-38
12127622 润滑管路(Work device Lubrication Pineline SY335C9) …………………………………………………………… 2-40
12002883 铲斗(Bucket) ……………………………………………………………………………………………………………… 2-42
12002289 铲斗体(Bucket) …………………………………………………………………………………………………
13949287 上车系统(Superstructure assembly) …………………………………………………………………………… 3-2
12757278 先导管路(Pilot Pipeline SY335C9I2KH.1.4A) ……………………………………………………………………… 3-4
11772669 PPC管路(PPC pipeline SY335C9I2K.1.4.1) ………………………………………………………………… 3-6
60170604 先导阀PVD8PC6008(脚踏)(Valve, travel) ………………………………………………………………… 3-14
B220401001302 先导阀(Valve, pilot) ………………………………………………………………………………… 3-20
12757265
电磁阀管路(Electromagnetic valve pipeline SY335C9I2) ………………………………………………
3-24
60136331
六联电磁换向阀组(Solenoid valve group) …………………………………………………………………
3-28
12757236
主阀管路(Main valve pipeline) ……………………………………………………………………………
3-30
12757217
主泵管路(Main pump pipeline SY335C9I2KH.1.4A.2) ……………………………………………………
3-34
B229900000063 液压油过滤器(Filter, pilot AS) …………………………………………………………………… 3-38
12745962 液压主管路(Hydraulic main pipeline SY335C9I2KH.1.2) ………………………………………………………… 3-40
60043410
减速机总成(Assembly, Reducer) ……………………………………………………………………………
3-54
60180837
回转马达(Rotary motor) ………………………………………………………………………………………
3-56
60042755
减速机(Gearbox) ………………………………………………………………………………………………
3-64
60318593
多路阀(Multi-port valve) ……………………………………………………………………………………
3-68
13313343
液压油箱(Hydraulic oil tank SY335C9I2K.1.2A.1B) ……………………………………………………
3-82
60101257
吸油滤芯总成(Core GP, filter, oil intake) ……………………………………………………………
3-84
60100129
柱塞泵(Pump, plunger) ………………………………………………………………………………………
3-86
60155077
主泵(Main Pump) ………………………………………………………………………………………………
3-88
60153895
先导泵(Leading Pump) …………………………………………………………………………………………
3-96
60153897
调节器(Regulator) ……………………………………………………………………………………………
3-100
A810201024318 油散出油胶管总成(Hose AS, oil outlet) …………………………………………………………… 3-108
60129702 呼吸阀(Valve, breather AS) ………………………………………………………………………………… 3-110
12405266 空调系统(Air conditioning SY360C8I.1.8A) ………………………………………………………………………… 3-112
60168171 空调单元总成(Assembly, air conditioner) ……………………………………………………………… 3-118
10473304 空调电气系统(Electric system of air conditioner) …………………………………………………… 3-124
11598248 配重总成(Counterweight assembly) ……………………………………………………………………………………
12739185 覆盖件总装(General assembly of covering parts) ……………………………………………………… 4-2
12855224 右门总成(Right Door Assy. SY335C9H.1.6.3) ……………………………………………………………………… 4-10
12677408 右门(Door AS,left rear) …………………………………………………………………………………… 4-12
14099806
扶手总成(hand rail) ……………………………………………………………………………………………………
4-14
10123768
右上后盖(Right upper rear coverSY310C1.1.6.1A) …………………………………………………………………
4-16
12909447
工具箱总成(Battery Box Assy SY300E.1.6.10) ……………………………………………………………………
4-18
12697690
左门总成(left door assy SY305C9I2K.1.6.12) ………………………………………………………………………
4-20
12677108 门(doorⅠ SY365C8I2KS.1.6.25.2) ………………………………………………………………………… 4-22
13852760 左前门(Left front door SY305C9I2K.1.6.12.3) ………………………………………………………… 4-24
A810502012207 左上后盖(Left upper rear coverSY310C1.1.6.4) …………………………………………………………… 4-26
11256386 机顶罩总成(Bonnet Assy. SY335C8I2K.1.6.6A) …………………………………………………………………… 4-28
11255413 机顶罩总成(Bonnet Assy.) …………………………………………………………………………………… 4-30
A810502015193 后横梁(Rear beam) ………………………………………………………………………………………………… 4-32
A810502012215 柴油机下隔板(engine clapboard) ………………………………………………………………………………
13948260 下车系统(Undercarriage system) ……………………………………………………………………………… 5-2
12286069
引导轮总成(Leading Wheel AssemblySWY216A) ………………………………………………………………………
5-8
60310119
张紧装置(Tensioning Equipment) ………………………………………………………………………………………
5-10
11358479
支重轮总成(track roller) ………………………………………………………………………………………………
5-12
11172918
行走装置液压管路(Travel device hydraulic pipeline SY335C8) …………………………………………………
5-14
60243992
中央回转接头(Center Swivel Joint) ………………………………………………………………………
5-18
12940338
减速机总成(reducer) …………………………………………………………………………………………
5-20
60223357
液压马达(Plunger motor) ……………………………………………………………………………………
5-24
13914436 履带总成(crawler assembly) …………………………………………………………………………………………… 5-32
13253628 回转支承总成(Rotary bearing assy SY335C8I2K.1.7A) …………………………………………………………… 5-34
13484728 回转支承(Slewing ring SSf1405/50CWHⅡ) ………………………………………………………………… 5-36
13949565 驾驶室总成(Cab Assembly SY335C9.1.5B) …………………………………………………………………… 6-2
60211180 扬子驾驶室(Cab) ………………………………………………………………………………………………………… 6-6
A229900008240 刮水器总成(Wiper AS) ………………………………………………………………………………… 6-16
12076176 行走操纵机构(Valve, pilot) …………………………………………………………………………………………… 6-18
12773451 座椅及操纵箱(Seat and controlbox SY215C9.1.5.5A) ……………………………………………………………… 6-20
B229900000265 机械悬浮式驾驶座椅(Seat, cab, mechanical suspension) ……………………………………… 6-24
60204190 右扶手箱总成(Armrest GP, right) ………………………………………………………………………… 6-30
60204189 左扶手箱总成(Armrest AS, left) …………………………………………………………………………… 6-32
12777161 底板架(Floor SY335C9.1.5.6A) …………………………………………………………………………………………
13948359 动力系统(Power system SY335C9I2KH.1.3B) ………………………………………………………………… 7-2
12341400 进气系统(Intake System SY335C9I2K.1.3.4) ………………………………………………………………………… 7-4
60125399 空气滤清器(Air filter) ……………………………………………………………………………………… 7-8
12338949 冷却系统(Cooling system SY335C9I2K.1.3.3) ……………………………………………………………………… 7-10
60173254 散热器(Radiator) ……………………………………………………………………………………………… 7-14
A810102070197 排气系统(Exhaust systemSY310C1.1.3.2) ……………………………………………………………………… 7-16
A810102060101 减震及传动系统(Damping and transmission system SY310C1.) …………………………………………… 7-18
13948265 燃油系统(Fuel System SY335C9I2KH.1.3.5A) ………………………………………………………………………… 7-20
B222100000398 机油滤清器(Filter, engine oil) …………………………………………………………………… 7-26
60018743 柴油滤清器(Filter, diesel fuel) ………………………………………………………………………… 7-28
13182792 油门控制系统(Throttle control systemSY335C9I2KH.1.3.6) ……………………………………………………… 7-30
B229900002662 电机Z0.06-24-3带拉线(Stopper GP, electric) …………………………………………………… 7-32
B220200000072 发动机(Engine) …………………………………………………………………………………………………… 7-34
60046506 发动机垫圈包(Kit, Gasket (Engine)) ……………………………………………………………………… 7-38
60046516 气缸盖罩(Cover GP, Valve Mechanism) ……………………………………………………………………
60046515
气缸盖(Cylinder Head AS) ……………………………………………………………………………………
7-44
60046508
缸体(Cylinder Block) …………………………………………………………………………………………
7-48
60046520
油底壳和机油尺(Oil Pan & Lever Gauge(Engine)) ………………………………………………………
7-52
60046519
凸轮轴与气门(Camshaft & Valve Mechanism) ………………………………………………………………
7-54
60046517
曲柄连杆机构及飞轮(Crank Connecting Rod & Flywheel) ………………………………………………
7-60
60046521
正时齿轮箱和飞轮壳(Timing gearbox and flywheel housing) …………………………………………
7-64
60046512
进气歧管(Manifold GP, Air Inlet) …………………………………………………………………………
7-68
60046514
排气歧管(Manifold GP, Exhaust) ……………………………………………………………………………
7-70
60046497
呼吸系统(Breathing System) …………………………………………………………………………………
7-72
60046502
水泵(Pump, Water) ……………………………………………………………………………………………
7-74
60046511
节温器及节温器室(Thermostat & Housing) …………………………………………………………………
7-76
60046507
发动机水管(Hose, Water (Engine)) …………………………………………………………………………
7-78
60046522
风扇及皮带(Fan & Belt, Fan) ………………………………………………………………………………
7-80
60046500
涡轮增压器(Turbocharger) ……………………………………………………………………………………
7-82
60046498
喷油系统(Fuel Injection System) …………………………………………………………………………
7-84
60046501
燃油泵和管(Pump & Tube, Fuel Injection) ………………………………………………………………
7-92
60046503
机油冷却器和机滤(Cooler & Filter, Oil) …………………………………………………………………
7-94
60046509
机油泵和机油滤网(Oil Pump & Strainer) …………………………………………………………………
7-100
60046510
机油管(Lines GP, Engine Oil) ………………………………………………………………………………
7-102
60046496
电器控制部件(Parts, Electric Control) …………………………………………………………………
7-106
60046524
蓄电池和电缆(Battery & Cable) ……………………………………………………………………………
7-110
60046513
耦合装置和喷射器(Coupling Equipment & Injector) ……………………………………………………
7-112
60046525
油门踏板和控制器(Throttle Pedal & Controller) ………………………………………………………
7-114
13372661 燃油箱总成(Fuel Tank Assy. SY335C9I2K.1.3.5.4A) ………………………………………………………………

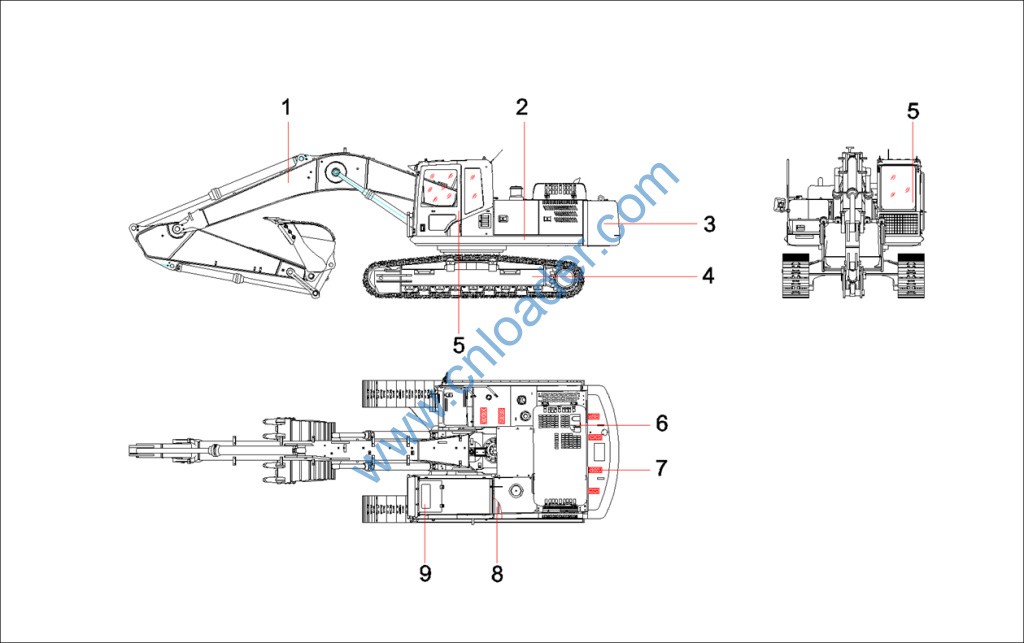

13949355 1 工作装置 Work device SY335C9I2KH0.1
13949287 1 上车系统 Superstructure assembly
12739185 1 覆盖件总装 General assembly of covering parts
13948260 1 下车系统 Undercarriage system
13949565 1 驾驶室总成 Cab Assembly SY335C9.1.5B
13948359 1 动力系统 Power system SY335C9I2KH.1.3B
13949701 1 涂装 coating SY335C9I2KH0-TZ
13949034 1 电气系统 electric system SY335C9I2KH0.4
13949727 1 随机附件 attached accessories
13729381 1 破碎锤液压管路(斗杆 Hydraulic Breaker Pipeline
11166679 2 树脂垫片 Resin spacer
11078548 4 树脂垫片 Resin spacer
11561637 4 树脂垫片 Resin Spacer

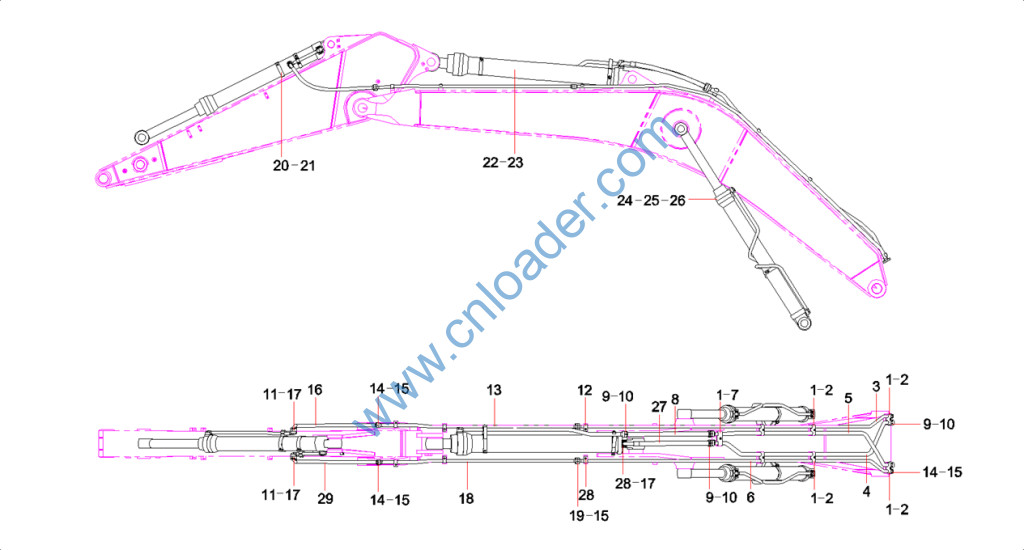

12174692 1 工作装置管路 Work device tube
12127622 1 润滑管路 Work device Lubrication Pineline
A810303990037 1 销轴 PinSY300.3.15
A820101211702 1 压板 ClampSY300.3-3
24000642 14 垫圈16GB97.1 达克锈 Washer
A820101211710 3 压板 Board
A820102010744 4 垫片 Spacer
A820102010760 4 垫片 Spacer

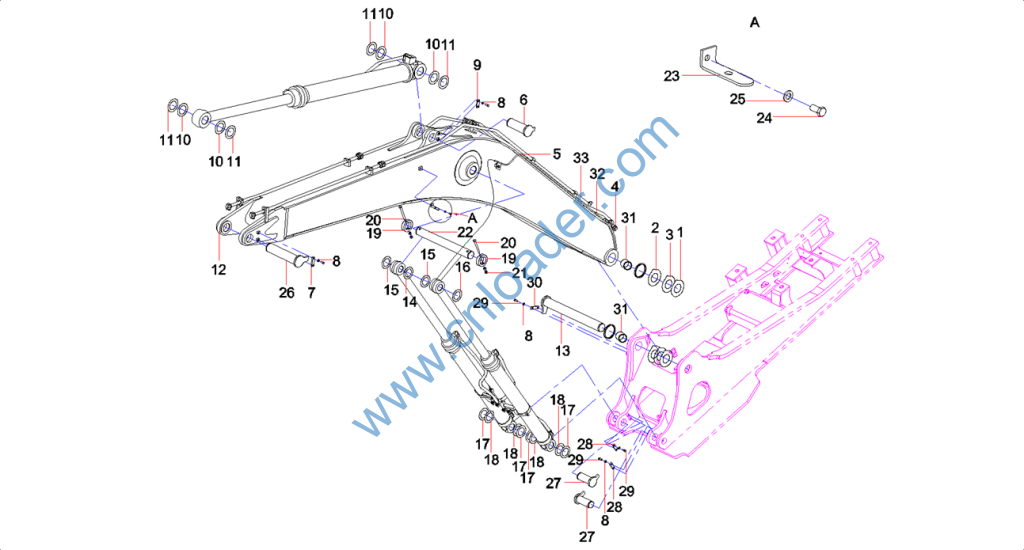

12672624 1 动臂 Boom SY335C9I2K.3.2H
A810303990036 1 销轴 PinSY300.3.14
11078567 2 树脂垫片 Resin spacer
11169586 2 树脂垫片 Resin spacer
11166681 2 树脂垫片 Resin spacer
11041901 4 树脂垫片 Gasket
11112327 4 树脂垫片 Gasket
A820101211704 2 挡片 PlateSY300.3-7
A210110000347 2 螺栓M20×200GB5782 10.9级 Bolt M20×200GB5782 10.9
A210307000029 12 螺母 Nut
A820301020537 1 销轴 Pin
A820101322531 2 灯架 Bracket, lamp
A210111000263 2 螺栓 Bolt
24000514 2 垫圈16GB93 达克锈 Washer
12740454 1 销轴 PinSY335.3.8
A810303990034 2 销轴 PinSY300.3.12
11274145 2 压板 Clamp
A210111000212 14 螺栓M16×35GB5783 10.9级 Bolt
11274177 1 压板 Board
11306936 2 轴套 Shaft Sleeve SY300.3-14B
B230101000534 4 ME-2防尘圈 Ring, dustproof
A820102010387 24 垫片 Gasket
13840155 2 动臂前叉轴套 Bushing
A810303990035 1 销轴 PIN
A810303990033 1 销轴 PinSY300.3.11

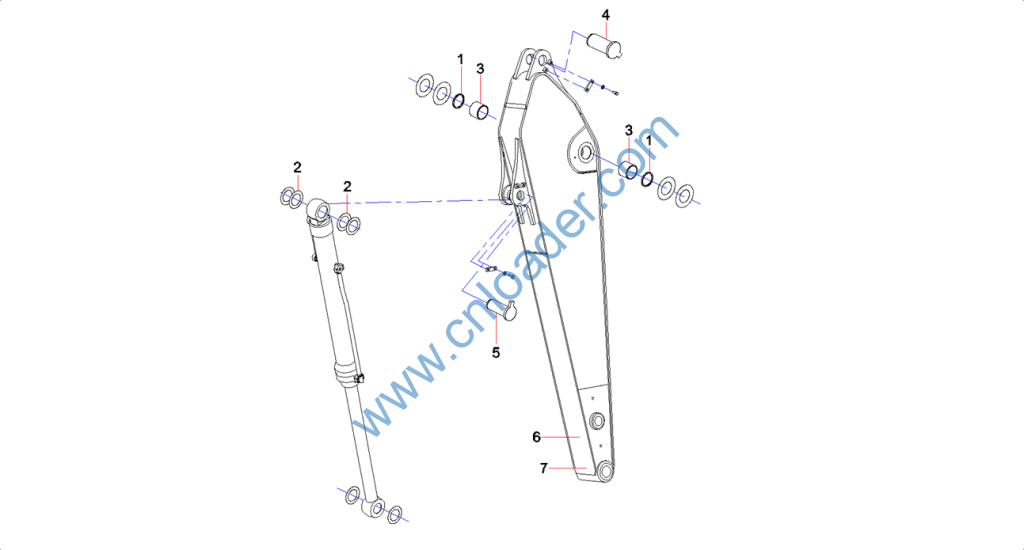

12689367 1 斗杆 Arm SY335H.3.3
变更或见其他配置 1 斗杆 bucket arm SY335C.3.3F
11945933 1 销轴 Lock pin
60055872 10 DLI防尘圈 O-ring
A820202003323 2 轴套 Bushing
A810303990032 2 销轴 PinSY300.3.10
13840151 2 斗杆前端轴套 Bushing SY305.3-2
A210608000108 2 O形圈 O-ring
A820403000465 1 压紧套 Bush
11945936 4 调整垫片 Adjusting spacer
11945934 4 调整垫片 Adjusting spacer
11945935 4 调整垫片 Adjusting spacer
11904436 1 板 Plate
A210110000172 4 螺栓M20×70GB5782 10.9级 Bolt
24000515 4 垫圈20GB93 达克锈 Washer
11267311 1 左摇杆 Left jiggle bar
11789611 1 连杆 Connecting bar SY335C.3.6A
B229900000686 7 黄油嘴 Fitting, grease
A810303990031 1 销轴 PinSY300.3.9
A820202003320 2 轴套 Bushing
A820202003321 2 轴套 Bushing
11267298 1 右摇杆 Right jiggle bar
A210110000352 4 螺栓 M20×180GB5782 10.9级 Bolt

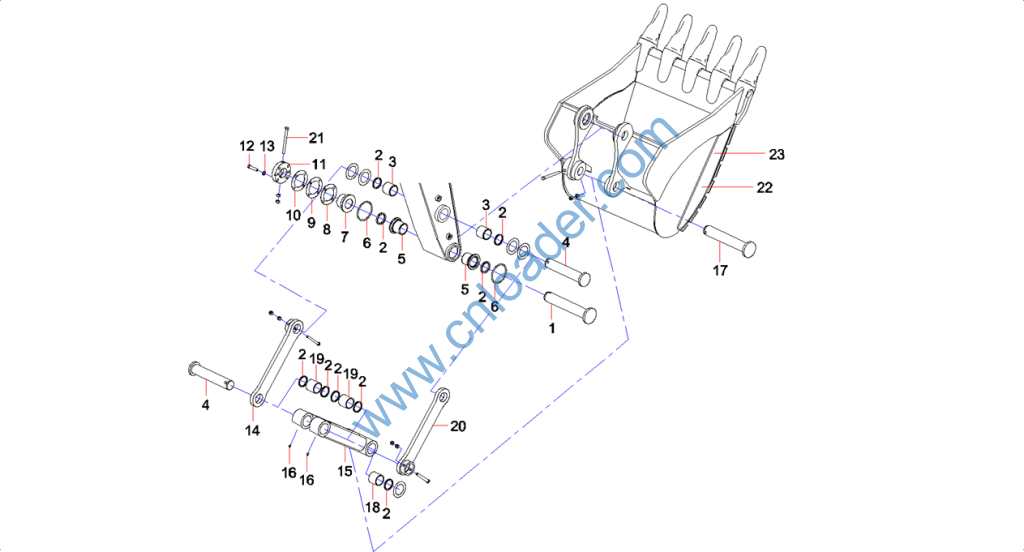

12002883 1 铲斗 Bucket
A210204000366 7 螺钉 Screw
11881916 6 管夹 Clamp, tube
12175241 1 钢管总成 Steel Pipe
12709039 1 斗杆无杆腔钢管总成 Steel Pipe
12709037 1 斗杆有杆腔钢管总成 SY335C9I2K.3.1D.2A
12934846 1 钢管总成 Steel Pipe
11859784 1 管夹 Clamp, tube
11836087 1 胶管 hose
B210780000693 10 对开法兰 Flange, Split
A210204000353 20 螺钉M14×50GB70.1 10.9级 Screw
21027533 8 螺钉M12×55GB70.1 10.9级 Screw
11881917 6 管夹 Clamp, tube
12904729 1 钢管总成 Steel Pipe
B210780000244 8 对开法兰 Flange, split
A210204000355 24 螺钉M10×40GB70.1 10.9级 Screw
60171395 1 胶管 Rubber Hose
B210780000004 6 对开法兰 Flange, split
12904578 1 钢管总成 Steel Pipe
B230101000456 2 O形圈 O-ring
60011434 1 铲斗油缸 Cylinder, bucket
12182683 1 铲斗油缸管路 Bucket cylinder pipeline
12261944 1 斗杆油缸管路 Bucket rod cylinder pipeline
60011436 1 斗杆油缸 Cylinder, arm
60011435 2 动臂油缸 Cylinder, boom
11219750 1 右动臂油缸管路 Right derrick oil cylinder pipeline
11219749 1 左动臂油缸管路 Left derrick oil cylinder pipeline
60159782 1 胶管 RubberHose
A210204000351 10 螺钉M12×50GB70.1 12.9级 Screw
60171396 1 胶管 Rubber Hose
60193825 1 活塞杆 Rod, piston
60193826 1 端盖 Cover, end
60193827 1 缸体 Cylinder block
60193828 1 活塞 Piston
60065206 1 缓冲套 Sleeve, buffer
60154028 1 螺母 Nut
60174451 1 垫片 Gasket
60044359 2 轴套 Sleeve, shaft
60044361 4 防尘圈 Ring, dust
60065342 1 防尘圈 Ring, dust
60065242 1 挡圈 Ring, retaining
60154049 1 轴用密封圈 Ring, seal
60154022 1 开口挡圈 Ring, retainer, switch
60065204 1 缓冲圈 Ring, buffer
60174503 1 孔用密封圈 Ring, seal
60065218 2 纳污环 Ring, contaminant
60174497 2 成型导向环 Ring, guide
60174489 1 O形密封圈 Ring, seal
60065236 1 O形圈挡圈 Ring, retaining
60154009 1 滑动轴套 Sleeve, sliding
60153990 1 挡圈 Ring, retaining
60169622 2 油杯 Cup, oil
60022043 12 螺钉 Screw
60174438 1 凹端螺钉 Screw, socket head
21010039 1 钢球 Ball, Steel
60140865 1 30T铲斗油缸维修包 Repair kit, cylinder, bucket
