1 60345268 Housing 1
3 60345270 Gear, Idler 1
5 60345272 Bushing 2
7 60345274 Cover, Front 1
9 60345276 Bearing 1
11 60345278 Seal, Dust 1
13 60345280 Nut, Lock 1
15 60345282 Core, Solenoid Valve 1
17 60345284 Plug 1
19 60345286 Valve, Check 1
21 60345288 Washer 4
23 60345290 Seal 1
24 60345291 Key 1
1 B210780000131 Fitting, Adapter 2
2 12872681 Valve, Swing Control 1
3 B210780000036 Fitting, Adapter 1
4 B210780000712 Fitting, Adapter 2
5 A820205001372 Fitting 2

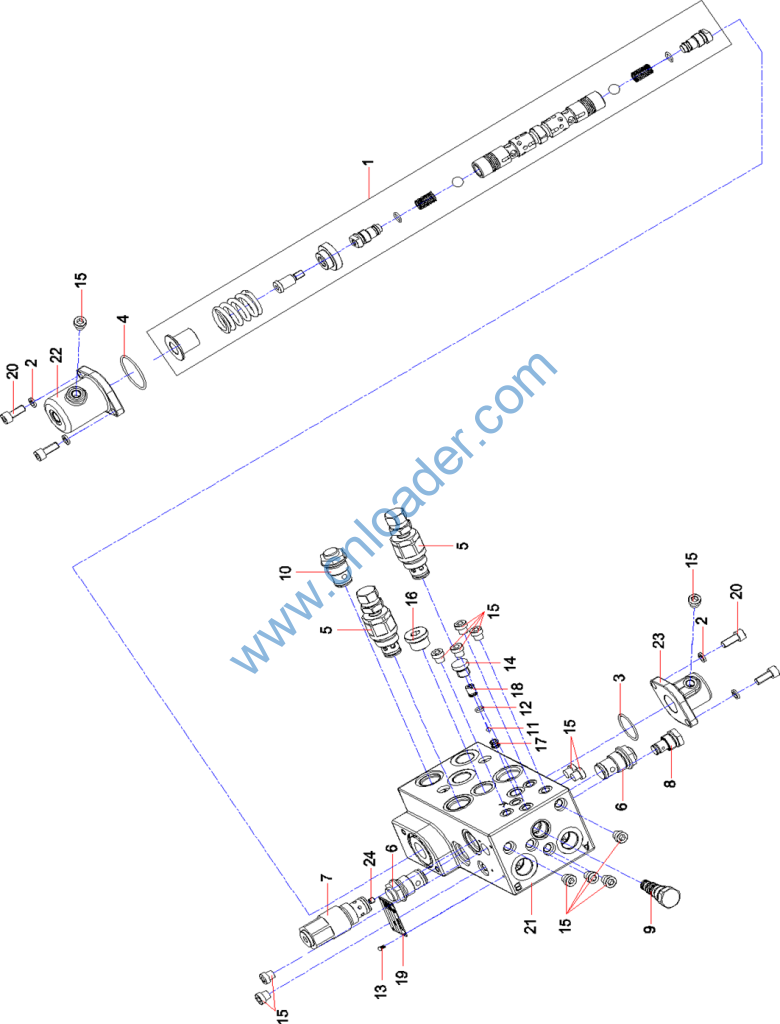

1 14143554 Spool Assembly, Swing Control Valve 1
3 A210609000046 O-ring 1
5 60024941 Relief Valve 2
7 60209459 Relief Valve 1
9 60210210 Directional Valve, Hydraulic Control 1
11 A210661000016 Ball, Steel 1
13 A210510000007 Rivet 4
15 B210399000003 Plug, Screw 14
17 11259973 Base, Shuttle Valve 1
19 13429053 Nameplate 1
21 12841784 Block, Swing Control Valve 1
23 12631888 Cover 1
24 12855527 Orifice 1
1 A210204000023 Screw 12
3 11193815 Tube Assembly 1
5 A229900003567 Fitting, Elbow 1
7 B210780000131 Fitting, Adapter 3
9 B210780001310 Fitting, Elbow 2
11 A229900003381 Fitting, Elbow 1
13 B220401001201 Valve Assembly, Counterbalance 2
15 B230103000362 Hose Assembly 1
16 B230103000445 Hose Assembly 1
1 B230103002376 Hose Assembly 1
3 B230103000398 Hose Assembly 1
5 A229900002040 Clamp, Tube, Single 1
7 13023927 Valve Assembly, Sequence, Boom Telescope 1
9 B210780000636 Fitting, Elbow 4
11 B230103000123 Hose Assembly 1
13 11572886 Tube Assembly 1
15 B230103004437 Hose Assembly 1
16 B230103004127 Hose Assembly 1
17 A229900003567 Fitting, Elbow 1
18 13078559 Tube Assembly 1
19 B210780000015 Fitting, Tee 1
20 A229900002566 Fitting, Tee 1
21 B230103002927 Hose Assembly 1
22 13098274 Tube Assembly 1
23 11569511 Tube Assembly 1
24 11569507 Tube Assembly 1
25 12229817 Relief Valve Assembly 1
26 B210780000029 Fitting, Elbow 1
1 60212019 Directional Valve, Control 1
2 B210780000036 Fitting, Adapter 4
3 A229900006484 Fitting, Adapter 3
1 60256011 Coil, Solenoid 1

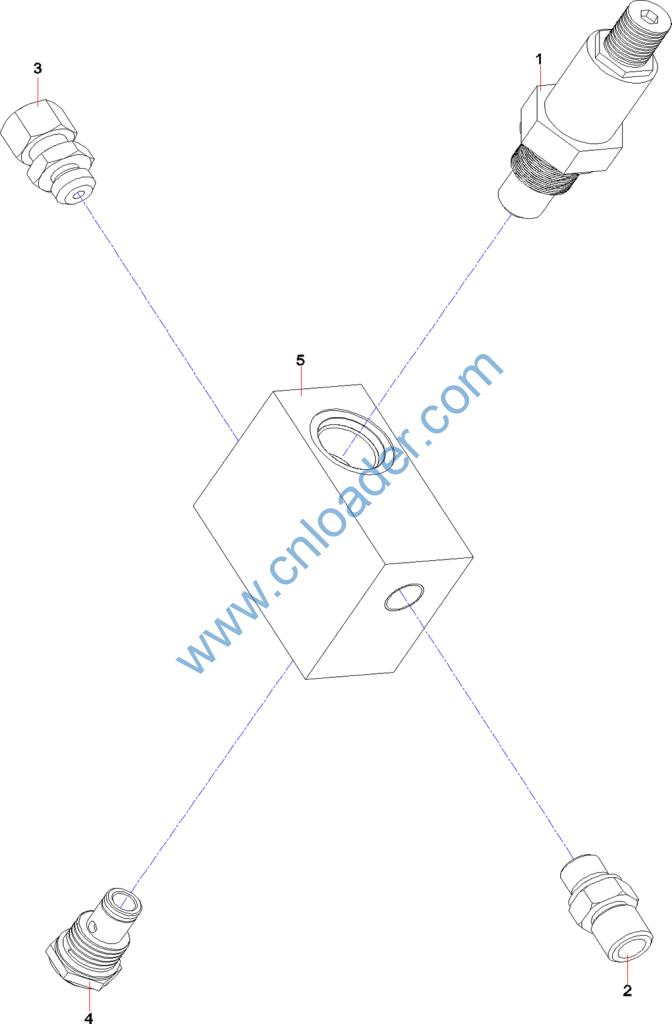

1 B220401000105 Relief Valve 1
2 B210780000036 Fitting, Adapter 1
3 B210780000012 Fitting, Adapter 1
4 60196703 Valve, Check 1
5 12229663 Valve Block, Relief 1
Item No. Part No. Description Qty. Remark
1 A210405000001 Washer 4
3 A210307000001 Nut 4
5 11568404 Tube Assembly 1
7 11568260 Tube Assembly 1
9 13065535 Tube Assembly 1
11 A229900002039 Clamp, Tube, Single 4
13 B230103000952 Hose Assembly 2
15 B210780001392 Fitting, Elbow 2
17 13066082 Tube Assembly 1
18 B230103002579 Hose Assembly 1

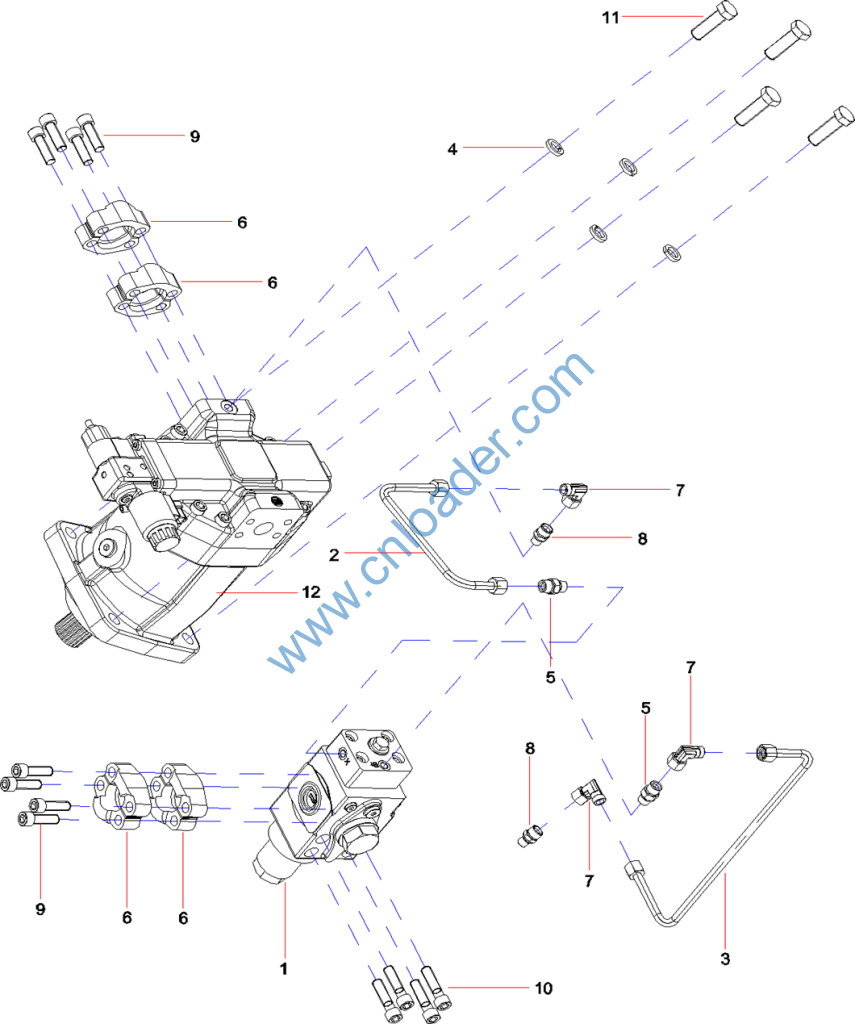

1 13594621 Valve Assembly, Counterbalance, Hoist 1
2 14091527 Tube Assembly 1
3 13666356 Tube Assembly 1
4 A210401000004 Washer 4
5 A229900002544 Fitting, Adapter 2
6 B210780000004 Flange, Split 4
7 B210780000636 Fitting, Elbow 3
8 B210780001286 Fitting, Adapter 2
9 A210204000023 Screw 8
10 A210204000025 Screw 4
11 A210111000243 Bolt 4
12 11567284 Motor Assembly, Plunger 1

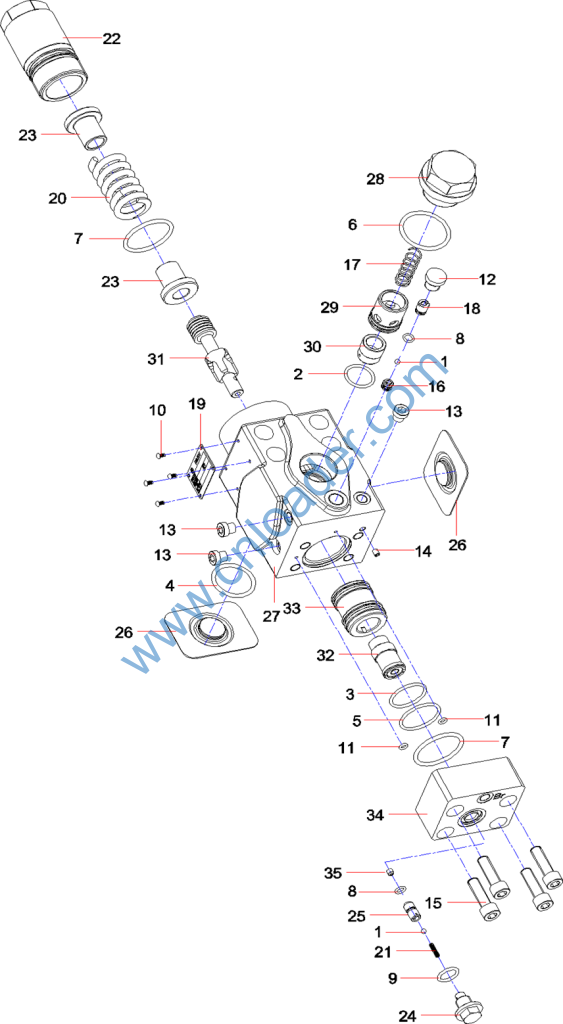

1 A210661000016 Ball, Steel 2
3 A210609000046 O-ring 1
5 A210609000117 O-ring 1
7 A210609000138 O-ring 2
9 A210609000120 O-ring 1
11 A31C200500100 O-ring 2
13 B210399000003 Plug, Screw 3
15 A210204000163 Screw 4
17 13858409 Spring 1
19 13429053 Nameplate 1
21 11846856 Spring, Return 1
23 13400535 Retainer, Spring 2
25 13400466 Cartridge, Check Valve 1
27 13560457 Valve Body, Counterbalance 1
29 13565899 Sleeve, Check Valve 1
31 13568081 Spool, Valve 1
32 13594458 Piston 1
