STC800S Truck Crane TC2080BH2776 SANY DN

Item No.

Part No.

Description

Qty.

Remark

1

60248264

Plug, Threaded

2

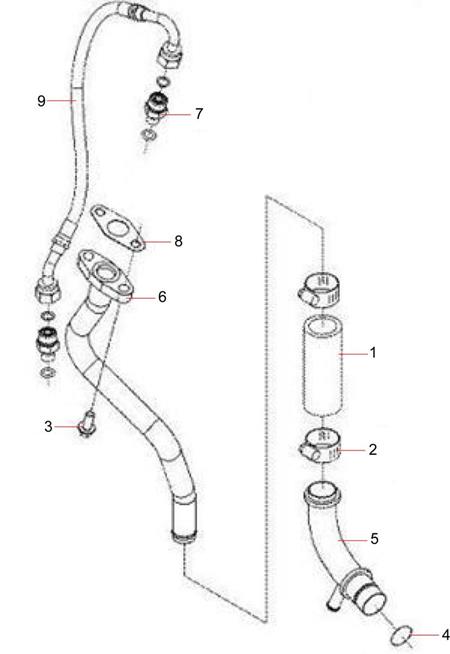

Item No.

Part No.

Description

Qty.

Remark

1

60248384

Hose, Plain

1

2

60248160

Clamp, Hose

2

3

60103927

Bolt, Flange, Hexagon

2

4

60248102

O-ring

1

5

60248377

Tube, Tur Oil Drain

1

6

60248378

Connection, Tur Oil Drain

1

7

60102375

Fitting, Connector

2

8

60078104

Pad, Pipe, Oil Return

1

9

60286280

HEXAGON SCREW

1

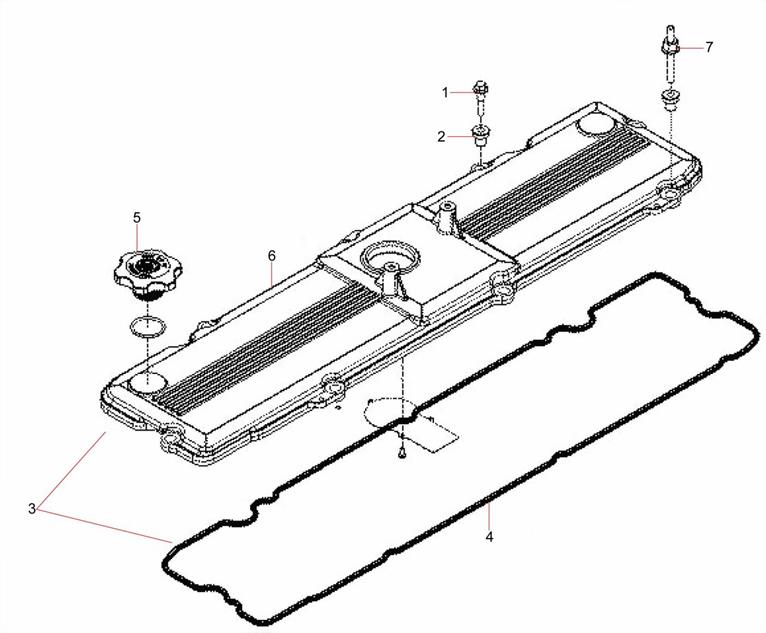

Item No.

Part No.

Description

Qty.

Remark

1

60102449

Bolt, Flange, Hexagon

7

2

60248189

Isolator, Vibration

8

3

60286245

Cover, Valve

1

4

60248289

Gasket, Valve Cover

1

5

60248184

Cap, Filler

1

6

60286246

Cover, Valve

1

7

60286234

Screw, Studded Flange Cap

1

Item No.

Part No.

Description

Qty.

Remark

1

60104005

Hex Tapered Screw

2

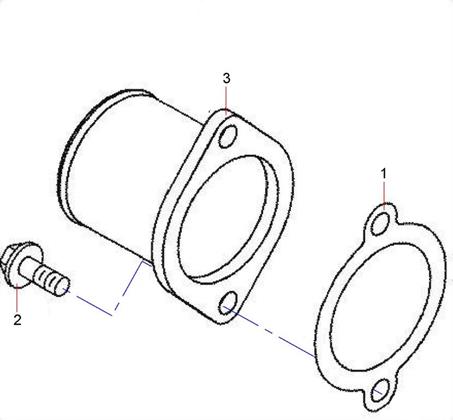

Item No.

Part No.

Description

Qty.

Remark

1

60248266

Gasket, Connection

1

2

60103927

Bolt, Flange, Hexagon

2

3

60248334

Connection, Water Outlet

1

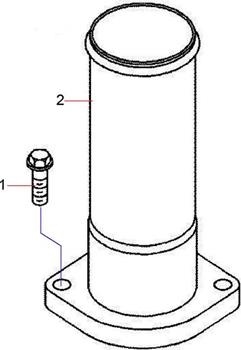

Item No.

Part No.

Description

Qty.

Remark

1

60103928

Bolt, Flange, Hexagon

2

2

60248119

Connector, Water Outle

1

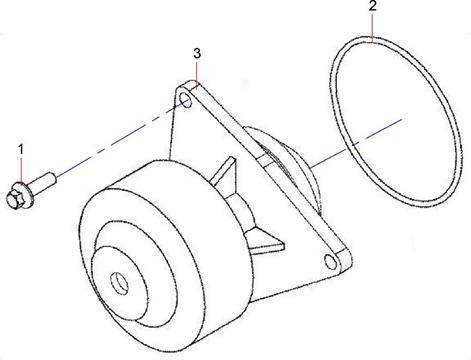

Item No.

Part No.

Description

Qty.

Remark

1

60103925

Bolt, Flange, Hexagon

3

2

60248103

O-ring

1

3

60017643

Pump, Water

1

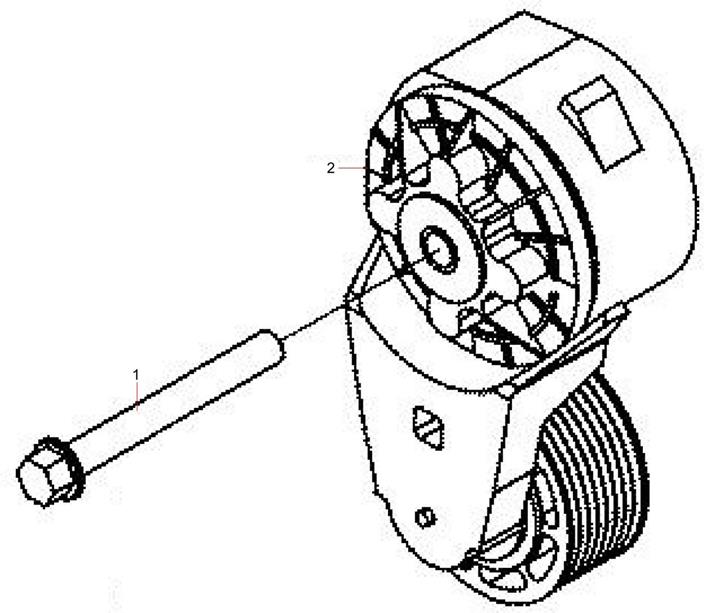

Item No.

Part No.

Description

Qty.

Remark

1

60102445

Screw, Hex Flange Head Cap

1

2

60282419

Tension Wheel

1

Item No.

Part No.

Description

Qty.

Remark

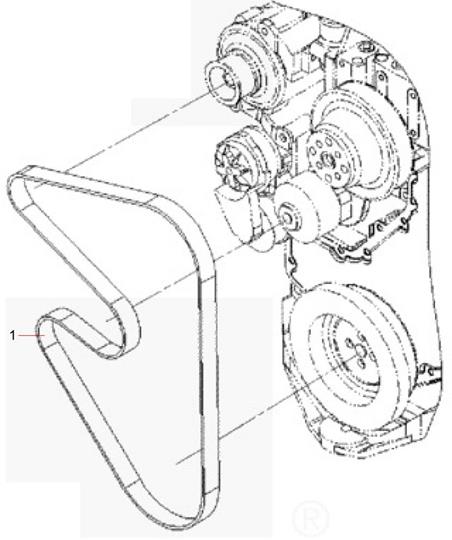

1

60034238

Belt

1

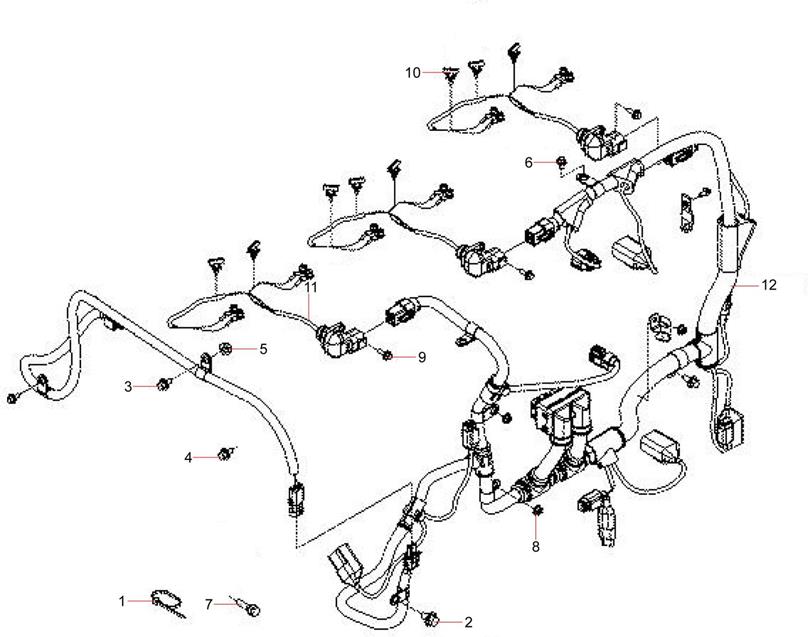

Item No.

Part No.

Description

Qty.

Remark

1

60248364

Clamp, Wire Tie

1

2

60102441

Screw, Hex Flange Head Cap

1

3

60102444

Bolt, Flange, Hexagon

1

4

60102444

Bolt, Flange, Hexagon

1

5

60102436

Surface Nut, Flange, Hexagon

1

6

60102446

Bolt, Flange, Hexagon

1

7

60102472

Bolt, Flange, Hexagon

1

8

60248225

Nut, Hexagon Flange

3

9

60102457

Bolt, Flange, Hexagon

3

10

60248363

Clip, Wire Retaining

8

11

60248361

Harness, Wiring

3

12

60286200

Harness, Electric Control Module

1

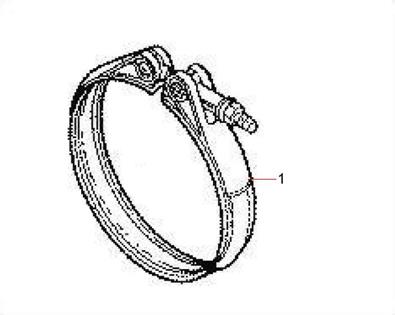

Item No.

Part No.

Description

Qty.

Remark

1

60057032

Clamp, V-type

1

Item No.

Part No.

Description

Qty.

Remark

1

60272971

Transmission shaft

1

2

A210404000005

Washer

1

3

A210405000011

Washer

8

4

A210405000003

Washer

4

5

60006385

Ring, Retaining

1

6

A210319000001

Nut

8

7

A210111000011

Bolt

1

8

A210111000023

Bolt

4

9

A210111000025

Bolt

4

10

A210319000012

Nut

4

11

A210111000230

Bolt

4

12

13273176

Spacer flange, oil pump SYM5463JD3.1.7-1

1

13

13514876

Fixed plate, oil pump bracket SYM5463JD3

1

Item No.

Part No.

Description

Qty.

Remark

1

10934266

Hose

1

2

A210405000011

Washer

2

3

A210405000001

Washer

12

4

60008025

Hinge, Metric

2

5

A210434000008

Washer

5

6

A210434000009

Washer

1

7

A210199000016

Bolt

2

8

60145575

Fuel Tank

1

9

60160169

Adapter Assembly, Fuel Supply and Return

1

10

A210855000003

Clamp

6

11

A210319000001

Nut

2

12

A210111000023

Bolt

2

13

A210319000006

Nut

12

14

A210111000040

Bolt

12

15

10934267

Hose

1

16

10178417

Fitting, Adapter

1

17

10178418

Fitting

1

18

10778113

Hose, Supply, Fuel Filter

1

Item No.

Part No.

Description

Qty.

Remark

1

60134273

Cap, Fuel Tank

1

2

60232385

Oil tank cushion belt

1

3

60232384

Fuel Tank Hooping Strip

2

4

60232383

Oil tank right support

1

Item No.

Part No.

Description

Qty.

Remark

1

A229900008853

Pedal, Electronic Throttle

1

2

13342857

ECU harness SYM5463JD3.8.5A

1

3

A810201206088

SANY Motion Control Assembly

1

4

14075679

Controller harness

1

5

12849685

Alarm Device

1

6

12934446

Chassis Illuminating systemSYM5403JW.9.9

1

7

A810201058463

Wire, Copper

2

8

14076233

Power supply control system

1

9

13274220

Storage battery assembly SYM5463JD3.8.1

1

10

60012795

Cable, Battery

1

11

14017073

main harness SYM5463JD3.8.2B

1

12

13342865

Brake block abrasion detection harness S

1

13

60267405

Sensor, Pressure

2

14

60202939

Angle sensor

3

15

13274837

Right tail Lamp cluster assem SYM5463JD3

1

16

13274832

Left tail Lamp cluster assem SYM5463JD3.

1

17

60047424

Sensor, pressure

8

18

13257475

100t Harness SYM5552J6.8.11

4

19

12227823

Control Device, Engine Speed

1

20

12247481

Instrument & Sensor System

1

21

12299867

Accessories, Electrical System, Carrier

1

22

13274222

Chassis circuit diagram SYM5463JD3.8-DL

1

Item No.

Part No.

Description

Qty.

Remark

23

A241200001204

Rocker switch

1

24

A241200001207

Rocker switch

1

25

A241200001201

Rocker switch

1

26

A810201058458

Cable, Electrical, Gearbox

4

27

60040030

Rocker Switch

1

28

60040031

Rocker Switch

1

29

12916031

Monitor Device, Reversing

1

Item No.

Part No.

Description

Qty.

Remark

1

60180268

Horn, Electric

1

2

60147740

Sensor, Liquid Level

1

3

A240500000076

Horn Assembly

1

Item No.

Part No.

Description

Qty.

Remark

1

A241100000349

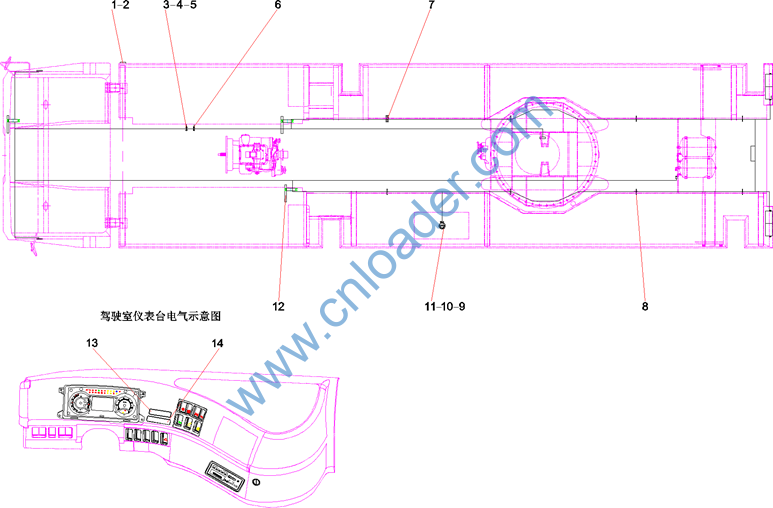

Marker Light, Side

8

2

60084687

Light, Work

4

3

60105153

Lamp, License Plate

1

4

60051778

Lamp, rear, left combinition

1

5

60051777

Lamp GP, rear, right combination

1

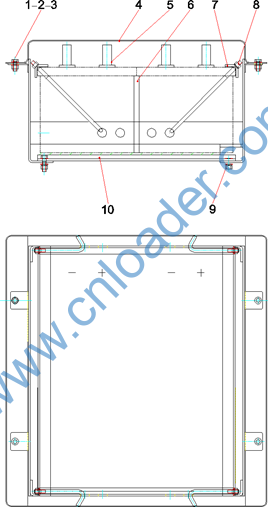

Item No.

Part No.

Description

Qty.

Remark

1

A210111000089

Bolt

4

2

A210319000004

Nut

4

3

A210405000007

Washer

8

4

A229900003373

Cover, Battery

1

5

60213973

Battery

2

6

A820604000164

Separator, Battery

1

7

A820101331143

Plate, Battery

2

8

A820301016039

J-bolt

4

9

A210111000092

Bolt

4

10

11702813

Battery Box Installation

1

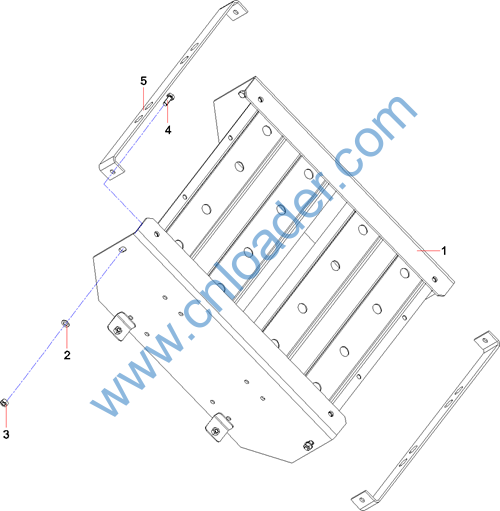

Item No.

Part No.

Description

Qty.

Remark

1

11702815

Battery Box Assembly

1

2

A210405000007

Washer

4

3

A210307000012

Nut

4

4

A210111000089

Bolt

4

5

11702812

Plate, Support

2

Item No.

Part No.

Description

Qty.

Remark

1

60188923

Throttle Switch Assembly, Outrigger

2

Item No.

Part No.

Description

Qty.

Remark

1

60072876

Switch, Pressure

1

2

11343921

Fitting, Tee, Pressure

1

3

60285451

Fitting, Adapter

1

4

A240600000139

Sensor, Fuel Level

1

5

60060804

Sensor, Odometer

1

6

60072877

Switch, Brake Lamp

2

7

10786273

Fitting, Tee

1

8

60293901

Sensor, Pressure

2

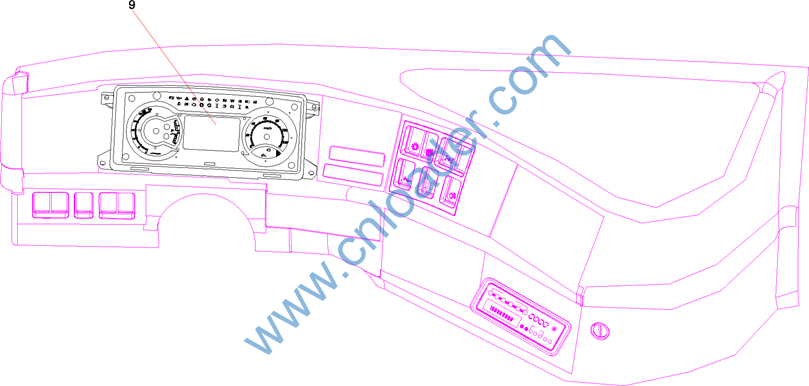

Item No.

Part No.

Description

Qty.

Remark

9

60222011

Combination bus instrument

1

Item No.

Part No.

Description

Qty.

Remark

1

12731155

Decal, Power Switch Operation

1

2

A210510000007

Rivet

4

3

A210111000089

Bolt

17

4

A210319000004

Nut

34

5

A210405000007

Washer

42

6

A210111000092

Bolt

6

7

60125826

Clamp, Harness, Locating

18

8

60125827

Clamp, Harness, Locating

18

9

A210210000003

Screw

7

10

A210401000015

Washer

11

11

A210404000010

Washer

5

12

A820606010865

Clip, gripper

7

13

10754912

Decal, Warning, Vehicle Start to Move

1

14

10115775

Decal, Caution, PTO, Operation

1

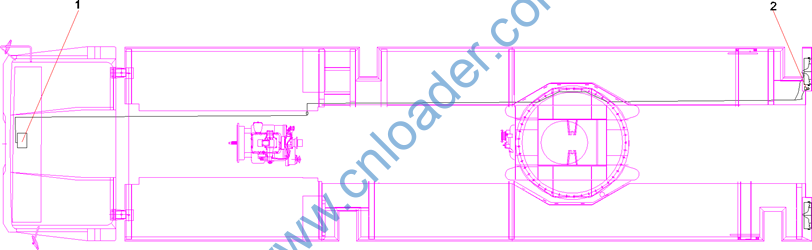

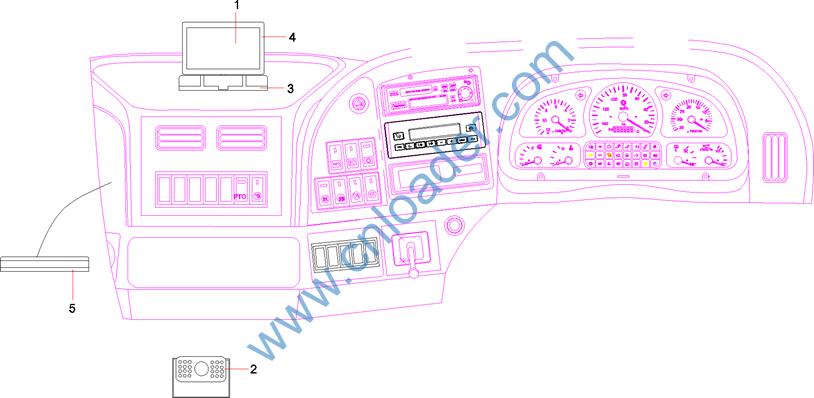

Item No.

Part No.

Description

Qty.

Remark

1

B230300000025

Monitor, Backup

1

2

A249900000826

Alarm, Backup

1
