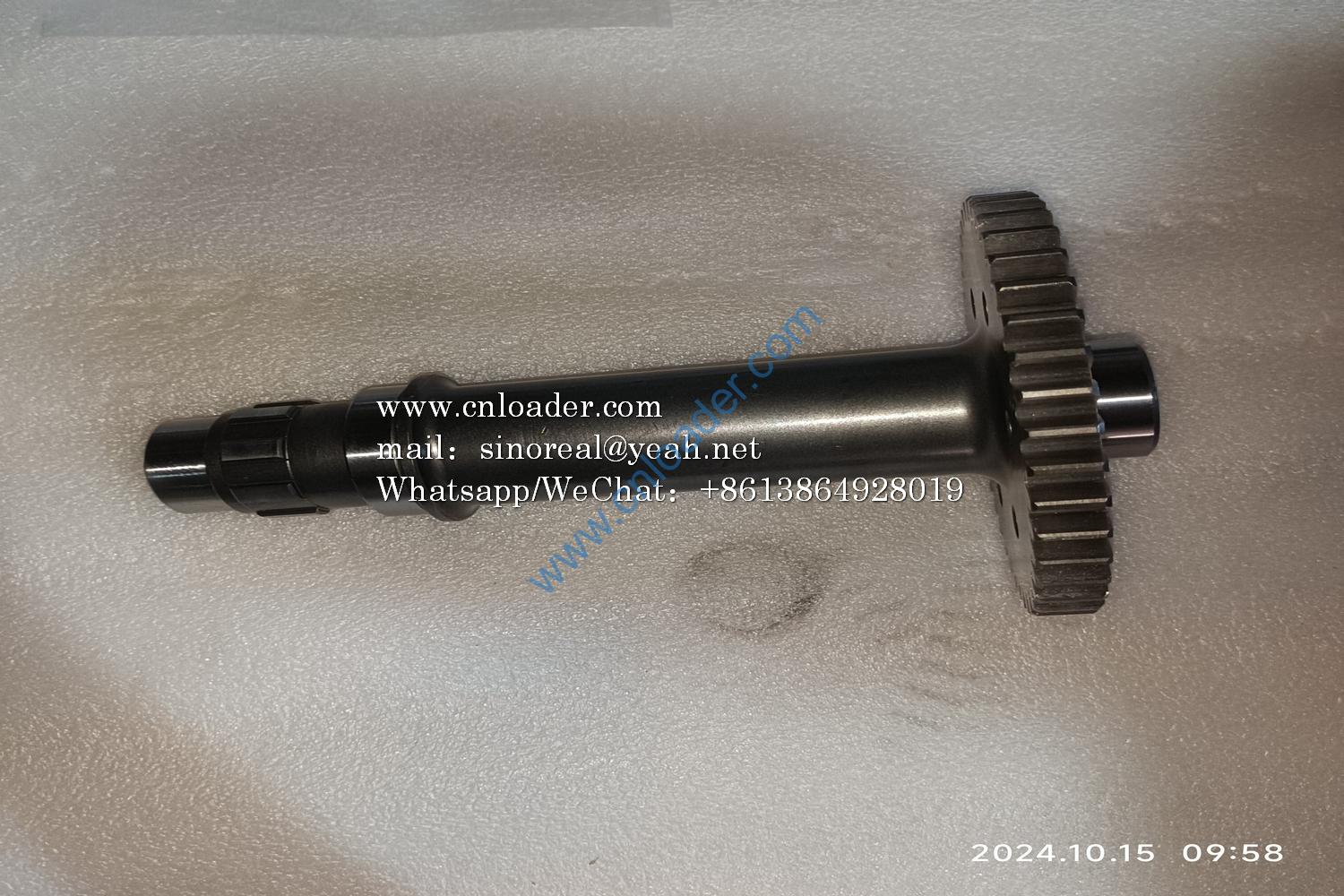

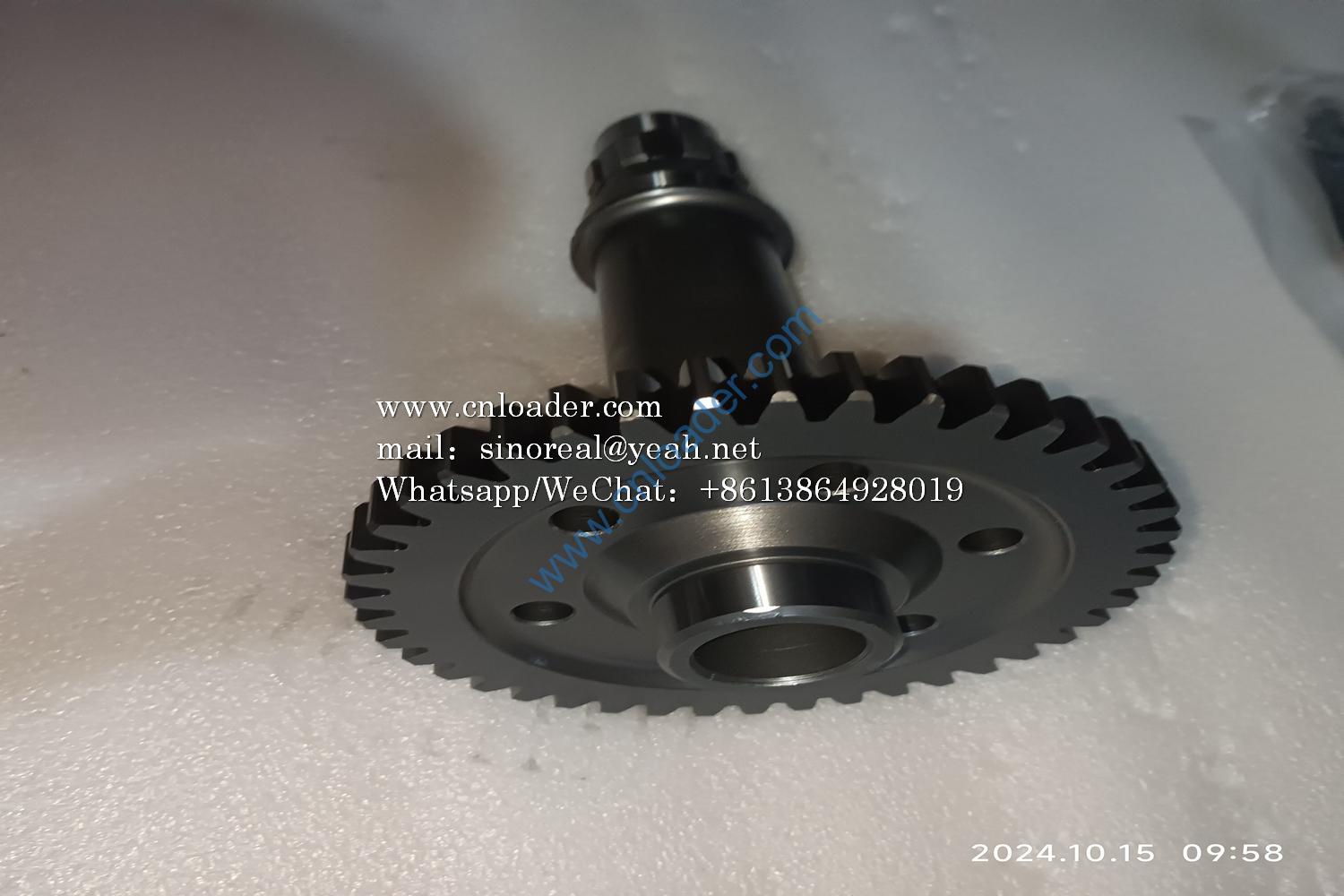

Shaft gear 3030900094

Description

Shaft gear 3030900094

750102000042 1 THRUST WHEEL 支重轮ZZL-28
701510008003 1 WASHER 垫圈8-DKL GB/T 93
302530000021 A2 LEFT GUIDE PLATE 左导向板
302530000022 A2 RIGHT GUIDE PLATE 右导向板
750101000034 1 CRAWLER ASSEMBLY 履带总成8101-GH-412301
701512030001 1 STOP COLLAR 挡圈30 GB/T 894
730250000642 1 TRAVEL MOTOR 行走马达JMV016RR（11010093201）

872561100000 S1 DOZER 推土铲
304020002611 A2 AXIS PIN 销轴 40×114
703102010002 1 OIL CUP 油杯M10X1 45°JB/T 7940.2
304020001044 A1 LOCATING PIN 定位销10X54
305070500012 A1 STEEL WIRE RING 钢丝挡圈
304020002612 A2 AXIS PIN 销轴 40×144
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
829996840000 A6 DOZER CYLINDER 推土油缸
302510000130 A2 CYLINDER GUARD PLATE 油缸保护板
701104010018 1 BOLT 螺栓M10X20-10.9 GB/T 5783
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701510010001 1 WASHER 垫圈10-ZnD GB/T 93
304020002613 A2 AXIS PIN 销轴 40×147
730652000026 1 DUSTBAND 防尘圈DLW04002 50X40X5
305040001575 A2 SHAFT SLEEVE 轴套 40×47
829956020000 A1 GASKET UNIT 垫片组2
813651010000 A2 GASKET UNIT 垫片组 I(80X41)

305040000063 A5 BUSH 衬套Ⅰ
730652000230 1 DUSTBAND 防尘圈DKBI FD2342F0
305090001074 A2 CYLINDER HEAD 缸头
730601000248 1 PISTON ROD SEAL PART 活塞杆密封ISI-40X50X6
730603000011 1 O-RING O形圈74.4X3.1-NBR-A70-JISB 2401(P)
730601000300 1 BUFFERING RING 缓冲环HBY FQ0253F3
730603000386 1 O-RING O形圈69.44X3.53-NBR-A70-AS 568(P)
730654000213 1 STOP COLLAR 挡圈69.5X75X2 PTFE
750502000029 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB4020
829996840100 A3 PISTON ROD ASSEMBLY 活塞杆组件
829996840200 A6 CYLINDER BARREL UNIT 缸筒组件
305090000942 A4 PISTON 活塞
730651000021 1 BEARING RING 填充POM支承环-填充POM 75X70X9.7
730602000210 1 PISTON SEAL 活塞密封件SPGW GS0995V5
301020002003 A1 LOCK RING 锁圈
730654000074 1 STOP COLLAR 挡圈40X50X3
730603000563 1 O-RING O形圈31.42X2.62-NBR-A90-AS 568(P)

390004990002 1 PISTON ROD FSTC2.5涨紧活塞杆
730652000015W 1 DUSTBAND 防尘圈DH 35X43X5/6.5
730601000010W 1 PISTON ROD SEAL 活塞杆密封件ISI 35X45X6
730654000004W 1 CHECK RING 挡圈（PTFE） 35X45X3 45°斜切口
390002490005 1 FLANCH FSTC2.5涨紧法兰
392305090003 S1 CYLINDERS FSTC2.5涨紧缸体
390001030012 S1 SPRING FSTC2.5涨紧压紧弹簧
390002490006 S1 FRONT PRESSING PLATE FSTC2.5涨紧前压板
390007060002 S1 NUT FSTC9.0涨紧并紧螺冒
701303068001W 1 SCREW 开槽锥端紧固螺钉M6X8 GB/T 71
703202016001W 1 COMPOUND GASKET 组合垫片Φ16 JB/T 982
8D6701000000 A1 OIL INLET CHECK VALVE FSTC5.0进油单向阀

829956100000 A7 DEFLECTION HEAD WELDING 偏转头焊接
701302008025 1 SCREW 螺钉M8X20-8.8-DKL GB/T 70.1
701510008003 1 WASHER 垫圈8-DKL GB/T 93
302540008484 A2 HOSE PRESSING PLATE 软管压板
829956000200 A4 DEFLECTION SHAFT ASSEMBLY 偏转轴组件
730652000032 1 DUSTBAND 防尘圈DLW08501 100X85X4
305040001574 A1 SHAFT SLEEVE 轴套
829956000100 A3 SHAFT ASSEMBLY 轴组件A
829956020000 A1 GASKET UNIT 2 垫片组2
701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB/T 5783
701510012004 1 WASHER 垫圈12-DKL GB/T 93
305070500012 A1 STEEL CABLE BAFFLE RING 钢丝挡圈
701702010005 1 PIN 销B10X50 GB119
701104010034 1 BOLT 螺栓M10X30-10.9-DKL GB/T 5783
701523010001 1 WASHER 垫圈10-DKL GB/T 7244
305040000625 A1 BUSH 衬套
829956010000 A1 GASKET UNIT 垫片组1（140X86）
302030008939 A1 COVER PLATE 盖板
829996850000 A4 DEFLECTION CYLINDER 偏转油缸
304020002607 A1 SHAFT 轴A
302540003781 A1 GUARD PLATE OF DEFLECTION HEAD 偏转头护板
302030401010 A3 CHECK BLOCK 挡块
829956030000 A1 GASKET UNIT 3 垫片组3
701104008040 1 BOLT 螺栓M8X30-10.9-DKL GB/T 5783
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
302540016376 A1 GUARD PLATE OF DEFLECTION HEAD 偏转头护板

872551100000 S3 SWING ARM WELDING 动臂焊接件
862196820007 S1 DIPPER CYLINDER 斗杆油缸
302040001289 A1 LAMPHOLDER 灯座
829996810000 A10 BOOM CYLINDER 动臂油缸
701510008003 1 WASHER 垫圈8-DKL GB/T 93
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
701302008020 1 SCREW 螺钉M8X25-8.8-DKL GB/T 70.1
304020002597 A1 SHAFT 1 轴1
814251010000 A2 GASKET UNIT 垫片组 I(90X41)
730652000026 1 DUSTBAND 防尘圈DLW04002 50X40X5
305060002305 A2 SHAFT SLEEVE 轴套
305040000613 A1 BUSH 衬套1
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
701702105501 1 CYLINDRICAL PIN 圆柱销10X55 GB/T 119.2
305070500012 A1 STEEL WIRE RING 钢丝挡圈
304020002598 A1 SHAFT 2 轴2
829951200000 A1 ADJUSTABLE PAD 调整垫(75*41)
304020002600 A1 SHAFT 3 轴3
813651050000 A2 GASKET UNIT 垫片组 Ⅹ(68X41)
304020002602 A1 SHAFT 4 轴4
810254020000 A2 GASKET UNIT 垫片组 III(63X36)
701104012027 1 BOLT 螺栓M12X25-8.8-DKL GB/T 5783
701510012004 1 WASHER 垫圈12-DKL GB/T 93
701504012005 1 WASHER 垫圈12-DKL GB/T 97.1
814251200000 A3 GUARD PLATE OF BOOM CYLINDER 动臂油缸护板

862154120000 S4 连杆总成
862154110000 S5 BUCKET ROD 斗杆焊接
862196830000 S3 BUCKET CYLINDER 铲斗油缸
703201060004 1 O-RING O形圈60X5.3-G-N-GB/T 3452.1
730652000027 1 DUSTBAND 防尘圈DLW03501 45X35X4
304020002603 A1 SHAFT 1 轴1
750911000023 1 RESIN ADJUSTING PAD 树脂调整垫Ф80XФ36X1
305040000626 A1 BUSH 衬套1
302490047096 S1 RIGHT ROCKER ARM 右摇臂
304020002605 A1 SHAFT 2 轴2
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
305040001572 A1 SHAFT SLEEVE 3 轴套3
750911000046 1 RESIN ADJUSTING PAD 树脂调整垫Ф80XФ36X1.5
701702010005 1 PIN 销B10X50 GB119
301020103001 A1 STEEL CABLE BAFFLE RING 钢丝挡圈
862154130000 S2 LEFT ROCKER ARM WELDING 左摇臂焊接
304080002285 S1 SHAFT 3 轴3
305040001571 A1 SHAFT SLEEVE 1 轴套1
304020002616 A1 SHAFT 4 轴4
305040001576 A1 SHAFT SLEEVE 2 轴套2
305040002008 S1 BUSH 衬套
730652000026 1 DUSTBAND 防尘圈DLW04002 50X40X5
305070500012 A1 STEEL CABLE BAFFLE RING 钢丝挡圈
701702105501 1 CYLINDRICAL PIN 圆柱销10X55 GB/T 119.2
703201069003 1 O-RING O形圈69X5.3-G-N-GB/T 3452.1
750911000030 1 RESIN ADJUSTING PAD 树脂调整垫Ф80XФ41X1
750911000051 1 RESIN ADJUSTING PAD 树脂调整垫Ф80XФ41X1.5
750911000028 1 RESIN ADJUSTING PAD 树脂调整垫Ф70XФ36X1
750911000049 1 RESIN ADJUSTING PAD 树脂调整垫Ф70XФ36X1.5

862155000004 S2 STANDARD BUCKET ASSEMBLY 25U普通铲斗总成（300/0.04）
862155000002 S1 STANDARD BUCKET ASSEMBLY 25U普通铲斗总成（485/0.065）
862155000001 S1 STANDARD BUCKET ASSEMBLY 25U标准铲斗总成(580/0.08)
862155000003 S1 STANDARD BUCKET ASSEMBLY 25U普通铲斗总成（1000/0.13）
862152000000 S3
QUICK EXCHANGE INSTALLATION（ITALY） 25U意大利快换
